Global Specialties 1410 User manual

90W DC
Power Supply User Manual
1410
www. .com [e-mail]1.800.561.8187

1
Safety Summary
The following safety precautions apply to both operating and
maintenance personnel and must be observed during all phases
of operation, service, and repair of this instrument. Before applying
power, follow the installation instructions and become familiar with
the operating instructions for this instrument.
GROUND THE INSTRUMENT
To minimize shock hazard, the instrument chassis and cabinet must
be connected to an electrical ground. This instrument is grounded
through the ground conductor of the supplied, three-conductor ac
power cable. The power cable must be plugged into an approved
three-conductor electrical outlet. Do not alter the ground connection.
Without the protective ground connection, all accessible conductive
parts (including control knobs) can render an electric shock. The
power jack and mating plug of the power cable meet IEC safety
standards.
DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE
'RQRWRSHUDWHWKHLQVWUXPHQWLQWKHSUHVHQFHRIÀDPPDEOH
gases or fumes. Operation of any electrical instrument in such an
HQYLURQPHQWFRQVWLWXWHVDGH¿QLWHVDIHW\KD]DUG
KEEP AWAY FROM LIVE CIRCUITS
Instrument covers must not be removed by operating personnel.
Component replacement and internal adjustments must be made by
TXDOL¿HGPDLQWHQDQFHSHUVRQQHO'LVFRQQHFWWKHSRZHUFRUGEHIRUH
removing the instrument covers and replacing components. Under
certain conditions, even with the power cable removed, dangerous
voltages may exist. To avoid injuries, always disconnect power and
discharge circuits before touching them.
DO NOT SERVICE OR ADJUST ALONE
Do not attempt any internal service or adjustment unless another
SHUVRQFDSDEOHRIUHQGHULQJ¿UVWDLGDQGUHVXVFLWDWLRQLVSUHVHQW
DO NOT SUBSTITUTE PARTS OR MODIFY THE INSTRUMENT
Do not install substitute parts or perform any unauthorized
www. .com [e-mail]1.800.561.8187

2
PRGL¿FDWLRQVWRWKLVLQVWUXPHQW5HWXUQWKHLQVWUXPHQWWR*OREDO
Specialties (Cal Test Electronics) for service and repair to ensure
that safety features are maintained.
WARNINGS AND CAUTIONS
WARNING and CAUTION statements, such as the following
examples, denote a hazard and appear throughout this manual.
Follow all instructions contained in these statements.
A WARNING statement calls attention to an operating procedure,
practice, or condition, which, if not followed correctly, could result in
injury or death to personnel.
A CAUTION statement calls attention to an operating procedure,
practice, or condition, which, if not followed correctly, could result in
damage to or destruction of parts or the entire product.
WARNING
Do not alter the ground connection. Without the protective ground
connection, all accessible conductive parts (including control knobs)
can render an electric shock. The power jack and mating plug of the
power cable meet IEC safety standards.
WARNING
To avoid electrical shock hazard, disconnect power cord before
UHPRYLQJFRYHUV5HIHUVHUYLFLQJWRTXDOL¿HGSHUVRQQHO
CAUTION
Before connecting the line cord to the AC mains, check the rear
panel AC line voltage indicator. Applying a line voltage other than
the indicated voltage can destroy the AC line fuses. For continued
¿UHSURWHFWLRQUHSODFHIXVHVRQO\ZLWKWKRVHRIWKHVSHFL¿HGYROWDJH
and current ratings.
CAUTION
This product uses components which can be damaged by electro-
static discharge (ESD). To avoid damage, be sure to follow proper
procedures for handling, storing and transporting parts and
www. .com [e-mail]1.800.561.8187

3
subassemblies which contain ESD-sensitive components.
Compliance Statements
Disposal of Old Electrical & Electronic Equipment (Applicable in the
European Union and other European countries
with separate collection systems). This product is
subject to Directive 2012/19/EU of the European
Parliament and the Council of the European
Union on waste electrical and electronic
equipment (WEEE), and in jurisdictions adopting
that Directive, is marked as being put on the
market after August 13, 2005, and should not be
disposed of as unsorted municipal waste. Please
utilize your local WEEE collection facilities in the
disposition of this product and otherwise observe
all applicable requirements.
1 INTRODUCTION
The 1410 Power Supply is a high quality serial control type DC
5HJXODWHG3RZHU6XSSO\7KLVPRGHOFDQEHRSHUDWHGDWFRQVWDQW
voltage or constant current mode whose output can be varied from
0 to 30 volts.
This compact unit has separate 3-digit LED voltage and
current meters for monitoring of the output voltage and current
simultaneously. In terms of operability, the 1410 enables high
SUHFLVLRQFRQWLQXRXVYDULDELOLW\YLDFRDUVHDQG¿QHDGMXVWNQREV
The 1410 can be connected in parallel with multiple units of the
VDPHPRGHOVHWXSLQ³0DVWHU6ODYH´FRQ¿JXUDWLRQWRLQFUHDVHWKH
output current capability.
Serial connection of multiple units can be used to increase the
output voltage level.
The 1410 provides clean and stable DC output which is most
VXLWDEOHIRUPDQ\DUHDVLQFOXGLQJODERUDWRU\LQGXVWULDO¿HOGVHUYLFH
hobby, and educational applications.
www. .com [e-mail]1.800.561.8187

4
2 FEATURES
zConstant voltage / constant current power supply which
features excellent line and load regulations, low ripple and
noise characteristics.
zThe unit features separate voltage and current meters
so that output voltage and current can be monitored
simultaneously.
zOutput voltage and current can be adjusted continuously in
full range to any desired values. Adjustment can be done
easily and precisely by using separate coarse and fine
adjust knobs.
zThe constant current circuit operates to protect against
overload and output short circuit. The limiting current values
can be preset in the full range of the rated values.
zMultiple units of the 1410 can be connected in series to
provide higher output voltage.
zMultiple of the 1410 can be connected in parallel (Master/
Slave configuration) to achieve higher output current.
3 SPECIFICATIONS
$OOVSHFL¿FDWLRQVDSSO\WRWKHXQLWDIWHUDWHPSHUDWXUHVWDELOL]DWLRQ
time of 15 minutes over an ambient temperature range of 25 °C ± 5
°C.
1410 Power Supply
Output Voltage 0–30 V
Output Current 3 A
CONSTANT VOLTAGE CHARACTERISTICS
Load regulation (0-100%) 0.02% +3 mV
Line regulation ( ± 6% ) 0.02% +3 mV
5LSSOHDQGQRLVHUPV 1 mV
CONSTANT CURRENT CHARACTERISTICS
Load regulation (0-100%) 0.02% +3 mA
Line regulation ( ± 6% ) 0.02% +3 mA
www. .com [e-mail]1.800.561.8187

5
OUTPUT
Output terminals ( color )  5HG±%ODFN
*1'*UHHQ
*URXQGSURRIYROWDJH ±180 V
INSTRUMENTATION
Voltmeter 3 digits
Ammeter 3 digits
FUNCTIONS
Serial connection
( independent control mode ) Can be connected in
series (within limits of
ground proof voltage)
Parallel operation
( master – slave mode )
Can be operated in
“one-control” parallel
FRQ¿JXUDWLRQRQO\VDPH
model)
COOLING SYSTEM 1DWXUDO&RQYHFWLRQ
POWER CONSUMPTION
VA / W
( for rated load of AC 220 V ) Approximate 220
INPUT VOLTAGE
Voltage, Frequency 120/240 VAC, 50/60 Hz
Switchable
Operating ambient temperature 5–40°C
10–5+
DIMENSIONS AND WEIGHT
Dimensions ( W x H x D ) 205 x 115 x 270 ( mm )
Weight Approximate 7.4 kg
FUSE RECOMMENDED
Input fuse F2
AC 100V, 110V, 120V 3AF
AC 220V, 230V, 240V 2AF
Internal fuse F1 500 mAF
6SHFL¿FDWLRQVDUHVXEMHFWWRFKDQJHZLWKRXWQRWLFH7RHQVXUHWKH
most current version of this manual, please download the current
www. .com [e-mail]1.800.561.8187

6
version from our website.
4 PRECAUTIONS FOR USE
1.1 &21),50,1*7+(6833/<5$1*(
7KHXQLWPXVWEHXVHGZLWKLQLWVVSHFL¿HGUDQJH7KHUDWHGLQSXW
voltage can be found on the rating label under the unit. Before
plugging into the AC supply outlet, check if the input rating conforms
with your local supply. A voltage selector is on the back of the unit.
Switch the voltage selector to the correct position before use.
1.2 35(&$87,216)25&211(&7,212)
2873877(50,1$/6
7KLVXQLWLVDÀRDWLQJW\SHSRZHUVXSSO\)RURUGLQDU\XVHEHVXUH
that the master/slave switch on the rear panel is set to master
SRVLWLRQDQGHLWKHUWKHRXWSXWWHUPLQDORUWKHíWHUPLQDOLV
FRQQHFWHGWRWKH*1'WHUPLQDOFKDVVLV*1'YLDWKHVKRUWLQJEDU
1.3 23(5$7,1*(19,5210(17
zBe sure to use this unit within the specified ambient
temperature range listed in the specification table.
zBecause the unit is cooled by natural convection, do not
place objects on top to block the convection. Also user must
avoid to place the unit on or rear any heat emitting devices
or use multiple units in stacked configuration. For best
result, use the unit in an environment that is as well cross-
ventilated as possible.
zAltitude up to 2000 m
zInstallation category : CAT II
zPollution degree : 2
zIndoor use only
www. .com [e-mail]1.800.561.8187

7
5 EXPLANATION OF PANELS
1.1 )52173$1(/
Figure 1
1. Power Switch
2. DC Voltmeter
3. DC Ammeter
4. Constant Current Mode (C.C.) Indicator
5. Constant Voltage Mode (C.V.) Indicator
6. Voltage Coarse Adjust
7. Voltage Fine Adjust
8. Current Coarse Adjust
9. Current Fine Adjust
10. Output Terminal Positive (+)
11. Output Terminal Negative (–)
12. Ground Terminal (GND)
www. .com [e-mail]1.800.561.8187

8

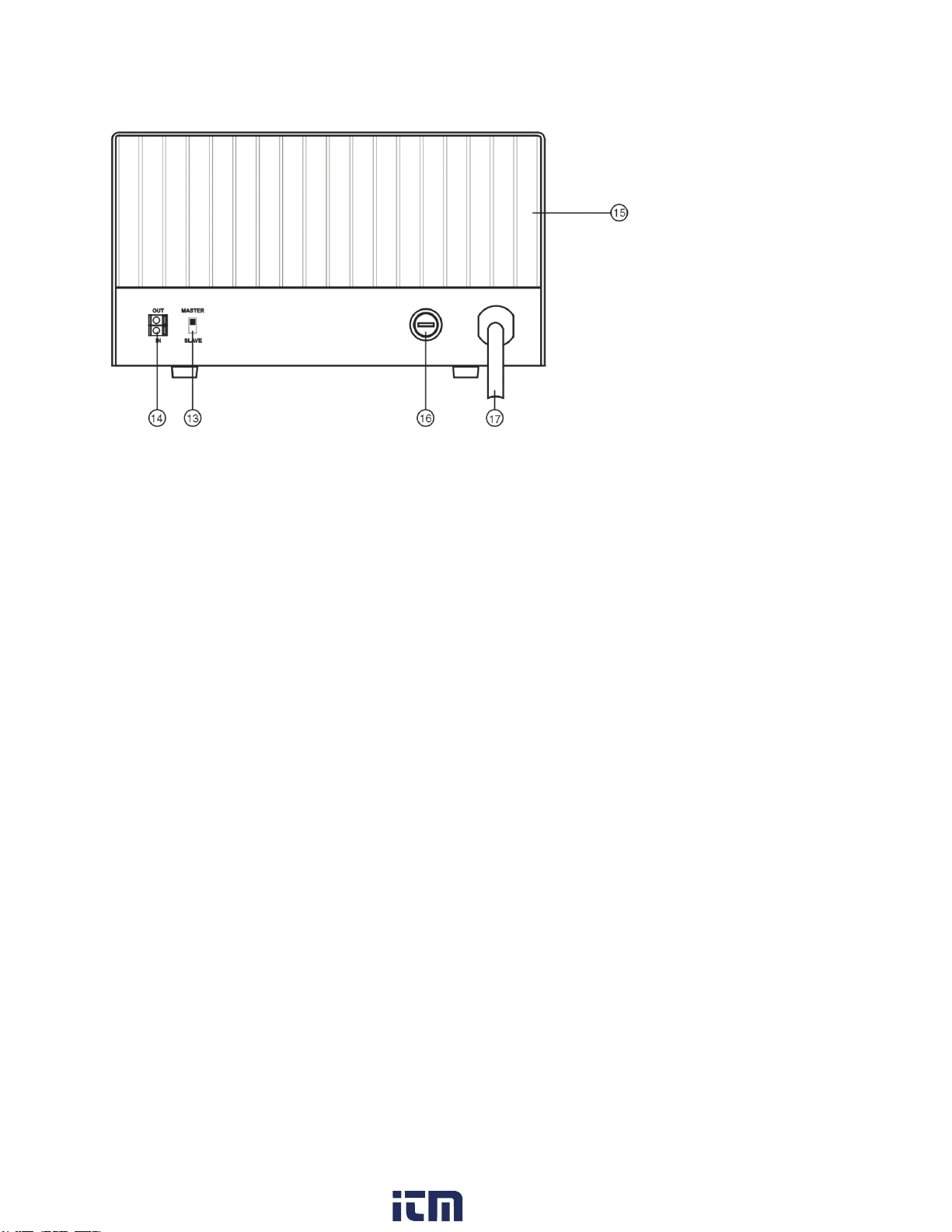

1.2 5($53$1(/
Figure 2
13. Master/Slave Switch
14. In/Out Terminals for Master/Slave Operation.
15. Heat Sink
16. Main Fuse
17. Power Cable
6 OPERATION PROCEDURES
1.1 67$1'$/21(23(5$7,21
When using the power supply in stand-alone mode, simply operate
by manipulation of the panel switches and adjustment knobs as
needed.
+RZHYHUEHVXUHWKDW0DVWHU6ODYH6ZLWFKLVVHWWR0$67(5
position.
1.2 6(5,$/&211(&7,21
Two or more units of the 1410 can be connected in series to
achieve higher output voltage. The resulting output will be sum of
www. .com [e-mail]1.800.561.8187

9
the outputs of the individual units. In this situation; however, care
must be taken that the voltage of neither of the terminals, with
UHVSHFWWRWKHFKDVVLV*1'H[FHHGWKHJURXQGSURRIYROWDJHRI
+180 V.
1.2.1 6,1*/(92/7$*(&211(&7,21
For connection as shown in Figure 3, the output voltage will be the
sum of individual supplies and output current will be limited to within
WKHYDOXHVSHFL¿HGIRUDVLQJOHXQLWZKLFKHYHULVORZHU)RUSRVLWLYH
ground terminal to output positive point and for negative ground
system, connect the ground terminal to the negative output point.
1.2.2 3/860,186&211(&7,21
For connection as shown in Figure 4 where the intermediate point is
KRRNHGXSWRJURXQGWKHFRQ¿JXUDWLRQFDQEHXVHGDV3OXV0LQXV
power supply.
Figure 3
Figure 4
www. .com [e-mail]1.800.561.8187

10
1.3 3$5$//(/23(5$7,210$67(56/$9(
&21752/
Two or more units of the 1410 can be connected in parallel to give
an increase in output current capacity. The total output current
capacity will be the sum of the output currents of the individual units.
In this mode of operation, one supply will act as the master and all
settings are from the master unit.
NOTE
When connecting the supplies in
parallel, be sure that all the power
supplies are turned OFF.
1.3.1 &211(&7,21352&('85(6
zSwitch OFF the power of all units.
zSlide the Master/Slave Switch, Figure 5, on all the slave
XQLWVIURP0$67(5WR6/$9(SRVLWLRQ
zConnect the In/Out terminals for Master/Slave operation as
shown in Figure 5.
zConnect the output terminals of each of the units to the
load as shown in Figure 6. For proper performance, use all
cables of same length and thickness.
zSet the voltage and current adjustment knobs of all the
slave units to the maximum position.
z6ZLWFK³21´WKHPDVWHUDQGVODYHXQLWV7KHRXWSXWYROWDJH
and current can then be controlled via the adjustment knobs
on the master unit. In the case where the output goes to “0”
ampere during parallel operation mode, the output voltage
will cease to be controlled by the master unit. Be sure to
keep a minimum current flowing that is at least several
percent of the rated current at all times.
1.3.2 &211(&7,212)7(50,1$/215($53$1(/
While pressing on the slit portion of the terminal with a small screw
driver, insert the connecting cable into the round hole. When
www. .com [e-mail]1.800.561.8187

11
insertion is completed, release the screw driver. See Figure 7.
Figure 5
Figure 6
Figure 7
7 MAINTENANCE
WARNING
7KHIROORZLQJLQVWUXFWLRQVDUHIRUXVHE\TXDOL¿HGSHUVRQQHORQO\
To aviod electrical shock, do not perform any servicing other than
FRQWDLQHGLQWKHRSHUDWLQJLQVWUXFWLRQVXQOHVV\RXDUHTXDOL¿HGWRGR
www. .com [e-mail]1.800.561.8187

12
so.
1.1 0$,1)86(5(3/$&(0(17
If the main fuse blows, the power on LED indicator will not light and
power supply will not operate. The fuse should not normally open
unless a problem has developed in the unit. Try to determine and
correct the cause of the blown fuse, then replace only with a fuse of
correct rating. The fuse is located on the rear panel and fuse rating
can be found next to the fuse holder. If the problem persists, return
WKHXQLWWR*OREDO6SHFLDOWLHVIRUVHUYLFH
1.2 &$/,%5$7,216
This unit has been accurately calibrated at the factory before
VKLSPHQW5HFDOLEUDWLRQLVUHFRPPHQGHGRQO\LIUHSDLUVKDYH
been made in a circuit affecting calibration accuracy, or if you have
reason to believe the unit is out of calibration.
However, calibrations should be attempted only if a 3½ digit
PXOWLPHWHUZLWKDQDFFXUDF\RI9'&RUEHWWHUDQGD±ȍ
250 W adjustable resistive load is available.
If re-calibration is required, use the following procedures. Location
of the electrical calibration on the main PCB is shown in Figure 8.
Figure 8
www. .com [e-mail]1.800.561.8187

13
1.3 92/7$*(&$/,%5$7,21
zConnect the multimeter to measure the DC voltage across
the power supply (+) and (–) output terminals.
z7XUQRQWKHSRZHUVXSSO\DQGWXUQWKHSDQHO92/7$*(
adjustment knob fully clockwise (maximum output).
z$GMXVWWULPPHU95IRUDUHDGLQJ9PD[YROWV
on the multimeter. Vmax is the maximum normal output of
the specific model under calibration.
1.4 92/7$*($/,*10(17
zSet the output voltage to about half the maximum allowable
output.
zAlign the voltmeter reading with the multimeter reading.
$MXVWWKHWULPPHU95RQWKHEDFNRIPHWHU3&%
1.5 &855(17&$/,%5$7,21
z&RQQHFWWKH±ȍ:UHVLVWLYHORDGLQVHULHVZLWKWKH
multimeter to measure the DC output current terminals.
z$GMXVWWULPPHU95IXOO\DQWLFORFNZLVHUHIHUULQJWRWKH
component side).
zAdjust the output voltage to the its maximum allowable
output.
zAdjust the variable resistive load to obtain (Imax +0.1) ±0.02
amps on the multimeter. Imax is the maximum nominal
allowable output current.
z$GMXVWWULPPHU95FORFNZLVHVORZO\XQWLOWKHOLPLWLQJSRLQW
is just reached and the C.C. LED lights up at the same time.
1.6 $00(7(5$/,*10(17
zAdjust the output voltage to half of its maximum allowable
output voltage.
zAdjust the variable resistive load to obtain half of its
maximum allowable current.
zAlign the ammeter reading with the multimeter reading.
$GMXVWWKHWULPPHU95RQWKHEDFNRIPHWHU3&%
www. .com [e-mail]1.800.561.8187

14
8 Service and Warranty Information
1.1 /,0,7('21(<($5:$55$17<
Cal Test Electronics warrants this product to be free from defective
material or workmanship for a period of 1 year from the date of
original purchase. Under this warranty, Cal Test Electronics is
limited to repairing the defective device when returned to the
factory, shipping charges prepaid, within the warranty period.
Units returned to Cal Test Electronics that have been subject to
abuse, misuse, damage or accident, or have been connected,
installed or adjusted contrary to the instructions furnished by Cal
Test Electronics, or that have been repaired by unauthorized
persons, will not be covered by this warranty.
Cal Test Electronics reserves the right to discontinue models,
FKDQJHVSHFL¿FDWLRQVSULFHRUGHVLJQRIWKLVGHYLFHDWDQ\WLPH
without notice and without incurring any obligation whatsoever.
The purchaser agrees to assume all liabilities for any damages
and/or bodily injury which may result from the use or misuse of this
device by the purchaser, his employees, or agents.
This warranty is in lieu of all other representations or warranties
expressed or implied and no agent or representative of Cal
Test Electronics is authorized to assume any other obligation in
connection with the sale and purchase of this device.
1.2 &$/,%5$7,21$1'5(3$,5
www. .com [e-mail]1.800.561.8187

20160930
www. .com [e-mail]1.800.561.8187
