GLOBAL TRAKTUS Handy Gym User manual

Models:
HGE-01 (Handy Gym with Encoder)
HG-01 (Handy Gym without Encoder)
GLOBAL TRAKTUS S.L.
Please read the instruction manual
carefully before using the unit
Instruction Manual
Manual version V01

Key to icons used in the Manual:
www.handygymt.com
WARNING - CAUTION
WARNING - PROHIBITED
WARNING - MOVING PARTS

3
CONTENTS
1. IMPORTANT INFORMATION AND WARNINGS................................................................5
2. COMPLIANCE INFORMATION..............................................................................................12
3. RECYCLING INFORMATION...................................................................................................14
4. THE HANDY GYM™ MACHINE..............................................................................................14
5. USING HANDY GYM™ ...........................................................................................................19
INERTIAL DISCS..................................................................................................................................................................................20
THEPULLROPEANDROPEREGULATOR....................................................................................................................................23
STARTING LOAD...................................................................................................................................................................................25
PERFORMING EXERCISES AND STOPPING...........................................................................................................................26

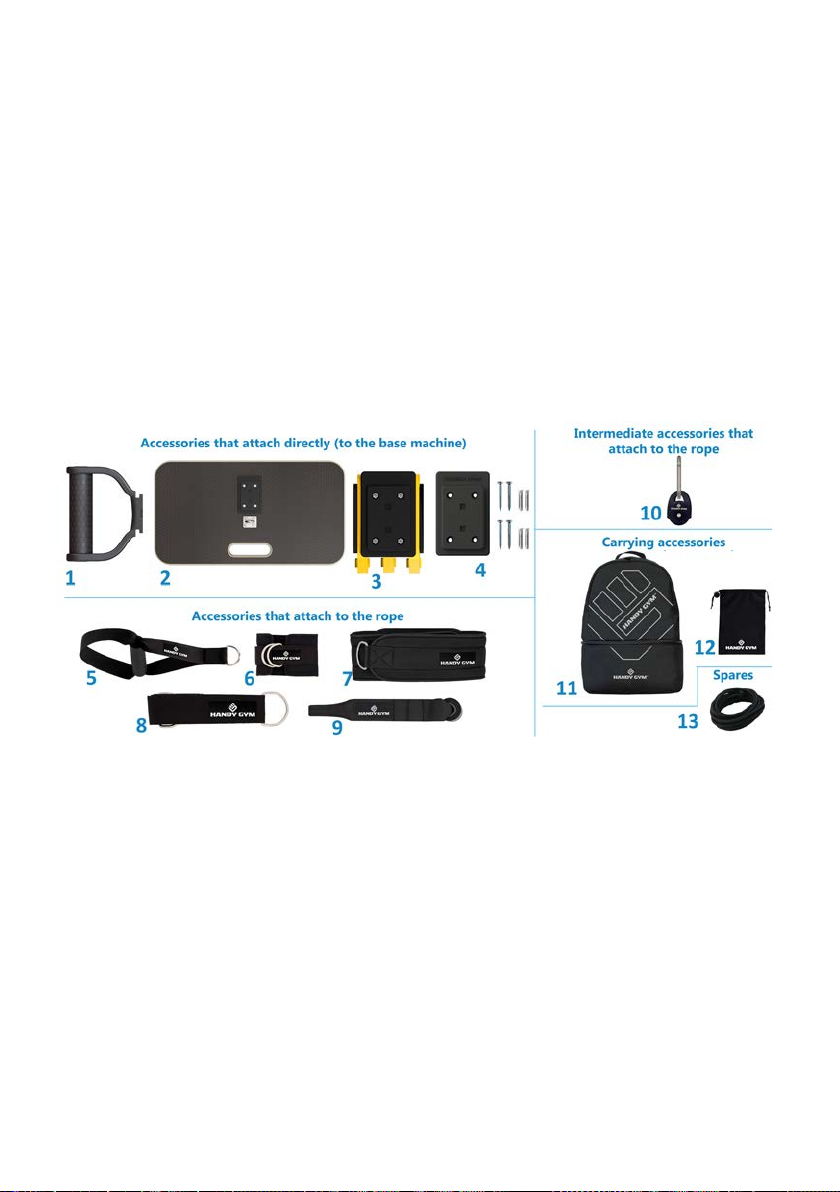

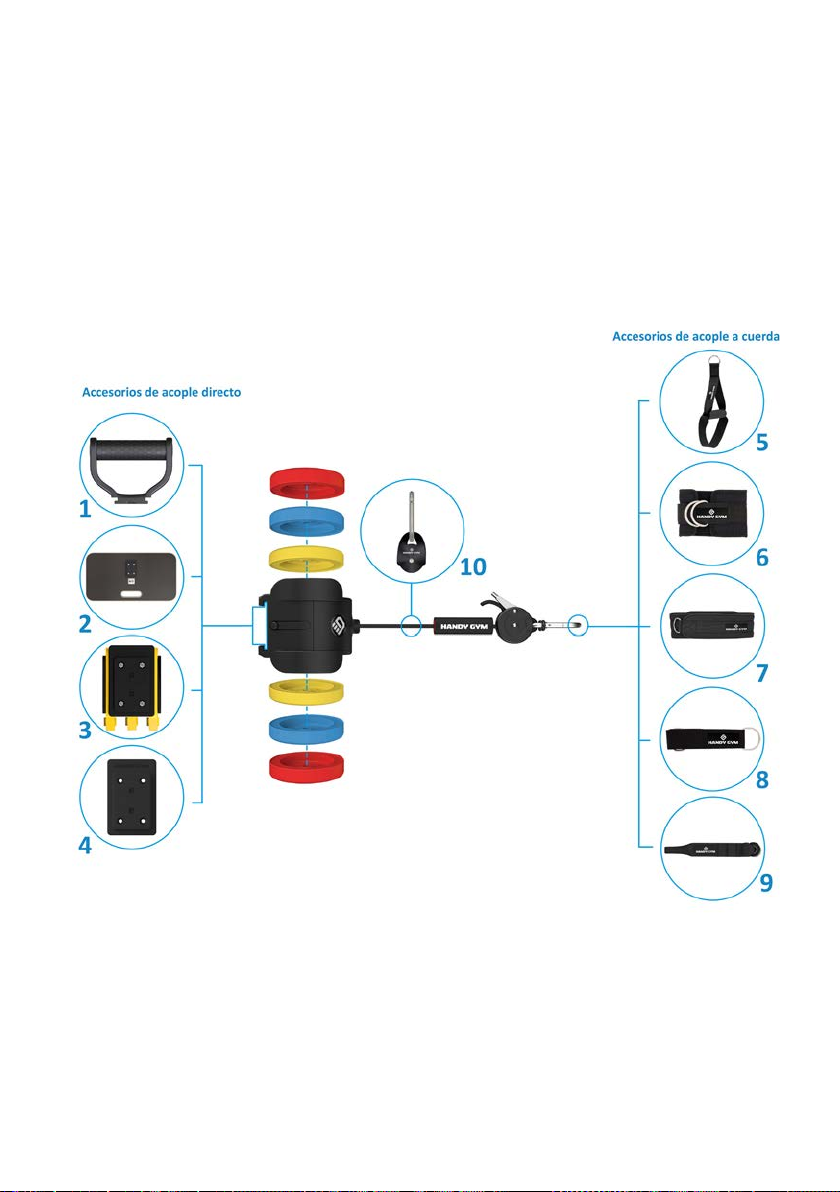

6. ACCESSORIES ...........................................................................................................................26
HANDGRIP................................................................................................................................................................26
PORTABLE PLATFORM.....................................................................................................................................................................28
RACK MOUNTING PLATE................................................................................................................................................................29
WALL MOUNTING PLATE..................................................................................................................................................................31
MULTIPURPOSE HANDLE................................................................................................................................................................33
ANKLE STRAP........................................................................................................................................................................................34
BELT.........................................................................................................................................................................................35
LOOP STRAP...........................................................................................................................................................................................35
DOOR STOPPER....................................................................................................................................................................................36
PULLEY........................................................................................................................................................................37
7. HANDY GYM™ AND ITS ELECTRONIC..............................................................................40
MOBILE APPLICATION.......................................................................................................................................................................43
8. MAINTENANCE........................................................................................................................43
9.PROBLEM-SOLVING................................................................................................................45
10. INSTALLATION EXAMPLES...............................................................................................46
11. CORRECT POSITIONING.......................................................................................................47
12. WARRANTY POLICY..............................................................................................................49

4
This manual includes information on the two Handy Gym™ models:
HGE-01: This model has a battery-powered encoder inside.
HG-01: This model does not have a battery-powered encoder inside.
Most of the information in this manual applies equally to both models.
The information that only affects model HGE-01 will be marked with an dashed box and will
have the following inscription: “The following information in the dashed box affects only
users who have purchased the HGE-01 model (Handy Gym with encoder)”.
The information that only affects model HG-01 will be marked with a dotted box and will
have the following inscription: “The following information the dotted box affects only users
who have purchased the HG-01 model (Handy Gym without encoder)”.
If you are unsure which model you have purchased, you can check by looking at the marking
on the machine itself. You will nd the marking on the back of the main unit. Below are two
examples showing the markings to look for:
Model HGE-01 is specied
in the section “Handy Gym
Model”. You will also see the
FC, CE and WEEE logos.
Model HG-01 is specied
in the section “Handy Gym
Model”
Model HGE-01 Model HG-01

5
To avoid serious personal injury or damage to property, and even death, read this section
carefully before using the product to ensure proper and safe operation.
When using Handy Gym™, follow all recommendations for use and pay particular attention
to the warnings and risks set out below.
a) Never touch the discs when they are moving. On the sides of the main unit, next to each
disc, you will see a warning symbol, indicating the presence of “moving parts” and advising
you to keep parts of your body away from the moving parts of the machine.
b) Never try to stop the inertial discs from spinning by using your hand or any other part of
your body.
KEEP THESE INSTRUCTIONS
WARNINGS
WARNING - RISK OF BURNING YOUR SKIN.
1. IMPORTANT INFORMATION AND WARNINGS.
c) Keep all parts of your body more than 10cm away from the inertial discs. The exception to
this is when you are using the handgrip attached to the machine, when your hand will be
less than 10cm from the disc. However, your hand should never be less than 2.5cm from the
disc. Always hold the grip on the inside part so that your hand is protected by the structure
of the handgrip.
d) Do not pick up or touch the pull rope when working out with Handy Gym™.
e) Do not allow any part of your body to be within 10cm of the pull rope or pulley when
working out with Handy Gym™.
WARNING - RISK OF GETTING TRAPPED.
a) Do not grasp or touch the rope while the machine is in use. Do not pull the rope directly.
b) Do not tie a knot in the rope or hook it to any part of your body. The rope is attached to
the accessories by using the rope-regulator carabiner or pulley carabiner.

6
d) Do not touch or insert anything into the space between the inertia discs and the main
unit.
e) Do not use the machine without tying your hair up. Otherwise it could get caught in
the machine’s nozzle or pulley. Do not allow your hair to be anywhere near the areas of
movement - especially the machine’s pulley and nozzle.
a) Make sure that the rope regulator is rmly locked on to the rope. Check each time or when
starting an exercise that it is correctly in place by pulling on it. If the rope is not properly
locked, there is a risk of falling backwards when performing the movement.
b) You are advised to gather any excess rope hanging at the regulator outlet and roll it up so
that it does not get in the way during the exercise. Otherwise you could trip and fall.
c) Do not use Handy Gym™ on slippery or rough oors or in dangerous environments so that,
if you do trip over the rope or other items, you will not hurt yourself badly when you fall. Make
sure the oor is stable, rm and offers sufcient grip.
d) Do not use the machine barefoot or with socks only - always wear suitable sports shoes.
e) Step rmly with both feet onto the portable platform to avoid falling or slipping.
f) Do not climb trees or other structures to anchor Handy Gym™. You should only anchor
Handy Gym™ in suitable places that are within reach and below 2m in height.
WARNING - RISK OF FALLING DOWN.
c) Do not touch or insert anything into the machine nozzle. Keep all parts of your body at
least 10cm away from the nozzle when using the machine, as there is a risk of trapping your
ngers, hair or other parts of your body.
f) Always wear tight clothing to avoid it getting trapped.
g) Avoid wearing jewellery (earrings, rings, chains, bracelets, etc) when
using the machine. If you do, they should be properly covered under
clothing, or there is a risk they will become trapped and cause you harm.
h) When using the pulley, keep a minimum safety distance of 10cm between the pulley and
your body, clothing and equipment.
i) When using the carabiners, keep a minimum safety distance of 10cm between the
carabiner and your body, clothing and equipment.

7
a) Do not anchor Handy Gym™ to the ceiling or hang from it with your body weight. The
machine could break loose and hit you.
b) Do your exercises using the rope regulator at a minimum safety distance of 10cm from
your body, including clothing and equipment, to avoid it hitting you.
c) Take extra precautions when doing exercises that involve movements close to your head.
Keep a safe distance of 10cm between Handy Gym™ and your head, and bear in mind that
your face is the area most at risk.
d) Before exercising with Handy Gym™, always tighten the inertial disc screws rmly and
check that they are screwed on properly. To do so, use the key attached to the rope regulator.
Every time you do an exercise, check that the screws are properly tightened. The machine
has means of protection to prevent the disc from coming loose in the direction of rotation.
If the disc were to come loose while the machine is running, it would move in the direction
of rotation when it touched the ground, and could spin for some time and hit you.
e) Handy Gym™ can only be used with two discs, each placed on either side of the machine
and tightened with its screw. Otherwise there is a risk that they will come loose and hit you
or damage the machine. The discs must be kept clear of external items. They should not be
tampered with and their weights should not be changed.
f) Items that can be attached (such as the handle or mounting plates) must be attached to
the machine using the tracks, and ensuring they are correct attached by listening for the
double click on the double safety system. The machine has two buttons for this, which need
to be pressed and secured in their respective holes by sliding the machine along the rails
until they line up. Check that it is properly anchored by moving the parts back and forth
and ensuring that they are rmly attached. This should prevent the machine from ying off.
g) They should be fully inserted into the rails. The machine and accessories should never
protrude when tted in place. If any of the parts stick out, it means it has been wrongly
inserted. Once this is completed, the machine should be moved in both directions to check
that it is correctly coupled.
h) Three releasable cable ties must be used whenever the rack mounting plate is used
and secured to suitable structures with sufcient resistance (able to withstand over
660lb/300kg). Never use fewer cable ties. If the 3 cable ties are not used simultaneously,
sufcient resistance is not guaranteed, and the machine could y off and hit you.
i) You should always step rmly onto the platform with both feet and use it on stable, solid
ground that offers sufcient grip. Otherwise the platform and the machine could y off and
hit you.
j) The loop strap should not be wrapped around or supported on any sharp, pointed or
protruding objects. We recommend that you t it to a rounded or low-edge structure that
supports a minimum of 600lb/300kg and that you ensure it is well secured. Otherwise the
strap could break and this could cause harm by hitting you.
k) Examples of structures that are considered hazardous: structures that are not secure, can
be easily moved, are uneven or have wheels... Fixing the Handy Gym™ system to structures
like these can lead to breakage, knocks or falls.
l) The door stopper accessory should be placed on top of the door and in the centre of the
door. It should be placed on the closing side of the door towards the door jamb, so that
the movement is in the direction of the door closing, not in the direction that it opens.
Otherwise the accessory could break and cause it to fall or hit you.
WARNING - RISK OF YOU BEING HIT.

8
WARNING - RISK OF OTHERS BEING HIT.
WARNING - RISK OF CHOKING.
WARNING - RISK WHEN FITTING THE WALL MOUNTING PLATE.
WARNING - RISK OF ROPE BREAKING.
a) Exercise within a safe perimeter where you are alone, with no hazardous items or other
people around you. The minimum safety perimeter is 1.8m wide by 2.4m long. You should
exercise within this perimeter; if you need more space, increase it. If you are using the
portable platform, the minimum safety perimeter is 1.8m diameter.
b) Look out for other people and pets moving around you, and make sure they do not enter
the safety perimeter. This will help ensure others are not hit.
c) When doing most exercises you will be able to see the position of the machine. You should
therefore be especially careful when doing exercises where you cannot see the machine
and/or accessories.
d) Always use the machine in well-lit environments so that others can easily see you and the
machine. Because the pull rope is black, it may not be visible to others. Make sure no one
trips over the pull rope.
a) Never tie or wrap the pull rope around your neck or any other part of your body. The rope
is operated by using the various accessories.
b) Never tie the releasable cable ties around your neck. These are only to be used with the
rack mounting plate.
c) Never tie any accessories around your neck - especially the loop strap or belt.
To avoid hazards when tting the wall mounting plate and the potential of harming yourself,
follow the recommendations below:
a) The wall mounting plate must be tted by a professional using all appropriate safety
measures, such as wearing protective gloves and safety goggles - both to protect him/
herself and to prevent harm to others. Specialist tools such as drills need to be used.
b) Only the screws supplied by Handy Gym™ should be used. The installation will not be
valid if any of the screws break or if any of the wall plugs are loose.
c) The wall on which it is tted needs to be strong enough (capable of withstanding
660lb/300kg of pulling force) and it must remain intact and undamaged by tting the
mounting plate onto it.
d) The holes should adhere to the recommended measurements; they should be clean and
round, and not crooked.
e) If a ladder or bench is needed, it should meet regulations and comply with all appropriate
safety measures.
a) Do not exceed 220lb/100kg of pulling force
in order to prevent the rope from breaking.
*HGE-01 users: Thanks to the encoder and the
mobile application, you can check the force you are
exerting and the RPM of the machine at all times.
Make sure you do not exceed these values.
MAX. 100 Kg MAX. 100 Kg

9
WARNING - RISK OF CUTS.
WARNING - RISK OF INJURY.
WARNING - RISK OF INJURY TO THOSE WITH PREVIOUS HEALTH CONDITIONS.
WARNING - RESTRICTED USE BY CHILDREN.
b) The rope must be changed if it is damaged (broken bres, cuts, cracks or if it is squashed,
burnt, destroyed etc) or after 6 months of normal use.
c) Do not tie knots in the rope or block it with objects.
a) The carabiners have sharp edges in the closing area of
the gate. It is important not to touch these edges when
handling them as you may suffer small cuts.
a) If you have never used inertial machines, please be aware that the eccentric phase can
cause jerks if you do not control the return phase. Be sure to contact an inertial machine
specialist to learn how to use the machine safely.
b) Poor posture when doing exercises can lead to injuries. An inertial machine professional
needs to supervise and guide you on how to use it. The Handy Gym™ app has tutorials on
how to do the exercises.
c) If you have an injury, it could worsen. Consult a doctor and avoid using the machine if you
think or know you are injured.
If you have any prior health condition, read the following carefully before using Handy
Gym™:
a) If you have a serious illness, consult a specialist before using the machine.
b) If you have prior conditions, always use the machine under medical supervision.
c) If you suspect that you may have a trauma or injury that may be worsened by using Handy
Gym™, consult your doctor before using it.
To avoid risks and potential injury, all under-age minors should pay attention to the following
before using Handy Gym™:
a) From the age of 16 (inclusive), you must be trained by a qualied specialist (physical
therapist, sports physician, physiotherapist, sports science specialist, or personal trainer)
with experience in inertial gymnastics machines. You must be aware of the risks. You can
use the machine under the supervision of your tutor.
b) In exceptional cases, where someone under 16 years of age needs to use the machine, they
must always do so under the supervision and responsibility of the professionals mentioned
above.
WARNING - MACHINE BREAKDOWN.
a) This machine is for personal use. It cannot be used continuously by different people
without taking the established breaks.
b) If you use the machine (without pulley or portable platform) continuously for fewer than
5 minutes, let it rest for at least 2 minute and 30 seconds. If you use the machine (without
pulley or portable platform) continuously for between 5 and 10 minutes, let it rest for at least
5 minutes. Never use the machine (without pulley or portable platform) for more than 10
minutes continuously.

10
e) Do not do exercises at an angle greater than
45° to the machine exit. Try as much as possible
to perform exercises straight in relation to the
machine exit to ensure that it remains intact
and in one piece.
f) Do not suddenly release the multipurpose
handle or other accessories when exercising.
This would cause the accessory to violently
hit the machine and suddenly stop it, thus
causing irreversible internal damage to the
machine. The machine must be stopped slowly
using human force and controlling the return
movement, rather than stopped suddenly.
*HGE-01 users: Thanks to the encoder and the mobile application, you can check the force you are
exerting and the RPM of the machine at all times. Make sure you do not exceed these values.
If you use the machine with pulley and/or portable platform continuously for up to a
maximum of 5 minutes, let it rest for at least 5 minutes. Never use the machine with pulley
and/or portable platform for more than 10 minutes continuously.
The machine is a mechanical traction system that needs periods of rest and cannot work
without a break for longer than the established time
c) Do not use the machine for more than 2 hours per day or more than 10 hours per week
in total.
d) Do not do exercises of more than 220lb/100kg or that exceed 20,000 rpm. Handy Gym™
only guarantees that it will remain intact and work properly if these limits are not exceeded.
g) Do not hit the discs in any way. Do not brake the machine by stopping the discs suddenly.
For proper use, the discs must be intact.
h) Do not use Handy Gym™ if it is not intact and in one piece. Do not loosen or remove
screws or other parts of the machine. Do not tamper with the inside of the machine or its
ttings or accessories.
i) Always use Handy Gym™ with the safety spacer on the pull rope.
j) Do not allow the machine to fall and hit the ground,
or put any parts of the machine at risk.
k) Do not use Handy Gym™ or its accessories with
wet or damp hands, to avoid leaking and consequent
damage to the machine or accessories.
l) Use only the peripherals and accessories provided
by the brand that are compatible with the model.
Handy Gym™ only guarantees the correct use of
the machine when using these. Otherwise you risk
damage to the machine and this could affect its
safety.
m) Original accessories should not be used for other
activities, as they may cause breakage or wear. They
should only be used with Handy Gym™ and in the
manner described in this manual.

11
WARNING - RISK OF FIRE/EXPLOSION.
INCLUDES LITHIUM POLYMER (Li-PO) BATTERY.
a) Do not expose the product to extreme conditions of dust, moisture or external
electrical charges.
b) Do not expose the product to extreme temperatures, either below 1ºC or above
30ºC.
c) Do not expose the product to direct sunlight for long periods.
d)Under no circumstances should you tamper with the battery or electronic board.
d) Bajo ningún concepto manipule la batería ni la placa electrónica.
The following information in the dashed box affects only users who have purchased the
HGE-01 model (Handy Gym with encoder).
a) See a qualied specialist (physical therapist, physiotherapist, sports science specialist,
sports physician or personal trainer) with experience in inertial gym machines for guidance
if you are not an experienced user of this type of machine and do not have any of the above
qualications. During the initial phase of using the machine, instruction is necessary.
b) Always wear tight clothing, shoes and sports equipment. We recommend the use of
gloves and wristbands.
c) If possible, we recommend that you wear contact lenses rather than glasses.
d) The minimum safety perimeter required is 1.8m wide by 2.4m long and free of objects and
structures. When using the portable platform, you should leave a safety perimeter of at least
1.8m diameter. We advise increasing the perimeter as much as possible.
RECOMMENDATIONS FOR USE.
Warning: No other person or pet should enter the
safety perimeter while exercising. Be particular
careful if there are infants, children, elderly people
or people with disabilities near you, as they may not
be aware of the potential hazard when approaching
the safety perimeter.
HGE-01 Model
n) Do not use the product when it is connected to the power supply as this will cause serious
damage.
o) Properly connect the product to power when the battery needs charging.
p) If the machine breaks down due to any of these causes, it would result in the full loss of
the warranty.

12
- Handy Gym™ should not be used in adverse and
hazardous weather conditions.
- Keep the equipment away from electrical items that
generate noise such as uorescents, incandescent light
bulbs and engines.
- Do not expose the product to liquids or other inappropriate
things such as mud, sand, snow...
- Do not expose the product to high temperatures or
vibrations.
- Do not expose the product to prolonged direct sunlight.
- Keep the product away from heat sources.
- Keep the product away from electrical sources and
electromagnetic elds.
INFORMATION REGARDING THE ENVIRONMENT.
- SIMPLIFIED EU DECLARATION.
MAINTENANCE.
For detailed information on maintaining the machine, refer to page 50 of this manual. The
maintenance tasks are listed below:
- Changing the rope.
- Checking the shaft washers.
- Checking the accessories.
- Checking the disc screws.
- Checking the mounting screws.
- Check for iron particles in the disc magnets.
- Cleaning the machine.
The following information in the dashed box affects only users who have purchased the
HGE-01 model (Handy Gym with encoder).
2. COMPLIANCE INFORMATION.
Global Traktus S.L. hereby states that Handy Gym™ radio equipment,
model HGE-01 V01 complies with EU Directive 2014/53/EU, EU Directive
2011/65/EU and EC Directive 2001/95/EC. The full text of the EU
declaration of conformity is available at the following internet address:
https://handygymt.com/starterguide/.
HGE-01 Model
e) When anchoring the machine, the system should always
be kept below 2m in height, and you should never stand
under the machine.
f) Only use the machine when you are sufciently hydrated.
g) Do not use the machine in hot environments (over 30ºC) or
in full sun. Exercise in shaded areas whenever possible.

13
- FCC INFORMATION (U.S.A.).
ATTENTION: DO NOT MODIFY THIS UNIT!
This host device contains an FCC certied Bluetooth module:
This product meets FCC requirements once it is produced and assembled. Modications not
expressly approved by GLOBAL TRAKTUS SL may void your authority, granted by the FCC, to
use the product.
RSL10 SIP transciver with FCC ID: 2APD9-RSL10SIP
HGE-01 Model
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT: When connecting this product to accessories and/or another product use only high-
quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation
instructions. Failure to follow instructions could void your FCC authorization to use this product in
the USA.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
This device includes a Li-Po Battery in conformity with IEC/EN 62133:2012 standard.
- INDUSTRY CANADA REGULATORY INFORMATION.
This product meets the applicable Innovation, Science and Economic Development Canada
technical specications.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
This host device contains a RSL10 SIP Transceiver Certied Bluetooth Module with IC: 23763-RSL10SIP
The wireless product complies with IC radiation exposure limits for portable devices.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

14
The following information in the dotted box affects only users who have purchased the
HG-01 model (Handy Gym without encoder).
- SIMPLIFIED EU DECLARATION.
SPECIFICATIONS.
Global Traktus S.L. hereby declares that the product type Handy Gym™, model HG-01 V01,
is in compliance with Directive 2001/95/EC of the European Parliament. The full text of the EU
Declaration of Conformity is available on the following link: https://handygymt.com/starterguide/
3. 3. RECYCLING INFORMATION
4. THE HANDY GYM™ MACHINE
The following information in the dashed box affects only users who have purchased the
HGE-01 model (Handy Gym with encoder).
LI ION
This product contains batteries that should not be disposed of
with household waste. At the end of its life, this product should be
taken to an appropriate collection point so that its batteries can be
properly recycled.
This symbol indicates that this product should not be treated as
household waste. It should be taken to an appropriate collection
point for recycling electrical equipment.
Proper recycling of batteries and electrical appliances helps to avoid
risks to health and environmental safety.
HGE-01 MODEL HG-01 MODEL
HGE-01 Model
HG-01 Model
16
4. THE HANDY GYM™ MACHINE
SPECIFICATIONS
Manufacturer
Global Traktus SL
Global Traktus SL
Brand name
Handy Gym
Handy Gym
Model
HGE-01
HG-01
Materials used in the base machine and
accessories
Steel, aluminium, resistant plastic (ABS, POM,
aliphatic polyketone), iron and nylon.
Steel, aluminium, resistant plastic (ABS, POM,
Aliphatic Polyketone), iron and nylon.
Base machine weight
722g (25.4oz)
712g (25.1oz)
Weight of base machine and handgrip
917g (32.3oz)
907g (32oz)
Base machine dimensions
12x11x11cm (4.7”x4.3”x4.3”)
12x11x11cm (4.7”x4.3”x4.3”)
Base machine dimensions and accessories
22x14x11cm (8.7”x5.5”x4.3”)
22x14x11cm (8.7”x5.5”x4.3”)
Permissible ambient temperature range
+1ºC / +30ºC
+1ºC / +30ºC
Permissible relative humidity
Up to 70%
Up to 70%
Permissible atmospheric pressure
700-1080hPa
700-1080hPa
Country of manufacture
Spain
Spain
Hardware version
V01
V01
Software version
V01
Classification
Radio equipment
Chip model
RSL10SIP
Bands it broadcasts on
2.4-2.48GHz
Maximum radiated power
1mW (0dBm)
Antenna gain
0dBm
Equipment input
5V DC 4mA
Battery type
Lithium polymer
Battery capacity
120mAh
Nominal battery voltage
3.7V DC
Maximum battery voltage
4.23V DC
Charge connector type
USB-C
FCC ID
2APD9-RSL10SIP
IC ID
23763-RSL10SIP
Manufacturer's contact information
GLOBAL TRAKTUS SL - Calle Oporto N19 - Vigo 36201 - (Pontevedra) - Spain
In case of a problem, contact the supplier who provided you with the equipment straight away.
INTRODUCTION
What is Handy Gym™?
Handy Gym™ is a small, innovative human-powered inertial movement machine that allows for a full-
body workout in a wide variety of places without the need to carry heavy weights.
Inertial technology develops the muscles during all phases of movement - both during the concentric
phase and, more importantly, during the eccentric phase - in a way that other types of training are not
able to.
In terms of training and/or recovery efficiency, inertial technology is one of the best options available.
Important studies on sports training confirm that muscle developed during eccentric movements is of
the highest quality.
How does it work?
Handy Gym™ works using two inertial discs that are able to convert spinning into resistance. The secret
is that this machine's cone and the special epicyclic gear train multiply N times the shaft speed and
reduce the mass of the disc N2 times and, consequently, the weight of the whole machine.
Handy Gym™ offers the option of exercising all muscle groups with workout routines of up to
220lb/100kg force, due to its different interchangeable inertial discs.

15
INTRODUCTION
In case of a problem, contact the supplier who provided you with the equipment straight
away.
What is Handy Gym™?
Handy Gym™ is a small, innovative human-powered inertial movement machine that allows
for a full-body workout in a wide variety of places without the need to carry heavy weights.
Inertial technology develops the muscles during all phases of movement - both during the
concentric phase and, more importantly, during the eccentric phase - in a way that other
types of training are not able to.
In terms of training and/or recovery efciency, inertial technology is one of the best options
available. Important studies on sports training conrm that muscle developed during
eccentric movements is of the highest quality.
How does it work?
Handy Gym™ works using two inertial discs that are able to convert spinning into resistance.
The secret is that this machine’s cone and the special epicyclic gear train multiply N times
the shaft speed and reduce the mass of the disc N2 times and, consequently, the weight of
the whole machine.
Handy Gym™ offers the option of exercising all muscle groups with workout routines of up
to 220lb/100kg force, due to its different interchangeable inertial discs.
Inside the machine.
Inside Handy Gym™ is an epicyclic gear train, combined with a steel shaft and a conical coil
that drives the system, and into which is inserted the rope that you pull.
This means that the system works mechanically by means of human traction. There are no
motors or electrical parts inside that generate resistance.
It is similar to the way a yo-yo works: You pull the rope with X force using the hand grip (or
other accessories). This unwinds the rope that is wound around the cone. And then the
inertia created by the epicyclic gear and the discs winds the rope back, with X-r force, where
r equals losses due to friction.
Never open or tamper with the inside of the machine. This should only be done by technical
service staff.
HGE-01 users: Thanks to the encoder and the mobile application, you can check the
force you are exerting and the RPM of the machine at all times. Make sure you do not
exceed these values.
HGE-01 Model

16
17.70
106.70
Ø8.00
113.30 107.90
101.00
117.10
Ø93.00
Overall dimensions (in mm) of the basic machine:
Overall dimensions (in mm) of the base machine and handgrip:
17.70
106.70
Ø8.00
113.30 138.40 107.90
101.00
217.10
Ø93.00

17
Parts of the base machine:
PARTS OF THE BASE MACHINE.
1 Base Machine.
2 Pull rope.
3 Safety spacer.
4 Rope regulator (carabiner and O-rings
included).
5 Inertial discs (depending on the pack,
quantity and colour may vary.
1 Base machine D-ring or “nose”.
2 Base machine nozzle.
3 Inertia disc screw.
4 Base machine safety buttons.
5 Base machine rails.
6 Base machine marking.
7 Hexagonal-headed key on the rope
regulator.
8 Rope-regulator carabiner.
9 Rope-regulator carabiner O-rings.

18
LIST OF ACCESSORIES.
Accessories that attach directly (to the
base machine):
1 Handgrip.
2 Portable platform.
3 Rack mounting plate with 3 ties.
4 Wall mounting plate with 4 screws and 4
wall plugs.
Accessories that attach to the rope:
5 Multipurpose handle.
6Ankle strap.
7Belt.
1 Handgrip: this ts on to the rail so that the machine can be used by hand.
2 Portable platform: the machine is tted onto it so that you can do upright movements.
3Rack mounting plate with 3 ties: the machine is tted onto it so that you can anchor it
to structures.
4Wall mounting plate with 4 screws and 4 wall plugs: the machine is tted onto it so that
you can anchor it to walls.
5 Multipurpose handle: ts on to the rope-regulator carabiner (or pulley carabiner) for
when you are doing exercises using your hand or foot. The machine must be tted onto
direct-attachment accessories 1,2,3 or 4.
6Ankle strap: ts on to the rope-regulator carabiner (or pulley carabiner) for when you are
doing exercises using your knee or wrist. The machine must be tted onto direct-attachment
accessories 3or 4.
8Loop strap.
9Door stopper.
Intermediate accessories that
attach to the rope:
q Pulley with carabiner.
Carrying accessories :
w Backpack.
e Case.
Spares:
r Spare rope.
Accessories that attach directly are tted onto the machine rail:
Accessories that attach to the rope are tted on to the rope-regulator carabiner or the
pulley carabiner:

19
q Pulley: can be used with any of the above accessories. The section on the pulley explains
what it is for and how it should be done
The following pages explain in detail how to use each accessory and the Handy Gym™
system.
Intermediate accessories that attach to the rope t onto the machine rope:
Image showing the distribution of the accessories based on where they are inserted:
7 Belt: ts on to the rope-regulator carabiner (or pulley carabiner) for when you are doing
exercises using the belt. The machine must be tted onto direct-attachment accessories 2,
3or 4.
8Loop strap: ts on to the rope-regulator carabiner (or pulley carabiner) for when you are
doing exercises whilst holding the machine. It ts on to different structures as described
below.
5. USING HANDY GYM™
TWO WAYS OF FITTING AND USING IT: HOLDING THE MACHINE AND FIXED MACHINE:
The Handy Gym™ system is designed to be used in two different ways:
-A: By holding the machine in your hand and with the accessories anchored: you hold
Handy Gym™ using the handgrip (accessory no. 1) and attach the rope to the different

20
INERTIAL DISCS.
Handy Gym™ works using two inertial discs, one tted to each side of the machine, that are
able to convert spinning into resistance.
There are three different pairs of inertia discs, which differ in colour and weight. They are
very light, and offer great resistance with very little weight.
They are fastened to the machine with screws, so they can be quickly inserted and removed.
They can also be combined with each other, which means the machine can offer several
levels of strength.
They have 4 magnets placed on the back side, positioned with alternating polarity.
Yellow Disc
Weight: 120gr.
Equivalent inertia:
0,026 kgm2 (90 lbin2)
Blue Disc
Weight: 180gr.
Equivalent inertia:
0,040 kgm2 (135 lbin2)
Red Disc
Weight: 250gr.
Equivalent inertia:
0,064 kgm2 (220 lbin2)
accessories using the rope-regulator carabiner and pulley carabiner. Accessories must be
attached to structures capable of supporting at least 660lb/300kg.
The following accessories are designed for this mode of use:
5 Multipurpose handle .
6 Ankle strap.
8 Loop strap .
9 Door stopper .
- B. With the machine anchored, you pull the accessories: when using Handy Gym™ in
this mode, you perform your movements using the accessories, while the machine remains
anchored in place by the xing accessories:
The following accessories are designed for anchoring Handy Gym™ when using it in this
mode:
2 Portable platform.
3 Rack mounting plate with 3 ties.
4 Wall mounting plate.
The following accessories are designed for doing exercises under this mode of use:
5 Multipurpose handle.
6 Ankle strap.
7 Belt.
