Global 244291 User manual

MANUAL CARTON STAPLER
MODEL: 244291
MANUAL
WARNING
Before operating this stapler. All operators should read this manual, to
understand and follow the safety warnings and instructions. Keep these
instructions with the stapler for future reference.

2
PAGE
TOOL SPECIFICATIONS ........................................................................................... 3
SAFETY INSTRUCTIONS.......................................................................................... 3
LOADING THE TOOL ................................................................................................4
CLINCH ADJUSTMENT .............................................................................................4
DEPTH ADJUSTMENT .............................................................................................. 4
OPERATING THE TOOL............................................................................................5
CLEARING A JAM FROM THE TOOL........................................................................ 6
TROUBLESHOOTING ...............................................................................................6
TEETH REPLACEMENT............................................................................................ 7
DRIVER REPLACEMENT.......................................................................................... 8
TABLE OF CONTENTS

3
Model of tool ........................................................................... 244291
Dimensions (length x height x width)....................................... 450mm x 270mm x 105mm
Weight（without fasteners）...................................................2.13kg
Staples specification .............................................................. Crown 34.7mm
Length 15mm,18mm
Staples capacity..........................................................,.......... 100 pcs
1. Read this manual and understand all safety instructions before operating the tool.
2. Never engage in horseplay .
3. At the workplace , always wear the protective equipment such as safety glasses ,
hearing protection and head protection .
4. Always handle the tool with care .
5. Do not place your hand or any part of your body in the staple clinching area.
6. Never point the tool to anyone.
7. Never push handle unless the tool is in place on carton.
TOOL SPECIFICATIONS
SAFETY INSTRUCTIONS
DANGER
WARNING

4
Press the stopper (032)then pull out the pusher unit.
Insert 2 sticks of appropriate staples into the slide forward to the
front of the magazine unit（030）.
Reassemble the pusher unit (032).
Loosen adjustment nut (003) turn adjustment screw (005) clockwise
to loosen clinch . Turn adjustment screw (005) counterclockwise to
tighten clinch , after adjusting , tighten adjustment nut (003).
Adjust the screw(010).
LOADING THE TOOL
CLINCH ADJUSTMENT
DEPTH ADJUSTMENT

5
Protect your eyes and ears . Wear safety glasses with side shields .
Wear hearing protection . Employers and users are responsible for
ensuring the user or anyone near the tool wear this safety
protection .
To prevent accidental injuries,never place a hand or any other part of
body in the staple clinching area . Never point tool to anyone else .
Never engage in horseplay . Always handle the tool with care .
Check and replace any damaged or worn components of the tool.
The safety warning labels on the tool must also be replaced if they
are not legible
Insert staples into your tool following the instructions on loading the
tool .
Position on box in line with the desired staple location. There is a small
projection on either side of the magazine seat (029) as an aid in locating
the position of the staple . Hold the front end of the tool by pressing on the
top of the body (002). Press down on the handle (025) all the way until it
stops . Release handle (025) and move to the next location .
Strongest closure requires end staples close to end of box . Check
packing requirements .
Check staple clinching in samples of box board being used .
Adjustments for depth of penetration & tightness of clinch are full
advantage should be taken of them .
OPERATING THE TOOL
WARNING
WARNING
NOTE

6
Press the stopper(032).
Then pull out the pusher unit(035).
Take off the magazine unit(030) with flat head
screw driver, then clear jam.
Reassemble the magazine unit(030) and the
pusher unit(035).
STOP USING THE TOOL IMMEDIATELY IF ANY OF THE FOLLOWING PROBLEMS
OCCUR. SERIOUS PERSONAL INJURY COULD OCCUR.
PROBLEM CAUSE SOLUTION
Excessive jams: Staple size is wrong. Use the proper size staple. .
Uneven clinch Wrong staple size Check for proper leg length
adjustment & clincher size.
Teeth (021,023) loose Tighten teeth (021,023)
Unclinched staple
Teeth (021,023) are broken Replace teeth (021,023)
CLEARING A JAM FROM THE TOOL
TROUBLE SHOOTING
WARNING

7
Take off the magazine unit(030) with
flat head screw driver.
Loosen screws (501) with 4 mm
hexagon wrench key.
Remove the magazine seat(029).
Take off the teeth unit with flat head screw driver.
Loosen pivot screw (001) with a flat screw driver.
Remove handle (025) and linkage mechanism.
Remove rod (020) with hammer and
5mm straight rod
TEETH REPLACEMENT

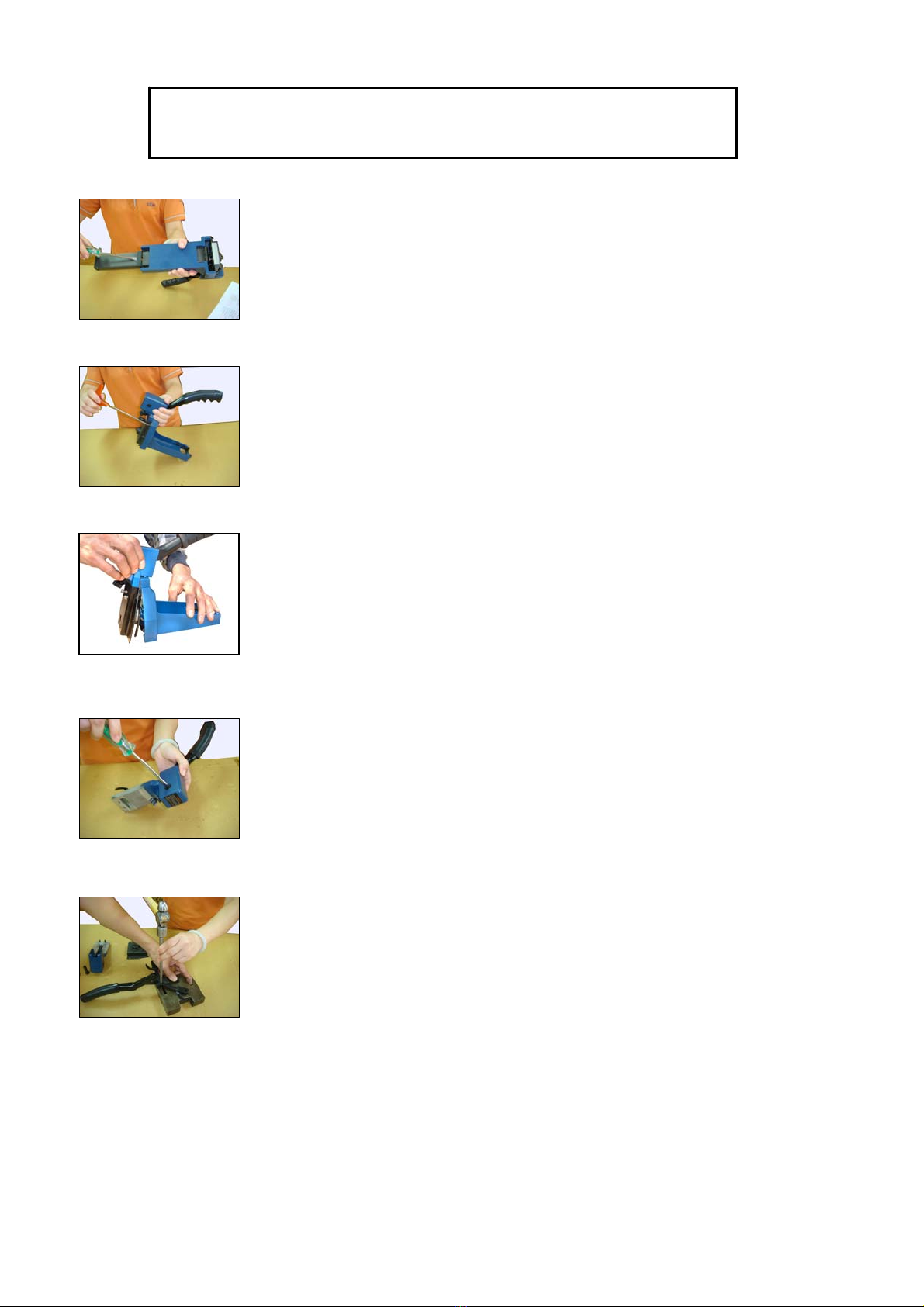

8
Take off the magazine unit(030) with
flat head screw driver.
Loosen screws (501) with 4 mm
hexagon wrench key.
Remove the magazine seat (029).
Loosen pivot screw (001) with a flat screw driver.
Remove handle (025) and linkage mechanism.
Remove rod (018) with hammer and
5mm straight rod
DRIVER REPLACEMENT

Model no. 244291


          
       
        
        
       
       
       
       
       
       
        
        
        
          
       
       
       
        
        
        
        
          
    

