globex GECE E CHAIR User manual

USER MANUAL FOR THE
GLOBEX STAIRCLIMBER
“GECE - E CHAIR”
CERTIFICATED GLOBEX OPERATOR TRAINING
MUST BE PROVIDED BEFORE USE

User Manual for Globex Stairclimber
Brief Introduction
The Globex Stairclimber meets ISO 7176-28:2012 standard and is powered by a lithium-ion
battery and driven by motor it can transport mobility impaired persons up and down stairs easily.
Specifications
- Telescopic gripping frame height: H108cm, H127cm, H146cm and H164cm
-Chair size: 108*52.1*103cm
- Seat size: 49*42.5cm
- Seat height: 50cm
- Telescopic front handles length: 15cm,35cm
- Rear lifting handles length: 26cm
- Foldaway size: L108*W52.1*H24.2cm
- Load capacity: 180kg
- Rubber-track belts' angle: 30°
- Net weight: 34kg
- Charger weight: 0.4kg
- Working power: AC 100-240V 50/60Hz
- Motor: DC 200W
- Battery: 24V / 13.2Ah
- Package size: L115*W58*H32cm/Wooden box
- Gross weight: 46kg

User Manual for Globex Stairclimber
508
415
Dimension Diagram
492
520.80
465
1030
242
1080
140

User Manual for Globex Stairclimber
11

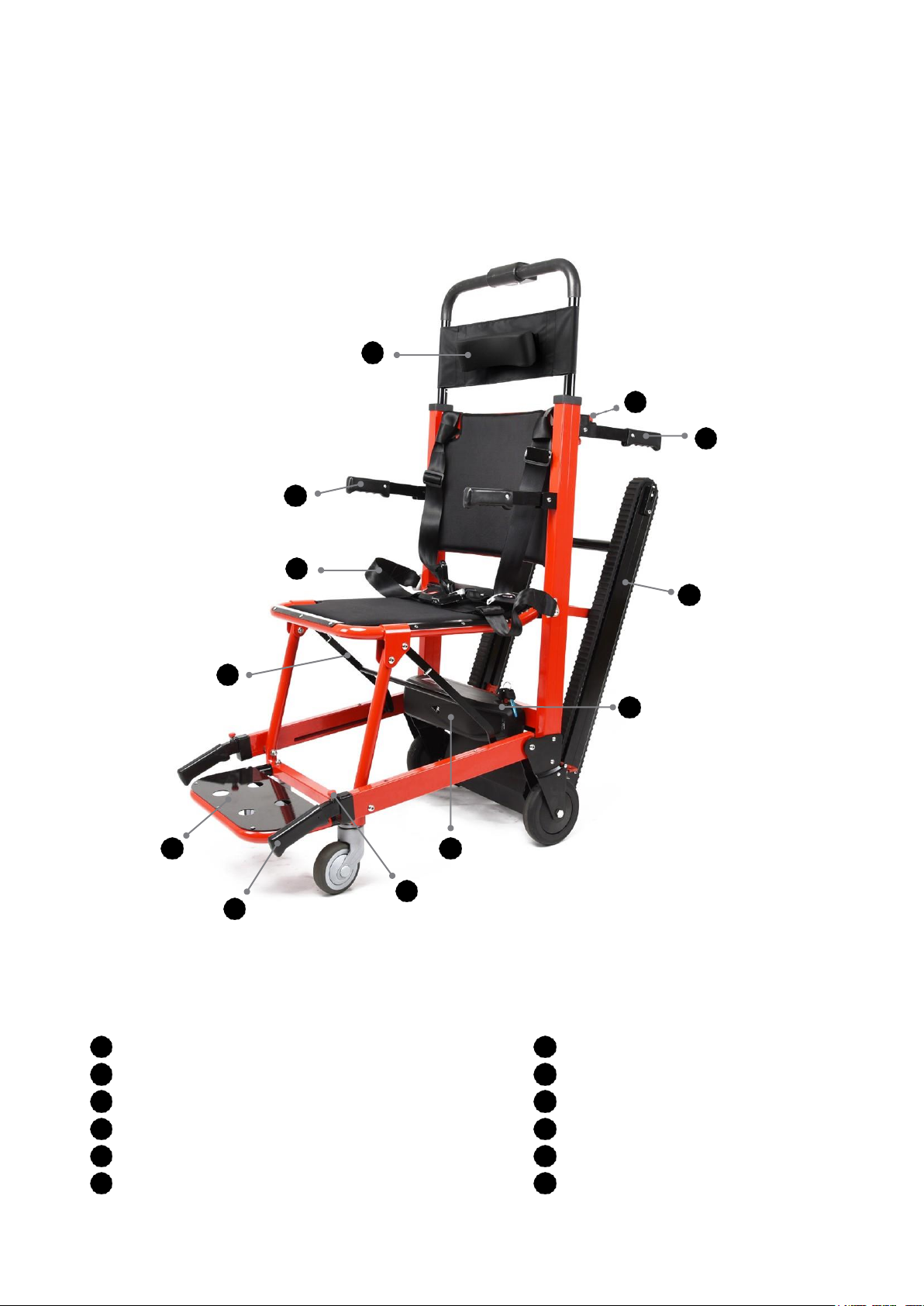

Components
Adjustable & removable headrest
Front handles
Safety belt
Support bracket
Foot rest
Telescopic front handles
Button for front handles
Battery
Keys
Track belt
Rear carrying handles
Button for rear carrying handles
1
12
2
3
10
4
9
58
7
6
1
2
3
4
5
6
7
8
9
10
11
12

User Manual for Globex Stairclimber
21
Control panel
Red bar for locking handle
Top bar for leaning chair backward
Red bar for restoring track belts
Red pedal for opening track
Lower bar leaning chair backward
Motor protection cover
Brake
Rear wheels
Brake release pedal
Front wheels
Adjustable frame
13
14
24
15
16
17
23
18
19
22
20
19
20
21
22
23
24
13
14
15
16
17
18

User Manual for Globex Stairclimber
a4
a1
Battery Charging
The battery charger should be tested portable appliance tested prior to use and as required
thereafter in accordance with local guidance.
Battery technical details can be found on the battery
Connect the DC power adapter to the battery charging port a3（connect the other end
to wall socket）to charge, and make sure the battery is fully charged before using the
stair climber. When the indicator lamp on the battery turns green from red, it means
that the battery is fully charged.
The charger recharges the battery to 100%.
As soon as the charging process is completed, it switches to a retaining mode to avoid
overcharging.
* If the battery is less than 25%, charging is required.
* If the battery is not fully 100% charged, it needs several cycles of charging
and discharging to achieve its maximum storage capacity.
Please do not disassemble or modify the charger.
Please make sure that the charger is not exposed to humidity while charging the battery.
Never touch the plug with moist hands.
* When finish charging, remove the input 240V AC plug, then the output plug. The
battery should be charged after each use and can be charged on or off the chair.
* The battery should be checked and charged prior to use and at least every 2 weeks.
a3
a2
a1
a4
a2

User Manual for Globex Stairclimber
9
b1
9

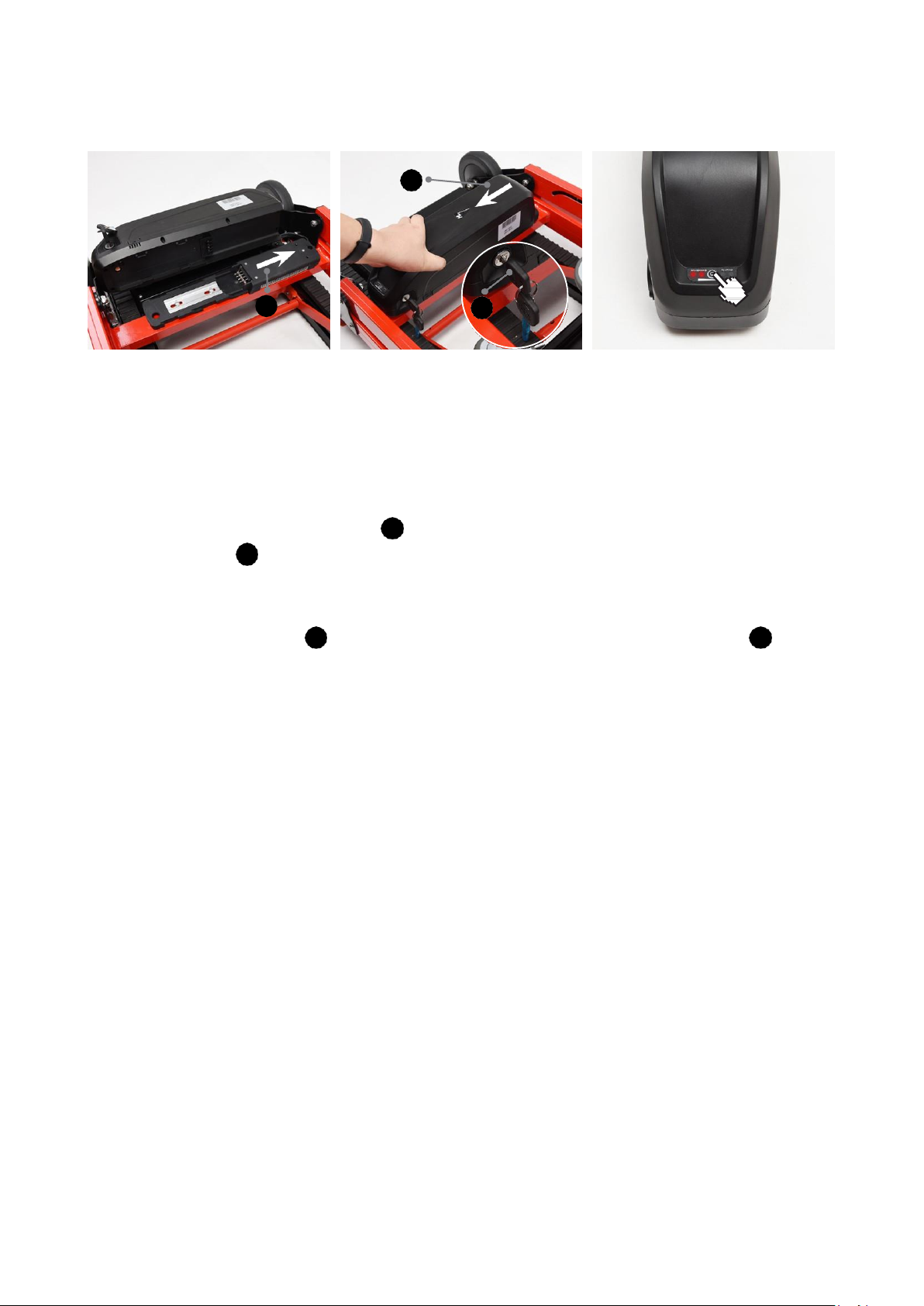

Installation
The slot on the inner side of the battery must align with the guide rail，Push the battery
along the guide rail arrow direction until it clicks in to place. Turn the key clockwise
180° to lock the battery onto the chair.
Removal
Turn the key anticlockwise 180° push the battery forward along the direction b2 to
unload the battery.
Remaining Capacity Inspection
Press the button in the middle, there are four red lights, each one means 25% capacity,
please do not use STAIRCLIMBER when there is only one red light before charging to full.
* lithium-ion battery is a consumable product.
* When it displays low power or undervoltage, charging is required.
b2
9
b1

User Manual for Globex Stairclimber
Preparing to use the STAIRCLIMBER
Deployment
Open the pedal as shown
Open the chair as shown
Open the armrests as shown
2
5
c1

User Manual for Globex Stairclimber
Deploying the carry handles
Open the rear handles as shown if required until they lock in to position
Expand the telescopic front lifting handles:
Press the red button and pull the handles in the direction of the arrow until they lock into
position
To release the tracks:
Depress the red locking pedal
c2
11
7
c3
17

User Manual for Globex Stairclimber

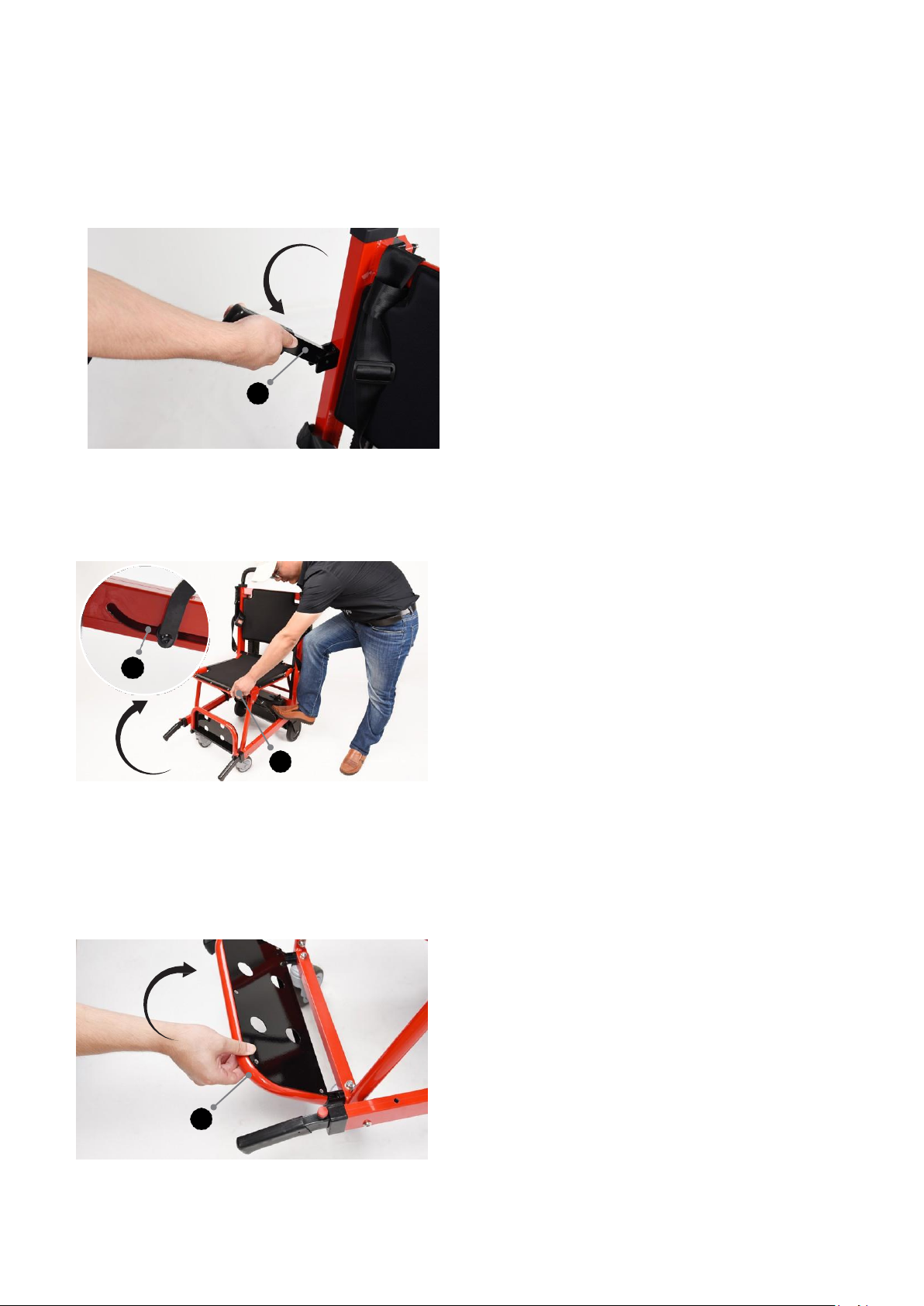

Closing
Fold the armrests:
Fold the armrests up as shown
Grip the seat by one hand and the frame with the other, depress the foldaway support
bracket then after the bracket is out of the locking position fold up the seat.
Fold the pedal up as shown
2
5
d2
d1

User Manual for Globex Stairclimber
Fold lifting handles:
Press locks and fold the handles down
Fold the front lifting handles:
Press the red button and push the handles into the frame
Storing the the track belts: Depress the red bar downwards
12
7
d1
16

User Manual for Globex Stairclimber

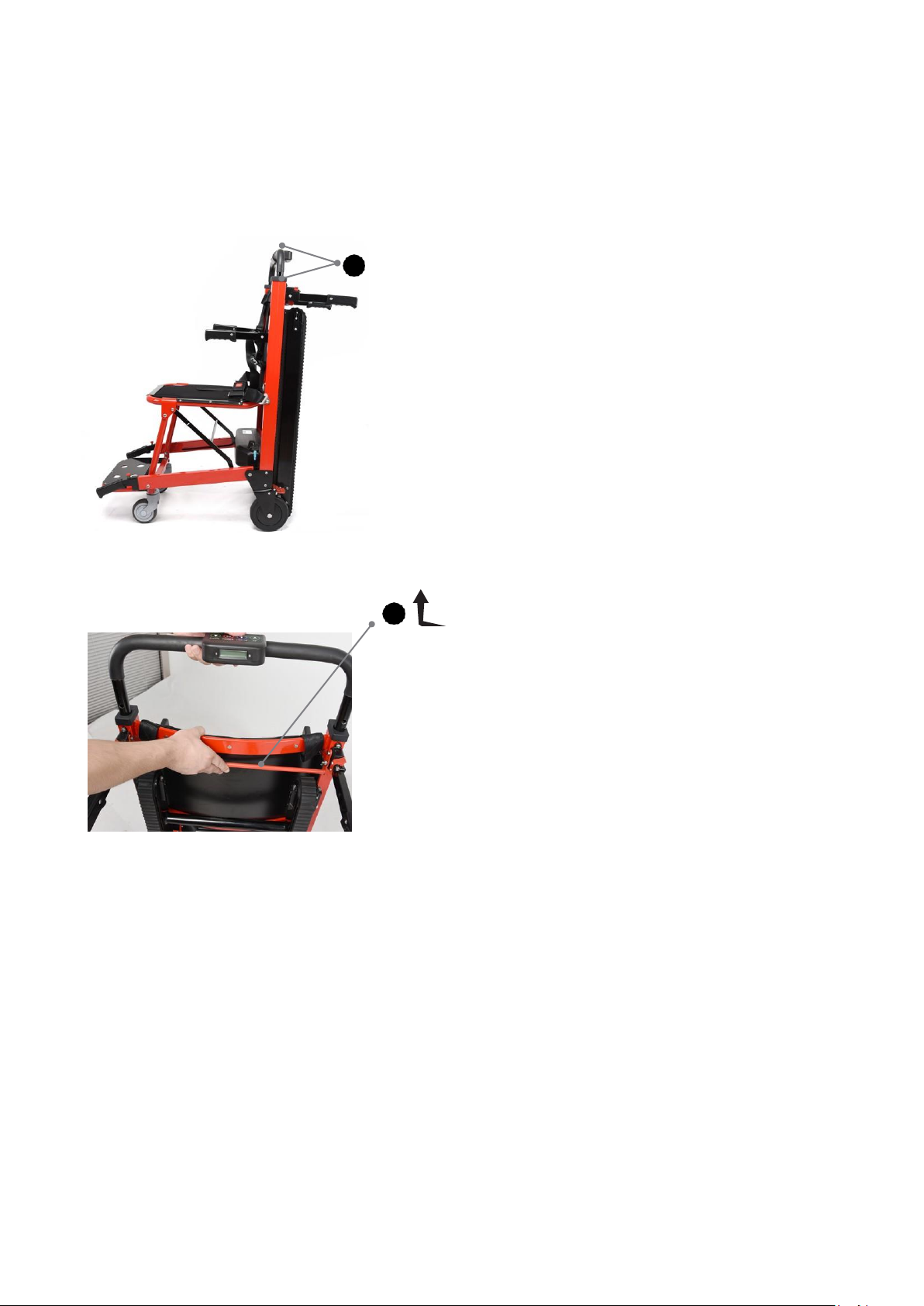

Adjust Telescopic Grip Frame
When the chair stands deployed, keep the
telescopic frame at the lowest position
When going upstairs or downstairs, the operator
must adjust the height of the telescopic grip frame
close to the operator's shoulders height.
To pull up:
Press the red locking bar inwards and pull the handle up to suitable height, then release
the locking bar until the handle locks at a suitable height.
Lower the handle:
Press the red locking bar inwards, and lower the handle down to suitable height, then
release the locking bar until the handle locks at a suitable height.
.
14
d2

User Manual for Globex Stairclimber

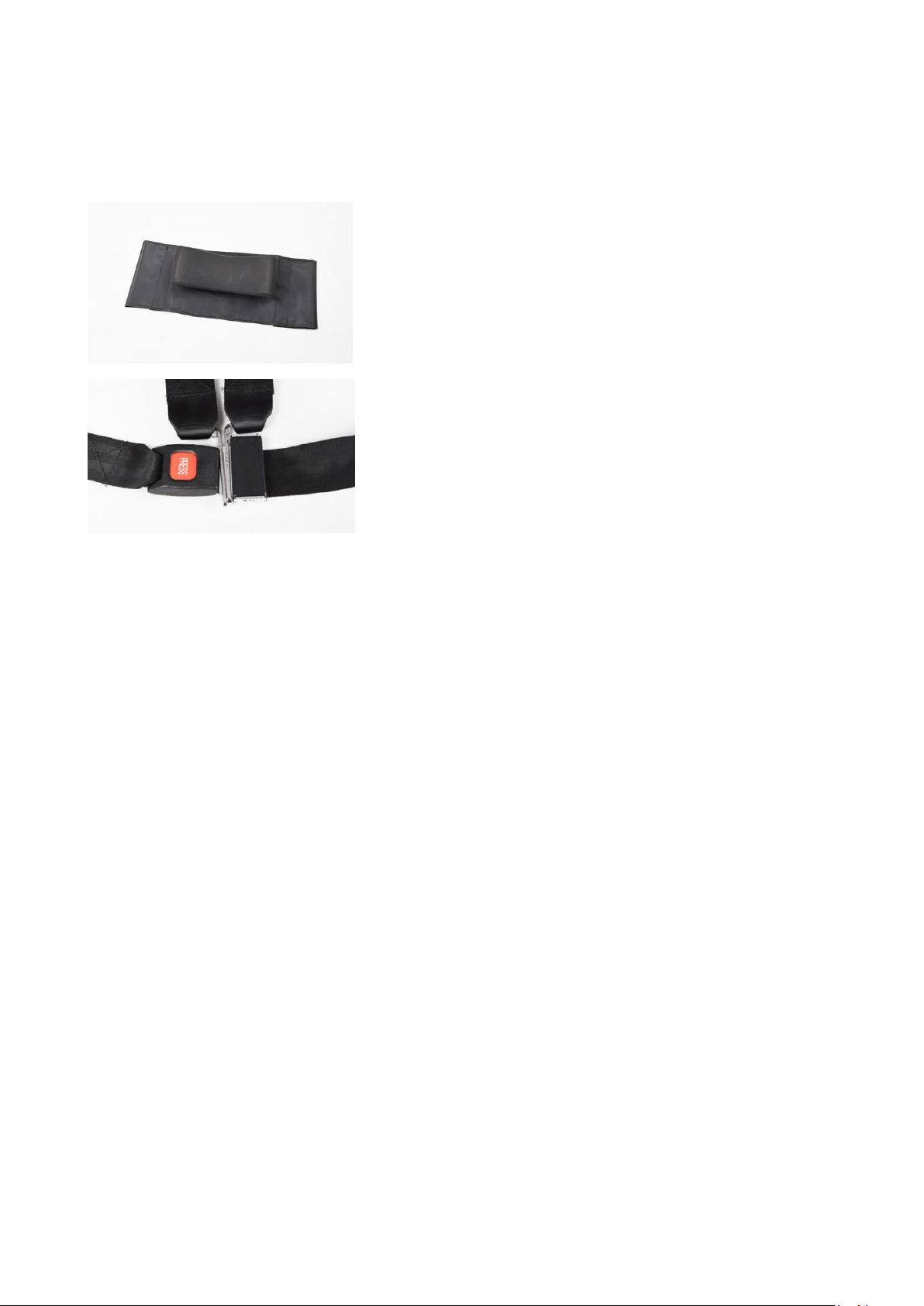

Headrest And Safety Belt
Headrest:
Adjust and fix the headrest to suitable height with strap according to the passenger's
height.
Safety belt:
After the passenger is seated, adjust safety belt and fix it as shown if required.

User Manual for Globex Stairclimber
22

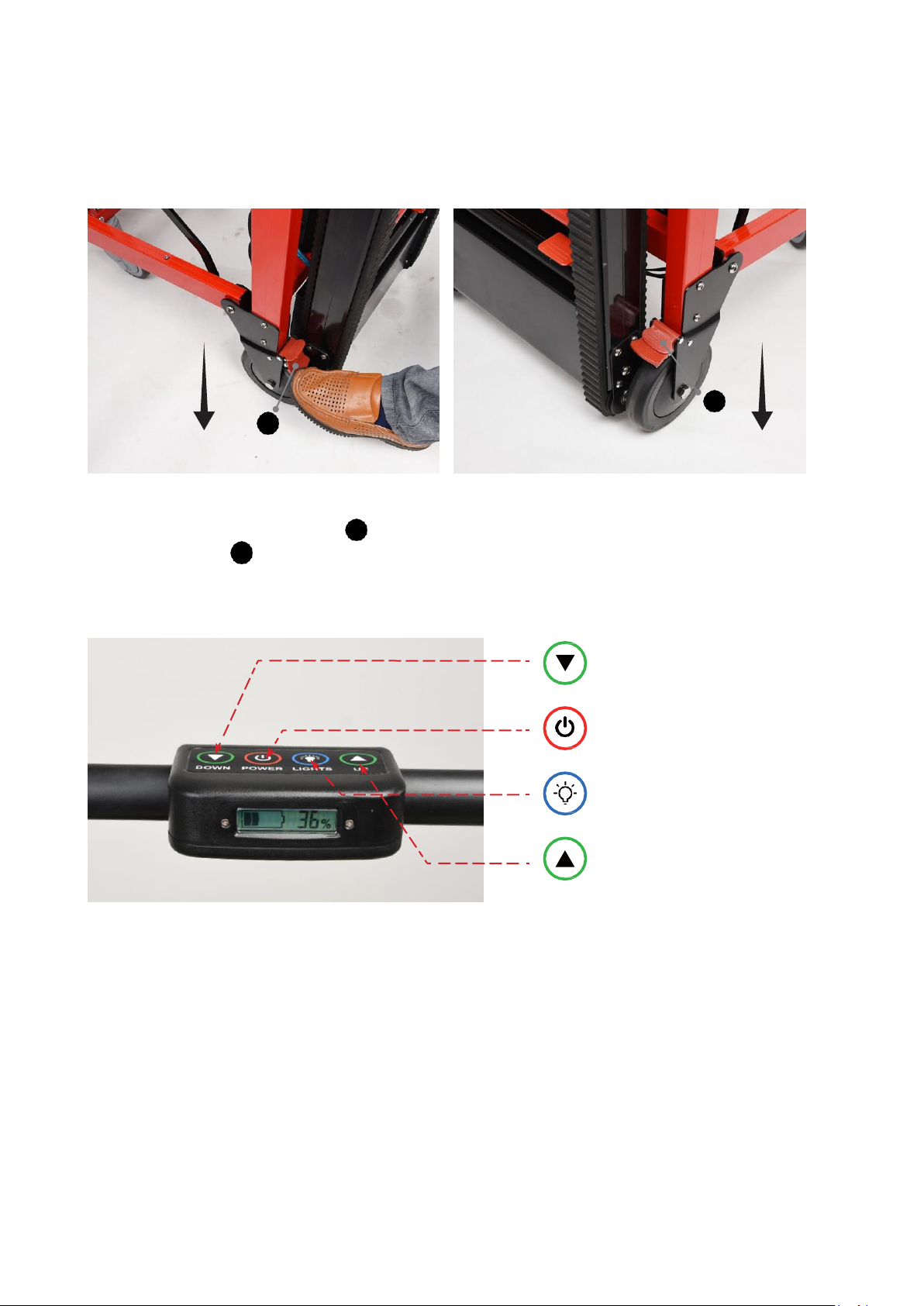

Brakes
Before folding the chair, you should press the brake pedal.
Lock: Press the brake pedal
Release: Press to unlock.
Control Panel
DOWN
POWER
LIGHTS
UP
As shown, from left to right: go downstairs, power, lighting, go upstairs.
22
20
20

User Manual for Globex Stairclimber
f1
Power-On
Turn on the battery switch as shown
Press the POWER button, the display LED is on, and remaining of the battery is displayed.
Power-Off
Press the POWER button, the battery monitor background lights off.
Turn off the battery switch as shown
Light
Press the LIGHT button: The display LED is on.
Re-press the LIGHT button: The display LED is off.
Climbing Upstairs
Upstairs: Keep pressing the UPSTAIRS button.
Pause or Stop: Release the UPSTAIRS button.
Climbing Downstairs
Downstairs: Keep pressing the DOWNSTAIRS button.
Pause or Stop: Release the DOWNSTAIRS button.
Wheelchair use, Going Upstairs and Downstairs
* Before using STAIRCLIMBER, Please be sure that you have been properly trained and
familiarwith the operation of the chair.
* You may only be permitted to transport ONE person each time.
* Please practice climbing stairs without person on the chair at low speed.
* Before using the chair please check remaining of the battery and the track belts.
Wheelchair use
Release the brakes, grip the rear lifting handles, and push STAIRCLIMBER forward or
backward.
f2
f1
f2

User Manual for Globex Stairclimber
Climbing Upstairs
Deploy STAIRCLIMBER as shown, be sure the battery
is switched on, adjust the telescopic gripping frame to
suitable height.
Adjust the distance (30- 40cm) between the rear
castors and the staircase slowly tilt the handle back
until the track belt lean on the stair steps as shown.
Press POWER button to start lifting the chair,
meanwhile press the gripping frame a little
to make the track belts cling to stair steps.
Continuously press the UP button and move up on
the stair at the same time.
If need to pause or stop, release UP button. Note:
when the track belts lie on one or two stair steps,
make sure to press the frame downwards to avoid
STAIRCLIMBER leaning forward.

User Manual for Globex Stairclimber
When all the wheels reach the staircase landing,
release the UP button, grip the handle and slowly
lean forward to make four wheels stand on the
ground.
Grip the rear lifting handles push STAIRCLIMBER to
next location.

User Manual for Globex Stairclimber

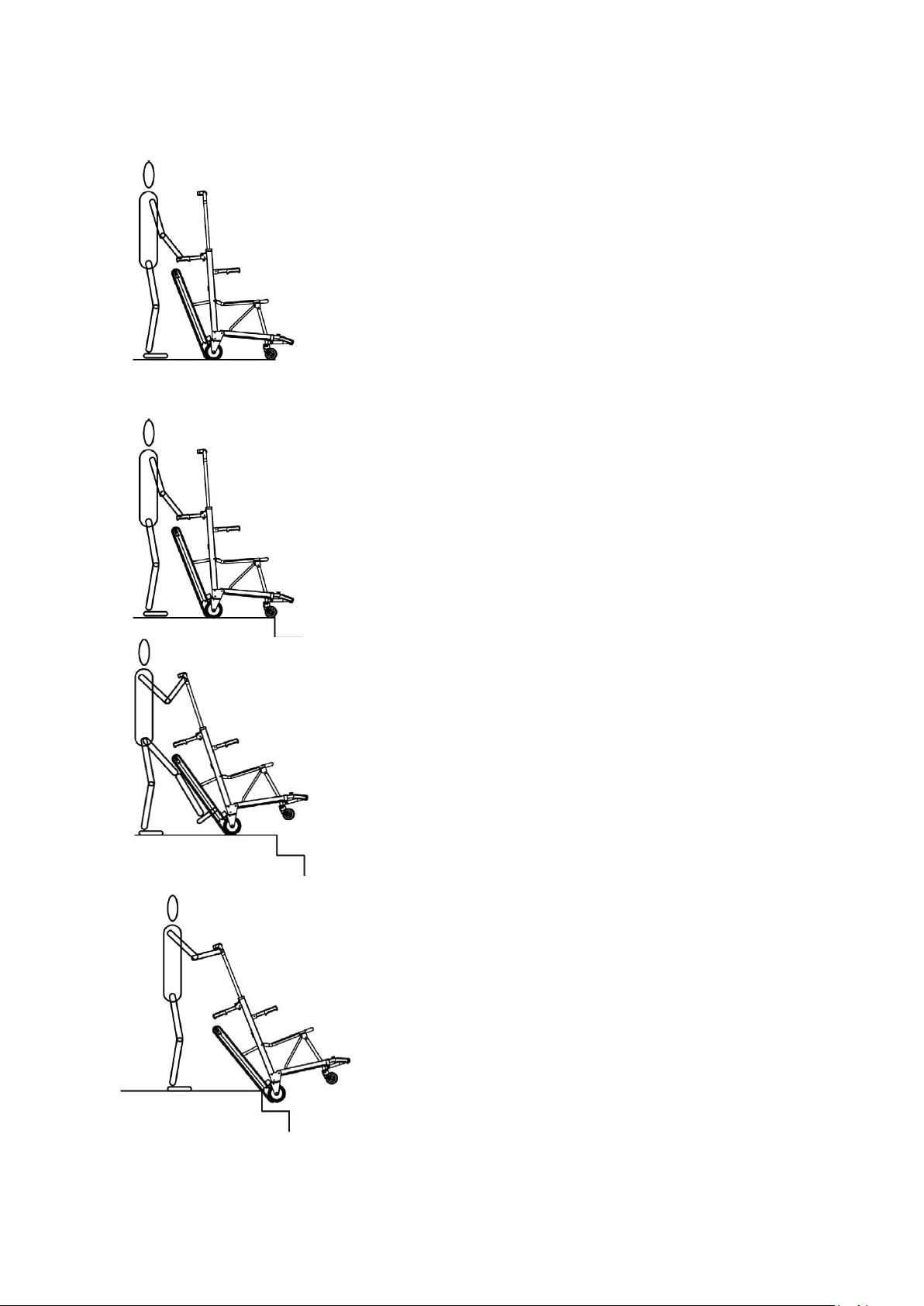

Descending stairs
Deploy STAIRCLIMBER as shown; make sure that
the battery switch is on, adjust the telescopic
frame to suitable height.
Push STAIRCLIMBER to staircase, adjust the chair
and make the track belts at the middle of the
staircase.
When the front wheels reach the staircase edge,
tilt the chair backward until the track belts on the
floor as shown, then press the DOWN button.
After the belts pass the first stair step, adjust
STAIRCLIMBER slowly to let the belts cover
two/ three steps along the staircase angle,.

User Manual for Globex Stairclimber
20
11
If need to pause or stop, release DOWN button.
Note: when the track belts cover one or two
steps, press the handle downwards a little to
avoid STAIRCLIMBER leaning forward.
When the track belts reach the floor at the
bottom of the stairs release the DOWN button,
then slowly tilt the chair forward until the four
wheels stand on the floor.
Grip the rear lifting handles , push
STAIRCLIMBER to next location.
