Globus MOTOR POINT PEN User manual

MOTOR POINT PEN
User manual
DEAR CUSTOMER
THANK YOU FOR CHOOSING A GLOBUS PRODUCT. WE REMAIN AT YOUR DISPOSAL FOR ANY ASSISTANCE
OR ADVICE YOU MAY NEED.
This product has been manufactured according to the technical regulations in force and is certified according to
Directive 93/42/EEC updated by 2007/47 directive for medical devices.
DOMINO s.r.l. - Via Vittorio Veneto, 52 - 31013 Codognè (TV) - Italy
Tel. [phone] - Fax. [phone] - E-Mail: [e-mail]

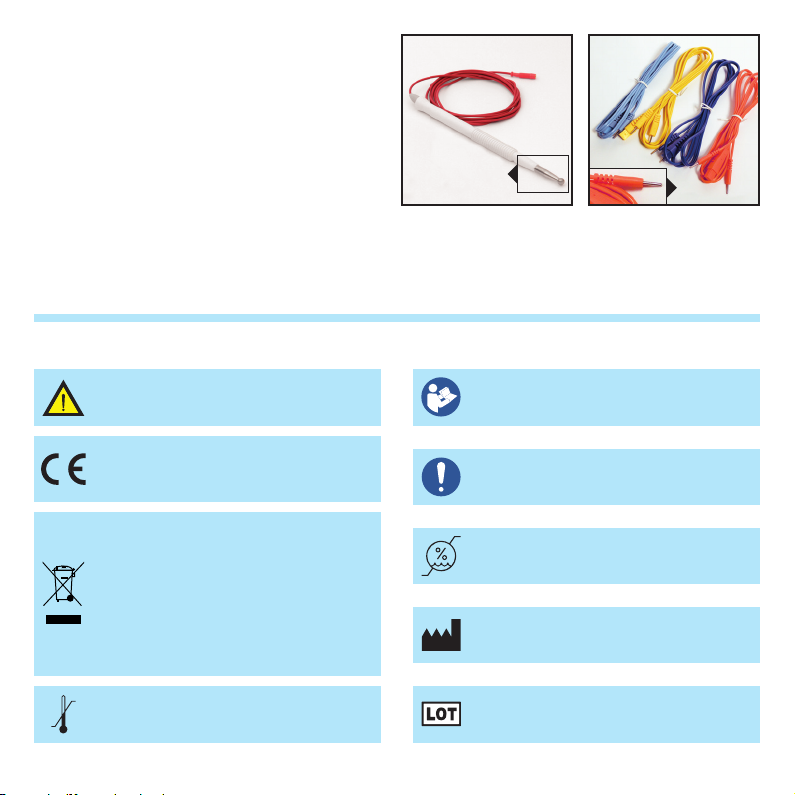

LABELLING AND SYMBOLS
Warning
It indicates that the device complies with the
directives on medical devices (93/42/EEC
47/2007/EEC).
WEEE symbol (Waste of Electrical and Electronic
Equipment). Recycling symbol. The WEEE
symbol used for this product indicates that the
device can’t be treated as a household waste.
Proper disposal of the product will contribute to
protecting the environment. For more information
on recycling this product, please contact the oce
concerned of the local body, the household waste
management company or the store where the
product was purchased.
It indicates the optimal temperatures for the
storage and transportation of the product.
It informs the operator that before using the
device he/she must read the manual.
IIt indicates a compulsory procedure.
It indicates the humidity of the environment where
the device and its accessories are used and stored.
It indicates the manufacturer
It refers to the production lot
PLUG
EQUIPMENT
When opening the package, please check that the basic
equipment is complete. If some elements should be missing,
contact immediately your authorized retailer.
Control the integrity of the device and its accessories carefully.
INTENDED USE
The estimated useful life of the product is of 5 years.
The device has been conceived to be used in the following
operating environments:
- domestic environment;
- clinics;
- physiotherapy centers;
- rehabilitation in general;
- pain treatments in general;
- sports and beauty.
METAL CAP TO BE
SCREWED
CONNECTIONS
The device has to be connected to one of the two plugs at the end
of the connection cables provided with Globus electrostimulators.
Rev.04.15

MANDATORY BEHAVIOUR, INSTRUCTIONS AND CONTRAINDICATIONS
Mandatory behavior
For safety reasons, the device has to be used exclusively as indicated in the present manual.
It should not be performed treatments in the presence of skin lesions. If the packaging, the cable or the
connector show signs of wear or damage, the device should be immediately replaced. The device has to be connected
to one output channel of the Globus stimulators.
The manufacturer declines any responsibility due to a dierent use from what it is indicated and prescribed in this
manual.
No part of this manual (texts and/or photos) may be reproduced by electronic or mechanical means without the prior
written authorization of the manufacturer.
Instructions before use
- It is recommended reading carefully the entire operating manual before using the device; keep carefully this
operating manual.
Do not use the device if its cables or buttons are defective or malfunctioning.
- It should not be used for purposes other than transcutaneous neurostimulation.
- It must be kept out of the reach of children.
Warnings during the use
While using the device, some warnings should be followed:
- Damaged cables have to be replaced with original, brand-new parts and never used again.
- Use only Globus electrodes.
- Particular attention has to be paid when using current densities above 2mA/cm².
- Do not wrap the cable around people’s neck, since it may lead to strangulation and suocation.
Side eects
Skin irritation may occur in subjects with high skin sensitivity.
In case of allergic reaction to the electrode gel, suspend the treatment and contact a specialist.
If during the treatment signs of tachycardia and extrasystole appear, suspend the treatment and contact your physi-
cian.
Contraindications
Use is not recommended in the following cases:
- stimulation of the anterior neck (carotid sinus);
- patients with pacemakers;
- patients with tumor diseases (see your oncologist);
- stimulation of the brain region;
- pains with unknown etiology;
- sores and dermatological diseases;
- stimulation on recent scars;
- pregnancy;
- it is strictly forbidden to use the device on the ocular area.
Rev.04.15

Maintenance and cleaning of the device
- In case of damaged case, this should be replaced and no longer used.
- In case of real or alleged malfunctioning, neither tamper with the device nor try to repair it by yourself.
Neither intervene on the device nor disassemble it. Only specialized and authorized centers can repair the device.
- Avoid violent impacts that may damage the device.
- Clean the device only by using disinfectant with sodium hypochlorite or quaternary ammonium salt (percentage: 0.2-0.3%)
diluted with distilled water. After cleaning and disinfecting, dry the device and its accessories with a clean cloth.
- It is recommended that you clean/disinfect the parts after every use, unless otherwise indicated.
Always use the device with clean hands.
- It is recommended that you use the device in a clean room to avoid the contamination of the device with dust and dirt.
- It is recommended that you use the device in a ventilated, well-aired space.
- It is recommended that you clean/disinfect after every use.
- It is recommended performing the maintenance of the device and its parts every 12 months since the date of purchase.
- Place the device in its original packaging when it is not used or has to be transported.
Disposal of the device
Do not throw the device or part of it in the fire, but dispose of the product in the specialized centers and respecting the
directives in force in your country. When the product has to be disposed of, the user can give it back to the retailer when
purchasing a new device.
Correct waste separation and returning the end-of-life product contribute to avoiding negative impacts on the environment
and health and promote the reuse and/or recycle of materials. The illegal disposal of the product involves the application of
an administrative fine according to current regulations.
MAINTENANCE AND CLEANING
The motor point pen is a very useful tool for search as precisely as possible the best place to position the electrode and get
the most complete contraction.
- Connect the device to one of the two plugs at the end of the cable for electrode connection of the Globus stimulator.
- Connect an electrode to the other plug to stimulate (chosen according to the size recommended for the treatment
that you plan to carry out).
- Place the electrode on the muscle area to be stimulated, as suggested in the section on positioning electrodes in
the operating manual of the stimulator.
- The area on which to apply the search for the motor point is the area corresponding to where it is recommended
the positioning of the other electrode. It is advisable to prepare the area by covering it with gel.
- Place the tip of the pen on a point of the area previously identified.
- Select the motor point pen program from the menu of the stimulator (alternatively, one of the warm-up programs).
- Raise the intensity of the channel on which the cable is connected. The recommended intensities are:
• 4-6 mA for the muscles of the upper limbs and trunk;
• 5-9 mA for the muscles of the lower limbs.
- Slowly move the pen and remain within the electrode area that will be used later, searching for the point at which
we will feel the maximum increase of the contraction. This will be the best point where to place the electrode.
INSTRUCTIONS FOR USE
