Globus Champion GL4 User manual

Rev.04.15

2
Rev. 1 del 24.10.2017

3
Rev. 1 del 24.10.2017
DEAR CUSTOMER
THANK YOU FOR CHOOSING A GLOBUS PRODUCT. WE REMAIN AT YOUR
ENTIRE DISPOSAL FOR ANY ASSISTENCE OR ADVICE YOU MAY NEED
The electrostimulators GL4 (The Champion) are manufactured and distributed
by:
DOMINO s.r.l.
via Vittorio Veneto 52
31013 - Codognè - TV - Italy
Tel. [phone]
Fax. [phone]
E-Mail: [e-mail]
www.globuscorporation.com
This product has been manufactured according to the technical regulations in
force and is certified according to Directive 93/42/EEC updated by 2007/47
directive for medical devices, by KIWA CERMET ITALIA S.P.A. Scrl (authorization n.
0476), in order to ensure the product's safety.
The Champion

4
Rev. 1 del 24.10.2017
Table of contents
TECHNICAL FEATURES ..................................................................................................................................... 6
Device ................................................................................................................................................................ 6
Use conditions .................................................................................................................................................. 6
Technical features of the currents.............................................................................................................. 6
EQUIPMENT ........................................................................................................................................... 8
INTENDED USE ....................................................................................................................................... 9
CONNECTIONS ................................................................................................................................... 10
How to connect the cables ....................................................................................................................... 10
Electrode application .................................................................................................................................. 10
Battery: how to charge the batteries...................................................................................................... 11
LABELLING AND SYMBOLS ........................................................................................................................... 12
Device .............................................................................................................................................................. 13

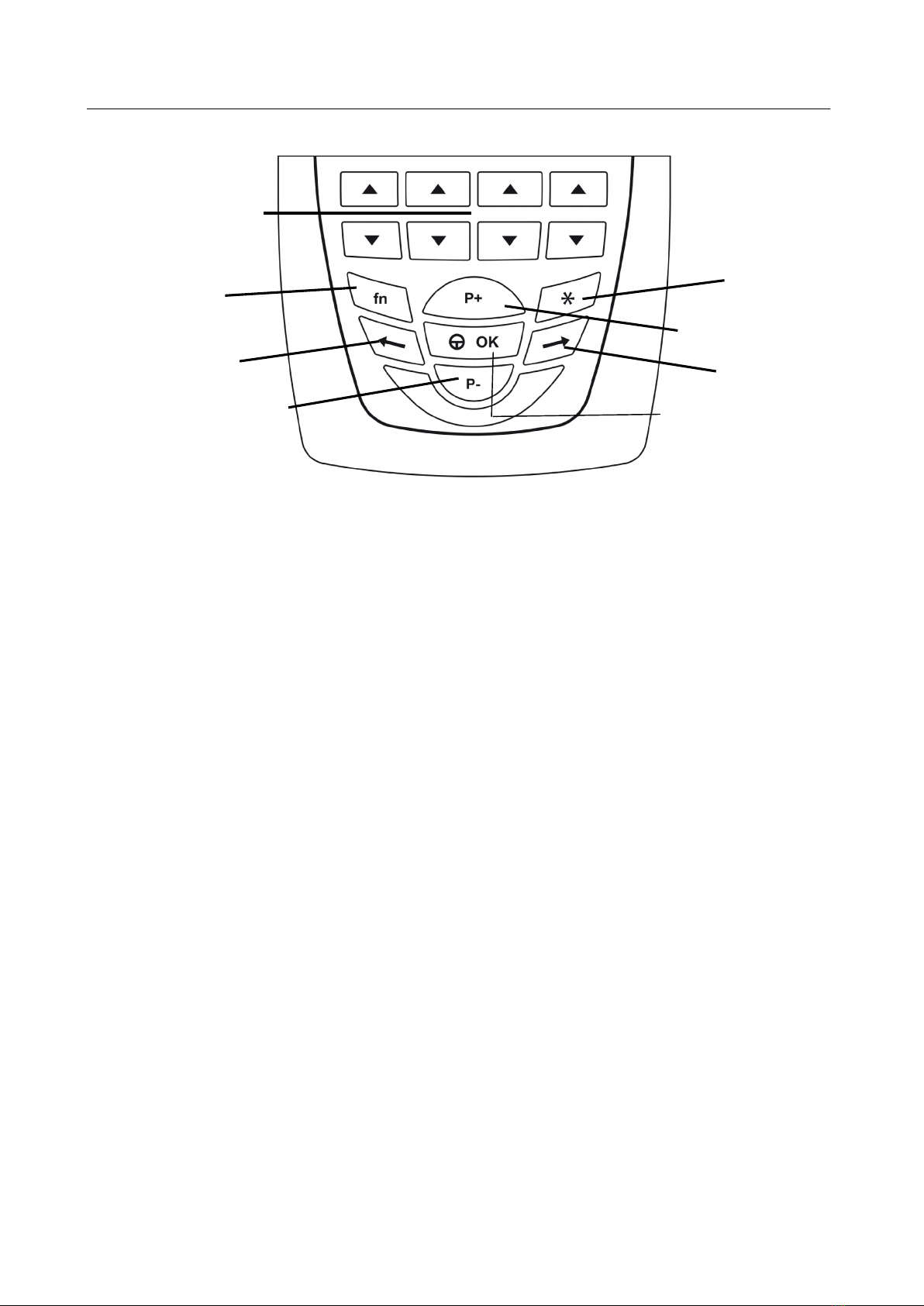

PANEL AND KEYBOARD................................................................................................................................ 15
Display and interface................................................................................................................................... 16
ALARMS ............................................................................................................................................................ 16
Compliance.................................................................................................................................................... 16
WARNINGS AND CONTRAINDICATIONS.................................................................................................. 17
Mandatory behavior .................................................................................................................................... 17
Warnings before use..................................................................................................................................... 17
Warnings during the use.............................................................................................................................. 18
Side effects...................................................................................................................................................... 19
Contraindications.......................................................................................................................................... 19
MAINTENANCE AND CLEANING ................................................................................................................ 20
Device .............................................................................................................................................................. 20
Battery .............................................................................................................................................................. 20
Accessories ..................................................................................................................................................... 21
Disposal of the device ................................................................................................................................. 21

5
Rev. 1 del 24.10.2017
INSTRUCTIONS FOR USE ................................................................................................................................ 22
“Program List” menu..................................................................................................................................... 22
“Last 10” menu............................................................................................................................................... 24
“Favorites” menu........................................................................................................................................... 25
“Treatments” menu....................................................................................................................................... 26
“Programming” menu.................................................................................................................................. 26
ACTION PRINCIPLES....................................................................................................................................... 30
Muscular electrostimulation ....................................................................................................................... 30
Tens........................................................................................................................................................ 33
Microcurrents...................................................................................................................................... 34
Ionophoresis ........................................................................................................................................ 34
PROGRAM LIST................................................................................................................................................ 35
WARRANTY ...................................................................................................................................................... 49

6
Rev. 1 del 24.10.2017
TECHNICAL FEATURES
Device
Size: 160x99x35.4 mm
Weight: 404 g
Case: in Food Grade ABS
Protection level: IP 22
Storage and transportation temperature: from -10°C to 45°C
Max. relative humidity: 30% - 75%
The values indicate the limits allowed if the product or its accessories are not in the
original package.
Use conditions
Temperature: from 0°C to 35°C
Max. relative humidity: from 15% to 93%
Atmospheric pressure: from 700 hPa to 1060 hPa
Technical features of the currents
EMS and TENS:
Channels available: Channels 1-2-3-4
Constant current: Yes
Intensity: 0-120 mA with 1000 Ohm load
Wave form: Rectangular, biphasic, symmetrical,
compensated
Working frequency: 0.3-150 Hz
Recovery frequency: 0.3-150 Hz
Pulse amplitude: 50-450 µs
Working time: from 1 to 30 seconds
Recovery time: from 0 to 1 minute
Frequency mod. range: continuous variation from 1 to 150 Hz
Min. modulation time: 3 seconds
Amplitude modulation range: continuous variation from 50 to
450 µseconds
Microcurrents:
Channels available: Channels 1-3
Constant current: Yes
Min. frequency: 5Hz
Max. frequency: 200Hz
Min. Intensity: 0 µA/1000 Ohm Step 10 µA
Max. Intensity: 800 µA/1000 Ohm
Amplitude value: included between 1 and 250 µseconds

7
Rev. 1 del 24.10.2017
Ionophoresis:
Channels available: Channel 1
Constant current: Yes
Min. Intensity: 0 mA/1000 Ohm
Max. Intensity: 10 mA/1000 Ohm step 0.1 mA/1000 Ohm
Min. time: 1 minute
Max. time: 99 minutes
Charger
Brand: FLO
model: DKT-088-0200-EU
Input: 100-240V~ 50-60Hz 0, 2A
Output: 8,8 Vd.c. 0.2A
Polarity:
Battery
Battery pack: Ni-MH 7,2 V 1,8 Ah

8
Rev. 1 del 24.10.2017
EQUIPMENT
The electrostimulator is supplied complete of cables and electrodes to use:
therefore, while opening the package, it is necessary to check that the basic
equipment is complete. If some elements should be missing, contact immediately
the authorized retailer where you purchased the product.
Control carefully the integrity of the device and its electrodes.

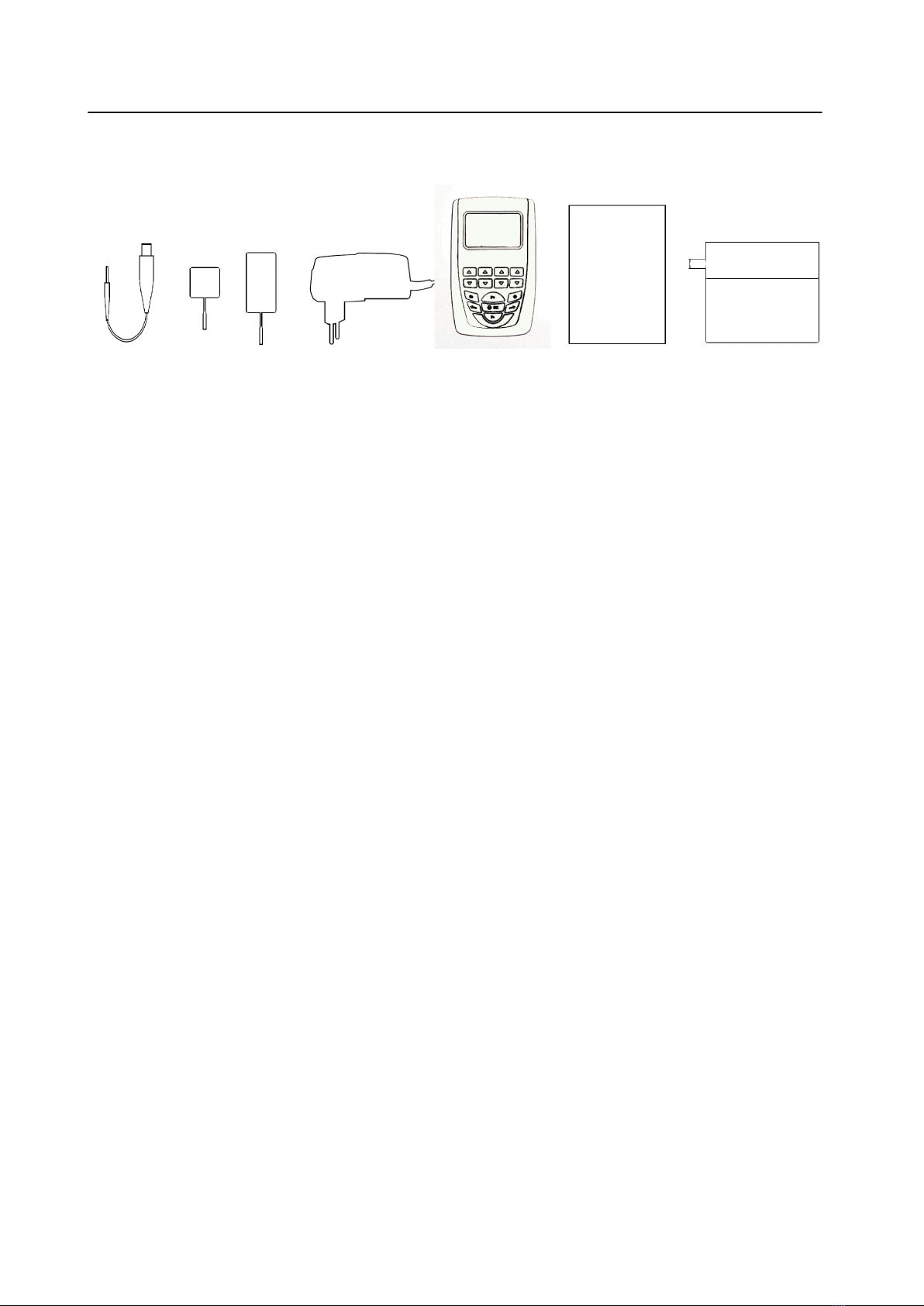

A. 4 colored electrode connection cables (for EMS and TENS treatments) and
B. 2 gray cables for electrode connection (for MICROCURRENT and IONOFORESIS
treatments)
C. A bag containing 4 reusable self-adhesive electrodes (50 x 50 mm)
(Use these electrodes for small areas such as upper limbs, calves, cervical…)
D. A bag containing 4 reusable self-adhesive electrodeS (50 x 90 mm)
(Use these electrodes for big areas such as thighs, abdomen and glutei...)
E. Charger (See technical features)
F. GL4 Unit
G. User manual and warranty
Carrying bag
All the supplied information can be modified without previous notice.
The device can be used with some optional accessories (it is possible to see their
features on the website www.globuscorporation.com). If you are interested in
buying these accessories, please contact the retailer.
A-B C-D E F G H

9
Rev. 1 del 24.10.2017
Accessories not included (available on charge)
- Find Motor point pen
- Kit of 8 elastic bands for legs and thighs
- Kit of 4 elastic bands for thighs
- Electrodes for ionophoresis
- Face electrodes
- Kit Y cables
- Fast band
- Fast pad
- Anal and vaginal probes
INTENDED USE
The after sales service is guaranteed for 5 years. We suggest having a check of the
device every 2 years for the maintenance and to ensure the safety. The numbers of
treatments depend on the battery charge. The duration of the battery is 6 months,
we suggest replacing it after that period.
The electrostimulators are designed to be used in the following operating
environments:
- domestic environment;
- clinics;
- physiotherapy centers;
- rehabilitation centers;
- general pain treatments;
- beauty and sport purposes.
The use of this device is permitted to the patient (appropriately informed about the
use conditions of the device) and to medical staff.

10
Rev. 1 del 24.10.2017
CONNECTIONS
Cable connection outlets and power supply
Attention:
If the package, the cable or the connector of the charger show signs of wear or
damage, replace it instantly.
How to connect the cables
To connect the cables to the device, plug them in the intended inlets in the upper
part of the unit (see picture). Insert the cables with the grooves facing downwards.
The inlets are placed exactly under the corresponding channels.
NOTE: For EMS and TENS currents use indifferently the 4 channels with colored
cables. For microcurrents use only channels 1 and 3. For ionophoresis use only
channel 1.
Electrode application
Take the electrodes from the original package; all new electrodes have a seal on
the package. Be sure that the device is off. To start, connect the two cable plugs to
the electrodes, then disconnect the electrodes from their position and apply them
on the skin. To place the electrodes correctly, see the pictures included in this
manual.
After the use, place the electrodes in their original position again.
ATTENTION: Do not unplug the electrodes if the unit is working.

11
Rev. 1 del 24.10.2017
Battery: how to charge the batteries
The device is supplied with a set of rechargeable nickel-metal hydrate batteries
(7.2V, 1.5Ah), which have high performance without storage effect.
Recharge the batteries when the battery indicator on the display indicates ¼.
To charge the batteries, turn off the electrostimulator and disconnect the
electrodes, then connect the elctrostimulator to the charger provided by inserting
the plug in the appropriate inlet (see picture above).
Do not use a different charger from the one provided with the device. To replace
the electrostimulator's batteries, contact the authorized service center.

12
Rev. 1 del 24.10.2017
LABELLING AND SYMBOLS
It refers to the manufacturer
Warning
This symbol on your device indicates that it complies with
the directives on medical devices (93/42/CEE
47/2007CEE). The number of the notified unit is 0476.
It indicates that this is a II class device.
It indicates that this device has type BF parts.
WEEE symbol (Waste of Electrical and Electronic
Equipment). Recycling symbol. The WEEE symbol used for
this product indicates that the device may not be
disposed of as a household product. Properly dispose of
the product to help protect the environment. For more
information on recycling this product, contact the local
competent department, the household waste
management company or the store in which the
product was purchased.
It indicates that the product has been produced
respecting the directive 2011/65/CE.
It indicates the optimal temperatures for the storage and
transportation of the product.
It informs the operator that before using the device he
must read the manual.
IP22
It indicates the water protection degree
It informs the operator of a compulsory conduct
It refers to the pressure of the storage and transport
environment where the device and its accessories are
used

13
Rev. 1 del 24.10.2017

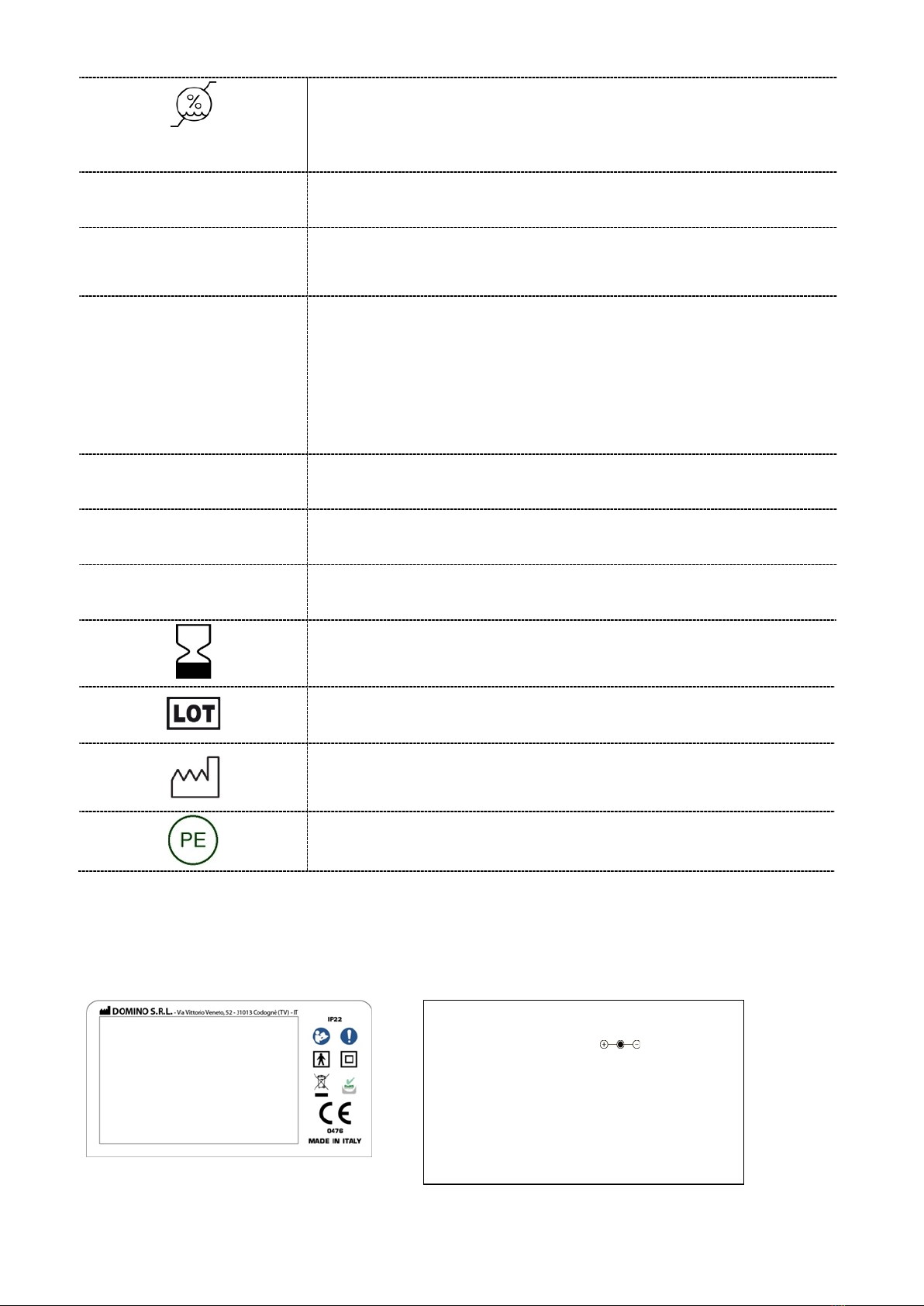

It refers to the humidity of the storage and transport
environment where the device and its accessories are
used.
Output Power
It indicates the output power of the device
Input
Input: it indicates the value of the mains voltage for the
power supply unit
Output
Output:
- it indicates the power supply unit outbound voltage
- it indicates the maximum power value of the magnetic
field emitted by the device
- it indicates the range of frequencies of the magnetic
field emitted by the device"
Type
It indicates the device type
Power
It indicates the power supply unit model of the device
Battery
It indicates the battery pack inside the device
It refers to the expiry date
It refers to the production lot
It refers to the manufacturing date
Polythene symbol
Device
Input PWR: DK7-088-0200-EU
PRI: 100-240Vac 50-60Hz 0,2A
SEC: 8,8VDC 200mA
Output: 120mA(1000ohm)
Electrostimulator: THE CHAMPION
*A4R421501380*
SN: A4R421501380
Batteries: 7,2V NiMh ≥1500mAh

14
Rev. 1 del 24.10.2017
Electrodes
Clean and degrease the skin.
Do not apply the electrode on wounds and damaged skin.
Connect the cable connector to the electrode one.
Detach the electrode.
Apply to the skin.
Start the program.
At the end, switch off and store the electrode in the package.
The electrodes are for personal use only.
Do not pull the electrode by grabbing the connector.
Do not apply the electrodes in such a way that they touch each other.
Do not apply electrodes on temples, neck and transthoracic.
Do not leave the electrodes in the car.
Indicates the dimensions of the product
Indicates the quantity of electrodes contained in the package
Indicates the product code
It refers to product certifications and indicates that it complies
with the Directive 2001/95/CE updated as 2014/357/UE.
Indicates the storage temperature of the electrodes

15
Rev. 1 del 24.10.2017
PANEL AND KEYBOARD
NOTE: When the 3” message appears, it means that pressing the button for 3
seconds the function is activated.
ON/OFF/OK Button
To confirm the selection. While a program is running, it
activates the pause.
3” = ON/OFF.
Left/BACK Button
To move the selection to the left.
To go back to the previous selection.
3” = While a program is running, it returns to the previous
phase.
P+/SAVE Button
To move the selection upwards.
While a program is running, it increments the intensity of
the 4 channels simultaneously.
P-/DEL Button
To move the selection downwards.
While a program is running, it decrements the 4 channels
intensity simultaneously.
Right/USER Button
To move the selection to the right.
3” = While a program is running, it goes to the next phase.
* Button
To start and stop the contraction during the execution of
the “Action Now” programs (in the devices that have
these functions).
fn (Runtime)
Pressed together with other buttons, it modifies their
function, while pressed alone during the stimulation, it
permits to access to the Runtime function (to modify time,
frequency and amplitude).
Increase/Decrease
intensity button
Function button
Left/Back button
P- button
ON/OFF/OK button
Right/User button
P+ button
*button

16
Rev. 1 del 24.10.2017
Intensity button
To increase/decrease the stimulation intensity of the
corresponding channel.
Display and interface
ALARMS
Compliance
Certifications: CE MDD certificate.
The sound and acoustic signals are in compliance with directive 60601-1-8.
Meaning of the “Electrode error” alarm
If one or more cables are not connected to the mains, or if microcurrents cables are
used to an EMS program, on the display the following alarm will appear: "Electrode
error"
Program name
Time indicators
Battery indicator
Time of the
working phase
and of the rest
phase
Stimulation
intensity
Type of currents
and indicator of
the phase
number and of
the phase in
progress

17
Rev. 1 del 24.10.2017
WARNINGS AND CONTRAINDICATIONS
Mandatory behavior
For safety reasons, the device must be used in the prescribed manner and within
the limits of use explained in this manual.
The manufacturer declines any responsibility due to a different use from what it is
indicated in this manual.
No part of this manual (texts and photos) may be reproduced by electronic or
mechanical manner without the prior written authorization of the manufacturer.
Do not carry out any treatments in case of skin lesions.
If the package, the cable or the connector of the charger show signs of wear or
damage, replace it instantly.
The unit should be connected to the mains by its power supply unit. Before starting
the treatment, make sure that the power system specifications comply with the
directives in force within your country. Make sure that the power supply unit will be
in a comfortable position and that it will be easy to be removed.
Warnings before use
We suggest avoiding the use of the device together with other electronic devices,
especially with those used to maintain vital functions. For a correct use of the
Electromedical device, refer to the tables attached. If it is necessary to use the
device near or together with other devices, pay attention to its working.
- It is recommended to read carefully the entire operating manual before using the
device; keep carefully this operating manual.
- The device can emit current value above 10mArms.
- Before each use always check the integrity of the unit. This is a fundamental
requirement for carrying out therapies, do not use the unit if either the buttons or
cables are defective or malfunctioning.
- It must be used only from people over 18 who are able to understand and take
action.
- It should not be used for purposes other than transcutaneous neuromuscular
stimulation.
- It must be used following the indications and under the physician or
physiotherapist’s control.
- It must be used with the supplied electrodes intended for transcutaneous
neuromuscular stimulation.
- It must be kept out of the reach of children.
- ECG monitoring devices may not operate properly when electrostimulation is
working.
- Do not use the device in transthoracic modality because it may cause cardiac
arrhythmia, imposing its frequency over the heart one. Do not stimulate the pectoral
and dorsal muscles simultaneously.

18
Rev. 1 del 24.10.2017
- If there is any health problem, it must be used only after seeing a doctor.
- A simultaneous connection of the patient to a high frequency electrosurgery
device can cause burns where the electrodes are placed and the electrostimulator
can result damaged.
-After turning on the device, make sure that in the display the software version and
the model of the device appear, it means that the device is working and it is ready
to be used.
If not, or in the display all the segments do not appear, turn it off and on again. If
the problem persists, contact the service center and do not use the device.
- An unexpected switching-off of the device means that the battery has run-down.
Charge it according to the instructions in the paragraph: how to charge the
batteries.
Warnings during the use
While using the electrostimulator some warnings should be followed:
- In case of damaged cables, they must be replaced with original parts and no
longer used.
- Use only Globus branded electrodes.
- Pay particular attention when the current density for every electrode is above
2mA/cm2 (effective value).
- The device must be kept out of the reach of any pet that could damage it and
contaminate electrodes and other accessories with parasites.
- The cables of the electrostimulation should not be wrapped around people's neck
to avoid any risk of strangulation and suffocation.
- The mobile and fixed radio communications devices could influence the
functioning of the electromedical device: see the tables attached to this manual.
Preventative measures to take using the device for incontinence treatments.
- Patients with extra-urethral incontinence should not be treated with the
electrostimulator.
- Patients suffering excessive incontinence due to evacuation problems should not
be treated with the electrostimulator.
- Patients with severe urinary retention to the upper urinary passages should not be
treated with the stimulator.
- Patients with total peripheral denervation of the pelvic floor should not be treated
with the stimulator.
- Patients suffering of a total/subtotal prolapse of the uterus/vagina should be
stimulated with extreme care.
- Patients with infections to the urinary passages should be treated for these
symptoms before starting the stimulation treatment.
- Before removing or touching the probe it is necessary to turn off the stimulator or to
regulate the intensity of both the channels on 0,0 mA.

19
Rev. 1 del 24.10.2017
- The treatment is a personalized medical prescription: do not borrow the stimulator
to other persons.
Side effects
Isolated incidents of skin irritation may occur in subjects with high epidermal
sensitiveness.
In case of an allergic reaction to the electrode gel, suspend the treatment and
contact a specialist.
If during the treatment signs of tachycardia and extrasystole appear, suspend the
treatment and contact your physician.
Contraindications
Do not use the device in the following cases:
- Stimulation of the front part of the neck (carotid sinus).
- Pacemaker weavers.
- Patients with tumor diseases (see your oncologist).
- Stimulation of the brain region.
- Pains whose etiology is unknown.
- Sores and dermatological diseases.
- Severe traumas.
- Stimulation on recent scars.
- Pregnancy.
- It is strictly forbidden to use the electrostimulator in the ocular area.
- Near body areas with metallic implants or infratissue metals (prostheses,
osteosynthetic devices, coils, screws, orthopedic plates), when using monophasic
current, interferential, or continuous current, ionophoresis.
It is recommended to use the device with caution in people with capillary fragility,
as an excessive stimulation could cause capillary ruptures.

20
Rev. 1 del 24.10.2017
MAINTENANCE AND CLEANING
Device
- In case of damaged case, this should be replaced and no longer used.
- In case of real or alleged malfunction, do not tamper with the device or try to
repair it yourself.
- Do not intervene on the device and do not open it. Only specialized and
authorized centers can repair it.
- Avoid violent impacts that may cause damage and malfunctions to the device
even if undetectable immediately.
- Use this device in a dry environment and in an open space (not wrapped in any
materials).
- Clean the device and accessories only with disinfectant with sodium hypochlorite
or quaternary ammonium salt diluted with distilled water equal to 0.2-0.3%. After
cleaning/disinfecting it, dry the device and its accessories with a clean cloth.
- It is recommended to clean/disinfect the parts after every use.
- Always use the device and its accessories with clean hands.
- It is recommended to use the device in a clean room, to avoid the contamination
of the device with dust and dirt.
- It is recommended to use the device in a ventilated space, with regular air
change.
Battery
Battery info
The device is equipped with a menu that can visualize the charge of the battery,
the values and the conditions of the end of the charge.
It is recommended to access to this menu only after a complete charge of the
batteries.
From the main menu choose "Advanced", then "Setup" and finally "Battery info".
Six codes will be visualized with the following meanings:
COD1 = 0 expected voltage threshold reached.
COD1 = 1 max. charge time reached.
COD2 value of the battery voltage at the start of the charge.
COD3 value of the battery voltage at the end of the charge.
COD4 charge duration (from 1 to 840 minutes, ideal time 720 minutes).
COD5 charger/power supply unit connection duration.
COD6 Battery pack voltage value.
According to the values above described, it is recommended to replace the
battery when COD1 = 1 and COD3 < 7,4 volts. Or when COD3-COD2 >= 2 volts and
COD4 <600. Or when COD6 is lower than 5,8 volts.
