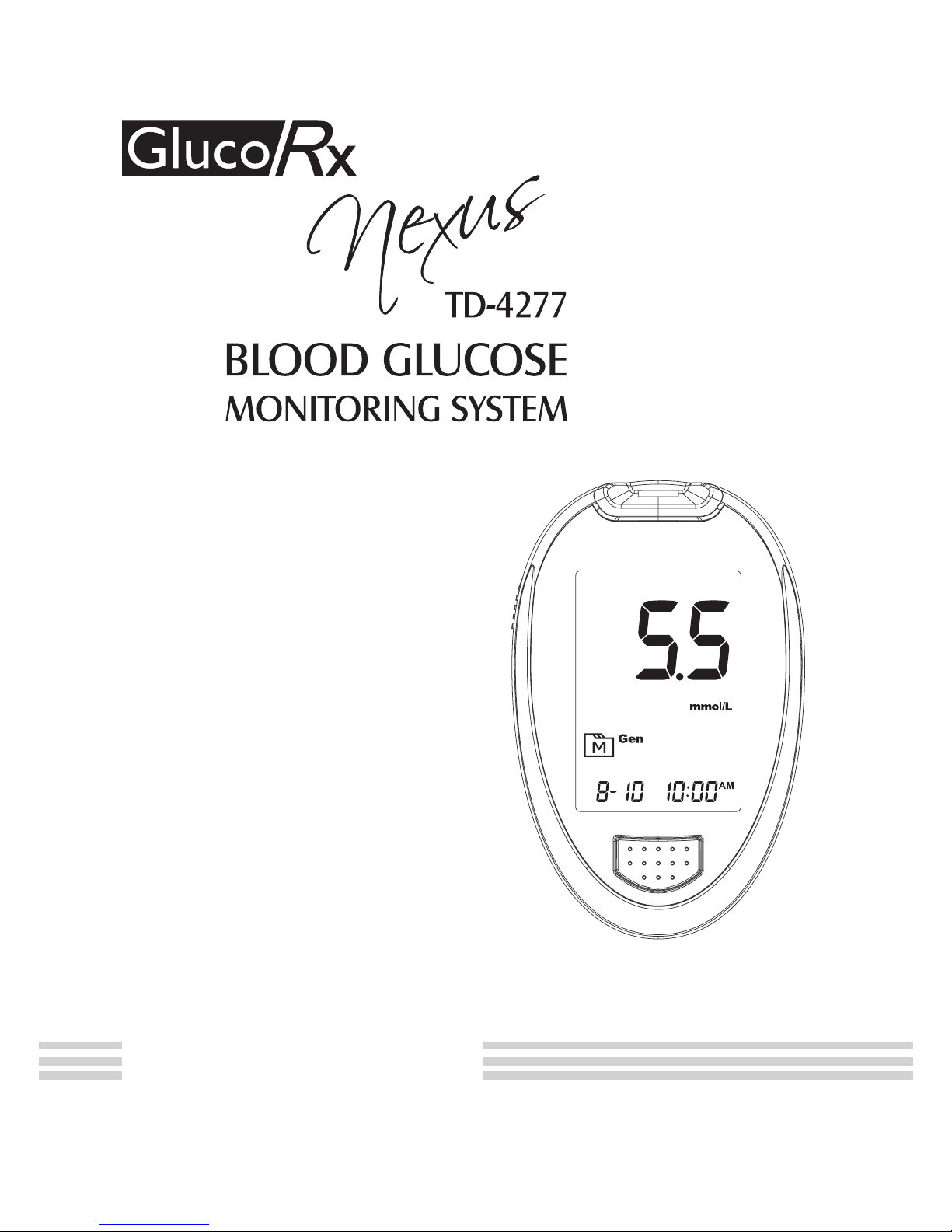

GlucoRx TD-4277 User manual

MANUAL
OWNER'S

Version 7.0 2014/9
311-4277100-035
MANUAL
OWNER'S

Dear GlucoRx Nexus System Owner:
Thank you for purchasing the GlucoRx Nexus Blood Glucose
Monitoring System. This manual provides important information to
help you to use the system properly. Before using this product, please
read the following contents thoroughly and carefully.
Regular monitoring of your blood glucose levels can help you and
your doctor gain better control of your diabetes. Due to its compact
size and easy operation, you can use the GlucoRx Nexus Blood
Glucose Monitoring System to easily monitor your blood glucose
levels by yourself anywhere, any time.
If you have other questions regarding this product, please contact
your place of purchase or call the local customer service.

IMPORTANT SAFETY PRECAUTIONS
READ BEFORE USE
1. Use the device only for the intended use described in this manual.
2. Do not use accessories which are not supplied by the manufacturer.
3. Do NOT use the device if it is not working properly or if it is damaged.
4. Do NOT under any circumstances use on newborns or infants.
5. This device does NOT serve as a cure for any symptoms or
diseases. The data measured is for reference only. Always consult
your doctor to have the results interpreted.
6. Before using this device to test blood glucose, read all instructions
thoroughly and practice the test. Carry out all quality control checks
as directed.
7. Keep the device and testing supplies away from young children.
Small items such as the battery cover, batteries, test strips, lancets,
and vial caps are choking hazards.
8. Use of this instrument in a dry environment, especially if synthetic
materials are present (synthetic clothing, carpets etc.) may give
damaging static discharges that may cause erroneous results.
9. Do not use this instrument in close proximity to sources of strong
electromagnetic radiation as these may interfere with its accurate
operation.
10.Proper maintenance and periodically control solution test are
essential to the longevity of your device. If you are concerned about
your accuracy of measurement, please contact the local customer
service or place of purchase for help.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE

TABLE OF CONTENTS
IMPORTANT SAFETY PRECAUTIONS 5
BEFORE YOU BEGIN 8
Important Information 8
ABOUT ATERNATIVE SITE TESTING (AST) 9
Intended Use 10
Test Principle 10
Contents of System 11
Meter Overview 12
Display Screen 13
Test Strip 14
SETTING THE METER 15
THE FOUR MEASURING MODES 18
BEFORE TESTING 19
Control Solution Testing 19
Performing a Control Solution Test 19
TESTING WITH BLOOD SAMPLE 22
Preparing the Lancing Device for Blood Testing 22
Preparing the Puncture Site 22
Performing a Blood Glucose Test 23
METER MEMORY 26
Reviewing Test Results 26
Reviewing Blood Glucose Day Average Results 27
DOWNLOADING RESULTS ONTO A COMPUTER 28

MAINTENANCE 29
Battery 29
Replacing the Battery 29
Caring for Your Meter 30
Caring for Your Test Strips 32
Important Control Solution Information 33
SYSTEM TROUBLESHOOTING 33
Result Readings 33
Error Message 34
Troubleshooting 35
DETAILED INFORMATION 36
SYMBOL INFORMATION 37
SPECIFICATIONS 38

8
Important Information
►Severe dehydration and excessive water loss may cause readings
which are lower than actual values. If you believe you are suffering
from severe dehydration, consult a healthcare professional
immediately.
►If your blood glucose results are lower or higher than usual, and
you do not have any symptoms of illness, rst repeat the test. If
you have symptoms or continue to get results which are higher or
lower than usual, follow the treatment advice of your healthcare
professional.
►Use only capillary whole blood sample to test your blood glucose.
Using other substances will give incorrect results.
►If you are experiencing symptoms that are inconsistent with your
blood glucose test results and you have followed all instructions
described in this owner’s manual, contact your healthcare
professional.
►We do not recommend using this product on severely hypotensive
individuals or patients in shock. Please consult your healthcare
professional before use.
►The measurement unit used for indicating the concentration of
blood or plasma glucose can either have a weight dimension
(mg/dL) or a molarity (mmol/L). The approximate calculation rule
for conversion of mg/dL in mmol/L is:
BEFORE YOU BEGIN
mg/dL
mmol/L
Divided by 18
Times 18
= mmol/L
= mg/dL
For example:
1) 120 mg/dL ÷ 18 = 6.6 mmol/L
2) 7.2 mmol/L x 18 = 129 mg/dL approximately.

9
ABOUT ALTERNATIVE SITE TESTING (AST)
Important: There are limitations for doing AST. Please consult
your healthcare professional before you do AST.
What is AST?
Alternative site testing (AST) means that people use parts of the body
other than ngertips to check their blood glucose levels. This system
allows you to test on the palm, the forearm, and the upper arm with
the equivalent results to ngertip testing.
What’s the advantage?
Fingertips feel pain more readily because they are full of nerve end-
ings (receptors). At other body sites, since
nerve endings are not so condensed, you
will not feel as much pain as at the ngertip.
When to use AST?
Food, medication, illness, stress and
exercise can affect blood glucose levels.
Capillary blood at ngertip reects these
changes faster than capillary blood at other
sites. Therefore when testing blood glucose
during or immediately after meal, physical
exercise, or any other events, take blood
sample from your nger only.
We strongly recommend you do AST ONLY in the following intervals:
In a pre-meal or fasting state (more than 2 hours since the last
meal).
Two hours or more after taking insulin.
Two hours or more after exercise.
Do NOT use AST if:
You think your blood glucose is low.
You are unaware of hypoglycaemia.
Your AST results do not match the way you feel.
You are testing for hyperglycaemia.
Your routine glucose results are often uctuating.

10
Intended Use
This system is intended for use outside the body (in vitro diagnostic
use) by people with diabetes at home and by health care professionals
in clinical settings as an aid to monitor the effectiveness of diabetes
control. It is intended to be used for the quantitative measurement of
glucose (sugar) in fresh whole blood samples (from the nger, palm,
forearm and upper arm).
It should not be used for the diagnosis of diabetes, or testing on
newborns.
Professionals may test with capillary and venous whole blood; home
use is limited to capillary whole blood testing.
Test Principle
Your system measures the amount of sugar (glucose) in whole blood.
The glucose testing is based on the measurement of electrical current
generated by the reaction of glucose with the reagent of the strip.
The meter measures the current, calculates the blood glucose level,
and displays the result. The strength of the current produced by the
reaction depends on the amount of glucose in the blood sample

11
Contents of System
Your new GlucoRx Nexus system kit includes:
Test strips, control solutions, or sterile lancets may not be included in
the kit (please check the contents on your product box). They can be
purchased separately.
Lancing Device with AST cap
2 x 1.5V AAA Alkaline Batteries
Control Solution
Test Strips
Lancets
Meter
Owner’s Manual
Warranty Card
Quick Start User Guide
Daily Log Book
Protective Wallet
If any items are missing from your kit or opened prior to use,
please contact your local customer services or place of purchase
for assistance.
NOTE

12
Meter Overview
TEST STRIP EJECTOR
Eject the used strip by pushing this button up.
DISPLAY SCREEN
M BUTTON
Enter the meter memory and silence a reminder alarm.
TEST STRIP SLOT WITH STRIP INDICATION LIGHT
Insert test strip here to turn the meter on for testing.
DATA PORT
Download test results with the cable connection.
SET BUTTON
Enter and conrm the meter settings.
BATTERY COMPARTMENT
Front
Top
Right SideLeft Side Back
SET

13
Display Screen
Blood Drop Symbol
Buzzer
Test Result
Ketone Warning
Error Message
Memory Mode Symbol
Control Solution Mode
Measuring Mode
Test Strip Symbol
Low Battery Symbol
Measurement Unit
Reminder Alarm
Day Average
Time
Date

14
Test Strip
Test results might be wrong if the contact
bar is not fully inserted into the test slot.
Attention!
The front side of the test strip should face
up when inserting the test strip.
Front Back
The GlucoRx Nexus meter should only be used with GlucoRx
Nexus Test Strips. Using other test strips with this meter can pro-
duce inaccurate results.
NOTE
Contact Bars
Insert this end of the test strip into the meter.
Push it in rmly until it will go no further.
Test Strip Handle
Hold this part to insert the test strip into the slot.
Conrmation Window
This shows if enough blood has been applied to the
absorbent hole of the test strip.
Absorbent Hole
Apply a drop of blood here. The blood will be automati-
cally absorbed.

15
SETTING THE METER
Before using your meter for the rst time or if you change the meter
battery, you should check and update these settings. Make sure you
complete the steps below and have your desired settings saved.
To Enter the Setting Mode
Start with the meter off (no test strip inserted).
Press SET to turn on the meter.
1. Setting the date
With the year ashing, press and release M
button to choose the correct year. Press SET.
With the month ashing, press and release M
button to choose the correct month. Press SET.
With the date ashing, press and release M
button to choose the correct date. Press SET.

16
2. Setting the time format
Press M button to select the desired time format --- 12h or 24h.
Press SET.
3. Setting the time
With the hour ashing, press and release M
button to choose the correct hour. Press SET.
With the minute ashing, press and release M
button to choose the correct minute. Press SET.
4. Setting the Buzzer
With the buzzer displays, press M to switch
between On and Off. Press SET.

17
These parameters can ONLY be changed in the setting mode.
If the meter is idle for 3 minutes during the setting mode, it will
switch off automatically.
NOTE
If you do not want to set an alarm, press SET to skip this step.
If you want to turn off an alarm, nd the alarm number by pressing SET
in the setting mode, press M button to change from “ON” to “OFF”.
At the time of your alarm, the meter will beep and automatically turn
on. You can press M button to silence the alarm and insert a test strip
to begin testing. If you do not press M button, the meter will beep for
2 minutes then switch off. If you do not want to test at this time, press
M button to switch off the meter.
Congratulations! You have completed all settings!
5. Setting the reminder alarm
You may set up any or all of the reminder alarms
(1-4). The meter displays “On” or “OFF” and
, press M button to turn on or turn off to set the rst
reminder alarm.
Press M button to select “On”, then press SET to
set the hour. When the hour is ashing, press M
button to add an hour. Press SET to conrm and go
to minutes, press M button to add one minute. Hold
M button longer to add faster. Press SET to conrm
and go to the next alarm setting.

18
THE FOUR MEASURING MODES
The meter provides you with four modes for measuring General, AC,
PC and QC.
2. Press M button to switch between General, AC, PC and QC.
Modes Use when
General (displays as “Gen”) any time of day, regardless of time since
last meal
AC no food intake for at least 8 hours
PC 2 hours after a meal
QC testing with the control solution
You can switch between each mode by:
1. Start with the meter switched off. Insert a test
strip to turn on the meter, the screen will display
ashing blood drop and “Gen”.

19
Control Solution Testing
TaiDoc Control Solution contains a known amount of glucose that re-
acts with test strips and is used to ensure your meter and test strips
are working together correctly.
Do a control solution test when:
you rst receive the meter,
at least once a week to routinely check the meter and test strips,
you begin using a new vial of test strips,
you suspect the meter or test strips are not working properly,
your blood glucose test results are not consistent with how you
feel, or if you think the results are not accurate,
practicing the testing process, or
you have dropped or think you may have damaged the meter.
Performing a Control Solution Test
1. Insert the Test Strip to Turn on the Meter
Insert the test strip into the meter. Wait for the meter to display the
test strip and blood drop symbols.
BEFORE TESTING

20
3. Apply Control Solution.
Shake the control solution vial thoroughly before
use. Squeeze out a drop and wipe it off, then
squeeze another drop and place it on the tip of the
vial cap.
Hold the meter to move the absorbent hole of
test strip to touch the drop. Once the conrmation
window lls completely, the meter will begin
counting down.
To avoid contaminating the control solution, do not directly apply
control solution onto a strip.
2. Press M button to mark this test as a control solution test.
With “QC” displayed, the meter will store your test result in memory
under “QC”. If you press M button again, the “QC” will disappear and
this test is no longer a control solution test.
When doing the control solution test, you have to mark it so that
the test result will NOT mix with the blood glucose TEST RE-
SULTS stored in the memory. Failure to do so will mix up the blood
glucose test results with the control solution test results in memory.
WARNING
