GlucoRx X6 User manual

Multi-Functional Monitoring System
Owner’s Manual

Version 1.0 2021/08
311-4216200-006

Important Safety Precautions 5
Meter Overview 7
Display Screen 8
Test Strip 9
Letter Indicator Guide 10
Setting Your Meter 11
Quality Control Tests 13
Prepare For Blood Tests 15
Perform Blood Tests 16
Blood Glucose Tests 18
β-Ketone Tests 20
Lactate Tests 22
Total Cholesterol Tests 23
Triglycerides Tests 25
Uric Acid Tests 27
Review Test Results 29
Data Transfer via Bluetooth 30
Maintenance 32
Batteries 33
System Troubleshooting 35
Symbol Information 39
Specifications 40
TABLE OF CONTENTS

4
Dear GlucoRx X6 System Owner
Thank you for choosing the GlucoRx X6 Multi-Functional Monitoring
System. This manual provides important information to help you to
use the system properly. Before you begin, please read the following
contents thoroughly and carefully. If you have other questions regarding
this product, please contact GlucoRx Customer Care or your place of
purchase.
Intended Use
This system is intended for use outside the body (in vitro diagnostic
use) to quantitatively measure the biochemical parameters - blood
glucose, β-ketone, lactate, total cholesterol, triglycerides and uric acid
- in whole blood. It is for home use or for healthcare professional use.
It should NOT be used for diagnosis or screening of diseases. Please
refer to the table below for what kind of whole blood sample* to obtain:
Home Use** Professional Use
Blood Glucose Capillary Capillary/ Venous/ Arterial/
Neonatal
β-ketone Capillary Capillary/ Venous
Lactate Capillary Capillary/ Venous
Total Cholesterol Capillary Capillary
Triglycerides Capillary Capillary
Uric Acid Capillary Capillary
* All samples must be whole blood samples.
** Home users should only obtain whole blood samples from the
fingertips.
Test Principle
Your system measures the amount of blood glucose/ β-ketone/ lactate/
total cholesterol/ triglycerides/ uric acid (biochemical parameters) in
whole blood. The test is based on the measurement of electrical current
generated by the reaction of the individual biochemical parameters
with the reagent of the respective test strip. The meter measures
the current, calculates the biochemical parameters in the blood and

5
displays the result on the meter screen. The strength of the current
produced by the reaction depends on the amount of biochemical
parameters in the blood sample.
Important Safety Precautions
Please read the following carefully before use:
1. Use this device ONLY for the intended use described in this
manual.
2. Do NOT use accessories that are not specified by the manufacturer.
3. Do NOT use the device if it is not working properly or is damaged.
4. This device does NOT serve as a cure for any symptoms or
diseases. The data measured is for reference only. Always consult
your doctor to have the results interpreted.
5. Keep the device and testing equipment away from children. Small
parts such as the battery cover, batteries, test strips, lancets and
vial caps are choking hazards.
6. The presence of synthetic materials (synthetic clothing, carpet
etc.) may cause damaging static discharges that lead to erroneous
results.
7. Do NOT use this device in close proximity to sources of strong
electromagnetic radiation as these may interfere with the accurate
operation.
8. Proper maintenance and control solution tests are essential to the
longevity of your device. If you are concerned about the accuracy
of your measurement, please contact GlucoRx Customer Care or
your place of purchase for assistance.
9. Severe dehydration and excessive water loss may cause readings
that are lower than actual values. If you believe you are suffering
from severe dehydration, consult a healthcare professional
immediately.
10. We do not recommend using this product on severely hypotensive
individuals or patients in shock. Please consult a healthcare
professional before use.
11. Only use fresh whole blood sample. Using any bodily substances

6
other than blood will lead to incorrect results.
12. If you are experiencing symptoms that are inconsistent with your
test results and you have followed all the instructions in this owner’s
manual, contact your healthcare professional.
13. Before using this device to test blood glucose, β-ketone, lactate,
total cholesterol, triglycerides or uric acid, read all instructions
thoroughly and practice the test. Carry out all the quality control
checks as directed.
14. Blood glucose test strips can be used for the testing of newborns.
β-ketone/ lactate/ total cholesterol/ triglycerides/ uric acid test strips
must NOT be used for the testing of newborns.
15. If your biochemical parameter results are lower or higher than usual
and you do not show any symptoms of illness, repeat the test first.
If you develop any symptoms or continue to get results that are
lower or higher than usual, consult your healthcare professional.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE

7
Meter Overview
1
3
2
4
6
5
8
7
1Bluetooth Indication Light
Bluetooth is available for alternative data transmission
2Display Screen
3Left Scroll Button (◄)
Enter Day Average and adjust value decrement.
4M Button (M)
Enter the meter memory.
5Right Scroll Button (►)
Bluetooth function and adjust value increment.
6Test Strip Slot with Strip Indication Light
Insert test strip here to turn the meter on for testing. The indicator
lights up when results appear.
INDICATOR MEANING
Green Result in range
Red Result below/ above the range or ketone warning
Blue While the strip is inserted
7Test Strip Ejector
Eject the used strip by pressing this button.
8Battery Compartment

8
Display Screen
15161719 1820
3
1
2
6
7
4
5
14
13
12
8
11
9
10
1Code
2Total Cholesterol Symbol
3Test Result
4Measuring Mode
Gen – any time of day
AC – before meal
PC – after meal
5Auto QC Mode
QC – control solution test
6Day Average
7Memory Mode
8Date / Time
9Error Message / Ketone
Warning
10 Alarm Symbol
11 Measurement Unit
12 Uric Acid Symbol
13 Ketone Symbol
14 High / Low Symbol
15 Low Battery Symbol
16 Lactate Symbol
17 Test Strip Symbol
18 Triglycerides Symbol
19 Blood Drop Symbol
20 Blood Glucose Symbol

9
Test Strip
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1Absorbent Hole 3Test Strip Handle
2Confirmation Window 4Contact Bars
NOTE
●Thefrontsideoftheteststripshouldfaceupwheninsertingintothe
teststripslot.Testresultsmaybeinaccurateifthecontactbarisnot
fullyinsertedintotheteststripslot.
●TheGlucoRxX6Multi-FunctionalMonitoringSystemshouldonly
beusedwithGlucoRxX6teststrips.Usingotherteststripswiththis
metercanproduceinaccurateresults.

10

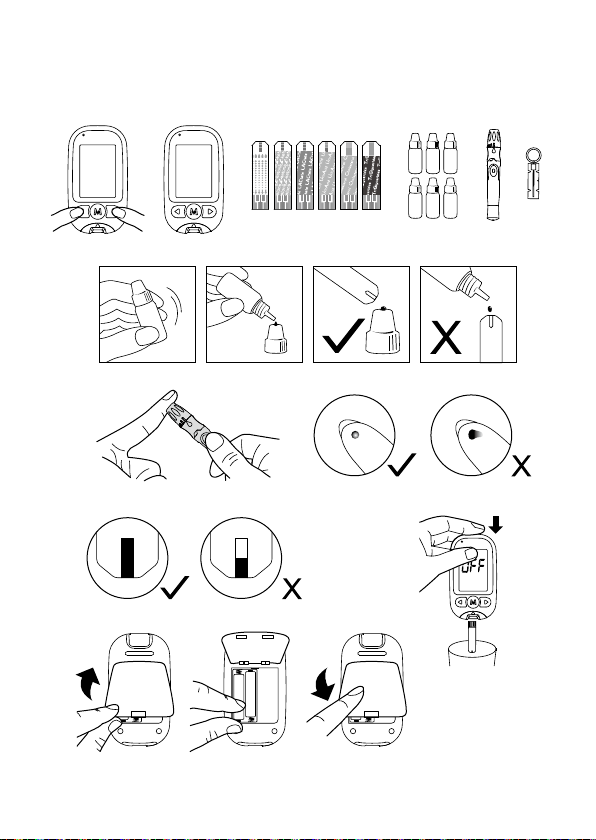

Letter Indicator Guide
(g)
(a)
(j)
(k)
(l)
(b) (c) (d) (e) (f)
(h)
(i)
Glucose
Uric Acid
Ketone
Cholesterol
Triglycerides
Lactate
Refer to this letter indicator guide when necessary.
Supplied for
glucose strips in
GlucoRx X6 kit

11
Setting Your Meter
Setting your meter to the correct date and time will ensure the accuracy
of your test results. Follow the steps below when you first start using
the meter. When you change the meter battery or start using the meter
again after taking the batteries out for a period of time (ie 3 months),
you should check and update the following settings:
Entering the Settings Mode (a)
Start with the meter off (no test strip inserted). Press and hold ◄ and
►at the same time for 3 seconds.
1. Setting the date
The sequence of the date setting is: YEAR → MONTH → DAY.
With the YEAR / MONTH / DAY flashing in sequence, press ◄ or ► to
select the correct number. Press M.
2. Setting the time and format
With the HOUR / MINUTE flashing in sequence, press ◄ or ► to select
the correct number. Press M.
Press ◄ or ► to select the desired time format (12h or 24h). Press M.
3. Setting the uric acid measuring unit
With the measuring unit flashing, press ◄ or ► to switch between mg/
dL and µmol/L. Press M.
4. Setting the blood glucose’s measuring mode target range
The sequence of the low and high target range setting is: Gen low →
Gen high → AC low → AC high → PC low →PC high. With the target
range settings flashing in sequence, press ◄ or ► until the desired
target number appears. Press M.
You may refer to the table below to set your target range:
GEN AC PC
LOW 3.3 – 5.5 mmo/L 3.3 – 5.5 mmo/L 3.3 – 5.5 mmo/L
HIGH 5.6 – 12.2 mmo/L 5.6 – 12.2 mmo/L 5.6 – 12.2 mmo/L

12
NOTE
● The meter comes with a set of default target range. Please consult
your doctor to determine a target range that works best for you and
customise the target range accordingly.
● This function is applicable to blood glucose testing ONLY.
● The ranges above are fixed between 3.3 – 5.5 mmo/L for low and 5.6
– 12.2 mmo/L for high.
5. Setting the beep
With the beep displays, press ◄ or ► to switch between “On” and “Off”.
Press M.
6. Setting the reminder alarms
Your meter has 4 reminder alarms. The meter will display “On” or
“OFF” and “ ”. If you do not want to set an alarm, press Mto skip this
step. Or press ◄ or ► to select “On”, then press M. With the HOUR/
MINUTE flashing, press ◄ or ► to select the correct HOUR/ MINUTE.
Press M and go to the next alarm setting.
NOTE
When the alarm beeps, press ► to switch it off. Otherwise, it will beep
for 2 minutes then switch off.
7. Setting the Bluetooth function
With “BLE” on display, press ◄ or ► to select “On” or “OFF”. Press M.
NOTE
This function refers to Bluetooth data transfer. If “On” is selected, your
result will be transferred automatically after the test.
Congratulations! You have completed all settings!
NOTE
● These parameters can ONLY be changed in the settings mode.
● The meter will switch off automatically if it is idle for 1 minute during
the settings mode.

13
Quality Control Tests
When to Perform a Control Solution Test?
● if you suspect your meter or test strips are not working properly;
● if your test results are not consistent with how you feel, or if you think
the results are not accurate;
● to practice the testing process; or
● if you have dropped or think you may have damaged the meter.
Test strips (c), control solution (supplied in GlucoRx X6 kit for glucose
strips) (d), lancing device (e) or sterile lancets (f) may not be included
in the kit. Please make sure you have all items needed for your test
beforehand.
Performing a Control Solution Test
To perform a control solution test, you will need: (b), (c) and (d).
1. Insert your test strip to turn on the meter
Insert the test strip into the meter. Wait for the meter to display “ ”
and a flashing “ ” and either “GLU” / “KET” / “LAC” / “CHOL” / “TG” /
or “UA”.
2. Apply the relevant control solution (g)
Shake the control solution vial thoroughly before use. Squeeze out
the first drop and wipe it off, then squeeze out another drop and
place it on the tip of the vial cap. Hold the meter to move the test strip
absorbent hole to the solution droplet. Once the confirmation window
fills completely, the meter will begin counting down.
3. Read and compare the result
After counting down to 0, the control solution test result will appear
on the meter display. Compare this result with the range printed on
your test strip vial and it should fall within range. If not, please read
the instructions again and repeat the control solution test. With “QC”
displayed, the meter will store this test result in your meter memory
under “QC”.

14
NOTE
● The control solution range printed on the test strip vial is for control
solution use only. It is not a recommended range for your blood test
levels.
● For any control solution test, your device will tag this measurement
as QC test automatically.
● To avoid contaminating control solution, do NOT directly apply
control solution onto a test strip.
Important Control Solution Information
● ONLY use TAIDOC’s control solutions with your meter.
● Do not use the control solution beyond the expiration date or 3
months after first opening. Write the opening date on the control
solution vial and discard the remaining solution after 3 months.
● It is recommended that the control solution test to be done at room
temperature between 20°C to 25°C (68°F to 77°F). Please make
sure your control solution, meter and test strips are at the specified
temperature range before testing.
● Shake the vial before use, discard the first drop of control solution
and wipe it off the tip to ensure a pure sample and an accurate result.
● Store the control solution with the cap tightly closed at temperatures
between 2°C to 30°C (35.6°F to 86°F). Do NOT freeze.

15
Prepare For Blood Tests
Before The Test
You must calibrate your meter every time you begin to use a new box
of β-ketone/ lactate/ total cholesterol/ triglycerides/ uric acid test strips
by setting the meter with the correct code. You need to make sure that
the code number displayed on your meter matches the number on the
test strip packaging before you proceed testing. Test results may be
inaccurate if the code number displayed on your meter does not match
the number printed on the test strip vial or individual foil packet. If the
codes do not match, stop the test and contact GlucoRx Customer Care
for assistance.
Always follow the calibration instructions in the test strip insert.
Prepare the Lancing Device for Blood Tests
Please follow the instructions in the lancing device insert on how to
prepare your lancing device for collecting a blood sample.
WARNING
To reduce the chance of infection:
● Never share the meter, lancet or lancing device;
● Always use a new, sterile lancet. Lancets are for single use only;
● Avoid getting hand lotion, oils, dirt, or debris in or on the lancets and
the lancing device.
Prepare the Puncture Site
Stimulating blood perfusion by rubbing the puncture site at the fingertip
significantly enhances the accuracy of the test result.
Follow these steps before obtaining a blood sample:
● Wash your hands with soap and dry thoroughly before you begin;
● Select a puncture site;
● Rub the selected site for about 20 seconds before lancet penetration.

16
Perform Blood Tests
To perform a blood test, you need: (b), (c), (e) and (f).
1. Turn on your meter by inserting a test strip
Wait for the meter to display the “ ”, “ ”, and either “GLU”/
“KET”/ “LAC”/ “CHOL”/ “TG”/ “UA”.
2. Select the appropriate measuring mode by pressing ► (Blood
Glucose only: Gen / AC / PC.) The other parameters only provide
General mode.
3. Fingertip testing (h): Hold the preset lancing device’s tip firmly
against the lower side of your fingertip. Press the release button to
prick your finger. A click indicates that the puncture is complete and
a blood drop can be obtained for sampling the relevant test.
4. Be careful NOT to smear the blood sample.
The amount of blood and time required for the blood test:
Biochemical
Parameters Amount of Blood Time Required
Blood Glucose 0.5 microliter (μL) 5 seconds
β-ketone 0.8 microliter (μL) 10 seconds
Lactate 0.8 microliter (μL) 5 seconds
Total Cholesterol 3.0 microliter (μL) 60 seconds
Triglycerides 3.0 microliter (μL) 60 seconds
Uric Acid 0.5 microliter (μL) 15 seconds
5. Apply the sample (j): Gently apply your drop of blood to the
absorbent hole of the test strip at a tilted angle. The confirmation
window should be completely filled if enough blood has been
applied. Do NOT remove your finger until you hear a “beep” sound.

17
NOTE
● Do NOT press your punctured site against the test strip or try to
smear the blood.
● Always apply a blood sample after the test strip is inserted into your
meter.
● If you do not apply a blood sample to the test strip within 1 minute,
your meter will automatically turn off. You must remove and reinsert
the test strip to start a new test.
● The confirmation window should be filled with blood before your
meter begins to count down. NEVER try to add more blood to the
same test strip. Discard the used test strip and retest with a new
one.
● If you have trouble filling the confirmation window, please contact
your health care professional or GlucoRx Customer Care for
assistance.
6. Read Your Result
The result of your test will appear after the meter counts down to 0.
The result will be stored in the meter memory automatically.
7. Eject the used test strip (k)
Eject the test strip by pushing the eject button on the side. Use a
sharps bin to dispose of used test strips. Your meter will switch off
automatically.
Always follow instructions in the lancing device insert when
removing the lancet.
WARNING
● The used lancet and test strip are considered biohazardous. Please
discard them carefully according to your local regulations.
● Clean and disinfect your meter and lancing device after each test
using a disinfecting wipe.

18
Blood Glucose Tests
Your meter provides you with three measuring modes: General, AC and
PC. You can switch between each mode by:
● Insert a test strip to turn on the meter. The screen will display
“ ”, a flashing “ ” and “GLU”. Press ► to select the appropriate
measuring mode (General, AC or PC).
● After obtaining the first drop of blood, wipe it off. Squeeze again to
obtain another drop of whole blood sample for the test.
NOTE
It is recommended that you discard* the first drop of blood as it may
contain tissue fluid, which may affect the test result.
* WHO Guidelines on drawing blood: best practices in phlebotomy,
2010 - Section 7.2.2.
Reference Values
Blood glucose monitoring plays an important role in diabetes control. A
long-term study showed that maintaining blood glucose levels close to
normal can reduce the risk of diabetes complications by up to 60%*1.
The results provided by this meter system can help you and your
healthcare professional monitor and adjust your treatment plan to gain
better control of your diabetes. The blood glucose readings deliver
plasma equivalent results and are displayed in millimoles of glucose
per liter of blood (mmol/L).
Time of day Normal plasma glucose range for
people without diabetes (mmol/L)
Fasting*2and before meal Less than 5.6 mmol/L
2 hours after meals Less than 7.8 mmol/L
*1American Diabetes Association. Classification and Diagnosis of Diabetes:
Standards of Medical Care in Diabetes—2020 Jan; 43(Supplement 1): S14-S31.
https://doi.org/10.2337/dc20-S002
*2Fasting is defined as no caloric intake for at least 8 hours.

19
Result Readings
INDICATION
LIGHT MESSAGE WHAT IT MEANS
NOT
APPLICABLE
Result is < 0.56 mmol/L
Out of measurement range.
SOLID RED
('Example' only)
Result is between 0.56 to 3.8
mmol/L
SOLID
GREEN
('Example' only)
AC PC Gen
Result is
between 3.8 to
7.1 mmol/L
Result is
between 3.8
to 9.9 mmol/L
Result is
between 3.8 to
6.6 mmol/L
SOLID
RED
('Example' only)
AC PC Gen
Result is
between 7.2 to
13.2 mmol/L
Result is
between 10 to
13.2 mmol/L
Result is
between 6.6 to
13.2 mmol/L
SOLID
RED
('Example' only)
Result is ≥ 15 mmol/L
Ketone Warning: This is shown
when your blood glucose result is
equal to or higher than 15 mmol/L.
What to Do: Check your blood
ketone if checking ketones is part
of your diabetes management
program.
NOT
APPLICABLE
Result is > 44.4 mmol/L
Out of measurement range.
Always consult your doctor to determine a target range that works
best for you.

20
β-Ketone Tests
Your meter provides you with one measuring mode: General.
● Insert a test strip to turn on the meter. The screen will display “ ”,
a flashing “ ” and “KET”.
● After obtaining the first drop of blood, wipe it off. Squeeze again to
obtain another drop of whole blood sample for the test.
Reference Values
The β-Ketone readings deliver plasma equivalent results and are
displayed in millimoles of β-Ketone per liter of blood (mmol/L).
The β-Ketone test measures Beta-Hydroxybutyrate (β-OHB), the most
important of the three β-Ketone bodies in the blood. Normally, levels of
β-OHB are expected to be less than 0.6 mmol/L1.
β-OHB levels may increase if a person fasts, exercises vigorously or
has diabetes and becomes ill. If your β-Ketone result is “Lo”, repeat the
β-Ketone test with a new test strip. If the same message appears again
or the result does not reflect how you feel, contact your healthcare
professional. Follow your healthcare professional’s advice before
you make any changes to your diabetes medication program. If your
β-Ketone result is between 0.6 and 1.5 mmol/L, this this may indicate
development of a problem that may require medical assistance. Follow
your healthcare professional’s instructions. If your β-Ketone result is
higher than 1.5 mmol/L, contact your healthcare professional urgently
for advice and assistance. You may be at risk of developing diabetic
ketoacidosis (DKA).
1: Wiggam MI, O’Kane MJ, Harper R, et al. Treatment of diabetic ketoacidosis using
normalization of blood 3-hydroxybutyrate concentration as the endpoint of emergency
management. Diabetes Care. 1997; 20(9): 1347-52.
