Glue Machinery CHAMP STICK 400 User manual

Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
Toll Free 1-888-202-2468 | Phone: [phone] | Fax: [phone] | Email: [e-mail]
www.gluemachinery.com
Champ™Stick 400
High Production - Heavy Duty - Industrial
Hot Melt Stick Gun
Part # G25E03-001
Operating Instructions
Hot Melt Glue Gun
Model: CHAMP™STICK 400
Glue Machinery Part # G25E03-001
Specification: AC 120 V 400W
Glue stick size: ½”(ø11.0~ ø11.5mm)
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY!
WARNING:
-When using this hot melt glue gun, always follow basic safety precautions. This will reduce the possibility of
accidental injury due to burns or electrical shock.
-Always wear safety glasses, protective gloves, and protective clothing with long sleeve shirts and pants.
-This product must have a ground connection.

Glue Machinery Corporation Champ™Stick 400 Manual
Part # G25E03-001
Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
Toll Free 1-888-202-2468 | Phone: [phone] | Fax: [phone] | Email: [e-mail]
www.gluemachinery.com
Tips on Using:
The following guide provides helpful information for G25E03-001/CHAMP™ STICK 400 glue gun and
hot melts adhesives.
1. The normal working time of the hot-melt is thirty (30) seconds. After the adhesive has been extruded
onto the bonding surface, the part should be pressed together within fifteen to twenty (15-20) seconds.
The bond will have about 90% of its bond strength in one minute.
2. The working time of the hot-melt can be extended to fifty to sixty (50-60) seconds by applying the
adhesive in large drops (11mm diameter) or shortened to less than ten (10) seconds by extruding the
adhesive in a thin line.
3. Large areas are difficult to bond because the adhesive often hardens before you have extruded the
required amount. Use a higher volume hot melt system from Glue Machinery Corporation such as the
Champ 3, 600, 10 or Economelt.
4. Preheating the bonding surface to slightly above room temperature will improve the bonding strength.
This action is particularly important when gluing metal pieces.
5. The hot-melt adheres well to porous surfaces like paper, cloth, particleboard, and wood.
6. The hot-melt adhesives quick set time eliminates the need for clamps or other holding devices.
7. The hot-melt begins to soften when the temperature exceeds 140ºF and should not be used for items
that will be subjected to temperatures above that. Other hot melts are available with high softening
points that must be processed with bulk Hot Melt Systems available from Glue Machinery
Corporation.
8. Hot-melt adhesives can be used in place of nails, staples, tape, or liquid glue: however, they should
not be used to replace structural fasteners where heavy loads are involved.
9. Glue can string from the nozzle. If your glue is stringing from the nozzle you may want to swirl the
nozzle in a circular motion so the heat of the nozzle will cut the string. If the glue string lands on your
component, allow the glue to cool, then use a hair dryer and blow off the glue string. Adjustments to
the temperature and nozzle can also help reduce stringing. Glue strings can also be reduced with
higher temperature and smaller nozzles.
Operation:
1. Plug the glue gun into any 110 AC outlet with required specification; red light on means the power is
on.
2. Allow the tool to heat for 10 to 15 minutes before using. Insert a stick of adhesive (7/16”/11.2 mm
diameter) into the back of the tool.
3. When the gun is fully heated, squeeze the trigger slowly until the melted material begins to flow from
the nozzle. Release the trigger to stop the glue flow.
4. The output volume per trigger stroke can be adjusted by adjusting the patented stroke adjustor screw.
5. Different nozzle tips are available for different gluing applications and output amount.
6. Use the included screwdriver to adjust the operating temperature for which that glue stick is designed.
Gun temperature is adjustable from 284F to 428F (140C-220C)
7. Use the glue gun trigger to adjust the output and speed of the glue sticks.
8. Never pull sticks out of the back of the gun once inserted.
Save these safety rules for future use:
1. It is normal for this tool to become very warm during use. This does not indicate a problem.
2. The glue gun should be turned off and unplugged after use or if it will not be used within 1-hour
period. The adhesive can be stored indefinitely in the unheated gun and re-melted by heating up the
tool.
3. If you accidentally touch the molten hot glue, immediately immerse the affected area in cold water
and call a doctor. The injured area should be attended by a medical professional.
4. Some materials are heat-sensitive and can be damaged by the hot nozzle or even the hot glue.
Whenever possible, test a piece of scrap material or a hidden portion of the object being repaired.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.

Glue Machinery Corporation Champ™Stick 400 Manual
Part # G25E03-001
Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
Toll Free 1-888-202-2468 | Phone: [phone] | Fax: [phone] | Email: [e-mail]
www.gluemachinery.com
Read all Safety Instructions:
Work area. This tool was designed to be used on a clean, dry work surface. Excessive dust
and dirt may reduce the lifetime of this tool. Do not use in wet or damp locations. Your work
areas should keep well lit.
This tool is recommended for indoor use only. Do not use outdoors.
Keep children away. Small children should be kept away from work area. Accidental contact
with tool or extension cord should be avoided.
Glue gun storage. After use, allow glue gun to cool completely prior to storage. When not in
use, the glue gun should be stored in dry and secure location out of the reach of children.
Electrical cord precautions. Do not carry the tool by the cord or yank to disconnect from the
receptacle. Keep the cord away from the nozzle or other high heat sources. Periodically
inspect the electrical cord for any sign of wear or damage.
Disconnect electrical power. When not in use, before servicing, and when changing. Do not
yank on cord to unplug from electrical receptacle.
Stay alert. Pay attention to your work. Beware of any dripping hot glue from your project. Use
common sense. Do not operate this gun when you are tired. Do not operate under the influence
of alcohol or other drugs that may impair your physical abilities.
Do not touch the heated nozzle of the glue gun or the hot adhesive. The operating
temperature of this tool can be as high as 446°F (230°C).
Use recommended accessories. Use only recommended adhesives in this glue gun. Putting
other materials than recommended may result in accidental injury and permanent damage to
the glue gun. For example: do not attempt to melt crayons or candles.
Never use the tool if it is damaged in any way.
Hot melt adhesives are not a replacement for structural fastener.
Hot melt glue should not be used for projects that will be exposed to extreme heat. Some
adhesive used with this glue gun can soften at about 140°F.
*Do not attempt to remove unused portion of a glue stick from the tool.*
Do not expose the glue gun to extreme changes in temperature during or directly after use.
Never immerse glue gun in water or other liquids to speed cooling process. Allow the gun to
air cool only.
Children should use this glue gun only under the direct supervision of a responsible adult.
Do not leave the glue gun unattended while plugged in or in a hot condition.
Make sure to have sufficient eye protective wear, like full mask, in order to avoid
damaging materials entering and causing long lasting effect to eye area, during use.
Use of Hot Melt Sticks with a diameter other than 11mm will damage the gun

Glue Machinery Corporation Champ™Stick 400 Manual
Part # G25E03-001
Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
Toll Free 1-888-202-2468 | Phone: [phone] | Fax: [phone] | Email: [e-mail]
www.gluemachinery.com
Preventive Maintenance
1. To prevent the clogging of the glue gun, keep feeding mechanism and melt chamber free
from dirt and other foreign debris. Store unused glue sticks in a clean environment.
2. Do not pull glue stick from the back of the glue gun. The feed mechanism may be damaged
or impaired. If you desire to change types of glue, cut off the protruding end and feed the
remainder through with the new type of glue.
3. Do not lay heated gun on its side. Keep the heated gun in an upright position, on the metal
stand or workbench, with nozzle pointed down.
4. If melted glue has escaped from the melt chamber entrance and is interfering with the feed
mechanism; allow gun to cool, and gently remove the obstructing glue.
5. Replace the nozzle if glue drips excessively. Do not attempt to change nozzle when glue is
cold. To change, the gun must be heated until the glue is softened enough to remove nozzle
(about 1 minute). Use gloves and with a wrench, remove the old nozzle. Flush glue through
the gun, to clean out the melting chamber. Replace with a new nozzle. Tighten only until
snug. Do not over tighten.
6. Keep outside of glue gun clean.
7. Only use approved 11mm diameter stick glue with this gun

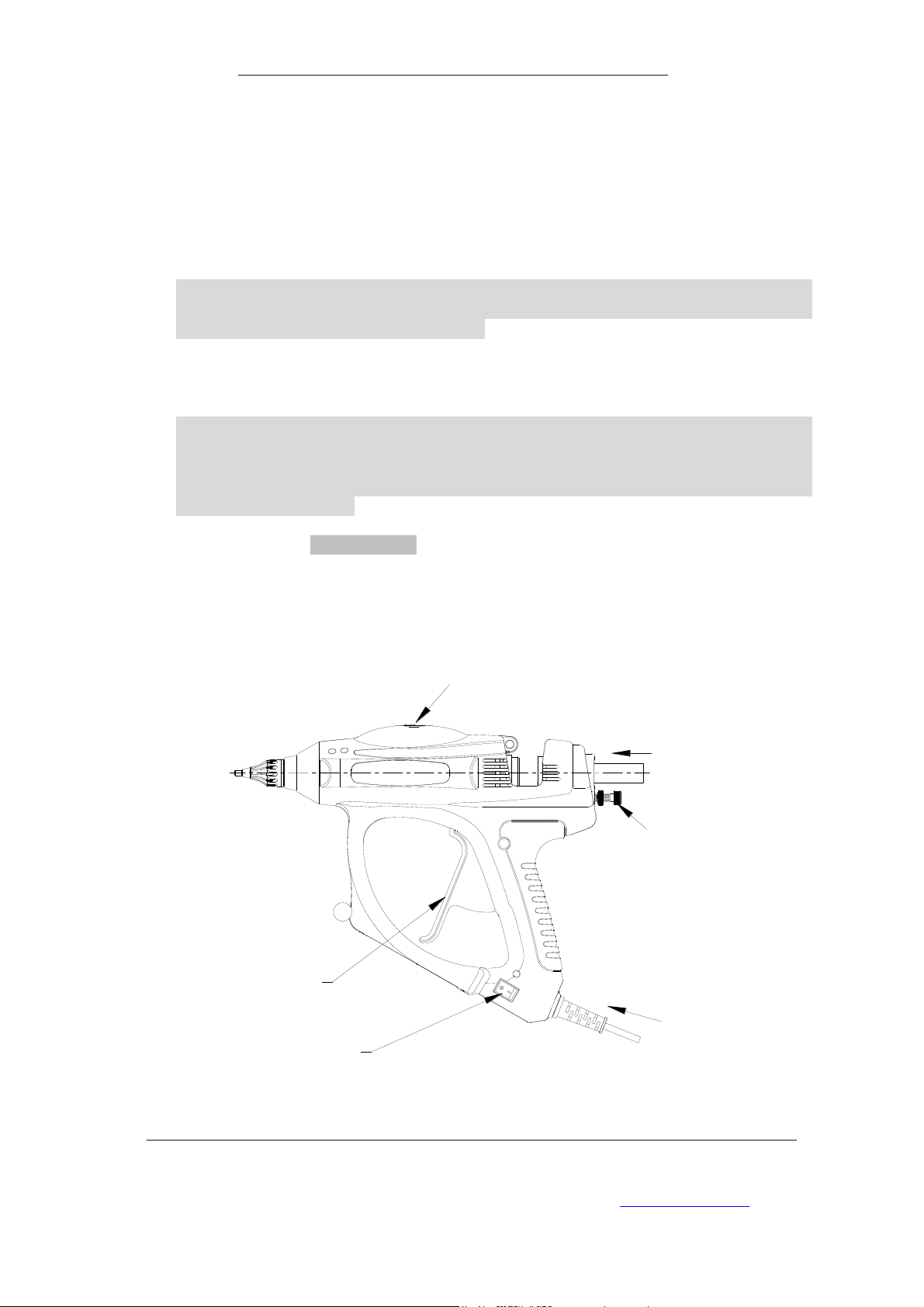

Champ™ Stick 400 Functions
Glue feeding direction
Stroke adjustor
Power input
ON/OFF switch
Trigger
Temperature adjustor

Glue Machinery Corporation Champ™Stick 400 Manual
Part # G25E03-001
Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
Toll Free 1-888-202-2468 | Phone: [phone] | Fax: [phone] | Email: [e-mail]
www.gluemachinery.com
CHAMP™ STICK 400 Special features:
400 watts for greater glue output than other glue guns
Non breakable handles and light weight
Unique effort-saving trigger, with circular TPR handle for comfortable long hour operation
Stroke adjustor: Each piece comes with a stroke adjustor, and allows user to pre-set the
amount of glue output correctly.
Use of screwdriver for adjusting the temperature of glue gun between 140ºC-230ºC (284ºF-
446ºF).
Gun is preset to temperature 190ºC (374ºF).
Screw driver can be stored easily at the base of glue gun.
Spare and replacement parts available from Glue Machinery Corporation
Recommended &Approved Adhesive Stick Reorder/Restock Part #’s:
G25A77-001
1/2" General Purpose White Stick Glue. Often used for plastic, ceramic, lightweight material, craft, cloth,
wood, and paper.
G25A77-002
Clear general purpose adhesive for plastic, wood, and paper.
G25A77-003
Yellow colored 1/2" adhesive stick often used for Box Forming and Carton Sealing
½” (11mm) Diameter Glue Sticks
Stroke adjustor
Effort-saving
trigger
ON/OFF
switch
TPR handle
Screw driver storage
Temp. control
TPR 手柄

Glue Machinery Corporation Champ™Stick 400 Manual
Part # G25E03-001
Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
Toll Free 1-888-202-2468 | Phone: [phone] | Fax: [phone] | Email: [e-mail]
www.gluemachinery.com

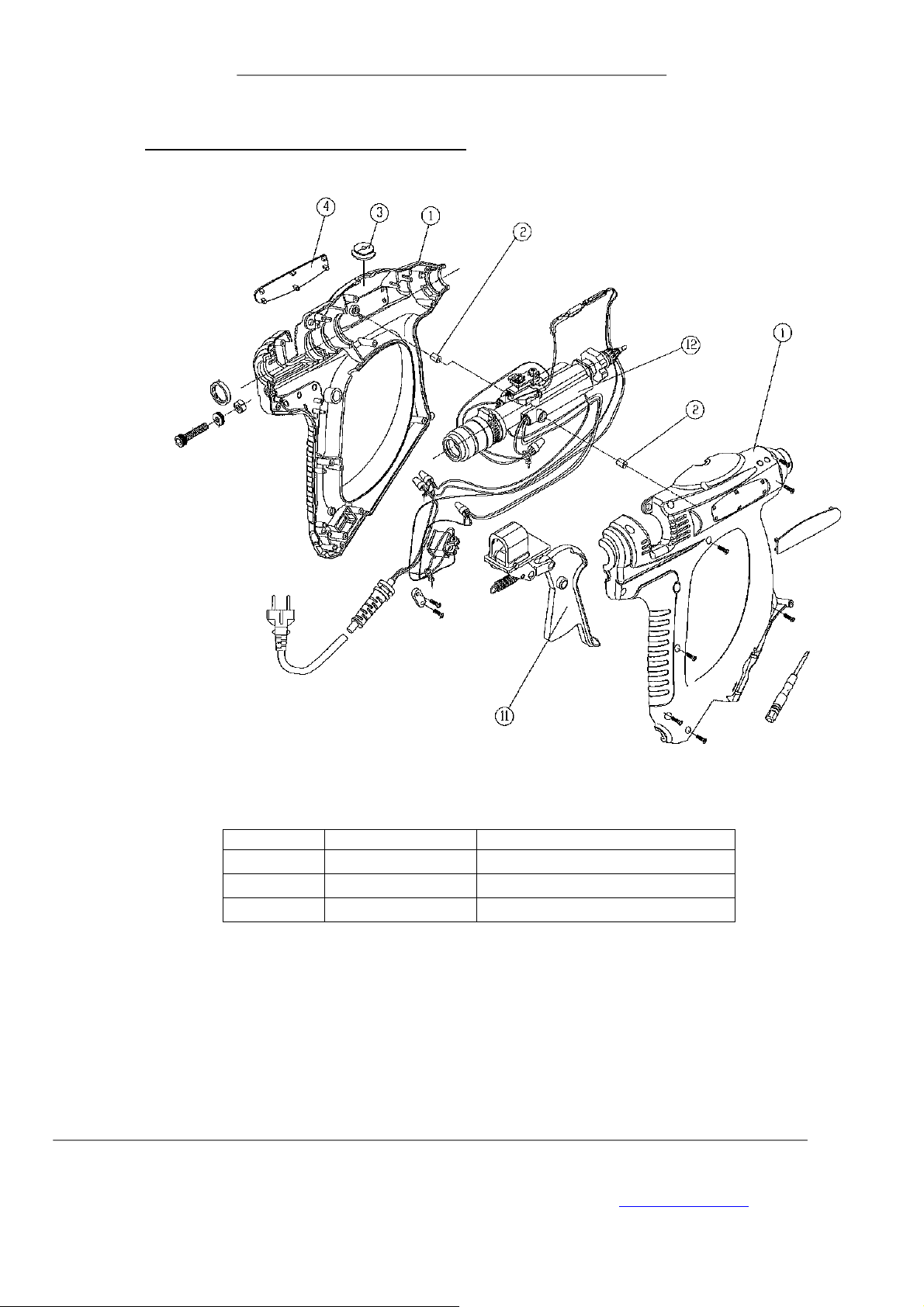

CHAMP™ STICK 400 Schematic Diagram
No.
Name
Part No.
1-4
Handle Set
G25E35-001
11
Trigger Set
G25E76-001
12
Heater Set
G25E50-001

Glue Machinery Corporation Champ™Stick 400 Manual
Part # G25E03-001
Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
Toll Free 1-888-202-2468 | Phone: [phone] | Fax: [phone] | Email: [e-mail]
www.gluemachinery.com

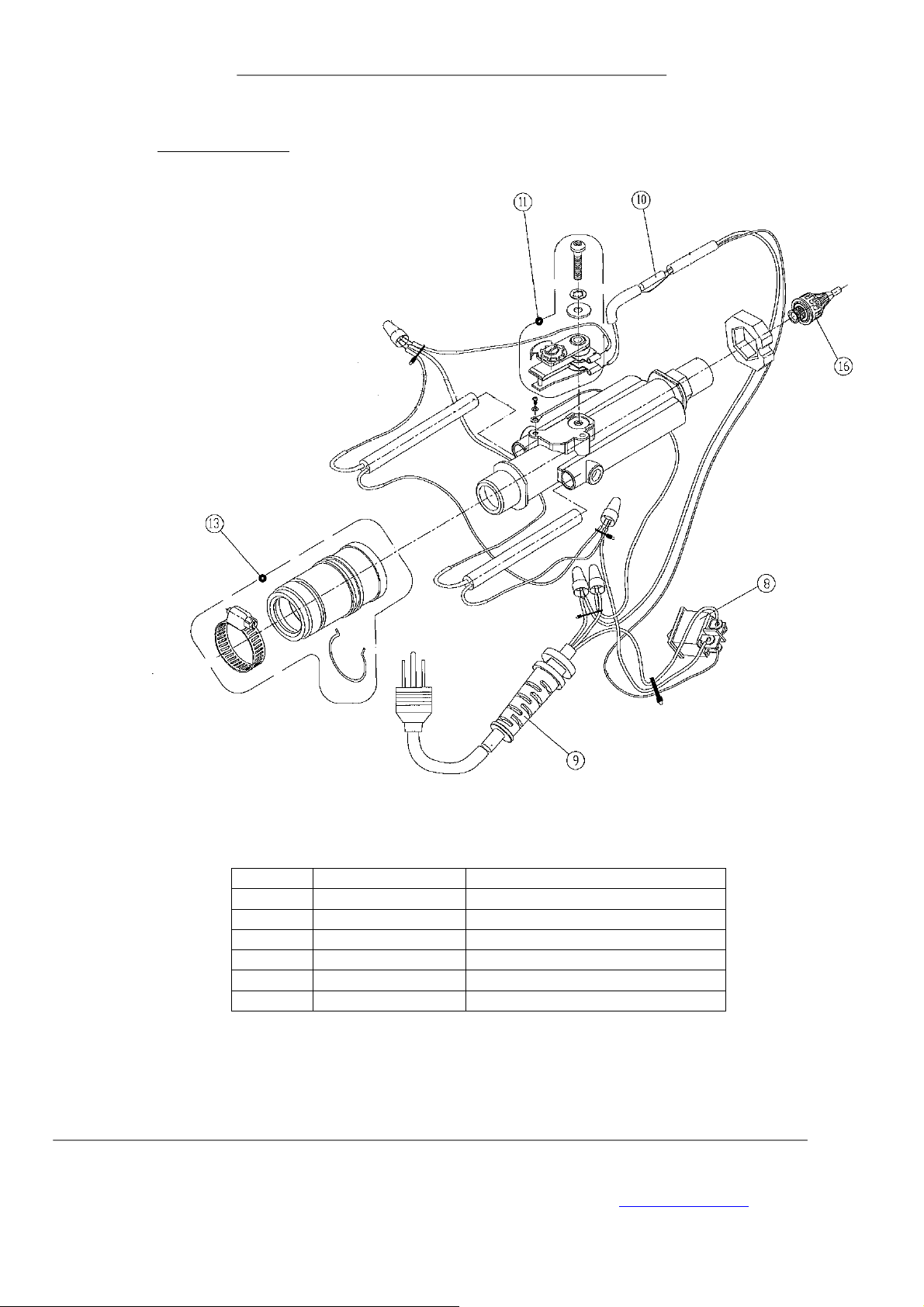

Heater Schematic
No.
Name
Part Number
8
On/Off Switch
G25E74-001
9
Power Cord
G25E93-001
10
Fuse
G25E87-001
11
Thermostat Set
G25E97-001
13
Inlet Tube Set
G25E47-001
16
Nozzle
G25E01-002

Glue Machinery Corporation Champ™Stick 400 Manual
Part # G25E03-001
Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
Toll Free 1-888-202-2468 | Phone: [phone] | Fax: [phone] | Email: [e-mail]
www.gluemachinery.com
Electric wiring diagram:
AC100~120V
TS
120V 200W
120V 200W
Heater
Heater
Thermostat
Fuse
ON/OFF switch

Glue Machinery Corporation Champ™Stick 400 Manual
Part # G25E03-001
Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
Toll Free 1-888-202-2468 | Phone: [phone] | Fax: [phone] | Email: [e-mail]
www.gluemachinery.com
TERMS AND CONDITIONS OF SALE
1. ENTIRE AGREEMENT: These Terms and Conditions, together with terms on the face of
Seller’s invoice, shall constitute the entire and exclusive contract (“Agreement”) between
Seller and Buyer. This Agreement is intended to be a final expression of the parties’
understanding and agreement with respect to its terms and shall supersede all prior
negotiations, promises, agreements and representations not set forth herein. Seller’s
acceptance of Buyer’s order is expressly conditioned on Buyer’s assent to these Terms and
Conditions of Sale. Any order, whether quoted, shipped or received by Seller, shall be
construed as a written acceptance by Buyer of Seller’s offer to sell in accordance with this
Agreement, and any such order shall be filled in accordance with the terms as provided in
this Agreement. No other terms and conditions shall apply unless specifically accepted by
Seller in writing. No modifications of this Agreement shall be of any force and effect unless
such modifications are made in writing and signed by the party claimed to be bound thereby.
Additionally, no modification shell be effected by an acknowledgment or acceptance by
Seller of any oral or written purchase order from Buyer containing any different terms and
conditions, and any such inconsistent terms and conditions shall be deemed to be superseded
by this Agreement and the other documents delivered by Seller to Buyer.
If for any reason Buyer fails to accept this Agreement in writing, any conduct that
demonstrates the existence of a contract, including, without limitations, the delivery of items
in accordance with this Agreement prior to written acceptance hereof and acceptance of such
items by Buyer, shall constitute an agreement to all of the terms and conditions stated herein.
2. PRICE: The prices set forth on the face of Seller’s quotation or invoice is only for the
quantities of items listed and the specifications indicated. Except as otherwise indicated on
the face of Seller’s invoice, Buyer is responsible for all freight and transportation charges,
and all items will be billed at the prices (including applicable freight and transportation
charges) in effect as of the date of shipment. All prices and extras, including all freight and
transportation charges, are subject to change by Seller at any time without prior notice. In
addition, all prices are subject to the addition of an applicable use, sales, excise or other taxes
levied by any federal, state or local authority, and Buyer shall be responsible for any such
taxes. Any excises, levies or taxes which Seller is required to pay or collect, under any
existing or future law or regulation (domestic of foreign), upon or with respect to the sale,
purchase, delivery, storage, processing, use, consumption or transportation of any of the items
covered hereby, shall be for the account of Buyer and Buyer agrees to promptly pay the
amount thereof to Seller upon request.
3. DELIVERY AND RISK OF LOSS: Unless otherwise stated in Seller’s quotation or
invoice, delivery shall occur, and risk of loss shall pass to Buyer upon delivery of the items to
Buyer’s designated delivery point. All items shall be delivered and shipped in accordance
with the delivery schedule and instructions indicated on the face of Seller’s invoice;
provided, however, that delivery dates are approximate and are subject to reasonable
variation.
4. PAYMENT: Unless otherwise specified, the terms of payment for each order under this
Agreement shall be net cash in 30 days from the date of invoice. Any discount shall be on
the purchase price only, exclusive of freight or transportation, taxes and other charges. The
unpaid portion of any overdue amounts owed to Seller shall bear interest at the legal rate.
Seller shall retain title to all items as security until payment for same has been received. If
Buyer at any time fails to make payment as required under this Agreement, Seller may, in
addition to any other remedies that it may have as provided by law or in equity, suspend its
own performance hereunder and demand collateral sufficient to ensure the payment of all
outstanding amounts that are then due and/or that may become due in the future under this or
any other agreement between the parties.

Glue Machinery Corporation Champ™Stick 400 Manual
Part # G25E03-001
Glue Machinery Corporation™
4234 Boston St, Baltimore, Maryland 21224
Toll Free 1-888-202-2468 | Phone: [phone] | Fax: [phone] | Email: [e-mail]
www.gluemachinery.com
5. LIMITED WARRANTY AND DISCLAIMERS: Subject to the limitations set forth in
these terms and conditions, Seller warrants that the item(s) sold to Buyer will, under normal
use and service, conform to any specifications that are listed in this Agreement. Seller
reserves the right to change any of its specifications, if applicable, at any time. The limited
warranty set forth in this paragraph expires at the earlier of (i) three months after date of
shipment or (ii) the period or shelf life specified in the applicable Technical Data Sheet (the
“Warranty Period”). This limited warranty is the sole and exclusive warranty provided under
this Agreement and extends only to the original Buyer from Seller and does not extend to any
subsequent purchases or any other uses of any item sold hereunder. No claim against Seller
shall be allowed by any party other than the Buyer. NO OTHER WARRANTY,
WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDINGANY WARRANTY
OF MERCHANTABILITY, INFRINGEMENT, FITNESS FOR PARTICULAR
PURPOSE OR OTHERWISE, SHALL EXIST IN CONNECTION WITH THE SALE
OR USE OF ANY ITEM HEREUNDER. ADDITIONALLY, NO REPRESENTATION
OR WARRANTY MADE BY ANY SALES REPRESENTTIVE OR SELLER WHICH
IS NOT SPECIFICALLY SET FORTH HEREIN SHALL BE BINDING UPON
SELLER. All claims under this warranty must be made in writing and delivered to Seller at
the address listed in Seller’s invoice prior to the expiration of the Warranty Period or such
claims shall be barred.
The limited warranty provided for herein does not cover, and specifically excludes, material
failure resulting from normal wear and tear, abuse, neglect, improper installation, faulty
maintenance, accidental or intentional damage, damage from fire, floods, earthquakes or
other acts of God, and/or defects resulting from seller’s compliance with Buyer’s
specifications. Additionally, it is solely Buyer’s responsibility to test and determine the
suitability of any item for any intended use, and although Seller may have recommended an
item or developed an item at Buyer’s request, Buyer assumes all risk and liability whatsoever
regarding the item’s suitability for Buyer’s or any other intended use.
6. LIMITATIONS OF LIABILITY. Upon receipt of a timely warranty claim from Buyer in
accordance with these terms and conditions, Seller shall have the option either to inspect the
item while in Buyer’s possession or to request Buyer to deliver the item to Seller at its factory
or other designated site, at Buyer’s expense, for inspection by Seller. Seller shall, at its
option, either (i) replace any item that has been properly selected, stored and used and is
reasonably determined by Seller to be in breach of the warranty set forth in the foregoing
paragraph of these terms and conditions, in which case seller shall then ship the replacement
item to Buyer F.O.B. point of shipment; or (ii) if in Seller’s sole judgment circumstances are
such as to preclude the remedying of a breach of any warranty by replacement, Seller shall
refund to Buyer, by issuance of a credit or otherwise, the applicable part of the purchase price
theretofore paid to Seller. IN NO EVENT SHALL SELLER’S LIABILITY FOR ANY
DEFECTIVE ITEMS UNDER THIS AGREEEMENT EXCEED THE PURCHASE
PRICE THEREOF. IT IS EXPRESSLY AGREED THAT REPLACMENT OR
REFUND OF THE PURCHASE PRICE SHALL BE THE SOLE AND EXCLUSIVE
REMEDY FOR ANY BREACH OF WARRANTY OR ANY OTHER CLAIM IN
RESPECT OF SUCH ITEMS, INCLUDING, WITHOUT LIMITATIONS, THOSE
CLAIMS BASED ON CONTRACT, WARRANTY, TORT, OR STRICT LIABILITY.
SELLER SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLE FOR
REMOVAL OR INSTALLATION COSTS, DISPOSAL COSTS, LABOR COSTS,
DOWNTIME, DAMAGE TO OTHER PROPERTY, LOSS OF BUSINESS OR
PROFITS, OR ANY SIMILAR OR DISSIMILAR INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES. The sole purpose of the stipulated exclusive remedy set
forth in this paragraph shall be to provide Buyer with free replacement or refund for defective
items in the manner provided herein. This exclusive remedy shall not be deemed to have
failed of its essential purpose so long as Seller is willing and able to replace defective items
in the manner prescribed herein or to provide a refund if, in Seller’s judgment, replacement is
not feasible or appropriate under the circumstances.
