GMI PS500 Instruction Manual

Gas Measurement Instruments Ltd
Auto Bump / Calibration
Station - User Handbook
PS500

Issue 2
08/09/2016
Part Number: 61254
GMI welcomes comments on all our publications. Your
comments can be of great value in helping us to improve
our customer publications. Please send any comments
that you have to [email protected]
Copyright ©Gas Measurement Instruments Ltd 2016

i
LICENCE AGREEMENT
This Licence Agreement is your proof of licence. Please treat it as valuable
property. Please note that this licence agreement supersedes the “statement of
Copyright Restrictions”.
IMPORTANT - READ CAREFULLY
This is a legal and binding contract between you (either an individual or an entity),
the end user and Gas Measurement Instruments Limited (GMI). By opening
sealed software packages or by installing, copying, or otherwise using the ‘PS500
Settings’ Auto Bump / Calibration Station application program (SOFTWARE), you
agree to be bound by the terms of this agreement. If you do not agree to the terms
of this agreement you should promptly return this package and accompanying
items* (including written materials, binders or containers) to GMI.
CALIBRATION SOFTWARE LICENCE
1. GRANT OF LICENCE: The ‘PS500 Settings’ Licence Agreement (Licence)
permits concurrent use of the SOFTWARE on the number of computers for which
this licence grants (that is: single user package licences one user; twenty user
package licences twenty users). Additional SOFTWARE licences may be purchased
for each additional concurrent user.
If you have acquired this SOFTWARE in a multiple licence pack, you may make
the number of additional copies of the SOFTWARE authorised on the printed copy
of the licence. You may also store or install a copy of the network SOFTWARE
on a storage device, such as a network server, used only to install or run the
SOFTWARE on your other computers over an internal network; however you
must acquire and dedicate a licence for each separate computer on which the
SOFTWARE is installed or run from the storage device. A licence for the software
may not be shared or used concurrently on different computers.
This licence is granted for use on the GMI products and for use on one computer.
If you require a second copy you must purchase that from GMI or its distributor.
The documentation accompanying this software is essential for the correct and
safe operation of the instruments.
This software is used on certied equipment which may be used in life critical
applications. Only trained competent personnel should use this equipment and
should be aware of the certication, calibration and Health and Safety issues
associated with the product and its application.
2. COPYRIGHT: The SOFTWARE is owned by GMI and is protected by United
Kingdom copyright laws and international treaty provisions. Therefore you must
treat the SOFTWARE like any other copyrighted material (for example, a book or
musical recording) except that you may either (a) make one copy of the SOFTWARE
solely for backup or archival purposes, or (b) transfer the SOFTWARE to a single

ii
AUTO BUMP / CALIBRATION STATION - USER HANDBOOK
PS500
hard disk provided you keep the original solely for backup and archival purposes.
You may not copy the written materials accompanying the SOFTWARE.
3. OTHER RESTRICTIONS: You may not rent or lease the SOFTWARE, but
you may transfer the SOFTWARE and accompanying written materials on a
permanent basis to another individual. If you transfer the software, you must
retain no copies and the recipient must agree to the terms of this agreement.
You must not reverse engineer, decompile, or disassemble the SOFTWARE that
is provided solely as executable programs (.EXE les) or dynamic link libraries
(.DLL les). If the SOFTWARE is an update, any transfer must include the update
and all prior versions.
30 DAY LIMITED WARRANTY
If the product was purchased in the UK , simply return the full product in resaleable
condition* within 60 days of purchase to GMI, together with your original receipt or
invoice, for a full refund. If this product was not purchased in the UK, you should
return the full product* to the place of purchase within 30 days of purchase for
a full refund.
LIMITED WARRANTY
The USB memory stick and Handbook that make up this software product are
warranted by GMI to be free from defects in materials and workmanship for a
period of 60 (sixty) days from the date you purchased this product. If you notify
GMI within the warranty period of such defects in materials or workmanship, GMI
will replace the defective USB memory stick or handbook. The sole remedy for
breach of this warranty is limited to replacement of defective USB memory stick and
handbook and / or refund of purchase price and does not include any other kinds
of damage. Apart from the foregoing limited warranty, the software programs are
provided “AS IS”, without warranty of any kind, either expressed or implied. The
entire risk as to the performance of the program is with the purchaser. GMI does
not warrant that the operation of the programs will be uninterrupted or error free.
GMI assumes no responsibility or liability of any kind for errors in the program or
documentation or for the consequences of any such errors.
INCIDENTAL AND CONSEQUENTIAL DAMAGES CAUSED BY MALFUNCTION,
DEFAULT, OR OTHERWISE WITH RESPECT TO BREACH OF THIS WARRANTY
OR ANY OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING THOSE
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
NOT THE RESPONSIBILITY OF GMI AND ARE HEREBY EXCLUDED BOTH
FOR PROPERTY AND, TO THE EXTENT NOT UNCONSCIONABLE, FOR
PERSONAL INJURY DAMAGE.
The remedies described above are the exclusive remedies extended to you by GMI
for any default, malfunction or failure of the product to conform with this warranty or
otherwise for the breach of this warranty or any other warranty, whether expressed
or implied. Should you have any questions concerning this agreement please
contact the GMI sales department on [phone].
* If the product is not in resaleable condition, you will be charged a 20% restocking
fee.

iii
COPYRIGHT
COPYRIGHT
This document is copyright of GMI and the information contained within is for use
only with ‘PS500 Settings’ Software. Reproduction, in whole or in part, including
utilisation in machines capable of reproduction or retrieval without the written
permission of GMI is prohibited. Reverse engineering is not permitted.
TRADEMARK INFORMATION
Windows XP™ and 7™ are registered trademarks or trademarks of the Microsoft
Corporation in the United States and / or other countries.
LIABILITY
Every care has been taken in the preparation of this document, however, GMI
do not accept any responsibility for errors or omissions and their consequences.
Information in this document is subject to change without prior notice.
This document does not constitute a specication or basis for a contract.
Your statutory rights under UK law are not affected.

iv
AUTO BUMP / CALIBRATION STATION - USER HANDBOOK
PS500

v
CONTENTS
LICENCE AGREEMENT ................................... i
IMPORTANT - READ CAREFULLY .......................i
CALIBRATION Software Licence...........................i
30 DAY LIMITED WARRANTY ............................. ii
LIMITED WARRANTY .......................................... ii
COPYRIGHT........................................................ iii
TRADEMARK INFORMATION ............................ iii
LIABILITY............................................................. iii
INTRODUCTION...........................................1-1
1.1 GENERAL DESCRIPTION ........................ 1-1
1.2 AUTO BUMP / CALIBRATION HARDWARE ...
................................................................... 1-5
1.3 ADDITIONAL ACCESSORIES................... 1-5
CONNECT CALIBRATION GAS AND POWER
SUPPLY.........................................................2-1
2.1 CONNECT CALIBRATION GAS ................ 2-1

vi
AUTO BUMP / CALIBRATION STATION - USER HANDBOOK
PS500
2.1.1 Compare Gas Cylinder Label with Software
Conguration .................................................2-2

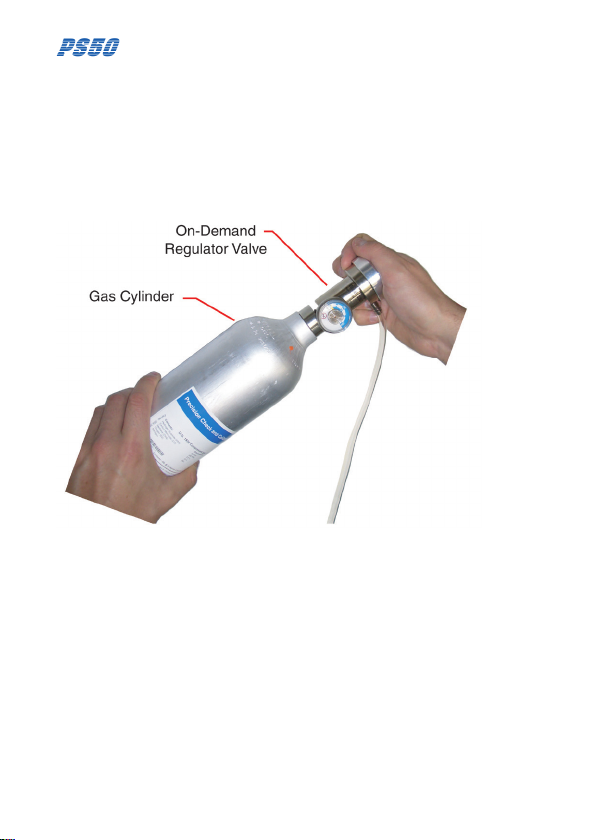

2.1.2 Connect Gas Cylinder to ABC....................... 2-4
2.1.3 Connect Air / Exhaust Tubing to ABC (if
required) ........................................................2-5
2.2 CONNECT POWER SUPPLY.................... 2-7
SOFTWARE CONFIGURATION ...................3-1
3.1 VIEW / EDIT SOFTWARE CONFIGURATION
................................................................... 3-1
3.1.1 Bump Test .................................................... 3-4
3.1.2 Calibration .................................................... 3-6
3.1.3 Generate Settings File..................................3-8
3.2 TRANSFER UPDATED ‘PS500 SETTINGS’ to
ABC............................................................ 3-9
3.3 HELP OPTIONS .......................................3-11
BUMP / CALIBRATION OPERATION............4-1
4.1 PS500 SWITCH ON .................................. 4-1
4.2 INSERT INSTRUMENT IN AUTO BUMP /
CALIBRATION STATION ........................... 4-2
4.3 BUMP / CALIBRATION OPERATION ........ 4-6
4.4 REMOVE INSTRUMENT FROM ABC ....... 4-7
4.5 ABC FAULT INDICATION .......................... 4-8

vii
CONTENTS
VIEW / PRINT TEST RESULTS ....................5-1
5.1 INTRODUCTION ....................................... 5-1
5.2 DOWNLOAD TEST RESULTS .................. 5-2
5.3 VIEW / PRINT TEST RESULTS................. 5-4
5.3.1 Test Result Files ........................................... 5-5
5.3.2 Generated Certicates ................................. 5-9
FIT MOUNTING BRACKET.......................... A-1
1. GENERAL DESCRIPTION .......................... A-1
2. FIT MOUNTING BRACKET .........................A-2
3. ATTACH UNIT to WORKBENCH / DAISY
CHAIN OPTION ......................................... A-3
INDEX.............................................................. ix

viii
AUTO BUMP / CALIBRATION STATION - USER HANDBOOK
PS500

1-1
INTRODUCTION

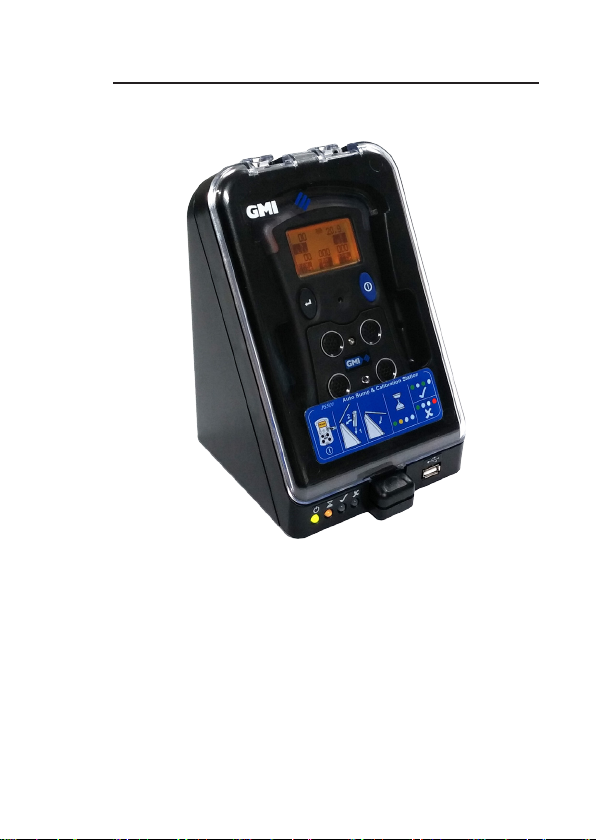

Fig. 1-1 PS500 Auto Bump / Calibration Station
1.1 GENERAL DESCRIPTION
The PS500 Auto Bump / Calibration Station provides the
user with a quick, easy and reliable method of ensuring that
PS500 instruments are correctly calibrated where company
policy dictates.
Equipment does not have to be taken out of service for
extended time periods while testing is undertaken.
1

1-2
AUTO BUMP / CALIBRATION STATION - USER HANDBOOK
PS500
The Auto Bump / Calibration Station (ABC) has 3 variants:
• Single gas unit (GMI part no. 61502) - 1 gas cylinder
can be connected.
• Multi-gas unit (GMI part no. 61504) - up to 3 gases
cylinders can be connected.
• Reactive gases (CL2 / NH3) multi-gas unit (GMI part no.
61504R) - up to 3 gases cylinders can be connected.
Note: Throughout the user handbook the multi-gas
variant (GMI part no. 61504) will be used to
describe the Auto Bump / Calibration Station.
The units can be used for:
• A Bump Test, approximately 60 seconds gas duration
per cylinder, performs a full Bump Test of alarm set
points and sensor response.
• A Calibration of the instrument, approximately 60
seconds gas duration per cylinder.
Note: Gas duration is dependent on which PS500
model is being tested.
The ABC can be free standing on a workbench, or
alternatively, secured to the workbench individually or in a
daisy chain fashion using the mounting bracket and screws
supplied with the ABC. Refer to Appendix A for tting
instructions.
Power is supplied to the rear of the ABC via a 12V Universal
Power Supply Unit (PSU), supplied with the ABC. A 12V
Vehicle Power Supply is available as an accessory.
Gases are connected to the clearly marked inlet adaptors at
the rear of the ABC. An integral pump automatically draws
gas to the instrument for bump / calibration operation.

1-3
INTRODUCTION
The user simply inserts the PS500 into the ABC, then closes
the cover initiating the automatic testing process.
Note: The PS500 MUST be switched on before inserting
into the Auto Bump / Calibration Station.
The ABC uses a trafc light system to display progress /
result,
i.e. LED 1 (Green) = ON (power)
LED 2 (Orange) = TEST (in progress)
LED 3 (Green) = PASS
LED 4 (Red) = FAIL
This provides the user with a clear indication of whether the
PS500 meets the selected parameters.
GMI ‘PS500 Settings’ Software is a Windows™ based
‘stand alone’ application that allows the user to congure /
edit test parameters and view / print test results.
This software will run on any PC / Laptop with Windows XP™
or newer software installed. (.Net Framework 2.0 or higher
may also be required on early Windows XP™ operating
systems).
Both the ABC and the USB memory stick are supplied with
necessary ‘PS500 Settings’ software installed.
Note: ‘PS500Settings’arenotpre-conguredwithtest
parameters. A settings le MUST be generated
and transferred to the ABC before testing /
calibration can take place.
The software test parameters are congured via PC or
Laptop then the settings le transferred to the ABC using the
USB memory stick supplied.

1-4
AUTO BUMP / CALIBRATION STATION - USER HANDBOOK
PS500
The software provides a full audit trail of tested instruments
and the resulting data is retained in the station memory
until downloaded to the USB memory stick, before being
transferred (refer to note on page 5-1) to any compatible PC
/ Laptop for long term storage, review and / or printing.
A Calibration Certicate can also be generated automatically
after successful completion of instrument testing.
A permanent PC connection is provided via mini-USB socket
at the rear of the ABC. An Ethernet socket is also provided
at the rear of the ABC to allow results to be gathered over a
network. Both of these options require additional software,
either the ‘exiCalPlus’ PC software package or the ‘IMS’
network software package, both available from GMI.
Note: PS500 Bump / Calibration Software is only one
part of the requirements in terms of calibration
and maintenance of a PS500 portable gas
detector. Gases, delivery and trained personnel
are all of equal or even greater importance.

1-5
INTRODUCTION
1.2 AUTO BUMP / CALIBRATION HARDWARE
The multi-gas Auto Bump / Calibration Stations (GMI Part
No’s. 61504 / 61504R) are provided with:
• 4mm (5/32in.) ttings (3 x gas and 1 x air).
• 6mm tting (1 x exhaust).
• 12V Universal PSU.
• USB memory stick with GMI ‘PS500 Settings’
software.
The single-gas Auto Bump / Calibration Station (GMI Part
No. 61502) is provided with:
• 6mm ttings.
• 12V Universal PSU.
• USB memory stick with GMI ‘PS500 Settings’
software.
1.3 ADDITIONAL ACCESSORIES
• Test Gas Cylinders - for a full list of gases, contact GMI
or an authorised distributor.
• On Demand Gas Flow Regulator - GMI Part No.
99118.
• Tygon® tubing - GMI Part No. 66118.
• 1.0 metre Tygon® tubing complete with 6mm adaptor
- GMI Part No. 64265.
• 0.6 metres reactive gas tubing - GMI Part No. 61540.

1-6
AUTO BUMP / CALIBRATION STATION - USER HANDBOOK
PS500

2-1
CONNECT CALIBRATION GAS AND
POWER SUPPLY
2.1 CONNECT CALIBRATION GAS
Gas is supplied to the Auto Bump / Calibration Station from
Test Gas Cylinders via On Demand Gas Flow Regulators
(GMI Part No. 99118) and Tygon® tubing (GMI Part No.
12712).
Fig. 2-1 Calibration Gas Setup
Note: For a comprehensive list of calibration
accessories contact GMI or an authorised
distributor.
2

2-2
AUTO BUMP / CALIBRATION STATION - USER HANDBOOK
PS500
2.1.1 Compare Gas Cylinder Label with Software
Conguration
First of all, make sure that the cylinder is not older than the
‘use by’ date on the label illustrated in Fig. 2.2.
Make sure that the cylinder contains enough gas to complete
the bump test / calibration. The pressure gauge on the
Regulator Valve, after tting, gives a clear indication of this.
When applying gas to the instrument via the Auto Bump /
Calibration Station, it is important that the gas concentrations
listed on the cylinder label are consistent with the current
software conguration downloaded from the USB memory
stick to the unit.
As illustrated in Fig. 2.2, the cylinder gas concentrations can
be easily found on the cylinder label.
Fig. 2-2 Gas Cylinder Label

2-3
CONNECT CALIBRATION GAS AND POWER SUPPLY
The concentrations, illustrated in Fig. 2-2, should be
consistent with the installed software conguration window,
as illustrated in Fig. 2-3.
Fig. 2-3 Software Conguration
After comparing gas values between the Cylinder Gas Label
and the Software Conguration, when consistent, proceed to
the next paragraph.
If inconsistent, refer to Chapter 3 to update software
conguration then download the updated conguration to the
ABC.
Note: The Multi-gas ABC can have up to 3 gas
inputs, therefore 3 gas cylinders labels and
congurationstocompare.
Software Configuration
- Gas Concentrations

2-4
AUTO BUMP / CALIBRATION STATION - USER HANDBOOK
PS500
2.1.2 Connect Gas Cylinder to ABC
Connect the On Demand Regulator Valve to the gas cylinder
by screwing the valve rmly into the top of the cylinder, as
illustrated in Fig. 2-4. Fitting is simplied by pressing the valve
on to the cylinder with one hand and turning the cylinder with
the other. Care must be taken not to over-tighten the valve.
Fig. 2-4 Attach Regulator Valve to Gas Cylinder
Connect one of the supplied barbed adaptors to the end of
the tubing, then push the barbed adaptor into one of the three
‘Gas’ inlet adaptors on the rear of the ABC, as illustrated in
Fig. 2-5.
