GO PERFORMANCE L3 Series User guide

SKU# 49B811 INSTALL MANUAL WWW.GO-PERFORMANCE.CA
1

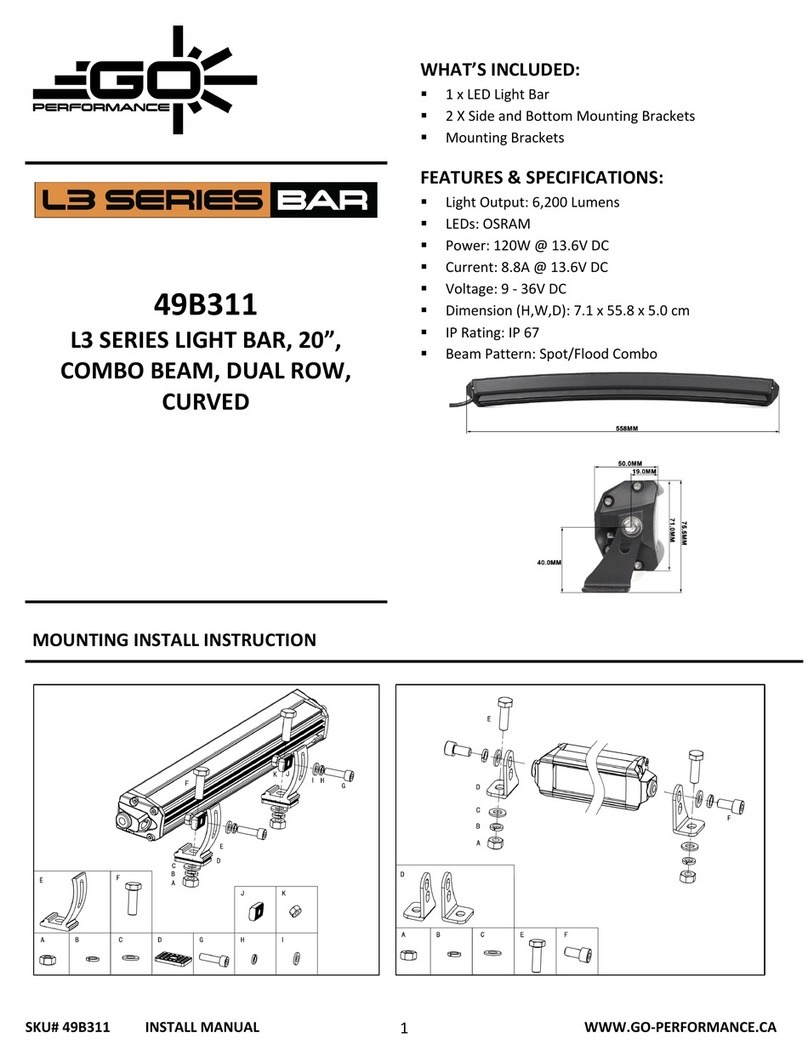

WHAT’S INCLUDED:
§ 1 x LED Light Bar
§ 2 x Side and Bottom Mounting Brackets
§ Mounting Brackets
49B811
L3 SERIES LIGHT BAR, 20”,
COMBO BEAM, DUAL ROW
FEATURES & SPECIFICATIONS:
§ Light Output: 6,200 Lumens
§ LEDs: OSRAM
§ Power: 120W @ 13.6V DC
§ Current: 8.8A @ 13.6V DC
§ Voltage: 9 - 36V DC
§ Dimension (H,W,D): 7.1 x 55.8 x 5.0 cm
§ IP Rating: IP 67
§ Beam Pattern: Spot/Flood Combo
MOUNTING INSTALL INSTRUCTION
INSTALL INSTRUCTION

SKU# 49B811 INSTALL MANUAL WWW.GO-PERFORMANCE.CA
2
Wiring Harness 840001 Sold Separately
1. Determine suitable mounting locations to install the LED light bar, wiring harness and switch. Once
all mounting locations are confirmed, connect the wires as shown above. Proper insulation at
connections is required.
2. Connect positive and negative wire properly. Press the switch button to test if the light bar is
functioning properly.
3. Adjust the light to the desired angle and then secure by tightening all mounting screws.
