Go Power! Modified Sine Wave Inverter
Owner’s Manual
2
Table of Contents
1. INTRODUCTION..............................................................................................3
2. SPECIFICATIONS...........................................................................................3
3. FEATURES......................................................................................................4
4. INSTALLATION...............................................................................................7
5. OPERATION..................................................................................................10
6. OPERATING LIMITS.....................................................................................11
7. TROUBLESHOOTING ..................................................................................12
8. MAINTENANCE.............................................................................................13
9. WARRANTY..................................................................................................13
10. RV SUPPLEMENT.........................................................................................14
Go Power! Electric Inc.
PO Box 6033
Victoria, BC V8P 5L4
Toll Free Tel: [phone]
Toll Free Fax: [phone]
Email: [email protected]
Rev3.0 07/04
GPModifiedSWInstallGuide.doc

Go Power! Modified Sine Wave Inverter
Owner’s Manual
3
1. Introduction
The Go Power! Inverter series provides mobile power for people on the go. Run
standard AC appliances wherever you travel. Silent, lightweight and simple to use,
Go Power! Inverters can be used in a wide range of applications including remote
homes, RVs, boats and long haul trucks. It will operate most televisions and VCR's,
personal computers and small appliances including drills, sanders, grinders, mixers,
blenders and microwaves.
To get the most out of your power inverter, it must be installed and used properly.
Please read the instructions in this manual before installing and using your
inverter.
2. Specifications
2.1 GP2500 Inverter 12V
Output 2500 W
Output wave form Modified Sine Wave
Output voltage 120 ± 5 VAC
Regulation ± 5%
DC input voltage 10-15 V
Low battery alarm 10.5V ± 0.5%
Low battery shut-down 10V ± 0.5%
Efficiency 85-90%
Frequency ±1% 60 Hz
No load current 0.77 A
Surge rating 3600 W
Over thermal protection Yes
Two Cooling fans - continuous Yes
Overload protection Yes
Dimensions (LxWxH) 475 x 242 x 89 mm
19” x 9.7” x 3.6”
Net weight 6 kg
13.2 lbs
Inverter Install Kit GP-DC-Kit 4
2.2 GP1750HD Inverter 12V
Output 1500 W
Output wave form Modified Sine Wave
Output voltage 115 VAC
Regulation + 5% -10%
DC input voltage 10-15 V
Low battery alarm 10.7 V ± 0.2
Low battery shut-down 10V ± 0.2
Efficiency 85-90%
Frequency ±1% 60 Hz
No load current 1.0 A
Surge rating (8 seconds) 1750 W
Surge rating (3 seconds) 2000 W
Over thermal protection Yes
Cooling fan – thermal controlled Yes
Overload protection Yes
Dimensions (LxWxH) 480 x 240 x 90 mm
19.2” x 9.6” x 3.6”
Net weight 5.5 kg
12.1 lbs
Inverter Install Kit GP-DC-Kit 3

Go Power! Modified Sine Wave Inverter
Owner’s Manual
4
3. Features

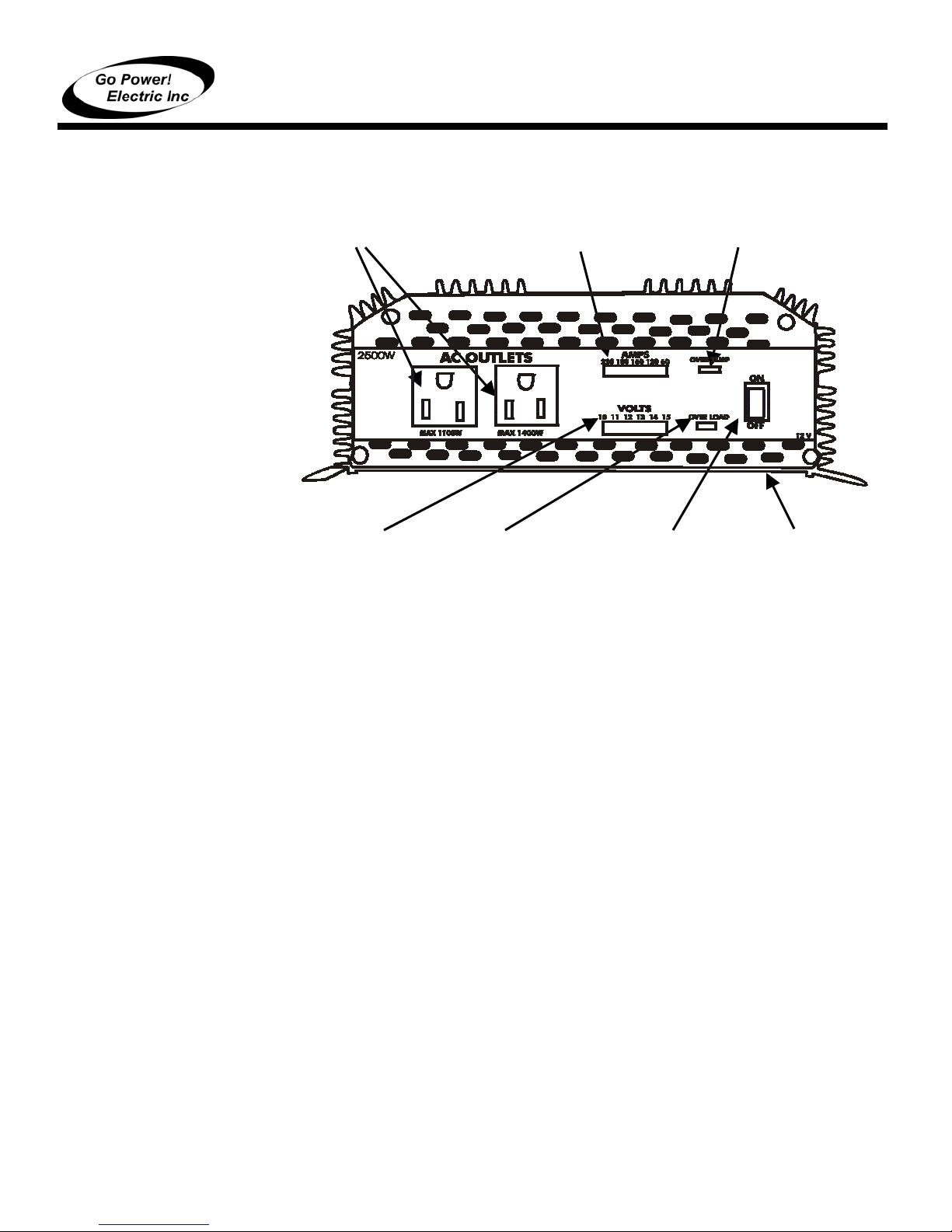

3.1 Front view – GP2500
a) Bar graph meters:
Display battery voltage and current. Current should be in the green zone for
continuous operation. The inverter will operate for several minutes when the current
is in the yellow zone.
Operation with battery voltage or current in the red zone of a meter will result in
protective shutdown of inverter.
b) AC outlet:
Outlet sockets available: North America
See RV supplement if wiring to breaker panel.
c) Voltage graph.
d) Overload indicator:
Lights up when inverter shuts down due to overloading. Turn inverter OFF, remove
cause of overload and turn inverter ON to reset.
e) ON/ OFF switch:
Leave in the OFF position during installation.
f) Remote ON/ OFF switch:
Leave in the OFF position during installation.
g) Over Temp. indicator:
Lights up when inverter protects itself against overheating. Inverter shuts down
while indicator is on. Inverter will restart automatically and indicator will turn OFF
when the inverter cools.
c. Voltage graph
b. AC outlets a. Bar graph meters g. Over temp indicator
e. On/Off switchd. Overload indicator f. Remote On / Off

Go Power! Modified Sine Wave Inverter
Owner’s Manual
5
3.2 Front view – GP1750HD
a) Bar graph meters:
Display battery voltage and current. Current should be in the green zone for
continuous operation. The inverter will operate for several minutes when the current
is in the yellow zone.
Operation with battery voltage or current in the red zone of a meter will result in
protective shutdown of inverter.
b) Over Temp. indicator:
Lights up when inverter protects itself against overheating. Inverter shuts down
while indicator is on. Inverter will restart automatically and indicator will turn OFF
when the inverter cools.
c) AC outlet:
Outlet sockets available: North America
See RV supplement if wiring to breaker panel.
d) Overload indicator:
Lights up when inverter shuts down due to overloading. Turn inverter OFF, remove
cause of overload and turn inverter ON to reset.
e) ON/ OFF switch:
Leave in the OFF position during installation.
f) Optional remote plug is on bottom of inverter.
f. Remote On/Off
connector c. AC outlets d. Overload indicator e. On/Off
a. Bar
g
ra
p
h meters b. Over Temp. indicator

Go Power! Modified Sine Wave Inverter
Owner’s Manual
6

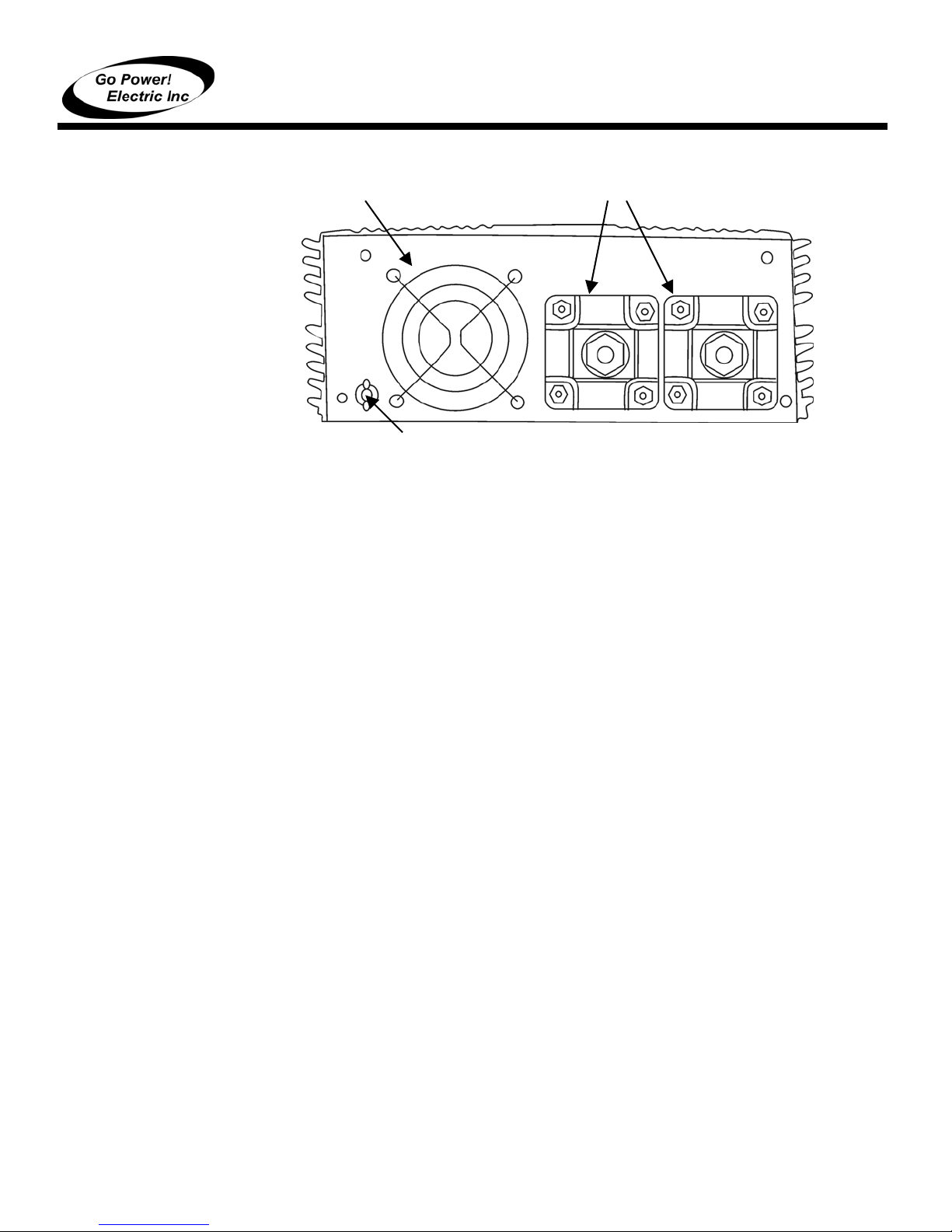

3.3 Rear view – GP 2500
a) Ventilation port:
Do not obstruct, allow at least 1 inch for air flow.
b) Battery terminals:
Connect to 12 V battery or other 12 V power source. Note that "+" is positive, "-" is
negative. Reverse polarity connection will blow internal fuse and may damage
inverter permanently.
Warning!
Operation of the
inverter without a
proper ground
connection may
result in an electrical
safety hazard.
a. Ventilation
p
ort
b. Battery terminals

Go Power! Modified Sine Wave Inverter
Owner’s Manual
7
3.4 Rear view – GP1750HD
a) Ventilation port:
Do not obstruct, allow at least 1 inch for air flow.
b) Battery terminals:
Connect to 12 V battery or other 12 V power source. Note that "+" is positive, "-" is
negative. Reverse polarity connection will blow internal fuse and may damage
inverter permanently.
c) Chassis ground lug:
Connect to earth ground or to vehicle chassis using #8 AWG wire.
*DC inverter cables not included
Minimum inverter DC cable & DC inverter fuse sizes, See Section 4.3 and 4.4.
4. Installation
4.1 Where to install
The power inverter should be installed in a location that meets the following
requirements:
Caution
Do not connect this inverter and another AC source (generator or utility power) to
the AC wiring or AC loads at the same time. Doing so will destroy the inverter and
void the warranty, regardless whether the inverter is switched on or off. If you are
using more than one AC source for the AC wiring or AC loads, it is highly
recommended that you install an automatic transfer switch (GP-TS), available
from Go Power! Electric Inc.
a) Dry - Do not allow water to drip or splash on the inverter.
b) Cool - Ambient air temperature should be between 0°C and 40°C (the cooler the
better).
c) Ventilated - Allow at least two inches of clearance around the inverter for air flow.
Ensure the ventilation openings on the rear and bottom of the unit are not
obstructed.
a. Ventilation window b. Batter
y
terminals
c. Chassis ground

Go Power! Modified Sine Wave Inverter
Owner’s Manual
8
d) Safe - Do not install the inverter in the same compartment as batteries or in any
compartment capable of igniting flammable liquids such as gasoline.
e) Inverter should be located within 10 feet of the batteries.
4.2 Hook-up and testing
To hook-up the inverter please follow these guidelines:
1. Unpack and inspect your Go Power! Inverter, check to see that the power switch is
in the OFF position. We recommend using DC Install Kits whenever installing a GP
Inverter.
2. When attaching the DC inverter cables to the power input terminals on the rear
panel of the power inverter. The (+) terminal is positive and (-) terminal is negative.
Connect the cables into the terminals by placing the lug connector between the
washers and tighten the terminal screw or nut to clamp the wires securely. Ensure
connections are tight.
3. First connect the cable from the negative terminal of the inverter to the negative
terminal of the battery. Make a secure connection.
Caution! Loose connections result in excessive voltage drop and may cause
overheated wires and melted insulation. Ensure connections are tight.
4. Before proceeding further, carefully check that the cable you have just connected is
going from the negative terminal of inverter to the negative output terminal of the
power source (battery).
5. Install the inverter fuse into the positive lead. Fuse should be located within 12” of
battery. Ensure all connections are tight and secure.
6. Connect the cable from the positive terminal of inverter to the positive terminal of
the battery. Make a secure connection. Check your polarity.
Caution
This inverter cannot supply power to any AC distribution wiring or AC loads in
which the neutral and ground are connected (bonded). Doing so will destroy
the unit and void the warranty. If you do not understand neutral to ground
bonding then please have a professional install your system for you. See
“Grounding” for more information.
7. Set the power switch to the ON position. Check the meters and indicators on the
front panel of the inverter. The voltage bar graph should indicate 11 to 14 volts
depending on the voltage of the power source. If it is does not, check your battery
bank and the connections to the inverter. The other indicators should be OFF.
8. Set the power inverter switch to the OFF position. The indicator lights may blink
and the internal alarm may sound momentarily. This is normal. Plug the test load
into the AC receptacle on the front panel of the inverter.
9. Set the power inverter switch to the ON position and turn the test load on; the
inverter should supply power to the load. If you plan to measure the output voltage
of the inverter, a true r.m.s. meter must be used for accurate readings.
Caution!
A reverse polarity
connection will
permanently damage
the inverter. Damage
caused by reverse
polarity connection is
not covered by our
warranty.
Warning!
You may observe a
spark when you
make this connection
since current may
flow to charge
capacitors in the
power inverter. Do
not make this
connection in the
presence of
flammable fumes, as
explosion or fire may
result.
Caution
Connecting this
inverter to AC
distribution wiring or
AC loads in which
the neutral and
ground are
connected (bonded)
will damage the unit
and void the
warranty.

Go Power! Modified Sine Wave Inverter
Owner’s Manual
9
4.3 DC Kits
Go Power! DC Installation Kits include everything you will need to properly connect your
Go Power! Inverter to the batteries.
• GP-2500, GP-SW2000-12 – Use GP Install Kit 4
• GP-1750, GP-SW1500-12, GP-SW2000-24 – Use GP Install Kit 3
• GP-1000, GP-SW300, GP-SW600, GP-SW1000, GP-SW1500-24 - Use GP
Install Kit 2
4.4 Cables
DC to AC inverters require high amperage to operate properly; connect inverter DC
input terminals to battery with heaviest wire available. See chart below:
Max. Watts Out Approx. Amps Req'd (12 VDC) Wire Gauge
300 W 30 A #10
600 W 60 A #6
1000 W 100 A #4
1500 W 150 A #2
1750 W 175 A #2
2500 W 250 A 2 / 0
*Cable length is not recommended to exceed 10 feet in length.
4.5 Inverter fuse
A class “T” inverter fuse should be included in all installations.
• GP 2500 - 300 amp fuse
• GP 1750 – 200 amp fuse
• GP 1000 – 110 amp fuse
4.6 Grounding
The power inverter has a lug on the rear panel: "Chassis Ground." This is to connect the
chassis of the power inverter to the ground. The ground terminals in the AC outlets on
the front panel of the inverter are also connected to the ground lug. To ground the GP-
2500, connect grounding wire to one of the mounting screws and sand the connection
before attaching the wire.
The chassis ground lug must be connected to a grounding point, which will vary
depending on where the power inverter is installed. In a vehicle, connect the chassis
ground to the chassis of the vehicle. In a boat, connect to the boat's grounding systems.
In a fixed location, connect the chassis ground lug to earth.
The neutral (common) conductor of the power inverter AC output circuit is not bonded to
the chassis ground. Therefore, when the chassis is connected to ground, the neutral
conductor will not be grounded.
At no point should the chassis ground and the neutral conductor of the inverter be
bonded. Bonding the chassis ground and the neutral conductor of the inverter or
connecting the inverter to household or recreational AC distribution wiring will damage
the unit and void the warranty.
Caution!
The negative DC input of
the power inverter is
connected to the chassis.
Do not install the power
inverter in a positive
ground DC system. A
positive ground DC
system has the positive
terminal of the battery
connected to the chassis
of the vehicle or to the
grounding point.
Warning!
Do not operate the power
inverter without
connecting it to ground.
Electrical shock hazard
may result.

Go Power! Modified Sine Wave Inverter
Owner’s Manual
10
*Installation using two 12 volt batteries
* Installation using two 12 volt batteries.
* Installation using two 6 V batteries.
5. Operation
To operate the power inverter, turn it on using the ON/OFF switch on the front panel.
The power inverter is now ready to deliver AC power to your loads. If you are
operating several loads from the power inverter, turn them on separately after the
inverter has been turned ON. This will ensure that the power inverter does not have to
deliver the starting currents for all the loads at once.
5.1 Controls and indicators
The ON/OFF switch turns the control circuit in the power inverter ON and OFF. It does
not disconnect power from the power inverter.
When the switch is in the OFF position, the power inverter draws no current from the
battery. When the switch is in the ON position but with no load, the power idle current is
approximately 1 A (see product specifications for exact current draw).
5.2 Optional On / Off remote
The optional remote switch can be used to turn the inverter on and off from a location up
to 25 feet away. The inverter should be OFF when plugging remote in. Once the
remote is installed the inverter ON/OFF switch must be in the ON position.
Fuse
12 V
GP Inverter
6 V
_
_
+
GP Inverter
Fuse
+
+
_
6 V
12 V

Go Power! Modified Sine Wave Inverter
Owner’s Manual
11
5.3 Battery voltage indicator
The battery voltage bar graph indicates the voltage at the input terminals of the power
inverter. At low input current, this voltage is very close to the battery voltage. At high
input current, this voltage will be lower than the battery voltage.
Ideally, the voltage should remain in the green areas of the bar graph. If the voltage
goes into the red area at the top or bottom of the graph, the inverter may shut-down.
5.4 Battery current indicator
The battery current bar graph indicates the current drawn from the battery by the power
inverter. It will not indicate current by other loads also connected to the battery.
For long-term operation, the current should be in the green area of the bar graph.
Short-term operation is possible with current in the yellow area. If the current rises to
the red area, the inverter will shut itself down and the overload indicator will light.
5.5 Overtemp indicator
The overtemp indicator indicates that the power inverter has shut itself down because
the inverter has become overheated. The power inverter may overheat because it has
been operated at power levels above its rating, or because it has been installed in a
location which does not allow it to dissipate heat properly. The power inverter will
restart automatically once it has cooled off.
5.6 Overload indicator
The overload indicator indicates that the power inverter has shut itself down because
its output circuit has been short circuited or drastically overloaded. Switch the ON/OFF
switch to OFF, correct the fault condition, and then switch the ON/OFF switch back to
ON.
6. Operating limits
6.1 Power output
The inverter will operate most AC loads within its power rating. When determining
whether a microwave oven can be operated by the GP-1750 Inverter, remember that
the power commonly advertised for microwave ovens is the cooking power (the power
delivered to the food) not the power actually consumed by the microwave oven. The
microwave oven will consume 40% to 100% more than its advertised cooking power.
Check the rating sticker on the back of the oven to determine its actual power draw.
The GP-1750 inverter will operate small microwave ovens (0.2 to 0.3 cubic foot
capacity) that draw about 1700 watts. It will provide 10 to 45 minutes of cooking time.
Some induction motors used in refrigerators, freezers, pumps and other motor
operated equipment require very high surge currents to start. The power inverter may
not be able to start some of these motors, even though their rated current draw is
within the power inverter.
If the motor refuses to start, observe the battery voltage indicator while trying to start the
motor. If the battery voltage indicator drops below 11 volts while the inverter is
attempting to start the motor, this may be why the motor will not start. Make sure that
the battery connections are good and that the battery is fully charged. If the connections
are good and the battery is charged, but the voltage still drops below 11 volts, you may
need to use a larger battery.

Go Power! Modified Sine Wave Inverter
Owner’s Manual
12
6.2 Input voltage
The power inverter will operate from input voltage ranging 10 V – 15 V. If the voltage
drops below 10.7 V, an audible low battery warning will sound and the voltage indicator
will be in the lower red zone. The power inverter will shut down if the input voltage
drops below 10 V. This protects your battery from being over discharged.
The power inverter will also shut down if the input voltage exceeds 15 V. This protects
the inverter against excessive input voltage. The voltage indicator will be in the upper
red zone. Although the power inverter incorporates protection against overvoltage, it
may still be damaged if the input voltage is allowed to exceed 20 V.
7. Troubleshooting
7.1 Common problems
a) Buzz in audio systems
Some inexpensive stereo systems will emit a buzzing noise from their
loudspeakers when operated from the power inverter. This is due to the power
supply in the device does not adequately filter the modified sine wave produced
by the power inverter. The only solution is to use a sound system that
incorporates a higher quality power supply.
b) Television interference
Operation of the power inverter can interfere with television reception on some
channels. If this situation occurs, the following steps may help to alleviate the
problem.
• Make sure that the chassis ground lug on the back of the power inverter is
solidly connected to the ground system of your vehicle, boat or home. With the
exception of the GP-2500 which would connect to one of the mounting screws.
• Do not operate high power loads with the power inverter while watching
television.
• Make sure that the antenna feeding your television provides an adequate ("snow
free") signal and that you are using good quality cable between the antenna and
the television.
• Move the television as far away from the power inverter as possible.
• Keep the cables between the battery and the power inverter as short as possible
and twist them together with about 2 to 3 twists per foot. This minimizes radiated
interference from the cables.
7.2 Troubleshooting guide
Problem and Symptoms Possible Cause Solution
Low AC output voltage
95-105 VAC. Using standard voltmeter. Use true RMS averaging meter.
Low output voltage and
current indicator in red zone. Overload. Turn off. Reduce load, turn on.
No output voltage and
voltage indicator in lower red
zone.
Low DC input
voltage. Recharge battery, check connections and cable.
Note: There
are audible low
voltage / over
load alarms on all
inverters.

Go Power! Modified Sine Wave Inverter
Owner’s Manual
13
Inverter switched off.
No power to
inverter.
Turn inverter on. Check
wiring to inverter.
Internal fuse open. Have qualified service
technician check and replace.
No output voltage, no voltage
indication.
Reverse DC polarity. Have qualified service
technician check and replace
fuse, OBSERVE CORRECT
POLARITY.
No output voltage, voltage
indicator in upper red zone. High input voltage. Make sure that inverter is connected to 12 V battery.
Check regulation of charging
system.
Low battery alarm on all the
time, voltage indicator below
11 V
Poor DC wiring,
poor battery
condition.
Use proper cable and make
solid connections. Use new
battery.
No output voltage, Over
Temp indicator on, load in
excess of:
2500 W: 210 A
1750 W: 145 A
Thermal shutdown. Allow inverter to cool off.
Reduce load if continuous
operation required.
No output voltage, Over
Temp indicator On, load less
than:
2500 W: 210 A
1750 W: 145 A
Thermal shutdown. Improve ventilation, make
sure ventilation openings in
inverter are not obstructed,
reduce ambient temperature.
Short circuit or
wiring error. Check AC wiring for short circuit or improper polarity
(hot and neutral reversed).
No output voltage, Over Load
indicator on
Very high power
load Remove load.
8. Maintenance
Very little maintenance is required to keep your inverter operating properly. You
should clean the exterior of the unit periodically with a dry cloth to prevent
accumulation of dust and dirt. At the same time, tighten the screws on the DC input
terminals.
9. Warranty
We warrant this product against defects in materials and workmanship for a period of
12 months from the date of purchase and will repair or replace any defective Go
Power! Inverter when directly returned, postage prepaid, to the manufacturer. This
warranty will be considered void if the unit has suffered any obvious physical damage
or alteration either internally or externally, and does not cover damage arising from
improper use such as plugging the unit into an unsuitable power sources, attempting
to operate products with excessive power consumption requirements, reverse
polarity, or use in unsuitable climates.
This is the only warranty and the company makes no other warranties, express or
implied, including warranties of merchantability and fitness for a particular purpose.
Repair or replacement are your sole remedies and shall not be liable for damages,
whether direct, incidental, special or consequential, even though caused by
negligence or other fault.

Go Power! Modified Sine Wave Inverter
Owner’s Manual
14
10. RV Supplement
10.1 Installing the GP 2500, GP 1750HD, and without an automatic
transfer switch
• Plug main power cord into inverter (a 15 amp adapter may be required).
• Battery inter-connects should be a minimum of 4 gauge.
• Ensure converter is turned Off when plugging into inverter.
• To avoid hidden loads turn inverter off when power is not required.
*DC connections – use appropriate GP DC Install Kit.
10.2 Installing the GP 2500, GP 1750HD, and with an automatic
transfer switch
• Battery inter-connects should be a minimum of 4 gauge.
• Ensure converter is turned Off when inverter is operating.
• To avoid hidden loads turn inverter off when power is not required.
*DC connections – use appropriate GP DC Install Kit.
12 V Batteries
On/Off Remote
(Optional)
Shore Power Cord
Go Power!
Transfer
Switch
Converter
RV Power Cord GP
Inverter
Go
Power!
Fuse
Go Power!
Fuse
Remote On/Off (Optional)
AC to GP
Plug Inverter
12V Batteries
