GOAL ZERO Nomad 7 User manual

NDmADTM7
SOLAR PANEL
USER GUIDE

NDmADM7
SOLAR PANEL
Get to Know Your Gear
Getting
Started
HANG IT
Reflective nylon loops make the
NOMAD 7 easy
to find and hang.
CHARGE IT
The NOMAD 7's highly efficient
solar cells deliverup
to 7 Watts of
power in a small package.
COLLECT IT
Monocrystalline cells deliver the most
power and smallest area
for the price.
1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Open and remove protective film from solar cells.
3. Position and angle towards the sun (see below).
4. Plug your device into one
of the charging ports.
How to Use Your Gear
0 USB output port
Accepts any standard USB cable for charging USB devices.
8 Solar output port
Charges the GUIDE 10 battery pack,faster than USB.
E) Car adapter and 12V output port
Connect the car adapter (included) to charge smaii12V devices.
Backside

Technical Specs
Usage
Charges the following:
GUIDE
10 battery pack
Cell phone, MP3 player
Approx. charge time:
2-4 hours
1-3 hours
Smart phone,
GPS, USB camera
Not compatible with tablets, like iPad.
2-4 hours
Inputs
Solar panel
Outputs
USB port
12V port
Solar port
General
Weight (no pkg)
Dimensions (folded)
Dimensions (unfolded)
Warranty
Certifications
Optimal Operating
Temp.
Comes With
12V car adapter
Rated wattage:7W
Cell type: monocrystalline
Open-circuit voltage:
6.5-7V
Converting eff.: 17-18o/o
Cell area:
0.0394 m2
5V, 1.0A max (5W), linear regulated
13-15V, 0.2A max (3W), boost regulated
6-6.5V,
1.0A max (6W), not regulated
0.8 lbs (0.36 kg)
6x9x1 in (15x26x2.5 em)
17x9x0.1 in (43x23x0.25 em)
12 months
FCC and
CE
0-120°F (-17-48°C)

Frequently Asked Questions
What will my NOMAD 7charge?
The NOMAD 7 will directlycharge most USB and and 12V devices (not tablets).
Can I use
the USB and 12V ports to charge devices simultaneously?
Yes. The NOMAD 7 will split the incoming solar power between the two ports to charge devices simultaneously.
Some devices may not be compatible.
Why am I
having trouble charging my smart phone?
Smart phones require very specific, consistent input.
If your NOMAD 7 is angled perfectly, there shouldn't be an issue.
However, most charging issues
with a smart phone are made simpler by incorporating a GOAL ZERO power pack as an
intermediary (such as GUIDE 10 PLUS).
Is
the NOMAD 7 waterproof?
The NOMAD 7 is weather-resistant and will not be harmed if exposed to rain or snow.
What kind of solar cells do you use in the NOMAD 7?
We use state-of-the-art monocrystalline technology in the NOMAD 7 because it delivers more power per square inch
than any other solar technology
on the market.
Can
the NOMAD 7 be chained with other devices?
No.
Compatible With
Most hand-heldUSB devices, like:
Cell phone
Smart phone
GPS
MP3 player
GOAL ZERO products:
GUIDE
10 PLUS battery pack
ROCK OUT speaker
BOLT flashlight
BLAZE headlamp

• Fill out your warranty
• Watch demo video
• Download
this manual
.1!1
,._
CONTACT US:
Toll Free: 888.794.6250
675 w 14600 s
Bluffdale, UT, 84065
WWW.GOALZERO.COM
We proudly supportTifie Humanitarian
WWWTIFIE.ORG

USAGE TIPS FOR NOMAD 7M:
1. It is often helpful to let the Nomad 7M warm up, opened to the sun for a moment , prior
to connecting any electronics.
2. The performance of this panel is highly dependent upon weather and placement.
Please observe placement
tips given in the user-guide.
3. Excellent results are achieved when used outside, in direct sunlight.
4. Usage indoors, in cloudy, or overcast conditions, may work , but will not yield opt imal
results. Any o
bstructions to direct sunlight-- even faint shadows -- may also
significantly reduce
power output .
5. iPhone and ot her smart devices: these devices will charge with the Nomad 7M , but
special attention is sometimes needed. If power is disrupted , the device may cancel
the charging session. Restore by re-plugging-in the device.
6. Ke ep panels wiped clean of grit and grime.
7. Many ele ctronic devices will overheat in direct sunlight. While charging, place them
in shade
or behind the Nomad 7M, to avoid direct sun exposure.

GUIDETioPLUS
BATTERY PACK
USER GUIDE

GUIDE1oPLUS
B A T T E R Y P A C K
Get to know your gear
I
Getting Started
HANG IT
Sturdy hanging wire provides
convenient storage options.
PROTECT IT
Batteriesare housed securely
behind a transparent door.
POWER IT
Power portable electronic devices
directly
from the USB output port.
LIGHT IT
Equipped with a bright LED flashlight,
which never needs replacing.
1. Be sure to ACTIVATE YOUR WARRANTY at www.GOALZERO.com/warranty
2. Install batteries
in correct orientation.
3. Turn
on and use.
4. Recharge from any GOAL ZERO Nomad solar panel or USB power source.

How to use your gear
Power switch
0 Turn
to bn ' to enable output; turntothe -: r: to turn on flashlight. See
legend below.
PowerLED
Indicates powerand charging state. See power legend below.
e USB
output port
Accepts any standard USB cable for charging USB dev ices. To
use, turn GUIDE 10 PLUS to 'on:
0 LED Flashlight
100+ hours of lightpercharge.Turn on with powerswitch.
0 Solar charging port
Recharge from GOAL ZERO Nomad 7 or Nomad 3.5 so larpanels.
0 Mini-USB charging port
Recharge from USB sources, like a computer.
GUIDE 10 PLUS power legend:
WHEN CHARGING
FROM
NOMAD 3.5 WHEN CHARGING
FROM
NOMAD 7 WHEN IN
USE
Q -" OFF " - USB Out ut disabled.
I -" ON " - USB Output ON .
RED BLINKING SLOW RED BLINKING SOLID GREEN of"': _"LIGHT" - LED LightIs ON.
~~~~O~-S~O~%~o~b=:::::::!)=-l - ~=====-t -USB output Disabled.
t- r- -Store In " OFF " position.
SOUDORANGE
~
GREEN BLINKING SLOW GREEN BUNKING
-~
FAST GREEN BLINKING SOLID RED
Fl ~i2~l!Pl~~-Ef~)
80-100%~·
t-r3~Hr.U~EX~P~E~Dii==--l
CHARGE TIMES INGOOD
SUN
8 HOURS EXPECTED CHARGE TIMES FROM USB
-Charges in anyswitch position.

0
Technical Specs
Usage
Charges from the following:
Any USB power source
GOAL ZERO Nomad
3.5 (solar port)
GOAL ZERO Nomad 7 (solar port)
Inputs
USB-mini port
Solar port
Outputs
Batteries
USB standard port
Flashlight
Internal
Battery capacity
Life-span
Shelf Life
General
Weight w/ batteries
Dimensions
Warranty
Certifications
Optimal operating temp.
Approx. charge time:
8-10 hours
6-8 hours
2-4 hours
5V, 0.7 A max (3.5W)
6.5V,
1.5A max (7W)
4x AA or AAA** NiMH cells
5.0V,
1.0A max (5W)
100mW white LED, 100+ hours*
10 Wh*, use only NiMH cells
hundreds
of cycles*
12 months*
0.4 lbs (0.18 kg)
2.5x4x0.75 in (6x10x2 em)
12 months
FCC and CE
32-104°F (0-40°C)
*When using GOAL ZERO NiMH rechargeable low self-discharge AA ceils.
**AAA batteries are not included. GOAL ZERO batteries are available
at
GOALZERO.com. AAA batteries come with adapter.

Frequently Asked Questions
What batteries can be used?
• Any AA or AAA** NiMH batteries can be used and recharged.
•
We do not recommend other types of batteries.
• 4 same-sized batteries MUST
be charged at once, but not all batteries need to be empty.
How do I charge?
• From Solar: Use GOAL ZERO Nomad 3.5 or Nomad 7 with solar charge cable for fast charging.
• From USB: Use any USB power source, such
as a computer or any GOAL ZERO power pack.
Is it waterproof?
No, but it is weather-resistant. Care should be taken to shield it from direct sunlight
and the elements. Unexpected rain storms probably won't harm it.
How is it protected?
Usage is plug-and-play. The built-in battery management system prevents over-charging and
over-discharging
of batteries. The USB output will only supply the amount of power needed.
Comes With:
Mini-USB charging cord
Solar charging cord
Compatible With:
Hand-held USB devices, like:
Cell phone, Smart phone
GPS, MP3 player
Tablet
GOAL ZERO products:
NOMAD solar panels
LUNA,
BOLT, BLAZE lights

• Fill outyour
warranty
• Watch demo video
• Download
this
manual
CONTACT
US:
Toll
Free:
888.794.6250
675
w
14600
s
Bluffdale,
UT,
84065
WWW.GOALZERO.COM
We
proudly
support
Tifie Humanitarian
WWW.TIFIE.ORG

GOALZERO.
TAKE
CHARGE

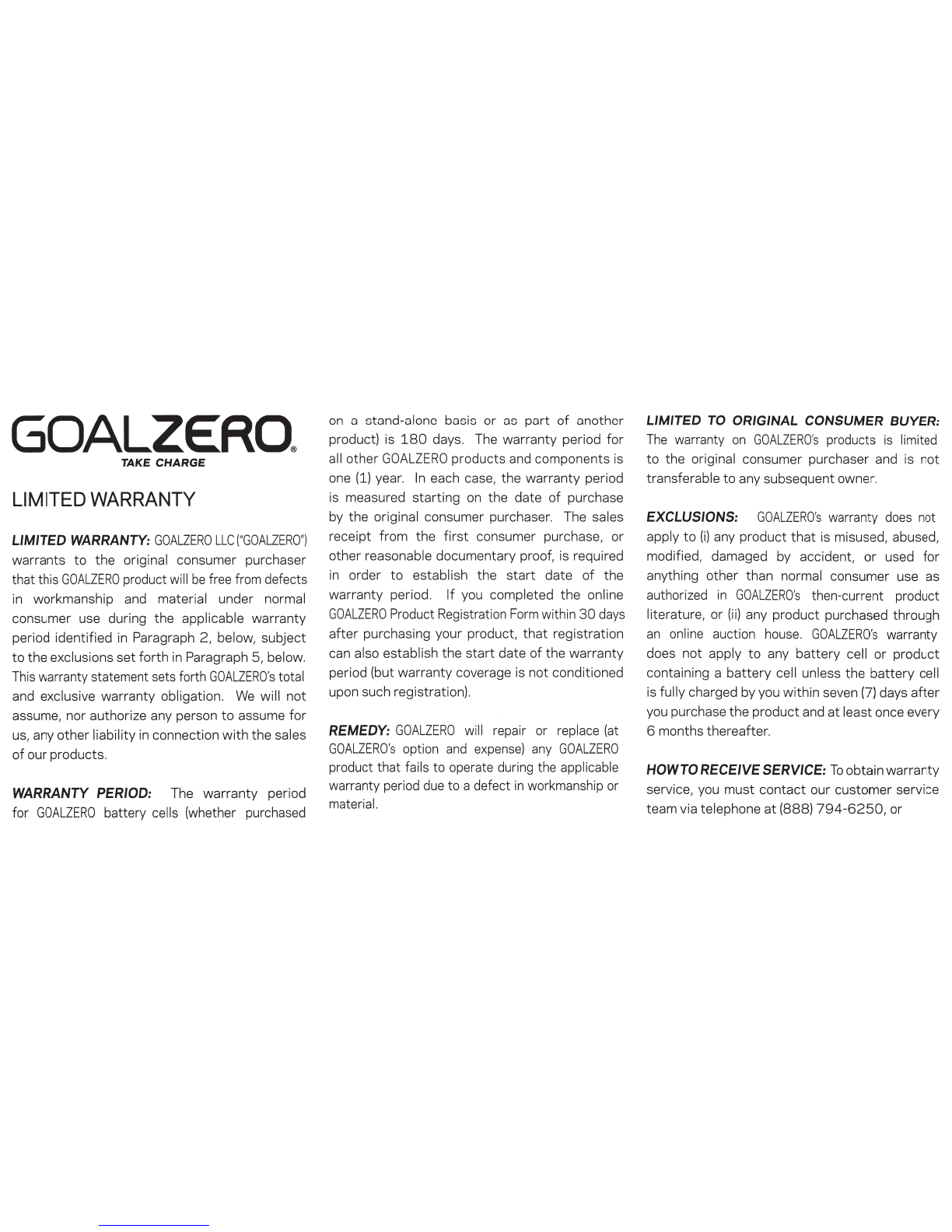

LIMITED
WARRANTY
LIMITED
WARRANTY:
GOALZERO
LLC
("
GOALZERO
")
warrants
to
the
original consumer purchaser
that this
GOALZERO
product will
be
free from defects
in workmanship and material under normal
consumer use during the applicable warranty
period identified
in
Paragraph 2, below, subject
to
the
exclusions
set
forth
in Paragraph 5, below.
This warranty statement sets forth
GOA
L
ZERO's
total
and exclusive warranty obligation.
We
will
not
assume, nor authorize any person
to
assume
for
us, any other liability
in
connection wi
th
the
sales
of
our products.
WARRANTY
PERIOD:
The
warranty
period
for
GOALZERO
battery cells (whether purchased
on a stand-alone basis or as
part
of
another
product) is
180
days. The warran
ty
period
fo
r
all
other
GOALZ
ER
Oproducts and compone
nt
s is
one
(1)
year. In each case, the
warranty
period
is measured
starting
on the date
of
purchase
by
the
original consumer purchaser. The sales
receipt
from
the
first
consumer purchase, or
other reasonable documentary proof, is required
in
order
to
establish the
start
date
of
the
warranty period.
If
you completed
the
online
GO
ALZERO
Product Registration Formwithin
30
da
ys
af
t
er
purchasing your product,
that
regist
ration
can also establish
the
start
date of
the
war
ranty
period (but warranty coverage is
not
conditioned
upon such regis
tr
ation).
REMEDY:
GO
A
LZE
RO will repair or replace (at
GOALZERO
's option
and
ex
pense)
any
GOA
L
ZERO
product that fails
to
operate
du
ri
ng the applicable
warranty peri
od
due
to a defect in workmanship or
material.
LIMITED
TO
ORIGINAL
CONSUMER
BUYER:
The
warranty on
GOALZ
ERO
's pr
od
ucts is
li
mit
ed
to
the orig
in
al consumer purchaser and is not
tra
nsferable
to
any subseque
nt
owner.
EXCLUSIONS: GO
ALZ
ERO's warr
an
ty does not
apply
to
(i) any
product
th
at
is misused, abused,
modif
ied, damaged by accid
ent
, or used for
anything
ot
her than normal consumer use as
authorized
in
GO
A
LZ
ER
O's th
en
-curre
nt
product
litera
tu
re,
or
(
ii
) any prod
uct
purchased
th
rough
an
online auction house. G
OA
LZE
RO's warranty
does not apply
to
any
bat
tery cell
or
pr
oduct
containing a b
attery
cell unless t
he
ba
tt
ery ce
ll
is fully charged by you wi
th
in seven (7)days af
te
r
you purchase the product and at least once every
6 months
the
reafter.
HOWTO
RECEIVE
SERVICE:
To
obtainwarran
ty
service, you mu
st
contact
our customer service
team via telephone
at
(888)
79
4-6250
, or

via email at [email protected]. Ifour customer
service team determines
that further assistance
is required, they will give you a Return Material
Authorization
("RMA'1 number. You must properly
package the product, clearly marking the RMA
numberonthepackageand includingproof
of your
purchase date
with the product. You must then
send
the product bymail orcourier, with shipping
costs paid
by you , to GOALZERO at 675W
14600S Bluffdale, Utah, USA 84065. We will
process your return and send your repaired
or
replacement product to you at our expense for
product being shipped to locations in North
America. Forproductpurchased
or beingshipped
outside
of North America, please contact the
local distributor from whom you purchased the
product, or email [email protected] to
obtain further distributor information.
IMPLIED WARRANTIES: THE LIMITED
WARRANTY STATED HEREIN IS
IN LIEU OF
ALL OTHER EXPRESS WARRANTIES.
IN NO
EVENT SHALL ANY IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED
TO ANY
WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE
OR
NON-INFRINGEMENT, EXTEND BEYOND THE
APPLICABLE WARRANTY PERIOD IDENTIFIED
IN PARAGRAPH 2, ABOVE. Some states do not
allow limitations
on how long an implied warranty
lasts, so
the above limitation may not apply to
you. This warrantygivesyou specific legal rights,
and you may also have other rights which
va ry
from
state to state.
EXCLUSIVE REMEDY; LIMITATION
OF
LIABILITY: The foregoing provisions state
GOALZERO 's entire liability, and your exclusive
remedy,
for any breach of warranty, express or
implied . IN NO EVENT WILL GOALZERO BE LIABLE
FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES ARISING FROM ANY USE
OR
MALFUNCTI ON OF ANY GOAL ZERO PRO DUCT,
OR FROM ANY BREACH OF WARRANTY,
INCLUDING DAMAGE TO OTH ER DEVICES . IN NO
EVENT WILL GOALZERO'S
LI ABILITY FOR ANY
CLAIM, WHETH
ER IN CONT RA CT , WARRANTY,
TORT (INCLUDING NEGLIGENCE AND STRICT
LIABILITY)
OR UNDER ANYOTHER THEORY OF
LIABILITY,
EXCEEDTHEAMO UNTPAID BYYOU
FOR T HE GOALZERO'S PROD U CT. Some stat es do
not allow the exclusion or limitati
on of incidental or
consequential damages, so the above limit
at ion
or exclusion may not apply to yo u.
