gofanco prophecy PRO-HDBaseT2P User manual

PRO-HDBaseT2P
1x2 4K-HDR HDMI Splier over Single Cat.x with
HDBaseT-Lite, IR, RS-232, PoC & Loopout
®
Made in Taiwan
User‘s Guide
PRO-HDBaseT2P-RX
X2

®
PRO-HDBaseT2P
Congratulaons for owning a gofanco product. Our products aim to meet all your
connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit www.gofanco.com.
For technical support, please email us at [e-mail].
For drivers/manuals download, please go to hp://www.gofanco.com/download.

®
PRO-HDBaseT2P
Please read all of these instructions carefully before you use the device. Save
this manual for future reference.
The PRO-HDBaseT2P 1x2 4K-HDR HDMI Splitter over Single Cat.x with HDBa-
seT-Lite, IR, RS-232, PoC & Loopout has been tested for conformance to safety
regulations and requirements, and has been certied for international use. Ho-
wever, like all electronic equipments, the PRO-HDBaseT2P should be used with
care. Please read and follow the safety instructions to protect yourself from
possible injury and to minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this
manual.
• Provide proper ventilation and air circulation and do not use near water.
• Keep objects that might damage the device and assure that the placement of
this unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed
for this unit.
• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the po-
wer to the device before cleaning.
1. Safety and Notice
Table of Contents
1. Safety and Notice ..................................................................3
2. Introduction .......................................................................4
3. Features...........................................................................4
4. Package Contents ..................................................................5
5. Specication ......................................................................6
6. Panel Description ..................................................................7
7. Connection Diagram ..............................................................10
8. IR Pass-Through...................................................................11
9. Notice............................................................................12
10. LearningWarranty ................................................................14
3

®
PRO-HDBaseT2P
• HDMI 2.0a compliant
• Supports 4K2K@60 4:4:4 8bits
• Supports HDR*, which is 4K2K@60 4:2:0 10bits**
• Extends HDMI signal up to 60m (198ft) at Full HD 1080p 36-bit, 35m
(114ft) at 4K2K@60 444 & 4K HDR
• Supports PoC (Power over Cable) which allows all Receivers to be powe-
red by the Transmitter with just one power adapter
• Supports two HDMI loopouts
• HDCP 2.2/1.4 support
• Supports resolution downscaling from 4K2K to 1080P*
• Supports EDID management
• Auto equalization
• Pure unaltered uncompressed 7.1ch digital HDMI over Cat.5/5e/6 cable
transmission
• DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
3. Features
The PRO-HDBaseT2P 1x2 4K-HDR HDMI Splitter over Single Cat.x with
HDBaseT-Lite, IR, RS-232, PoC & Loopout provides the most cost eective
and advanced HDMI splitter solution on the market, by which the high de-
nition video and high quality audio can be transmitted up to 4 dierent
locations without losing quality. PRO-HDBaseT2P supports all 3D formats,
the true 4K 2K video and provides two HDMI local loopouts. In addition,
PRO-HDBaseT2P is also equipped with bi-directional IR pass-through path
and RS-232 serial port control.
With built-in USB rmware update mechanism, the compatibility among
countless HDMI sources and receivers can be further guaranteed. With
the upmost 12 bit deep color video and high denition audio support,
PRO-HDBaseT2P is suitable for high quality HDMI broadcasting, digital sig-
nage and education applications!
2. Introduction
4

®
PRO-HDBaseT2P
• 1x PRO-HDBaseT2P
• 2x PRO-HDBaseT2P-RX
• 1x DC 12V 3.33A
• 1x 3-pin Terminal Block Connector
• 1x IR Blaster
• 2x IR Receiver
• 1x User Manual
4. Package Contents
5
• Supports full frequency IR signal from 30KHz to 56KHz
• Bi-directional IR path-through
• RS-232 Pass-Thru: Up to 115,200bps
• Video latency less than 20 us.
• Easy installation
HDR = High Dynamic Range.
The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384 MHz, and the
4K2K@60 4:4:4 8bits is 594MHz.
(a) the PRO-HDBaseT2P can support resoluon downscaling from 4K2K to 1080P
(b) Does not support resoluon downscaling from 4K2K@60 4:2:2 to 1080P
(c) Does not support frame rate conversion
*
**
!
When used in conjunction with the PRO-HDBaseT2P-RX receiver

®
PRO-HDBaseT2P
5.Specications
Item Description
Technical
Role of usage 1x2 Distribution Amplier (Splitter)
HDMI compliance HDMI 2.0a
HDCP compliance Yes
Video bandwidth Single-link 600MHz [18Gbps]
Video support HDR 4K2K@60(4:2:0 10bits)/ 4K2K@60 (4:4:4 8bits)
Transmission over
UTP cable
1080p@60 60m (198ft) [CAT5e]
4K2K@60 (4:4:4 8bit) 35m (114ft) [CAT5e]
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
PCB stack-up 4-layer board [impedance control — dierential 100Ω; single 50Ω]
Input 1x HDMI/ 1x 3.5mm
Output 2x HDMI/ 2x RJ-45[HDBaseT]/ 1x 3.5mm
IN/ OUT 1x RS-232
HDMI source control Controllable via IR pass-through from RX to TX with IR extenders
HDMI connector Type A [19-pin female]
RJ-45 connector WE/SS 8P8C(Reverse Mode)
Rotary switch Yes
3.5mm connector IR receiver / IR blaster
Mechanical
Housing Metal enclosure
Dimensions
[L x D x H]
Model 328 x 120 x 27mm [1' x 4.7" x 1"]
Package 376 x 240 x 112mm [1'2" x 9.4" x 4.4"]
Carton 590 x 510 x 405mm [1'9" x 1'7" x 1'3"]
Weight Model 819g [1.8 lbs]]
Package 1622g[3.6 lbs]
Fixedness 1RU rack-mounting case with ears
Power supply 12V 3.33A DC
Power consumption 25 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
6

®
PRO-HDBaseT2P
6. Panel Description
Front Panel
Rear Panel
1. Power LED: Power indicator
2. Micro-USB: For technical support only [rmware update]
3. HDMI Signal LED: Input, Loopout 1, Loopout 2 (from left to right)
4. Link Receiver LED: Link LED indicator 1-2
5. HDMI Signal LED at Receiver: Output signal LED indicator 1-2
6. +12V DC: Connect to the +12V DC power supply unit
7. 2-PIN Dip Switch: For rmware update
7
1 2
6 7 8 9 10 1511 12 13 14
5
43
8. EDID Management Rotary control:
MODE 0 Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio
MODE 1 Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio
MODE 2 Ultra HD(4K2K@30)(4K2K@60 420) – 8/10/12bit 3D HDR video & 7.1ch audio
MODE 3 Ultra HD(4K2K@30)(4K2K@60 420) – 8/10/12bit 3D HDR video & 2ch audio
MODE 4 Full-HD(1080p@60) – 12bit 3D video & 7.1ch audio
MODE 5 Full HD(1080p@60) – 8bit 2D video & 2ch audio
MODE 6 Learning EDID from loopout #1
MODE 7 Auto EDID analysis learning mode
DIP Switch Position Description
PIN#1 PIN#2
OFF[] OFF[]Working Mode & Input F/W Update
OFF[] ON[]Reserved
ON[] OFF[]Output 1 F/W Update
ON[] ON[]Output 2 F/W Update
ON[] OFF[]
PRO-HDBaseT2P

®
PRO-HDBaseT2P
9. RS-232(terminal block format): The order of RS-232 pin are TX, RX, GND
(from the left side to the right)
10. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR
receiver
11. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR
blaster
12. HDMI IN: Connect to a HDMI input source
13. HDMI LOOPOUT #1:
Connect to a HDMI display with a HDMI male-male cable here
14. HDMI LOOPOUT #2: Connect to a HDMI display with a HDMI male-male cable here
15. HDMI Signal OUT1-2: Link to each HDMI display via a Cat-5/5e/6 cable with a
HDMI over Cat.X receiver.
8

®
PRO-HDBaseT2P
PRO-HDBaseT2P-RX
Front Panel
Rear Panel
1
5432 6 7
1. LED: Power LED, Link LED, Signal LED
(1) Power LED: Power indicator LED
(2) Link LED: Link indicator LED
(3) Signal LED: When receiving unit receive the HDMI signal, the LED light will shine
2. RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to the transmitting unit
3. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR
receiver
4. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
5. RS-232(terminal block format): The order of RS-232 pin are TX, RX, GND
(from left to right)
6. Dip Switch: for F/W update ([ON] F/W update Mode; [OFF] Normal Mode)
7. HDMI OUT: Connects to a HDMI display with HDMI male-male cable
9

®
PRO-HDBaseT2P
10
7. Connection Diagram

®
PRO-HDBaseT2P
11
i
8. IR Pass-Through
IR Extenders
IR Sockets
IR Blaster IR Receiver
IR BLASTER:
plug in the IR blaster to emit all IR command signals received from the IR receiver from the
other end to control the devices corresponding to the IR signals.
IR RECEIVER:
plug in the IR receiver to receive all IR command signals from the IR remote controls of the
corresponding devices.
CAUTION
Incorrect placement of IR Blaster and Receiver may result in the failure of the
IR extenders. Please check carefully before plugging in the IR extender to the
respective IR sockets. Warranty will not cover the damage.

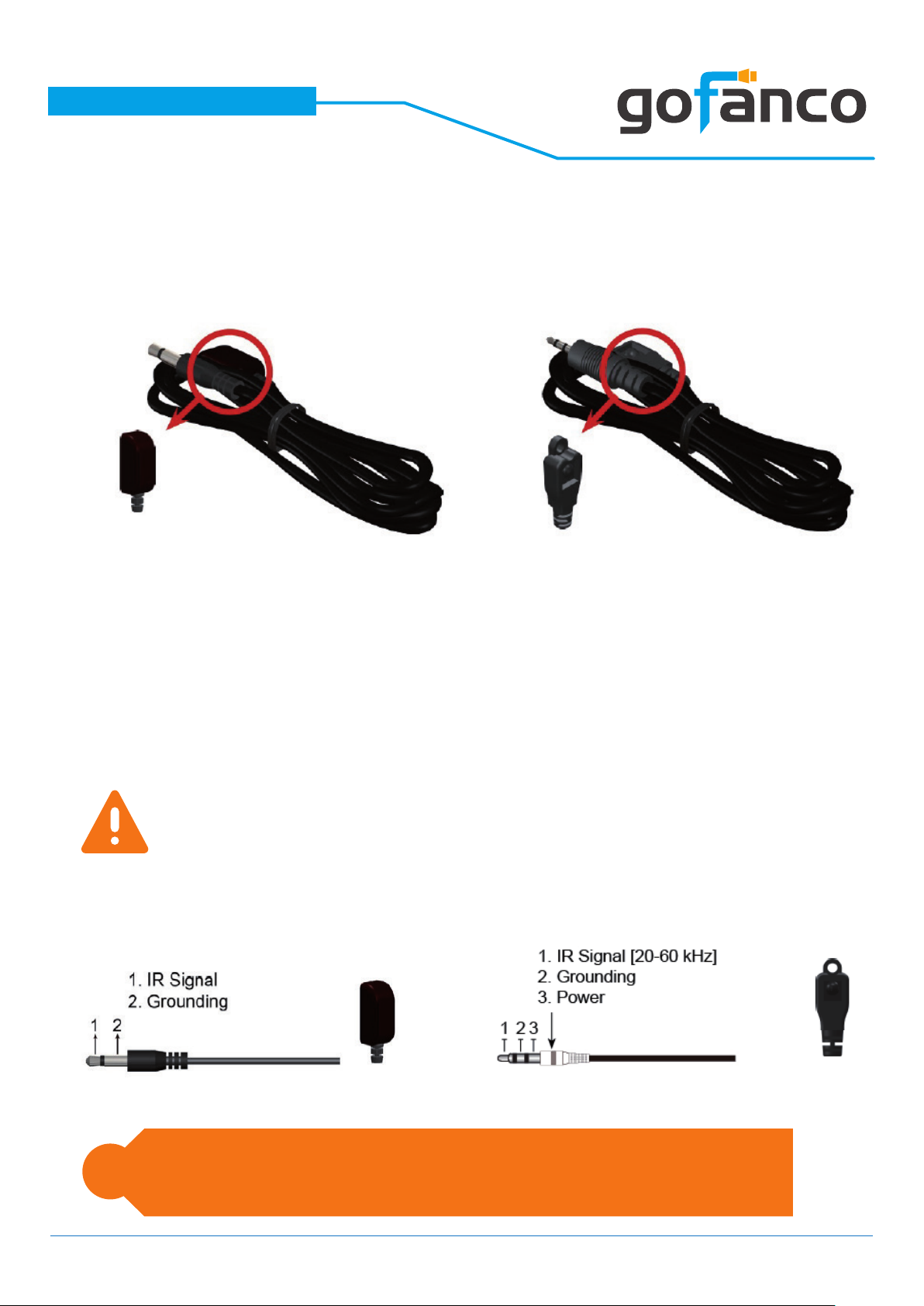

DenitionofIREarphoneJack
IR Blaster IR Receiver
You can buy any IR extension cables in the market that are compatible to
the definition of the IR sockets for the matrix if necessary for replacement
use. However, IR cables longer than 2m (6-ft) may not work.

®
PRO-HDBaseT2P
12
1. Short blackout periods are expected when new monitors are connected to
the splitter. The splitter will do Automatic EDID learning which analyzes the
newly connected monitor to see if the EDID for the HDMI input is necessary
to update!
2. Firmware update is proceed through Micro-USB
9. Notice

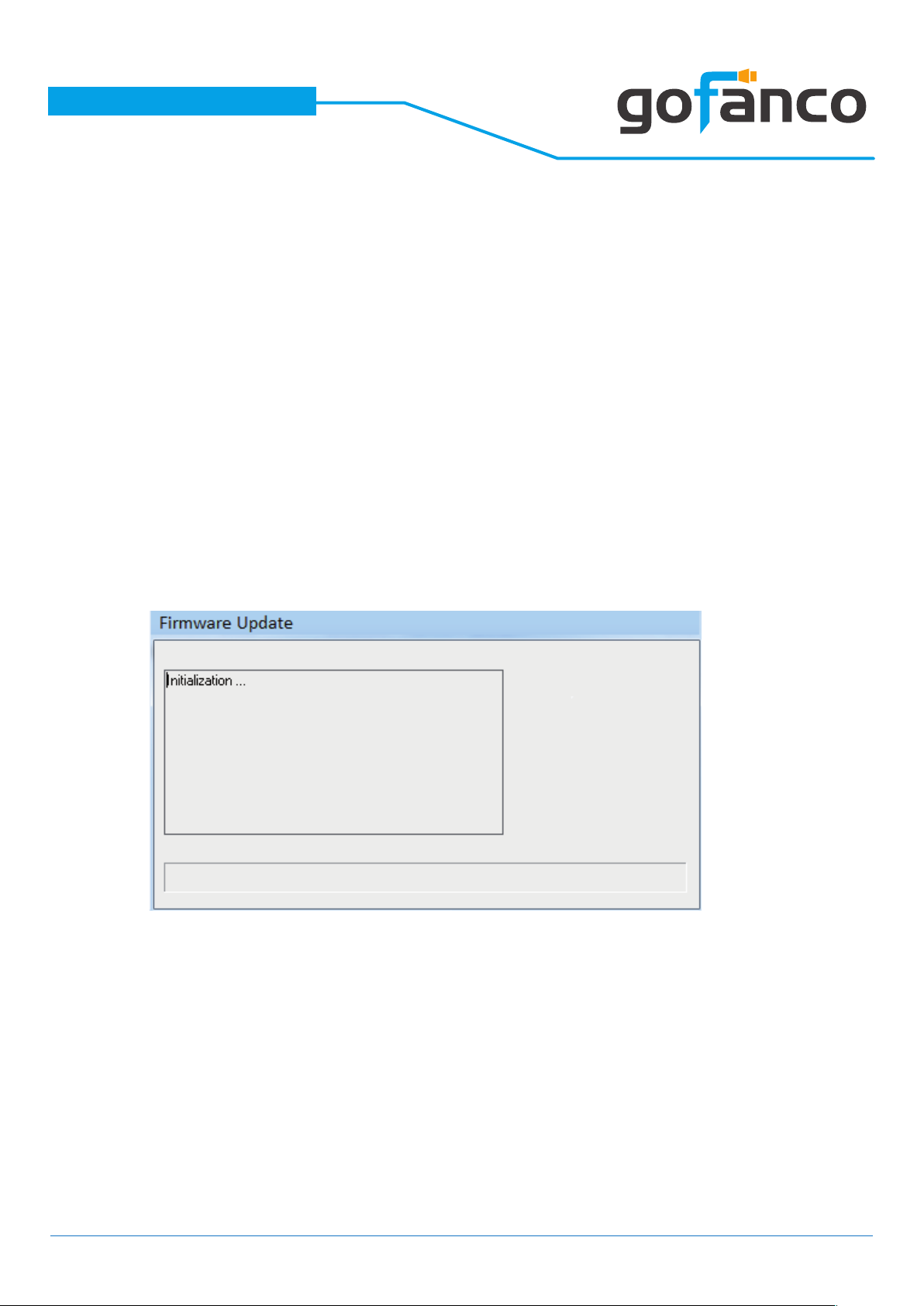

Systemrmwareupdate
(1)Save the rmware le (.bin) & software in the same folder.
(2)Please try to adjust dip switch [pin1, pin 2]=[-]
(3)Connect the Micro-USB cable between PC and device
(4)Open rmware update software and then device will start to update rm
ware automatically
(5)After update process is done, software will show “Success” message and
then be closed automatically.
(6)Power cycle the device
Output1rmwareupdate
(1)Please adjust dip switch [pin1, pin 2]=[-]
(2)Connect the Micro-USB cable between PC and device
(3)Open the rmware update software
(4)Set the correct COM port and baud rate (57600 is recommended)
(5)Click the FILE button to load rmware le (.hex or .bin le)

®
PRO-HDBaseT2P
13
Output 2 firmware update
(1)Please adjust dip switch [pin1, pin 2]=[-]
(2)Connect the Micro-USB cable between PC and device
(3)Open the firmware update software
(4)Set the correct COM port and baud rate (57600 is recommended)
(5)Click the FILE button to load firmware file (.hex or .bin file)
(6)Device power on
(7)Press Program MCU symbol to do firmware update
(8)Once update process is done, please power cycle the device and set the dip
switch [pin 1, pin 2] to [-]
(9)Power cycle the device
(6)Device power on
(7)Press Program MCU symbol to do rmware update
(8)Once update process is done, please power cycle the device and set the dip switch
[pin 1, pin 2] to [-]
(9)Power cycle the device

®
PRO-HDBaseT2P
14
10. Limited Warranty
The SELLER warrants the PRO-HDBaseT2P 1x2 4K-HDR HDMI Splitter over Sing-
le Cat.x with HDBaseT-Lite, IR, RS-232, PoC & Loopout free from defects in the
material and workmanship for 1 year from the date of purchase from the SELLER
or an authorized dealer. Should this product fail to be in good working order wi-
thin 1 year warranty period, The SELLER, at its option, repair or replace the unit,
provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modications including static discharge and power surge. This
warranty is oered by the SELLER for its BUYER with direct transaction only. This
warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the
current price of parts and labor in eect at the time of repair. Such repairs are
warranted for 90 days from the day of reshipment to the BUYER. If the unit is
delivered by mail, customers agree to insure the unit or assume the risk of loss
or damage in transit. Under no circumstances will a unit be accepted without a
return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including
without limitations, any other implied warranty or tness or merchantability for
any particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside
Taiwan are responsible for shipping charges to and from the SELLER. Cables and
power adapters are limited to a 30 day warranty and must be free from any mar-
kings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be
accurate. However, The SELLER assumes no responsibility for any inaccuracies
that may be contained in this manual. The SELLER will NOT be liable for direct,
indirect, incidental, special, or consequential damages resulting from any defect
or omission in this manual, even if advised of the possibility of such damages.
Also, the technical information contained herein regarding the PRO-HDBa-
seT2Pfeaturesandspecicationsissubjecttochangewithoutfurthernotice.

The product name and brand name may be registered trademarks of related manufacturers. TM and ®
may be omied on the user‘s guide. The pictures on the user‘s guide are just for reference, and there
may be some slight dierences with the actual products.
We reserve the rights to make changes without prior noce to a product or system described herein to
improve reliability, funcon, or design.
Disclaimer

Thank you for choosing gofanco
®
www.gofanco.com
Mar, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
