Goldacres Squirt Programming manual

Squirt
Operator’s & Parts Manual
GA8700276 REV 4 - OCT 2020

2
Contents
Contact
Goldacres
1-3 Morang Crescent,
Mitchell Park Vic 3355
P: 03 5342 6399
F: 03 5342 6308
Disclaimer
Any advice or recommendations given by Goldacres, Goldacres’ dealers, or employees is given in good faith and provided
based on the best information available to us. No liability or responsibility is accepted or implied as a result of any
information or advice tendered in this operating manual or by Goldacres its agents or employees. The end user accepts all
responsibility arising from that advice. No part of this manual may be reproduced without written permission from Goldacres.
All photographs and technical information remain the property of Goldacres.
Introduction ...........................3
Safety................................4
Goldacres Warranty Statement.............8
Terms & Conditions .....................9
General Information & Specications........11
Dimensions...........................12

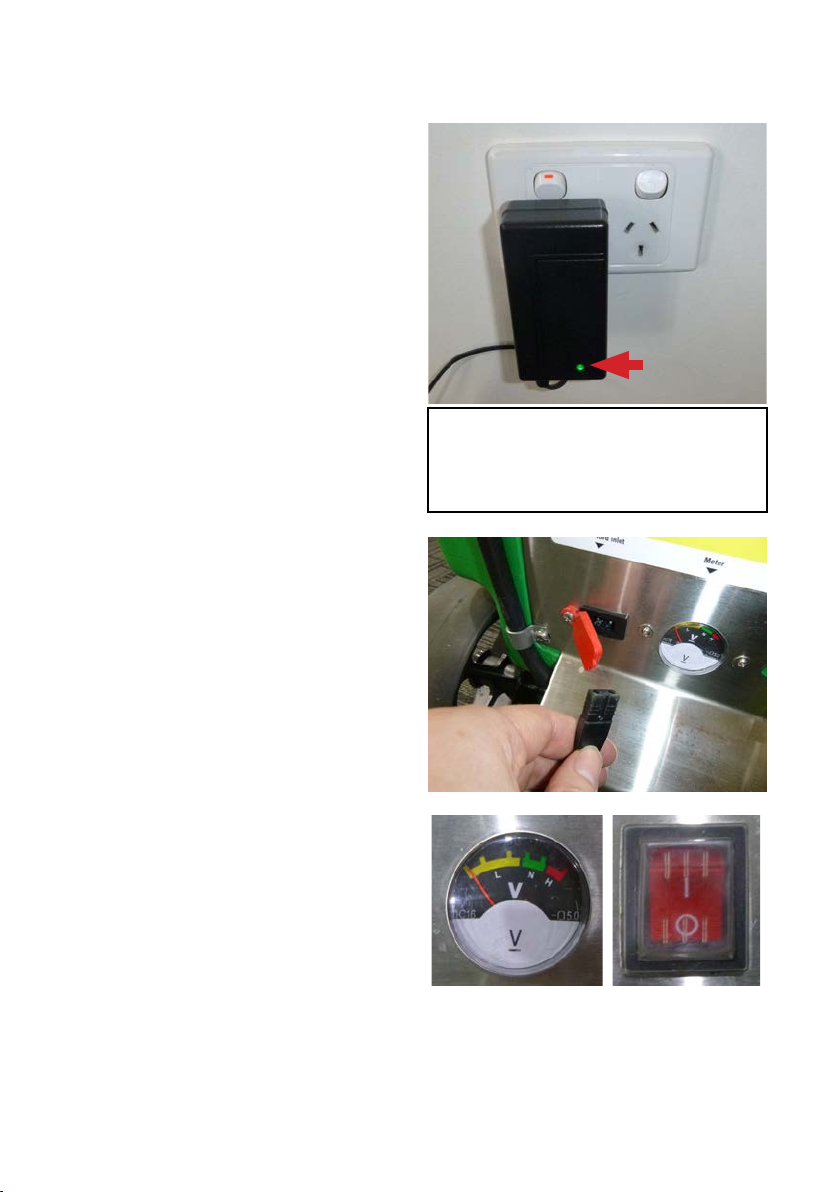

Battery ..............................13
Filling ...............................14
Agitation .............................14
Spray Application ......................14
Flushing .............................15
Storage .............................15
Pump Operation .......................15
Maintenance & Troubleshooting ...........16
Pump Troubleshooting ..................17

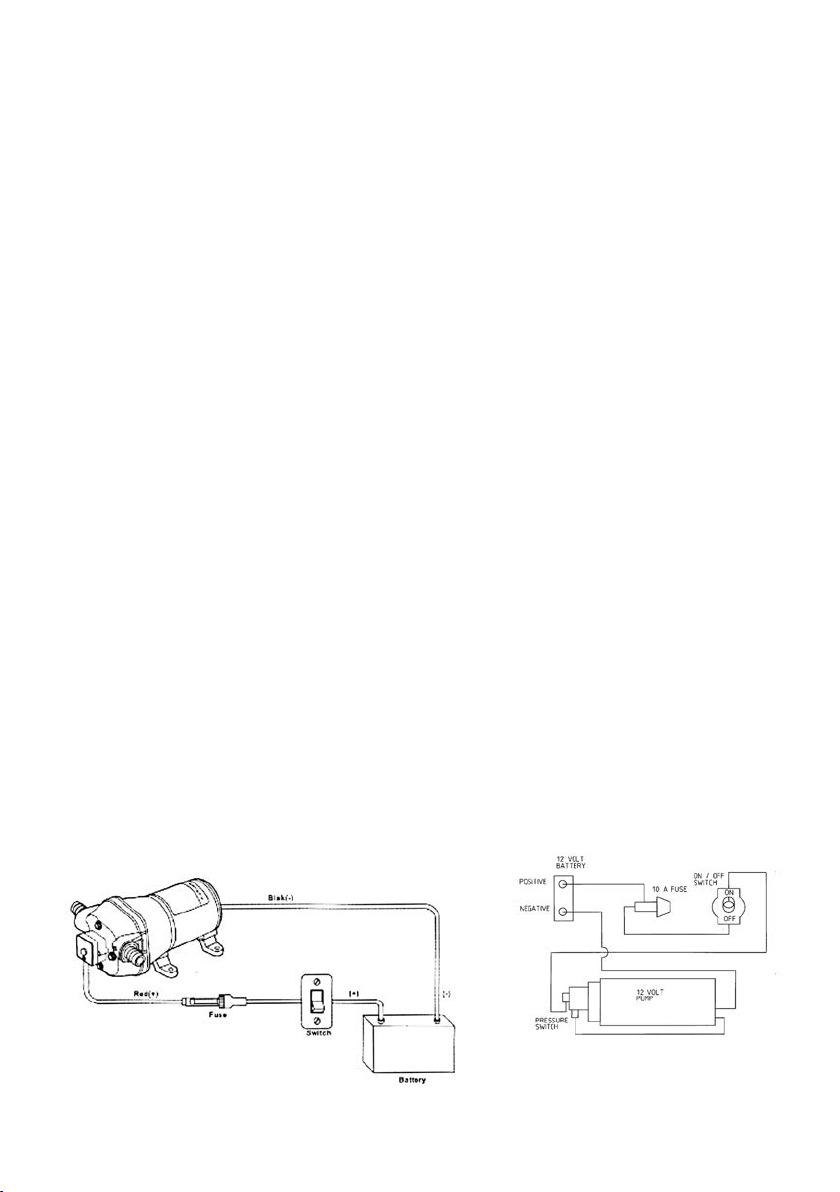

Pump Wiring. . . . . . . . . . . . . . . . . . . . . . . . . .17

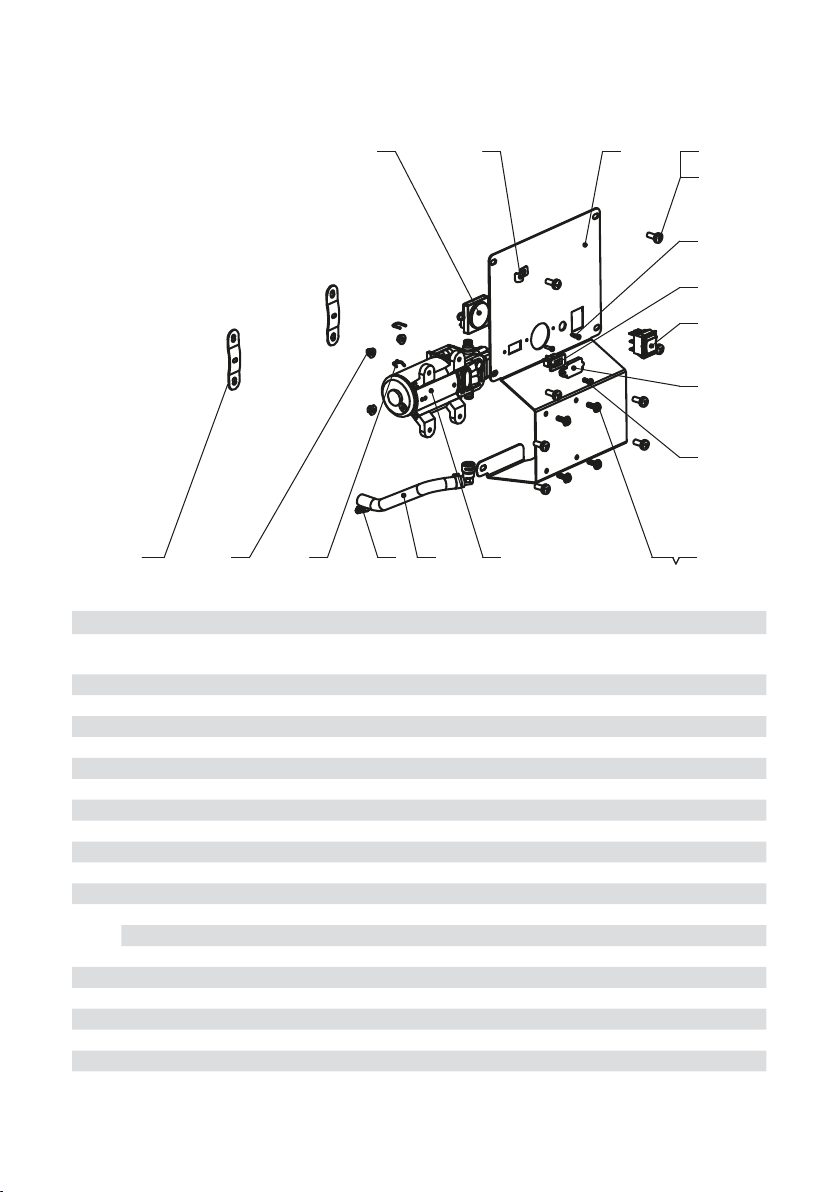

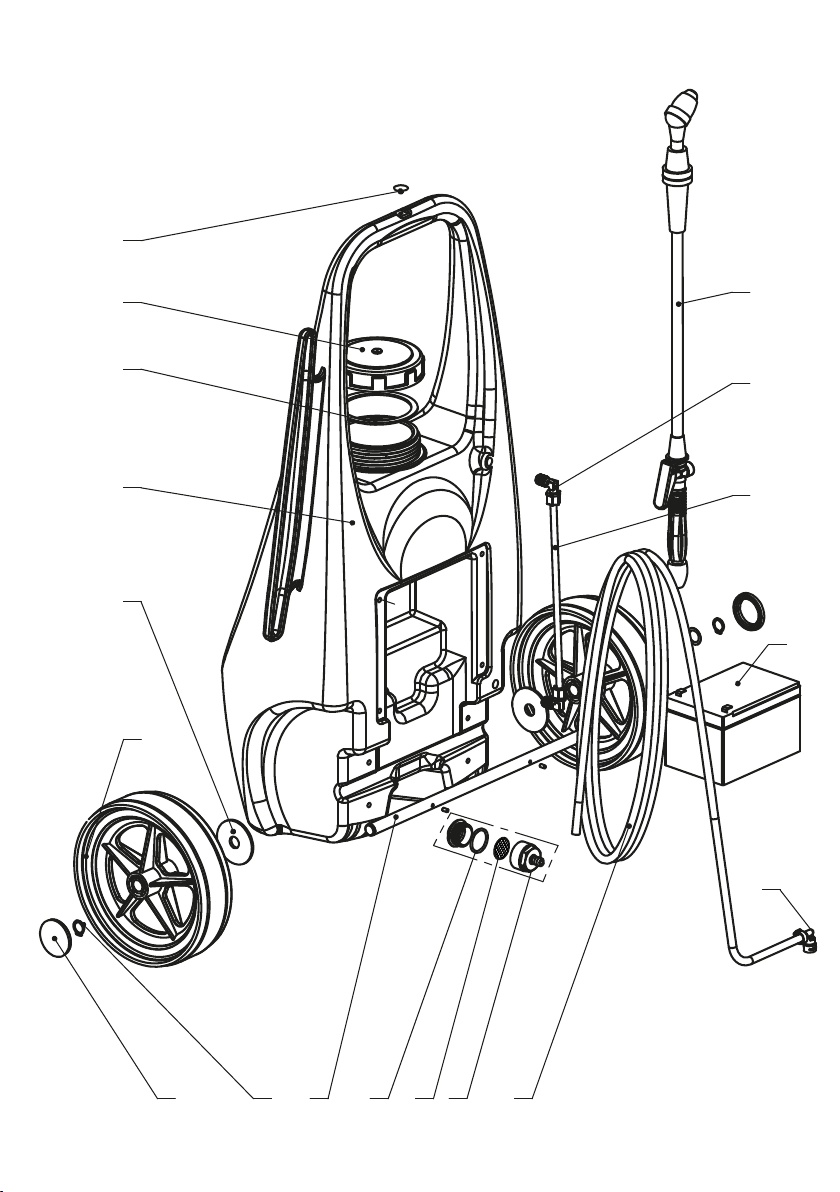

Squirt Assembly .......................18
Notes ...............................21

3
Introduction
Congratulations on your purchase of a
Goldacres sprayer. For more than a quarter
of a century Goldacres has supplied
Australian farmers with quality, innovative
and technologically advanced spraying
solutions - equipment designed in Australia
for Australian conditions.
Goldacres not only produce Australia’s nest
range of spraying equipment - we also keenly
value the unique relationship we enjoy with
owners of our equipment. We are pleased to
welcome you as a Goldacres owner and look
forward to making your spray applications as
efcient as possible.
Please use this comprehensive resource to
gain a full understanding of your equipment,
and don’t hesitate to contact your Goldacres
Dealer or Goldacres for further information.
Roger Richards
General Manager

4
Safety
General
The following pages outline important
safety information. At Goldacres safety is
a high priority. These safety and warning
instructions MUST be followed to ensure the
safe operation of your Goldacres equipment.
Explanation of key terms used in this
operator’s manual are:
DANGER - You will be killed or seriously hurt
if you don’t follow instructions
WARNING - You can be seriously hurt if you
don’t follow instructions
CAUTION - You can be hurt if you don’t
follow instructions
NOTE - Is used to notify people of
installation, operation or maintenance
information that is important but not hazard
related.
The Operator
All operators of this equipment should be
adequately trained in the safe operation
of this equipment. It is important that all
operator’s have read and fully understand
the operators manual prior to using this
equipment.
All new operators should be trained in an
area without bystanders or obstructions and
become familiar with the sprayer prior to
operation.
Safety Precautions
WARNINGS
• Keep clear of overhead obstructions.
• Any unauthorised modications to this
equipment may affect its function and
create a serious safety risk.
• Never attempt to clean parts or nozzles,
by blowing with mouth.
• Never attempt to siphon chemicals, or
substances, by sucking.
NOTE: 1 LITRE WATER = 1KG.
• Water weighs 1kg per litre, however
conversion factors must be used when
spraying liquids that are heavier or lighter
than water. Example: liquid urea has a
density of 1.28 kg/L and will therefore be
signicantly heavier than water if the tank
is lled completely.
• Regularly check the pump mounting
bolts. The pump will always vibrate to
some degree when operating, and this
may work the bolts loose.
CAUTIONS
• A supply of fresh water should be with
the equipment at all times.
• Standard polyethylene tanks are not
designed for use with diesel fuel or any
ammable liquid.
• Do not use this machine in ambient
temperatures exceeding 40 degrees
Celsius.
• Ensure that all bolts are tightened and
secured before operation.
• Area surrounding equipment may
become slippery when wet.
NOTES
• Always read and understand the
operator’s manual prior to operation of
this equipment.
• It is the responsibility of the operator
to ensure that there are no decals
missing from the equipment and that any
damaged or missing decals are replaced
prior to operation.
• Goldacres equipment ordered or
operated, outside the guideline
limitations may not be warranted by
Goldacres for successful performance.
Operators working outside these
limitations do so at their own risk, unless
specic advice has been sought from
and provided by Goldacres in writing.
• Always read and follow the chemical
manufacturer’s guidelines for safe
application as per the chemical label.
Particular attention should be given to
the recommended target application rate
of the chemical being applied as per the
chemical label.
• Inspect the equipment thoroughly for
damage and wear before operation.
• Flush chemicals from equipment
immediately after use.
Continued over page

5
Continued over page
• Certain chemicals may be unsuitable for
use with Goldacres standard plumbing
designs. Consult your Goldacres dealer if
in doubt.
• Do not operate the equipment while
under the inuence of any drugs, alcohol
or if excessively tired.
• Make sure that the equipment complies
with all relevant road regulations when
transporting.
• When draining uids from the equipment
use appropriate, leak proof containers.
Do not use food or beverage containers
as someone may consume the contents
by mistake.
• After reading the operator’s manual
if there is any thing that you do not
understand please contact your
Goldacres dealer.
Safe Chemical Use
The safe use of Ag chemicals with this
equipment is the responsibility of the owner/
operators. All operators should be trained
in the safe use of Ag chemicals. Goldacres
suggest that a relevant course is completed
by owners/operators prior to operation of
this equipment as a spray unit.
Personal Protective Equipment (PPE)
Always wear close tting clothing and safety
equipment designed for the job.
Chemicals can be harmful to humans,
appropriate PPE should be used when
handling chemicals.
Always refer to the chemical manufacturers
label for guidelines on the appropriate PPE
to use with the chemicals you are using.
Goldacres also suggest that you read
and understand the following Australian
standards:
• Australian Standard for Chemical
protective clothing AS3765
• Australian Standard for Respiratory
protection devices AS1715
Airborne particles
Always stand well clear of equipment during
operation. Any spray drift is dangerous and
may be hazardous to humans and animals.
Fluids under pressure
Do not disconnect any hoses, nozzles
or lters while equipment is operating.
Disconnecting these components while
under pressure may result in uncontrolled
uid discharge which may be hazardous.
When the repair is complete ensure that
all ttings and lines are secured before re-
applying pressure.
Cuts, Stabs & Punctures
When Servicing machine, be mindful of sharp
edges on parts such as trimmed cable ties,
hose clamps, cut reinforced hose and the
edges of plates and brackets as they could
cause cut, stab or puncture injuries.

6
Safety Decals
Understanding safety decals and their
purpose assists in the safe operation of your
sprayer. Safety decals are there for your
protection and it is the responsibility of the
owner operator to replace damaged and/or
missing safety decals.
Regularly review safety decals with
operators. It is very important to ensure
that all new machine components and
replacement parts include current hazard
identication decals.
Replacement safety decals can be ordered
from all Goldacres dealers.
Squirt Decal GA5064855
Safety Warnings GA5064860

7
Warranty
How to make a warranty claim
In the event of a fault or breakdown with your
product, that you believe to be a warranty
issue, the following steps must be taken.
1. Ensure that you have read the
Operator’s Manual and gone through the
troubleshooting procedure.
2. If you continue to experience problems
then please contact your local authorised
Goldacres dealer. They will advise the
method of warranty service for your
product.
Sales documentation and information on
delivery and installation must have been
submitted before a claim can be requested.
Warranty Duration
Goldacres' standard warranty is 12 months
from date of purchase.
Warranty Inclusions
• Chassis
• Steel Boom Components
• Tanks
• Electrical wire and connectors, (non-
contaminated)
• Consoles and controllers
• Electrical motors and drivers
• Wheels, tyres and rims
• Pins and bushes*
• Pump housing
• Hydraulics
• Axle frame only
• Shockers and dampeners
• Wire cables
• Springs
• Drive chains*
• Wheel bearings*
*Failure caused by lack of lubrication not
covered.
Warranty Exclusions
• Pump diaphragms
• Pump Seals
• Pump check valves
• Pump O-rings
• Filters and lter screens
• Filter O-rings
• Chemical Hoses
• Solenoid Diaphragms
• Hand Gun, lance or wand seals and
O-rings
• Consumables, chemicals, fuels
• Items controlled by or tted to Non
Genuine parts or devices
• Contamination or corrosion of
components
• Hose reel seal sand O-rings
• Pressurised sprayer seals and O-rings
• Belts, couplings
• Adjustment of components
• Brake pads and components
• Globes / Bulbs
• Fuses
• Oil / uids / lters (Unless contaminated
or lost due to a warrantable failure)
• Boom break away tips
• Boom break away hinges
• Boom protectors
• Nozzles
• Nozzle Bodies
• Nozzle Body Brackets
• Nozzle Diaphragms and seals
• Wiper Blades
• Skid plates
• Wear plates
• Damaged items
• Worn or wearing items

8
Goldacres Warranty Statement
This warranty is the only warranty applicable to
Goldacres new products (Products) and to the
maximum extent as permitted by law, is expressly
in lieu of any other conditions or warranties
expressed or implied in relation to the Product.
In Australia, Goldacres Products come with
guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to
a replacement or refund for a major failure and
compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount
to a major failure.
This Warranty gives you additional protection for
your Goldacres product and identies a preferred
approach to resolving warranty claims which will be
the quickest and simplest for all parties subject to
the exclusions, terms and conditions below.
Goldacres warrants its authorized Dealers who in
turn warrants the original purchaser (Owner) that
each new Goldacres Product will be free from
proven defect in materials and workmanship for
twelve (12) months from the date of delivery to the
rst owner according to conditions outlined herein.
Subject only to legislative obligations to the
contrary, Goldacres shall not be liable for incidental
or consequential damage resulting from ownership
or use of a Product.
Goldacres does not authorize any person to create
for it any other obligation or liability in connection
with these products.
The repair of the defective Product qualifying under
this warranty will be performed without charge
for labour and parts by any authorized Goldacres
service outlet within a reasonable time following the
delivery of the Product, at the cost of the owner, to
the service outlet / place of business advised
Goldacres in its absolute discretion may choose
to pay the cost of replacement or repair of the
product.
If the Product will be repaired or replaced, using
parts as supplied by Goldacres, repair may include,
at Goldacres discretion, the replacement of parts
with functionally equivalent remanufactured,
reconditioned or new parts.
Goldacres may request failed parts to be returned
to the factory.
Conditions of Warranty Coverage
The warranty covers only conditions resulting
directly from defects in workmanship or materials
used under normal use and service conditions.
The Warranty is not transferable.
The owner is responsible for the performance of
regular maintenance and service as specied in
the owner’s / operators manual applicable to the
product. Failure to follow regular maintenance as
advised may invalidate the warranty.
The owner must provide the Goldacres Dealer with
prompt written notice of the defect (within 14 days
of it occurring) and allow reasonable time for repair
and/or replacement.
Goldacres warranty cover excludes:
• Claims resulting from misuse, use of
incompatible chemical or uids, exceeding the
Product’s specications including overloading,
impact damage, negligence, accidental damage or
failure to perform recommended service or service
intervals or use the Product with good care.
• Failure due to faulty or inadequate electrical
sources of power. 12 volt power sources must be
checked for suitability to operate the product.
• The time taken to remove and re-install
warranted parts, products or components tted
to other than Goldacres brand products will not
be covered by Goldacres Warranty. Only labour
and parts directly attributable to the repair of the
Goldacres unit is covered.
• The cleaning of parts or products before or after
the warranty repair. Cleaning time is considered a
customer expense.
• Any Goldacres Product which has been repaired
by other than an authorized Goldacres dealer in a
way which, in the sole and absolute judgment of
Goldacres, adversely affects its performance or
reliability.
• The replacement of maintenance items such as
diaphragms, batteries, belts, etc.
• Loss of time, inconvenience, loss of use of
the product, liability to third parties or any other
consequential damages including damage to
crops, prots or revenue, other commercial losses
inconvenience or cost of rental or replacement
equipment.
• Incidental costs associated with a warranty
repair including any travel costs, out of hours
labour charges, transportation costs, freight costs
or any communications costs.
• Goldacres products purchased at auction or in
used condition.
Procedure for claiming:
Claims must be made through a Goldacres Dealer.
To make a claim under this Warranty, you should
• Contact your local Goldacres Dealer,
• Phone 1300 301 853 to locate a Goldacres
Dealer.
Owners returning products to a Goldacres Dealer
will require the original Dealer tax invoice, a copy
of the tax invoice or delivery docket and any
instruction manuals, information booklets or guides
that were shipped with the Product.

9
Goldacres Terms & Conditions
1. These terms and conditions apply to all goods and/or
services supplied by us to you. You are agreeing to them by
placing an order with us.
2. Unless you have a previously approved account with us you
must pay us the purchase price for the goods and/or services
we supply to you, together with any other applicable fees or
charges immediately on delivery or collection of the goods, or if
ordered online or by phone on the placement of your order. All
repairs or servicing must be paid for before we will release the
goods to you. If you do have an account with us the separate
terms of that account apply.
3. Time is of the essence for all payments required under these
conditions.
4. Unless specically stated otherwise, all prices which we
quote or estimate to you are inclusive of GST for goods
supplied within Australia and exclusive of GST for goods
exported outside of Australia. If GST is payable on a Taxable
Supply made by us to you, then you must also pay the amount
of GST payable in respect of that Taxable Supply as an
additional payment.
5. You must pay interest on any amounts not paid by the
due date at a rate 2% higher than the rate for the time being
xed under section 2 of the Penalty Interest Rates Act 1983
(Victoria) as at the date the amount became due.
6. Property in goods supplied (and in any goods which we may
have previously supplied to you) remains with us until we have
been paid in full for all amounts you owe us including payment
for the goods and any applicable interest, fees and charges,
and until then:
(a) you hold the goods only as a bailee and have no right to
claim any other interest in the goods, including any security
for any liquidated or unliquidated debt or obligation that we
owe you, or any lien over the goods;
(b) we may enter and recover possession of the goods from
any site owned, possessed or controlled by you and you
grant us an irrevocable licence to do so;
(c) you must not deliver or on-supply any of the goods (nor
any document of title to them) to any person, but if you do
then you hold the proceeds of the on-supply of the goods
on trust for us and must pay the amount to us immediately
when received;
(d) you must not allow any person to have or acquire any
security interest in the goods nor create any absolute or
defeasible interest in the goods in relation to any third party
except as we may authorise;
(e) you must insure the goods for their full insurable or
replaceable value (whichever is higher) and provide us with
details of the insurance if we request it;
(f) you must not remove, deface or obliterate any identifying
mark or number on any of the goods;
(g) your right to possession of the goods ceases if we recall
or recover the goods, or if you become insolvent, you enter
into voluntary or involuntary administration or receivership,
or a petition is led for your bankruptcy or winding up.
You further agree:
(h) that the retention of title under this clause is a security
interest within the meaning of the Personal Property
Securities Act 2009 (Cth) (“PPSA”);
(i) to grant us a purchase money security interest (as that
term is dened in the PPSA) in relation to the goods;
(j) to contract out of all of your existing and future rights
under the provisions referred to in paragraphs (a) through to
(r) of section 115(1) of the PPSA, to the full extent permitted;
(k) to sign any documents or do any things which we may
reasonably require to enable us to register a nancing
statement or nancing change statement on the register (as
dened in the PPSA);
(l) to pay any costs we incur in registering and maintaining a
nancing statement (including registering a nancing change
statement) and enforcing the security interest created under
these terms and conditions.
7. Risk in the goods passes to you upon their delivery to or
collection by you.
8. You hereby indemnify us and our employees, directors,
contractors and agents against, and release us and them from,
any loss (including reasonable legal costs and expenses) or
liability incurred by us and/or them arising from any claim,
demand, suit, action or proceeding by any person against
us and/or them where such loss or liability arose directly or
indirectly from or in connection with any breach of these terms
and conditions or from use of the goods and/or services unless
such liability is directly caused by the negligence or default of
the person indemnied.
9. You, or anyone on your behalf must not, and you must take
steps to ensure that your employees, agents and contractors
do not, nor assist anyone else to:
(a) copy, memorise, reproduce, misappropriate or reverse
engineer the whole or any part of the goods
(b) challenge, contest or oppose any of our intellectual
property rights
(c) use any name or logo associated with the goods other
than as we authorise you
(d) divulge our condential information to any person or
use it for your own benet except as we have expressly
authorised or as required by law.
10. Any specications, drawings, details, statistics or
performance gures we may have given you about the goods
and/or services are only estimates and any deviation does
not entitle you to make any claim against us. Any sample is
provided only to indicate the general nature of the product, and
we do not warrant that goods supplied will exactly correspond
with any sample or with any previous or future goods supplied.
11. Except as stated in any separate written warranty we may
provide you with the goods or a quote, under no circumstances
will we have any liability to replace or repair defects in the
goods where:
(a) the defects have not arisen solely from faulty materials
supplied by us or faulty workmanship by us;
(b) the goods have received maltreatment, inattention or
interference or have been used, applied, packaged or
stored other than in accordance with our instructions and
recommendations;
(c) products not manufactured by or approved by us have
been used with the goods.
12. Except as provided in these conditions, all express and
implied warranties guarantees and conditions under statute
or general law as to merchantability, description, quality,
suitability or tness of the goods for any purpose or as to
design, assembly, installation, materials or workmanship
or otherwise are expressly excluded. We are not liable for
physical or nancial injury, loss or damage or for consequential
loss or damage of any kind arising out of the application,
supply, layout, assembly, installation or operation of the goods
or arising out of our negligence or in any way whatsoever.
The exceptions in clause (12) extend to any Third Party
Accessories installed in the goods.
Continued over page

10
13. If any condition or warranty is implied into this agreement
under the Competition and Consumer Act (2010) (Cth) or
any equivalent State or Territory legislation and cannot be
excluded, then our liability is limited to one or more of the
following:
(a) in the case of goods, the replacement of the goods or
the supply of equivalent goods, the repair of the goods, the
payment of the cost of replacing the goods or of acquiring
equivalent goods, or the payment of the cost of having the
goods repaired;
(b) in the case of services, the supplying of the services again,
or the payment of the cost of having the services supplied
again.
14. Nothing in these conditions is to be read or applied so as
to exclude, restrict or modify or have the effect of excluding,
restricting or modifying any condition, warranty, guarantee,
right or remedy implied by law and which by law cannot be
excluded, restricted or modied.
15. Any quotes on pricing provided by us are consistent
with the prevailing market at the time of quotation, including
considerations as to rates of freight, insurance, customs,
duties, exchange, shipping expenses, sorting and stacking
charges, cartage, cost of materials and other charges affecting
the cost of production prevailing at that date.
16. Any increases in the quote price occurring either before or
during the agreement, shall be to your account.
17. Our quotations are open for acceptance within the period
stated therein. If no period is stated, our quotations are open
for acceptance for (14) fourteen days from the date the quote
was given.
18. All prices listed in our quotations and product catalogue are
subject to change or alteration without notice.
19. Unless we otherwise agree in writing we accept credit card
or eftpos payments only,..
20. We do not accept payment by cheque unless we have
previously agreed in writing to do so.
21. Any goods you deliver to us must be free of any chemicals.
If you deliver goods that are not free of chemicals, you must
pay any costs incurred by us including the cost of our own staff
in removing and disposing of the chemicals and cleaning the
goods.
22. If after 28 days of notifying you that your goods are ready
for delivery we have received no communication from you, we
retain any rights under the Australian Consumer Law and Fair
Trading Act 2012 (Vic) to sell the goods to recover the value of
any outstanding debt you may owe us.
23. You are responsible for backing up any Data that you,
or your agent, may install on the goods. If the Data is wiped,
corrupted, or lost, we are not liable (whether we are negligent
or otherwise) for any damage that may result from that Data
being wiped, corrupted or lost.
24. Before you use any of our goods you must check, and if
necessary adjust, all settings to ensure the goods are properly
calibrated.
25. We are not liable to you for any failure by us to perform
any of our obligations under this agreement caused by an
impediment or circumstance beyond our control.
26.In these terms and conditions,
(a) “we”, “us” or “our” means the entity within the Goldacres
Group from which you purchase goods and/or services,
including, but not limited to:
i. Goldacres Trading Pty Ltd ACN 061 306 732; and
ii. Goldacres Sprayer Centre Pty Ltd ACN 639 231 520
(b) “you” or “your” means the individual or company that
purchases goods and/or services from us.
(c) “our condential information” includes all of our secrets,
ideas, know how, concepts, information, copyright, computer
programs, manuals, precedents whether in writing or in any
other form and all other information relating to us or our affairs,
businesses, sales, marketing or promotional information,
and any information about the ingredients, mix, make-up or
manufacturing process of the goods
(d) “goods” includes any associated services except where the
context does not permit.
(e) “Third Party Accessories” includes anything incorporated in
the goods that is manufactured and supplied to us by a third
party.
(f) “Data” includes any information capable of being installed
and/or stored on an electronic device.
__________________ End ____________________

11
General Information &
Specications
The Squirt is a compact portable sprayer
designed for spot spraying with a 30L tank
and adjustable spray lance. The tank, pump
and lance are corrosion resistant and are
suitable for the application of a wide range of
pesticides.
Know Your Sprayer
Getting to know your sprayer prior to
operation is crucial in the safe and ecient
operation of this equipment. Take the time to
familiarise yourself with the components tted
to your sprayer. You need to know where key
components are located on your machine and
become competent in the correct operation of
these components prior to spraying operation.
It is also important to become familiar with
common spraying methods and common
spraying terms prior to using this sprayer for
the rst time.
Tank
All tanks are constructed from UV resistant
polyethylene. Polyethylene tanks have a very
high chemical resistance.
Due to the moulding process, there can be a
variance in the overall dimensions of the tank
which in turn results in variations to the tank
capacity. For this reason, calibration markings
should be used as a guide only.
Pump
The pump runs on a rechargeable 12 volt
battery pack.
The pump is critical to any sprayer
performance. Correct operation and
maintenance of the pump will ensure the
sprayer is able to perform to its capabilities.
Make sure the pump wires are connected up
to the correct terminals (red to positive, black
to negative) if replacing battery.
Always ush pump with clean water after every
use. Prolonged chemical contact can severely
damage valves, diaphragms and seals.
Do not leave water in pump if sprayer is to
be left in a cold environment. The water may
freeze and cause damage to pump. Empty
pump of all water and cover the pump to
ensure this situation does not arise. If this has
not been done, and there is a possibility there
may be frozen water in the pump, wait until
any ice has thawed before using the pump.
The 12 volt pumps are positive displacement
diaphragm pumps which provide delivery upon
demand.
They are self-priming and some models are
tted with a pressure switch which senses
the outlet pressure of the pump. The pressure
switch turns the electrical power o to the
pump at a pre-determined high pressure point.
As the outlet side of the pump is opened,
the pressure starts to drop and at a pre-
determined point contacts in the switch will
close causing the pump to start automatically.
The pump will then pump until the pressure
reaches the shut-o pressure point.
Machine limitations
All Goldacres equipment is subject to
operating limitations, it is the operator’s
responsibility to ensure that this equipment
is being operated within these limitations and
appropriately to the operating conditions at
hand.

12
Dimensions
Squirt
Model A B C Net
Weight
30L 880 470 380 14 kg
CB
A
NOTE: Dimensions are in millimeters and are
approximate only. They may be subject to
change without notice.

13
Battery
IMPORTANT: Just like a mobile phone, this
unit requires frequent charging and should not
be allowed to get too at. Failure to charge
the battery will result in early failure. Allow
12 hours charging following a day’s use.
IMPORTANT: The battery charger will not
recognise that there is a battery to charge if
the battery is allowed to get too at.
Battery Charging
The following steps should be followed:
1. Switch the ‘On/O’ switch to OFF.
2. Empty contents of tank and ensure that the
exterior is dry.
3. Connect the battery charger to any AC
240V/50Hz power point.
4. Connect the male plug of the charger to the
female recharge socket on rear panel.
5. See the key to understand the LED light
conditions on the charger.
6. Once fully charged, it is possible to conrm
the battery condition by switching the
power switch ON and OFF again and
checking that the volt meter needle moves
to the red or green zone. Charge for longer
if the meter stays in the yellow zone when
doing this test.
7. Make sure the power switch is set to OFF
and disconnect the charger.
8. Follow the 'Spray Application' instructions
to begin spraying.
Battery Replacement
The following steps should be followed:
1. Ensure that the battery is 12V DC and
matches the original size and rating
(GA5004493).
2. Connect the red connector to the positive
(+) terminal and the black connector to the
negative (-)terminal.
GREEN: Battery charger is powered but no
battery detected.
RED: Battery is detected and charging.
GREEN: Battery is detected and fully charged.
Volt meter Power switch

14
Filling
When lling the sprayer it is necessary to
use an external water source and wear the
appropriate PPE.
The following steps should be followed when
lling the tank:
1. Turn the pump o.
2. Remove the tank lid.
3. Add chemical as required. Some agitation
will take place during the water lling
process after adding the chemical.
4. Use external water source to ll main tank
(Do not exceed the tank capacity).
5. Replace the tank lid and ensure that it is
secure prior to switching on pump. You are
now ready to use the sprayer.
Agitation
Agitation should take place when lling or
through another method as deemed suitable
by the operator.
Spray Application
NOTE: It is the responsibility of the operator
to ensure that the chemical mix is suciently
agitated and that the conditions are right
to start spraying. Operators must wear the
appropriate PPE.
1. Remove re-charging plug from the control
panel
2. Check unit for damage and to ensure that
there are no leaks.
3. Remove suction strainer and clean.
4. Replace suction strainer.
5. Follow the lling steps from previous
section.
6. Switch pump ON using ‘On/O’ switch.
The pump will run until sucient pressure
is achieved and then the pump will stop.
7. Use the lance by depressing the trigger.
The pump will then automatically maintain
the correct pressure and ow depending
on nozzle adjustment.
8. Adjust the nozzle pattern as required
by rotating the nozzle in the appropriate
direction as required.
9. Use a consistent speed or swath pattern
to ensure even coverage of the target, or
adjust the method of application according
to your target.
NOTE: Ensure that the pump is switched to
OFF when no longer required.
Calibration
All sprayers need to be calibrated and kept
in good condition. This will ensure that the
correct rate of chemical is applied to the
target.
Follow these steps to calibrate the sprayer:
1. Measure the spray width of the nozzle on a
dry surface (in metres).
2. Spray a test area at the intended pressure
and speed. Record distance (in metres)
covered in one minute (minute).
3. Measure the nozzle output in litres over
one minute in a measuring jug (l/min).
The spray volume can be calculated by the
following formula:
Application Nozzle output (l/min) x 10,000
rate (L/Ha) =Spray width (m) x speed (m/min)

15
Flushing
Always ush pump with clean water after every
use. Prolonged chemical contact can severely
damage valves, diaphragms and seals.
For more specic information regarding
ushing, and decontamination, specic
to the products that you are applying, it is
recommended that you consult the chemical
label or your chemical supplier.
1. Turn pump o
2. Disconnect tting in base of unit that runs
to the pump and drain main tank.
3. Add a quantity of fresh water to main tank
and allow to drain through the bottom.
4. Replace pump line tting and add quantity
of fresh water and also decontaminating
agents if required to tank.
5. Turn on pump, and spray liquid through
the lance to ensure circulation through all
components.
6. Drain remaining contents of liquid, rinse
with fresh water and replace tank drain
plug. The sprayer is now ready for storage.
Storage
If the sprayer is to be stored for a long period
of time without use, there are several tasks
that need to be performed.
1. Clean the sprayer thoroughly as described
under “ushing”
2. Store the sprayer out of direct sunlight and
where it will not be aected by frosts
3. Ensure that the main tank is empty
4. Protect hoses and electrical connections
Pump Operation
The 12 volt pumps are positive displacement
diaphragm pumps which provide delivery
upon demand. They are self-priming and are
tted with a pressure switch which senses
the outlet pressure of the pump. The pressure
switch turns the electrical power o to the
pump at a pre-determined high pressure point.
As the outlet side of the pump is opened,
the pressure starts to drop and at a pre-
determined point contacts in the switch will
close causing the pump to start automatically.
The pump will then pump until the pressure
reaches the shut-o pressure point.
CAUTION: Do not adjust the pressure switch
such that the pumping pressure exceeds the
maximum pressure for the pump.
NOTE: If the ow demand is very low, the
pump may reach this high pressure point
and cause “cycling” (pump turns on and o
rapidly). This is not a problem unless the pump
is subject to continuous cycling within two
second intervals for long periods of time.

16
Problem Possible Cause Possible Remedy
Pump not priming Valves damaged
Restriction in suction line
Restriction in delivery line
Diaphragm damaged
Check, clean and/ or replace valve kit
Check suction line
Check delivery line
Replace diaphragm
Pulsating liquid ow Pump switching on and o due
to pressure switch
Pump sucking air
Alter settings of the pressure switch
Alter the adjustable conejet nozzle
Restricted pump delivery
Check suction line
Pump pressure lower
than expected
Suction lter screen blocked
Restriction in suction line
Valves damaged
Diaphragm damaged
Pump sucking air
Insucient voltage
Clean screen
Check hoses, ttings and tank outlet
Check/or replace valve kit
Check/or replace diaphragm
Check suction line
Check power supply
Pump stopping and
starting when not in
use
Valves damaged
Insucient voltage
Damaged diaphragm
Check valves
Check power supply
Check/or replace diaphragm
Maintenance &
Troubleshooting
The troubleshooting information is provided
as a reference when your sprayer is not
functioning correctly.
To ensure that you receive the best possible
service, it is recommended that you exhaust
all applicable troubleshooting solutions shown
prior to calling your dealer, or Goldacres, for
service advice.

17
Pump Troubleshooting
Pump Will Not Start Check:
• Fuse or breaker
• For correct voltage (±10%) and electrical
connections
• Pressure switch operation and correct
voltage at switch or motor wires (as
equipped).
• Rectier or motor for open or grounded
circuit
Drive assembly locked
Will Not Prime Check:
(No discharge/motor runs)
• Out of product
• Strainer for debris
• Inlet tubing/plumbing; severe vacuum leak
• Inlet/Outlet tube severely restricted
(kinked)
• Debris in pump inlet/outlet valves
• Proper voltage with the pump operating
(±10%)
• Pump housing for cracks
Leaks From Pump Head Or Switch:
• For loose screws at switch or pump head.
• Switch diaphragm ruptured or pinched
• For punctured diaphragm if uid is
present at bottom drain holes.
Pump Will Not Shut-O Check:
(Pressure switch equip.)
• Output line closed and no leaks
• For air trapped in outlet line or pump head
• For correct voltage to pump (±10%)
• Inlet/Outlet valves for debris or swelling
• For loose drive assembly or pump head
screws
• Pressure switch operation/adjustment
incorrect. Refer to relevant pump manual
for dierential and pressure adjustment
procedure.
Noisy / Rough Operation Check:
• Mounting feet that are compressed to
tight
• For loose pump head or drive screws
• Does the mounting surface multiply noise
(exible)
• Is the pump plumbed with rigid pipe
causing noise to transmit
Pump Wiring
Important: Connect Red to Positive (+)
terminal and Black to Negative (-) terminal.
12v Pump wiring diagrams

18
26
19
32
31
3
2
1
4
7
30
34
272829
22
24
21
23
20
16 171412
11
5
6
9
25
13
8 135 0
15 18
33
36
Squirt Assembly
Continued over page

19
Squirt Assembly
26
19
32
31
3
2
1
4
7
30
34
27
2829
22
24
21
23
20
16 171412
11
5
6
9
25
13
8 135 0
15 18
33
36
Pos. Part No. Description Qty.
- GA5025120 Wiring harness complete, inc. power switch, charge inlet,
volt meter & fuse holder, suit 2012+ 1
- GA5020455 Battery charger, suit Pre-2012 1
- GA5023055 Battery charger, suit 2012+ 1
1 - Vent 1
2 GA5076885 Lid, Diameter 113 mm, with Breather & seal 1
3 - Comes with lid GA5076885 above -
4 GA5018521 Tank, 30 Litre Squirt 1
5 - Rotating shaft gasket 2
6 - Wheel 2
7 - Cover for wheel 2
8 GA5007132 Circlip Ext 15mm 2
9 - Wheel axle 1
10 GA5008755 Filter screen, in line 3/4" OD, suit Pre-2012 1
GA5072550 Filter screen, 40 Mesh, Outlet tting, suit 2012+ 1
11 GA2000200 Hose, Pressure, 7mm, Black (250psi) 1
12 - Fixed gasket 2
13 - M5 screw 4
14 - U type latch 2
15 - Adjustable clamp 1
16 GA2000207 Hose, Sight tube, 10mm clear, Wire reinforced 1
17 GA5023730 Pump 1
Continued over page
NOTE: Not all parts are available as spares.

20
Squirt Assembly
Pos. Part No. Description Qty.
18 - M5x13 cross screw 4
19 - D5 gasket 8
20 - M4x10 cross screw 1
21 See GA5025120 Waterproof gasket - Supplied as part of GA5025120 1
22 See GA5025120 Power switch - Supplied as part of GA5025120 1
23 See GA5025120 Power cord inlet - Supplied as part of GA5025120 1
24 - PA3 12 screw 2
25 - M6x7 screw 8
26 - D6 gasket 8
27 - Panel 1
28 - Fixed buckle 1
29 See GA5025120 Volt Meter - Supplied as part of GA5025120 1
30 GA5004493 Battery, Rechargable, Sealed lead acid, 12V 7.2AH, W 62 x
H 95 x L 151mm, Blade terminals 1
31 GA5004363 Plastic tube 4mm clear - Cut to 280 mm 1
32 GA5045145 Elbow, swivel, push in 6mm, Brass 1/8” BSPT 2
33 GA5023885-SK Replacement lance & accessories 1
34 - Drain Elbow 1
35 GA5053510 O ring, 25 x 2.5 mm, suit 2012+ 1
36
GA5012387 Hose barb & nut, Straight, 3/4" hose, Suit 1/2" lter, with
O-ring, suit Pre-2012 1
GA5071420 Hose barb, Straight, White, Female thread x 3/8" barb, suit
2012+ 1
