Goldair Platinum GPPH610 User manual

Electronic Inverter Panel Heater with WiFi
Operating Instructions
Model: GPPH610, GPPH620, GPPH630

WiFi –Downloading and Setting up APP
This APP is supported only on 2.4GHz Wi-Fi channels.
The Goldair app and device pairing process require your 2.4ghz connection to
be separated from your 5ghz connection. For instructions on how to do this
please contact your internet provider.
•Tap REGISTER near the bottom of the screen.
•Read and agree to the Privacy Policy.
•Add your email address.
•Tap 'Obtain verification code'
You will then receive an email with a verification
code.
Download Goldair mobile APP
•Open the APP Store or Google Play on your mobile phone.
•Open 'Search' and enter 'Goldair'
•Click 'GET' and begin to download and install.
Once downloaded to your phone open the APP
•Enter the verification code from your email.
•Create a password.
•Then tap confirm.
If you haven't received a verification code via
email, tap the resend button and when the
verification code is received follow above steps.
Your APP is now registered and ready for pairing
to your device.

Pairing APP to Device
Connect with 2.4ghz Wifi Network
On the Home screen,
tap ‘Add Device’ or
the ‘+’ icon.
Using the categories on
the left, navigate to
your device and tap on
the image.
Confirm you are connected
to a 2.4ghz network. If your
2.4ghz and 5ghz networks
are dual banded, click
‘Common router setting
method’ on how to split, or
contact your internet
provider.

Pairing APP to Device
Connect with 2.4ghz Wifi Network: EZ Mode
The app will default to EZ Mode in the
right hand corner.
Ensure your device’s Wifi LED is flashing
rapidly.
If it is not, hold down the ‘Wifi’ button
for 5 seconds or until the Wifi icon
begins to flash.
Click ‘Confirm indicator rapidly blink’
and ‘Next’
See instructions below to finalise your device pairing via EZ mode.
Your device will now pair with the app.
Please ensure your device, modem and
phone are as close together as possible
and that your 2.4ghz Wifi signal is strong.
Once the device has paired, choose
to rename it by tapping the Pen icon
Choose the most suitable room type and
click ‘Done’ in the top right hand corner.

Pairing APP to Device
Change ‘EZ Mode’ to ‘AP Mode’ by
clicking in the top right hand corner
Ensure your device’s Wifi LED is
flashing slowly.
If it is not, hold down the ‘Wifi’
button for 5 seconds or until the
Wifi icon begins to flash.
Click ‘Confirm indicator slowly
blink’ and ‘Next’
Click ‘Go Connect’ to
connect to the device’s
Hotspot by selecting the
network highlighted on the
screen in your app, e.g.
‘SmartLife- XXXX’
Select the device’s Hotspot
network and you will be returned
to the app. If not, navigate back to
the Goldair app.
Note- if you get a notification
saying ‘Internet may not be
available’ press Dismiss.
Your device will now pair
with the app.
Please ensure your
device, modem and
phone are as close
together as possible.
Connect with 2.4ghz Wifi Network: AP Mode
See instructions below to finalise your device pairing via AP Mode.
Once the device has paired,
choose to rename it by
tapping the Pen icon
Choose the most suitable
room type and click ‘Done’
in the top right hand
corner.

Operating your Device from the APP
If the phone interface color is dark red, this
indicates that the heater is in the OFF standby
setting.
•Tap the OFF icon and the heater will turn on.
The display will change to bright red.
•You can now control the heater.
•To turn the heater off again tap the power icon
and the heater will revert to the dark screen.
TEMPERATURE SETTING:
•Tap the "+" or "-" button to set the
temperature.
•When the set temperature is higher than the
ambient temperature, the heater begins to
heat.
•If the heater temperature setting is below
ambient temperature the heater will be in
standby mode and will not operate until the
ambient temperature drops below the set
temperature.
Depending on which mode you are in you can set
the temperature as below.
Comfort mode can be set from 5 –35oC
Economy mode can be set from 5 - 31oC
(this is pre-set so there is always a 4oC difference
between Comfort and Economy settings)
LED Display Icon
Tap this icon to turn off the LED display on the
heater. This does not affect the operation of the
heater.
To turn the heater display back on, tap the icon
again
Dark Red –Heater Off Bright Red –Heater On

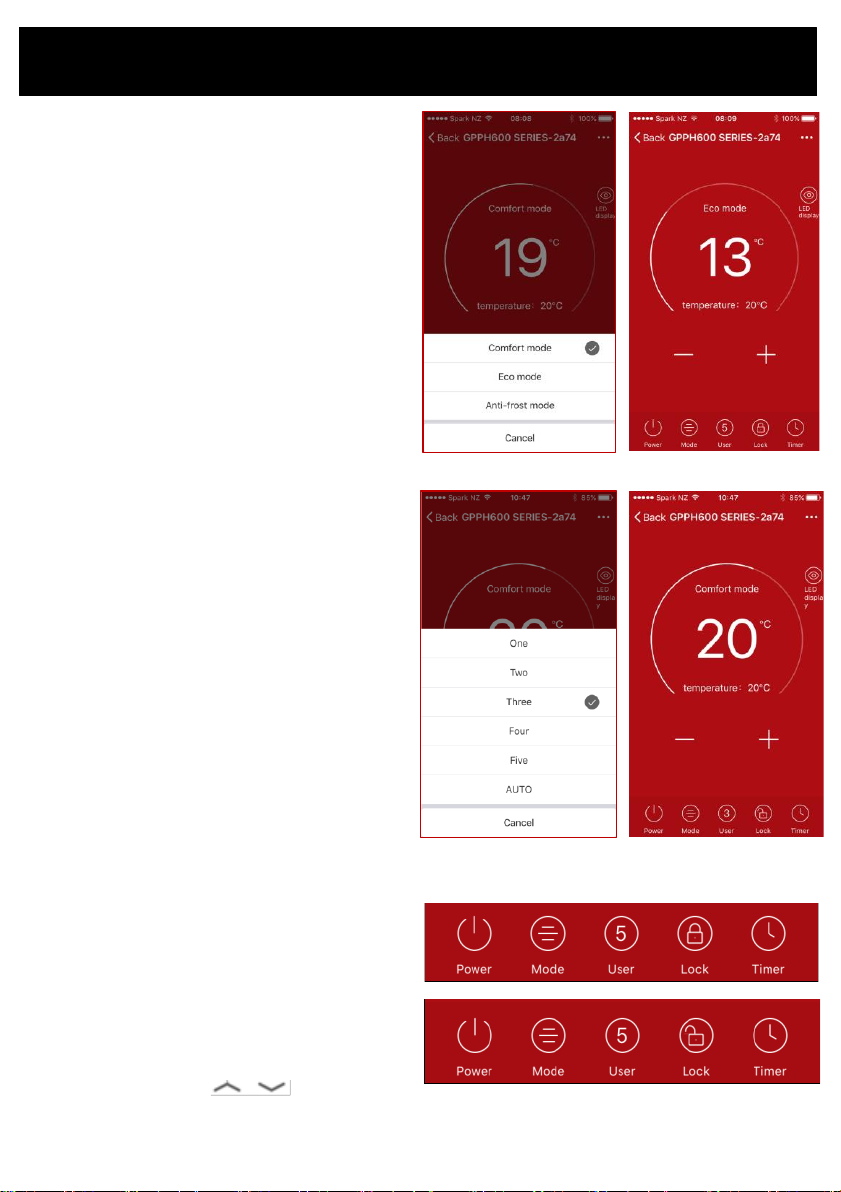

MODE
Mode can be set to Comfort, Eco or Anti-frost.
Set your desired temperature in Comfort or Eco
modes by pressing "+" or "-" buttons.
The screen will display which mode has been
selected and the current set temperature and
ambient temperature.
Comfort mode can be set from 5 –35oC
Economy mode can be set from 5 - 31oC
(this is pre-set so there is always a 4oC difference
between Comfort and Economy settings)
Anti-frost mode is pre-set at 5oC and cannot be
adjusted.
HEAT SETTINGS
In USER, you can set the heat settings from ONE
(lowest) to FIVE (highest) and the set level will be
shown on the bottom of the APP.
It will also show on the heater display.
In AUTO, the heater will adjust the heat settings
automatically to suit the amount of power
required to reach and then maintain the set
temperature.
CHILD LOCK
Tap the padlock icon to display the closed padlock
and “ON”, indicating that the child lock is active.
Tap the padlock icon again to unlock the child lock.
You can adjust the heater settings with your mobile
phone without having to unlock the child lock.
If you want to adjust the heater using the heater
controls then you must first press the heaters press
both the UP and DOWN buttons
together for 3 seconds or tap the padlock button
on the APP to unlock it.
Operating your Device from the APP

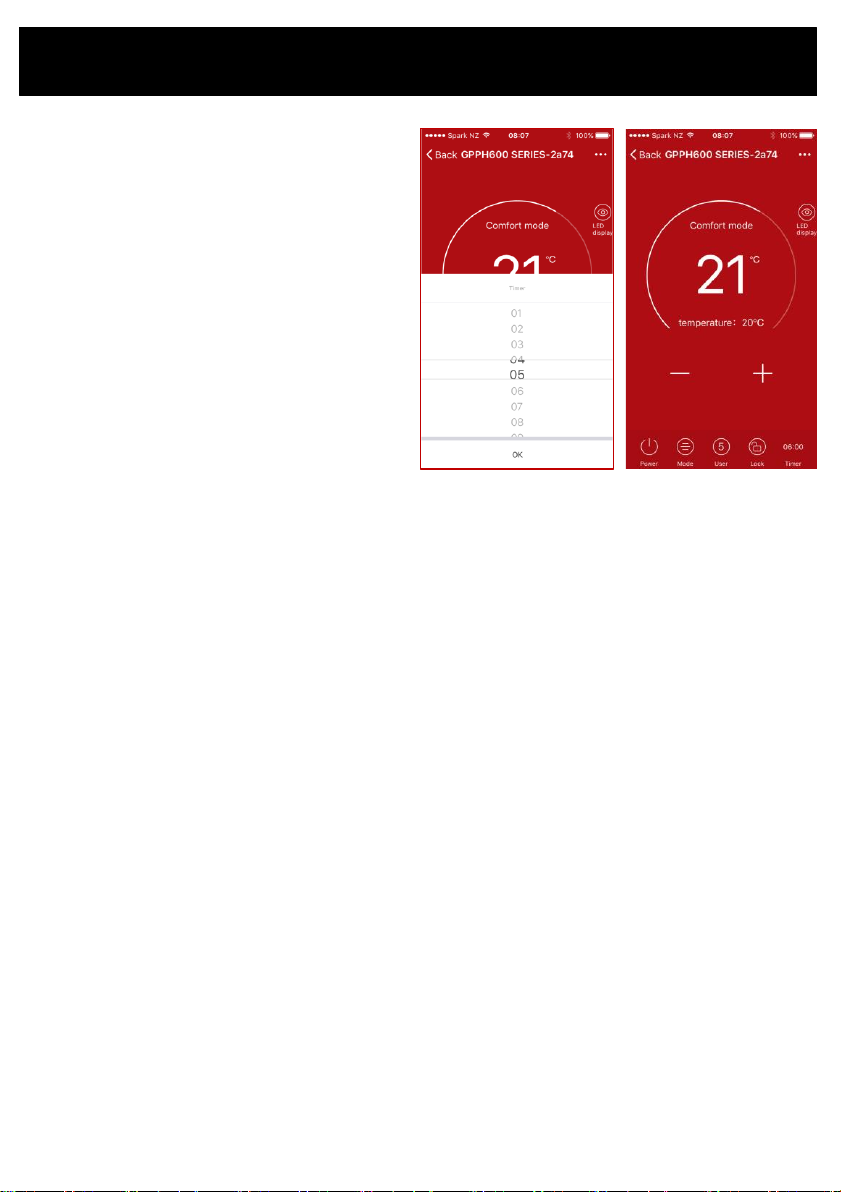

AUTO OFF TIMER
When the heater is ON you can set it to turn OFF
after a number of hours (1-24 hours) has elapsed.
•In the APP, tap the heater to be operated and
enter the operation interface.
•With the power icon on the lower left corner of
the mobile phone interface is displaying ON
and the heater is turned ON.
•Tap the timer button and scroll to select the
number of hours before the heater will turn
OFF and tap OK to return to the heater
operation interface.
•The timer icon on the lower right will display
how long before the timer will turn the heater
OFF.
To cancel the timer, touch the timer button again
and the numbers will disappear and just show
timer.
Operating your Device from the APP

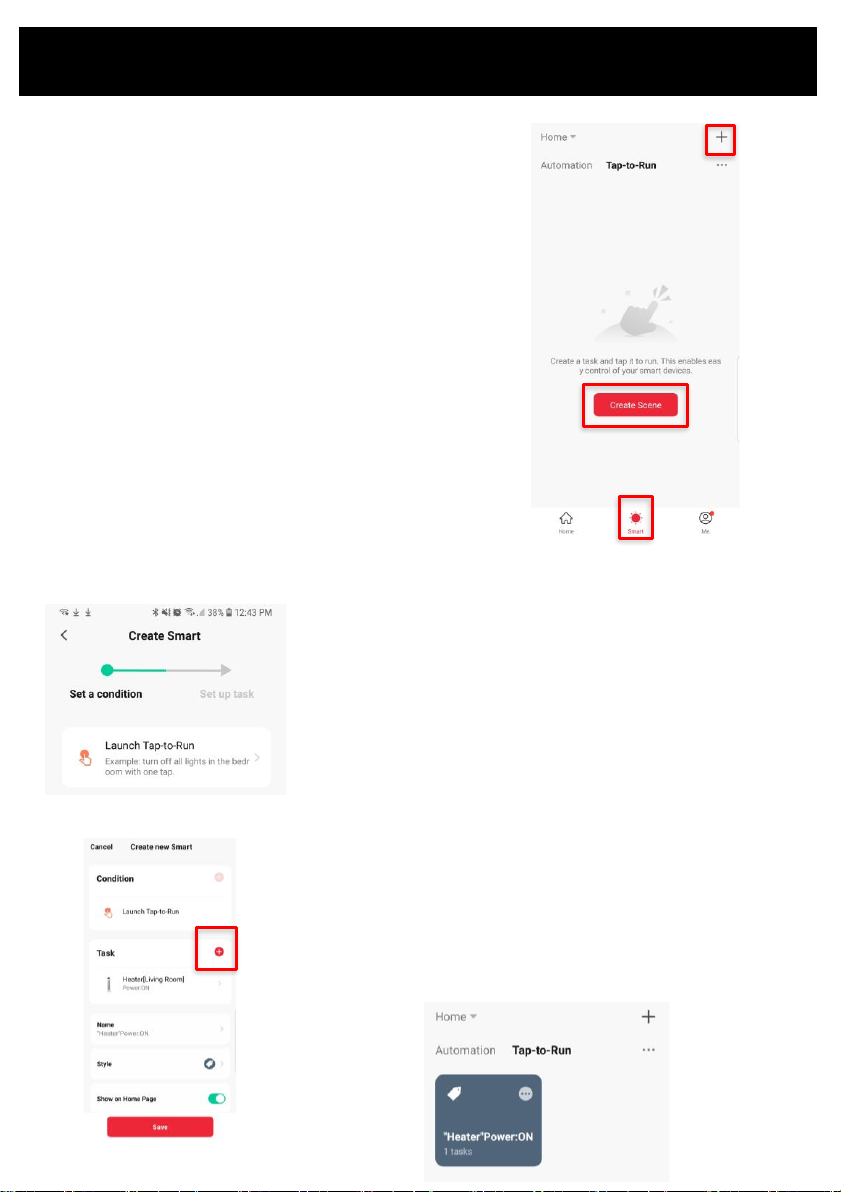

Set up Tap-To-Run & Create Smart Scenes
Store your favourite settings or set up automated
functions based on conditions in the ‘Smart’ part
of your Goldair app.
Warning- you must remember to turn off any
Smart functions prior to leaving the house or
going away. We recommend you only operate
your Goldair devices when someone is on the
premises.
•Tap ‘Smart’ on the bottom of your mobile phone.
•Tap ‘Create Scene’ or the ‘+’ icon on the top
right.
Click ‘Launch Tap-to-Run’ to save your preferred settings
on your devices to launch at the click of a button. Click
‘Run the device’ and choose a device. Preset your desired
functions such as Power ON/OFF, temperature, mode and
timer as per on the device’s functions. Click ‘Next’
Review your conditions and tasks on this screen, or
choose to add another device or task by clicking the ‘+’
icon.
Click Save to store your settings and your new task will
appear on the Smart homepage. Click it to operate your
desired task.

Set up Tap-To-Run & Create Smart Scenes
As well as setting up automated Tap-to-Run
tasks, you can set conditions to operate your
devices.
Weather:
Click ‘When weather changes’ to create a task based on your local outside weather.
Choose between temperature, humidity, weather type, sunset/sunrise or wind speed.
Select your desired condition and click ‘Next’. Click ‘Run the device’ and choose a device.
Preset your desired functions such as Power ON/OFF, temperature, mode and timer as
per on the device’s functions. Click ‘Next’. Review your conditions and click save. Your
automation will appear on the main Smart homepage.
Schedule:
Click ‘Schedule’ to create a task for your device at selected times of the day. Click ‘Repeat’
to choose days of the week or leave as ‘Once’ to operate as a one off. Choose your
desired time from the scroll bar and click ‘Next’. Click ‘Run the device’ and choose a
device. Preset your desired functions such as Power ON/OFF, temperature, mode and
timer as per on the device’s functions. Click ‘Next’. Review your conditions and click save.
Your automation will appear on the main Smart homepage.
Status Change
Click ‘When device status changes’ to create a condition based on any function on your
device, for example turning the Power Off when any device function is changed (to act as
a child lock)
Voice Control
Once your smart scenes are set up, you can use Amazon Alexa or Google Home Routines
to operate the scenes via voice control. Refer to your Amazon or Google Home user
guides for instructions on how to pair your routine to smart scenes.

View compatible Voice
Control devices &
instructions on setting up.
Operating your Device from the APP
Change the name,
location & image of
your device
View your device
information
Device settings:
Turn on
notifications for
when device goes
Offline.
Share device with family
(see instructions on next
page)
Read FAQs & submit
feedback
Remove device from app
View your tap-to-
run and smart
scene automations
Create group of
devices (see
instructions on next
page)
Review device
network
Add device shortcut
to home screen
View device updates
& turn on automatic
updates

Operating your Device from the APP
Group your devices:
Devices within the same group can be controlled simultaneously
•Under 'Create Group' setting, select all devices you wish to
group together. Click 'Save'
•Enter a group name of choice. Click Save.
You can now operate all devices within this group simultaneously.
Ungroup your devices:
•Click on to pen icon within device group
•Select 'Dismiss Group'
You have now deleted your group.
Share device with family member:
•The person you add will need to have the Goldair APP installed
on their phone.
•Enter your family member's details to share device operation
with them.
•Tap 'Confirm' to complete the addition.
Remove family member from device:
•Tap 'Share Devices' to delete the number of the person you want
to cancel. Tap 'Confirm' to confirm.
NOTE: There can only be one user operating the device at a time.
The APP needs to be closed on all other devices to enable the
sharing to work.
NOTE: If someone else sets up their phone on the same device
without using the 'Device Sharing' the original phone will be
disconnected and the device will disappear from the device list.

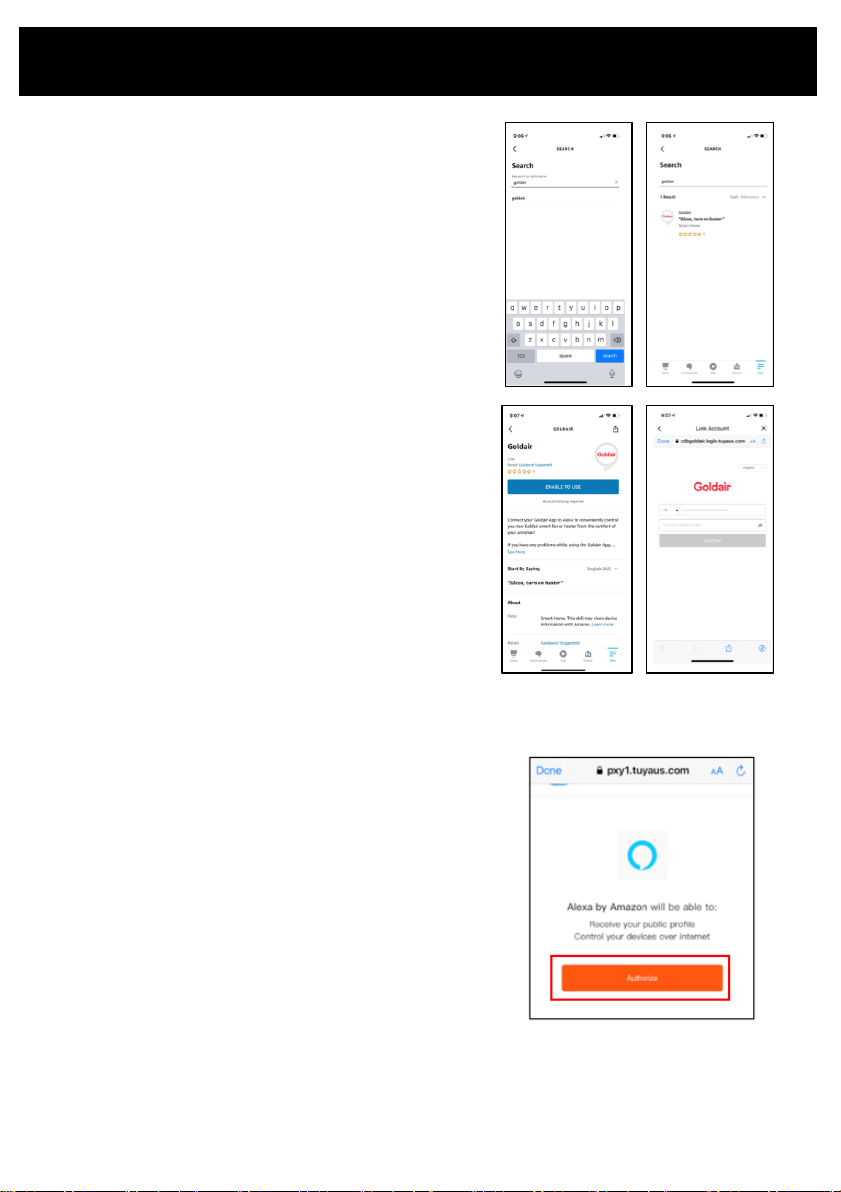

How to connect to your Alexa devices
•Download the Goldair App and pair your device.
Note: change the name of the device to an easily
identifiable name such as ‘Bedroom Fan’ or ‘Living
Room Heater’
Note: Ensure you have downloaded and have
configured the Amazon Alexa app. Please see your
Alexa device’s user manual for instructions.
•On the main page of the Alexa app, click the
‘More’ icon in the bottom right hand side of the
page. Click on ‘Skills and Games’
•Click on the search icon in the top right hand
corner
•Click on the search icon in the top right hand
corner

How to connect to your Alexa devices
•Type ‘Goldair’ in the search bar and click to proceed.
•Click ‘Enable to use’ and type your phone number/
email address and password and click ‘Link Now’
•Click ‘Authorise’ and go back to the Home screen.
Your devices will now appear and you can operate
using voice control.

How to connect to your Alexa devices
SUGGESTED VOICE COMMANDS
Note: Amazon and Google are in control of voice control functionality and
terminology. Not all functions available via the controller or APP can be controlled
via voice command.
Voice control on your device will allow you to turn ON and OFF and adjust the settings.
Suggested voice commands to work with your Alexa device are:
Turning ON/OFF
Alexa, turn “Device Name” ON
Alexa, turn “Device Name” OFF
Adjust the settings
Alexa, turn “Device Name” to High (omit High with the desired setting or temperature)

How to connect to your Google Home devices

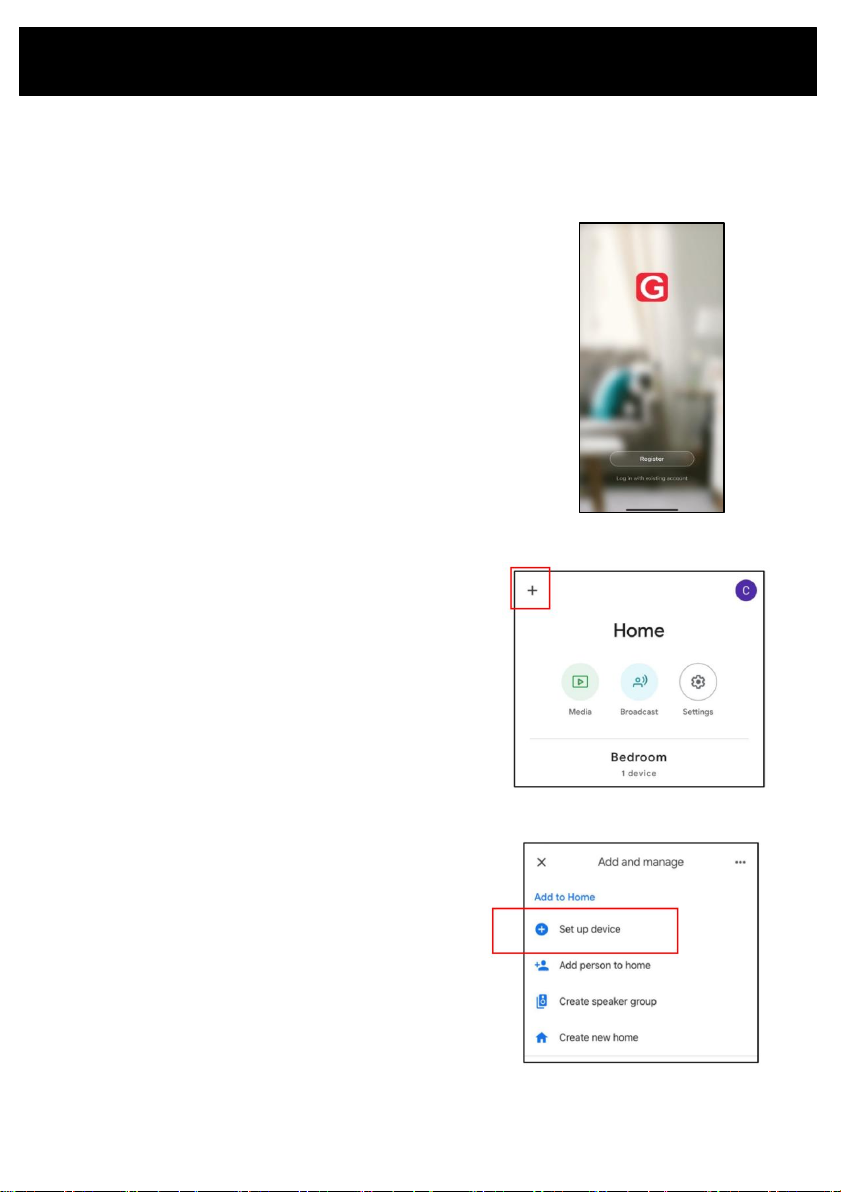

•Download the Goldair App and pair your device.
Note: change the name of the device to an easily
identifiable name such as ‘Bedroom Fan’ or ‘Living
Room Heater’
Note: Ensure you have downloaded and have
configured the Google Home/Assistant apps. Please see
your Google device’s user manual for instructions.
•On the main page of the Google Home app, click the
‘+’ icon in the top left hand side of the page.
•Click ‘Set up device’
Follow the below instructions to connect your device to Google Home.

How to connect to your Google Home devices
•Click ‘Works with Google’
•Type ‘Goldair’ in the search bar and click to
proceed.
•Type your phone number/ email address and
password and click ‘Link Now’

How to connect to your Google Home devices

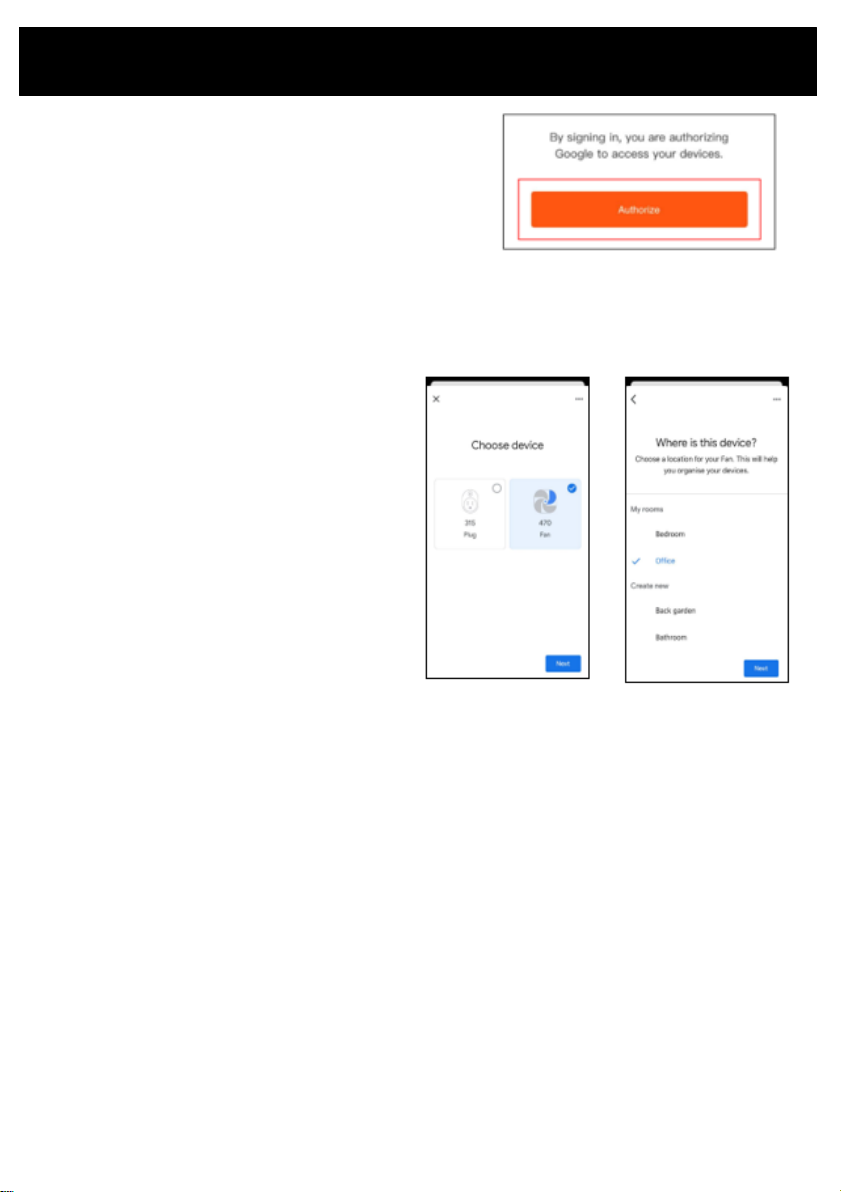

•Click Authorise and all devices from
your Goldair App will appear on screen.
•You have the option to add these to a
particular room in your home
•When you go back to the Home screen,
your devices will now appear and you
can operate using voice control.
SUGGESTED VOICE COMMANDS
Note: Amazon and Google are in control of voice control functionality and
terminology. Not all functions available via the controller or APP can be controlled
via voice command.
Voice control on your device will allow you to turn ON and OFF and adjust the settings.
Suggested voice commands to work with your Google device are:
Turning ON/OFF
Ok Google, turn “Device Name” ON
Ok Google, turn “Device Name” OFF
Adjust the settings
Ok Google, turn “Device Name” to High (omit High with the desired setting or temperature)

New Zealand
PO Box 100707,
North Shore Mail Centre,
Auckland, 0745
www.goldair.co.nz
Australia
PO Box 574,
South Morang,
Victoria, 3752
www.goldair.com.au
