GOLDENSEA UV UVAIR216 User manual

UVAIR216
USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS

www.goldenseauv.com
1
Voltage Input: AC100-240V~, 50/60Hz; Power: 330W; Product Size: 457x429x1075mm
This UV lamp is only for commercial use in non-residential locations, such as in the
hotels, schools, factories, theaters, gymnasiums, restaurants, offices, etc., it shall
only be used by professional person. The warning sign as below shall be shown on
the way to the fixture during operation.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
a) This equipment is designed for use with germicidal UV radiation sources and UV
radiation can pose a risk of personal injury. Overexposure can result in damage to eyes and
bare skin. To reduce the risk of overexposure this equipment must be used by professional
person.
b) Maintenance and servicing of this UV generating equipment shall be performed by
professional person. Service personnel must wear appropriate Personal Protective
Equipment (PPE) if the equipment will be in operation during the maintenance or servicing
work. Contact the equipment manufacturer for PPE recommendations and guidance.
c) When replacing lamps, replace them only with the lamps for which the equipment is
marked and intended.
d) The use of accessory not recommended by the manufacturer may cause an unsafe
condition.
e) Do not use this equipment for other than intended use.
f) People, pets, and plants should leave the areas when using the disinfection light.
g) It should be stored well to avoid accidental damage to the sterilizer and personal injury
after the sterilization is finished.
The UV-C wavelength is 253.7nm.

www.goldenseauv.com
2
WARNING – RISK OF PERSONAL INJURY
Avertissement – RISQUE DE BLESSURES
CORPORELLES
THIS EQUIPMENT IS DESIGNED FOR
USE WITH GERMICIDAL LAMPS OR UV
SOURCES AND MUST BE INSTALLED
AND USED IN COMPLIANCE WITH
COMPETENT TECHNICAL DIRECTIONS
TO PREVENT THE USER'S EYE AND
BARE SKIN FROM EXPOSURE TO
HARMFUL UV OR OPTICAL RADIATION.
PEOPLE, PETS AND PLANT SHOULD
LEAVE THE AREAS WHEN USING THE
DISINFECTION LIGHT.
CET ÉQUIPEMENT EST CONÇU POUR ÊTRE
UTILISÉ AVEC DES LAMPES GERMICIDALES OU
DES SOURCES UV ET DOIT ÊTRE INSTALLÉ ET
UTILISÉ EN CONFORMITÉ AVEC LES DIRECTIVES
TECHNIQUES COMPÉTENTES POUR EMPÊCHER
L’ŒIL DE L’UTILISATEUR ET LA PEAU NUE DE
L’EXPOSITION À DES RAYONS UV OU OPTIQUE
NOCIFS. LES PERSONNES, LES ANIMAUX DE
COMPAGNIE ET LES PLANTES DEVRAIENT
QUITTER LES ZONES LORS DE L’UTILISATION DE
LA LUMIÈRE DE DÉSINFECTION.
NOT FOR HOUSEHOLD USE
PAS POUR L’USAGE À LA MAISON
EYE DAMAGE MAY RESULT FROM
DIRECTLY VIEWING THE LIGHT
PRODUCED BY THE LAMP IN THIS
EQUIPMENT. ALWAYS TURN OFF LAMP
BEFORE SERVICING.
CAUTION: THIS PRODUCT IS FOR
RESTRICTED ACCESS USAGE ONLY.
LES DOMMAGES OCULAIRES PEUVENT
RÉSULTER DE L’OBSERVATION DIRECTE DE LA
LUMIÈRE PRODUITE PAR LA LAMPE DANS CET
ÉQUIPEMENT. ÉTEIGNEZ TOUJOURS LA LAMPE
AVANT L’ENTRETIEN.
ATTENTION : CE PRODUIT EST DESTINÉ À UNE
UTILISATION À ACCÈS RESTREINT UNIQUEMENT.
CAUTION: TO REDUCE THE RISK OF FIRE
USE ONLY _ TUV PL-L 36W/4P 1CT/25_
LAMPS
ATTENTION – RISQUE D’INCENDIE
UTILISER UNIQUEMENT LES LAMPES
_ TUV PL-L 36W/4P 1CT/25
UV-C RISK GROUP 3
WARNING: UV-C emitted from this
product.
Avoid eye and skin exposure to
unshielded product.
Follow installation instructions and
user manual.
UV-C wavelength is 253.7nm.
GROUPE DE RISQUE UV-C 3
AVERTISSEMENT UV-C émis par ce
produit.
Évitez l’exposition des yeux et de la peau
au produit non fumé.
Suivez les instructions d’installation et le
manuel d’utilisation.
La longueur d’onde UV-C est de 253,7 nm
SAVE THESE INSTRUCTIONS

www.goldenseauv.com
3
Thank you for purchasing a GOLDENSEA UV product. You have acquired a
powerful and versatile device. We are confident that you will be satisfied with
our excellent products and service. For your own safety, please read this user
manual carefully before installing and operating the device.
Contents
1. Warnings 4
2. Suggestion For Disinfection Time 4
3. Manual Operation (control panel) 4
4. Moving The Unit 5
5. Notes 5
6. Product Overview 6
7. Dimensional Drawings 6
8. Replacing The UV Tube 7
9. Troubleshooting Tips 7
10. Features 8
11. Cleaning and Maintenance 9
12. Service 9

www.goldenseauv.com
4
1. Warnings
Don’t look at the disinfection light directly.
People, pets and plants should leave the area when using the
disinfection light.
Ventilate for 30-40 minutes after working.
Note: make sure the device is on an even surface and the wheel
brakes are engaged before operating.
2. Suggestion For Disinfection Time
Area
Power
Disinfection Time
60m2
330W
60min
120m2
330W
90min
240m2
330W
120min
3. Manual Operation (control panel)
1) Close all the doors and windows.
2) Plug-in and power on: press the power switch <I/O> to <I>, the power indicator turns on
green.
3) Press the ESC touch key to choose time or fan speed.
4) Select time setting <60 mins>, <90 mins>, <120 mins> or <AUTO> by the UP and down
touch key; Then select fan speed setting LEVEL1~LEVEL10 by the UP and down touch
key also.
5) Press the OK touch key, audible alarm starts beeping, the UV lamp will turn on, the
power indicator stays on red.
6) Once the disinfection process ends, the power indicator switches to green, an audible
alarm sounds. Open the doors and windows to ventilate the disinfected area.

www.goldenseauv.com
5
* If the door of the cabinet is opened during disinfection process by misuse, the UV lamp
and fan will automatically turn off to prevent potential injury to the operator, then the
Indicator Lights will turn on red and green . Once the door is closed again, the disinfection
process will continue.

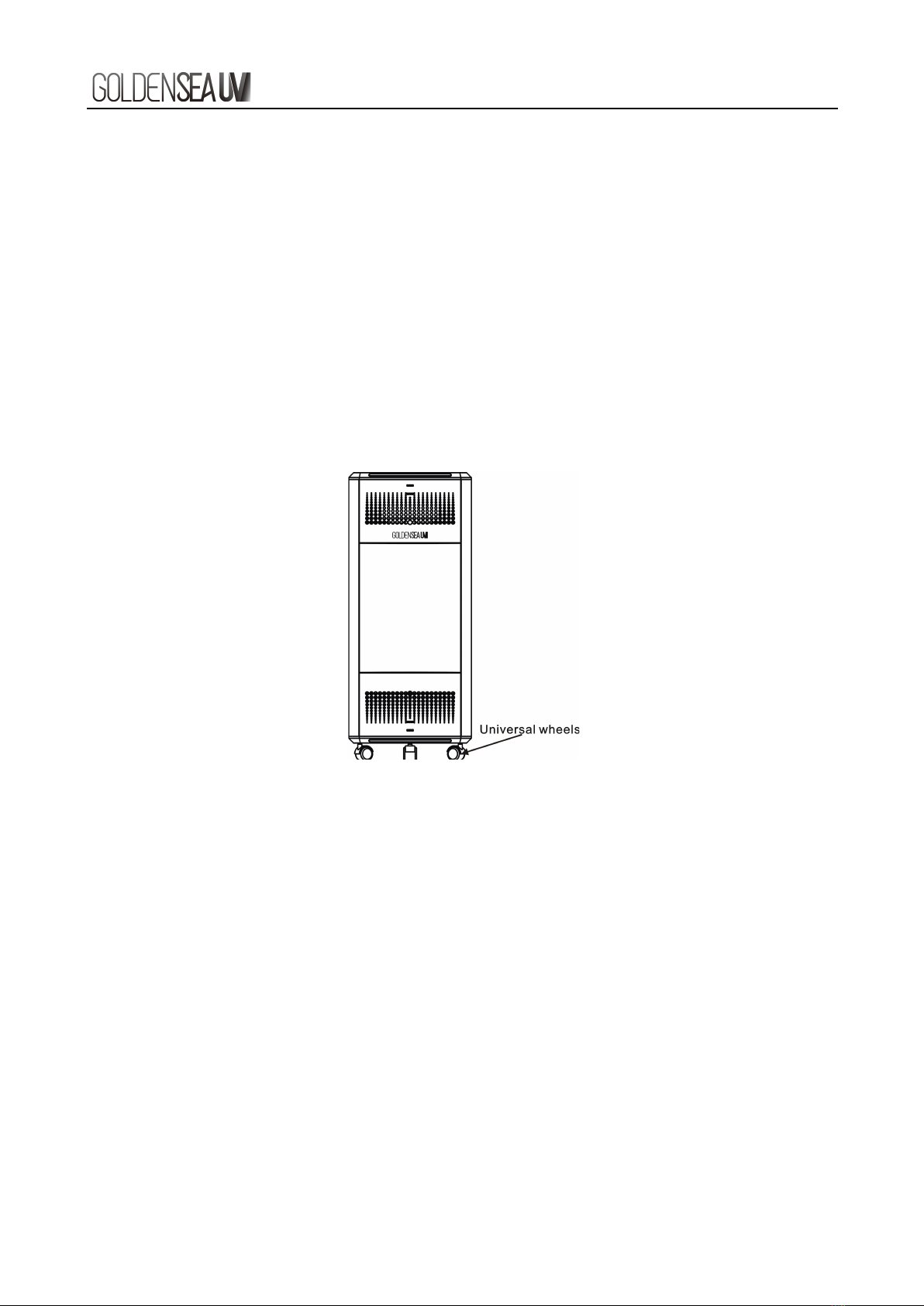

4. Moving The Unit
This device has been integrated with 3 universal wheels for fast and easy relocation.
Before moving the device, make sure the power cable is disconnected from power socket.
5. Notes
1. The surface of the lamp should be kept clean.
2. The lamp is fragile. Please handle it with care.
3. According to the latest guideline on the diagnosis and treatment released by the
National Health Commission, the virus is sensitive to ultraviolet (UV) light and heat, so
UV radiation is a quick and effective way of disinfecting rooms against germs and
viruses.

www.goldenseauv.com
6

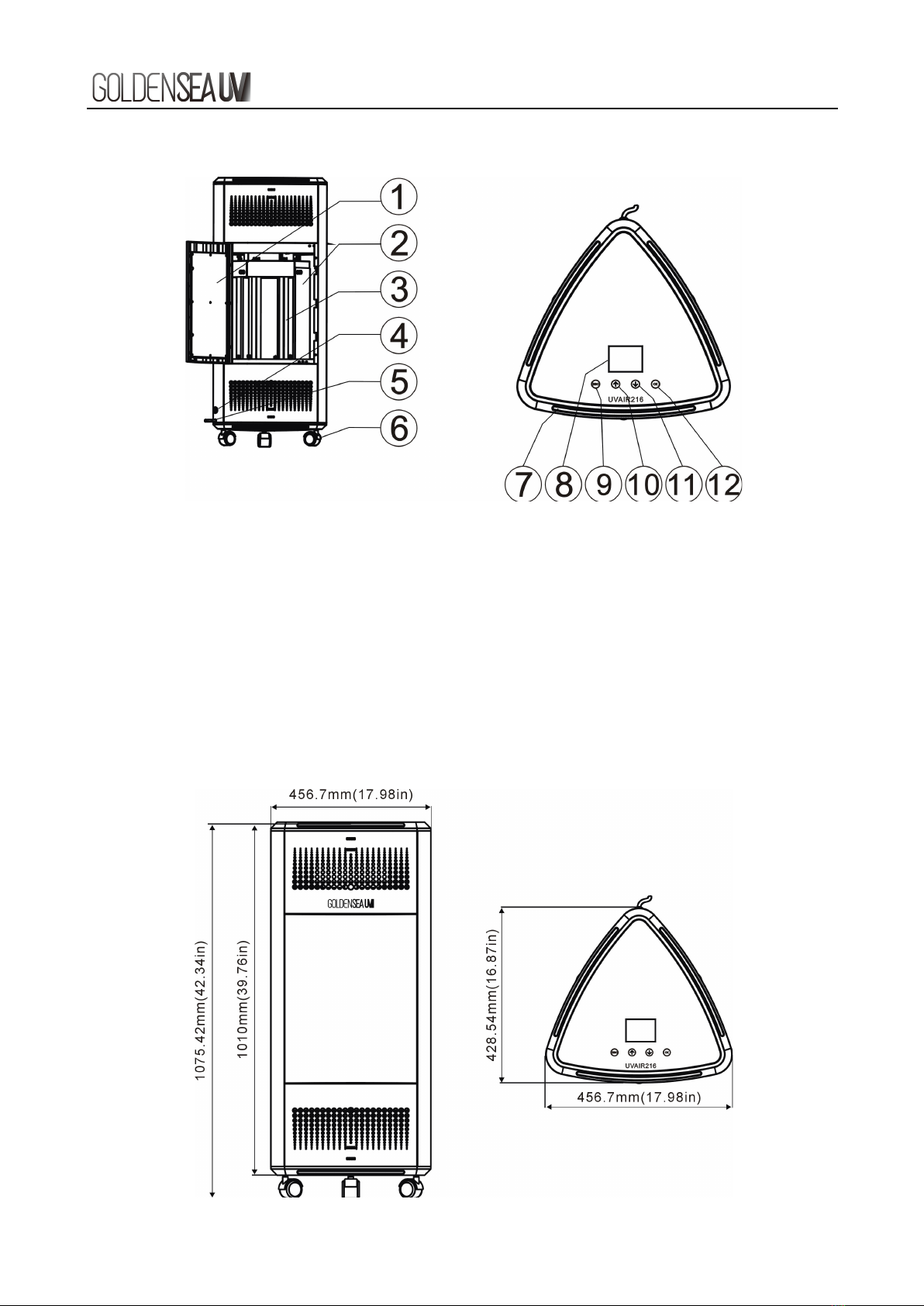

6. Product Overview
7. Dimensional Drawings
1） Door
2） UV Visor
3） UV Tube
4） Power Switch
9） Esc - touch key
10） Up - touch key
11） Down - touch key
12） OK - touch key
5） Power Cable
6） Universal Wheel
7） Indicator Lights
8） Display

www.goldenseauv.com
7

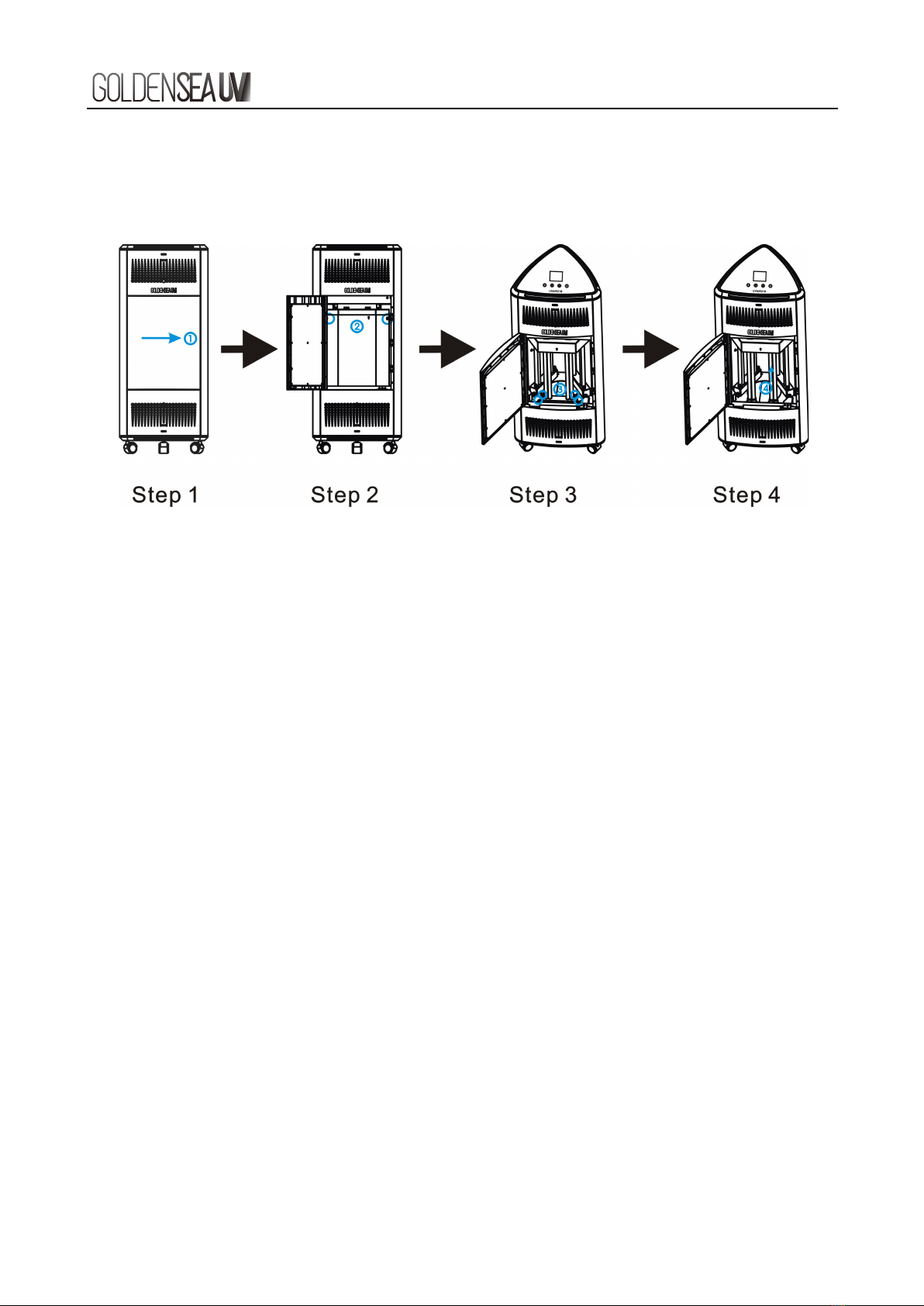

8. Replacing The UV Tube
To maintain the sterilizing efficacy, the UV tube needs to be replaced after 9,000 hours of
use.
Steps:
1. Wait for UV tube to cool down (to avoid scalding) after switching off the device.
2. Push the door to open.
3. Loosen the 2 screws on the UV visor as shown by circle
②
，and take out the UV visor.
4. Loosen the 4 screws as shown by circle
③
, and take out the metal plates.
5. Move the UV tube out of its holder upward
④
as shown and take it out.
Note: please follow your local toxic and hazardous waste regulations for lamp disposal.
6. Insert the new UV tube into the holder of the device and move the UV tube upward until
it fits into place correctly and tightly.
Note: please follow your local toxic and hazardous waste regulations for lamp disposal.
7. Fix the metal plates and tighten the 4 screws.
8. Fix the UV visor and tighten the 2 screws.
9. Close the door. The device is now ready for use.
9. Troubleshooting Tips
9.1 What to do if the device doesn’t work?
1. Ensure the device is plugged into a working wall socket.
2. Ensure the plug is wired correctly and terminal well-connected.
3. If you still have issues with the device, please contact your local dealer or our customer
service for assistance.

www.goldenseauv.com
8
9.2 How often should the UV tube be replaced?
1. The UV tube is the core of the product, it should be replaced after 9000 hours of use to
maintain the germicidal efficacy.
2. The UV tube is defected if it flashes, please contact your local dealer or our customer
service to order a new UV tube. For replacing the UV tube, please refer to the
instructions in this user manual.
3. After use for a period of time, it is normal to find some black spots on both sides of the
UV tube.
10. Features
Light Source
• Lamp:
TUV PL-L 36W/4P 1CT/25 (PHILIPS)
or
HNS L 36W 2G11 GFT36DL/2G11/SE/OF PURITEC UV-C Germicidal Low Pressure
Lamp (OSRAM)
• Extremely long Life: up to 9,000 H
Features
• Audio alarm
• Visual indicator lights
• Disinfection time settings
• Fan speed settings
• Power switch
• Control panel with touch keys
• Movable with wheels
Product Type
Industrial Ultraviolet disinfection light
Weight
Net weight: 23 kg

www.goldenseauv.com
9
11. Cleaning and Maintenance
1. To ensure the device remains in good condition and does not fail prematurely, regular
maintenance, cleaning and checks are required.
2. For cleaning of the device, please use a lint-free cloth.
3. To avoid damage to the device, never use detergent or solvents.
4. Never spray insecticide towards the device, it can discolor or damaged.
5. Should you need any spare parts, please order genuine parts from your local dealer.
12. Service
For all service needs, please contact your local authorized dealer or GOLDENSEA
customer service. Our contact details are:
Email: [e-mail]
Tel: [phone]
Address: No.109 Haiyong Road, Shiji Town, Panyu Zone, Guangzhou, China. 511450
Errors and omissions for all information given in this user manual are expected.
All information is subject to change without prior notice.
