GOLDENSEA UV UVAIR300-F User manual

UVAIR300-F
USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS

www.goldenseauv.com
1
Voltage Input: AC220-240V~, 50/60Hz; Power: 450W;Product Size: 1245xØ330mm
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
a) This equipment is designed for use with germicidal UV radiation sources and UV
radiation can pose a risk of personal injury. Overexposure can result in damage to eyes and
bare skin. To reduce the risk of overexposure this equipment must be used by professional
person.
b) Maintenance and servicing of this UV generating equipment shall be performed by
professional person. Service personnel must wear appropriate Personal Protective
Equipment (PPE) if the equipment will be in operation during the maintenance or servicing
work. Contact the equipment manufacturer for PPE recommendations and guidance.
c) When replacing lamps, replace them only with the lamps for which the equipment is
marked and intended.
d) The use of accessory not recommended by the manufacturer may cause an unsafe
condition.
e) Do not use this equipment for other than intended use.

www.goldenseauv.com
2
The UV-C wavelength is 253.7nm.
WARNING –RISK OF PERSONAL INJURY
Avertissement –RISQUE DE BLESSURES
CORPORELLES
THIS EQUIPMENT IS DESIGNED FOR
USE WITH GERMICIDAL LAMPS OR UV
SOURCES AND MUST BE INSTALLED
AND USED IN COMPLIANCE WITH
COMPETENT TECHNICAL DIRECTIONS
TO PREVENT THE USER'S EYE AND
BARE SKIN FROM EXPOSURE TO
HARMFUL UV OR OPTICAL RADIATION.
PEOPLE, PETS AND PLANT SHOULD
LEAVE THE AREAS WHEN USING THE
DISINFECTION LIGHT.
CET ÉQUIPEMENT EST CONÇU POUR ÊTRE
UTILISÉAVEC DES LAMPES GERMICIDALES OU
DES SOURCES UV ET DOIT ÊTRE INSTALLÉET
UTILISÉEN CONFORMITÉAVEC LES DIRECTIVES
TECHNIQUES COMPÉTENTES POUR EMPÊCHER
L’ŒIL DE L’UTILISATEUR ET LA PEAU NUE DE
L’EXPOSITION À DES RAYONS UV OU OPTIQUE
NOCIFS. LES PERSONNES, LES ANIMAUX DE
COMPAGNIE ET LES PLANTES DEVRAIENT
QUITTER LES ZONES LORS DE L’UTILISATION DE
LA LUMIÈRE DE DÉSINFECTION.
NOT FOR HOUSEHOLD USE
PAS POUR L’USAGE À LA MAISON
EYE DAMAGE MAY RESULT FROM
DIRECTLY VIEWING THE LIGHT
PRODUCED BY THE LAMP IN THIS
EQUIPMENT. ALWAYS TURN OFF LAMP
BEFORE SERVICING.
CAUTION: THIS PRODUCT IS FOR
RESTRICTEDACCESS USAGE ONLY.
LES DOMMAGES OCULAIRES PEUVENT
RÉSULTER DE L’OBSERVATION DIRECTE DE LA
LUMIÈRE PRODUITE PAR LA LAMPE DANS CET
ÉQUIPEMENT. ÉTEIGNEZ TOUJOURS LA LAMPE
AVANT L’ENTRETIEN.
ATTENTION : CE PRODUIT EST DESTINÉÀUNE
UTILISATION ÀACCÈS RESTREINT UNIQUEMENT.
CAUTION: TO REDUCE THE RISK OF FIRE
USE ONLY _ TUV 36T5 HO 4P SE UNP/32 _
LAMPS
ATTENTION –RISQUE D’INCENDIE
UTILISER UNIQUEMENT LES LAMPES
_ TUV 36T5 HO 4P SE UNP/32
UV-C RISK GROUP 3
WARNING: UV-C emitted from this
product.
Avoid eye and skin exposure to
unshielded product.
Follow installation instructions and
user manual.
UV-C wavelength is 253.7nm.
GROUPE DE RISQUE UV-C 3
AVERTISSEMENT UV-C émis par ce
produit.
Évitez l’exposition des yeux et de la peau
au produit non fumé.
Suivez les instructions d’installation et le
manuel d’utilisation.
La longueur d’onde UV-C est de 253,7 nm
SAVE THESE INSTRUCTIONS

www.goldenseauv.com
3
Thank you for purchasing a GOLDENSEA UV product. You have acquired a
powerful and versatile device. We are confident that you will be satisfied with
our excellent products and service. For your own safety, please read this user
manual carefully before installing and operating the device.
Contents
1. Manual Operation (Remote Control) 4
2. Notes 4
3. Product Overview 5
4. Dimensional Drawings 5
5. Installation Instructions 6
6. Replacing The part 7
7. Troubleshooting Tips 9
8. Features 9
9. Cleaning and Maintenance 10
10.Service 10

www.goldenseauv.com
4
1. Manual Operation (Remote Control)
1) Plug-in and power on：the power indicator light turns on.
2) Press the Start button on the remote control to turn on.
3) Choose the fan speed（Silent、Low、Mid、Max）, the indicator light of fan level will turn
on.
4) Press the Start button on the remote control to turn off.
2. Notes
1. The surface of the lamp should be kept clean.
2. The lamp is fragile. Please handle it with care.
3. According to the latest guideline on the diagnosis and treatment released by the
National Health Commission, the virus is sensitive to ultraviolet (UV) light and heat, so
UV radiation is a quick and effective way of disinfecting rooms against germs and
viruses.
Start

www.goldenseauv.com
5

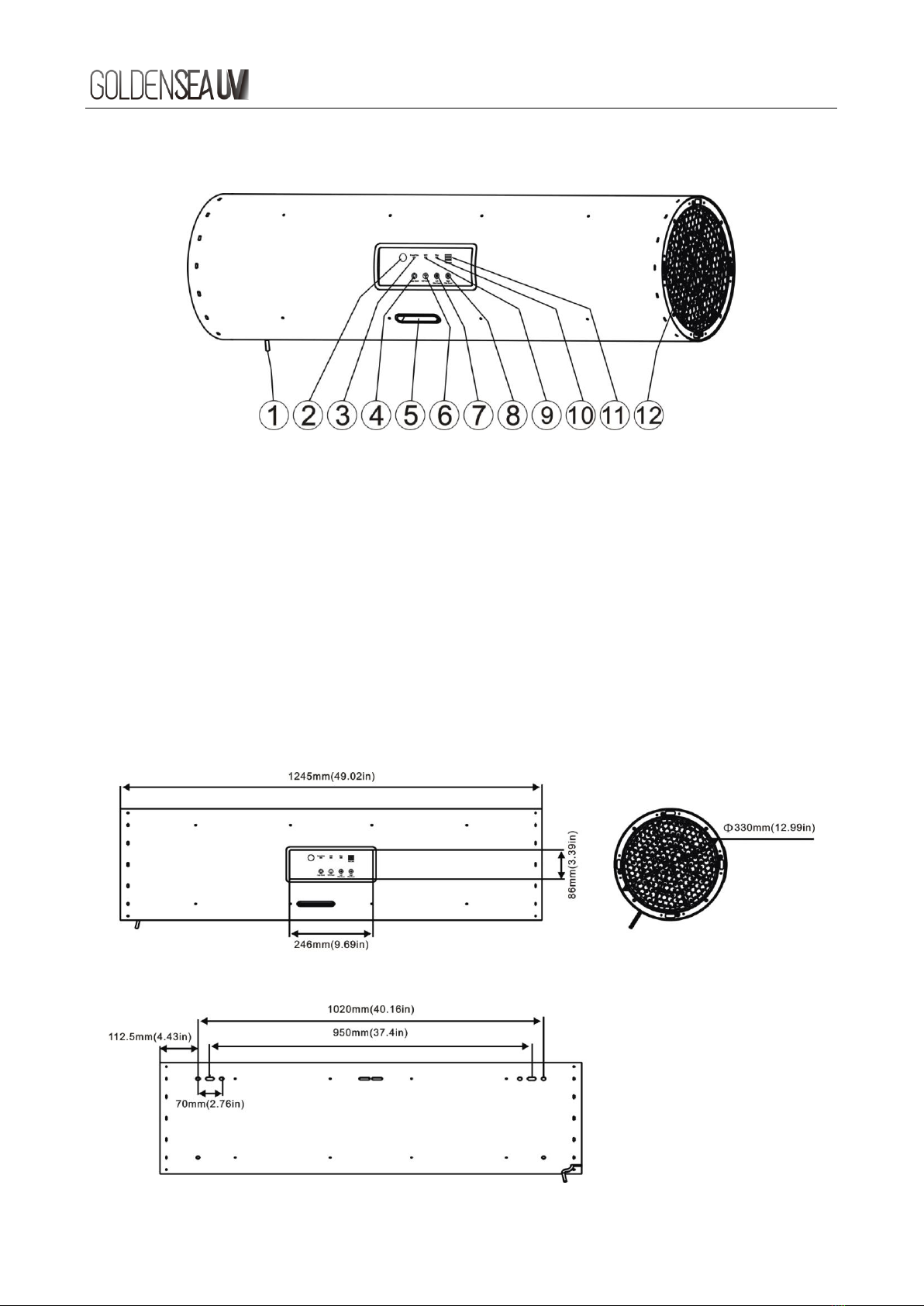

3. Product Overview
4. Dimensional Drawings
1）Power Cable
2）Infrared Inductor
3）Power/Tube Indicator
4）Lamp Reset
9）WIFI Indicator
10）Filter Indicator
11）Fan Level Indicator
12）Filter
5）Wireless
6）WIFI Reset
7）Left Filter Reset
8）Right Filter Reset

www.goldenseauv.com
6
5. Installation Instructions
5.1Wall Mounting
Steps:
1. Fix the Triangular Brackets to the screw holes on the side of the device with 4 inner
hexagonal cylindrical screws (M10x30mm) provided.
2. Mount the 2 Breckets on the wall with a distance of 1020mm with 4 outer hexagonal
screws (M8x50mm).
3. Hang the device with the 2 hooks of the Triangular Brackets.
5.2Installation of Rigging Bracket

www.goldenseauv.com
7
Steps:
1. Fix the rigging brackets to the screw holes on top of the device with 4 inner hexagonal
cylindrical screws (M10x22mm) provided.
2. Fix the rigging brackets to the hanging rods on the ceiling as shown.
3. Attach a safety cable (not included) between the handle of device and a fixing point on
the ceiling or wall. (ATTENTION! This step is essential to prevent the device from falling
off by accident or misuse).
6. Replacing The part

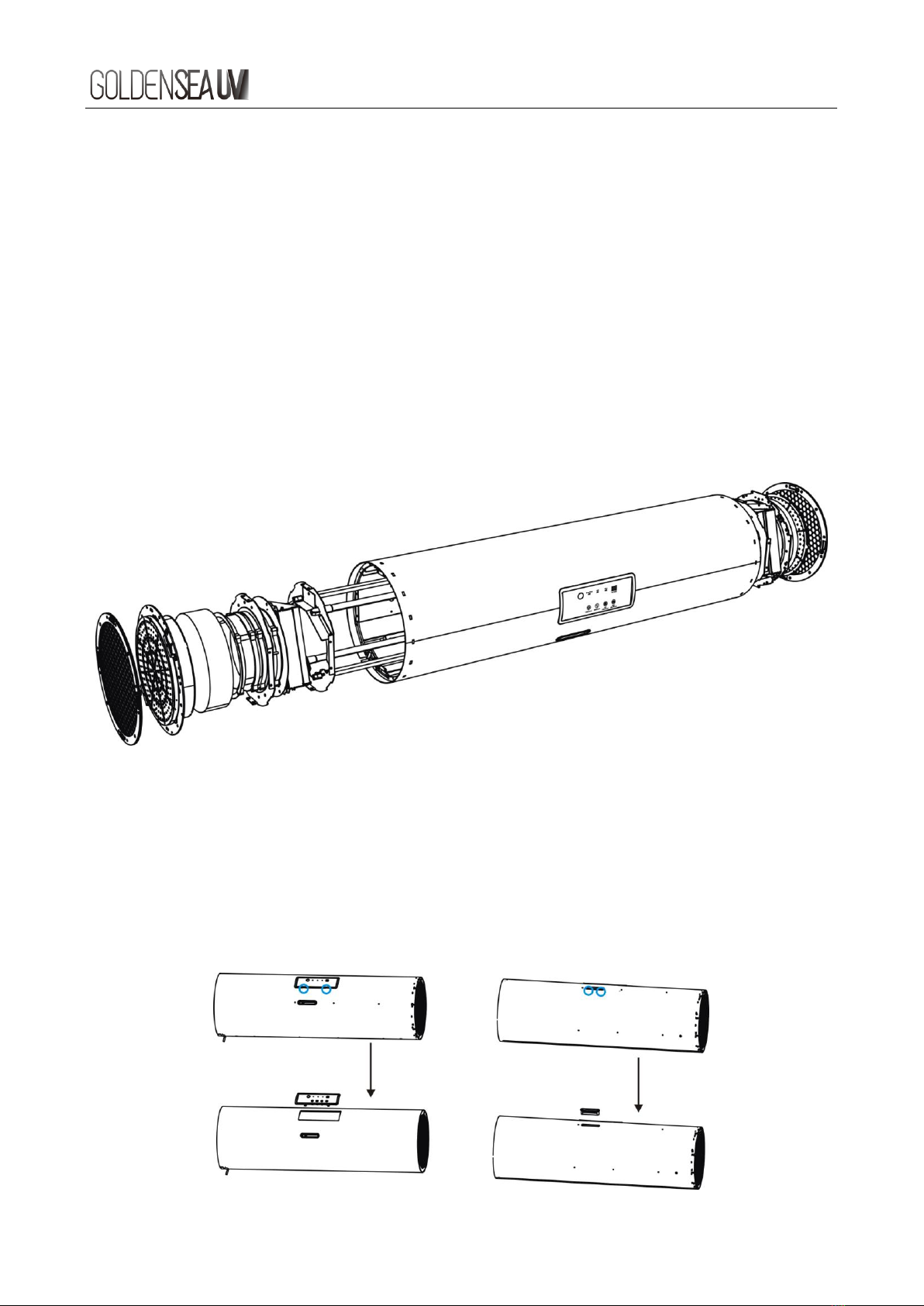

6.1. Removal of panel cover and wireless cover
Press with a slotted screwdriver from the notch of panel cover and wireless cover, and pry
up the panel cover and wireless cover.

www.goldenseauv.com
8
6.2. Replacement or removal of iron filter
The fixing method of iron filter on both sides is magnet adsorption. When dismantling, after
removing the safety rope buckle, the iron filter components can be directly removed.
6.3. Replacement or removal of activated carbon filter
The fixation method of activated carbon filter is magnet adsorption. After the safety rope
buckle is removed, the activated carbon filter components can be directly extracted during
disassembly or replacement.
6.4. Replacement or removal of air conditioning filter
The fixing method of air conditioning filter is magnet adsorption. After the safety rope buckle
is removed, the air conditioning filter assembly can be directly extracted during disassembly
or replacement.
6.5. Replacement or removal of internal components
After removing the iron mesh, activated carbon filter and air conditioning filter, screw down
the fixing screws at both ends of the air inlet and outlet holes, fix them with 6 screws at each
end, and then extract the whole part from one end of the air inlet (after removing the iron
mesh, air conditioning network and activated carbon filter, see the end of the fan).
6.6. Internal UV tube replacement or removal
To maintain the sterilizing efficacy, the UV tube needs to be replaced after 9,000 hours of
use, and the power/Tube Indicator will flesh.
After the components are pulled out as a whole, press down the black nylon sleeve at the
non plug-in end of the smooth tube (not close to the fan side), and pull out the smooth tube
in the downward direction.

www.goldenseauv.com
9
7. Troubleshooting Tips
7.1 What to do if the device doesn’t work?
1. Ensure the device is plugged into a working wall socket.
2. Ensure the plug is wired correctly and terminal well-connected.
3. If you still have issues with the device, please contact your local dealer or our customer
service for assistance.
7.2 How often should the UV tube be replaced?
1. The UV tube is the core of the product, it should be replaced after 9000 hours of use to
maintain the germicidal efficacy.
2. The UV tube is defected if it flashes, please contact your local dealer or our customer
service to order a new UV tube. For replacing the UV tube, please refer to the
instructions in this user manual.
3. After use for a period of time, it is normal to find some black spots on both sides of the
UV tube.
8. Features
Light Source
•Lamp:
TUV 36T5 HO 4P SE UNP/32 (PHILIPS)
•Extremely long Life: up to 9,000 H
Features
•Audio feedback
•Visual indicator lights
•Fan speed settings
•Infrared remote control
Product Type
Industrial Ultraviolet disinfection light
Weight
Net weight: 25.5 kg

www.goldenseauv.com
10
9. Cleaning and Maintenance
1. To ensure the device remains in good condition and does not fail prematurely, regular
maintenance, cleaning and checks are required.
2. For cleaning of the device, please use a lint-free cloth.
3. To avoid damage to the device, never use detergent or solvents.
4. Never spray insecticide towards the device, it can discolor or damaged.
5. Should you need any spare parts, please order genuine parts from your local dealer.
10.Service
For all service needs, please contact your local authorized dealer or GOLDENSEA
customer service. Our contact details are:
Email: [e-mail]
Tel: [phone]
Address: No.109 Haiyong Road, Shiji Town, Panyu Zone, Guangzhou, China. 511450
Errors and omissions for all information given in this user manual are expected.
All information is subject to change without prior notice.
