Goodman PC 13 SEER R-410A User manual

*PC 13 SEER R-410A
Package Air Conditioners
with R-410A
Copyright © 2008 - 2013 Goodman Manufacturing Company, L.P.
RT6322006r10
September2013
This manual is to be used by qualified, professionally trained HVAC technicians only.
Goodmandoesnotassumeanyresponsibilityforpropertydamageorpersonalinjury
duetoimproper service procedures or servicesperformedbyanunqualified person.
•RefertoServiceManualRS6300011(Horizontal)forinstallation,operation,
andtroubleshootinginformation.
•All safety information must be followed as provided in the Service Manual.
•Refer to the appropriate Parts Catalog for part number information.
•Modelslisted on page 3.
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL

PRODUCT IDENTIFICATION
2
GPC1324H41AA
PRODUCT
TYPE:
Package Unit
PRODUCT
FAMILY:
C: Cooling
PRODUCT
SERIES:
SEER Rating
BRAND:
G: Goodman®
Brand
A: Amana®
Brand
NOMINAL
CAPACITY
24: 24,000 BTUH
30: 30,000 BTUH
36: 36,000 BTUH
42: 42,000 BTUH
48: 48,000 BTUH
49: 48,000 BTUH
60: 60,000 BTUH
CONFIGURATION:
H: Horizontal
REFRIGERANT:
4: R-410A
VOLTAGE:
1: 208-230v
1ph/60Hz MINOR REVISION:
A: Initial Release
B: 2nd Minor Revision
C: 3rd Minor Revision
MAJOR REVISION:
A: Initial Release
B: 2nd Major Revision
C: 3rd Major Revision
D: 4th Major Revision
Themodelandmanufacturingnumber are used for positiveidentificationofcomponentpartsusedinmanufacturing. Please
usethesenumberswhenrequesting service or parts information.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Installation and repair of this unit
should be performed ONLY by in-
dividuals meeting (at a minimum)
the requirements of an "entry level technician" as speci-
fied by the Air-Conditioning, Heating, and Refrigeration
Institute (AHRI). Attempting to install or repair this unit
without such background may result in product damage,
personal injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or service procedures. If
you install or perform service on this unit, you assume
responsibility for any personal injury or property damage
which may result. Many jurisdictions require a license to
install or service heating and air conditioning equipment.
WARNING
WARNING WARNING
WARNING

PRODUCT IDENTIFICATION
3
Themodelandmanufacturingnumber are used for positiveidentificationofcomponentpartsusedinmanufacturing. Please
usethesenumberswhenrequesting service or parts information.
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
thatisnotdesigncertifiedbyGood-
man for use with this unit. Serious
property damage, personal injury, reduced unit perfor-
mance and/or hazardous conditions may result from the
use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materials or use gasoline or
other flammable liquids or vapors in the vicinity of this
appliance.
WARNING
WARNING
GPC1324H41AA
GPC1330H41AA
GPC1336H41AA
GPC1342H41AA
GPC1348H41BA
GPC1360H41BA
5MM
5 mm model specific
information begins
on page 28.

4
PRODUCT DESIGN
GPCPackageCoolingUnitsaredesignedforoutdoorinstal-
lations only in either residential or light commercial applica-
tions.
The connecting ductwork (Supply and Return) can be con-
nected for either horizontal or vertical airflow. In the vertical
applicationamatchingRoof Curb is recommended.
Areturn airfiltermustbeinstalledbehindthereturnairgrille(s)
or provision must be made for a filter in an accessible loca-
tionwithinthereturnairduct.Theminimumfilterareashould
not be less than those sizes listed in the Specification Sec-
tion. Under no circumstances should the unit be operated
withoutreturnair filters.
A3/4”PVCpipeisprovidedforremovalofcondensate water
from the indoor coil In order to provide proper condensate
flow, a drain trap is supplied and shipped loose inside the
unit for field installation. (Do not reduce the drain line size.)
Refrigerant flow control is achieved by use of restrictor ori-
fices. GPC units use the FasTest Access Fitting System
witha saddle that iseithersoldered to the suctionandliquid
lines or is fastened with a locking nut to the access fitting
box (core) and then screwed into the saddle. Do not re-
move the core from the saddle until the refrigerant
charge has been removed. Failure to do so could re-
sult in property damage or personal injury.
Thesinglephase units use permanent splitcapacitor(PSC)
designcompressors. Startingcomponentsarethereforenot
required for these units. A low microfarad run capacitor as-
sists the compressor to start and remains in the circuit dur-
ingoperation.
The outdoor fan and indoor blower motors are single phase
capacitortypemotorswiththeexceptionoftheGPC1360H41*
units which have EEM indoor blower motors that are ener-
gized by a 24V signal from the thermostat and are constant
torque motors with very low power consumption. The EEM
featuresanintegralcontrolmodule.
Air for condensing (cooling cycle) is drawn through the out-
door coil by a propeller fan, and is discharged vertically out
the top of the unit. The outdoor coil is designed for .0 static.
Noadditionalrestriction (ductwork) shall be applied.
Conditioned air is drawn through the filter(s), field installed,
across the coil and back into the conditioned space by the
indoorblower.
GPC1330-60H41*useCopelandScroll Compressors.
- Due to their design Scroll Compressors are inherently
moretolerantofliquidrefrigerant.NOTE:Eventhoughthe
compressorsectionofaScrollcompressorismoretoler-
ant of liquid refrigerant, continued floodback or flooded
start conditions may wash oil from the bearing surfaces
causingprematurebearingfailure.
- TheseScrollcompressorsuse"POE"orpolyolesteroilwhich
is NOT compatible with mineral oil based lubricants like
3GS. "POE" oil must be used if additional oil is required.
- Operatingpressures andampdrawsmaydifferfromstan-
dardreciprocatingcompressors. Thisinformationmaybe
foundinthe"Cooling Performance Data" section.
LocationandClearances
NOTE:To ensure proper condensate drainage, unit must be
installed in a level position.
36"
36"
10"
UNIT
WALL
36"
Outside Slab Installation - Horizontal (H)
Minimumclearancesarerequiredtoavoidairrecirculationand
keep the unit operating at peak efficiency.
36"
36"
24"
PLENUM
UNIT
PLATFORM
CURB
Rooftop Installation - Horizontal (H)

PRODUCT DESIGN
5
Ininstallationswheretheunit is installed above ground level
andnotserviceablefromthe ground (Example: Roof Top in-
stallations),theinstallermustprovideserviceplatform forser-
vicepersonwithrailsorguardsinaccordancewithlocalcodes
orordinancesorintheirabsencewiththelatestedition of the
UniformMechanicalCodeSection305.
NOTE: Unit can also use roof curb.
WARNING
TOPREVENT POSSIBLEPROPERTYDAMAGE, THE
UNIT SHOULD REMAIN IN AN UPRIGHT POSITION
DURINGALL RIGGING ANDMOVING OPERATIONS.
TO FACILITATE LIFTING AND MOVING IF A CRANE
ISUSED,PLACETHEUNITINANADEQUATECABLE
SLING.
Refer to Roof Curb Installation Instructions for proper curb
installation. Curbing must be installed in compliance with
theNationalRoofingContractors Association Manual.

6

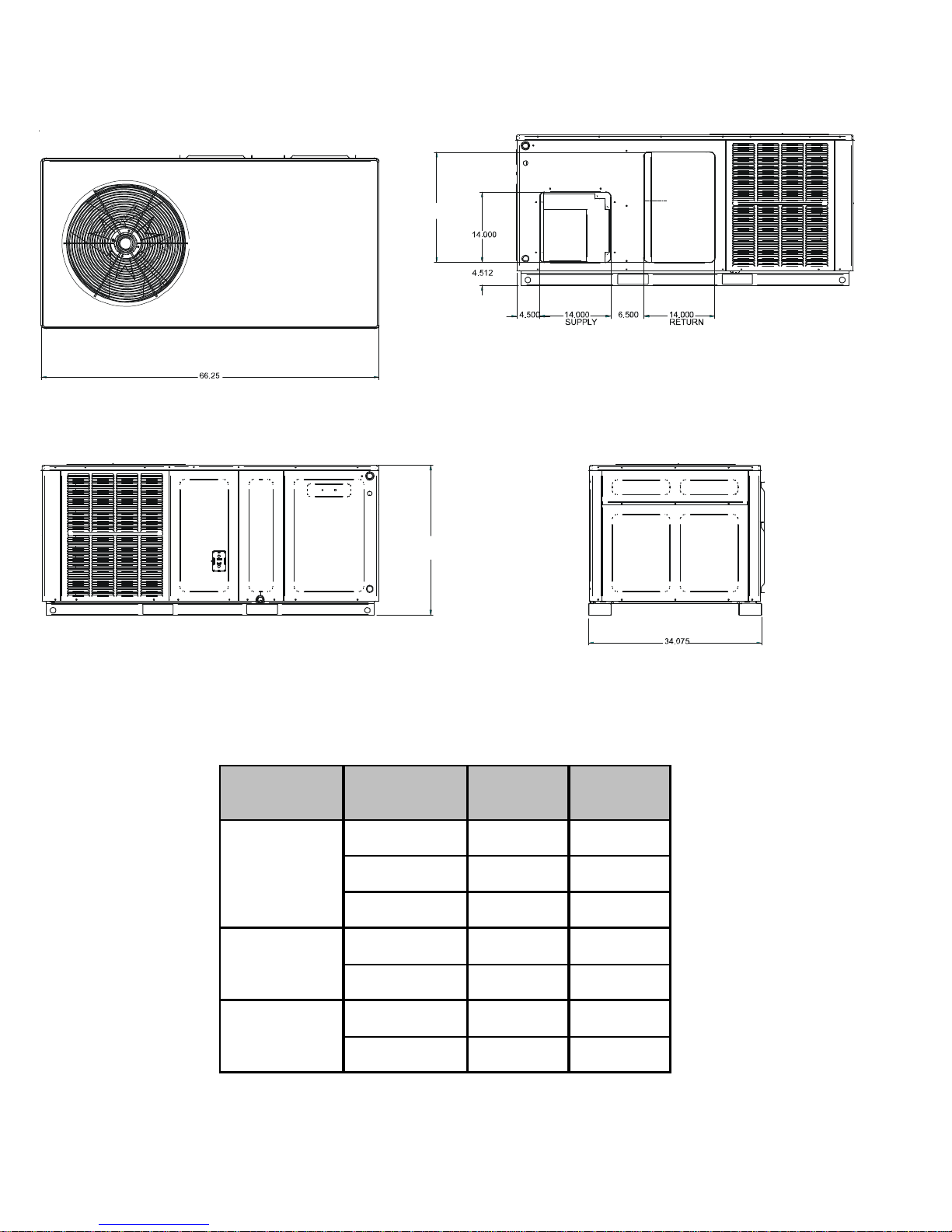

PRODUCT DIMENSIONS *PC13[24-60]H41**
BACK EW
(DUCT OPENINGS)
VI
A
B
Chassis Model A B
*PC1324 22 30
*PC1330 22 30
*PC1336 22 30
*PC1342 24 35
*PC1349 24 35
*PC1348 24 38 3/4
*PC1360 24 38 3/4
Dimensions in inches
Medium
Small
Large

ACCESSORIES
7
Part Number Description
OT18-60A OutdoorThermostatKitw/LockoutStat
OT/EHR18-60 EmergencyHeatRelayKit
HKR Electric Heat Kit
PCCP101-103 RoofCurb
PCP101-103 Downflow Plenum Kit
PCP101-103R8 Downflow Plenum Kit w/ R-8 Insulation
PCEC101-103 Downflow Economizerfor GPC-(H) A/C - To Be Used With PCP101-103
PCEH101-103 Downflow EconomizerforGPH-(H) HeatPump - To Be Used With PCP101-103
PCMD101-103 Manual Damper -To Be Used With PCP101-103
PCMDM101-103 Motorized Damper-To Be Used With PCP101-103
GPHMD101-103 Manual Damper forHorizontal Applications
SQRPCH101 Square to Round Adapters 16"&14"
SQRPCH102-103 Square to Round Adapters 18"&14"
SQRPC101 Square to Round Adapter -ForUse With PCCP101-103 Curb 16"Rounds
SQRPC102-103 Square to Round Adapter For Use With PCCP101-103 Curb 18"Rounds
PCFR101-103 External Horizontal Filter Rack
PCEF101-103 Elbow &Flashing w/R-8 Liner
CDK36 Flush Mount Concentric Duct Kit
CDK36515 Flush MountConcentric DuctKit w/ Filter
CDK36530 Step Down ConcentricDuctKit
CDK36535 Step Down ConcentricDuctKitw/Filter
CDK4872 Flush MountConcentric DuctKit
CDK4872515 Flush MountConcentric DuctKit w/ Filter
CDK4872530 Step Down ConcentricDuctKit
CDK4872535 Step Down ConcentricDuctKitw/Filter
SPK30-60 Single PointWiring Kit
ACCESSORIES - *PC/*PH****H UNITS
*PC13[24-60]H41**

8
PRODUCT DESIGN
ELECTRICAL DATA (*Blower Only, Heat Mode)
All wires and overcurrent protection devices are sized for use with electric heaters only and without
refrigeration. If heaters are not installed with above wire size, overheating and fire could occur. See
PACKAGE COOLING SPECIFICATIONS section for minimum circuit ampacity and maximum overcurrent
protection during refrigeration cycle.
IMPORTANT NOTE: A separate power supply is required for the HKR heater kit.
WARNINGWARNING
*PC13[24-60]H41**
Maximum Maximum
Overcurrent Overcurrent
Protection (amps) Protection (amps)
at 208 / 240V at 208 / 240V
*PC1324H41** -- -- -- --
HKR05*,C* 24 / 27 30 / 30 -- -- 4.75 / 16,200
HKR08*,C* 33 / 38 40 / 40 -- -- 7.0 / 23,800
HKR10*,C* 45 / 51 60 / 60 -- -- 9.5 / 32,400
*PC1330H41** 2.4 / 2.4 -- -- -- --
HKR05*,C* 24 / 27 30 / 30 -- -- 4.75 / 16,200
HKR08*,C* 34 / 39 40 / 40 -- -- 7.0 / 23,800
HKR10*,C* 45 / 52 60 / 60 -- -- 9.5 / 32,400
HKR15*,C* 45 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600
*PC1336H41** -- -- -- --
HKR05*,C* 24 / 27 30 / 30 -- -- 4.75 / 16,200
HKR08*,C* 34 / 39 40 / 40 -- -- 7.0 / 23,800
HKR10*,C* 45 / 52 60 / 60 -- -- 9.5 / 32,400
HKR15*,C* 45 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600
*PC1342H41** -- -- -- --
HKR05*,C* 25 / 27 30 / 30 -- -- 4.75 / 16,200
HKR08*,C* 34 / 39 40 / 40 -- -- 7.0 / 23,800
HKR10*,C* 46 / 52 60 / 60 -- -- 9.5 / 32,400
HKR15*,C* 46 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600
HKR20*,C* 46 / 52 60 / 60 43 / 49 60 / 60 19.5 / 66,500
*PC1348H41** -- -- -- --
HKR05*,C* 25 / 28 30 / 30 -- -- 4.75 / 16,200
HKR08*,C* 34 / 40 40 / 40 -- -- 7.0 / 23,800
HKR10*,C* 46 / 53 60 / 60 -- -- 9.5 / 32,400
HKR15*,C* 46 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600
HKR20*,C* 46 / 52 60 / 60 43 / 49 60 / 60 19.5 / 66,500
*PC1349H41** -- -- -- --
HKR05*,C* 25 / 28 30 / 30 -- -- 4.75 / 16,200
HKR08*,C* 34 / 40 40 / 40 -- -- 7.0 / 23,800
HKR10*,C* 46 / 53 60 / 60 -- -- 9.5 / 32,400
HKR15*,C* 46 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600
HKR20*,C* 46 / 52 60 / 60 43 / 49 60 / 60 19.5 / 66,500
*PC1360H41** -- -- -- --
HKR05*,C* 26 / 30 30 / 30 -- -- 4.75 / 16,200
HKR08*,C* 36 / 40 40 / 40 -- -- 7.0 / 23,800
HKR10*,C* 48 / 54 60 / 60 -- -- 9.5 / 32,400
HKR15*,C* 48 / 54 60 / 60 22 / 25 30 / 30 14.25 / 48,600
HKR20*,C* 48 / 54 60 / 60 43 / 49 60 / 60 19.5 / 66,500
Actual
kW & BTU
at240V
Minimum Circuit
Ampacity
at 208 / 240V
Minimum Circuit
Ampacity
at 208 / 240V
Model and
Heat Kit Usage
Circuit #1 Circuit #2

BLOWER PERFORMANCE DATA
9
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
CFM 680 640 590 555 505 440 340 -
WATTS 155 150 145 140 130 120 110 -
CFM 895 855 815 755 700 630 545 390
WATTS 230 220 215 205 195 180 170 145
CFM 1,185 1,130 1,070 1,010 930 850 760 650
WATTS 350 340 325 310 295 280 265 245
CFM 1,150 1,080 1,025 975 925 845 - -
WATTS 340 330 315 305 295 280 - -
CFM 1,335 1,275 1,205 1,135 1,075 985 910 845
WATTS 425 415 400 385 370 350 330 310
CFM 1,435 1,355 1,290 1,210 1,130 1,040 960 885
WATTS 485 465 455 435 415 400 385 370
CFM 1,180 1,125 1,075 1,020 955 875 655 -
WATTS 335 325 315 305 295 275 240 -
CFM 1,350 1,280 1,205 1,130 1,050 985 910 845
WATTS 435 420 405 385 375 350 330 310
CFM 1,450 1,370 1,290 1,205 1,130 1,040 960 885
WATTS 495 480 465 440 425 400 385 370
CFM 1,425 1,410 1,355 1,310 1,245 1,170 1,080 -
WATTS 450 445 430 420 405 390 370 -
CFM 1,620 1,595 1,545 1,485 1,425 1,345 1,250 1,160
WATTS 550 540 525 510 495 475 450 425
CFM 1,945 1,935 1,875 1,800 1,730 1,635 1,535 1,440
WATTS 765 755 735 715 695 670 640 615
CFM 1,425 1,410 1,355 1,310 1,245 1,170 1,080 -
WATTS 450 445 430 420 405 390 370 -
CFM 1,720 1,660 1,585 1,520 1,460 1,365 1,270 -
WATTS 560 555 540 530 520 490 470 -
CFM 2,110 2,060 1,980 1,895 1,795 1,705 1,590 1,500
WATTS 785 780 765 745 720 705 665 625
CFM 1,507 1,459 1,410 1,362 1,314 1,266 1,218 1,169
WATTS 168 175 183 191 199 207 214 222
CFM 1,694 1,646 1,598 1,549 1,501 1,453 1,405 1,357
WATTS 296 303 311 319 327 334 342 350
CFM 1,965 1,917 1,869 1,821 1,773 1,724 1,676 1,628
WATTS 481 489 496 504 512 520 528 535
*PC1360H41** *PC1348H41**
Low
Med
High
T2/T3
T4/T5
T1
*PC1336H41**
Low
Med
High
*PC1342H41** *PC1349H41**
Low
Med
High
E.S.P (In. of H2O)
*PC1324H41**
Low
Med
High
*PC1330H41**
Low
Med
High
230
230
230
230
Model Speed Volts
230
230
230
230
230
230
230
230
230
230
230
230
230
230
Dry Coil Data
NOTES:
1. Data shown is Dry Coil. Wet Coil Pressure Drop is approximate.
2. 0.1" H2O, for 2 row indoor coil; 0.2” H2O, for 3 row indoor coil; and 0.3” H2O, for 4 row indoor coil.
3. Datashown does not include filter pressure drop, approx. 0.08” H2O.
4. Reduceairflow by 2% for 208V operation.
*PC13[24-60]H41**

10
BLOWER PERFORMANCE DATA
30 40 50 60 70 80 90 110 120
100 130 140 150
100
90 80
70 60 50
40 30 20
10
OUTPUT BTU/HR x 1000

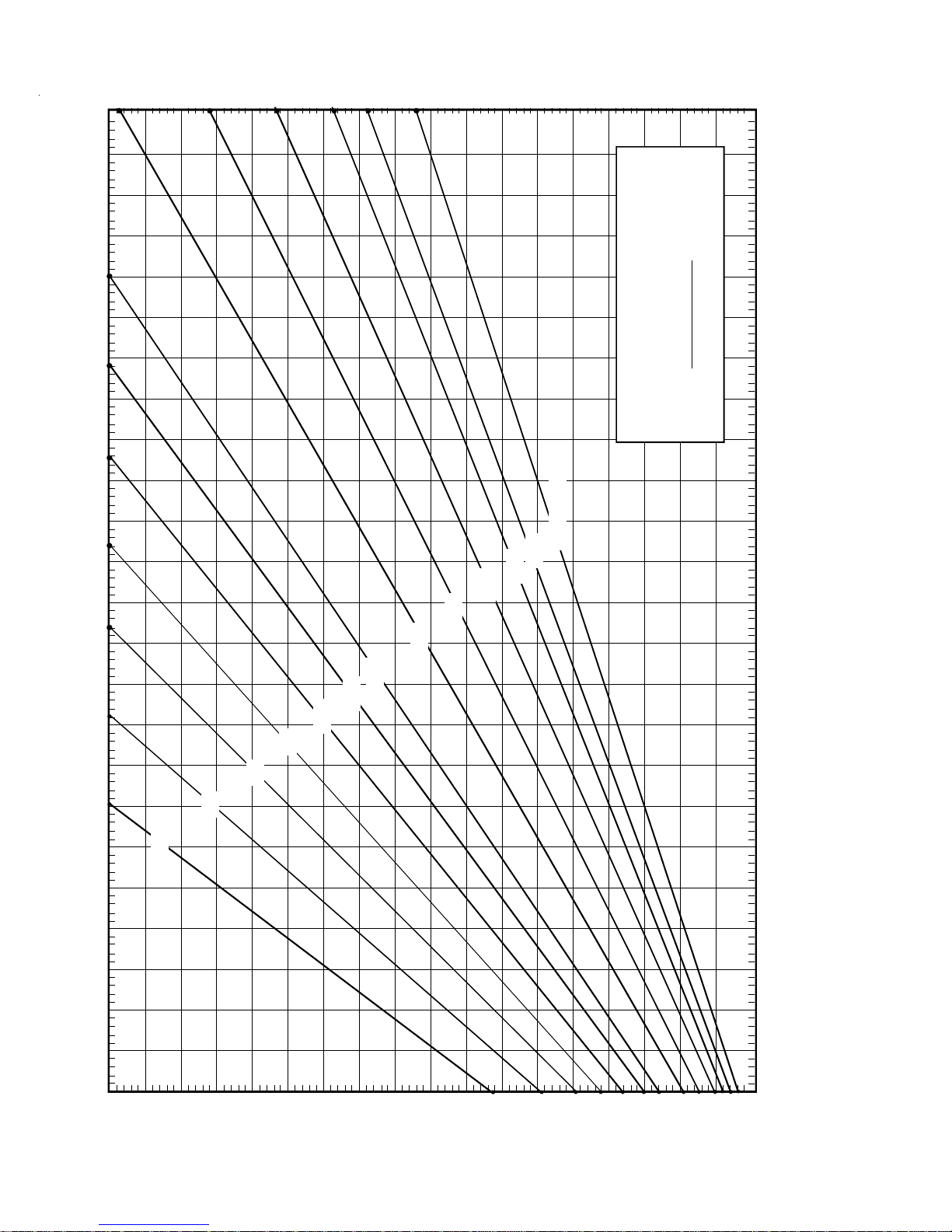

BTU OUTPUT vs TEMPERATURE RISE CHART
TEMPERATURE RISE
600 CFM
700
900
1000
1100
1200
1400
1600
1800
2000
2200
2400 CFM
FORMULAS
BTU OUTPUT = CFM x 1.08 x RISE
RISE = BTU OUTPUT
1.08 ÷ CFM
800
