Goodman SS-CPG180-240 User manual

SS-CPG180-240 www.goodmanmfg.com 4/12
Supersedes 2/12
15 Tons
Cooling CapaCiTy: 180,000 BTU/h
heaTing CapaCiTy: 350,000 BTU/h
Cpg CommerCial
15- & 20-Ton, Three-phase
paCkaged gas/eleCTriC UniTs
Contents
Nomenclature ....................................................................2
Product Features ...............................................................3
Product Specications .......................................................4
Airow Data ....................................................................... 6
Expanded Cooling Data .....................................................8
Dimensions ......................................................................12

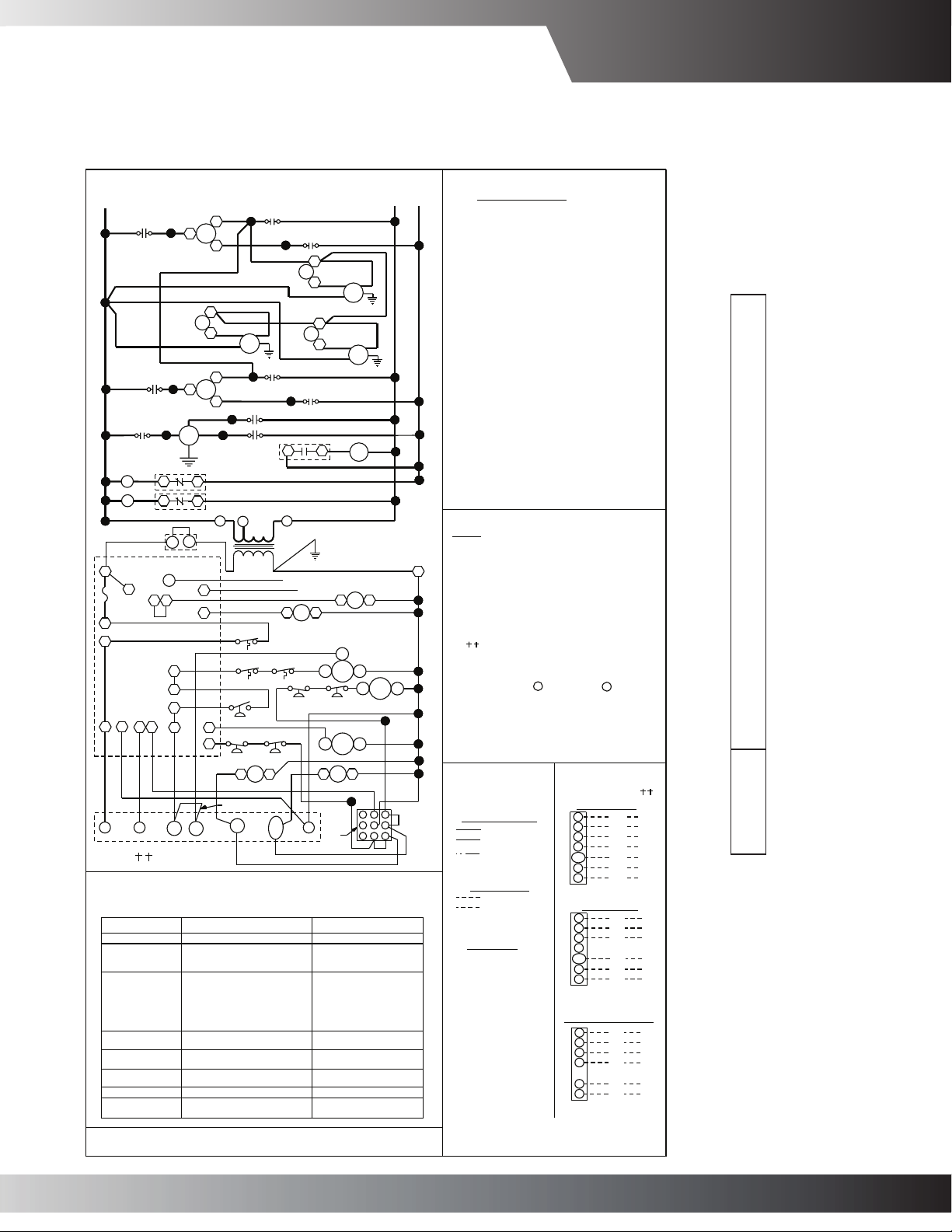

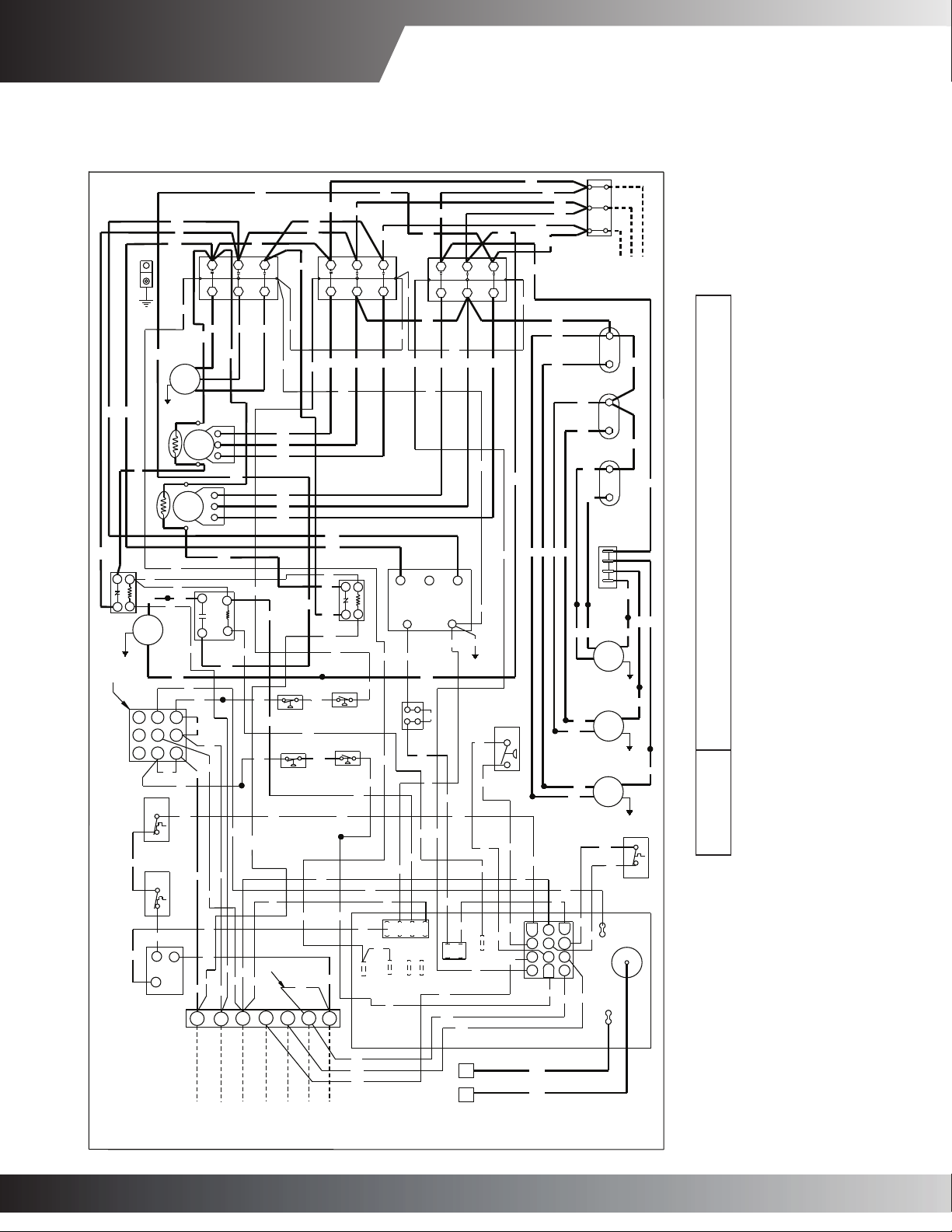

Wiring Diagrams .............................................................16
Accessories .......................................................................20
* Complete warranty details available from your local dealer or at www.goodmanmfg.com.
draFT
20 Tons
Cooling CapaCiTy: 240,000 BTU/h
heaTing CapaCiTy: 400,000 BTU/h

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
2 www.goodmanmfg.com SS-CPG180-240
nomenClaTUre
    

      
           
RevisionLevels

Brand FactoryInstalledOp7ons
  

 
Configura7on
 
  
 
Applica7on 
   
  
 
FactoryInstalledOp7ons
NominalGrossCoolingCapacity 
     
     
    
    
    
 
NominalHea7ngCapacity 
CPG CPC/CPH(FactoryInstalledElectricHeat) 
     
   

  
   

  
   

 
   


   

 FactoryInstalledOp7ons
   

  
 
Voltage SupplyFan/DriveType/Motors


   


  

 

FactoryInstalledOp7ons



 
 


 
 

 

 

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
SS-CPG180-240 www.goodmanmfg.com 3
Standard Features
• R-410A chlorine-free refrigerant
• TuffTube™ tubular heat exchanger
• High-efciency scroll compressor
• Copper tube / aluminum n coils
• High- and low-pressure switches
• High-capacity, steel-cased lter dryer
• Built-in lter rack with standard 2” lters
(convertible to 4” lters)
• 24-volt terminal strip
• Contactor with lugs
• Easy to service
• Bottom utility entry
• Complies with California NOx
emissions standards
• AHRI Certied; ETL Listed
Cabinet Features
• Heavy-gauge, galvanized-steel cabinet
with UV-resistant powder-paint nish
• Condenser Hail Guards
• Full Perimeter Rail
• Sloped drain pan
prodUCT FeaTUres

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
4 www.goodmanmfg.com SS-CPG180-240
prodUCT speCiFiCaTions —15 Tons
CPG180
3503B***B*
CPG180
3504B***B*
CPG180
3507B***B*
Cooling Capacity
Total, BTU/h 180,000 180,000 180,000
Sensible BTU/h 127,500 127,500 127,500
EER / IEER 10.8 / 11.0 10.8 / 11.0 10.8 / 11.0
Decibels 88 88 88
AHRI Reference #s 5197871 5197871 5197871
Heating Capacity
High Input / Output (KBTU/h) 350 / 280 350 / 280 350 / 280
Low Input / Output (KBTU/h) 262.5 / 210 262.5 / 210 262.5 / 210
Steady State Eciency (%) 80 80 80
Temperature Rise Range (°F) High/Low 30-60 / 20-50 30-60 / 20-50 30-60 / 20-50
No. of Burners 7 7 7
Evaporator Motor / Coil
Motor Type (Belt Drive) Std Stac Std Stac Std Stac
Indoor Nominal CFM 5,400 5,400 5,400
Indoor Motor FLA (Cooling) 12.7 6.4 5.1
Horsepower - RPM 5.0 - 1,725 5.0 - 1,725 5.0 - 1,725
Metering Device TXV TXV TXV
Filter Size (#) 20 x 25 x 2 (6) 20 x 25 x 2 (6) 20 x 25 x 2 (6)
Drain Size (NPT) 1" 1" 1"
R-410A Refrigerant Charge Cir #1 186.2 186.2 186.2
R-410A Refrigerant Charge Cir #2 170.8 170.8 170.8
Evaporator Coil Face Area (²) 20 20 20
Rows Deep / Fins per Inch 4 / 16 4 / 16 4 / 16
Belt Drive Evap Fan Data
# of Wheels (D x W) 2 (15" x 12") 2 (15" x 12") 2 (15" x 12")
Motor Sheave 1VP50 x 1⅛" 1VP50 x 1⅛" 1VP50 x 1⅛"
Blower Sheave / Belt BK90 x 1³/₁₆" / BX42 BK90 x 1³/₁₆" / BX42 BK90 x 1³/₁₆" / BX42
Condenser Fan / Coil
Quanty of Condenser Fan Motors 333
Horsepower - RPM ⅓ - 1,075 ⅓ - 1,075 ⅓ - 1,075
Fan Diameter / # Fan Blades 22 / 3 22 / 3 22 / 3
Outdoor Nominal CFM 7,200 7,200 7,200
Face Area (²) 53.3 53.3 53.3
Rows Deep / Fins per Inch 2 / 27 2 / 27 2 / 27
Compressor
Quanty / Type 2 / Scroll 2 / Scroll 2 / Scroll
Compressor RLA / LRA CIR. #1 25 / 164 12.2 / 100 9.0 / 78
Compressor RLA / LRA CIR. #2 25 / 164 12.2 / 100 9.0 / 78
Electrical Data / Static
Voltage / Phase / Frequency 208-230/3/60 460/3/60 575/3/60
Standard Max Stac 1.2 1.2 1.2
Outdoor Fan FLA / LRA 2.4 / 5.2 1.2 / 2.6 .9 / 2.2
Total Unit Amps 69.9 34.4 25.8
Min. Circuit Ampacity¹ 76 38 28
Max. Overcurrent Protecon (amps)² 100 45 35
Entrance Power Supply 2⅛" 2⅛" 2⅛"
Entrance Control Voltage ⅞" ⅞" ⅞"
Operating Weight (lbs) 2083 2083 2083
Ship Weight (lbs) 2198 2198 2198
¹ Wire size should be determined in accordance with Naonal Electrical Codes. Extensive wire runs will require larger wire sizes.
² May use fuses or HACR-type circuit breakers of the same size as noted.
Note: Always check the S&R plate for electrical data on the unit being installed.

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
SS-CPG180-240 www.goodmanmfg.com 5
prodUCT speCiFiCaTions —20 Tons
CPG240
4003B***B*
CPG240
4004B***B*
CPG240
4007B***B*
Cooling Capacity
Total, BTU/h 240,000 240,000 240,000
Sensible BTU/h 170,000 170,000 170,000
EER / IEER 9.8 / 10.0 9.8 / 10.0 9.8 / 10.0
Decibels 88.3 88.3 88.3
AHRI Reference #s 5327364 5327364 5327364
Heating Capacity
High Input / Output (KBTU/h) 400 / 320 400 / 320 400 / 320
Low Input / Output (KBTU/h) 300 / 240 300 / 240 300 / 240
Steady State Eciency (%) 80 80 80
Temperature Rise Range (°F) High/Low 25-55 / 15-45 25-55 / 15-45 25-55 / 15-45
No. of Burners 8 8 8
Evaporator Motor / Coil
Motor Type (Belt Drive) Std Stac Belt Drive Std Stac Belt Drive Std Stac Belt Drive
Indoor Nominal CFM 7,000 7,000 7,000
Indoor Motor FLA (Cooling) 12.7 6.4 5.1
Horsepower - RPM 5.0 - 1,725 5.0 - 1,725 5.0 - 1,725
Metering Device TXV TXV TXV
Filter Size (#) 25 x 25 x 2 (6) 25 x 25 x 2 (6) 25 x 25 x 2 (6)
Drain Size (NPT) 1" 1" 1"
R-410A Refrigerant Charge Cir #s 1 & 2 200 ozs. 200 ozs. 200 ozs.
Evaporator Coil Face Area (²) 20 20 20
Rows Deep / Fins per Inch 4 / 16 4 / 16 4 / 16
Belt Drive Evap Fan Data
# of Wheels (D x W) 2 (15" x 15") 2 (15" x 15") 2 (15" x 15")
Motor Sheave 1VP60 x 1⅛" 1VP60 x 1⅛" 1VP60 x 1⅛"
Blower Sheave / Belt BK100 x ⁷/₁₆" / BX46 BK100 x ⁷/₁₆" / BX46 BK100 x ⁷/₁₆" / BX46
Condenser Fan / Coil
Quanty of Condenser Fan Motors 333
Horsepower - RPM ⅓ - 1,075 ⅓ - 1,075 ⅓ - 1,075
Fan Diameter / # Fan Blades 22 / 3 22 / 3 22 / 3
Outdoor Nominal CFM 7,200 7,200 7,200
Face Area (²) 53.3 53.3 53.3
Rows Deep / Fins per Inch 2 / 27 2 / 27 2 / 27
Compressor
Quanty / Type 2 / Scroll 2 / Scroll 2 / Scroll
Compressor RLA / LRA ea. 33.3 / 239 17.9 / 125 12.8 / 80
Electrical Data / Static
Voltage / Phase / Frequency 208-230/3/60 460/3/60 575/3/60
Standard Max Stac 1.4 1.4 1.4
Outdoor Fan FLA / LRA 2.4 / 5.2 1.2 / 2.6 .9 / 2.2
Total Unit Amps 86.5 45.8 33.4
Min. Circuit Ampacity¹ 95 50 37
Max. Overcurrent Protecon (amps)² 125 60 45
Entrance Power Supply 2⅛" 2⅛" 2⅛"
Entrance Control Voltage ⅞" ⅞" ⅞"
Operating Weight (lbs) 2242 2242 2242
Ship Weight (lbs) 2357 2357 2357
¹ Wire size should be determined in accordance with Naonal Electrical Codes. Extensive wire runs will require larger wire sizes.
² May use fuses or HACR-type circuit breakers of the same size as noted.
Note: Always check the S&R plate for electrical data on the unit being installed.

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
6 www.goodmanmfg.com SS-CPG180-240
airFlow daTa —15 Tons
Standard Belt Drive ― Down Shot
ESP
(" H₂O)
Turns Open
0123456
CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP
0.2 0.00 6827 2.67 6394 2.28 5982 1.94
0.4 7079 3.20 6623 2.76 6161 2.34 5706 1.98 5271 1.66
0.6 6903 3.32 6405 2.83 5923 2.41 5434 2.02 4949 1.68
0.8 6717 3.42 6198 2.92 5668 2.45 5152 2.05
1.0 5975 2.99 5418 2.51
1.2 5147 2.55
High-Static Belt Drive ― Down Shot
ESP
(" H₂O)
Turns Open
0123456
CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP
1.0 6690 3.69 6008 3.02 5321 2.43
1.2 6653 3.95 5922 3.22 5182 2.58
1.4 6634 2.80 5857 3.44 5056 2.74
1.6 6638 4.55 5808 2.43 4948 2.91
1.8 6683 4.93 5784 3.95 4855 2.05
2.0 5803 4.27 4788 3.32
Notes
• Airow table represent dry coil with lters installed; SCFM correcon factor for wet coil is 4%.
• Any adjustment made to the blower should not cause the motor to draw more than the motor rated RLA. Applicaon that exceed the above could require a
larger motor. Minimum rated SCFM is 350 per ton.
• High-stac airow requires installaon of high kit (HSKT180G) or factory-built high-stac model.
• Unit factory shipped with the sheave set at 2.5 turns open.

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
SS-CPG180-240 www.goodmanmfg.com 7
airFlow daTa —20 Tons
Standard Belt Drive ― Down Shot
ESP
(" H₂O)
Turns Open
0123456
CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP
0.2 9359 4.92 8991 3.79 8621 3.54 8188 3.27 7826 3.04
0.4 9018 3.18 8632 4.39 8251 3.39 7867 3.15 7363 2.85 6992 2.63
0.6 8279 2.96 7879 3.86 7484 2.99 7085 2.75
0.8 7957 4.82 7513 2.73 7097 3.35
1.0 7179 4.23 6716 2.49
1.2 6368 3.66
High-Static Belt Drive ― Down Shot
ESP
(" H₂O)
Turns Open
0123456
CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP CFM BHP
1.0 9001 6.83 8394 6.01 7797 4.78 7227 4.28
1.2 8891 6.83 8262 6.15 7632 5.35 7012 4.20
1.4 8811 6.86 8148 6.15 7495 5.48 6841 4.71
1.6 8065 6.19 7377 5.48
1.8 7998 6.89 7290 5.52
2.0 7221 6.10
Notes
• Airow table represent dry coil with lters installed; SCFM correcon factor for wet coil is 4%.
• Any adjustment made to the blower should not cause the motor to draw more than the motor rated RLA. Applicaon that exceed the above could require a
larger motor. Minimum rated SCFM is 350 per ton.
• High-stac airow requires installaon of high kit (HSKT240) or factory-built high-stac model.
• Unit factory shipped with the sheave set at 2.5 turns open.

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
8 www.goodmanmfg.com SS-CPG180-240
expanded Cooling daTa —15 Tons
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
70
6075
MBh 176.4 182.8 200.3 - 172.3 178.6 195.6 - 168.2 174.3 191.0 - 164.1 170.1 186.3 - 155.9 161.6 177.0 - 144.4 149.7 164.0 -
S/T 0.71 0.59 0.41 - 0.74 0.62 0.43 - 0.76 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.68 0.47 - 0.82 0.68 0.47 -
∆T 19 16 12 - 19 17 13 - 19 17 13 - 19 17 13 - 19 17 13 - 18 15 12 -
HI PR 234 252 266 - 262 282 298 - 298 321 339 - 340 366 386 - 382 411 434 - 422 454 480 -
LO PR 102 109 119 - 108 115 126 - 112 120 131 - 118 126 137 - 124 132 144 - 128 136 149 -
5400
MBh 171.2 177.5 194.5 - 167.3 173.4 189.9 - 163.3 169.2 185.4 - 159.3 165.1 180.9 - 151.3 156.9 171.9 - 140.2 145.3 159.2 -
S/T 0.68 0.57 0.39 - 0.70 0.59 0.41 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.65 0.45 - 0.78 0.65 0.45 -
∆T 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 19 16 12 -
HI PR 231 249 263 - 260 279 295 - 295 318 336 - 336 362 382 - 378 407 430 - 418 450 475 -
LO PR 101 108 118 - 107 114 124 - 111 118 129 - 117 124 136 - 122 130 142 - 127 135 147 -
4320
MBh 158.1 163.8 179.5 - 154.4 160.0 175.3 - 150.7 156.2 171.1 - 147.0 152.4 167.0 - 139.7 144.8 158.6 - 129.4 134.1 146.9 -
S/T 0.65 0.55 0.38 - 0.68 0.57 0.39 - 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.75 0.63 0.43 -
∆T 22 19 14 - 22 19 15 - 22 19 15 - 22 19 15 - 22 19 15 - 21 18 14 -
HI PR 224 242 255 - 252 271 286 - 286 308 326 - 326 351 371 - 367 395 417 - 406 436 461 -
LO PR 98 105 114 - 104 110 121 - 108 115 125 - 113 121 132 - 119 126 138 - 123 131 143 -
75
6075
MBh 179.4 184.7 199.9 214.5 175.2 180.4 195.3 209.6 171.0 176.1 190.6 204.6 166.9 171.8 186.0 199.6 158.5 163.2 176.7 189.6 146.8 151.2 163.6 175.6
S/T 0.81 0.72 0.55 0.35 0.84 0.75 0.57 0.37 0.86 0.77 0.58 0.37 0.89 0.79 0.60 0.39 0.92 0.82 0.62 0.40 0.93 0.83 0.63 0.40
∆T 22 20 17 11 22 20 17 12 22 20 17 12 22 21 17 12 22 20 17 12 21 19 16 11
HI PR 236 254 268 280 265 285 301 314 301 324 342 357 343 369 390 407 386 415 439 458 427 459 485 506
LO PR 103 110 120 128 109 116 127 135 114 121 132 140 119 127 138 147 125 133 145 155 129 138 150 160
5400
MBh 174.2 179.3 194.1 208.3 170.1 175.1 189.6 203.5 166.1 171.0 185.1 198.6 162.0 166.8 180.5 193.8 153.9 158.5 171.5 184.1 142.6 146.8 158.9 170.5
S/T 0.77 0.69 0.52 0.34 0.80 0.71 0.54 0.35 0.82 0.73 0.55 0.36 0.85 0.76 0.57 0.37 0.88 0.79 0.59 0.38 0.89 0.79 0.60 0.39
∆T 23 21 17 12 23 21 17 12 23 21 17 12 23 21 18 12 23 21 17 12 21 20 16 11
HI PR 234 252 266 277 262 282 298 311 298 321 339 354 340 366 386 403 382 411 434 453 422 454 480 501
LO PR 102 109 119 127 108 115 126 134 112 120 131 139 118 126 137 146 124 132 144 153 128 136 149 158
4320
MBh 160.7 165.5 179.1 192.3 157.0 161.6 175.0 187.8 153.3 157.8 170.8 183.3 149.5 154.0 166.6 178.8 142.0 146.3 158.3 169.9 131.6 135.5 146.6 157.4
S/T 0.74 0.67 0.50 0.32 0.77 0.69 0.52 0.34 0.79 0.71 0.53 0.34 0.82 0.73 0.55 0.36 0.85 0.76 0.57 0.37 0.85 0.76 0.58 0.37
∆T 25 23 19 13 26 24 19 13 26 24 19 13 26 24 20 14 26 24 19 13 24 22 18 12
HI PR 227 244 258 269 254 274 289 302 289 311 329 343 330 355 375 391 371 399 421 439 410 441 466 486
LO PR 99 106 115 123 105 112 122 130 109 116 127 135 115 122 133 142 120 128 139 148 124 132 144 154
IDB: Entering Indoor Dry Bulb Temperature Shaded area reects ACCA (TVA) conditions High and low pressures are measured at the liquid and suction access ttings.

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
SS-CPG180-240 www.goodmanmfg.com 9
expanded Cooling daTa —15 Tons (ConT.)
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
80
6075
MBh 182.6 186.5 199.3 213.1 178.3 182.2 194.7 208.1 174.1 177.9 190.0 203.1 169.8 173.5 185.4 198.2 161.3 164.9 176.1 188.3 149.4 152.7 163.2 174.4
S/T 0.89 0.83 0.68 0.51 0.92 0.86 0.70 0.52 0.94 0.88 0.72 0.54 1.00 0.91 0.74 0.56 1.00 0.95 0.77 0.58 1.00 0.95 0.78 0.58
∆T 25 23 20 16 25 24 21 17 25 24 21 17 26 24 21 17 24 24 21 16 23 22 19 15
HI PR 238 257 271 283 268 288 304 317 304 328 346 361 347 373 394 411 390 420 443 462 431 464 490 511
LO PR 104 111 121 129 110 117 128 136 115 122 133 142 120 128 140 149 126 134 147 156 131 139 152 161
5400
MBh 177.2 181.1 193.5 206.9 173.1 176.9 189.0 202.0 169.0 172.7 184.5 197.2 164.9 168.5 180.0 192.4 156.6 160.1 171.0 182.8 145.1 148.3 158.4 169.3
S/T 0.85 0.79 0.65 0.48 0.88 0.82 0.67 0.50 0.90 0.84 0.69 0.51 0.93 0.87 0.71 0.53 0.96 0.90 0.74 0.55 0.97 0.91 0.74 0.55
∆T 26 24 21 17 26 25 22 17 26 25 22 17 26 25 22 17 26 25 21 17 24 23 20 16
HI PR 236 254 268 280 265 285 301 314 301 324 342 357 343 369 390 407 386 415 439 458 427 459 485 506
LO PR 103 110 120 128 109 116 127 135 114 121 132 140 119 127 139 148 125 133 145 155 129 138 150 160
4320
MBh 163.6 167.2 178.6 190.9 159.8 163.3 174.4 186.5 156.0 159.4 170.3 182.0 152.2 155.5 166.1 177.6 144.6 147.7 157.8 168.7 133.9 136.8 146.2 156.3
S/T 0.82 0.76 0.62 0.47 0.85 0.79 0.65 0.48 0.87 0.81 0.66 0.49 0.89 0.84 0.68 0.51 0.93 0.87 0.71 0.53 0.94 0.88 0.71 0.53
∆T 28 27 24 19 29 28 24 19 29 28 24 19 29 28 24 19 29 27 24 19 27 26 22 18
HI PR 229 246 260 271 257 277 292 305 292 315 332 346 333 358 378 395 375 403 426 444 414 445 470 490
LO PR 100 107 116 124 106 113 123 131 110 117 128 136 116 123 134 143 121 129 141 150 125 133 146 155
85
6075
MBh 185.8 189.3 198.3 211.6 181.4 184.9 193.7 206.6 177.1 180.5 189.1 201.7 172.8 176.1 184.5 196.8 164.2 167.3 175.2 187.0 152.1 155.0 162.3 173.2
S/T 0.93 0.90 0.81 0.66 0.96 0.93 0.84 0.68 0.99 0.95 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.93 0.75
∆T 26 26 24 21 26 26 25 21 26 26 25 21 26 26 25 21 25 25 24 21 23 23 23 20
HI PR 241 259 274 285 270 291 307 320 307 331 349 364 350 377 398 415 394 424 448 467 435 468 495 516
LO PR 105 112 122 130 111 119 129 138 116 123 135 143 122 129 141 150 127 136 148 158 132 140 153 163
5400
MBh 180.3 183.8 192.5 205.4 176.1 179.6 188.1 200.6 172.0 175.3 183.6 195.8 167.8 171.0 179.1 191.1 159.4 162.5 170.1 181.5 147.6 150.5 157.6 168.1
S/T 0.89 0.86 0.77 0.63 0.92 0.89 0.80 0.65 0.94 0.91 0.82 0.67 0.97 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 0.98 0.89 0.72
∆T 27 27 25 22 28 27 26 22 28 27 26 22 28 27 26 22 27 27 25 22 25 25 24 21
HI PR 238 257 271 283 268 288 304 317 304 328 346 361 347 373 394 411 390 420 443 462 431 464 490 511
LO PR 104 111 121 129 110 117 128 136 115 122 133 142 120 128 140 149 126 134 147 156 131 139 152 161
4320
MBh 166.5 169.7 177.7 189.6 162.6 165.7 173.6 185.2 158.7 161.8 169.4 180.8 154.8 157.8 165.3 176.4 147.1 149.9 157.0 167.5 136.3 138.9 145.5 155.2
S/T 0.86 0.83 0.74 0.60 0.89 0.86 0.77 0.63 0.91 0.88 0.79 0.64 0.94 0.91 0.82 0.66 0.97 0.94 0.85 0.69 0.98 0.95 0.85 0.69
∆T 30 30 28 24 31 30 29 25 31 30 29 25 31 30 29 25 30 30 28 25 28 28 26 23
HI PR 231 249 263 274 260 279 295 308 295 318 335 350 336 362 382 399 378 407 430 448 418 450 475 495
LO PR 101 108 118 125 107 114 124 132 111 118 129 138 117 124 136 145 122 130 142 151 127 135 147 157
IDB: Entering Indoor Dry Bulb Temperature Shaded area reects AHRI (TVA) conditions High and low pressures are measured at the liquid and suction access ttings.

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
10 www.goodmanmfg.com SS-CPG180-240
expanded Cooling daTa —20 Tons
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
70
7875
MBh 235.2 243.8 267.1 - 229.7 238.1 260.9 - 224.2 232.4 254.6 - 218.8 226.8 248.4 - 207.8 215.4 236.0 - 192.5 199.5 218.6 -
S/T 0.71 0.59 0.41 - 0.74 0.62 0.43 - 0.76 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.68 0.47 - 0.82 0.68 0.47 -
∆T 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 20 17 13 - 18 16 12 -
HI PR 268 289 305 - 301 324 342 - 343 369 389 - 390 420 443 - 439 472 499 - 485 522 551 -
LO PR 99 105 115 - 105 111 121 - 109 116 126 - 114 121 133 - 120 127 139 - 124 132 144 -
7000
MBh 228.3 236.7 259.3 - 223.0 231.2 253.3 - 217.7 225.7 247.2 - 212.4 220.1 241.2 - 201.8 209.1 229.1 - 186.9 193.7 212.3 -
S/T 0.68 0.57 0.39 - 0.70 0.59 0.41 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.65 0.45 - 0.78 0.65 0.45 -
∆T 20 18 13 - 21 18 14 - 21 18 14 - 21 18 14 - 20 18 13 - 19 17 13 -
HI PR 266 286 302 - 298 321 339 - 339 365 385 - 386 416 439 - 435 468 494 - 480 517 546 -
LO PR 98 104 114 - 104 110 120 - 108 115 125 - 113 120 131 - 118 126 138 - 123 130 142 -
5600
MBh 210.7 218.4 239.3 - 205.8 213.4 233.8 - 200.9 208.3 228.2 - 196.0 203.2 222.6 - 186.2 193.0 211.5 - 172.5 178.8 195.9 -
S/T 0.65 0.55 0.38 - 0.68 0.57 0.39 - 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.75 0.63 0.43 -
∆T 23 20 15 - 23 20 15 - 23 20 15 - 23 20 15 - 23 20 15 - 21 18 14 -
HI PR 258 277 293 - 289 311 329 - 329 354 374 - 375 403 426 - 422 454 479 - 466 501 529 -
LO PR 95 101 110 - 100 107 117 - 104 111 121 - 110 117 127 - 115 122 133 - 119 126 138 -
75
7875
MBh 239.2 246.2 266.5 286.1 233.6 240.5 260.3 279.4 228.0 234.8 254.1 272.8 222.5 229.1 247.9 266.1 211.4 217.6 235.5 252.8 195.8 201.6 218.2 234.2
S/T 0.81 0.72 0.55 0.35 0.84 0.75 0.57 0.37 0.86 0.77 0.58 0.37 0.89 0.79 0.60 0.39 0.92 0.82 0.62 0.40 0.93 0.83 0.63 0.40
∆T 23 21 17 12 23 21 17 12 23 21 17 12 23 21 17 12 23 21 17 12 21 20 16 11
HI PR 271 292 308 321 304 327 346 361 346 372 393 410 394 424 448 467 443 477 504 526 490 527 557 581
LO PR 100 106 116 124 106 112 123 131 110 117 128 136 115 123 134 143 121 129 140 150 125 133 145 155
7000
MBh 232.2 239.1 258.8 277.7 226.8 233.5 252.8 271.3 221.4 228.0 246.7 264.8 216.0 222.4 240.7 258.4 205.2 211.3 228.7 245.4 190.1 195.7 211.8 227.4
S/T 0.77 0.69 0.52 0.34 0.80 0.71 0.54 0.35 0.82 0.73 0.55 0.36 0.85 0.76 0.57 0.37 0.88 0.79 0.59 0.38 0.89 0.79 0.60 0.39
∆T 24 22 18 12 24 22 18 12 24 22 18 12 24 22 18 13 24 22 18 12 22 20 17 12
HI PR 269 289 305 318 301 324 342 357 343 369 389 406 390 420 444 463 439 473 499 520 485 522 551 575
LO PR 99 105 115 122 105 111 122 129 109 116 126 135 114 122 133 141 120 127 139 148 124 132 144 153
5600
MBh 214.3 220.7 238.8 256.3 209.3 215.5 233.3 250.4 204.4 210.4 227.7 244.4 199.4 205.3 222.2 238.5 189.4 195.0 211.1 226.5 175.4 180.6 195.5 209.8
S/T 0.74 0.67 0.50 0.32 0.77 0.69 0.52 0.34 0.79 0.71 0.53 0.34 0.82 0.73 0.55 0.36 0.85 0.76 0.57 0.37 0.85 0.76 0.58 0.37
∆T 26 24 20 14 26 24 20 14 27 24 20 14 27 25 20 14 26 24 20 14 25 23 19 13
HI PR 260 280 296 309 292 315 332 346 332 358 378 394 379 407 430 449 426 458 484 505 471 506 535 558
LO PR 96 102 112 119 101 108 118 126 105 112 123 130 111 118 129 137 116 124 135 144 120 128 139 149
IDB: Entering Indoor Dry Bulb Temperature Shaded area reects ACCA (TVA) conditions High and low pressures are measured at the liquid and suction access ttings.

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
SS-CPG180-240 www.goodmanmfg.com 11
expanded Cooling daTa —20 Tons (ConT.)
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
80
7875
MBh 243.4 248.7 265.7 284.1 237.8 242.9 259.6 277.5 232.1 237.2 253.4 270.9 226.4 231.4 247.2 264.3 215.1 219.8 234.8 251.0 199.3 203.6 217.5 232.5
S/T 0.89 0.83 0.68 0.51 0.92 0.86 0.70 0.52 0.94 0.88 0.72 0.54 1.00 0.91 0.74 0.56 1.00 0.95 0.77 0.58 1.00 0.95 0.78 0.58
∆T 25 24 21 17 26 24 21 17 26 24 21 17 26 25 21 17 25 24 21 17 23 23 20 16
HI PR 274 295 311 325 307 331 349 364 350 376 397 414 398 428 452 472 448 482 509 531 495 533 562 587
LO PR 101 107 117 125 107 114 124 132 111 118 129 137 117 124 135 144 122 130 142 151 126 134 147 156
7000
MBh 236.3 241.5 258.0 275.8 230.8 235.9 252.0 269.4 225.3 230.3 246.0 263.0 219.8 224.6 240.0 256.6 208.8 213.4 228.0 243.7 193.5 197.7 211.2 225.8
S/T 0.85 0.79 0.65 0.48 0.88 0.82 0.67 0.50 0.90 0.84 0.69 0.51 0.93 0.87 0.71 0.53 0.96 0.90 0.74 0.55 0.97 0.91 0.74 0.55
∆T 26 25 22 17 27 25 22 18 27 25 22 18 27 26 22 18 26 25 22 18 25 24 21 16
HI PR 271 292 308 321 304 328 346 361 346 372 393 410 394 424 448 467 444 477 504 526 490 527 557 581
LO PR 100 106 116 124 106 112 123 131 110 117 128 136 115 123 134 143 121 129 140 150 125 133 145 155
5600
MBh 218.1 222.9 238.1 254.6 213.1 217.7 232.6 248.6 208.0 212.5 227.1 242.7 202.9 207.3 221.5 236.8 192.8 197.0 210.4 225.0 178.6 182.5 194.9 208.4
S/T 0.82 0.76 0.62 0.47 0.85 0.79 0.65 0.48 0.87 0.81 0.66 0.49 0.89 0.84 0.68 0.51 0.93 0.87 0.71 0.53 0.94 0.88 0.71 0.53
∆T 29 28 24 19 30 28 25 20 30 28 25 20 30 29 25 20 29 28 24 20 27 26 23 18
HI PR 263 283 299 312 295 318 335 350 336 361 382 398 382 412 435 453 430 463 489 510 475 512 540 563
LO PR 97 103 113 120 103 109 119 127 107 113 124 132 112 119 130 138 117 125 136 145 121 129 141 150
85
7875
MBh 247.7 252.5 264.4 282.1 241.9 246.6 258.3 275.5 236.2 240.7 252.1 269.0 230.4 234.8 246.0 262.4 218.9 223.1 233.7 249.3 202.7 206.7 216.4 230.9
S/T 0.93 0.90 0.81 0.66 0.96 0.93 0.84 0.68 0.99 0.95 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.93 0.75
∆T 27 26 25 22 27 27 25 22 27 27 25 22 27 27 26 22 26 26 25 22 24 24 23 20
HI PR 277 298 314 328 310 334 353 368 353 380 401 419 402 433 457 477 452 487 514 536 500 538 568 592
LO PR 102 109 119 126 108 115 125 133 112 119 130 139 118 125 137 146 123 131 143 153 128 136 148 158
7000
MBh 240.5 245.1 256.7 273.9 234.9 239.4 250.7 267.5 229.3 233.7 244.8 261.1 223.7 228.0 238.8 254.8 212.5 216.6 226.9 242.0 196.8 200.6 210.1 224.2
S/T 0.89 0.86 0.77 0.63 0.92 0.89 0.80 0.65 0.94 0.91 0.82 0.67 0.97 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 0.98 0.89 0.72
∆T 28 28 26 23 28 28 26 23 28 28 26 23 29 28 27 23 28 28 26 23 26 26 24 21
HI PR 274 295 311 325 307 331 349 364 350 376 397 414 398 428 452 472 448 482 509 531 495 533 562 587
LO PR 101 107 117 125 107 114 124 132 111 118 129 137 117 124 135 144 122 130 142 151 126 134 147 156
5600
MBh 221.9 226.2 236.9 252.8 216.8 221.0 231.4 246.9 211.6 215.7 225.9 241.0 206.5 210.5 220.4 235.1 196.1 199.9 209.4 223.4 181.7 185.2 194.0 206.9
S/T 0.86 0.83 0.74 0.60 0.89 0.86 0.77 0.63 0.91 0.88 0.79 0.64 0.94 0.91 0.82 0.66 0.97 0.94 0.85 0.69 0.98 0.95 0.85 0.69
∆T 31 31 29 25 32 31 29 25 32 31 29 25 32 31 30 26 31 31 29 25 29 29 27 24
HI PR 266 286 302 315 298 321 339 353 339 365 385 402 386 416 439 458 435 468 494 515 480 517 546 569
LO PR 98 104 114 121 104 110 120 128 108 114 125 133 113 120 131 140 118 126 138 147 123 130 142 152
IDB: Entering Indoor Dry Bulb Temperature Shaded area reects AHRI (TVA) conditions High and low pressures are measured at the liquid and suction access ttings.

Product SPecificationS Product SPecificationS
12 www.goodmanmfg.com SS-CPG180-240

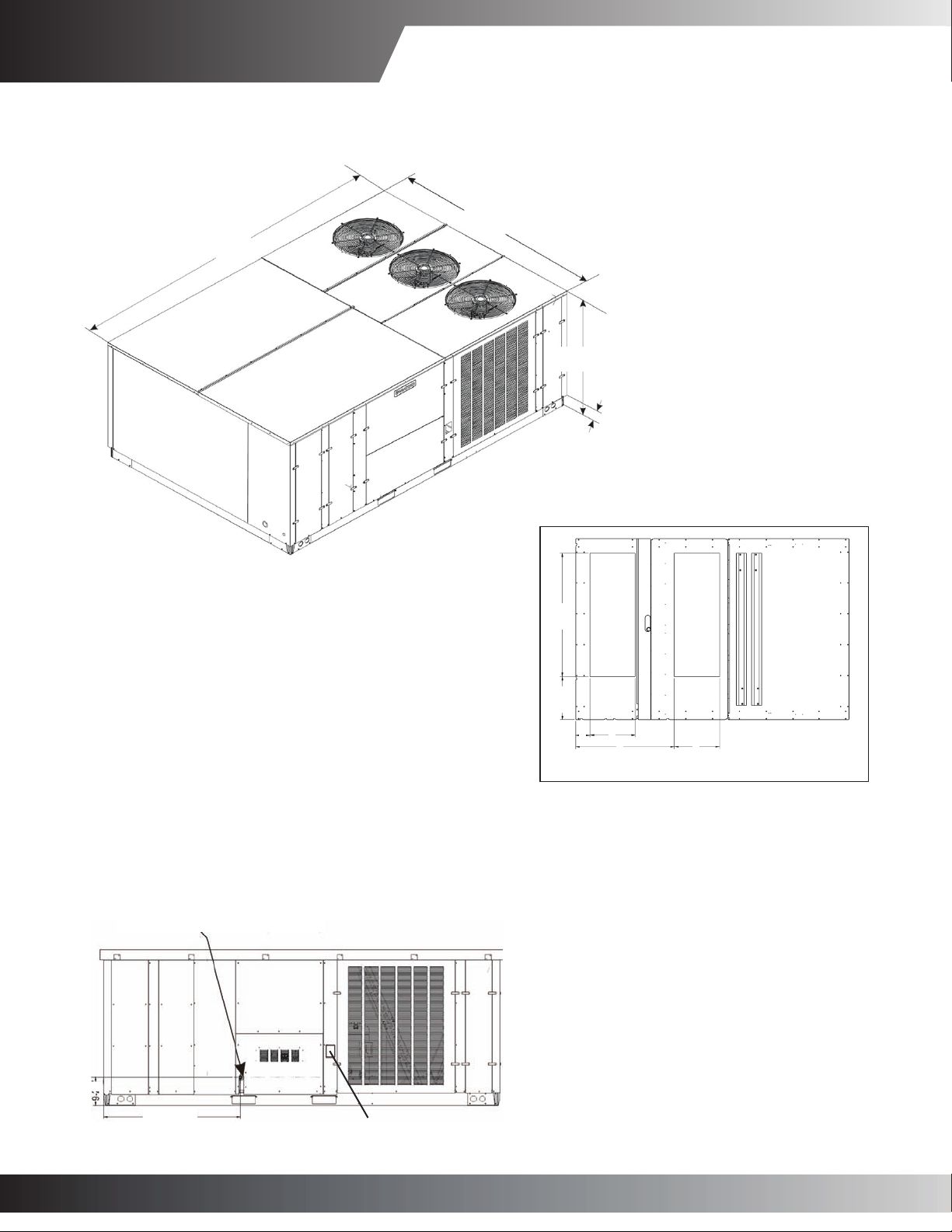

dimenSionS
133½”
88⁷/₃₂”
50⁹/₃₂”
5⁵/₃₂”
Gas Inlet Location (¾” NPT)
46¹/₁₀”
9⅔”
Flue Vent
Vertical Discharge (Top of Unit)
Supply
Return
22”
48”
22”
7”
2 x 21” 2 x 60”

Product SPecificationS Product SPecificationS
SS-CPG180-240 www.goodmanmfg.com 13
electrical entrance locationS

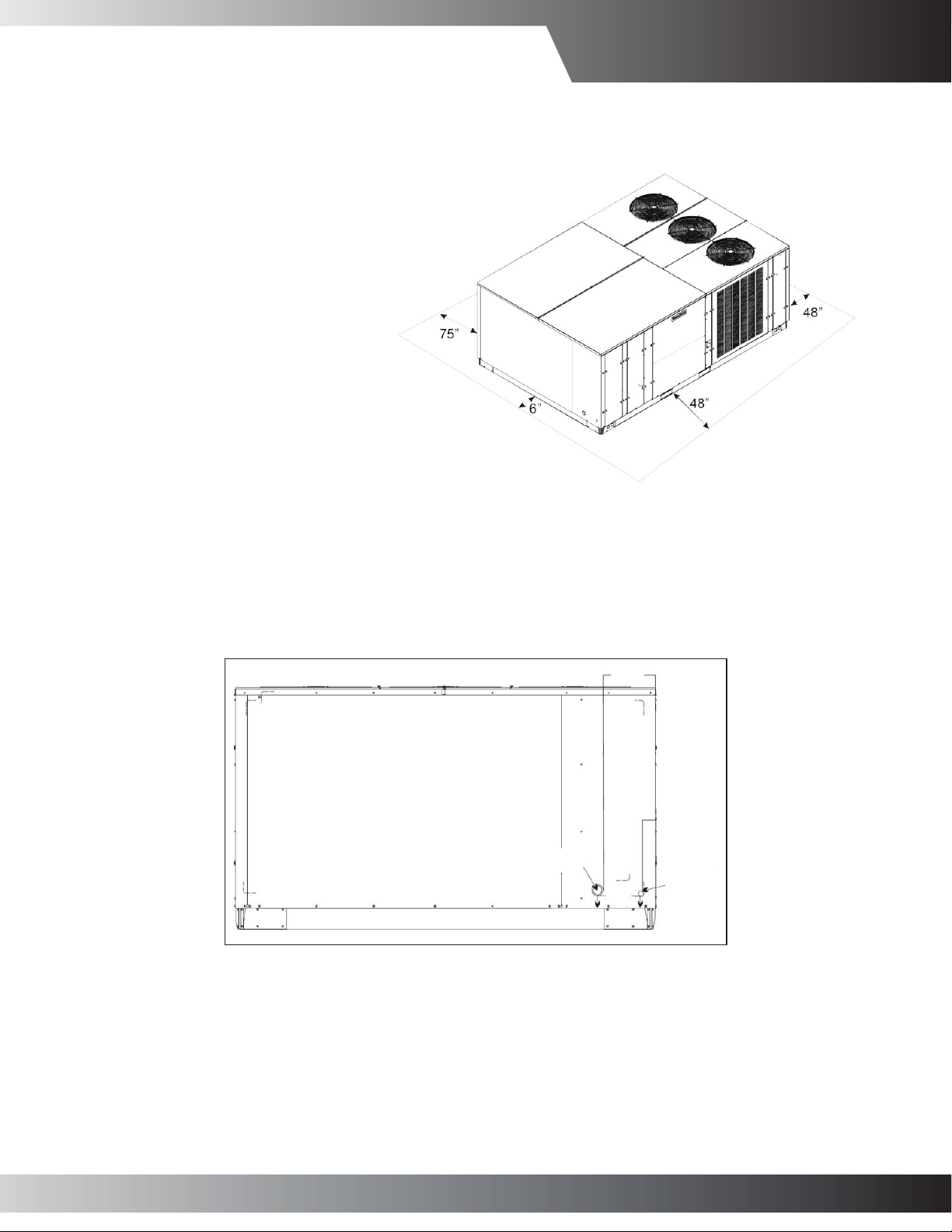

unit clearanceS
36” minimum
roof overhang
Maintain an adequate clearance around the unit for safety, service, maintenance, and
proper unit operation. Leave a total clearance of 75” on the main control panel side
of the unit for possible removal of fan shaft, coil, electric heat, and gas furnace.
Leave a clearance of 48” on all other sides of the unit for possible compres-
sor removal or service access, and to ensure proper ventilation and
condenser airow. Do not install the unit beneath any obstruction.
Install the unit away from all building exhausts to inhibit
Ingestion of exhaust air into the unit’s fresh-air intake.
12¹/₈”
3³/₅”
Low-
Voltage
Entrance
High-Voltage
Entrance
3⁴/₅”

Product SPecificationS Product SPecificationS
14 www.goodmanmfg.com SS-CPG180-240

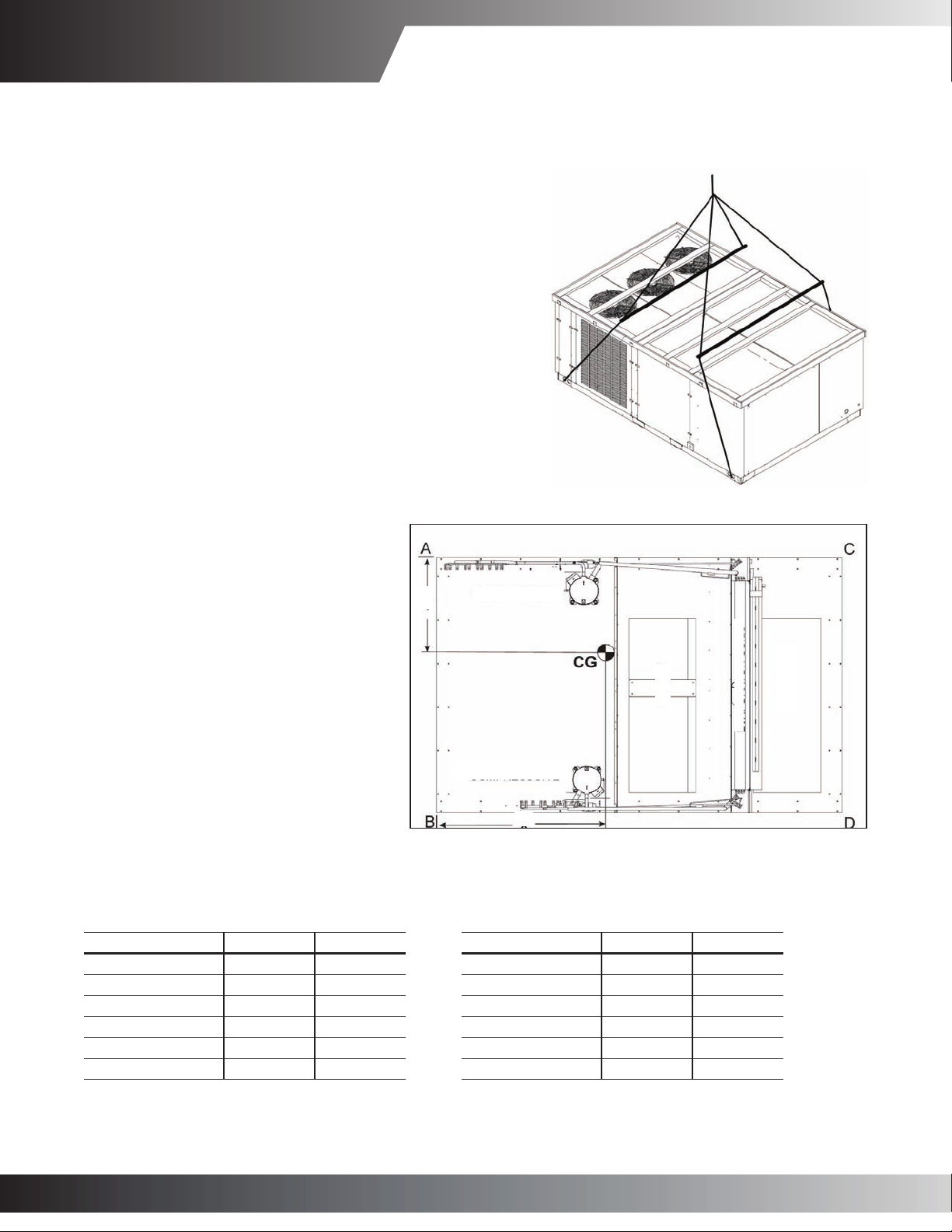

roof curb inStallation — rigging
Provisions for forks have been included in the unit base frame. No other
fork locations are approved.
• Unit must be lifted by the four lifting holes located at the base frame
corners.
• Lifting cables should be attached to the unit with shackles.
• The distance between the crane hook and the top of the unit must not
be less than 60”.
• Two spreader bars must span over the unit to prevent damage to the
cabinet by the lift cables. Spreader bars must be of sufcient length
so that cables do not come in contact with the unit during transport.
Remove wood struts mounted beneath unit base frame before setting
unit on roof curb. These struts are intended to protect unit base frame
from fork lift damage. To remove the struts, extract the sheet metal re-
tainers and pull the struts through the base of the unit. Refer to rigging
label on the unit.
Important: If using bottom discharge with roof curb, duct-work should be
attached to the curb prior to installing the unit. Duct-work dimensions are
shown in Roof Curb Installation Instructions Manual.
Refer to the Roof Curb Installation Instructions for
proper curb installation. Curbing must be installed
in compliance with the National Roong Contractors
Association Manual.
Lower unit carefully onto roof mounting curb. While
rigging the unit, the center of gravity will cause the
condenser end to be lower than the supply air end.
Bring condenser end of unit into alignment with the
curb. With condenser end of the unit resting on curb
member and using curb as a fulcrum, lower opposite
end of the unit until entire unit is seated on the curb.
When a rectangular cantilever curb is used, take care
to center the unit. Check for proper alignment and
orientation of supply and return openings with duct.
To assist in determining rigging requirements, unit weights are shown to the right.
Note: These weights are calculated without installed accessories.
Corner & Center-of-Gravity Locations
40” Compressor 1
RetuRn
evapoRatoR Coil
Supply
Compressor 2
58”
15-Ton Weights 20-Ton Weights
Gas Cooler Gas Cooler
Weight A 582 590 Weight A 645 644
Weight B 475 582 Weight B 527 525
Weight C 565 492 Weight C 589 504
Weight D 461 401 Weight D 481 412
Shipping Weight 2198 2080 Shipping Weight 2357 2202
Operang Weight 2083 1965 Operang Weight 2242 2085

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
SS-CPG180-240 www.goodmanmfg.com 15
rooF CUrB insTallaTion
Curb installations must comply with local codes and should follow the established guidelines of the National Roong Contractors
Association.
Proper unit installation requires that the roof curb be rmly and permanently attached to the roof structure. Check for adequate
fastening method prior
to setting the unit on the curb.
Full perimeter roof curbs are available from the factory and are shipped unassembled. The installing contractor is responsible for
eld assembly, squaring, leveling, and mounting on the roof structure. All required hardware necessary for the assembly of the sheet
metal curb is included in the curb accessory package.
• Determine sufcient structural support before locating and mounting the curb and package unit.
• Duct-work must be constructed using industry guidelines. The duct-work must be placed into the roof curb before mounting
the package unit. Our full perimeter curbs include duct connection frames to be assembled with the curb. Cantilevered-type
curbs are not available from the factory.
• Contractor furnishes curb insulation, cant strips, ashing, and general roong material.
• Support curbs on parallel sides with roof members. To prevent damage to the unit, the roof members cannot penetrate supply
and return duct openings.
Note: The unit and curb accessories are designed to allow vertical duct installation before unit placement. Duct installation after
unit placement
is not recommended.
See the manual shipped with the roof curb for assembly and installation instructions.
123 Curb Top O.D.
119¾ Curb Top O.D.
74¾
Curb O.D.
78 Curb
Top O.D.
61⅞61⅞
Insulated
Panels 11¼
1⅝ Typ.
17²/₂₅ 17²/₂₅ 17²/₂₅
1¾
123 Curb Bottom O.D.
1⅜
Typ. 77½ Curb Bottom O.D.
1¾
23⅞

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
16 www.goodmanmfg.com SS-CPG180-240
wiring diagram — Cpg180/240***3B*** Three-phase 208-230 BelT drive
Wiring is subject to change. Always refer to the wiring diagram or the unit for the most up-to-date wiring.
⚠WARNING High Voltage: Disconnect all power before servicing or installing this unit. Mulple power
sources may be present. Failure to do so may cause property damage, personal injury, or death. ⚡
T2T1
CC
2
L2L1
T3
L3
T2T1
CC
1
L2L1
T3
L3
T2T1
L2L1
T3
L3
T2T1
BC
L2L1
T3
L3
T1
T2
T3
EM
COMP
2
CM3
CM1
CM2
FC1
FC2
FC3
TB2
F
C
F
C
F
C
VM
1 2
230 208 C
3
24V
L2
UNUSED
COOL HEAT
DI
FS
L1
4
5
6
2
31
ECON
11
8
12
97
10
IIC
LS
3
2
1
9 6
8
74
5
R
GV
W1
C
Y1 Y2 G
ALS
PS
RS
GRND
FS
IGN
W2
LPS1
LPS2
HPS1
HPS2
S1
S2
TB1
TO THERMOSTAT
++
TB1
SEE NOTE 5
RD WH
BK
BK
OR
RD
RD
BK OR
RD YL BK RD YL
BK
RD
YL
BK
RD
YL
BK
RDRD
RD BK
RD
BK
BK
BK
BK
BK
PU
PU
PU
PU
PU PU
PU
PU
BR BR
BR
BR
BR
BR
BR
BR
RD
RD
WH
WH
WH
OR
BK
RD
OR
BL
BL
BL
BL
BL
BL
BL
BL
BL
BL
YL
YL
YL
YL
YL
GR
GR
GR
GR
GR
GR
YL
YL
YL
BL
BL YL
PU
WH
WH
YL
YL
YL
YL
YL
YL
GR
GR GR
GR
BK
PU
PU
PU
BL
BL
BL
BL
BL
BL
BL
BL
BL
YL
YL
YL
WH
WH
WH
WH
GR
GR
GR
RD
RD
RD
BR
BR
BLBL
BL
PU
PU
PU PU PU PU
PU
GR
BL
BL
BL
PK
BR
BR
BR
BR
BR
YL
YL
YL
YL
YL
YL RD
RD
RD
RD
BL
BL
BL
BL
WH
WH
WH
WH
0140L00954 REV A
OR
OR
OR
OR
3
1
VMR
4
6
RD
BK
BK
BK
RD
BK
OR
RD
BK
OR
OR
BK
BK RD
OR
4
2
16
YL
BL
CCH1
CCHR2
PU
BK
BK
BK
RD
OR
BL
SEE NOTE 2
T2T1
CC
2
L2L1
T3
L3
T2T1
CC
1
L2L1
T3
L3
T2T1
L2L1
T3
L3
T2T1
BC
L2L1
T3
L3 POWER SUPPLY
208V / 240V - 3 ph - 60 Hz
SEE NOTE 4
T1
T2
T3
T1
T2
T3
EM
COMP
2
COMP
1
CM3
CM1
CM2
FC1
FC2
FC3
TB2
F
C
F
C
F
C
VM
1 2
230 208 C
3
24V
L2
UNUSED
COOL HEAT
DI
FS
L1
4
5
6
2
31
ECON
11
8
12
97
10
IIC
LS
3
2
1
9 6
8
74
5
R
GV
W1
C
Y1 Y2 G
ALS
PS
RS
GRND
FS
IGN
W2
LPS1
LPS2
HPS1
HPS2
S1
S2
TB1
TO THERMOSTAT
++
TB1
SEE NOTE 5
RD WH
BK
BK
OR
RD
RD
BK
BK OR
RD YL BK RD YL
BK
RD
YL
BK
RD
YL
BK
RDRD
BK
BK
BK
BK
BK
PU
PU
PU
PU
PU PU
PU
PU
BR BR
BR
BR
BR
BR
BR
BR
RD
RD
WH
WH
WH
OR
BK
RD
OR
BL
BL
BL
BL
BL
BL
BL
BL
BL
BL
YL
YL
YL
YL
YL
GR
GR
GR
GR
GR
GR
YL
YL
YL
BL
BL YL
PU
WH
WH
YL
YL
YL
YL
YL
YL
GR
GR GR
GR
BK
PU
PU
PU
BL
BL
BL
BL
BL
BL
BL
BL
YL
YL
YL WH
WH
WH
WH
GR
GR
GR
RD
RD
RD
BR
BR
BLBL
BL
PU
PU
PU PU PU PU
PU
GR
BL
BL
BL
PK
BR
BR
BR
BR
BR
YL
YL
YL
YL
YL
YL RD
RD
RD
RD
BL
BL
BL
BL
WH
WH
WH
WH
OR
OR
OR
OR
3
1
VMR
4
6
RD
BK
BK
BK
RD
BK
OR
RD
BK
PB
OR
OR
BK
BK RD
OR
4
2
CCHR1
BK
CCH2
PU
BK
BK
BL
BL
OR
BK
4
2
16
4
2

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
SS-CPG180-240 www.goodmanmfg.com 17
wiring diagram — Cpg180/240***3B*** Three-phase 208-230 BelT drive
Wiring is subject to change. Always refer to the wiring diagram or the unit for the most up-to-date wiring.
⚠WARNING High Voltage: Disconnect all power before servicing or installing this unit. Mulple power
sources may be present. Failure to do so may cause property damage, personal injury, or death. ⚡
2
1
OR
RD
Y1
WH
R
O
W
Y/Y2
YL
TB1
BL
W
R
Y
R
Y1
WITH ECONOMIZER OPTION
GR
G
NO ECONOMIZER
TB1
C
RD
C
R
O
C
O
YL
G
Y/Y2
C
W
O
STAT
OR
Y2
WH
W
BL
GG
GR
STAT
YL
R
G
C
Y2
O
STAT
O
WH
2 STAGE COOLING
C
GR
BL
OR
R
Y1
RD
PK
W
Y/Y2
G
W
TB1
Y1
W1 TO W2 WIRE JUMPER.
5. FOR TWO STAGE OPERATION REMOVE
NOTE 5
W2
INSTALLER/SERVICEMAN
TROUBLESHOOTING THIS APPLIANCE. STATUS LIGHT CODES ARE AS FOLLOWS:
THE STATUS LIGHT ON THE FURNACE CONTROL MAY BE USED AS A GUIDE TO
FALSE FLAME SENSED
OPEN LIMIT SWITCH
WITHOUT INDUCER ON
PRESSURE SWITCH CLOSED
OPEN
PRESSURE SWITCH
NORMAL OPERATION
3 BLINKS
6 BLINKS
4 BLINKS
5 BLINKS
OUTPUT DELAY
COMPRESSOR
OFF
ON
1 BLINK
2 BLINKS
STATUS LIGHT
SWITCH
OPEN AUX. LIMIT
IGNITION FAILURE
SWITCH
OPEN ROLLOUT
INTERNAL CONTROL
NO POWER OR
EQUIPMENT STATUS
PRESSURE SWITCH
CHECK
BAD SWITCH
MAIN LIMIT OPEN
STICKING GAS VALVE
ANTI-CYCLE TIMER
3 MIN. COMP.
PRESSURE SWITCH
CHECK
GAS PRESSURE
FLAME ROLLOUT
AUX. LIMIT OPEN
FLAME SENSOR
BAD SWITCH
GAS VALVE
GAS FLOW
REPLACE CONTROL
CHECK FUSE ON CONTROL
CHECK INPUT POWER
------
CHECK
CC2
HPS2
LPS2
LPS1
HPS1
7
G
TO THERMOSTAT
R
IIC
9
W1
11
12
8
6
3
ECON
10
PS
ALS
NOTE 3
L1
4
5
FFS
D1
C H
LS
C
GV
RS
CC1
L2
NOTE 3
IGN
FS
VMR
IIC
BC
5
4
7
8
6
9
1
2
3
TR
24V
TB1
TB1
2
NOTE
PLF
1L
SUPPLY VOLTAGE
208-240/3/60
2L 3L
13
13
1FCCR
1CC
3T
1PMOC
2T
F
1MC
ME
1CC
1T
C
1CC
CB
2T
CB
CB
3FCCR
2CC
3T
1T
2PMOC 2T
F
3MC
2CC
1T
C
2CC
3T
2T
VM
VENT MOTOR RELAY
VENT MOTOR
TRANSFORMER
TERMINAL BLOCK (24V SIGNAL)
ROLLOUT SWITCH
PRESSURE SWITCH
FEMALE PLUG/CONNECTOR
LIMIT SWITCH
LOW PRESSURE SWITCH
IGNITOR
INTEGRATED IGNITION CONTROL
INDOOR BLOWER RELAY
HIGH PRESSURE SWITCH
GAS VALVE
EQUIPMENT GROUND
FLAME SENSOR
FAN CAPACITOR
FUSE
EVAPORATOR MOTOR
COMPRESSOR CONTACTOR
CONDENSER MOTOR
COMPRESSOR
BLOWER CONTACTOR
AUXILLARY LIMIT SWITCH
VMR
VM
TR
TB1
RS
PS
PLF
LS
LPS
IGN
IIC
IBR
HPS
GV
GND
FS
FC
F
EM
CC
CM
COMP
BC
ALS
PINK STRIP
BL/PK BLUE WITH
PINK STRIP
YL/PK YELLOW WITH
YL YELLOW
WH WHITE
RD RED
PU PURPLE
PK PINK
OR ORANGE
GR GREEN
BR BROWN
BL BLUE
BK BLACK
WIRE CODE
NOTES
2
(USE COPPER CONDUCTOR ONLY).
SIZE AND TYPE OF INSULATION AS ORIGINAL.
1. REPLACEMENT WIRE MUST BE THE SAME
3
ACCESSORY.
ATTACH FEMALE PLUG TO THE ECONOMIZER
COMPARTMENT. REMOVE MALE PLUG AND
TO BLOWER HOUSING IN RETURN AIR
2. ACCESSORY ECONOMIZER PLUG ADJACENT
4. USE COPPER CONDUCTORS ONLY.
USE NEC CLASS 2 WIRE.
4
3. L1 AND L2 ON IIC CONTROL IS 24V INPUT.
HIGH VOLTAGE
OPTIONAL
LOW VOLTAGE
LINE VOLTAGE
FIELD WIRING
LOW VOLTAGE
HIGH VOLTAGE
FIELD WIRING
THERMOSTAT
FACTORY WIRING
0140L00955 REV A
COMPONENT LEGEND
Y1 Y
Y2
2FCCR
F
2MC
C
2T
1T
3T
3T
1T 1T
TERMINAL BLOCK (L1)
TB2
4 6
S2 S1
2
208-240v
FROM TERMINAL 3 TO TERMINAL 2 ON THE
TRANSFORMER.
6. FOR 208V OPERATION MOVE BLACK WIRE
NOITCETORPTNERRUCREVOFO
EZISDNAEPYTROFETALPGNITARTINUEES
BP KCOLBNOITBURTSIDREWOP
CRANK CASE HEATER
CCH
CRANK CASE HEATER RELAY
CCHR
21
21
21
21
CCH1
CCH2
CCHR1 CCHR2
664
4
CCHR1 CCHR2
664
4

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
18 www.goodmanmfg.com SS-CPG180-240
wiring diagram — Cpg180/240***4B/7B*** Three-phase 460/575 BelT drive
Wiring is subject to change. Always refer to the wiring diagram or the unit for the most up-to-date wiring.
⚠WARNING High Voltage: Disconnect all power before servicing or installing this unit. Mulple power
sources may be present. Failure to do so may cause property damage, personal injury, or death. ⚡
T2T1
CC
2
L2L1
T3
L3
T2T1
CC
1
L2L1
T3
L3
T2T1
L2L1
T3
L3
T2T1
BC
L2L1
T3
L3
POWER SUPPLY
460V / 575 - 3 ph - 60 Hz
SEE NOTE 4
T1
T2
T3
T1
T2
T3
EM
COMP
2
COMP
1
CM3
CM1
CM2
FC1
FC2
FC3
TB2
F
C
F
C
F
C
VM
460
OR APPROPRIATE
INPUT VOLTAGE
240
3 2
460 C
OR APPROPRIATE
INPUT VOLTAGE
1
24V
3
1
L2
UNUSED
COOL HEAT
DI
FS
L1
4
5
6
2
31
ECON
11
8
12
97
10
IIC
LS
3
2
1
9 6
8
74
5
R
GV
W1
C
Y1 Y2 G
ALS
PS
RS
GRND
FS
IGN
W2
LPS1
LPS2
HPS1
HPS2
VMR
S1
S2
TB1
TO THERMOSTAT
++
TB1
SEE NOTE 5
RD RD WH
BK
BK
BK
OR
OR
RD
RD
BK
BK OR
RD YL BK RD YL
BK
RD
YL
BK
RD
YL
BK
RDRD
RD BK
RD
BK
BK
BK
BK
BK
PU
PU
PU
PU
PU PU
PU
PU
BR BR
BR
BR
BR
BR
BR
BR
RD
RD
WH
WH
WH
BK
OR
RD RD
BK
RD
OR
BL
BL
BL
BL
BL
BL
BL
BL
BL
BL
YL
YL
YL
YL
YL
GR
GR
GR
GR
GR
GR
YL
YL
YL
BL
BL YL
PU
WH
WH
YL
YL
YL
YL
YL
YL
GR
GR GR
GR
SEE
NOTE 2
BK
PU
PU
PU
BL
BL
BL
BL
BL
BL
BL
BL
BL
YL
YL
YL
WH
WH
WH
WH
GR
GR
GR
RD
RD
RD
BR
BR
BLBL
BL
PU
PU
PU PU PU PU
PU
GR
BL
BL
BL
PK
BR
BR
BR
BR
BR
YL
YL
YL
YL
YL
YL RD
RD
RD
RD
BL
BL
BL
BL
WH
WH
WH
WH
0140L00956 REV A
4
6
RD
BK
BK
BK
2
1
4
6
2
1
4
6
CCHR1
BL
BL
YL
BK
CCH1
CCH2
PU
BK
BK
BK
RD
OR
CCHR2
YL
BL
BK
BL
OR
RD
PU
BK
BK
BK

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
SS-CPG180-240 www.goodmanmfg.com 19
wiring diagram — Cpg180/240***4B/7B*** Three-phase 460/575 BelT drive
Wiring is subject to change. Always refer to the wiring diagram or the unit for the most up-to-date wiring.
⚠WARNING High Voltage: Disconnect all power before servicing or installing this unit. Mulple power
sources may be present. Failure to do so may cause property damage, personal injury, or death. ⚡
2
1
OR
RD
Y1
WH
R
O
W
Y/Y2
YL
TB1
BL
W
R
Y
R
Y1
WITH ECONOMIZER OPTION
GR
G
NO ECONOMIZER
TB1
C
RD
C
R
O
C
O
YL
G
Y/Y2
C
W
O
STAT
OR
Y2
WH
W
BL
GG
GR
STAT
YL
R
G
C
Y2
O
STAT
O
WH
2 STAGE COOLING
C
GR
BL
OR
R
Y1
RD
PK
W
Y/Y2
G
W
TB1
Y1
W1 TO W2 WIRE JUMPER.
5. FOR TWO STAGE OPERATION REMOVE
NOTE 5
W2
INSTALLER/SERVICEMAN
TROUBLESHOOTING THIS APPLIANCE. STATUS LIGHT CODES ARE AS FOLLOWS:
THE STATUS LIGHT ON THE FURNACE CONTROL MAY BE USED AS A GUIDE TO
FALSE FLAME SENSED
OPEN LIMIT SWITCH
WITHOUT INDUCER ON
PRESSURE SWITCH CLOSED
OPEN
PRESSURE SWITCH
NORMAL OPERATION
3 BLINKS
6 BLINKS
4 BLINKS
5 BLINKS
OUTPUT DELAY
COMPRESSOR
OFF
ON
1 BLINK
2 BLINKS
STATUS LIGHT
SWITCH
OPEN AUX. LIMIT
IGNITION FAILURE
SWITCH
OPEN ROLLOUT
INTERNAL CONTROL
NO POWER OR
EQUIPMENT STATUS
PRESSURE SWITCH
CHECK
BAD SWITCH
MAIN LIMIT OPEN
STICKING GAS VALVE
ANTI-CYCLE TIMER
3 MIN. COMP.
PRESSURE SWITCH
CHECK
GAS PRESSURE
FLAME ROLLOUT
AUX. LIMIT OPEN
FLAME SENSOR
BAD SWITCH
GAS VALVE
GAS FLOW
REPLACE CONTROL
CHECK FUSE ON CONTROL
CHECK INPUT POWER
------
CHECK
CC2
HPS2
LPS2
LPS1
HPS1
7
G
TO THERMOSTAT
R
IIC
9
W1
11
12
8
6
3
ECON
10
PS
ALS
NOTE 3
L1
4
5
FFS
D1
C H
LS
C
GV
RS
CC1
L2
NOTE 3
IGN
FS
VMR
IIC
BC
5
4
7
8
6
9
1
2
3
TR
24V
TB1
TB1
2
NOTE
PLF
1L
SUPPLY VOLTAGE
460-575/3/60
2L 3L
31
13
1FCCR
1CC
3T
1PMOC
2T
F
1MC
ME
1CC
1T
C
1CC
CB
2T
CB
CB
3FCCR
2CC
3T
1T
2PMOC 2T
F
3MC
2CC
1T
C
2CC
3T
2T
VM
TR
1 3
460V OR 575V
460V OR 575V
VENT MOTOR RELAY
VENT MOTOR
TRANSFORMER
TERMINAL BLOCK (24V SIGNAL)
ROLLOUT SWITCH
PRESSURE SWITCH
FEMALE PLUG/CONNECTOR
LIMIT SWITCH
LOW PRESSURE SWITCH
IGNITOR
INTEGRATED IGNITION CONTROL
INDOOR BLOWER RELAY
HIGH PRESSURE SWITCH
GAS VALVE
EQUIPMENT GROUND
FLAME SENSOR
FAN CAPACITOR
FUSE
EVAPORATOR MOTOR
COMPRESSOR CONTACTOR
CONDENSER MOTOR
COMPRESSOR
BLOWER CONTACTOR
AUXILLARY LIMIT SWITCH
VMR
VM
TR
TB1
RS
PS
PLF
LS
LPS
IGN
IIC
IBR
HPS
GV
GND
FS
FC
F
EM
CC
CM
COMP
BC
ALS
PINK STRIP
BL/PK BLUE WITH
PINK STRIP
YL/PK YELLOW WITH
YL YELLOW
WH WHITE
RD RED
PU PURPLE
PK PINK
OR ORANGE
GR GREEN
BR BROWN
BL BLUE
BK BLACK
WIRE CODE
NOTES
2
(USE COPPER CONDUCTOR ONLY).
SIZE AND TYPE OF INSULATION AS ORIGINAL.
1. REPLACEMENT WIRE MUST BE THE SAME
3
ACCESSORY.
ATTACH FEMALE PLUG TO THE ECONOMIZER
COMPARTMENT. REMOVE MALE PLUG AND
TO BLOWER HOUSING IN RETURN AIR
2. ACCESSORY ECONOMIZER PLUG ADJACENT
4. USE COPPER CONDUCTORS ONLY.
USE NEC CLASS 2 WIRE.
4
3. L1 AND L2 ON IIC CONTROL IS 24V INPUT.
HIGH VOLTAGE
OPTIONAL
LOW VOLTAGE
LINE VOLTAGE
FIELD WIRING
LOW VOLTAGE
HIGH VOLTAGE
FIELD WIRING
THERMOSTAT
FACTORY WIRING
0140L00957 REV A
COMPONENT LEGEND
Y1 Y
Y2
2FCCR
F
2MC
C
2T
1T
3T
3T
1T 1T
TERMINAL BLOCK (L1)
TB2
4 6
S2 S1
NOITCETORPTNERRUCREVOFO
EZISDNAEPYTROFETALPGNITARTINUEES
CRANK CASE HEATER RELAY
CRANK CASE HEATER
CCHR
CCH
21
21
CCHR1 CCHR2
664
4
2
1
OR
RD
Y1
WH
R
O
W
Y/Y2
YL
TB1
BL
W
R
Y
R
Y1
WITH ECONOMIZER OPTION
GR
G
NO ECONOMIZER
TB1
C
RD
C
R
O
C
O
YL
G
Y/Y2
C
W
O
STAT
OR
Y2
WH
W
BL
GG
GR
STAT
YL
R
G
C
Y2
O
STAT
O
WH
2 STAGE COOLING
C
GR
BL
OR
R
Y1
RD
PK
W
Y/Y2
G
W
TB1
Y1
W1 TO W2 WIRE JUMPER.
5. FOR TWO STAGE OPERATION REMOVE
NOTE 5
W2
INSTALLER/SERVICEMAN
TROUBLESHOOTING THIS APPLIANCE. STATUS LIGHT CODES ARE AS FOLLOWS:
THE STATUS LIGHT ON THE FURNACE CONTROL MAY BE USED AS A GUIDE TO
FALSE FLAME SENSED
OPEN LIMIT SWITCH
WITHOUT INDUCER ON
PRESSURE SWITCH CLOSED
OPEN
PRESSURE SWITCH
NORMAL OPERATION
3 BLINKS
6 BLINKS
4 BLINKS
5 BLINKS
OUTPUT DELAY
COMPRESSOR
OFF
ON
1 BLINK
2 BLINKS
STATUS LIGHT
SWITCH
OPEN AUX. LIMIT
IGNITION FAILURE
SWITCH
OPEN ROLLOUT
INTERNAL CONTROL
NO POWER OR
EQUIPMENT STATUS
PRESSURE SWITCH
CHECK
BAD SWITCH
MAIN LIMIT OPEN
STICKING GAS VALVE
ANTI-CYCLE TIMER
3 MIN. COMP.
PRESSURE SWITCH
CHECK
GAS PRESSURE
FLAME ROLLOUT
AUX. LIMIT OPEN
FLAME SENSOR
BAD SWITCH
GAS VALVE
GAS FLOW
REPLACE CONTROL
CHECK FUSE ON CONTROL
CHECK INPUT POWER
------
CHECK
CC2
HPS2
LPS2
LPS1
HPS1
7
G
TO THERMOSTAT
R
IIC
9
W1
11
12
8
6
3
ECON
10
PS
ALS
NOTE 3
L1
4
5
FFS
D1
C H
LS
C
GV
RS
CC1
L2
NOTE 3
IGN
FS
VMR
IIC
BC
5
4
7
8
6
9
1
2
3
TR
24V
TB1
TB1
2
NOTE
PLF
1L
SUPPLY VOLTAGE
460-575/3/60
2L 3L
31
13
1FCCR
1CC
3T
1PMOC
2T
F
1MC
ME
1CC
1T
C
1CC
CB
2T
CB
CB
3FCCR
2CC
3T
1T
2PMOC 2T
F
3MC
2CC
1T
C
2CC
3T
2T
VM
TR
1 3
460V OR 575V
460V OR 575V
VENT MOTOR RELAY
VENT MOTOR
TRANSFORMER
TERMINAL BLOCK (24V SIGNAL)
ROLLOUT SWITCH
PRESSURE SWITCH
FEMALE PLUG/CONNECTOR
LIMIT SWITCH
LOW PRESSURE SWITCH
IGNITOR
INTEGRATED IGNITION CONTROL
INDOOR BLOWER RELAY
HIGH PRESSURE SWITCH
GAS VALVE
EQUIPMENT GROUND
FLAME SENSOR
FAN CAPACITOR
FUSE
EVAPORATOR MOTOR
COMPRESSOR CONTACTOR
CONDENSER MOTOR
COMPRESSOR
BLOWER CONTACTOR
AUXILLARY LIMIT SWITCH
VMR
VM
TR
TB1
RS
PS
PLF
LS
LPS
IGN
IIC
IBR
HPS
GV
GND
FS
FC
F
EM
CC
CM
COMP
BC
ALS
PINK STRIP
BL/PK BLUE WITH
PINK STRIP
YL/PK YELLOW WITH
YL YELLOW
WH WHITE
RD RED
PU PURPLE
PK PINK
OR ORANGE
GR GREEN
BR BROWN
BL BLUE
BK BLACK
WIRE CODE
NOTES
2
(USE COPPER CONDUCTOR ONLY).
SIZE AND TYPE OF INSULATION AS ORIGINAL.
1. REPLACEMENT WIRE MUST BE THE SAME
3
ACCESSORY.
ATTACH FEMALE PLUG TO THE ECONOMIZER
COMPARTMENT. REMOVE MALE PLUG AND
TO BLOWER HOUSING IN RETURN AIR
2. ACCESSORY ECONOMIZER PLUG ADJACENT
4. USE COPPER CONDUCTORS ONLY.
USE NEC CLASS 2 WIRE.
4
3. L1 AND L2 ON IIC CONTROL IS 24V INPUT.
HIGH VOLTAGE
OPTIONAL
LOW VOLTAGE
LINE VOLTAGE
FIELD WIRING
LOW VOLTAGE
HIGH VOLTAGE
FIELD WIRING
THERMOSTAT
FACTORY WIRING
COMPONENT LEGEND
Y1 Y
Y2
2FCCR
F
2MC
C
2T
1T
3T
3T
1T 1T
TERMINAL BLOCK (L1)
TB2
4 6
S2 S1
NOITCETORPTNERRUCREVOFO
EZISDNAEPYTROFETALPGNITARTINUEES
CRANK CASE HEATER RELAY
CRANK CASE HEATER
CCHR
CCH
21
21
CCH1
CCH2
CCHR1 CCHR2
664
4

prodUCT speCiFiCaTions prodUCT speCiFiCaTions
20 www.goodmanmfg.com SS-CPG180-240
Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specications or designs without
notice or without incurring obligations. © 2012 • Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA.
aCCessories
Item # Description Fits
Model Sizes
Field-
Installed
Factory-
Installed
14CURB180240 14" Roof Curb 15-20 tons √
25FD180240 25% Manual Fresh Air Damper 15-20 tons √
25MFD180240 25% Motorized Fresh Air Damper 15-20 tons √
DNBBS180240 Burglar Bar Sleeves: Includes Supply and Return All Models √
CDK180 Concentric Duct Kit 15 tons √
CDK240 Concentric Duct Kit 20 tons √
Convenience Outlet: Powered All Models √
Convenience Outlet: Non Powered All Models √
DNECONGS180240 Downow Economizer 15-20 tons √ √
Electric Heat Kits √ √
HAKT36300 High-Altude Kit All Models √
HSKT180 High-Stac Kit 15 tons √ √
HSKT240 High-Stac Kit 20 tons √ √
Horizontal Barometric Relief Damper 15-20 tons √
HZCURB180240ED Horizontal Discharge Curb — End Discharge 15-20 tons
HZCURB180240SDN Horizontal Discharge Curb —
Side Discharge; duct openings on non-service side 15-20 tons
HZCURB180240SDS Horizontal Discharge Curb —
Side Discharge; duct openings on service side 15-20 tons
GHRC-1 Hurricane Restraint Clip All Models √
LAKT03 Low-Ambient Kit 15-20 tons √ √
LPKT180300 LP Conversion Kit 15-20 tons √
PE1802402 Power Exhaust 208/230v 15-20 tons √
PE1802404 Power Exhaust 460v 15-20 tons √
Smoke Detector All Models √
Stainless-Steel Heat Exchanger (Type 409) 15-20 tons √
