USER MANUAL
MODEL: 336723
CD MICRO SYSTEM
WITH BLUETOOTH STREAMING

336723
Welcome1
Troubleshooting
5
Technical Specifications
6
Customer Support
7
Your CD Micro system
2.1 In The Box
2.2 Main Unit & Remote Control
2
Quick Setup
3.1 Fitting Remote battery
3.2 Connecting the Power
3.3 Standby & Auto Standby
3.4 Adjusting the Volume
3.5 Mute Function
3.6 X-Bass
3
Operational4
Basic CD operation
4.1 Load a Disc
4.2 Play a Disc
4.3 Skipping tracks
4.4 Searching tracks
4.5 Repeat & random function
4.6 Program function
Radio Operation
4.7 Full Scan
4.8 Radio station presets
Aux Input Operation
4.9 Line In Mode
Bluetooth Operation
4.10 Connecting & controlling a Bluetooth
3.7 EQ Operation
3.8 Source Modes
3.9 Clock &Timer
3.10 Setting the Alarms
3.11 Snooze Function
3.12 Sleep Function

336723
Welcome
Thank you for choosing Goodmans. We’ve been making electronics for the British
people for over 70 years. Each of our products have been carefully and
passionately designed to stand the test of time. We hope you enjoy your new CD
Micro system.
1
Your CD Micro System2
2.1
Mains Power
Your CD Micro system requires a mains supply of 100-240V ~ 50/60Hz.
Please ensure that your mains supply is compatible before use.
We recommend using only the official Goodmans power cord (as supplied).
Disconnect the power cord from the mains when not in use.
Position of Your CD Micro System
Place on a flat, stable surface that is not subject to vibrations. Avoid the following
locations:
• Where it is exposed to direct sunlight
• Where it is close to heat radiating sources
• Where the humidity is high and ventilation is poor
• Where it is dusty
Adjusting the Antenna
Fully extend the antenna to ensure good reception in FM Radio modes.
It may be necessary to alter the position of Your CD Micro system
and/or the antenna to achieve the best signal.
In The Box
Carefully remove your CD Micro system from the packaging.
Inside the box you will find:
• CD Micro system
• Remote Control
• Mains Adaptor
• Quick Start Guide
• Guarantee Booklet

336723
2.2 MAIN UNIT & REMOTE CONTROL
1. SNOOZE/VOLUME - Press to decrease the volume level or delay
the alarm for 9 minutes.
2. SNOOZE/VOLUME + Press to increase the volume level or delay the
alarm for 9 minutes.
3. STANDBY button Press to wake up or enter STANDBY mode.
4. FUNCTION button Press to skip between FM,CD,BT&Line In modes
5. CLOCK SET button Press and hold the button to access the timer
on/off setup menu.
6. SLEEP button Press to select the desired sleep timer or press the
button repeatedly to select “sleep off”.
7. REPEAT/FM STEREO button Press to repeat playback modes or
switch between FM stereo/mono modes..
8. PROG./PRESET button Press to program an alternative playback
sequence on a single disc or radio station presets.
9. STOP/ALARM OFF button Press to stop playing or alarm off.
10. PLAY/PAUSE button Press to play or pause.
11. EJECT button Press to open or close the CD door
Your CD Micro System2
1
23
4
5
6
7
8
911
10 12
13
14 15 16
17 18 17
CLOCK
STAND BY
O P E N /C L O S E
V O L + V O L -
TUNER
AL1 AL 2
SNOOZE
SOURCE
E Q
PRESET
PLAY MODE
P R O GSCAN
CLK
UNPAIR
S LE E P
X-BASS
19
20
21
22
23
24
25
26
27
28
29
30
31
32
34
35
36
33

336723
Your CD Micro System2
12. SKIP button
13. SKIP button
14. Line In Socket (Audio input)
15. DC Power Input
16. Antenna
17. Speakers
18. LED Display
19. STANDBY button Press to turn on the unit
20.SOURCE button Press to skip between FM/CD/ BT/LINE-IN modes
21. PLAY MODE button Press to skip between repeat & random
function or FM stereo mode.
22.ALARM 1 button Press to set up alarm 1
23. PLAY / PAUSE/ AUTOSCAN button
24. STOP / UNPAIR button
25. SKIP button
26. PRESET DOWN button
27. VOLUME - button
28. OPEN / CLOSE button
29. SLEEP button
30. MUTE button
31. EQ / X-BASS button
32. ALARM 2 button
33. PROG/CLOCK button
34. SKIP button
35. PRESET UP button
36. VOLUME + buttons

336723
Quick Setup3

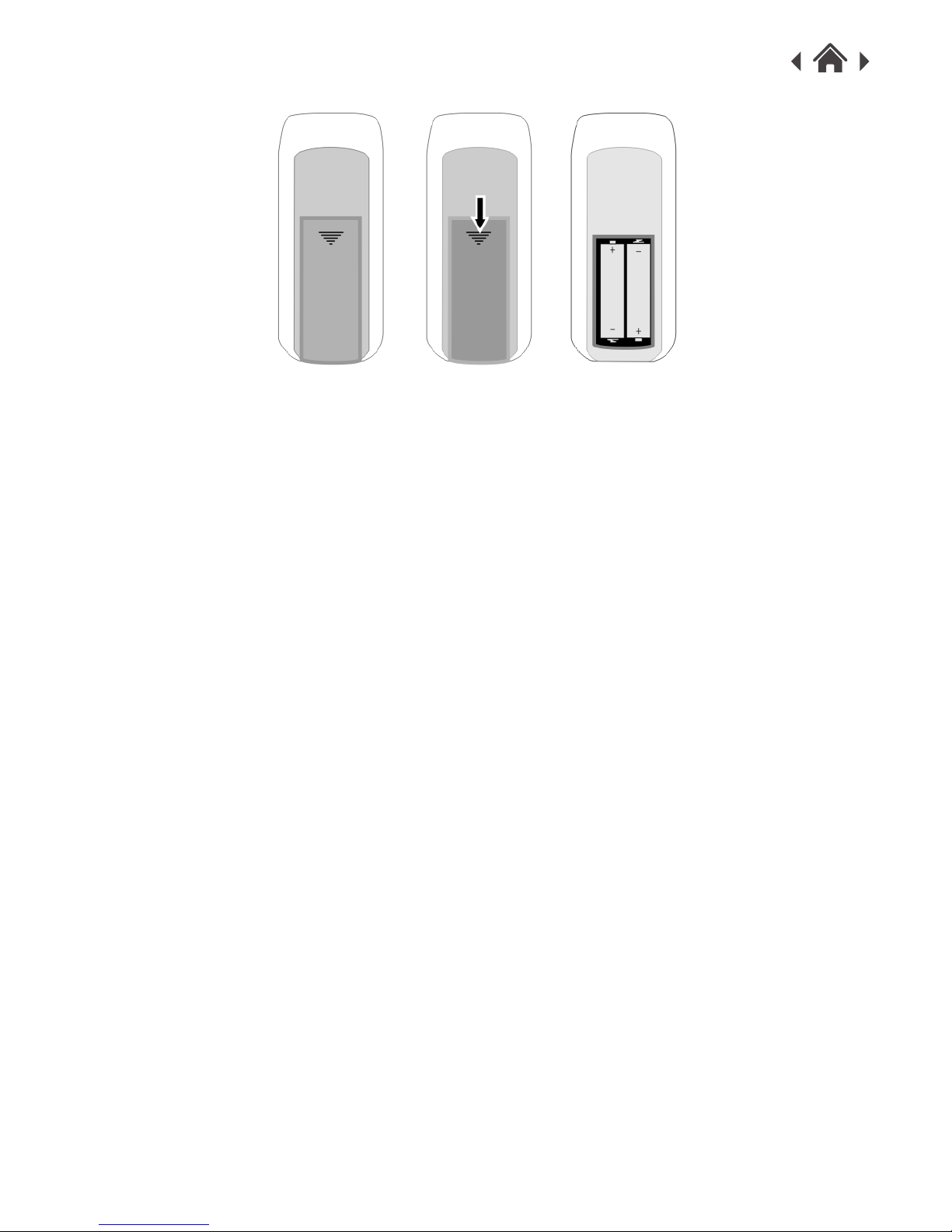

3.1 Fitting the Remote Battery
Before use, the remote control will need batteries fitting.
Remove the battery compartment lid as shown.
Fit 2xAAA batteries as shown. Take care to match the polarities of the remote to the
batteries.
EG: the +sign on the battery matches the + sign on the remote control battery
compartment.
Replace the battery compartment lid and proceed to use.
NOTE: Dispose of used batteries with regards to the recycling regulations in your
area.
Do NOT short circuit batteries or throw them into water, the general rubbish or in a
fire.
3.2 Connecting the Power
Weak batteries can leak and damage the remote control. Replace them in good
time.
Connect the mains adaptor to a UK mains outlet.
3.3 Standby & Auto Standby
Insert the plug into a power socket and switch the power on.
Press the STANDBY button on either the main unit or remote control.
Press the STANDBY button to wake from standby mode.
Press the STANDBY button again to enter standby mode.
Due to new ECO regulation requirements this product incorporates a power saving
feature.
When in CD, BT or AUX mode, once audio playback has ceased and the unit has
stood idle for approximately 20 mins, it will switch into a “power down” power saving
mode.
To wake the unit up, press the STANDBY button.

336723
3.4 Adjusting the volume
Quick Setup3
Press the VOLUME+/- buttons on the unit or remote
control.
3.5 Mute Function
1. Press the MUTE button at any time to silence the
output.
2. Press again to resume audio output.
3.6 X-BASS
You can also boost the bass effect of the audio
playback. pressing the X-BASS button will toggle the
X-BASS effect ON or OFF.
3.7 EQ Operation
1. You can enjoy different EQ sound effect modes.
2. Press the EQ button to change between different sound effects:
FLAT / ROCK / CLASSIC / POP / JAZZ
3.8 Source Modes
Press the SOURCE button on the main unit or remote control to switch
between the available modes: FM / CD / BT / LINE-IN
3.9 Setting the Clock
1. Ensure the unit is in STANDBY mode by pressing the STANDBY button.
If you see only ‘0:00’ then you are in the correct mode. NOTE: If the
time has been set previously the display will not show ‘0:00’ but the
time from the original setting.
2. Press and hold the CLK SET button (5), or (33) on the remote to enter
the clock setting menu.
3. Set the hour digits by pressing either of the / buttons (12/13,
25/34). Once the hour has been set press the CLK SET button again to
move onto the minute setting. Use the same process to set the minutes.
4. When set press the CLK SET button once more to store the setting.
NOTE: the clock is set in 24hr mode only.

336723
3.10 Setting the Alarms
Quick Setup3
This unit is equipped with two independent alarms.
The following steps will assume the clock has been set already and the unit is in
STANDBY mode.
Setting Alarm 1/ 2 from the remote control
1. Press and hold the ALARM 1 or ALARM 2 button (22,32) to initiate the alarm
setting function. You will see the corresponding alarm icon appear on the display
and the hour digit will flash.
2. Set the hour digits by pressing either of the / buttons (12/13, 25/34).
Once the hour has been set press the ALARM 1 or2 button again to move onto
the minute setting. Use the same process to set the minutes.
Press the ALARM 1 or 2 button once more to complete the time setting.
3.11 Snooze Function
Should you wish to delay the alarm for 9 minutes you can activate the SNOOZE
function.
1. When the alarm sounds press either SNOOZE button (1,2,29) to delay the alarm
for 9 minutes.
2. After one hour of snoozing the SNOOZE function will no longer operate.
3. You will now see BU appear on the display. Use the / buttons to select
from BU (buzzer), CD or RAD (radio).
The CD or RADIO alarm volume level is set using the VOLUME+/- buttons (1/2,
27/36).
4. Press the ALARM 1or 2 button to complete the alarm setting.
5. To activate or deactivate an alarm press the relevant alarm button eg:- ALARM 1
or 2 (22, 32).
NOTE: Pay attention to the alarm icons on the display. If the icon is not present the
alarm is inactive.
6. To disable the alarm when sounding press the STOP/ AL OFF button (9), or press
either ALARM 1 or 2 button.

336723
3.12 Sleep function
Should you wish to set a timer for the unit to enter standby mode after a period of
time follow the steps below.
4.1 Basic CD Operation
1. Press the FUNCTION button (4, 20) repeatedly until you see ‘Cd’ appear on the
top of the display.
2. Press the EJECT button (11,28) to open the CD door.
Load a CD with the label facing outwards and press the EJECT button again to
close the door.
The EJECT function only operates in CD mode.
NOTE: You may need to angle the disc and slide the top half into the unit before
mounting the disc on the mechanism.
DO NOT push the door downwards to close.
Play a Disc
1. Once loaded the unit will read the disc contents and begin playback. Pause
playback by pressing the PLAY/PAUSE button (10,23) once. To resume
playback press the PLAY/PAUSE button again.
2. To stop playback press the STOP button (9,24).
Skip Tracks
1. Press the SKIP button (13, 34) to skip to the next track on the disc.
2. Press the SKIP button (12, 25) to skip to the previous track.
Searching Tracks
1. Press and hold the SKIP button (13,34) to fast forward the current track
playing.
2. Press and hold the SKIP button (12, 25) to fast rewind the current track
playing.
4.2
4.3
4.4
Operation4
Quick Setup3
1. Ensure the unit is ON and not in STANDBY.
2. Press the SLEEP button (6, 29) repeatedly to cycle through the preset timers
from 90 minutes to 10 minutes then OFF.
3. When you have selected the required timer duration, after 1 second of inactivity
the setting will be stored and the countdown will begin.

336723
Operation4
Repeat & Random function
1. Press the PLAY MODE button (21) once to repeat the current track. You will see
flash on the top right portion of the display.
2. Press the REPEAT button again to repeat the entire disc. You will see the icon
on the top right portion of the display stop flashing and remain solid.
3. Press the REPEAT button once more to enter RANDOM playback mode. This
function will playback all tracks on the current disc in a random order.
You will see ‘RAN’ appear to the right of the time code.
4. Press the REPEAT button once more to cancel any repeat functions and resume
normal playback. All icons will disappear.
Program function
You can program an alternative playback sequence for up to 20 tracks on a single
disc.
1. First press the STOP button if a disc is playing.
2. Press the PROG. button (8,23). You will see ‘PROG’ flash on the right of the
display & P-01 appear to indicate program mode operation.
3. Press either / buttons to select the track number you wish to play in
position one.
4.6
4.7 Radio Station Full Scan
Before tuning the radio extend the antenna (16) fully.
1. Press the FUNCTION button (4,20) repeatedly until you see a radio frequency
appear on the display EG:-89:60.
2. To manually scan for radio stations press and hold either of the buttons
(12/13, 25/34) for two seconds to scan down or up the frequency band. When a
station is found the scan will stop and the station will begin to play.
4.5
4. Press the PROG. button to store the track.
5. Repeat steps 3-4 until you have programmed all the tracks you wish to play.
6. Press the PLAY/PAUSE button to begin playback of your programmed sequence.
7. To delete the program press the STOP button twice.
You will notice the ‘PROG’ icon disappears from the display.

336723
3. To fne tune the frequency press either of the buttons (do not press &
hold), to jump 0.05 MH.z
4. There is an auto scan function that will scan the entire frequency range and
store all located stations in the preset memory slots.
To use this function press and hold the AUTOSCAN button on the remote (23). The
unit will scan the frequency band and stop when finished.
See ‘Radio station presets’ below for details on how to recall located stations.
NOTE: Placement of the aerial is important to get a good FM signal. If you are
having problems tuning a station, moving the aerial may improve the reception. If
not try moving the unit to another location.
5. If you are experiencing poor stereo FM reception, you can press the FM ST.
button (7,21) to revert to MONO mode which can clean up the reception.
Stereo mode is indicated by this icon ‘ ’.
NOTE: Not all stations will allow this function.
Radio station presets
It is possible to store up to 20 preset stations.
The below steps will explain how to store & recall them.
1. With a radio station tuned, press and hold the PRESET button (8,26). You will
see a P01 fash on the display to indicate preset 01.
2. If you wish to store the current station in slot 01 press the PRESET button again
to store. Should you wish to use another slot use the NAVIGATION
buttons (26/35) to cycle through slots 1-20 until you reach the slot you wish to
use.
3. Press the PRESET button to store the station in the selected slot.
4. To recall stations stored in preset slots use the NAVIGATION buttons (26/35) to
cycle through slots 1-20. Each press will play the stored station on that slot. If
no station is stored then static will be heard.
4.8
Operation4

336723
LINE Input mode
You can connect an audio device to the unit using a 3.5mm audio cable (not
supplied).
1. Connect the 3.5mm plug (not supplied) into the Audio Input socket on the rear of
the unit (14).
2. Connect the other end to your audio device.
3. Press the FUNCTION button (4,20) repeatedly until you see Line In appear on the
display.
4. Power on the external audio device and begin playback.
5. Adjust the volume on the CD Micro system unit.
NOTE: it is recommended to try various volume levels on the external audio device
until you reach an acceptable balance.
Too much volume and the audio will be distorted, too little and the audio will be too
weak.
The actual volume level is controlled on the unit, using the VOL + / - buttons.
Pairing with other Bluetooth source devices:
1. Press the STAND-BY button(3,19) to turn the power on.
2. Press the FUNCTION button (4,20) to select Bluetooth function.(PAIRING indicator
blinks.)
3. Press and hold the PAIRING button(10.24) for 3 seconds or more. PAIRING
indicator blinks quickly.
The unit is now in pairing mode and is ready to be paired with other Bluetooth
source devices.
4. Perform pairing procedure on the source device to detect this
unit.“GoodmansHiFi” will appear in the detected devices list (if available) in the
source device.
4.10
Operation4
4.9

336723
NOTE:
• Place the devices to be paired within 1 meter (3 feet) of each other when
pairing.
5. Select “GoodmansHiFi” from the source list. If Pass code* is required, enter
“0000”.
* Pass code may be called PIN Code, Passkey, PIN number or Password.
6. Pairing indicator (blue) will stop blinking once the unit is successfully paired with
the source device.(Pairing information is now memorised in the unit.)
Some audio source devices may connect with the unit automatically after
pairing is completed, otherwise follow the instructions in the source device
operating manual to start connection.
7. Press the play button on main unit, remote control or source device to start
Bluetooth connection.
Operation4

336723
Troubleshooting5
In the unlikely event of difficulties with your appliance please follow the trouble
shooting guide below.
If the problem persists, contact the retailer if the machine is still under guarantee.
P
roblem
Reason(s) Solution(s)
No Power • Power cable not connected
to wall socket
• Power socket is not
switched on
• Make sure the plug is
connected
• Switch the power on
No Sound CD/AUX/RADIO
No Sound from Line input
• Volume is too low
• Line source volume is too
low
• Increase the volume
• Increase the output volume
of the Line source.
Sound is distorted
Sound is distorted from
Line input
• Volume is too high
• Line source volume is too
high
• Reduce the volume
• Reduce the output volume
of the Line input Source.
Unable to Play • No disc in the tray
• Disc is dirty
• Insert a compatible disc
• Check the disc loaded
• Clean the disc
Static Sound • Poor reception • Re-locate the antenna (FM)
Unit switches off after 20
minutes of inactivity
• Auto standby mode in
operation
• This unit is designed to
enter STANDBY mode
automatically after 20
MINUTES of inactivity.
Press the STANDBY
button to wake the unit.

336723
336723
Power Supply Mains adaptor : 100-240V ~ 50/60Hz
Mains Adapter output: DC 9V, 2500mA
Power Consumption 20 Watts
AUX in 3.5mm Stereo Socket
Tuner
FM 87.5 - 108MHz
cd Player
DAC 1 Bit DAC converter with 8 x over sampling.
Playback System Compact Disc Digital Audio System
Frequency Range FM: 87.5-108MHz
DAB: 174.928 - 239.200MHz
Frequency response 100Hz - 12KHz (+/- 6 dB)
S/N ratio 55dB
Dynamic range 85dB
audio
Output Power 5W x 2 (RMS)
Speaker impedance 4 ohms
Disc Type CD-DA/CD-R/CD-RW
Size 12cm & 8cm
blueTooTh
Frequency band 2.400GHz - 2.480GHz
Compatible Bluetooth
Profile:
A2DP (Advanced Audio Distribution Profile), AVRCP
(Audio/Video Remote Control Profile)Bluetooth 2.1 +EDR
Technical Specification6

336723
Customer Support
7
For all product support, please email:
[e-mail]
This product is intended for use within the UK
Declaration of Conformance
the full text of the EU declaration of conformity is available at the following
Internet address:
http://www.bmstores.co.uk/technical-information
