Goodyear CH-6A User manual

Battery charger
CH-6A
Зарядное устройство
* Прочтите это руководство перед использованием устройства и сохраните
его для дальнейшего использования!
Руководство по эксплуатации
Operating manual
* Read the manual before using the equipment and keep it for further use.
Goodyear (and Winged Foot Design) and Blimp Design are trademarks of The Goodyear Tire & Rubber Company used under license
by PROFIMPORT LLC, Building 3, Mayakovskogo Str. 1A, Ryazan, Russia. Copyright 2021 The Goodyear Tire & Rubber Company.

2
1
312 Ah
30 Ah
60 Ah
120 Ah
80%
2 h
5 h
10 h
20 h
4
12
6
21
43 5
FGHE
88.8
V
!
ABCDK
12V STD
RECOND SUPPLY
12V AGM
12V M
3
3.15 A

Danger!
When using the equipment, a few safety precautions must be observed to avoid
injuries and damage. Please read the complete operating instructions and safety
regulations with due care. Keep this manual in a safe place, so that the information is
available at all times. If you give the equipment to any other person, hand over these
operating instructions and safety regulations as well. We cannot accept any liability for
damage or accidents which arise due to a failure to follow these instructions and the
safety instructions.
1. Safety regulations
EN
Any errors made in following the safety regulations and instructions may result in an
electric shock, re and/or serious injury.
1 – Function key
5 – Suspension eye
6 – Mains power cable
4 – Charging cable, red (+)
The corresponding safety information can be found in the enclosed booklet.
3 – Fuse value on pcb
Keep all safety regulations and instructions in a safe place for future use.
This equipment can be used by children of 8 years and older and by people with limited
physical, sensory or mental capacities or those with no experience and knowledge if
they are supervised or have received instruction in how to use the equipment safely and
understand the dangers which result from such use. Children are not allowed to play
with the equipment. Unless supervised, children are not allowed to clean the equip-
ment and carry out user-level maintenance work.
1 – The equipment is totally insulated
Explanation of the warning signs on the equipment (see Fig. 4)
2 – CAUTION - Read the operating instructions to reduce the risk of injury
DANGER!
Batteries: Only dispose of these items through motor vehicle workshops, special
collection points or special waste collection points. Ask your local council.

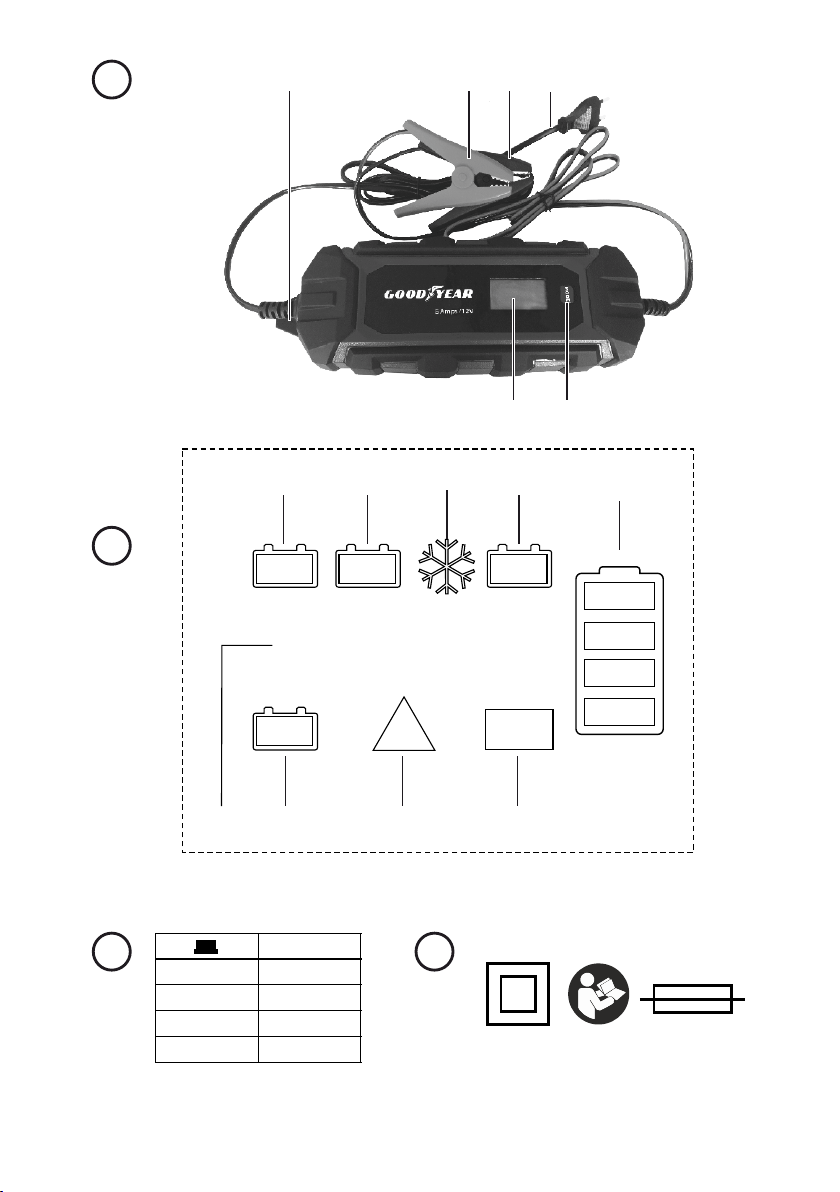

2.1 Layout (Fig. 1)
Waste disposal
Read all safety regulations and instructions.
2 – LCD display
3 – Charging cable, black (-)
2. Layout and items supplied

Open the packaging and take out the equipment with care.
Inspect the equipment and accessories for transport damage.
The charger is designed for charging nonmaintenance-free or maintenance-free 12V
lead acid batteries (wet / EFB batteries) and for lead gel and AGM batteries which are
used in motor vehicles.
The equipment must not be used for charging lithium iron phosphate rechargeable
batteries (e.g. LiFePO4) or other lithium rechargeable batteries. The equipment is
designed for mobile use only and not for installation in caravans, mobile homes or
similar vehicles. Do not expose the charger to rain or snow.
Remove the packaging material and any packaging and/or transportation braces (if
available).
2.2 Items supplied
Check to see if all items are supplied.
Items supplied:
- Battery charger - 1 pce.
If possible, please keep the packaging until the end of the guarantee period.
The equipment and packaging material are not toys. Do not let children play with
plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
- Operating manual -1 pce.
- Warranty certicate - 1 pce.
- Packaging - 1 pce.
The 12V M charging program is suitable for trickle charging and charging of batteries
with small battery capacities. The SUPPLY function enables the device to be used as a
buffer power supply as well, e.g. while changing a battery or for the operation of 12V d.c.
consumers (observe the max. power consumption). The RECOND program is intended
to be used only for bringing lead acid batteries (not for AGM and GEL batteries) which
have undergone exhaustive discharge back to life. Only use this program for a short time
and under supervision.
Please note that our equipment has not been designed for use in commercial, trade or
industrial applications. Our warranty will be voided if the machine is used in commercial,
trade or industrial businesses or for equivalent purposes.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to
be a case of misuse. The user / operator and not the manufacturer will be liable for any
damage or injuries of any kind caused as a result of this.
Danger!
3. Proper use

4. Technical data
Rated output voltage: ..........................................................12 V DC
Protection type: .................................................................... IP65
Battery capacity “STD/AGM/Winter”: ............................. 20-150 Ah
Rated output current: .......................................................... 6 A
“SUPPLY” function output max.: ...................................... 5 A
Ambient temperature: ....................................................... - 10°C /+ 40°C
Protection class: .................................................................... II
Max. power rating: ................................................................ 100 W
Mains voltage: ........................................................................ 220-240 V, ~ 50Hz
Battery capacity “12V M” (max. 1A): ................................ 2-32 Ah
“RECOND” charging program: .......................................... 15.3 V DC / 1.5 A
The charger is a microprocessor controlled automatic charger, i.e. it is suitable in
particular for charging maintenance-free batteries and for the long-term charging and
maintenance-charging of batteries which are not in constant use, e.g. for classic cars,
recreational vehicles, lawn tractors and the like. The integrated microprocessor enables
charging in several steps. The nal charging step, maintenance charging, maintains the
battery capacity at 95-100% and therefore keeps the battery fully charged at all times.
The charging operation does not need to be monitored. However, do not leave the
battery unattended if you charge it over an extended period of time, so that you can
disconnect it from the mains power supply in the event of a fault in the charger.
A Charging a 12V battery (lead acid battery).
Before you connect the equipment to the power supply make sure that the data on the
specications label are identical to the supply voltage. Danger! Do not charge any
frozen batteries.
Please also refer to the instructions in the owner's manuals for the car, radio,
navigation system, etc.
Notes on automatic charging
(charging programs 12V STD, 12V AGM, 12V Winter, 12 V M only)
5.1 Explanation of the symbols (Fig. 2)
B Charging a 12V AGM battery.
C Charging a 12V battery (lead acid battery, AGM battery and GEL battery) in winter
mode with an ambient temperature of - 10°C to +5°C. Danger! Do not charge any frozen
batteries.
5. Operation

D Charging a 12V battery (lead acid battery, AGM battery and GEL battery) in charge
maintenance mode.
E Charging voltage in volts, faulty battery (BAt) / fully charged (FUL) / connected with
reverse polarity or short-circuit at the clamps (Err) / short-circuit at the clamps in
SUPPLY operating mode (LoV).
F Restoration of the charging capability of discharged lead acid batteries with higher
charging voltage. Not for AGM and GEL batteries!
G Clamps are wrongly connected (reverse polarity) or there is a short-circuit.
H Power supply, e.g. when changing a battery.
K Charge status of the battery in percent (1 increment = 25%) and charging process
(increment lit = the battery has reached the charge level shown; increment in the
battery symbol ashes = the battery is being charged to the next charge level; all
increments are lit = the battery is fully charged).
5.2 Setting the charging programs (Fig. 2)
Note:
Press the “Mode” button (Fig. 1/Item 1) to switch to the various programs. The symbol
for the applicable program will appear in the display. The batteries will be charged
using the program which is displayed.
A) 12V STD: Charging program for lead acid batteries (wet, EFB batteries). When the
charger is used for the rst time, 12V STD will appear in the display.
If the voltage of the battery is less than 3.5 V or more than 15 V, the battery is either not
suitable for charging or it is faulty. The message “BAt” will appear in the LCD display.
C) Winter / : The recommended charging program for cold weather conditions
(ambient temperature of -10°C to +5°C) for normal lead acid batteries (wet batteries)
Press the “Mode” button -> switch from the 12V AGM to the “Winter” charging program.
B) 12V AGM: Charging program for AGM batteries Press the “Mode” button -> switch
from the 12V STD to the 12V AGM charging program.
When the charger is disconnected from the socket outlet, the last charging program to
have been set will be saved (apart from RECOND and SUPPLY) and will be the default
program the next time the charger is used.
D) 12V M: Charging program for batteries with a low capacity (see “Technical data”) and
for trickle charging of all batteries listed in 3. “Proper use”. Press the “Mode” button ->
switch from the “Winter” to the “12 M” charging program.
If there is a short - circuit between the charging terminals while the SUPPLY function is
on, the message “Lo V” will appear in the LCD display.
5.2.1 Standard charging programs
5.2.2 Special charging programs

F) RECOND: Charging program with higher end- of-charge voltage and constant
current charging, used only for restoring the charging capability of lead acid batteries
which have undergone exhaustive discharge. Not for AG
The RECOND process must be checked every half an hour and must never exceed a time
of 1,5-2 hours. Refer to the instructions supplied by the battery manufacturer.
џGassing generates explosive gas - risk of explosion! Ensure that there is good
ventilation.
џOnly use the RECOND program for lead acid batteries and only as described below.
Take care to avoid spilling any battery acid. Battery acid is aggressive. Read and
observe the safety information.
Warning!
џNever use for a battery which is of sealed design (VRLA battery such as, e.g. AGM or
GEL battery). Refer to the instructions supplied by the battery manufacturer.
Using the RECOND charging program
џConnect the charger to a lead acid battery as described in section 5.3 and check the
charging process every half hour.
џAfter 2 hours at the latest or as soon as the battery starts audibly gassing (bubbling),
remove the charger as described in section 5.3.
џIf possible, check the acid level and, if possible, top up the battery cells, if necessary
just with distilled water. The acid level should ideally be between the marked max.
and min. level and should be identical for all the cells. Screw the battery stoppers, if
there are any, tightly in place.
H) SUPPLY: For supplying 12V d.c. voltage, e.g. when changing a battery or for operating
12V d.c. consumers.
Press the “Mode” button -> switch from the RECOND to the SUPPLY function.
Warning! Protection against swapped poles will not be available. If the poles are
swapped there is a risk of damaging the charger and the battery/ on-board vehicle
power supply or a connected consumer. It is imperative that you make sure the polarity
is correct when you connect up. Observe the maximum power consumption (see
“Technical data”) of the consumer.
Note:
џOnly use for batteries which are free-standing and have been taken out of the car,
not while installed in your car with a connection to the car's electrical system. The
higher charging voltage could damage the electrical system.
џThe direct voltage which is provided (shown in the display) is load-dependent and
without load it is approx. 14.5 V.
џThis function can be used for consumers which are operated from a vehicle's
cigarette lighter.
џRefer to and observe the operating manual for your 12 V consumer.

The charging time depends on the charge status of the battery. If the battery is fully
discharged, the approximate charging time up to approx. 80% charged can be calcu-
lated using the following formula:
5.5 Fault indicator (Fig. 2 / Item G)
5.4 Calculating the charging time (Fig. 3)
џCheck the acid level in the battery. If necessary, top up the battery with distilled
water (if possible). Important! Battery acid is aggressive. Rinse off any acid splashes
thoroughly with lots of water and seek medical advice if necessary.
џIf there is a short-circuit between the two terminal clamps (the metal parts of the
clamps come into contact with each other). The protection against short-circuits
ensures that the battery and charger do not get damaged.
џRelease or remove the battery stoppers (if tted) from the battery.
џWhen “FUL' appears in the LCD display (and all increments Fig. 2/Item K), charging
has been completed. The charger holds the battery at 95% - 100% available battery
capacity using pulsed charging. If the charger shows this after just a few minutes,
this indicates that the battery capacity is low. The battery needs replacing.
џAfter the battery has been connected to the charger, you can connect the charger to
a socket (see Technical Data). You can now change the charging settings (see
section 5.2).
џIf the terminal clamps are connected to the battery terminals with the wrong
polarity. The protection against swapped poles ensures that the battery and charger
do not get damaged. Remove the charger from the battery and start the charging
process from the beginning again. Caution! Protection against swapped poles is not
available when the SUPPLY program is used.
џFirst connect the red charging cable to the positive pole of the battery. Then connect
the black charging cable to the negative pole of the battery.
The fault indicator will ash (light up) in the following cases:
5.3 Charging the battery:
џImportant! Charging may create dangerous explosive gas and therefore you should
avoid spark formation and naked ames whilst the battery is charging. There is a risk
of explosion! It is essential that you ventilate the rooms well.
џIf the voltage of the battery is less than 3.5 V or more than 15 V. The battery is either
unsuitable for charging or is defective. It is also possible that other battery errors or
faults can mean that the battery cannot be charged.
Charging time/h =
Amp. (charging current)
Battery capacity in Ah

Important! If the mains plug is pulled out but the charger cables are still connected to
the battery, the charger will draw off a small amount of electricity from the battery. We
therefore recommend that you always completely remove the charger from the battery
when not in use.
џKeep all safety devices, air vents and the motor housing free of dirt and dust as far as
possible. Wipe the equipment with a clean cloth or blow it with compressed air at
low pressure.
џThen release the red charging cable from the positive pole on the battery.
џKeep the battery clean and dry. Apply a thin coating of grease to the connection
terminals using an acid-free, acid-resistant grease (Vaseline).
џCheck the level of the acid in batteries that are not maintenance-free versions
approximately every 4 weeks and top up with distilled water if necessary.
Danger!
Always pull out the mains power plug before starting any cleaning work.
5.6 Finishing charging the battery
џPull the plug out of the socket.
џScrew or push the battery stoppers back into position (if there are any).
џEnsure that your battery is always tted securely.
џA perfect connection to the cable network of the electrical system must be ensured
at all times.
8.1 Cleaning
џFirst disconnect the black charging cable from the bodywork.
џWe recommend that you clean the device immediately each time you have nished
using it.
The charger has electronic protection against overloading, short-circuits and swapped
poles when the 12V STD, 12V AGM, 12V Winter and 12V M programs are used. One or
more ne fuses are also tted. If the fuse suffers a defect it must be replaced by a new
fuse with the same amp value. If necessary, please contact our customer service center.
џClean the equipment regularly with a moist cloth and some soft soap. Do not use
cleaning agents or solvents; these could attack the plastic par ts of the equipment.
Ensure that no water can seep into the device. The ingress of water into an electric
tool increases the risk of an electric shock.
6. Overload cut-out
7. Maintenance and care of the battery
8. Cleaning, maintenance and ordering of spare parts
