Gorenje BCS 547-ORA-B User manual

EN
DETAILED
INSTRUCTIONS FOR USE
OF A COMBI STEAM
OVEN
www.gorenje.comwww.gorenje.com

We thank you for your
trust and the purchase of our
appliance.
This detailed instruction manual is
supplied to make the use of this
product easier. The instructions
should allow you to learn about your
new appliance as quickly as possible.
Make sure you have received an
undamaged appliance. If you do find
transport damage, please contact the
seller from which you purchased the
appliance, or the regional warehouse
from which it was supplied. The
telephone number can be found on
the invoice or on the delivery note.
Instructions for installation and
connection are supplied on a
separate sheet.
Instructions for use are also available
at our website:
www.gorenje.com
Important information
Tip, note

3
CONTENTS
602220
INTRODUCTION
PREPARING THE
APPLIANCE FOR
THE FIRST USE
COOKING STEPS
MAINTENANCE
& CLEANING
TROUBLE-
SHOOTING
4 COMBI STEAM OVEN
8 Control unit
10 Technical specifications
11 IMPORTANT SAFETY INSTRUCTIONS
13 Before connecting the oven:
14 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
14 Steam cooking
15 STEPS OF THE COOKING PROCESS (1–6)
15 Step 1: SWITCHING ON AND SETTINGS
19 Step 2: CHOOSING THE COOKING SYSTEM
21 Step 3: CHOOSING THE SETTINGS
25 Step 4: SELECTING ADDITIONAL FUNCTIONS
26 Step 5: STARTING THE COOKING PROCESS
26 Step 6: SWITCHING OFF THE OVEN
27 DESCRIPTIONS OF SYSTEMS (COOKING MODES) AND
COOKING TABLES
45 MAINTENANCE & CLEANING
46 Conventional oven cleaning
47 Using the steam clean function to clean the oven
48 Cleaning the steam system
49 Cleaning the filter foam
50 Removing and cleaning the wire guides
51 Removing and inserting the oven door
53 Removing and inserting the oven door glass pane
54 Replacing the bulb
55 TROUBLESHOOTING TABLE
56 DISPOSAL
57 COOKING TEST
OTHER

4
COMBI STEAM OVEN
(DESCRIPTION OF THE OVEN AND EQUIPMENT – DEPENDING ON
THE MODEL)
Control unit
WIRE GUIDES
Wire guides allow preparation of the food on four levels (please note that the levels/
guides are counted from the bottom up).
Guides 3 and 4 are intended for grilling.
TELESCOPIC PULL-OUT GUIDES
Telescopic pull-out (extendible) guides may be fitted for the second and third level.
Pull-out guides can be partly or fully extendible.
OVEN DOOR SWITCH
The switches deactivate oven heating, the fan, and the microwaves when the oven door
is opened during the cooking process. When the door is closed, the switches turn the
heaters and microwaves back on.
Oven door
Oven handle
Guides
- Cooking levels
4
3
2
1
602220
The figure represents one of the built-in appliance models. Since the appliances for which
these instructions were drawn up may have different equipment, some functions or
equipment may be described in the manual that may not be present in your appliances.

5
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing and the appliance control
panel.
EXTENDED OPERATION OF THE COOLING FAN
After the oven is switched off, the cooling fan continues to operate for a short while in
order to provide additional cooling for the oven. (Extended cooling fan operation depends
on the temperature in the center of the oven.)
602220
OVEN EQUIPMENT AND ACCESSORIES (depending on the model)
GLASS BAKING DISH is used for cooking
with all oven systems and for cooking with
microwaves. It can also be used as a serving
tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, the grid has to be lifted slightly at
the front when pulling it out from the oven.
The SHALLOW BAKING SHEET is used for
baking pastry and cakes.
The DEEP BAKING TRAY is used for
roasting meat and baking moist pastry. It
can also be used as a drip tray.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling food or using the roasting spit and
you are only using the deep tray as a drip tray.

6
602220
STEAM SET (INOX) is used for cooking
vegetables, potatoes, fish or meat. The
perforated tray prevents contact between the
food and condensate collected in the deep
tray.
Always use the entire steam set (only for
steam cooking).
The grid or the tray should always be
inserted into the groove between the two
wire profiles.
With telescopic extendible guides, first pull
out the guides of one level and place the
grid or the baking tray onto them. Then,
push them in with your hand as far as they
will go.
Close the oven door when the
telescopic guides are retracted all the way
into the oven.
SYNCHRONIZATION BAR
The bar can be installed or removed on the
fully retractable telescopic guides. First,
completely pull out both guides of the desired
level. Insert the bar into the two slots on the
guides and push the guides in with your hand
until they stop.
BAKING PAN SUPPORT allows easy
removal of baking pans from the oven while
they are still hot.
2
3

7
602220
PROBE for roasting larger chunks of meat.
(Depending on the model)
DESCALING AGENT for cleaning the steam
system.
TEST PAPER STRIP for testing water
hardness.
MECHANICAL DOOR LOCK prevents
the opening of oven door until the lock is
released.
To open it, gently push your thumb to the
right while pulling the door outwards.
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.

8

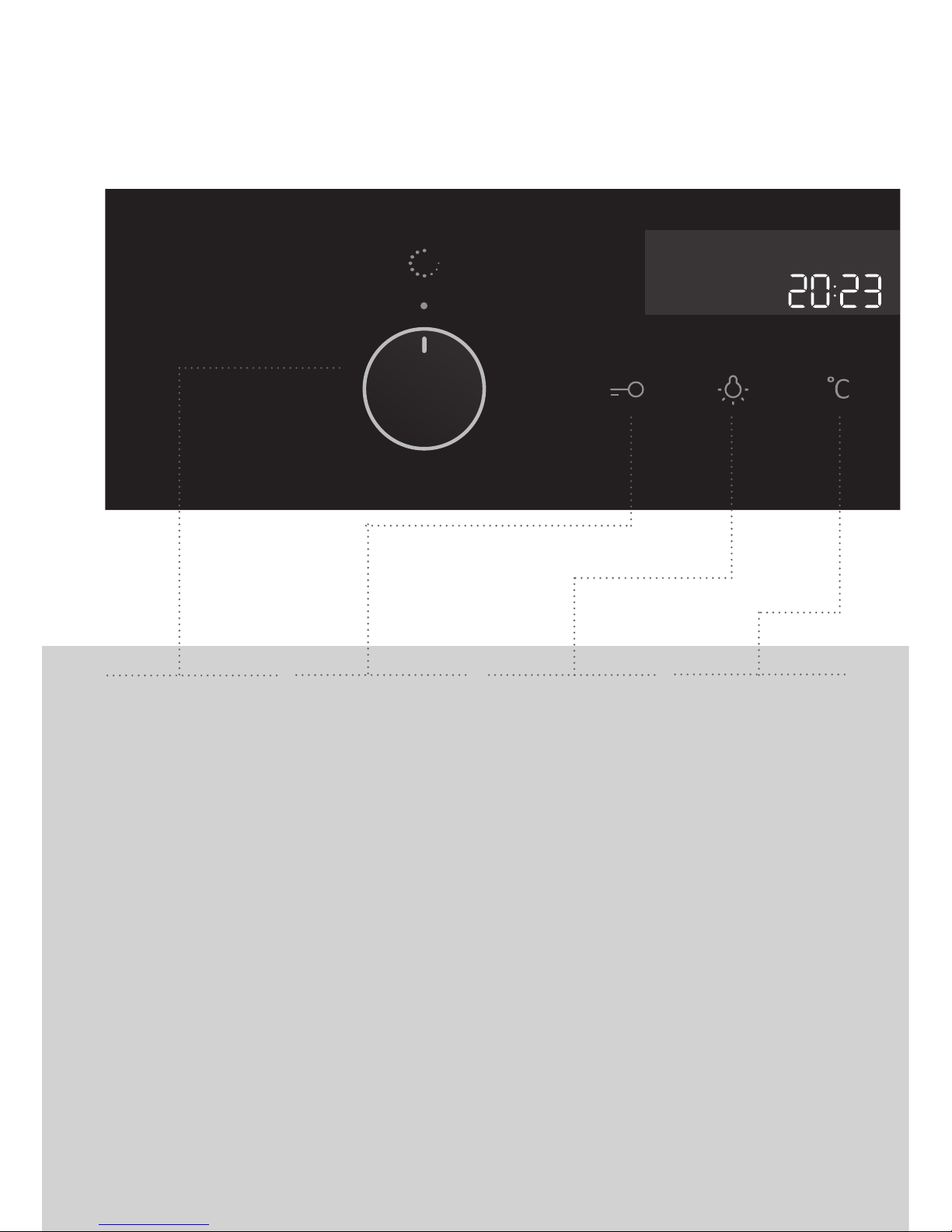

CONTROL UNIT
(DEPENDING ON THE MODEL)
1COOKING SYSTEM
SELECTOR KNOB
(depending on the
model)
2CHILD LOCK KEY 3OVEN LIGHTING ON/
OFF KEY 4TEMPERATURE/
POWER KEY
NOTE:
Symbols of cooking systems may be located on the knob or on the front panel
(depending on the appliance model).
602220

9
5ELECTRONIC PROGRAM
TIMER
Cooking duration
End of cooking
Alarm
Clock
6START/STOP KEY
Use this key to
start or stop the
program.
7SETTINGS KNOB (-/+)
Use this knob to set
the time, temperature
and microwave
power.
8COOKING INFORMATION
AND CLOCK DISPLAY
NOTE:
The keys will respond better if you touch them with a larger area of your fingertip. Each
time you press a key, a short acoustic signal will be sounded.
602220

10
TECHNICAL SPECIFICATIONS
(DEPENDING ON THE MODEL)
602220

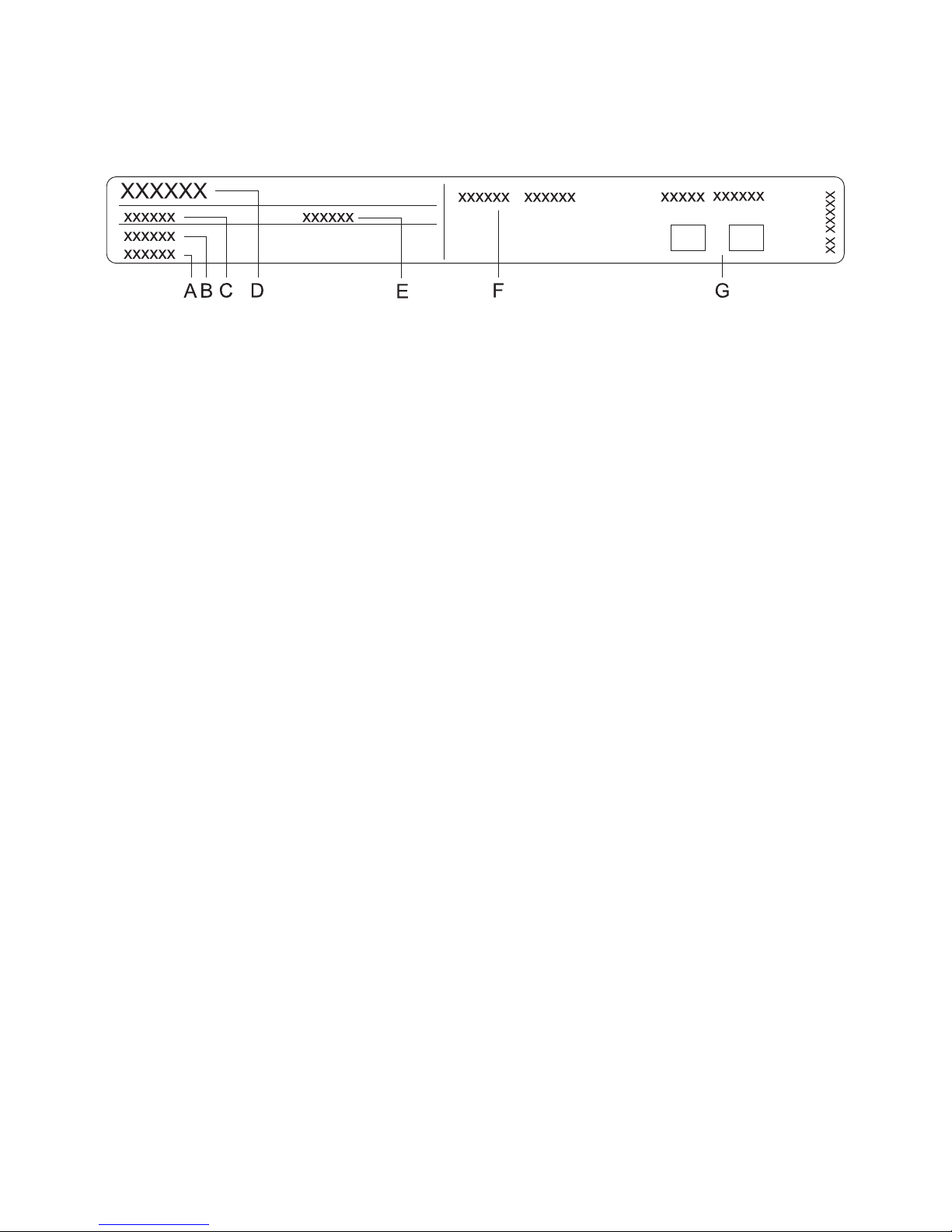

The rating plate indicating the
basic information about the
appliance is located at the edge
of the oven and it is visible when
the oven door is opened.
ASerial number
BCode/ID
CType
DBrand
EModel
FTechnical data
GCompliance symbols

11
602220
IMPORTANT SAFETY
INSTRUCTIONS
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM
FOR FUTURE REFERENCE.
This appliance may only be used by children aged 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
supervision or instructions are provided to them concerning
use of the appliance in a safe way and if they understand
the hazards involved. Do not let the children play with the
appliance. Cleaning and user maintenance shall not be made
by children without supervision.
WARNING: The appliance and some of its accessible parts
may become very hot during use. Be careful not to touch
the heaters. Children younger than 8 years should be
constantly supervised.
The appliance becomes very hot during use. Be careful not
to touch the oven heaters.
WARNING: The accessible parts of the appliance may
become hot during use. Children should be kept away from
the oven.
Only use the temperature probe recommended for use in
this oven.
WARNING: Before replacing the light bulb, make sure the
appliance has been disconnected from the power mains, in
order to prevent the hazard of an electric shock.

12
602220
Do not use abrasive cleaners or sharp metal scrapers to clean
the oven as they may damage the finish or the protective enamel
coating. Such damages may lead to cracking of the glass.
Do not use steam cleaners or high pressure cleaners to clean the
appliance as this may result in an electric shock.
The appliance is not intended to be controlled with external
timers or special control systems.
The appliance is intended for household
use. Do not use it for any other purpose,
such as room heating, drying of pets or
other animals, paper, fabrics, herbs etc. as
this may lead to injury or fire hazard.
The appliance may only be connected to
the power mains by an authorized service
technician or expert.
Tampering with the appliance or non-
professional repair thereof may result
in risk of severe injury or damage to the
product.
If the power cords of other appliances
located near this appliance are caught
in the oven door, they may be damaged,
which may in turn result in a short circuit.
Therefore, keep the power cords of other
appliances at a safe distance.
If the power cord is damaged, it should
be replaced by the manufacturer or an
authorized service technician, in order to
avoid hazard.
Do not line the oven walls with aluminium
foil and do not place baking trays or other
cookware on the oven bottom. Aluminium
foil would prevent air circulation in the
oven, hinder the cooking process, and ruin
the enamel coating.
Oven door become very hot during
operation. A third glass is installed for extra
protection, reducing the temperature of the
outside surface (only with some models).
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity. Never stand on the open oven
door and do not let children to sit on it.
Appliance operation is safe with and
without tray guides.
Make sure the vents are never covered or
obstructed in any other way.

13
Safe and correct use of the steam oven
Leave the appliance at room temperature for
some time before connecting it to the power
mains to allow all components to adapt to
room temperature. If the oven is stored at a
temperature near or below freezing point,
there is a danger for some components,
especially the pumps.
The appliance should not operate in an
environment with a temperature below 5
°C. Below this temperature, the water that
remains in the pumps could freeze. If the
appliance is turned on in such conditions, the
pumps could be damaged.
If the appliance does not work correctly,
disconnect it from the power mains.
Do not store items in the oven, which could
cause danger when the oven is switched on.
Do not use distilled water that is not suitable
for ingestion.
After the steam cooking is completed, there
is some residual steam in the oven. Open
the oven door carefully, as there is danger of
scalding with steam.
Clean the oven once it has cooled down to
room temperature.
After the cooking process, the remaining
water in the steam system is pumped back
into the water tank. Therefore, the water
there could be hot. Be careful when emptying
the water tank.
To prevent the build-up of limescale, leave
the oven door open after cooking to allow
the oven cavity to cool down to room
temperature.
Eventual mismatches in colour shades
between different appliances or components
within a single design line may occur due to
various factors, such as different angles under
which the appliances are observed, different
coloured backgrounds, materials, and room
illumination.
We recommend not to open the door during
the steam cycle due to increased quantity of
water condensate.
602220
BEFORE CONNECTING THE OVEN:
Carefully read the instructions for use before connecting the
appliance. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
WARNING!
Risk of burns and damage to the appliance.
• Released Steam can cause burns: Be careful when you open the appliance
door when the function is activated. Steam can release.
WARNING!
Use only water as the liquid. Do not use filtered (demineralised) or distilled water.

14
602220
BEFORE USING THE APPLIANCE
FOR THE FIRST TIME
Upon receiving the appliance, remove all parts, including any transport equipment, from
the oven.
Clean all accessories and utensils with warm water and regular detergent. Do not use any
abrasive cleaners.
When the oven heats up for the first time, the characteristic smell of a new appliance will
be emitted. Ventilate the room thoroughly during the first use.
STEAM COOKING
Healthy and natural, steam cooking preserves the full flavour of foods. This cooking
method releases no odours. There is no need to add salt to the water or to add herbs and
spices.
Following are the advantages of steam cooking:
Cooking (braising, roasting) starts before the temperature inside the oven reaches 100 °C.
Slow cooking (braising, roasting) is also possible at lower temperatures.
It is healthy: vitamins and minerals are well preserved because only a small share of them
is dissolved in the condensation water that touches the food.
There is no need to add any fat during the cooking process. The steam maintains the taste
of food. It does not add odours, nor the taste of the grill or the pan. Furthermore, it takes
nothing away because the food is not diluted in the water. Steam does not spread the
flavour or smell; therefore, meat or fish can be cooked together with vegetables. Steam is
also suitable for blanching, defrosting and reheating or keeping the food warm.

15
1Rotate the SETTINGS KNOB (-/+) and first set the minutes; then, the cursor will
switch to hours. After three seconds, the
settings will be saved.
Turning the knob farther to the right
or to the left will change the settings more
quickly.
2Confirm by pressing START/ STOP. If nothing is pressed within the next
three seconds, the setting will be stored
automatically.
The oven will also work if the clock is not set. However, timer functions are not
available in this case (see chapter: SETTING THE TIMER FUNCTIONS).
After a few minutes of idling, the appliance will switch to standby mode.
602220
STEPS OF THE COOKING
PROCESS (1–6)
STEP 1: SWITCHING ON AND SETTINGS
After connecting your appliance or after an extended power outage, 12:00 will flash on
the display and the symbol will light up.
All the settings as follows:
SETTING THE CLOCK

16
SETTINGS
To change the settings, rotate the setting knob to the right and hold it for three seconds.
Press the start/sop icon to scroll through respective settings or parameters. To change a
parameter, rotate the setting knob to the right or to the left.
BRIGHTNESS LEVEL
Select between three different options of brightness levels. Mid level is pre-set. Levels can
be set by rotate knob.
Brightness level low Brightness level mid
Brightness level max
SOUND LEVEL
Mid level is pre-selected. Sound levels can be set by rotate knob.
Volume level low Pre-set mid sound level
Volume level max Volume level off
602220

17
WATER HARDNESS (active only on steam ovens)
Water hardness test should be carried out before first use.
Soak the test paper strip (supplied with the appliance) in water for one (1) second.
Wait one minute and observe the number of stripes on the paper. Enter the information
on the number of stripes into the appliance.
4 green stripes Soft Hrd 1
1 red stripe Slightly hard Hrd 2
2 red stripes Medium hard Hrd 3
3 red stripes Hard Hrd 4
4 red stripes Very hard Hrd 5
You can selected between five different options of water hardness levels. Water hardness
level 5 is pre-set,text is visible. Levels can be set by rotating knob.
DECALTINATION (active only on steam ovens)
You can activate decaltination process by selecting ˝on˝ or ˝off˝ with jogger(rotate) knob
and later by pressing the start/stop icon to confirm it. Decaltination ˝on˝ is pre-set.
STEP1 - Add the descaling agent into the
water tank (diluted in water at a ratio of 1:8).
STEP2 - Descaling procedure complete.
Please remove the liquid, rinse the water
tank and add fresh water for the rinsing
process.
602220

18
STEP3/End - Rinsing process complete.
Clean the tank and wipe the oven.
Also clean the filter foam (see chapter
CLEANING THE FILTER FOAM)
END
By pressing the start/stop icon, user can go out of settings menu back to standby mode.
You can go out of settings manu also if you hold selection knob on the left for 3 sec, or it
you turn the system knob.
To change the settings, rotate the setting knob to the right and hold it for three seconds.
Press the start/sop icon to scroll through respective settings or parameters. To change a
parameter, rotate the setting knob to the right or to the left.
602220
After a power outage or after the appliance is switched off, the
additional function settings will remain stored for no more than a
few minutes. Then, all settings, except for the acoustic signal and
child lock will be reset to factory defaults.

19
STEP 2: CHOOSING THE COOKING SYSTEM
Rotate the knob (left and right) to select 0
COOKING SYSTEM (see program table).
The selected icon will appear on the display.
Settings can also be changed during operation.
SYSTEM DESCRIPTION PRE-SET
TEMPERATURE
(°C)
MIN - MAX
TEMPERA-
TURE (°C)
COOKING SYSTEMS
RAPID PREHEAT
Use this function if you wish to heat the oven to
the desired temperature as quickly as possible.
This function is not appropriate for cooking
food. When the oven heats up to the desired
temperature, the heating process is completed.
160 30-230
UPPER AND BOTTOM HEATER
The heaters in the bottom and in the ceiling of
the oven cavity will radiate heat evenly into the
oven interior. Pastry or meat can only be baked/
roasted at a single height level.
200 30-230
GRILL
The upper heater and the grill heater will operate.
The heat is radiated directly by the grill heater
installed in the oven ceiling. To boost the heating
effect, the upper heater is activated as well.
This combination is used for grilling a smaller
amount of open sandwiches, meat or beer
sausages, and for toasting bread.
230 30-230
GRILL WITH FAN
Grill heater and the fan will operate. This
combination is used to grill meat and to roast
larger chunks of meat or poultry at a single height
level. It is also appropriate for dishes au gratin and
for browning to a crispy crust.
170 30-230
HOT AIR AND BOTTOM HEATER
The bottom heater, the round heater, and the hot
air fan will operate. This is used to bake pizza,
moist pastry, fruitcakes, leavened dough and
shortcrust.
200 30-230
HOT AIR
Round heater and the fan will operate. The fan
installed in the back wall of the oven cavity
makes sure the hot air constantly circulates
around the roast or pastry. This mode is used for
roasting meat and baking pastry at several levels
simultaneously.
180 30-230
602220

20
602220
SYSTEM DESCRIPTION PRE-SET
TEMPERATURE
(°C)
MIN - MAX
TEMPERA-
TURE (°C)
ECO COOKING 1)
In this mode, power consumption during the
cooking process is optimized.
This mode is used for roasting meat and baking
pastry.
180 120-230
STEAM CLEAN
Steam moistures oven cavity. Use this function to
remove stains and food residues from the oven.
70 /
AUTOMATIC SYSTEM
DEFROSTING
The air circulates with no heaters activated. Only
the fan will be activated. This is used to slowly
thaw frozen food.
//
COMBINED SYSTEMS/STEAM SYSTEMS
COMBI STEAM+HOT AIR
Used for baking and defrosting. They allow quick
and efficient cooking without changing the colour
or shape of the food.
Three options are available:
- HIGH: cooking escalopes, steaks and smaller
chuncks of meat
- MEDIUM: reheating cool/frozen meals, cooking
fish fillets and vegetables au gratin
- LOW: cooking large chuncks of meat (roast,
whole chicken), baking risen dough (bread and
rolls), cooking lasagna etc.
160 30-230
STEAM 2)
This system is used for cooking meat, vegetable,
fruit and side dishes.
100 40-100
1) It is also used for determining the energy efficiency class pursuant to the EN 60350-1
standard.
2) Degree adjustment.
