Gorenje BOP 8826 AX User manual

Installation Instruction
Warning and safety instructions
Before using the oven for the first time, read these operating instructions
carefully for full information on the safe installation, use and care of your new
appliance.
This unit must be correctly installedinaccordance with the manufacturer's
instructions by a suitably qualified person.
The manufacturers decline responsibility for damage to persons or items due to
poor or incorrect installation of this appliance.
Make sure that the voltage and frequency of the mains supply correspond to the
details on the rating plate which can be found on the lower part of the front of the
oven.
Warning: this appliance must be earthed.
Our company declines any liability for failures in the earth connection or for earth
connection that is not in compliance with the regulations in force.
Maintenance and servicing work must only be carried out after the power supply
has been disconnected by switching off at the wall socket or removing the mains
fuse.
Due to our policy of continuous innovation, we reserve the right to adjust or modify
our product without prior notification.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Where an oven is built-under with a drawer beneath, this must be made non
functioning with a ‘dummy’ front.
On no account should flammable materials be stored in a drawer beneath a built-
under oven as there is a risk of fire.
Do not place heavy objects on the open door or sit on it as this could cause damage
to the hinging. When cooking with oil or fat, do not leave the oven unattended as
there is a risk of fire.
To avoid damage to the interior enamel, do not place the oven pan or baking trays
on the bottom of the oven and do not line the base of the oven with aluminium
cooking foil.
During cooking, food natural produces steam which is vented away to prevent an
excessive build-up within the oven. As this steam can condense to water droplets
on the cool outer trim of the oven, it may be necessary during cooking to wipe away
any moisture with a soft cloth.
This will also help to prevent soiling and discoloration of the oven exterior by
cooking vapours.
35

Before using for the first time
Switch off the oven at the wall socket or remove the mains fuse before cleaning.
Remove any packaging and the oven accessories from the oven. Wipe the oven
interior using hot water and a mild detergent. Rinse carefully using a damp cloth.
Wash the oven shelves and accessories in a dishwasher or using hot water and a
mild detergent, and dry thoroughly.
Technical details
This appliance conforms to the standard 73/23 CEE and 93/68 CEE EMC 89/336
CEE.
Voltage regulations
220-240 V phase + neutral.
Built-in oven dimension (mm) :
Length : 598
Depth : 565,5
Height : 600,3
Volume : 61 Lt
Power supply : 2 , 9
- 3, 4kW
36

Built-in installation
IMPORTANT: The unit must be correctly installed in accordance with the
manufacturer’s instructions and by qualified person. Maintenance and service must
be carried out after the power supply has been disconnected.
ELECTRICAL CONNECTION: Before connecting the appliance to the mains,
ensure that:
• The voltage corresponds to the voltage specified on the rating plate at the bottom
of the surround.
• The overload cut-off device and the domestic system can withstand the load of the
appliance (see rating plate).
• The power supply system is provided with an efficient earth connection and that
the socket or omnipolar switch, with minimum contact opening of 3mm, is easily
accessible once the appliance has been installed.
• If the plug is not easily accessible, the installation personnel must provide an
omnipolar switch with contact opening distance equal to or greater than 3mm.
If further mains cable is needed, it must be with a minimum section of 1,5 mm - type
H05RR-F. Sufficient cable must be left for easy maintenance of the appliance.
Warning: this appliance must be earthed.
Our company declines any liability for failures in the earth connection that is not in
compliance with the regulation in force.
This appliance is designed for building-in to a standard 600mm wide oven housing.
The housing, adjacent furniture and all materials used in installation must be able to
withstand a minimum temperature of 85°C plus ambient temperature during periods
of operation.
In addition, adjacent furniture cabinet doors must be at least 4mm from the
appliance at all points.
Certain types of vinyl or laminate kitchen furniture cabinetry are particularly prone to
heat damage and discoloration, any delimitation or discoloration of materials which
occurs below 85°C plus ambient temperature or where materials are less than 4mm
from the appliance will be the liability of the owner. For building-under a worktop,
the installation dimensions are as follows.
Attention : when the qualified person install the oven near other electrical
appliances, the power cable mustn’t be near or contact with side heat oven.
37

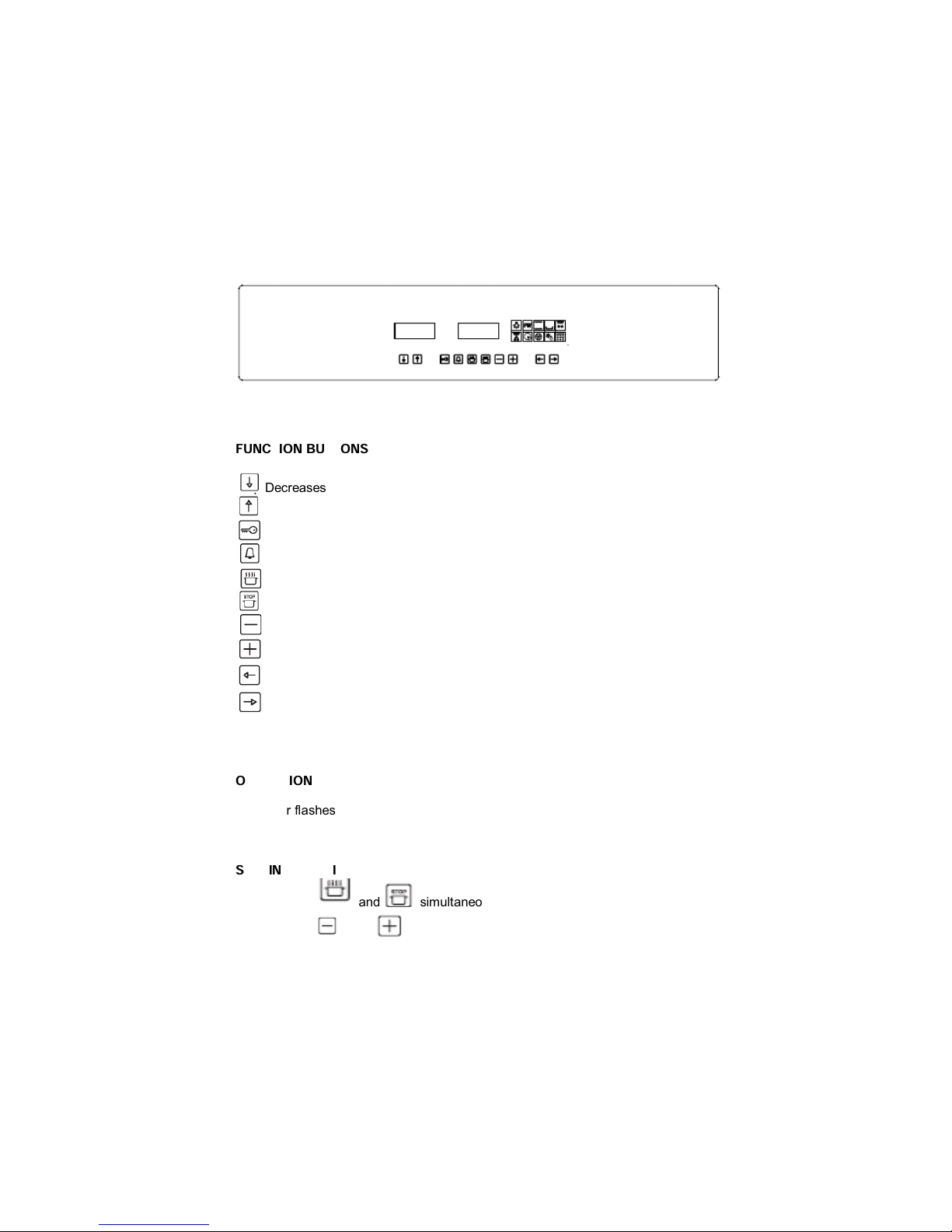

FUNCTION BUTTONS
Decreases temperature
Increases temperature
ON/OFF and Controls Lock Function
Minute minder
Cooking time
End time
Time setting
Time setting
Program setting
Program setting
OPERATION
The timer flashes on the display when switched on for the first time or after a power
cut. The oven cannot be operated; follow the “Setting the time” procedure to start it.
SETTING THE TIME
Press buttons and simultaneously and then release them.
Use buttons and to set the exact time.
38
BOP 8826 AX

Note: this operation must be completed in 3 sec. time, while the 2 dots on the timer
display keep flashing. Once you have completed the time setting, wait for the 2 dots
stop flashing.
SOUND SIGNAL
The oven performs sound signals to show different functions, as for example the
end of cooking. There are 3 different sound levels, which can be modified:
When the oven is switched off, press the key, and with each pressure the
oven performs the sound to a different level; the last one performed will be
automatically set.
SWITCHING ON THE OVEN
Press and release the key, then you will hear a sound signal.
The timer display will show ON , the bulb symbol lights on and the internal
oven light turns on. Now you can proceed to set a cooking function.
MINUTE MINDER
The minute minder is only a counter of time and it is totally independent from any
cooking function. It can be useful, for example, when set to remember to stop a
cooking operation. It can be used also when the oven is switched off.
To set the minute minder, switch on the oven by pressing and releasing the
key, then press the key;
the display reset to zero and the 2 dots start flashing for 3 seconds. Now you can
set the desired time by using the and keys, up to 23h59m.
Once the set time has elapsed, you will hear a sound signal and the symbol
flashes.
To stop the sound and the flashing symbol just press one of the following keys:
MANUAL OPERATION FOR AN INDEFINITE PERIOD OF TIME
Switch on the oven and select an available cooking function using the keys
and :
39

The oven will suggest a preset temperature, which can be changed by using the
keys and . The oven will start working up to the preset temperature and
the centigrade degree starts blinking, which means the preheating of the oven.
When the requested temperature is reached this symbol stops blinking and the
oven beeps.
To switch off the oven, just press and release the key.
COOKING TIME SEMIAUTOMATIC OPERATION
It is recommended to set the duration of cooking
Switch on the oven by pressing and releasing the , then press and release the
. On the timer display the symbol A appears. Set the desired time of cooking
with the keys and up to 10h and 00m.
Then you will hear a sound signal and the timer will show the current hour: you can
select an available cooking function with the keys and
On the timer display the symbol appears.
The oven suggests a preset temperature for each function, which can be changed
with the keys and . The oven starts working for the set time; when this
time has elapsed the oven automatically stops cooking. You will hear a sound
signal, while the temperature display and the cooking function display turn off, the
timer display shows the current hour and the symbols and
A blink.
To stop the sound and exit to the program, just press one of the following keys
Now the oven is ready to be programmed again; you can select a new cooking
function or switch the oven off by pressing and releasing the key .
40

END OF COOKING SEMIAUTOMATIC OPERATION
It is recommended to set the end of cooking time
Switch on the oven by pressing and releasing the , then press and release
the .
On the timer display the symbol A appears. Set the desired end of cooking time
with the keys and up to 23h and 59m.
Then you will hear a sound signal and the timer will show the current hour: you can
select an available cooking function with the keys and
On the timer display the symbol appears.
The oven suggests a preset temperature for each function, which can be changed
by using the keys and .
The oven starts cooking and when fixed time has elapsed, it will automatically turn
off.
At the end of the fixed cooking time, the oven beeps, the temperature display and
the cooking function display turn off, the timer display shows the current hour and
the 2 symbols and
A blink.
To stop the oven beep or to cancel the program just push one of the following keys:
The symbol appears on the function display and then the oven light turns on.
Now the oven is ready to be programmed again; you can select a new cooking
function or switch the oven off by pressing and releasing the .
AUTOMATIC OPERATION
It is recommended to set the duration and the end of cooking
Switch on the oven by pressing and releasing the , then press and release
the and set the duration of cooking with the and keys.
Then you will hear a sound signal and the timer will show the current hour. Press
the and set the end of cooking with the and key.
Another sound signal will be heard and the 2 dots stop blinking: this means the
time has been set.
41

On the display you will see the set time, the temperature and function. The oven
light turns off. Now select an available cooking function with the < and > keys.
The oven suggests a preset temperature for each function, which can be changed
by using the keys and .
Once the 2 dots have stopped blinking, the oven begins the delayed start mode: it
will automatically start for the requested duration and stop at the requested time.
When the oven is cooking, you see the selected temperature, the current hour and
the selected function on the corresponding displays. The internal oven light turns
off.
However, both the temperature and the function can be changed by repeating the
above mentioned instructions.
At the end of the program, the oven beeps, the temperature display and the cooking
function display turn off, the timer display shows the current hour and the 2 symbols
and A blink.
To stop the soud signal or to cancel the program just push one of the following keys
The symbol appears on the function display and then the oven light turns on.
Now the oven is ready to be programmed again; you can select a new cooking
function or switch the oven off by pressing and releasing the key ON/OFF.
AUTOMATIC AND SEMIAUTOMATIC COOKING RESTRICTIONS
The preheating (PRH) and defrosting functions are not compatible with the above
mentioned automatic and semiautomatic operation.
-After setting the preheating or the defrosting function, it is not possible to set either
the duration or the end of cooking.
-When programming the oven with the automatic operation, you cannot choose the
preheating or the defrosting function.
42

DISPLAY SYMBOLS
Pot : when it lights up, it shows that a cooking function is on.
The pot does not light up when the oven light, preheating or defrosting function is
activated.
When the pot is flashing, it shows the end of a cooking time. During the delayed start
phase, the symbol is off and lights up when the oven starts cooking.
A (automatic) : when it lights up, it shows that a cooking time has been set; when
flashing, it means the end of a cooking program.
Bell : when it lights up, it means that the minute minder is on.
When flashing, it means the end of the minute count.
SELECTING THE COOKING TEMPERATURE
With the oven switched on, the cooking temperature can be selected by using the
and keys : the temperatures increases between the low and high setting with 5
degrees increases, which are shown on the temperature display.
Note: each cooking function has a preset temperature, which can be changed as
described above.
SELECTING THE COOKING FUNCTION
With the oven switched on, the cooking functions can be selected by using the
and keys: the cooking function icons sequentially light up.
43

COOKING FUNCTIONS
OVEN LIGHT
The internal oven light turns on by pressing and releasing the key. To turn it off
press and release again the same key.
When selecting a cooking function, the oven light turns on, and once the selected
temperature is achieved, the light remains on for another 3 minutes.
During a cooking operation or defrosting it is possible to turn on the oven light by
pressing one of the following keys. The light remains on for 1 minute.
The light can also be turned on when the Controls Lock function is active by pressing
one of the following keys
PREHEATING
This function allows to preheat faster the oven, before choosing a cooking function.
When this function is operating, a moving symbol appears on the temperature display.
The preheating ends when its preset temperature is achieved by the oven; this
temperature cannot be changed. At this point, the oven beeps, the light symbol and
the oven light turn on. Now you can choose an available cooking function with the
and keys.
TRADITIONAL COOKING
This provides traditional cooking with heat from the top and bottom elements.
LOWER ELEMENT MODE
This is for slow cooking or for warming up meals.
GRILL HEATING ELEMENT WITH TURNSPIT
It is suggested for grilling food.
GRILL HEATING ELEMENT WITH FAN AND TURNSPIT
This function is suggested for a gently grilling of food.
PIZZA FUNCTION
This kind of cooking is ideal for pizza and vegetable dishes.
44

FAN OVEN MODE
This provides even heating with the fan and allows different dishes to be cooked at the
same time on different levels.
DEFROST MODE
This function allows to reduce the defrost time for frozen food. The fan runs without
any heating of the oven. On the temperature display appears the message dEF ,
which means this function is active.
PIROLITIC CLEANING
Switch on the oven and select the self-cleaning function.
On the temperature display you will see the message “PIRO”, while on the function
display you see a self-cleaning set time of 1h 30m.
The 2 dots betwen 1 and 30 blink for a 4 secs. time, which means you can set your
favorite self-cleaning time or the ending time of that operation.
To do that, follow the previous instructions concerning the programming of cooking.
The maximum time which can be set is of 3 hours, the minimum is of 30 minutes; to
set the time press the key, then use the + and - keys.
Once the time is set, the symbol A enlights on the time display, which means an
automatic operation is on.
The door is locked and the Controls Lock Function is on, as you can see by the key
symbol on the display. During the self-cleaning function it is possible to see the
remaining time, but you cannot neither change the remaining time nor change the
ending time. The oven light remains off during this operation.
This function allows to clean the oven by increasing the temperature up to 465°C.
The ashes which can result at the end of the operation can be removed with a soft
cloth, once the oven has cooled down.
Warning:
All the accessories and all the considerable food residuals must be removed from
the oven inside before proceeding with the self-cleaning operation.
45

OTHER FUNCTIONS
OVEN OFF MODE
When the oven is switched off, the temperature and program displays are off and the
timer shows the current hour.
“CHILDREN CARE” – CONTROLS LOCK FUNCTION
This function can be activated in any moment to prevent children to play with the oven.
In particular, if this function is activated with the oven turned off, it will not be possible
to switch the oven on: to operate with the oven it is necessary to remove the lock.
To activate the locking function, hold down the key until the display shows the
symbol of the key (about 5 sec.) followed by ON , then the display shows again the
current hour.
Note: once you have done this operation, it cannot be set any program or cooking
function, except for the setting of the minute minder. If the lock is activated after any
program or cooking function, it will only be possible to set the minute minder or switch
off the oven by pressing and releasing the key.
By pressing any other key, the key symbol on the display will remember you that the
locking function is activated.
The automatic or manual switching off of the oven will not disable the locking function.
To disable the locking function hold down the key until the key symbol on the
display (about 5 sec.) followed by OFF, then the display shows again the current hour.
When the locking function is activated it is not possible to switch it on with the
key, but only to switch it off.
ON / OFF BUTTON
When the oven is switched on, the key lets you to switch off the oven whatever
function is selected and in any moment. To switch off the oven, just press and release
the key.
When switching off the oven, any cooking function or program is cancelled. To set a
new cooking program, follow the corresponding instructions from the beginning.
When the oven is switched on and the locking function is activated, you can switch off
the oven just pressing and releasing the key, but the locking function keeps
active.
To disable the lock hold on the key for about 5 seconds until the key symbol on
the display followed by OFF, then the display will show the current hour.
46

“ ° “ SYMBOL
This symbol appears on the temperature display and represents the centigrade
degrees. If the symbol is blinking it means the oven is heating up to reach the
temperature that has been set.
If the symbol is permanently on it means that the set temperature has been reached.
TIMER RESET
With the oven switched on, it is possible to reset the settings of the timer by pushing
together the and keys.
Attention: the oven keeps switched on with the set function, and in manual operation.
It is possible to set again a cooking program, or also switch off the oven by pressing
and releasing the key.
47

OVEN OPERATION

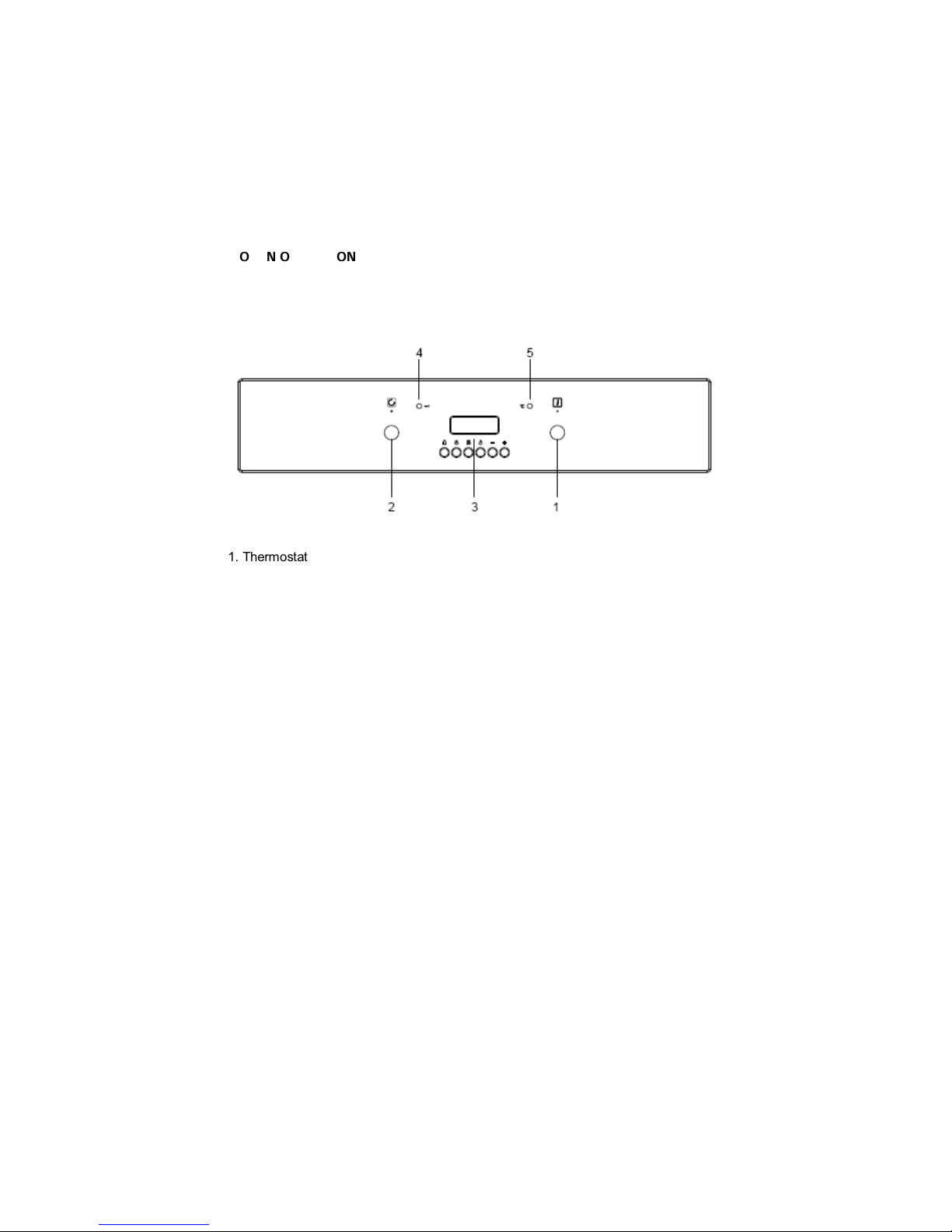

1. Thermostat
2. Selector
3. Electronic programmer
4. Red light
5. Yellow light
Your new oven incorporates a multifunction cooking system, enabling you to select the
most appropriate heating method for the type of food you are preparing.
The function required is selected by turning the oven function selector knob in a
clockwise direction to the appropriate symbol. The oven interior light will illuminate and
the ‘On’ indicator light will glow.
48
BOP7303AB - BOP7303AX - BOP8526AX

Oven functions
Light only
The oven interior light comes on.
Grill with turnspit
This function operates the centre grill element as well as the turnspit motor. An
ideal way to produce a healthy small roast as all the fats are drained whilst
cooking. Always make sure that the oven pan is in place to collect the fats and
meat juices when cooking.
Grilling must always take place with the oven door closed.
Lower heating element only
The element under the floor of the oven operates on its own. The oven, should be
preheated for 15-20 minutes before use. This function is ideal for ‘blind baking’ pastry
cases for quiches and tarts. In this case, the food should be cooked with the oven shelf
on the lowest shelf position.
Traditional cooking
The elements in the roof and floor operate to give a conventional static oven heating
system. The oven should be preheated before use until the temperature indicator light
goes out. It is recommended that food is only placed on one shelf position when
cooking with the conventional heating function. Do not use the lowest or highest shelf
positions or the food may overcook.
Traditional cooking and forced air convection
This kind of cooking is ideal for pizza, lasagne, bread and vegetable dishes.
Forced air convection
The fan and an element behind the rear wall of the oven circulate hot air to give an
even temperature throughout the oven. The oven should be pre-heated before use
until the temperature indicator light goes out. Food can be cooked on several shelf
positions at once, saving both time and energy.
The oven temperature should be reduced by approximately 10% compared to
conventional oven heating systems.
49

Defrosting
The fan operates but without its element, so the oven is not directly heated. The oven
door must remain closed. Frozen food can be quickly defrosted by placing in the oven
pan and sliding onto the lowest shelf position. Defrosting time will be reduced by up to
one third using this system.
Ventilated grill
The fan operates with the infra-red grill element in the roof of the oven.
The oven should be pre-heated for 5-10 minutes before use. When roasting meats,
this function will crisp the outside of the food whilst the circulating hot air ensures even
cooking. Semi forced air convection can also be used for grilling, so that food does not
need to be turned so often.
Grilling must always take place with the oven door closed.
Do not use aluminium foil to cover the grill pan or heat items wrapped in aluminium foil
under the grill – the high reflectivity of the foil can damage the grill element. Keep the
oven door closed when using the GRILL.
Oven self-clean mode
Turn the selector knob to this function which can only be set via the timer, the cleaning
cycle is 1,5 hours. All internal oven accessories must be removed before using the
pyrolitic function. During the pyrolitic function the oven light is disabled.
Helpful hints
Before cooking, check that any unused accessories are removed from the oven.
Preheat the oven at cooking temperature before use.
Place cooking trays in the centre of the oven and allow gaps when using more than
one tray for air to circulate.
Be careful when opening the door to avoid contact with hot parts and steam.
50

ELECTRONIC PROGRAMMER/ TEMPERATURE DISPLAY
The electronic programmer is a device, which groups together the following functions:
- 24 hours clock with illuminated display
- Timer (up to 23 hours and 59 min.)
- Program for automatic beginning and end of cooking
- Program for semi-automatic cooking (either start or finish only)
- Displaying the required temperature.
When selecting a required temperature, the temperature is displayed in centigrade
degrees (°C)
Description of buttons
“ TIMER ”
“ COOKING TIME ”
“ END OF COOKING TIME ”
“ MANUAL POSITION ”
“ ADVANCEMENT OF THE NUMBERS OF ALL
PROGRAMS - CHECK THE INSERTED TEMPERATURE”
“ TURNING BACK OF THE NUMBERS OF ALL
PROGRAMS - CHECK THE INSERTED TEMPERATURE”
51

Description of lighted symbols
« AUTO » - (flashing) - Programmer in automatic position but not programmed.
« AUTO » - (always lighted) - Programmer in automatic position with inserted program.
Manual cooking taking place
+ A Automatic cooking taking place
+ Timer in operation
NOTE: After having selected the operation, a period of time will pass (about 3-4
seconds) before confirmation, during which the data may be modifies.
Digital clock (the clock must be set before operaing with the programmer)
Clock numbers show hours (0-24) and minutes. -------
Upon immediate hooking up of the oven or after a blackout, three zeros will flash on
the programmer panel.
To set the hour it is necessary to first push and release the button .
Then using the “+” or “-” button set the correct time of the day. When the actual time is
inserted, release the buttons in order to make function the clock.
Manual cooking without using the programmer
To use manually the oven, that is, without the auxiliary programmer, it is necessary to
cancel the flashing «A» by pushing the button.
If the «A» message is displayed in permanent mode, indicating that the oven is
programmed, it is impossible to set the timer to manual function and therefore the oven
cannot be switched on. In this case the program must be firstly cancelled by pressing ,
then the manual function can be set. You can now select the required cooking function
and temperature.
52

Timer
The timer can be used to measure a time period between 1 minute and 23 hours & 59
minutes.
1) Automatic cooking (start and end)
Set temperature and cooking program required by using the thermostat and the
selector knobs.
Set the length of cooking time by pushing the button .
Set the end of cooking time by pushing the button .
After this setting the symbol «A» will light.
An example: cooking lasts 45 minutes and is expected to stop at 14.00. First select the
required temperature and cooking function by using the appropriate control knob.
Push and release the press the + button until you have set 0.45.
Push and release the press the + button until you have set 14.00.
After having finished the setting, the clock hour will appear on the panel and «A»
symbol will light. This means the cooking program has been memorized.
At 13.15 h. (14.00 h. minus 45 minutes) the oven turns on automatically.
At 14.00 h. the oven turns off automatically, a buzzer goes on until it is stopped by
pushing the button . The symbol «A» will flash.
2) Semi-automatic cooking
A. Set the length of cooking time
B. Set the end of cooking time
A) Set the length of cooking time by pushing the button .
The oven will turn on immediately, the symbol «A» will light.
When the set cooking time has elapsed, the oven will turn off, a buzzer will ring until it
is stopped as above described. The symbol «A» will flash.
B) Set the end of cooking time by pushing the button .
The oven will turn on immediately, the symbol «A» will light.
At the set time, the oven will turn off and a buzzer will ring until it is stopped as above
described. The cooking program may be cancelled at any moment by pushing
the button , the oven can work manually.
NOTE: 1) and 2) functions or 1)+ 2) functions are active only if a cooking
function has been selected.
53

Timer = buzzer
The timer program consists only of a buzzer, which may be set for a maximum period
of 23 hours and 59 min.
To set the timer, push the button and, at the same time, + or - until you read the
desired time on the display.
After the setting, the clock hour and the . symbol will appear.
The countdown will start immediately and may be seen at any moment on the display
by simply pressing the button.
At the end of the set time, the symbol will turn off and the buzzer will ring until it is
stopped by pressing the button.
It is possible to change the sound (3 levels: low - medium - high): when it sounds, push
“-” button.
NOTE: At end of cooking time, the sound beeps every second for a maximum of 7
minutes. To cancel the beeps press and release the button.
Cancelling an automatic cooking program
An automatic cooking program can be cancelled whenever by pushing
the button. Now the oven can work manually.
It is advisable not to leave food in the oven for long periods of time before automatic
cooking proceeds. Always ensure commercially prepared food is well within its use by
date and that home prepared food is fresh and of good quality.
When cooking is complete, do not leave food to stand in oven, but remove and cool it
quickly if the food is not to be consumed immediately.
(DO NOT PUT HOT FOOD IN THE REFRIGERATOR OR FREEZER).
54
