Gorenje BO799S50X Operating and maintenance manual

www.gorenje.comwww.gorenje.com
DETAILED
INSTRUCTIONS
FOR USE OF THE
ELECTRIC OVEN
GB IE MT
474021_en.indd 1474021_en.indd 1 12. 01. 2021 14:03:1012. 01. 2021 14:03:10

We thank you for your
trust and the purchase of our
appliance.
This detailed instruction manual is
supplied to make the use of this
product easier. The instructions
should allow you to learn about your
new appliance as quickly as possible.
Make sure you have received an
undamaged appliance. If you do find
transport damage, please contact the
seller from which you purchased the
appliance, or the regional warehouse
from which it was supplied. The
telephone number can be found on
the invoice or on the delivery note.
Instructions for installation and
connection are supplied on a
separate sheet.
Instructions for use are also available
at our website:
www.gorenje.com / < http://www.
gorenje.com />
Important information
Tip, note
474021_en.indd 2474021_en.indd 2 12. 01. 2021 14:03:2712. 01. 2021 14:03:27

3
CONTENTS
474021
4 THE ELECTRIC OVEN
7 Technical specifications
8 Control unit
10 IMPORTANT SAFETY INSTRUCTIONS
11 Before connecting the oven:
12 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
13 STEPS OF THE COOKING PROCESS (1–6)
13 Step 1: SWITCHING ON THE APPLIANCE FOR THE FIRST TIME
14 Step 2: CHOOSING THE BASIC COOKING MENUS AND SETTINGS
22 Step 3: STARTING THE COOKING PROCESS
22 Step 4: END OF COOKING AND SWITCHING OFF THE OVEN
24 Step 5: SELECTING ADDITIONAL FUNCTIONS/EXTRAS
27 Step 6: CHOOSING THE GENERAL SETTINGS
29 DESCRIPTIONS OF SYSTEMS (COOKING MODES) AND COOKING
TABLES
44 MAINTENANCE & CLEANING
45 Conventional oven cleaning
46 Using the aqua clean function to clean the oven
47 Removing and cleaning the wire guides
48 Cleaning the oven cavity ceiling
49 Removing and inserting the oven door
52 Removing and inserting the oven door glass pane
53 Replacing the bulb
54 TROUBLESHOOTING TABLE
55 DISPOSAL
INTRODUCTION
PREPARING THE
APPLIANCE FOR
THE FIRST USE
COOKING STEPS
MAINTENANCE
& CLEANING
TROUBLE-
SHOOTING
OTHER
OTHER
474021_en.indd 3474021_en.indd 3 12. 01. 2021 14:03:2712. 01. 2021 14:03:27

4
THE ELECTRIC OVEN
(DESCRIPTION OF THE OVEN AND EQUIPMENT – DEPENDING ON
THE MODEL)
4
3
2
1
5
Guides
- Cooking levels
474021
The figure represents one of the built-in appliance models. Since the appliances for which
these instructions were drawn up may have different equipment, some functions or
equipment may be described in the manual that may not be present in your appliances.
Control unit
Oven door
Oven handle
474021_en.indd 4474021_en.indd 4 12. 01. 2021 14:03:2812. 01. 2021 14:03:28

5
474021
WIRE GUIDES
The wire guides allow preparation of the food on four levels (please note that the levels/
guides are counted from the bottom up).
Guides 4 and 5 are intended for grilling.
TELESCOPIC GUIDES
Telescopic pull-out (extendible) guides may be fitted for the second, third, and fourth
level. Pull-out guides can be partly or fully extendible
OVEN DOOR SWITCH
The switches deactivate oven heating and the fan when the oven door is opened during
the cooking process. When the door is closed, the switches turn the heaters back on.
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing and the appliance control
panel.
EXTENDED OPERATION OF THE COOLING FAN
After the oven is switched off, the cooling fan continues to operate for a short while in
order to cool the oven. (Extended cooling fan operation depends on the temperature in
the center of the oven).
OVEN EQUIPMENT AND ACCESSORIES (depending on the model)
GLASS BAKING DISH is used for cooking
with all oven systems. It can also be used as
a serving tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, lift the grid slightly at the front
when pulling it out from the oven.
The SHALLOW BAKING SHEET is used for
baking pastry and cakes.
474021_en.indd 5474021_en.indd 5 12. 01. 2021 14:03:2812. 01. 2021 14:03:28

6
474021
The DEEP BAKING TRAY is used for roasting
meat and baking moist pastry. It can also be
used as a drip tray.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling food or using the roasting spit
and you are only using the deep tray as a drip
tray.
As baking accessories heat up, their
form may change. This does not affect
their functionality and their original form
will be restored when they cool down.
The grid or the tray should always be
inserted into the groove between the two
wire profiles.
With telescopic extendible guides, first pull
out the guides of one level and place the
grid or the baking tray onto them. Then,
push them in with your hand as far as they
will go.
Close the oven door when the
telescopic guides are retracted all the way
into the oven.
2
3
4
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.
474021_en.indd 6474021_en.indd 6 12. 01. 2021 14:03:2812. 01. 2021 14:03:28

7
TECHNICAL SPECIFICATIONS
(DEPENDING ON THE MODEL)
3.5 kW
XXXXXX
SER. Nr: XXXXXX
ART. Nr:
max
TN XXXXX
Pn :
TIP: XXXXXX
220-240V ~
220V-240V, 50/60Hz
474021
The rating plate indicating the
basic information about the
appliance is located at the edge
of the oven and it is visible when
the oven door is opened.
474021_en.indd 7474021_en.indd 7 12. 01. 2021 14:03:2912. 01. 2021 14:03:29

8
CONTROL UNIT
474021
1ON/OFF KEY 2BACK KEY
Touch briefly to
return to previous
menu.
Touch and hold to
return to main menu.
3DISPLAY – For
selection and
display of settings
474021_en.indd 8474021_en.indd 8 12. 01. 2021 14:03:2912. 01. 2021 14:03:29

9
474021
4START/STOP
KEY 5CHILD LOCK KEY
NOTE:
The keys will respond better if you touch them with a larger area of your fingertip. Each
time you press a key, this will be acknowledged by a short acoustic signal.
Navigate the menu by sliding your finger up and down or left and right. Confirm your
selection with a touch.
474021_en.indd 9474021_en.indd 9 12. 01. 2021 14:03:3012. 01. 2021 14:03:30

10
474021
IMPORTANT SAFETY
INSTRUCTIONS
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM
FOR FUTURE REFERENCE.
This appliance may only be used by children aged 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
supervision or instructions are provided to them concerning
use of the appliance in a safe way and if they understand
the hazards involved. Do not let the children play with the
appliance. Cleaning and user maintenance shall not be made
by children without supervision.
WARNING: The appliance and some of its accessible parts
may become very hot during use. Be careful not to touch
the heaters. Children younger than 8 years should be
constantly supervised.
The appliance becomes very hot during use. Be careful not
to touch the oven heaters.
WARNING: The accessible parts of the appliance may
become hot during use. Children should be kept away from
the oven.
Only use the temperature probe recommended for use in
this oven.
WARNING: Before replacing the light bulb, make sure the
appliance has been disconnected from the power mains, in
order to prevent the hazard of an electric shock.
474021_en.indd 10474021_en.indd 10 12. 01. 2021 14:03:3012. 01. 2021 14:03:30

11
474021
BEFORE CONNECTING THE OVEN:
Carefully read the instructions for use before connecting the
appliance. Repair or any warranty claim resulting from incorrect
connection or use of the appliance shall not be covered by the
warranty.
Do not use abrasive cleaners or sharp metal scrapers to clean
the oven as they may damage the finish or the protective enamel
coating. Such damages may lead to cracking of the glass.
Do not use steam cleaners or high pressure cleaners to clean the
appliance as this may result in an electric shock.
The appliance is not intended to be controlled with external
timers or special control systems.
The appliance is intended for household
use. Do not use it for any other purpose,
such as room heating, drying of pets or
other animals, paper, fabrics, herbs etc. as
this may lead to injury or fire hazard.
The appliance may only be connected to
the power mains by an authorized service
technician or expert.
Tampering with the appliance or non-
professional repair thereof may result
in risk of severe injury or damage to the
product.
If the power cords of other appliances
located near this appliance are caught
in the oven door, they may be damaged,
which may in turn result in a short circuit.
Therefore, keep the power cords of other
appliances at a safe distance.
If the power cord is damaged, it should
be replaced by the manufacturer or an
authorized service technician, in order to
avoid hazard.
Do not line the oven walls with aluminium
foil and do not place baking trays or other
cookware on the oven bottom. Aluminium
foil would prevent air circulation in the
oven, hinder the cooking process, and ruin
the enamel coating.
Oven door become very hot during
operation. A third glass is installed for extra
protection, reducing the temperature of the
outside surface (only with some models).
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity. Never stand on the open oven
door and do not let children to sit on it.
Do not lift the appliance by holding it by
the door handle.
Appliance operation is safe with and
without tray guides.
Make sure the vents are never covered or
obstructed in any other way.
474021_en.indd 11474021_en.indd 11 12. 01. 2021 14:03:3012. 01. 2021 14:03:30

12
474021
BEFORE USING THE APPLIANCE
FOR THE FIRST TIME
Upon receiving the appliance, remove all parts, including any transport equipment, from
the oven.
Clean all accessories and utensils with warm water and regular detergent. Do not use any
abrasive cleaners.
When the oven heats up for the first time, the characteristic smell of a new appliance will
be emitted. Ventilate the room thoroughly during the first use.
474021_en.indd 12474021_en.indd 12 12. 01. 2021 14:03:3012. 01. 2021 14:03:30

13
474021
STEPS OF THE COOKING
PROCESS (1–6)
STEP 1: SWITCHING ON THE APPLIANCE
FOR THE FIRST TIME
SETTING THE CLOCK
After connecting your appliance to the power mains or after an extended power outage,
CLOCK settings will appear on the display.
Navigate the menu by sliding your finger up and down.
Set the CLOCK by touching the display.
Confirm the setting with the START/STOP
key.
The oven will also work if the clock is not set. However, timer functions are not
available in this case (see chapter SETTING THE TIMER FUNCTIONS). After a few minutes
of idling, the appliance will switch to standby mode.
CHANGING THE CLOCK SETTING
Clock settings may be changed when no timer function is activated (see chapter
CHOOSING THE GENERAL SETTINGS).
SELECTING THE LANGUAGE
If you are not happy with the language in which the messages on the display are
presented, select another one. English is the factory default language.
When you touch the line with the desired
language, the size of the letters in that line
will increase.

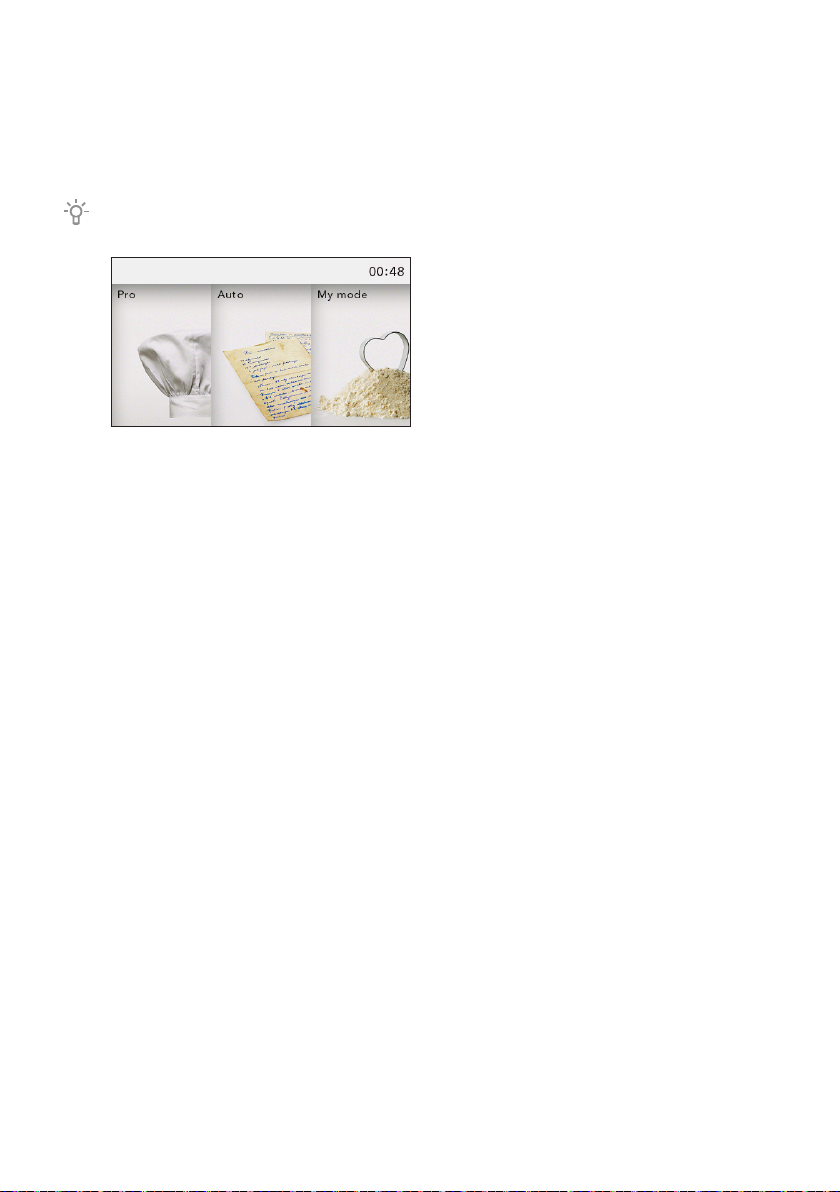

Press the key to return to MAIN
MENU.
474021_en.indd 13474021_en.indd 13 12. 01. 2021 14:03:3012. 01. 2021 14:03:30

14
474021
STEP 2: CHOOSING THE BASIC COOKING
MENUS AND SETTINGS
The process of preparing food in your oven can be controlled in several ways:
Navigate the menu by sliding your finger left and right.
Professional mode
Use this mode when you wish to prepare any type and amount of
food. All settings are selected by the user.
Automatic mode
In this mode, first select the type of food. This is followed by
automatic setting of the quantity, level of doneness, and cooking
end time.
The program offers a broad choice of preset recipes reviewed by
professional chefs and nutrition experts.
My recipes
This mode allows you to prepare your food the way you like it, with
the same steps and settings each time. Save your favourite recipes
to oven memory and retrieve them the next time you need them.
Select the desired mode by touching the
corresponding image. The name of the
selected menu will appear at the top.
474021_en.indd 14474021_en.indd 14 12. 01. 2021 14:03:3112. 01. 2021 14:03:31

15
474021
A) COOKING BY SELECTING THE TYPE OF FOOD
(Auto mode)
Choose the Auto mode.
Select the type of food and the dish.
Preset values will be displayed:
- amount,
- doneness level (intensity),
- cooking time (cooking end time is
displayed in grey).
Amount and doneness level can be
adjusted. Selected values will appear in red.
EXTRA SETTINGS (EXTRAS)
Choose them by touching the upper strip or
the corresponding sign.
- oven lighting
- method and ingredients for the selected recipe
- step mode (see chapter STEP COOKING)
474021_en.indd 15474021_en.indd 15 12. 01. 2021 14:03:3112. 01. 2021 14:03:31

16
474021
PREHEAT
Cooking procedures for some dishes in the Auto mode also include the preheat function.
Symbol will appear on the display.
When you select the food, the following note will appear: "Selected program includes
preheating. Preheating started. Do not insert food yet." The symbol will flash on the
display.
When the set temperature is reached, preheating is completed and an acoustic signal will
be sounded. The acoustic signal can be stopped by pressing any key; after one minute,
it will stop automatically. The following note will appear on the display: "Preheating
complete. Please insert food." Open the door. The program then resumes the cooking
process with selected settings.
When the preheat function is set, delayed start function cannot be used.
- cooking end time setting (see chapter TIMER FUNCTIONS)
- minute minder (see chapter EXTRA SETTINGS/EXTRAS)
474021_en.indd 16474021_en.indd 16 12. 01. 2021 14:03:3312. 01. 2021 14:03:33

17
474021
Touch the START key.
All selected settings are indicated on the display.
Rising oven temperature and elapsed cooking time will be displayed.
B) COOKING BY SELECTING THE OPERATING MODE
(Professional mode)
Choose Professional (Pro) mode.
Choose your own default settings:
- system
- oven temperature
Selected values will appear in red.
Touch the symbol to select the cooking
time.
- cooking time
(Cooking end time is displayed in grey).
EXTRA SETTINGS (EXTRAS):
Choose them by touching the upper strip or
the corresponding sign.
- oven lighting
- preheating
- step mode (see chapter STEP COOKING)
- minute minder (see chapter EXTRA SETTINGS/EXTRAS)
If you select Duration, extra settings will allow you to select
delayed start (see chapter TIMER FUNCTIONS)
474021_en.indd 17474021_en.indd 17 12. 01. 2021 14:03:3312. 01. 2021 14:03:33

18
474021
PREHEAT
Use the preheat function if you wish to heat the oven to the desired temperature as
quickly as possible. When this symbol is selected, the preheat function will be switched
on and a warning will appear. "Preheating started. Do not insert food yet." The symbol will
flash on the display.
When the set temperature is reached, preheating is completed and an acoustic signal will
be sounded. The acoustic signal can be stopped by pressing any key; after one minute,
it will stop automatically. The following note will appear on the display: "Preheating
complete. Please insert food." Open the door. The program then resumes the cooking
process with selected settings.
When the preheat function is set, delayed start function cannot be used.
474021_en.indd 18474021_en.indd 18 12. 01. 2021 14:03:3412. 01. 2021 14:03:34

19
474021
COOKING SYSTEMS (depending on the model)
SYSTEM DESCRIPTION PRESET
TEMPERATURE (°C)
COOKING SYSTEMS
UPPER AND BOTTOM HEATER
The heaters in the bottom and in the ceiling of the oven cavity will
radiate heat evenly into the oven interior. Pastry or meat can only be
baked/roasted at a single height level.
200
UPPER HEATER
Only the heater on the oven cavity ceiling will radiate heat. Use this
heater to brown the upper side of the dish.
150
BOTTOM HEATER
Only the heater on the bottom of the oven cavity will radiate heat. Use
this heater to brown the lower side of the dish.
160
GRILL
Only grill heater, a part of the large grill set, will operate.
Use this heater to grill a few open sandwiches or beer sausages, or for
toasting bread.
240
LARGE GRILL
The upper heater and the grill heater will operate. The heat is radiated
directly by the grill heater installed in the oven ceiling. To boost the
heating effect, the upper heater is activated as well. This system is used
for grilling a smaller amount of open sandwiches or beer sausages, and
for toasting bread.
240
GRILL WITH FAN
Grill heater and the fan will operate. This combination is used to grill meat
and to roast larger chunks of meat or poultry at a single height level. It is
also appropriate for dishes au gratin and for browning to a crispy crust.
170
HOT AIR AND BOTTOM HEATER
Bottom heater, round heater, and the fan will operate. This is used to
bake pizza, moist pastry, fruitcakes, leavened dough and shortcrust on
several levels simultaneously.
200
3D HOT AIR
Round heater and the fan will operate. The fan installed in the back wall
of the oven cavity makes sure the hot air constantly circulates around the
roast or pastry. This mode is used for roasting meat and baking pastry at
several levels simultaneously.
180
ECO COOKING 1)
In this mode, power consumption during the cooking process is
optimized.
This mode is used for roasting meat and baking pastry.
180
BOTTOM HEATER AND FAN
This is used for baking leavened but low-rising pastry and for preserving
fruit and vegetables.
180
AUTOMATIC COOKING OF MEAT – AUTO ROAST MODE
In the automatic meat cooking mode (Auto Roast), the upper heater will
operate in combination with the round heater. It is used for roasting all
types of meat.
180
1) It is used for determining the energy efficiency class pursuant to the EN 60350-1
standard.
In this mode, the actual temperature in the oven is not displayed due to a special
appliance operation algorithm and use of residual heat.
474021_en.indd 19474021_en.indd 19 12. 01. 2021 14:03:3412. 01. 2021 14:03:34

20
474021
TIMER FUNCTIONS – DURATION
Setting the cooking time
In this mode, you can define the duration of oven operation (cooking
time). Set the desired cooking time and confirm the setting. Cooking
end time is adjusted accordingly.
Press START to start the cooking process. All selected settings are
indicated on the display.
All timer functions can be cancelled by setting the time to "0".
Setting the delayed start
In this mode, you may specify the duration of the cooking process
(cooking time) and the time when you wish the cooking process to
stop (end time). Make sure the clock is accurately set to current time.
Example:
Current time: noon
Cooking time: 2 hours
End of cooking: 6 pm
First, set the cooking time (cooking duration), i.e. 2 hours. The sum of
the current time and cooking time is automatically displayed (2 pm).
How, set the COOKING END TIME and set the time (6 PM). Press
START to start the cooking process. The timer will wait for the start
of the cooking process. The following note will appear on the display:
"Your program is delayed. It will start at 4 pm."
After the set time expires, the oven will automatically stop operating (end of cooking).
An acoustic signal will be heard. After one minute, the acoustic signal will be switched off
automatically.
After a few minutes of idling, the appliance will switch to standby mode. The time of day will
appear.
Timer functions can be selected in the basic
Professional (Pro) mode and in the Auto
mode by choosing the corresponding symbol.
474021_en.indd 20474021_en.indd 20 12. 01. 2021 14:03:3412. 01. 2021 14:03:34
