Gorenje BOP747S32X Operating and maintenance manual

DETAILED
INSTRUCTIONS
OF THE ELECTRIC
PYROLYTIC OVEN
www.gorenje.com
GB IE MT

We thank you for your
trust and the purchase of our
appliance.
This detailed instruction manual is
supplied to make the use of this
product easier. The instructions
should allow you to learn about your
new appliance as quickly as possible.
Make sure you have received an
undamaged appliance. If you do find
transport damage, please contact the
seller from which you purchased the
appliance, or the regional warehouse
from which it was supplied. The
telephone number can be found on
the invoice or on the delivery note.
Instructions for installation and
connection are supplied on a
separate sheet.
Instructions for use are also available
at our website:
www.gorenje.com / < http://www.
gorenje.com />
Important information
Tip, note

3
CONTENTS
473993
4 IMPORTANT SAFETY INSTRUCTIONS
7 Before connecting the appliance
8 THE ELECTRIC PYROLYTIC OVEN
11 Technical specifications
12 Control unit
14 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
15 STEPS OF THE COOKING PROCESS (1–6)
15 Step 1: SWITCHING ON AND SETTINGS
16 Step 2: CHOOSING THE COOKING SYSTEM
18 Step 3: CHOOSING THE SETTINGS
21 Step 4: SELECTING ADDITIONAL FUNCTIONS
23 Step 5: STARTING THE COOKING PROCESS
23 Step 6: SWITCHING OFF THE OVEN
24 DESCRIPTIONS OF SYSTEMS (COOKING MODES) AND COOKING
TABLES
41 MAINTENANCE & CLEANING
42 Conventional oven cleaning
43 Automatic oven cleaning – pyrolysis
45 Removing and cleaning the wire guides
46 Cleaning the oven cavity ceiling
47 Removing and inserting the oven door
50 Removing and inserting the oven door glass pane
51 Replacing the bulb
52 TROUBLESHOOTING TABLE
53 DISPOSAL
INTRODUCTION
PREPARING THE
APPLIANCE FOR
THE FIRST USE
COOKING STEPS
MAINTENANCE
& CLEANING
TROUBLE-
SHOOTING
OTHER

4
473993
IMPORTANT SAFETY
INSTRUCTIONS
CAREFULLY READ THE INSTRUCTIONS AND SAVE THEM
FOR FUTURE REFERENCE.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
WARNING: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept away
unless continuously supervised.
WARNING: Accessible parts may become hot during use.
Young children should be kept away.
During use the appliance becomes hot. Care should be taken to
avoid touching heating elements inside the oven.
Only use the temperature probe recommended for use in
this oven.
WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass/ the glass of hinged lids of the hob
(as appropriate), since they can scratch the surface, which may
result in shattering of the glass.

5
473993
Do not use steam cleaners or high pressure cleaners to clean the
appliance as this may result in an electric shock.
Means for disconnection must be incorporated in the fixed
wiring in accordance with the wiring rules.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard (only for appliances supplied with
connection cord) .
The appliance must not be installed behind a decorative door in
order to avoid overheating.
The appliance is intended for household
use. Do not use it for any other purpose,
such as room heating, drying of pets or
other animals, paper, fabrics, herbs etc. As
this may lead to injury or fire hazard.
The appliance may only be connected to
the power mains by an authorized service
technician or expert. Tampering with
the appliance or nonprofessional repair
thereof may result in risk of severe injury or
damage to the product.
If the power cords of other appliances
located near this appliance are caught
in the oven door, they may be damaged,
which may in turn result in a short circuit.
Therefore, keep the power cords of other
appliances at a safe distance.
Do not line the oven walls with aluminium
foil and do not place baking trays or other
cookware on the oven bottom. Aluminium
foil would prevent air circulation in the
oven, hinder the cooking process, and ruin
the enamel coating.
Oven door become very hot
duringoperation. A third glass is installed
for extra protection, reducing the
temperature of the outside surface (only
with some models).
Oven door hinges may be damaged when
under excessive load. Do not place heavy
pans on open oven door and do not lean
against open oven door when cleaning the
oven cavity. Never stand on the open oven
door and do not let children to sit on it.
Do not lift the appliance by holding it by
the door handle.
Appliance operation is safe with and
without tray guides.
Make sure the vents are never covered or
obstructed in any other way.

6
473993
Safe use of the oven during pyrolytic cleaning
Before activating automatic cleaning, remove all accessories
from the oven: grill, rotisserie kit, all baking trays, meat probe,
wire and telescopic guides and dishes that are not part of the
oven accessories.
All the spillage and all removable parts inside the cavity must
be removed before cleaning process.
During the automatic cleaning process, the oven gets very hot
from the outside. Risk of burns! Keep children away from the
oven.
Before activating the automatic cleaning
process, carefully read and follow the
instructions in the chapter Cleaning and
Maintenance where correct and safe use of
this function is described.
Do not place anything directly onto the
oven cavity bottom.
Pieces of food, grease, and roast juice
may ignite during the automatic pyrolytic
cleaning process.
Danger of fire! Remove larger food residues
and other impurities from the oven each
time before the automatic cleaning
process.
Do not attempt to open the oven door
while the automatic pyrolytic cleaning
process is in progress.
Make sure no impurities enter the door
guide lock opening, which could prevent
automatic locking of oven door during the
automatic cleaning procedure.
In case of a power outage during the
pyrolytic cleaning process, the program
is terminated after two minutes and the
oven door remains locked. The door will be
unlocked approximately 30 minutes after
power supply is restored, regardless of
whether the appliance has cooled down in
the meantime.
Do not touch any metal part of the
appliance during the automatic cleaning
process!
Pyrolytic cleaning involves very high
temperatures that may cause smoke and
fumes to be released form food residues.
We recommend that you ensure thorough
ventilation of the kitchen during the
pyrolytic cleaning process. Small animals,
or pets, are highly sensitive to any fumes
released during pyrolytic cleaning of ovens.
We recommend removing them from
the kitchen during pyrolytic cleaning and
ventilating the kitchen thoroughly after the
cleaning process.

7
473993
BEFORE CONNECTING THE APPLIANCE
Carefully read the instructions for use before connecting
theappliance. Repair or any warranty claim resulting from
incorrect connection or use of the appliance shall not be covered
by the warranty.
As a result of the automatic cleaning, the
oven cavity and oven equipment cleaned
in such way may discolour and loose some
shine.
Caution - hot surface during
pyrolytic cleaning.

8
THE ELECTRIC PYROLYTIC OVEN
(DESCRIPTION OF THE OVEN AND EQUIPMENT – DEPENDING ON
THE MODEL)
The figure represents one of the built-in appliance models. Since the appliances for which
these instructions were drawn up may have different equipment, some functions or
equipment may be described in the manual that may not be present in your appliances.

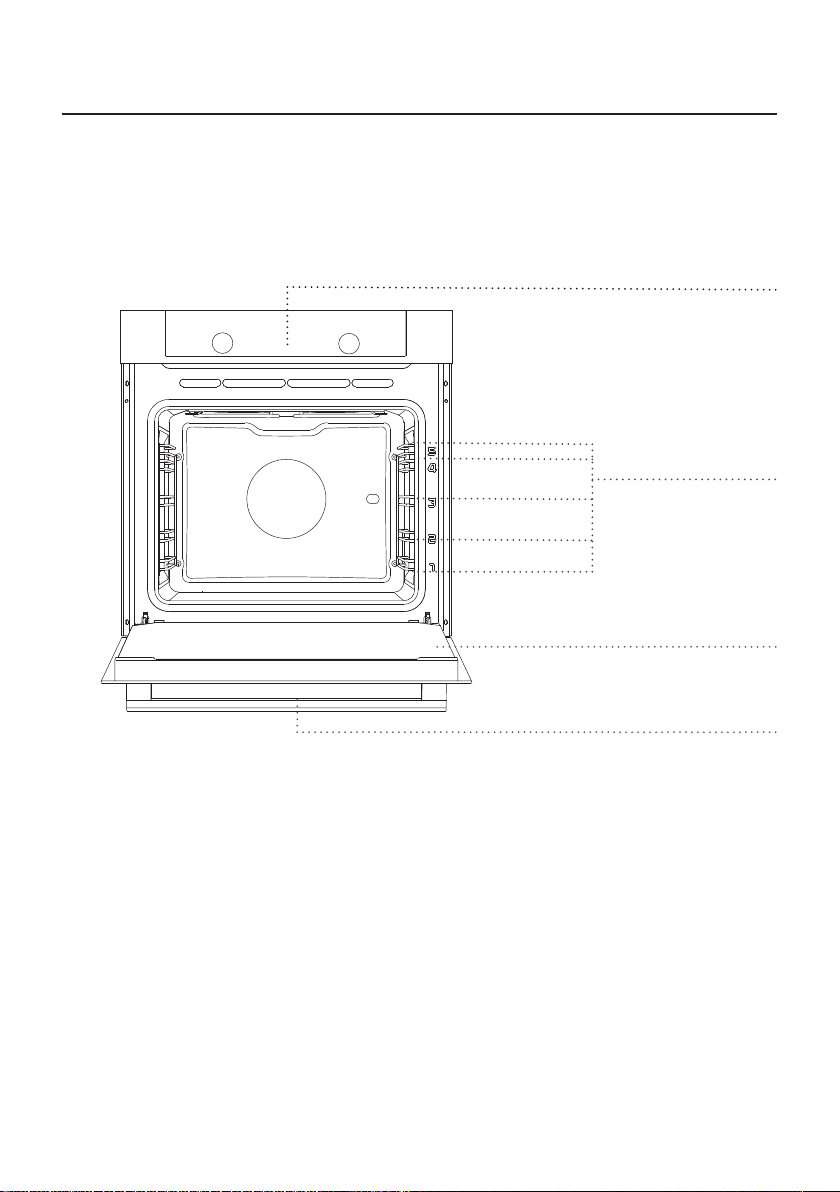

Control unit
Oven door
Oven handle
Guides
- Cooking levels
4
3
2
1
5
473993

9
WIRE GUIDES
The wire guides allow preparation of the food on four levels (please note that the levels/
guides are counted from the bottom up).
Guides 4 and 5 are intended for grilling.
TELESCOPIC PULL-OUT GUIDES
Telescopic pull-out guides may be fitted for the 2nd, 3rd, and 4th level.
There are several different designs of the pull-out guides (depending on the model):
three partially extendible, one fully and two partially extendible, and three fully extendible
guides.
OVEN DOOR SWITCH
The switches deactivate oven heating and the fan when the oven door is opened during
the cooking process. When the door is closed, the switches turn the heaters back on.
COOLING FAN
The appliance is fitted with a cooling fan that cools the housing and the appliance control
panel.
EXTENDED OPERATION OF THE COOLING FAN
After the oven is switched off, the cooling fan continues to operate for a short while in
order to cool the oven. (Extended cooling fan operation depends on the temperature in
the center of the oven).
473993
GLASS BAKING DISH is used for cooking
with all oven systems. It can also be used as
a serving tray.
The GRID is used for grilling or as support
for a pan, baking tray or baking dish with
the food.
There is a safety latch on the grid.
Therefore, lift the grid slightly at the front
when pulling it out from the oven.
OVEN EQUIPMENT AND ACCESSORIES
Before pyrolytic cleaning, remove all equipment from the oven
(including the telescopic guides).

10
473993
The SHALLOW BAKING SHEET is used for
baking pastry and cakes.
The DEEP BAKING TRAY is used for roasting
meat and baking moist pastry. It can also be
used as a drip tray.
Never place the deep baking tray in the
first guide during the cooking process, except
when grilling food or using the roasting spit
and you are only using the deep tray as a drip
tray.
As baking accessories heat up, their
form may change. This does not affect
their functionality and their original form
will be restored when they cool down.
The grid or the tray should always be
inserted into the groove between the two
wire profiles.
With telescopic extendible guides, first pull
out the guides of one level and place the
grid or the baking tray onto them. Then,
push them in with your hand as far as they
will go.
Close the oven door when the
telescopic guides are retracted all the way
into the oven.
2
3
4
The appliance and some of the accessible parts tend to heat up
during cooking. Use oven mitts.

11
TECHNICAL SPECIFICATIONS
(DEPENDING ON THE MODEL)
3.5 kW
xxxxxx
SER. Nr: XXXXXX
ART. Nr:
max
TN XXXXX
Pn :
TYPE:
XXXXXX
220-240V ~
220V-240V, 50/60Hz
473993
The rating plate indicating the basic
information about the appliance is located
at the edge of the oven and it is visible
when the oven door is opened.

12

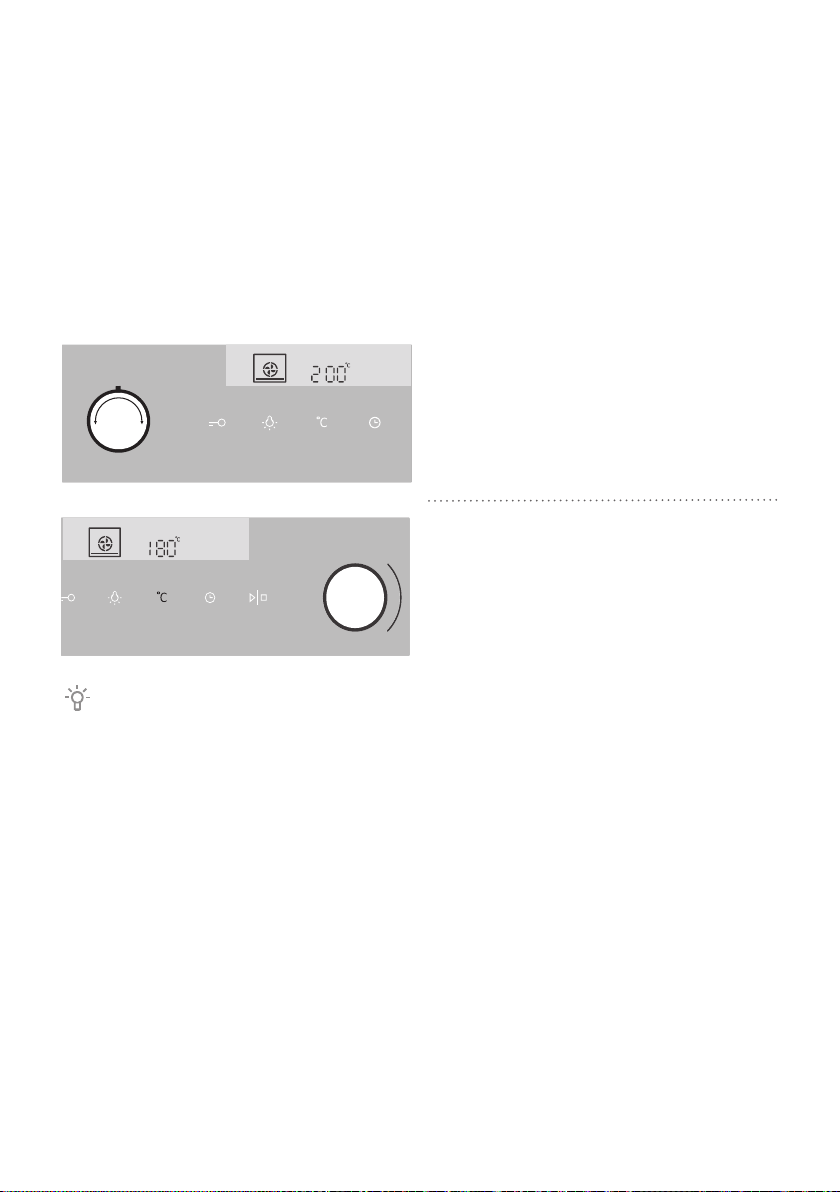

CONTROL UNIT
(DEPENDING ON MODEL)
1COOKING SYSTEM
SELECTOR KNOB
(depending on
model)
2CHILD LOCK KEY 3OVEN LIGHTING ON/
OFF KEY 4TEMPERATURE
KEY
NOTE:
Symbols of cooking systems may be located on the knob or on the front panel
(depending on the appliance model).
473993

13
5ELECTRONIC TIMER KEY
Cooking duration
End of cooking
Alarm
Clock
6START/STOP KEY
Use this key to
start or stop the
program.
7SETTINGS KNOB (-/+)
Use this knob to
set the time and
temperature.
8COOKING INFORMATION
AND CLOCK DISPLAY
NOTE:
The keys will respond better if you touch them with a larger area of your fingertip. Each
time you press a key, a short acoustic signal will be sounded.
473993

14
473993
BEFORE USING THE APPLIANCE
FOR THE FIRST TIME
Upon receiving the appliance, remove all parts, including any transport equipment, from
the oven.
Clean all accessories and utensils with warm water and regular detergent. Do not use any
abrasive cleaners.
When the oven heats up for the first time, the characteristic smell of a new appliance will
be emitted. Ventilate the room thoroughly during the first use.

15
1Rotate the SETTINGS KNOB (-/+) and first set the minutes; then, the cursor will
switch to hours. After three seconds, the
settings will be saved.
Turning the knob farther to the right
or to the left will change the settings more
quickly.
2Confirm by pressing START/ STOP. If nothing is pressed within the next
three seconds, the setting will be stored
automatically.
The oven will also work if the clock is not set. However, timer functions are not
available in this case (see chapter Step 3: SETTING THE TIMER FUNCTIONS).
After a few minutes of idling, the appliance will switch to standby mode.
CHANGING THE CLOCK SETTING
Clock settings may be changed when no timer function is activated.
Press the key to set the current time. Confirm by pressing START/ STOP.
473993
STEPS OF THE COOKING
PROCESS (1–6)
STEP 1: SWITCHING ON AND SETTINGS
After connecting your appliance or after an extended power outage, 12:00 will flash on
the display and the symbol will light up.
Set the time of day.
SETTING THE CLOCK

16
Rotate the knob (left and right) to select 0
COOKING SYSTEM (see program table).
The selected icon will appear on the display.
Settings can also be changed during
operation.

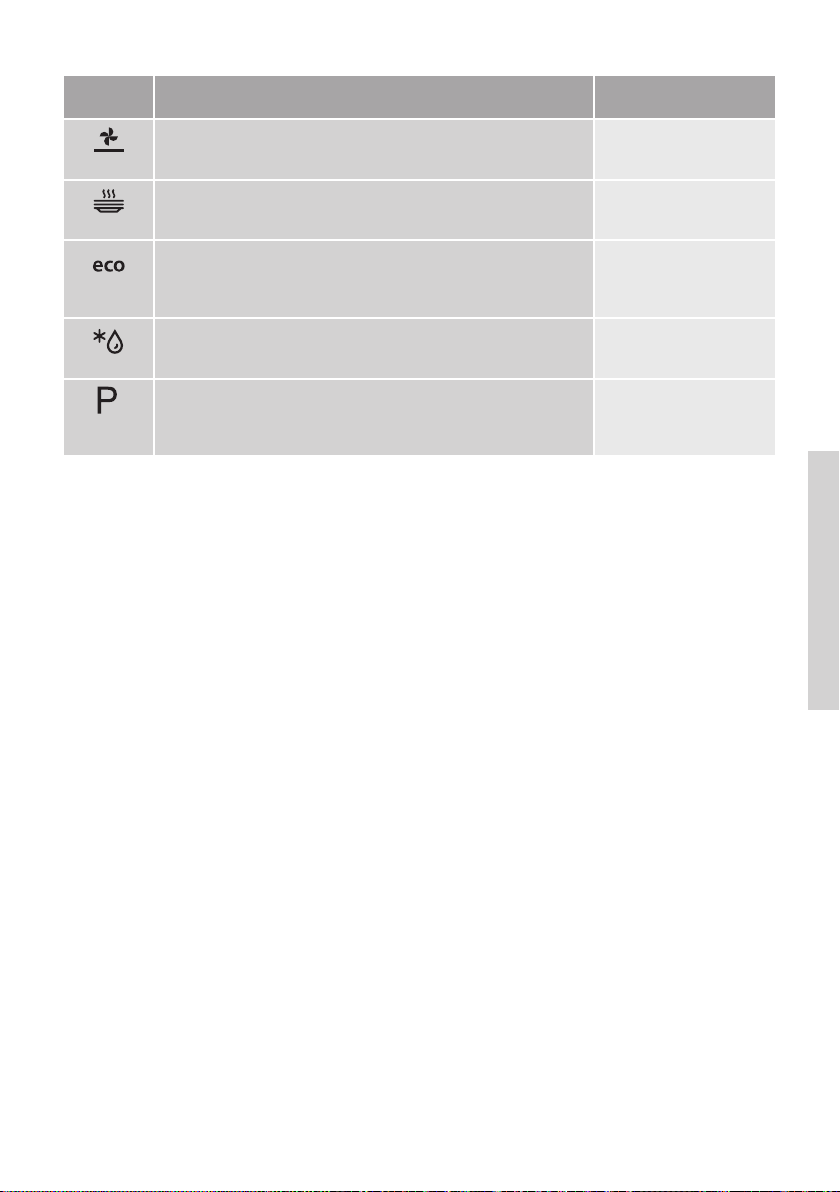

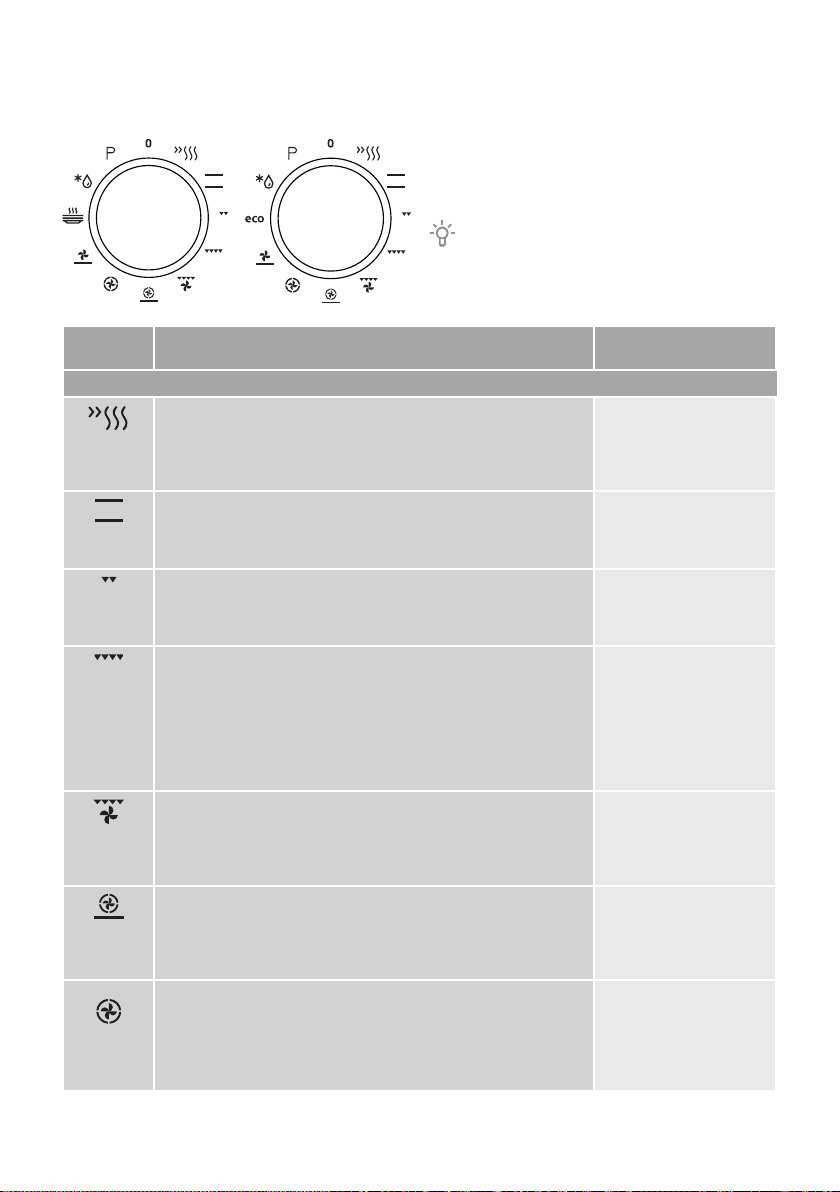

SYSTEM SYSTEM SUGGESTED
TEMPERATURE °C
COOKING SYSTEMS
RAPID PREHEAT
Use this function if you wish to heat the oven to the desired
temperature as quickly as possible. This function is not
appropriate for cooking food. When the oven heats up to the
desired temperature, the heating process is completed.
160
UPPER AND BOTTOM HEATER
The heaters in the bottom and in the ceiling of the oven
cavity will radiate heat evenly into the oven interior. Pastry or
meat can only be baked/roasted at a single height level.
200
GRILL
Only grill heater, a part of the large grill set, will operate.
This system is used for grilling a smaller amount of open
sandwiches or beer sausages, and for toasting bread.
240
LARGE GRILL
The upper heater and the grill heater will operate. The heat
is radiated directly by the grill heater installed in the oven
ceiling. To boost the heating effect, the upper heater is
activated as well.
This combination is used for grilling a smaller amount of
open sandwiches, meat or beer sausages, and for toasting
bread.
240
GRILL WITH FAN
Grill heater and the fan will operate. This combination is used
to grill meat and to roast larger chunks of meat or poultry at
a single height level. It is also appropriate for dishes au gratin
and for browning to a crispy crust.
170
HOT AIR AND BOTTOM HEATER
The bottom heater, the round heater, and the hot air fan
will operate. This is used to bake pizza, moist pastry,
fruitcakes, leavened dough and shortcrust on several levels
simultaneously.
200
HOT AIR
Round heater and the fan will operate. The fan installed
in the back wall of the oven cavity makes sure the hot air
constantly circulates around the roast or pastry. This mode
is used for roasting meat and baking pastry at several levels
simultaneously.
180
473993
STEP 2: CHOOSING THE COOKING SYSTEM

17
SYSTEM SYSTEM SUGGESTED
TEMPERATURE °C
BOTTOM HEATER AND FAN
This is used for baking leavened but low-rising pastry and for
preserving fruit and vegetables.
180
PLATE WARMER
Use this function to reheat your dinnerware (plates, cups)
before serving food in it to keep the food warm longer.
60
ECO COOKING 1)
In this mode, power consumption during the cooking process
is optimized.
This mode is used for roasting meat and baking pastry.
180
DEFROSTING
The air circulates with no heaters activated. Only the fan will
be activated. This is used to slowly thaw frozen food.
-
PYROLYSIS
This function allows automatic cleaning of the oven interior
by high temperature that incinerates the fat residues and
other impurities to reduce them to ashes.
-
1) It is used for determining the energy efficiency class pursuant to the EN 60350-1
standard.
In this mode, the actual temperature in the oven is not displayed due to a special
appliance operation algorithm and use of residual heat.
473993

18
1Select the COOKING SYSTEM. Selected icon will appear on the display and
PRESET TEMPERATURE will flash.
2Touch the TEMPERATURE KEY. Rotate the SETTINGS KNOB (-/+) and choose
the desired temperature.
Maximum temperature is limited with some systems.
When the appliance is switched on with the START key, the symbol °C flashes on the
display until the desired value is reached.
473993
STEP 3: CHOOSING THE SETTINGS
Each cooking system features basic or default settings which can be adjusted.
Adjust the settings by pressing the relevant key (before pressing the START/STOP key).
Some settings are not available with some programs; an acoustic signal will remind you of
such cases.
CHANGING THE COOKING TEMPERATURE

19
Setting the cooking time
In this mode, you can define the duration of oven operation
(cooking time). Set the desired cooking time. First set the minutes,
then the hours. Icon and cooking time are displayed on the display
unit.
Setting the delayed start
In this mode, you may specify the duration of the cooking process
(cooking time) and the time when you wish the cooking process to
stop (end time). Make sure the clock is accurately set to current time.
Example:
Current time: noon
Cooking time: 2 hours
End of cooking: 6 pm
First set the OPERATION DURATION (2 hours). Touch the CLOCK
button again and select END OF OPERATION. The display
automatically shows a flashing sum of the time of day and duration of
operation of the oven (14:00).
Set the time for the end of baking (18:00).
Press START to start the cooking process. The timer will wait for the
time to start the cooking process and the symbol will be lit up. The
oven automatically switches on (at 4 pm) and stops operating and the
selected time (at 6 pm).
Timer function display
473993
TIMER FUNCTIONS
First rotate the COOKING SYSTEM SELECTOR KNOB; then, set the temperature.
Touch the TIMER key several times to select the symbol.
The icon for the selected timer function will light up and the adjustable cooking start/end
time will flash on the display. Other icons are dimly lit.
Press START to start the cooking process. ELAPSED COOKING TIME will be displayed.

20
Setting the minute minder
The minute minder can be used independently of the oven
operation. The longest possible setting is 24 hours.
During the last minute, the minute minder is displayed in seconds.
473993
After the set time expires, the oven will automatically stop operating (end of cooking).
An acoustic signal will be heard which you may turn off by touching any key. After one
minute, the acoustic signal will be switched off automatically.
All timer functions can be cancelled by setting the time to "0".
After a few minutes of idling, the appliance will switch to standby mode.
