Dear customer,
we are pleased that you have purchased the GPO SPECTRATM TI 35
and would like to thank you for the confidence you have placed
in us.
We are always striving to support you in the best possible way to ex-
perience long-lasting and unforgettable moments with this product.
Enjoy Your Passion.
English 3
Deutsch 41
Languages / Sprachen:

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
45
Legal Restriction on Use
The use of thermal imaging equipment as an attachment or acces-
sory is subject to firearms laws, hunting laws and other regulations
which may vary from place to place. Please be sure to check with
local authorities for current regulations before such use.
Copyright
GPO German Precision Optics GmbH. All rights reserved.
All texts, images, graphics are subject to copyright and other laws
for the protection of intellectual property. They may not be copied,
modified or used for commercial purposes or for distribution.
Technical Specifications
Products and services may have changed after the editorial dead-
line. The manufacturer reserves the right to make changes in design
or form, deviations in color and changes in the scope of delivery or
performance during the delivery period, provided that the changes
or deviations are reasonable for the customer, taking into account
the interests of GPO. In this respect, GPO reserves the right to make
changes as well as the right to make errors. The illustrations may also
contain accessories, special equipment or other items that are not
part of the standard scope of delivery or services. Individual pages
may also contain types and services that are not offered in individual
countries.
Brand Recognition
GPO logos used in the document are the property of GPO
in various jurisdictions.
Other trademarks and logos mentioned are the property of
their respective owners.
Notes on the Use of WIFI / APP
(T-Vision App)
— When using devices or computer systems that require more relia-
ble security than WLAN devices, ensure that appropriate security
and anti-interference measures are applied to the systems used.
— GPO accepts no liability for any damage caused when the camera
is used for purposes other than as a wireless LAN device.
— It is assumed that the wireless LAN function will be used in the
countries where this camera is sold. There is a risk that the camera
may violate radio transmission regulations if it is used in countries
other than those in which it is distributed. GPO accepts no liability
for this.
— Please note that there is a risk that data sent and received by radio
may be intercepted by third parties. It is strongly recommended to
enable encryption in the wireless access point settings to ensure
information security.
— Do not connect to wireless networks that you are not authorised to
use or do not know the origin of.
— When the wireless LAN function is enabled, wireless networks
are automatically searched for. In this case, wireless networks for
which you do not have authorization may be displayed. However,
do not attempt to connect to such a network as this could be
considered unauthorized access.
— It is recommended to deactivate the W-LAN function in the aircraft.
Important Notes on the Use of
Thermal Imaging equipment

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
67
Safety Instructions
Important Notes
— Do not use your unit in the immediate vicinity of devices with
strong magnetic fields or electrostatic or electromagnetic fields
(e.g. induction cookers, microwave ovens, TV or computer
monitors, video game consoles, mobile phones, radios). Their
electromagnetic fields can interfere with image recording.
— Strong magnetic fields, e.g. from loudspeakers or large electric
motors, can damage the stored data or interfere with the recor-
dings.
— Do not use the unit in the immediate vicinity of radio transmitters
or high-voltage power lines.
— Their electromagnetic fields may also affect the image recordings.
— Do not attempt to remove any parts of the housing (e.g. covers).
Exposing the internal electronics may cause damage or electric
shock. Professional repairs should only be carried out by authori-
sed service centers.
— Protect the unit from contact with chemicals. (Washing) petrol,
thinner and alcohol must not be used for cleaning. Certain
chemicals and liquids can damage the housing of the unit or the
surface coating.
— Keep the unit out of the reach of small children.
— Do not look through the eyepiece while walking to avoid falls. DO
NOT point the lens directly at the sun or any other bright light. This
may cause damage to the eyes.
— Make a note of the serial number of your unit as it is extremely
important in case of loss.
Emergency
— If smoke, odor or noise comes from the appliance, switch it off im-
mediately, unplug the power cord and contact customer service.
Power Supply
— Please purchase a suitable charger. The input voltage should
correspond to the limited current source (5 VDC, 2A) according to
the standard
— IEC61010-1 standard. Please refer to the technical data for detai-
led information.
— Make sure that the plug is properly connected to the socket.
— DO NOT connect multiple appliances to one power adapter to
avoid overheating or fire hazard due to overload
Battery
— There is a risk of explosion if the battery is used or replaced
improperly. Replace only with the same or equivalent type. The
battery type is CR123A*2/ RCR123A*2. Dispose of used batteries
according to the battery manufacturer‘s instructions.
— When storing the battery for a long time, be sure to fully charge it
every six months to ensure the quality of the battery. Failure to do
so may result in damage.
— Do not charge other types of batteries with the supplied charging
cable. Make sure that there is no flammable material within 2 m of
the unit while charging.
Maintenance
— If the product does not work properly, please contact your dealer
or the nearest service center. We are not responsible for problems
caused by unauthorized repair or maintenance.
— Some appliance components (e.g. electrolytic capacitor) need to
be replaced regularly. The average life varies, so regular inspec-
tion is recommended. Contact your dealer for details.
— Wipe the unit carefully with a clean cloth.
— If the unit is used in a manner not specified by the manufacturer,
the protection provided by the unit may be impaired.
— It is recommended that you restart the unit every 2 hours when
using it to ensure unit performance.
— Ensure that the operating environment meets the requirements of
the unit. The operating temperature should not fall below -20°C or
exceed +55°C and the humidity should not exceed 95%.

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
89
Manufacturer Address:
GPO GmbH
Wildmoos 9, 82266 Inning am Ammersee, Germany
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS
MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARD-
WARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND
“WITH ALL FAULTS AND ERRORS”. GPO MAKES NO WARRAN-
TIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A
PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT
YOUR OWN RISK. IN NO EVENT WILL GPO BE LIABLE TO YOU FOR
ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DA-
MAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF
BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA,
CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING
NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNEC-
TION WITH THE USE OF THE PRODUCT, EVEN IF GPO HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET
PROVIDES FOR INHERENT SECURITY RISKS, AND GPO SHALL
NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM
CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER
INTERNET SECURITY RISKS; HOWEVER, GPO WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL
APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR
ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT
IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF
THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTEC-
TION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS
PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DE-
STRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL
OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT
RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR
FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND
THE APPLICABLE LAW, THE LATER PREVAILS.
Legal Disclaimer
Please take attention that changes or modification not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
Regulatory Information
FCC Information

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
10 11
encouraged to try to correct the interference by one or more of the
following measures:
− Reorient or relocate the receiving antenna.
− Increase the separation between the equipment and receiver.
− Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
− Consult the dealer or an experienced radio/TV technician for help
− This equipment should be installed and operated with a minimum
distance 20cm between the radiator and your body.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with „CE“ and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive 2014/30/
EU, RE Directive 2014/53/EU, the RoHS Directive
2011/65/EU
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment,
or dispose of it at designated collection points. For
more information see: www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium
(Cd), lead (Pb), or mercury (Hg). For proper recy-
cling, return the battery to your supplier or to a
designated collection point. For more information
see: www.recyclethis.info
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requi-
rements.
1. This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
this device may not cause interference, and
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
1. Le présent appareil est conforme aux CNR d‘Industrie Canada
applicables aux appareils radio exempts de licence. L‘exploitation
est autorisée aux deux conditions suivantes : l‘appareil ne doit pas
produire de brouillage, et
2. L’utilisateur de l‘appareil doit accepter tout brouillage radioélectri-
que subi, même si le brouillage est susceptible d‘en compromet-
tre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce poten-
tial radio interference to other users, the antenna type and its gain
Industry Canada ICES-003 Compliance

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
12 13
should be so chosen that the equivalent isotopically radiated power
(e.i.r.p.) is not more than that necessary for successful communica-
tion.
Conformément à la réglementation d‘Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d‘un type et d‘un
gain maximal (ou inférieur) approuvé pour l‘émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radio-
électrique à l‘intention des autres utilisateurs, il faut choisir le type
d‘antenne et son gain de sorte que la puissance isotrope rayonnée
équivalente (p.i.r.e.) ne dépasse pas l‘intensité nécessaire à l‘établis-
sement d‘une communication satisfaisante.
This equipment should be installed and operated with a minimum
distance 20cm between the radiator and your body.
Cet équipement doit être installé et utilisé à une distance minimale
de 20 cm entre le radiateur et votre corps.
The thermal monocular is equipped with high-sensitivity IR detector,
and adopts advanced thermal imaging technology, to get clear view
in poor visibility or dark environment.
It helps to view the target and measure the distance in outdoor
condition. The device can be widely used for patrolling, searching
and rescuing, hiking, and travel, etc.
WiFi & hotspot function:
Let´s you connect your mobile device via personal
hotspot to the thermal device.
Range estimation function:
Helps you to estimate the distance between the
target and the device.
Thermal spot tracking:
The device can detect the highest temperature in
the scene, marks the spot and follows it.
Photo & video recording:
The device can capture snapshots, record videos,
and set parameters by the T-Vision APP after being
connected to your phone via hotspot.
Picture in picture mode:
Projects a second screen of the picture in maximum
digital magnification onto the main screen.
7 color modes:
Choose between 7 color modes and 5 environ-
ment settings to optimize thermal visibility of your
surrounding
1.1 Device Description
1.2 Main Functions
Chapter 1 - Overview

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
14 15
1.3 Appearance
1.3.1 Button 1.3.2 Interface
Power Lens Cover
Objective Lens
Data Exchange & Loading
Battery Compartment
Buttons
Hand Screw
Fixing Ring
Locking Ring
Capture
Shutter
ModeMenu
Zoom
Power
Mode
Capture
Menu
Shutter
Press: Standby Mode/Wake up Device
Hold: Power On/Off
Press: Switch Color Mode
Press: Capture
Hold: Start/Stop Video Recording
Press: Enable/Disable OSD
Hold: Menu Operation
Press: Correct Non-uniformity of Display
Button Functions Interfaces Description
Icon Button Function
Adjust the distance between the lens and the
sensor to view the target much clearer.
Adjust the view.
Loosen the hand screw to install the batteries.
Connect with the output / loading cable.
Objective Lens
Focus Ring
Hand Screw
Data Exchange
& Loading
Component Function

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
16 17
Before You Start
Remove batteries from the device before connecting to your PC, or
it may cause device damage.
Steps
1. Lift the cable interface cover.
2. Connect the device and power adapter with a type-C cable to
power on the device. Alternatively, connect the device and PC to
export files.
Insert the batteries into the battery compartment.
Before You Start
The device supports 3.0 V or 3.7 V rechargeable lithium battery or
3.0 V non-rechargeable dry battery.
2. Make sure the battery‘s
positive terminal and
negative terminal are
installed correctly.
Steps
1. Rotate the hand screw
counterclockwise to
loosen it.
2.1 Connect Device
2.2 Install Battery
Chapter 2 - Preparation
NegativePositive
Loosen
3. Rotate the hand screw
clockwise to tighten it.
Take the battery away if
the device is not used
for a long time.
USB-C

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
18 19
2.2.1 Select Battery Type
The device supports multiple types of batteries and you can change
the battery type according to your need. Select the battery voltage
according to the actual situation, so that the device can display the
remaining power correctly.
You can use the device together with a daylight scope to view the
target clear in daytime.
Steps
1. Install the daylight scope into the transfer ring as arrow 1.
2. Lock the buckle to fix the daylight scope as arrow 2.
Power On
When the battery is enough, press to power on the device.
Power Off
When the device is turned on, hold for 2 seconds to power off
the device.
Steps
1. In the view mode, hold to show the menu.
2. Select and press to switch the voltage.

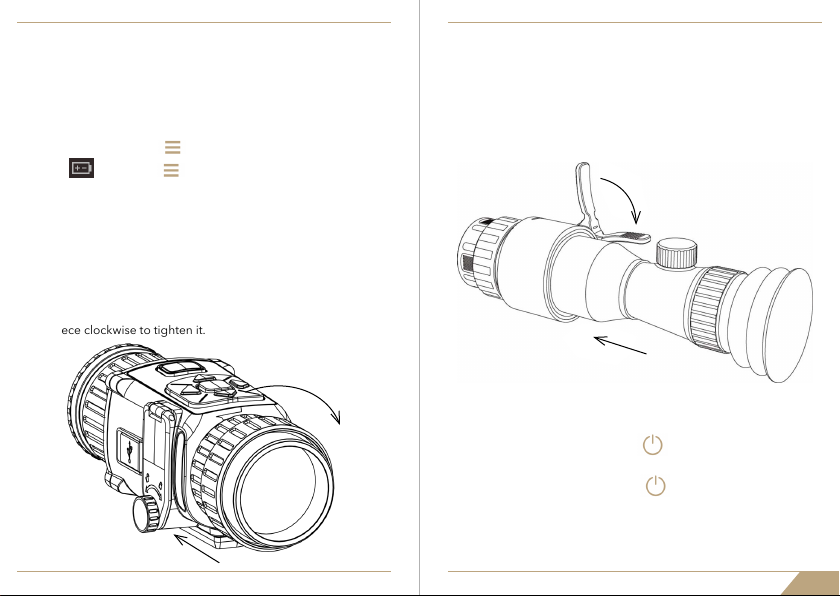

The device can be used as a handheld observational camera or a
clip-on scope. You can change the eyepiece to realize different use
of the device.
Steps
1. Rotate the fixing ring of eyepiece counterclockwise to remove it.
2. Align the eyepiece with the grooves of device, and rotate the
eyepiece clockwise to tighten it.
2.3 Change Eyepiece
2.4 Install Daylight Scope
2.5 Power On/Off
1
2
1
2

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
20 21

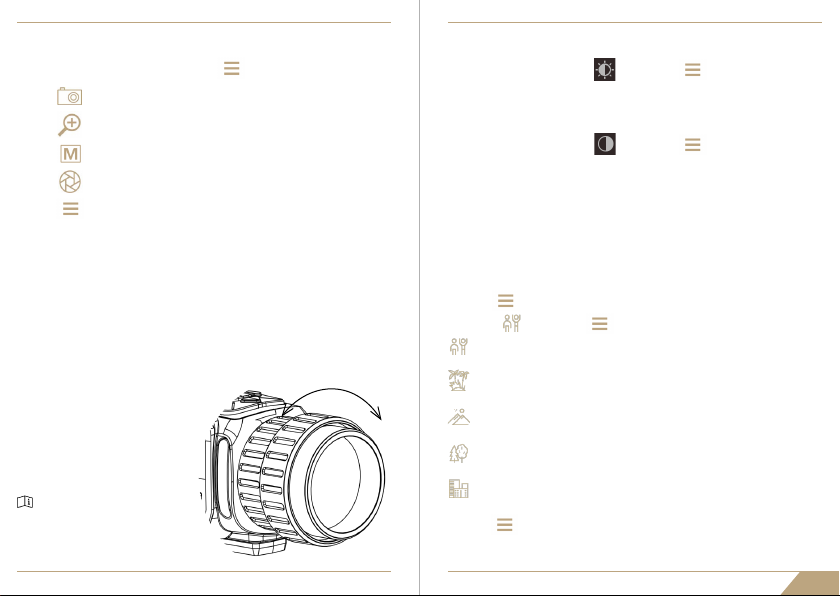

1. Hold to go to the menu.
2. Select and press to switch scene.
– refers to DISCOVERY mode and is recommended
in normal scene.
– refers to JUNGLE mode and is recommended for hunting
in dense forest environment.
– refers to STONE mode and is recommended in
rocky environment.
– refers to FOREST mode and is recommended in light
forest environment.
– refers to URBAN mode and is recommended in urban
environment.
3. Hold to save settings and exit.
In the menu mode, select and press to adjust brightness.
You can select proper scene according to actual using scene to
improve the display effect.
Steps
In the menu mode, select and press to adjust image
contrast.
When the device is turned on, press to display the OSD menu.
- Press to move the cursor up.
- Press to move the cursor down.
- Press to move the cursor left.
- Press to move the cursor right.
- Press to confirm.
2.6 Menu Description
3.1 Adjust Diopter
3.2 Adjust Brightness
3.3 Adjust Contrast
3.4 Select Environment Settings
Chapter 3 - Image Settings
Steps
1. Power on the device.
2. Open the lens cover.
3. Hold the device and make
sure the eyepiece covers
your eye.
4. Adjust the focus ring until the
OSD text or image is clear.
NearFar
When adjusting diopter, DO
NOT touch the surface of lens
to avoid smearing the lens.
Note

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
22 23
3.5 Set Color Modes
You can select different palettes to display the same scene in diffe-
rent effects. Press to switch palettes.
White Glow
The hot part is light-co-
lored in view. The higher
the temperature is, the
lighter the color is.
Fusion Glow
From high temperature
to low temperature, the
image is colored in from
white, yellow, red, pink to
purple.
Black Glow
The hot part is black-co-
lored in view. The higher
the temperature is, the
blacker the color is.
Night Vision
The hot part is green-co-
lored in view. The higher
the temperature is, the
greener the color is.
Red Glow
The hot part is red-colo-
red in view. The higher
the temperature is, the
redder the color is.

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
24 25
Nature Color
From high temperature
to low temperature, the
image is colored in from
red, yellow, green, blue
to purple.
Urban Color
From high temperature
to low temperature,
the image is colored in
from red, yellow, green,
to blue.
3.6 Correct Defective Pixel
3.7 Flat Field Correction
3.8 Set Picture in Picture Mode
The device can correct the defective pixels on the screen which are
not performed as expected.
This function can correct non-uniformity of display.
Steps
1. In the view mode, hold to show the menu.
2. Select and enter PIP mode. The details show in the upper
left corner.
– The PIP view is the magnified detail of central part.
3. Press to switch the PIP type. Upper Left, Upper Middle,
Upper Right, and OFF are selectable.
Steps
1. Hold to show the menu.
2. Select
3. Press , , , and to move the cursor to the
Steps
1. Hold to go to the menu.
2. Select and press to switch FFC mode.
– Manual: Hold in live view to correct the non-uniformity
of display.
– Auto: The device performs FFC automatically according to the
set schedule when switching on the camera.
– External: Cover the lens cover, then hold in live view to
correct the non-uniformity of display.
3. Hold to save the settings and exit.
position of dead pixel.
4. Press to correct the dead pixel.

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
26 27
The device can detect the highest temperature spot in the scene
and mark it on display.
In the menu, select and press to mark the spot of highest
temperature.
When the function is enabled, displays in the spot of highest
temperature. When the scene changes, the moves.
In the live view interface, press to display or hide the OSD
information.
When you select Upper
Right as PIP type, the
OSD will be blocked.
4. Hold to exit.
If digital zoom is enabled, the PIP view also zooms. If the digital
zoom ratio exceeds 4, the PIP does not zoom.
Steps
1. Press and to go to image calibration interface.
2. Press , , , or to adjust the position of
the live preview window. The image region could be adjusted in 4
directions in the whole screen area.
3. Optional: Hold , and press OK to restore the view to default
position.
4. Press or hold to exit image calibration.
3.9 Set OSD (On-Screen-Display)
3.10 Calibrate Image
The device can adjust the thermal view to make it consistent with the
optical view.
Chapter 4 - Thermal Spot
Tracking
Chapter 5 - Range
Estimation Function
The device can detect the distance between a target and the obser-
vation position.
Before You Start
When measuring the distance, keep the hand and the position
steady. Otherwise, the accuracy may be affected.
Note

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
28 29
Go to distance measurement interface and press to view the
result of the previous measuring target.
When capturing succeeds, the image freezes for 1 second and a
prompt shows on the display.
For exporting captured pictures, refer to Export Files.
On the main live view page, press to capture picture.
Steps
1. In the main live view, hold and start recording.
The left top of image displays the information of recording time.
2. Hold again to stop recording.
What to do next
For exporting recording files, refer to Export Files.
Steps
1. Hold to show the menu.
2. Select and press to go to the setting interface.
2.1 Press or to select the target from Deer, Wolf, Bear,
and Custom.
2.2 Set the target height.
2.3 Press to confirm.
3. Align the center of top
mark with the edge of
target top.
Press . The cursor
blinks on the top edge of
the target.
The available height ranges from
0.1 m to 9.9 m.
4. Align the center of bottom
mark with the edge of
target bottom. Press .
Result
The left top of the image
displays the distance measu-
rement result and the height
of the target.
Chapter 6 - Picture and Video
You can manually record pictures or videos during the live view.
6.1 Capture Picture
6.2 Record Video
Note
Note
Note

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
30 31
Android System iOS System
5. Open the APP and connect your phone with the device. You can
view the interface of device on your phone.
−The hot spot function will be turned off automatically when power is
less than 15%.
−The device cannot connect to the app if entering wrong password
several times. Refer to Restore Device to reset the device and connect
the app again.
Steps
1. Connect the device and PC with cable.
Make sure the device is turned on when connecting the cable.
2. Open computer disk and select the disk of device.
Go to DICM 100EZVIZ.
3. Select and copy the files to PC.
4. Disconnect the device from your PC.
−The device displays images when you connect it to PC. But
functions such as recording, capturing and hot spot are disabled.
−When you connect the device to PC for the first time, it installs
the drive program automatically.
Chapter 7 - Client Software
Connection
Connect the device to the T-Vision APP via hot spot, then you can cap-
ture picture, record video, or configure parameters on your phone.
Steps
1. Hold to show the menu of device.
2. Press to enable hot spot function.
3. Turn on your phone‘s WiFi and connect to the hot spot.
– Hot Spot Name: GPO + nine-digit PIN code of your device.
(e.g. GPO-G12345678. You can find the PIN code in the basic
information menu of the device).
– Hot Spot password: the nine-digit PIN code for your device
(e.g. G12345678, including capital letters).
4. Scan the QR code to download and install the app.
This function is used to export recorded videos and captured
pictures.
Before You Start
Turn off WLAN / hot spot function.
6.3 Export Files
Note
Note
Note

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
32 33
Steps
1. Hold to show the menu.
2. Select CVBS, and press to switch on CVBS.
The CVBS cable is not included in the package, please purchase it
by yourself.
This part introduces the operation of checking device information,
upgrading device, and restoring to defaults, etc.
Chapter 9 - Maintenance
Steps
1. Hold to show the menu of device.
2. Select , and press and you can view the device
information such as version, and serial No.
9.1 View Device Information
Chapter 8 - CVBS Output
View the device image on the display unit for details.
Before You Start
Connect the device to the display unit via CVBS interface of the
aviation plug.
Steps
1. Hold to show the menu of device.
2. Select , and press to restore the device to defaults
according to the prompt.
9.2 Restore Device
9.3 Technical Specifications
SENSOR
Image Sensor Uncooled
Detector Type VOx
Pitch Size 17 um
Resolution 384 x 288 px
Thermal Sensitivity (NETD) <35 mK
Frame Rate 50 Hz
Shutter Calibration Manuell & Auto
DISPLAY Display OLED
Resolution 1024 x 768
OPTICS
Lens 35 mm
Objectiv-Lens F1.0
FOV (H x V) degree 10,0 x 8,0
FOV (horizontal on 100m) 17,5m
ENGINE
Switch clip-on / handheld No
Zoom Digital (steps) 1x - 8x
Picture-In-Picture Yes
Calibration (NUC) Yes
Distance Measurement Yes
Video Recording Yes
Filters Color Yes: 7
Special Filters Environment: 5
Picture Snapshot Yes
Automatic hotspot detect. Yes
Note

SPECTRATM TI 35 User Manual SPECTRATM TI 35 User Manual
34 35
11.1 Why is the monitor off?
Check whether the device is charged. Check the monitor after
charging the device for 5 minutes.
11.2 The image is not clear, how to adjust it?
Adjust the diopter adjustment knob until the image is clear. Refer to
section: Adjust Diopter.
11.4 Why the PC cannot identify the device?
Check the following items.
− Whether the device is connected to your PC with supplied USB cable.
− If you use other USB cables, make sure the cable length is no longer
than 1 m.
− Whether the hot spot function is turned on. If so, go to device menu
and turn off hot spot.
− Make sure your device is turned on before connecting to your PC.
11.3 Capturing or recording fails.
What‘s the problem?
Check the following items.
− Whether the device is connected to your PC. Capturing or
recording is disabled in this status.
− Whether the storage space is full.
− Whether the device is low on battery.
Chapter 11 - Frequently
Asked Questions
Go to the device menu, select , and press to switch the
device language.
Chapter 10 -
Language Settings
RANGE Detection Range 1.240 m (1,7 x 0,5 m)
DEVICE
Housing Shock resistant glass fibre composite
Special Interfaces Tripodadapter
Waterproof IP67
Operating Temp. (Celsius) -20 to +55
ENERGY /
INTERFACES
Battery 2x CR123A
Operating Time 4,5h
Battery Warning Yes
Powerbank USB / Micro USB Yes (5 VDC, 2A)
Internal Storage 16 GB
Video Out No
Internal Storing Picture/Video Yes
Wireless / WiFi yes (with Live-View)
Remote Control No
WEIGHT /
DIMENSIONS
Dimensions: LxWxH 120 x 62 x 62*
Weight 350g*
OTHER Warranty 3 years
SCOPE OF DELIVERY
Device |Tenebræx® flip cap |Eyepiece (dual use handheld) |Intermediate
ring to RUSAN adapter |Carrying bag |USB-C cable |2 batteries |
Lens cleaning cloth |QR-Code app |User manual + quick guide
*Device without eyepiece / adapter
