GraceWood GMQ Pro User manual

The GMQ Pro
Home Machine Quilting System
Parts List
Part List A...................................................................................................................................... 2
Part List B ...................................................................................................................................... 3
Part List C ...................................................................................................................................... 4
Care of Your Frame ....................................................................................................................... 6
Assembly Steps:
Step 1: Leveling Foot Assembly................................................................................................... 7
Step 2: Outer Leg Brace “A” Assembly ....................................................................................... 8
Step 3: Side Leg Brace “B” Assembly ......................................................................................... 9
Step 4: Table Assembly .............................................................................................................. 10
Step 5: Middle Leg Spacer Assembly......................................................................................... 12
Step 6: Table Splice to Table Assembly..................................................................................... 13
Step 7: Frame End Hardware Assembly..................................................................................... 14
Step 8: Track Installation............................................................................................................ 14
Step 9: Frame End Assembly to Table Assembly ...................................................................... 15
Step 10: Side Leg to Table Assembly......................................................................................... 15
Step 11: Middle Leg Installation................................................................................................. 16
Step 12: Middle Leg Assembly................................................................................................... 17
Step 13: Take Up Sides Assembly.............................................................................................. 18
Step 14: Take Up Sides to Table Assembly................................................................................ 18
Step 15: Take Up Rail Mount End Assembly............................................................................. 19
Step 16: Take Up Rail Mount End to Table Assembly .............................................................. 19
Step 17: Three Rail Side to Table Assembly.............................................................................. 20
Step 18: Pivot End to Fabric Layer Rail Mount End.................................................................. 20
Step 19: Pivot End/ Fabric Layer Rail Mount End to Table Assembly...................................... 21
Step 20: Batting Rail Mount End Assembly............................................................................... 21
Step 21: Top Fabric Rail Mount End to Table Assembly........................................................... 22
Step 22: Rail Assembly............................................................................................................... 22
Step 23: Rails to Frame Assembly.............................................................................................. 24
Step 24: Ratchet Stop Assembly................................................................................................. 25
Step 25: Carriage Handle Assembly........................................................................................... 26
Step 26: Cross Brace Assembly.................................................................................................. 26
Step 27: Front Handle Brace Assembly...................................................................................... 26
Step 28: Front Handle Slide Assembly....................................................................................... 27
Step 29: Front Handle Slide to Front Handle Assembly............................................................. 27
Step 30: Front Handles to Top Carriage Assembly .................................................................... 28
Step 31: Cone Thread Holder Assembly .................................................................................... 28
Step 32: Cone Thread Guide Assembly...................................................................................... 28
Step 33: Pedal Platform Assembly ............................................................................................. 29
Step 34: Carriage to Frame Assembly ........................................................................................ 29
Step 35: Stylus Clamp Base Assembly....................................................................................... 30
Step 36: Stylus Clamp Assembly................................................................................................ 30
Step 37: Stylus Assembly ........................................................................................................... 30
Step 38: Stylus to Carriage Assembly ........................................................................................ 31
Step 39: Carriage Stop Assembly ............................................................................................... 31
Fabric Installation...................................................................................................................... 32
Making Cloth Leaders.................................................................................................................. 33
Installing Your Fabric Layers to the Rails................................................................................... 34
Step 1: Quilt Backing to Second Rail ......................................................................................... 34
Step 2: Quilt Top to 3rd Rail....................................................................................................... 34
Step 3: Batting............................................................................................................................. 34
Step 4: Attaching Layers to the Take-Up Rail............................................................................ 35
Rolling Your Fabric ..................................................................................................................... 36
The Four-Inch Principle............................................................................................................... 36
Bungee Clamp Assembly............................................................................................................. 36

GMQ Pro
Parts List A
(1) Right Take Up Side
(1) Left Frame End (1) Right Frame End
(1) Left 3 Rail Side (1) Right 3 Rail Side
(1) Batting Pole
Mount End
(1) Batting Pole
Mount End
(1) Left
Pivot End (1) Right
Pivot End
(1) Left Fabric
Layers Pole
Mount End
(1) Right Fabric
Layers Pole
Mount End
(1) Left Take Up Side
(1) Left Take up
Pole Mount End
(1) Right Take Up
Pole Mount End
(1) Right
Front Leg
(1) Left
Front Leg
(1) Left Back
Leg
(1) Right Back
Leg
(2) Outer Leg
Brace "A"
(2) Outer Leg
Brace "B"
(3) Middle
Leg "B"
(3) Middle
Leg "A"
(3) Middle Leg Brace
(2) Carriage
Stop Base
(2) Carriage
Stop Clamp
(2) Track Support
Splice "A" (2) Tack Support
Splice "B" (1) Middle Leg
Spacer "A"
(1) Middle Leg
Spacer "B"
2

GMQ Pro
Parts List B
(1) Table #1 (1) Table #2 Table #3
Table #4
(1) Bottom
Carriage
(1) Top
Carriage
(3) Cone
Thread Disk
(1) Stylus
Base
(1) Stylus
Clamp
(1) Stylus
Mount
Stylus
(1) Lamp Holding
Cross Brace
(3) Table
Splice
(1) Right
Back Lever
(1) Left
Back Lever
(1) Front Lever
(1) Middle
Lever
(1)Front
Lever Linkage
(1) Back
Lever Linkage
(1) Pedal
Clamp
(1) Pedal
Clamp Wheel
(1) Pedal
Clamp Spacer
(1) Right Handle (1) Left Handle
3

-Pre-Installed in your 70” rail
GMQ Pro
Parts List C
(1) Crib Back Track Support
(1) Crib Front Track Support
(1) Queen Back Track Support (1) Queen Front Track Support
(1) King Back Track Support (1) King Front Track Support
(4) 70" Rail
(4) 34" Rail (4) 24" Rail (8) Rail
Coupler
(3) Ratchet
Wheel
(4) Square
End Cap
(8) End Cap
Shoulder
Plastic Parts
(4) Round
End Cap
(4) Fabrifast Tubing
(3) Ratchet
Stop
(4) Bungie
Clamp
(2) 129-1/2" Track
(2) 105-1/2" Track
(2) 71-1/2" Track
(1) Fabri-fast
Tool
4

GMQ Pro
Parts List D
(24) 1/4" X 1-1/2"
Carriage Bolt
(17) 1/4" X 45mm
Connector Bolt
(8) 1/4" X 1" Phillips
Pan Head Screw
(56) 1/4" X 3/4" Phillips
Pan Head Screw
(12) 1/4" X 2" Phillips
Pan Head Screw
(3) 1/4" X 1-1/2"
Truss Bolt
(8) #8 X 7/8"
Screw
(97 ) 3/16" Flat
Washer
(33 ) 1/4" Flat
Washer
(28 ) 1-1/4" Fender
Washer
(29 ) 1/4" Plastic
Knob
(26) 1/4" Nylock
Nut
(89) 1/4" Jam
Nut
(14 ) 1/4" Rectangle
Nut
(4 ) 1/4" X 30mm
Connector Bolt
(4 ) 1/4" X 3"
Carriage Bolt
(2) #10 X 3"
Eye Bolt
(1) 1/4" X 2"
Eye Bolt
(4) #10 Hex
Nut
(40) #6 X 5/8"
Wood Screw
(10) 1/4" X 2"
Leveling Foot
(10) Leveling Foot
Saddle
(6) 1/4" X 2-1/4"
Carriage Bolt
(24) #10 X 3/8"
Socket Head Screw
(1) 4mm Allen
Wrench
(2) 1/4" X 40mm
Connector Bolt
(3 ) 1/4" X 35 mm
Connector Bolt
5

CARE OF YOUR GMQ PRO
Your GMQ Pro frame is a machine quilting system that can be used nished or unnished. Most use
it unnished with no problem, and doing so does not adversely affect warranty coverage. However, for extra
protection, or to give it a nished look, you may seal, stain and/or nish the frame using a number of different
applications. This is best done BEFORE YOU ASSEMBLE your frame.
To seal the wood, we recommend an application of tung oil or Danish Oil nish that will help preserve
the wood and will help to prevent warping. We recommend the McCloskey’s Tung Seal, DeftTM or WatcoTM
brands. Some prefer to use a urethane coat to add a more glossy nish.
Test stain on an inconspicuous place. Many different nishes and/or stains may be suitable for sealing
and beautifying your frame. You may want to consult your local paint retailer for nishes that are easy to apply
and dry hard–not oily.
Use and Storage Tip
--Store frame in a dry place. Avoid the possibility of moisture coming into contact with your wood.
Five-Year Limited Warranty
GraceWood, Inc. will replace or repair, at our choosing, any part of the GMQ Pro Machine Quilting
System which may be shown to be defective. This warranty does not cover parts damaged through misuse,
improper storage, improper assembly, loss, natural events and willful or accidental destruction. Defective parts
may be returned only with a valid RMA# which may be obtained by calling GraceWood, Inc. at
1-800-264-0644 or 1-801-485-6688.
NOTE: Warranty card must be lled out, stamped and mailed to the address on the card within 30 days of
purchase.
Contact Information
For Technical Support or any other correspondence concerning your GMQ Pro, call 1-800-264-0644 ~
OR ~ E-mail: [email protected] ~ OR ~ Fax: [phone] ~
OR ~ Write to:
The Grace Company
P.O. Box 27823
Salt Lake City, UT 84127
For details on accessories and other information, see us online at www.graceframe.com
For shipping of materials to The Grace Company address package (postage prepaid) to: The Grace Company,
2225 South 3200 West, SLC, UT 84119. Materials may be returned only with a valid RMA# or Returned
Merchandise Authorization Number which may be obtained by calling GraceWood, Inc. at
1-800-264-0644.
If you call after business hours (M-F 8:00 a.m. – 5 p.m., MST) be assured that your call will be returned
the next business day if you leave a message. Please report any errors in these instructions or make comments
to the following: [email protected]
Grace Quilting Frames and Hoops: Innovation and Evolution
Grace Quilting Systems have been developed over the past two decades with several original design
innovations. Additionally, because of feedback from many of the thousands of quilters who have purchased
and use our machine quilting systems, we have been able to make a frame that will truly enhance the entire
process of machine quilting from beginning to end. If you have any suggestions that will help us to improve
our product or service, let us know, using one of the above contact methods.
6

Step 1: Leveling Feet Assembly
Parts Needed: 1- ea. Left and Right Front Legs
1- ea. Left and Right Back Legs
3- Middle Leg “A”
3- Middle Leg “B”
10- Leveling Feet
10- Leveling Foot Saddles
40- #6 x 5/8” Wood Screw
• Place One Leveling Foot Saddle over the
end of each Leg.
• Insert four #6 x 5/8” wood screws into the
holes of each of the Leveling Foot Saddles
(there are two holes on each side). Screw
these in completely.
• Insert Leveling Foot into the Leveling Foot
Saddles as shown in the picture to the left.
Make sure to screw it in all the way.
WELCOME!
As you begin assembly of your new GMQ Pro home machine quilting system, keep in the mind the
following:
1) Plan to spend a minimum of 2-4 hours in assembly. This process will be simple and step-by-step.
2) Read through each step completely before beginning that step.
3) Using the parts list as a reference, take the parts out of the box and make sure that you have them all. (If there
is something missing or broken, contact the Grace Company at 1-800-264-0644. Our ofces are open from 8:00 am-
5:00 pm MST Mon.-Fri. If calling after hours, you may leave your message and we will promptly ship any item
needed).
4) For your convenience, an “L” and “R” have been etched into the INSIDES of most pieces to help you distinguish
between left and right parts and inside and outside of parts.
5) Identify Hardware Packets: All hardware is separated by type and each packet is labeled for ease in identication
you will nd packets located in a rectangular box.
6) This is a new product! We welcome your feedback on this product or these instructions. If you encounter a
problem during assembly or use of the GMQ Pro, and you can’t seem to overcome it, call us before frustration sets
in!
Tools Needed:
7/16” Socket Wrench
Adjustable wrench
Phillips Screw Driver (Cordless Preferred)
Allen wrench (provided)
Fabri-Fast Tool (to be used when installing your fabric)
#6 X 5/8" Wood Screw
Leveling Foot Saddle
Leveling Foot
7

• Place a rectangle nut vertically in the “t” slot of the Leg Brace “A”, as illustrated above.
• Connect the Right Front Leg to the Outer Leg Brace “A” by threading the connector bolt through the hole in the
Right Front Leg and into the rectagle nut. (Hold the rectagle nut in place, while using the provided allen wrench to
tighten the connector bolts.)
• Repeat the above steps again for the Left Back Leg.
Step 2: Outer Leg Brace “A” Assembly
Parts Needed: 2- Outer Leg Brace “A”
1- Right Front Leg
1- Left Back Leg
2- 1/4” X 45mm Connector Bolt
2- 1/4” Rectangle Nut (threaded)
1/4" X 45mm
Connector Bolt
1/4" Rectangle Nut
Left Back Leg
Outer Leg Brace "A"
1/4" X 45mm
Connector Bolt
1/4" Rectangle Nut
Right Front Leg
Outer Leg Brace "A"
8

Step 3: Outer Leg Brace “B” Assembly
Parts Needed: 2- Outer Leg Brace “B”
1- Right Back Leg
1- Left Front Leg
2- 1/4” X 45mm Connector Bolt
2- 1/4” Rectangle Nut (threaded)
• Place a rectangle nut vertically in the “t” slot of the
Outer Leg Brace “B”, as illustrated to the upper right.
• Connnect the Right Back Leg to the Leg Brace
“B” by threading the connector bolt through the
hole in the Right Back Side Leg and into the rectagle
nut. (Hold the rectagle nut in place, while using
the provided allen wrench to tighten the connector
bolts.)
• Complete the above steps again for the Left Front
Side Leg.
Outer Leg Brace "B"
1/4" Rectangle Nut
Right Back Leg
1/4" X 45mm
Connector Bolt
1/4" X 45mm
Connector Bolt
1/4" Rectangle Nut
Left Front Leg
Outer Leg Brace "B"
9

• Put a phillips pan head screw through the middle hole on the Table #1 through the front crib table aluminum
track support. Next, place a 3/16” at washer and 1/4” jam nut on the end of each screw. Tighten these nuts
completely.
• Put a phillips pan head screw through the other two holes on the top of Table #1, and then put a at washer
followed by a jam nut on each end.
• Follow the above steps to attach the front crib table aluminum track support to the Table #2.
• Follow the above steps to attach the back crib table aluminum track support to the Table #1 and #2.
Step 5: Table Assembly
Parts Needed: 1- Table #1
1- Table #2
1*- Table #3
1**- Table #4
1- Front Crib and *Queen and **King Table Aluminum Track Support
1- Back Crib and *Queen and **King Table Aluminum Track Support
12 or 18* or 24**- 1/4” X 3/4” Phillips Pan Head Screw
12 or 18* or 24**- 3/16” Flat Washer
12 or 18* or 24**- 1/4” Jam Nut
• Queen assembly ONLY
• King assembly ONLY
• Place the Table #1 on the front crib table aluminum
track support (as pictured left). NOTE: ** You might
want to stand the table on it’s side to make it easier
to tighten the nuts.**
•IMPORTANT! Carefully identify your Front
and Back Crib Track Supports based on
the position of the holes. NOTE: The
Crib Back Track Support mounts to
Crib FrontTrack Support
Crib BackTrack Support
the “slotted” side of the table. Be
sure the “extra two holes” are on
the end of Table #2. (See picture
to the left).
HINT: Some holes in the wood pieces may be a little tight for the
hardware. If this is case, tap the hardware in using the handle of your
screw driver.
1/4" X 3/4"Phillips
Pan Head Screw
3/16" Flat Washer 1/4" Jam Nut
Table #2
Table #1
10

• Put a phillips pan head screw through the other two holes on the Table #4, and then put a at washer followed by
a jam nut on each end. Tighten all jam nuts completely.
KING ASSEMBLY:
• Place the Table #4 on the front
king table aluminum track support
(as pictured left).
• Put a phillips pan head screw
through the middle hole on the
Table #4 through the front king
table aluminum track support, and
then on the end of the phillips
pan head screw put a at washer
followed by a jamb nut.
• Put a phillips pan head screw through the other two holes on the Queen Table #3, and then put a at washer
followed by a jam nut on each end. Tighten all jam nuts completely.
QUEEN ASSEMBLY:
• Place the Table #3 on the front
queen table aluminum track support (as
pictured left). IMPORTANT! Again,
carefully identify your Front and Back
Crib Track Supports based on the
position of the holes. Mount the Crib
Back Track Support to the “slotted side”
of the table.
• Put a phillips pan head screw through
the middle hole on the Table #3
through the front queen table aluminum
track support, and then on the end of
the phillips pan head screw put a at
washer followed by a jamb nut.
1/4" X 3/4" Phillips
Pan Head Screw
3/16" Flat Washer
1/4" Jam Nut
1/4" X 3/4" Phillips
Pan Head Screw
1/4" Jam Nut
3/16" Flat Washer
11

Step 6: Middle Leg Spacer Assembly
Parts Needed: 1- Crib Table (assembled)
1*- Queen Table (assembled)
1**- King Table (assembled)
2- Middle Leg Spacer
1* or 2**- Track Support Spacers A
1* or 2**- Track Support Spacers B
4 or 8* or 12**- 1/4” X 2” Phillips Pan Head Screw
8* or 16**- 1/4” X 3/4” Phillips Pan Head Screw
4 or 12* or 24** 3/16” Flat Washer
4 or 12* or 24**- 1/4” Jam Nut
* Queen assembly ONLY
**King assembly ONLY
• Place the at side of the Middle Leg Spacer against the front crib
table aluminum track support (as show above right).
• Place a 3/16” at washer on the
end of the screw, and then a jam nut.
tighten all jam nuts completely as you
go.
• Put a 2” phillips pan head screw
through the left hole following the
same steps as you did for the right.
• Follow the above steps to attach the
Middle Leg Spacer to the back crib
table aluminum track support.
• Put one 2” phillips pan head screw through the
right most hole in the front crib table aluminum
track support, which will then go through the
Middle Leg Spacer.
QUEEN ASSEMBLY:
• Place your Table #3 next to you Table #1
& 2 assembly. (NOTE! Be sure the “extra
two holes” in the Track Supports are on the
end opposite from Tables #1 & 2).
• Where your Crib Table meets your
Queen table you will need to place a Table
Splice (at end against the aluminum track
support).
• Place a 2” phillips pan head screw
through the center two holes (see close-up
next page) in the aluminum track support
and then through the Table Splice. Place
a washer and jam nut on the ends of the
screws and tighten completely.
1/4" X 2" Phillips
Pan Head Screw
3/16" Flat Washer
1/4" Jam Nut
Middle Leg Spacer "B"
Middle Leg Spacer "A"
1/4" X 2" Phillips
Pan Head Screw
Middle Leg Spacer
3/16" Flat Washer
1/4" Jam Nut
Queen Table Assembly
Crib Table Assembly
Track Support
Splice "B"
Track Support
Splice "A"
12

• Place a 1/4” X 2” phillips pan head screw through
the center two holes in the aluminum track support
and then through the Table Splice. Then place a
washer and jam nut to the ends of the screws.
KING ASSEMBLY:
• Place your Table #3 next to you Table #4, and
follow the above steps to compete your king set up.
• The 1/4 X 3/4” phillips
pan head screws will go
through the end two holes
with a washer and jam nut
on the end.
• Follow the above steps
for the other side
Step 7: Table Splice to Table Assembly
Parts Needed: 1- Crib or Queen* or King** Table
1 or 2* or 3**- Table Splice
4 or 8** or 12**-1/4” x 3/4” Phillips Pan Head Screw
• Place a Table Splice over the seam between
Table #2 and #3 (if you are setting up in Queen
or King), and follow the above directions.
• Place a Table Splice over the seam between
Table #3 and #4 (if you are setting up in King).
• Thread the philips pan head screws through the top
of the table with the ends screwing into the Table
Splice under the the table, as pictured left and above).
• Place a Table Splice over the seam in the table (between Table #1 and #2).
1/4" X 2" Phillips
Pan Head Screw
1/4" X 3/4" Phillips
Pan Head Screw
3/16" Flat Washer
1/4" Jam Nut
King Table
Assembly
Queen Table
Assembly
Crib Table
Assembly
Track Support Splice "B"
Track Support Splice "A"
1/4" X 3/4" Phillips
Pan Head Screw
Table Splice
Table Splice
1/4" X 3/4" Phillips
Pan Head Screw
13

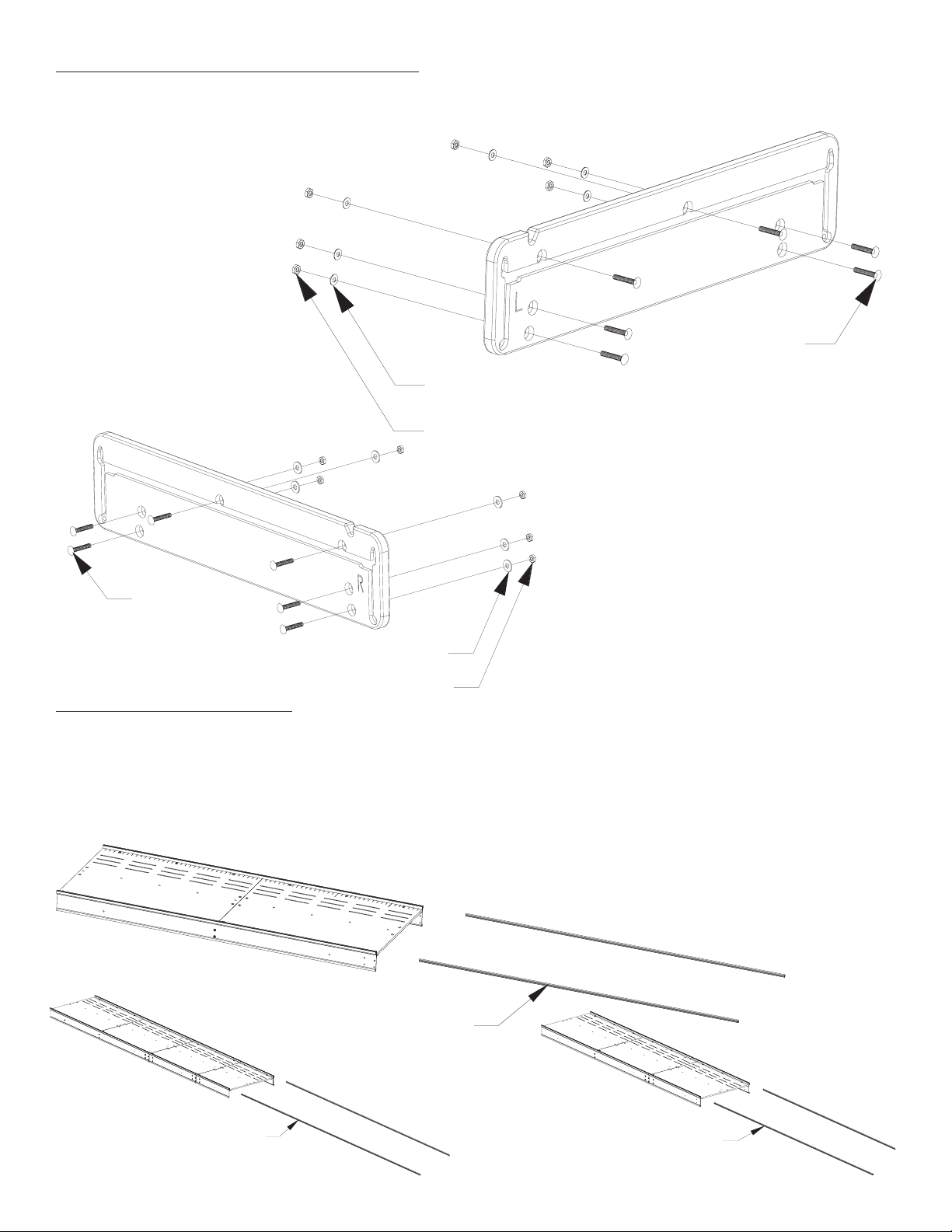

Step 8: Frame End Hardware Assembly
Parts Needed: 1- Right and Left Frame End
12- 1/4 Jam Nut
12- 1/4” Flat Washer
12- 1/4 x 1-1/2” Carriage Bolt
• Place one washer and one jam nut on the
end of the bolt.
**TIGHTEN JAM NUTS COMPLETELY
ONTO EACH BOLT UNTIL THE HEAD
OF THE BOLT IS PULLED INTO THE
COUNTER-SUNK HOLE.**
• Repeat the above steps for the right side.
• Place an 1-1/2” carriage
bolts through each of the
holes, except for the two on
each end, on the Right Frame
End, making sure the head
of the bolt is on the side with
the R.
Step 9: Track Installation
Crib Parts Needed: 2- 71-1/2” Plastic Track
1- Crib Table (assembled)
Queen Parts Needed: 2- 105-1/2” Plastic Track
1- Queen Table (assembled)
King Parts Needed: 2- 129-1/2” Plastic Track
1- King Table (assembled)
• Slide one of the plastic track (FLAT SIDE DOWN) into
the front table aluminum track support.
• Slide the other plastic track (FLAT SIDE DOWN)
into the back table aluminum track support.
1/4" X 1-1/2"
Carriage Bolt
3/16" Flat Washer
1/4" Jam Nut
1/4" X 1-1/2"
Carriage Bolt
3/16" Flat Washer
1/4" Jam Nut
Crib Plastic Track 71.5"
Queen Plastic Track 105.5"
King Plastic Track 129.5"
14

Step 10: Frame End Assembly to Table Assembly
Parts Needed: 1- Table Assembled (Crib or Queen or King)
1- Right and Left Frame End Assembly
8- 1/4 x 1” Phillips Pan Head Screw
•
Attach the Left
Frame End to Table #1, as pictured
below, with the bolts facing away from
the frame.
• Tip your table so it is upside down, if it is not that way
already.
Step 11: Side Leg to Table Assembly
Parts Needed: 1- Table Assembly (Crib or Queen or King)
2- Right and Left Back Leg (assembled)
2- Right and Left Front Leg (assembled)
4- 1/4 x 3/4” Phillips Pan Head Screw
4- 1/4” Flat Washer
4-1/4” Nylock Nut
4- 1-1/4” Fender Washer
4- 1/4” Plastic Knob
• Put a screw through each hole on the outside corners of the Left
Frame End, and into the holes in the track supports.
• You will attach the Right Frame End to the right side of your table.
(#2 if Crib, #3 if Queen, and #4 if King)
• The bolt closest to the oor is where you will place a fender washer
followed by a plastic knob.
• Then you will take a screw and insert it through the front track support
to the Outer Leg Brace B, where it will screw into a preinstalled nut.
• Take your Front Left Leg and
place it on the bolts stick out of
your Left Frame End, (as pictured
left).
• Place a at washer followed by a nylock nut on the
bolt above the plastic knob.
**NOTE!! Leave all the nylock nuts loose enough
to slide in the joint, and loose enough to allow the
washer to turn in your ngers!**
• Follow the above instructions to install the Left
Back Leg as well as the Right Front and Back Legs.
1/4" X 1" Phillips
Pan Head Screw
1/4" X 1" Phillips
Pan Head Screw
1/4" X 3/4" Phillips
Pan Head Screw
1-1/4" Fender Washer
1/4" Plastic Knob
1/4" Flat Washer
1/4" Nylock Nut
1/4" X 3/4" Phillips
Head Pan Screw
1/4" Plastic Knob
1-1/4" Fender Washer
1/4" Flat Washer
1/4" Nylock Nut
15

Step 12: Middle Leg Installation
Parts Needed: 1 or 2* or 3**- Middle Leg (assembled)
2 or 4* or 6**- 1/4” Plastic Knob
2 or 4* or 6**- 1-1/4” Fender Washer
2 or 4* or 6**- 1/4” Nylock Nut
2 or 4* or 6**- 1/4” Flat Washer
*Queen Assembly ONLY
**King Assembly ONLY
• Make sure your GMQ
Pro is still upside down, as
illustrated left.
• Put the “B” side of your
Middle Leg on the bolts,
which are on the front of
your frame. **Don’t worry
about putting side “A” on
yet.**
• You will have to push the “A” Side in enough to get it on the bolts on the
back side of your frame.
**It is okay to tap the leg into place with your hand, it will be a tight t
when you start.**
• The bolt to the botton, closest to the table, is where you will
put a at washer followed by a nylock nut.
**NOTE!! Leave all the nylock nuts loose enough to
slide in the joint, and loose enough to allow the washer
to turn in your ngers!**
• On the top bolt you will put a fender washer and then a
plastic knob.
• You will follow the above steps to put on your other legs
for Queen or King.
1/4" Plastic Knob
1-1/4" Fender Washer
1/4" Nylock Nut
1/4" Flat Washer
NOTE: This illustration shows the Middle Leg
Brace assembled to the Middle Legs. Do this
AFTER you have installed you Middle Legs to
the frame (Step 13).
16

Step 13: Middle Leg Assembly
Parts Needed: 1 or 2* or 3**- “A” Middle Leg
1 or 2* or 3**- “B” Middle Leg
1 or 2* or 3**- Middle Leg Brace
2 or 4* or 6**- 1/4 X 45mm Connector Bolt
2 or 4* or 6**- 1/4 Rectangle Nut (threaded)
* Queen assembly ONLY
** King assembly ONLY
• Connect the “A” and “B” Middle legs by placing the connector bolts through each leg hole
as pictured, and into the Middle Leg Brace.
• Place a rectangle nut in the Middle Leg Brace so the connector bolt can be screwed into
the nut tight.
**NOTE: if you are setting up for queen, you will assembly two sets of legs, and three for
king.**
1/4" X 45mm
Connector Bolt
1/4" Rectangle Nut
Middle Leg A
Middle Leg B
Middle Leg Brace
17

Step 14: Take Up Sides Assembly
Parts Needed: 1- Right and Left Take Up Side
4- 1/4” Jam Nut
4- 3/16” Flat Washers
4- 1/4” x 1-1/2” Carriage Bolt
• Place one of the carriage bolts through each of the holes
on the Left Take Up Side, making sure the head of the
bolt is on the side with the L.
• Place one washer and one jam nut on the end of
the bolt.
• TIGHTEN JAM NUTS COMPLETELY
ONTO EACH BOLT.
**Make sure the top of the bolt
is ush against the wood, this will
require the use of a wrench.**
• Follow the above steps to
complete the Right Take Up Side.
• Make sure your table upside right, if it is not that
way already, as pictured left.
• Take your Left Take Up Side and place it on
the bolts stick out of your Left Frame End, (as
pictured left).
• Place a fender washer on the end of each of the
bolts.
• Screw a plastic knob on the end of each of the
bolts.
• Follow the above instructions to attach the Right
Take Up Side to the Table.
Step 15: Take Up Sides to Table Assembly
Parts Needed: 1- Right and Left Take Up Side (assembled)
4- 1/4” Plastic Knobs
4- 1-1/4” Fender Washers
1/4" X 1-1/2"
Carriage Bolt
3/16" Flat Washer
1/4" Jam Nut
1/4" Jam Nut
3/16" Flat Washer
1/4" X 1-1/2"
Carriage Bolt
Left Take Up
Side Assembly
1/4" Plastic Knob
1-1/4" Fender Washer
1/4" Plastic Knob
Right Take Up
Side Assembly
1-1/4" Fender Washer
18

Step 16: Take Up Rail Mount End Assembly
Parts Needed: 1- Right and Left Take Up Rail Mount End
4- 1/4” Jam Nut
4- 3/16” Flat Washer
4- 1/4” X 1-1/2” Carriage Bolt
• Place one washer and one jam nut on the end of
the bolt.
• TIGHTEN JAM NUTS COMPLETELY ONTO EACH BOLT.
• Make sure the top of the bolt is ush against the wood, this may require
the use of a wrench, or something like a wrench that you have around your
house.
• Repeat the above steps for the Right side.
Hint- If it is hard to push the bolt through, try turning it as you put in the
hole. After a little bit you should be able to push it it. Step 17: Take Up End to Table Assembly
Parts Needed: 1- Right and Left Take Up End Assembly
2- 1-1/4” Fender Washer
2- 1/4” Plastic Knob
2- 1/4” Nylock Nut
2- 1/4” Flat Washer
• As shown in the drawing, place the bolts in the Right
Take Up Rail Mount End through the rst slot on the Right
Rail Mount End.
• Place one of the carriage bolts through each of the holes on the
Left Take Up Rail Mount End, making sure the head of the bolt is
on the side with the L.
• Place a fender washer followed by a plastic knob on the top bolt.
• The nylon side of the nylock nut faces out when threading it on the bolt.
• Put a washer and then a nylock nut on the bottom bolt.
• Follow the above steps for the Left Take Up Rail Mount End.
1/4" X 1-1/2"
Carriage Bolt
3/16" Flat
Washer
1/4" jam
Nut
1/4" X 1-1/2"
Carriage Bolt
1/4" Jam Nut
3/16" Flat Washer
Right Take Up
Rail Mount End 1/4" Plastic Knob
1-1/4" Fender Washer
1/4" Nylock Nut
1/4" Flat Washer
Left Take Up Rail
Mount End Assembly
1-1/4" Fender Washer
1/4" Plastic Knob
1/4" Nylock Nut
1/4" Flat Washer
19

Step 18: Three Rail Side to Table Assembly
Parts Needed: 1- Right and Left Three Rail Side
2- 1-1/4” Fender Washer
2- 1/4” Plastic Knob
2- 1/4” Nylock Nut
2- 1/4” Flat Washer
• Take your Right Three Rail Side and place it on the bolts stick out of
your Right Take Up Side, (as pictured above).
• On the front most bolt you will need to put a fender washer followed
by a plastic knob.
• A at washer followed by a nylock nut will go on the other bolt.
• NOTE!! Leave all the nylock nuts loose enough to slide in the joint, and loose
enough to allow the washer to turn in your ngers!**
• Follow the above instructions to attach the Left Three Rail Side Left Take Up Side,
illustrated right.
Step 19: Pivot End to Fabric Layer Rail Mount End
Parts Needed: 1-Right and Left Pivot End
1-Right Left Fabric Layer Rail Mount End
4- 1/4” x 2-1/4” Carriage Bolts
4- 3/16” Flat Washers
4- 1/4” Jam Nuts
• The bolts in your Left Fabric Layer Rail Mount
End need to go through the holes above and
below the “L” on your Left Pivot End, with the
“L’s” on top of easch other, as pictured right.
• On the end of each bolt you will place a at
washer followed by a jam nut, which needs to be
tight.
• TIGHTEN JAM NUTS COMPLETELY ONTO EACH
BOLT
• Make sure the top of the bolt is ush against the wood, this
will require the use of a wrench.
• Follow the same process to complete the assembly right side.
• Place a carriage bolt through each of the holes above and
below the “L” on your Left Fabric Layer Rail Mount End.
Left 3 Rail Side
1/4" Flat Washer
1/4" Nylock Nut
1/4" Plastic Knob
1-1/4" Fender
Washer
Right 3 Rail Side
1/4" Flat Washer
1/4" Nylock Nut
1-1/4" Fender
Washer
1/4" Plastic Knob
3/16" Flat Washer
1/4" Jam Nut
1/4" X 2-1/4"
Carriage Bolt
1/4" X 2-1/4"
Carriage Bolt
3/16" Flat Washer
1/4" Jam Nut
20
