Graco 207-279 User manual

Instructions – Parts List
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Copyright 2002, Graco Inc. is registered to I.S. EN ISO 9001
FOR 55 GALLON (200 LITER) RAM
237999 Air Control Conversion Kit
Converts Model 207279 Ram to the
113896 Air Control Assembly.
150 psi (100 kPa, 10 bar) Maximum Air Inlet Pressure
308579F
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Table of Contents
Installation 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Warranty 8. . . . . . . . . . . . . . . . . . . . . . . . . .
Toll-Free Graco Phone Number 8. . . . . . . . . . . .

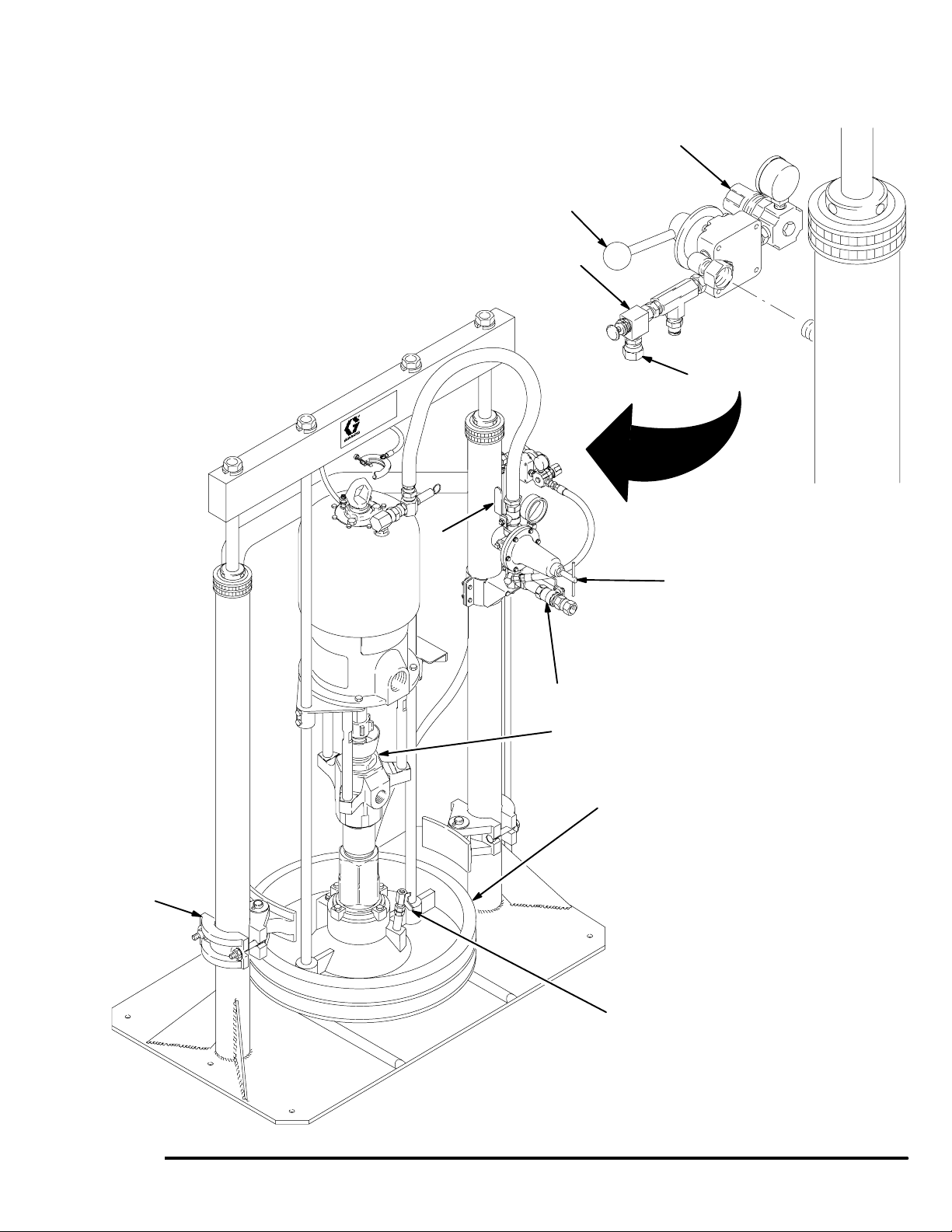

Model 207279 Ram Shown
with Check-Matet800 Pump
04408A

2 308579
Installation
NOTE: Reference numbers and letters in parentheses
in the text refer to the callouts in the Figures and the
parts drawing on page 7. Read this entire manual be-
fore assembling the kit.
Disassembling the Air Controls from the
Ram
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure in your separate pump
and ram manuals.
1. Relieve the pressure.
2. Disconnect the air assist hose (A) from the swivel
(B). Leave the other end of this hose attached to
the ram plate (C). See Fig. 1.
3. Disconnect the air tube (D) and coupling (E) from
the port (F) at the base of the ram. Unscrew the
other end of the tube from the air director valve
(G). Discard the tube and coupling.
4. Disassemble the air director valve (G), air regula-
tor (H), and connecting parts from the ram (J). Dis-
card these parts.
Installing the 237999 Conversion Kit
1. Install the air control valve assembly (7) onto the
air inlet (K) of the ram. See Fig. 2.
2. Remove the plug (W) from the air regulator (18);
install the gauge (19) in its place, and reinstall the
plug in the opposite port. Screw the air regulator
onto the check valve (29) of the air director valve
(9), making sure that the arrow on the regulator
points toward the director valve.
3. Screw the union adapter (32) into the 3-way con-
trol valve (14). Connect the free end of the air as-
sist hose (A) to the union adapter (32).
4. Screw the tube connector (2) into the port (F) at
the base of the ram. Connect the tube (1) between
the tube connector and the tube fitting (13) of the
air control assembly.
CONTINUED ON PAGE 3.
05541
Fig. 1
A
B
C
D
E
F
G
H
J
D (Ref)

308579 3
Installation
5. Screw the straight swivel adapter (5) into the air
regulator (18). Connect the 18 in. (457 mm) air
hose (6) to the swivel adapter. Leave one end free;
it will be attached later.
6. Install the brackets (20, 21) onto the right post (L)
of the ram using the four screws (22) and nuts
(23). Tighten the nuts just enough to hold the
brackets in position.
7. Attach an air regulator kit (M) to the bracket (20)
with the star washer (27), washer, and nut (N).
8. Connect the nipple (24) to the air manifold (P)
swivel inlet. Screw the red-handled air bleed valve
(25) onto the nipple, then screw the rigid end of the
adapter (26) onto the valve.
9. Screw the 90_swivel adapter (4) into the optional
port of the air manifold (P). Connect the free end
of the air hose (6) to the swivel adapter (4). Adjust
the position of the brackets (20, 21) as necessary,
then tighten the nuts (23) securely.
10. Install the union adapter (30) in the air inlet (R) of
the pump. Install the relief valve (31) in the port of
the adapter.
11. Remove the air hose supplied with the air regula-
tion kit and discard it. Replace it with the 54 in.
(1372 mm) hose (3). Connect the free end of the
hose to the adapter (30).
12. Return the ram to service. The new air control op-
erates differently from the old. Refer to Operation
on page 4.
Fig. 2
K
A
F
L
M
N
P
R
7
19
18
29
9
32
2
1
1
13
56
20
21
22
23
24 25 26
46
3
3
A
B
C
A
B
C
27
1The arrow on the regulator (18)
must point toward the director valve (9).
1
2The plug (W) is part of the regulator (18);
relocate as shown.
W230
31
05540A

4 308579
Operation
Pressure Relief Procedure
WARNING
SKIN INJECTION HAZARD
The system pressure must be manually
relieved to prevent the system from
starting or spraying accidentally. Fluid
under high pressure can be injected through the
skin and cause serious injury. To reduce the risk of
an injury from injection, splashing fluid, or moving
parts, follow the Pressure Relief Procedure
whenever you:
Dare instructed to relieve the pressure,
Dstop spraying/dispensing,
Dcheck or service any of the system equipment,
Dor install or clean the spray tip/nozzle.
1. Lock the gun/valve trigger safety.
2. Close the pump air bleed valve (S, required in your
system). Refer to Fig. 3.
3. Shut off the red-handled main air bleed valve (25,
required in your system). Set the ram director
valve (9) to DOWN. The ram will slowly drop.
4. Unlock the gun/valve trigger safety.
5. Hold a metal part of the gun/valve firmly to the side
of a grounded metal pail, and trigger the gun/valve
to relieve pressure.
6. Lock the gun/valve trigger safety.
7. Open the drain valve (required in your system)
and/or the pump bleeder valve (T), having a con-
tainer ready to catch the drainage.
8. Leave the drain valve open until you are ready to
spray again.
If you suspect that the spray tip/nozzle or hose is com-
pletely clogged, or that pressure has not been fully re-
lieved after following the steps above, very slowly
loosen the tip guard retaining nut or hose end coupling
and relieve pressure gradually, then loosen completely.
Now clear the tip/nozzle or hose.
Starting and Adjusting the Ram
1. Refer to Fig. 3. Close all air regulators and air
valves.
2. Open the red-handled main air bleed valve (25)
and set the ram air regulator (18) to 40 psi (280
kPa, 2.8 bar). Pull up on the director valve (9) han-
dle so the arrow points to UP, and let the ram rise
to its full height.
3. Set a full drum of fluid on the ram base, slide it
back against the tube stop, and center it under the
ram plate (C). Use the drum clamps (U) to center,
hold, and properly align the drum with the ram.
Then remove the drum cover and smooth the sur-
face of the fluid with a straightedge.
WARNING
MOVING PARTS HAZARD
Moving parts can pinch or amputate your
fingers. When the pump is operating and
when raising or lowering the ram, keep
your fingers and hands away from the pump intake,
ram plate, and lip of the drum.
NOTE: Do not use drums that have side bungs or
large dents with this ram. Rough bung openings or
large dents will damage the wipers or stop the ram
plate, resulting in a runaway pump.
4. Push down on the director valve (9) handle so the
arrow points to DOWN, and lower the ram until the
ram plate is just ready to enter the drum, then set
the valve to neutral. Reposition the drum as neces-
sary so the wipers will not hit the drum lip, then
open the vent valve (V) on the ram plate.
5. Set the director valve (9) to DOWN and continue
to lower the ram until fluid appears at the vent
valve (V). Set the director valve to neutral and
close the vent valve.

308579 5
Operation
04408A
05560
25
C
U
Fig. 3
18
9
14
V
M
S
T (out of view)
Model 207279 Ram Shown
with Check-Matet800 Pump
32

6 308579
Operation
Starting and Adjusting the Pump
1. Be sure the pump air regulator (M) is closed. Then
set the ram air regulator (18) to about 50 psi (350
kPa, 3.5 bar). Set the director valve (9) to DOWN.
See Fig. 3.
2. Start the pump as explained in the separate pump
instruction manual.
3. Keep the director valve (9) set to DOWN while the
pump is operating.
NOTE: Increase air pressure to the ram if the pump
does not prime properly with heavier fluids. If fluid is
forced out around the top wiper, ram pressure is too
high and the air pressure should be decreased.
Changing Drums
WARNING
MOVING PARTS HAZARD
Moving parts can pinch or amputate your
fingers. When the pump is operating and
when raising or lowering the ram, keep
your fingers and hands away from the pump intake,
wiper plate, and lip of the fluid container.
To reduce risk of injury or damage to equipment,
take care when adjusting air release valve pres-
sure. Too much pressure can cause the ram plate
to rise very quickly or burst the drum. Too little
pressure can cause the ram to lift the entire drum
from the ground.
When the drum is empty, follow this procedure to load
a new pail of material.
1. Stop the pump (A) by closing the pump air bleed
valve (G).
2. Before raising the ram plate, locate the pushbutton
on the air release valve (14).
3. Raise the ram plate out of the drum.
a. Set the ram air regulator (T) to 0.07 to 0.10
MPa (0.7–1.0 bar) (10–15 psi).
b. Set the director valve (U) to UP to raise the
ram plate. At the same time, carefully equalize
pressure in the drum by operating the air
release valve (14) open and closed.
4. Raise the ram plate until it is completely out of the
drum.
5. Remove the empty drum.
6. Inspect the ram plate and, if necessary, remove
any remaining material or material build-up.
7. Place the full drum on the ram base.
8. Lower the ram and adjust the position of the drum
relative to the ram plate (C), as explained under
“Starting and Adjusting the Ram” on page 4.
Shutdown and Care of the Pump
1. Set the director valve (9) to neutral.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 4.
2. Relieve the pressure.
3. Follow the pump shutdown instructions in your
separate pump manual.

308579 7
Parts
B
1 (Ref)
2
3
3 (Ref)
4
5
6 (Ref)
9
12
13
14
16 29
8
1918
20
21
22
23
24
25
26
11
10
32
17
A
B
C
1
3Not part of the kit.
Ref. No. 7 Air Control Valve Assembly
includes items 8–17, 28, 29.
6
27
1The arrow on the regulator (18)
must point toward the director valve (9).
2The plug is part of the regulator (18);
relocate as shown.
3
3
3
3
3
3
2
1
A
28
C30
31
05540A
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 Purchase TUBE, nylon; 1/4 in. (6.4 mm) OD,
Locally 250 psi (1.7 MPa, 17 bar) Maximum
Working Pressure 3.6 ft (1.1 m)
2 113208 CONNECTOR, tube; 1/4 in. OD tube x
1/8 npt(m) 1
3 C12034 HOSE, air; buna-N; 3/4 in. (19 mm) ID;
3/4 npt (mbe); 54 in. (1372 mm) long 1
4 155541 ADAPTER, swivel, 90_;
1/4 npt(m) x 1/4 npsm(f) swivel 1
5 156823 ADAPTER, swivel, straight;
1/4 npt(m) x 1/4 npsm(f) swivel 1
6 109123 HOSE, air; buna-N; 1/4 in. (6 mm) ID;
1/4 npt (mbe); 18 in. (457 mm) 1
7 113896 AIR CONTROL VALVE ASSY
Includes items 8–17, 28, 29 1
8 113029 . NIPPLE; 1/4 npt 1
9 113030 . VALVE, air director 1
10 113031 . ELBOW; 1/4 npt (m x f) 1
11 113032 . ADAPTER; 1/4 npt(m) x 1/2 npt(f) 1
12 113914 . TEE, pipe; 1/4 npt 1
13 113034 . FITTING, tube; 1/4 in. OD tube x
1/4 npt(m) 1
14 113913 . VALVE, 3–way control 1
16 113037 . MUFFLER; 1/4 npt(m) 1
17 290073 . LABEL, orientation 1
18 110318 AIR REGULATOR
See Manual 308167 for parts 1
19 110319 GAUGE, air pressure 1
20 237962 BRACKET 1
21 190747 BRACKET 1
22 100021 CAPSCREW; 1/4–20 unc–2a;
1 in. (25 mm) long 4
23 102040 NUT, hex, locking; 1/4–20 unc–3b 4
24 157129 NIPPLE; 3/4 npt; 3.25 in. (82 mm) long 1
25 113218 AIR VALVE, bleed-type, red-handled;
3/4 npt(m x f) 1
26 156172 ADAPTER, swivel, straight;
3/4 npt(f) x 3/4 npsm(f) 1
27 100322 WASHER, star 1
28 113912 ADAPTER, 1/4 x 1/8 npt 1
29 114378 CHECK VALVE 1
30 192171 ADAPTER, union, swivel, 90_1
31 103347 VALVE, safety; 1/4 npt(m);
6.9 bar, 0.69 MPa (100 psi) 1
32 113915 ADAPTER, union 1

8 308579
Graco Standard Warranty
Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the
date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub-
stitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnais-
sent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Phone Number
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor closest to you:
1–800–367–4023 Toll Free.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
This manual contains English. MM 308579
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
http://www.graco.com
308579 September 1995, Revised August 2006
