Graco Pulse Pro User manual

Manual 3A8209B
EN
Instructions
Pulse® Pro
Extender
Improves Pulse® Pro device network coverage and capacity to support RF communication
in a Pulse Pro system. For professional use only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Extender
Related Manuals
Model Description Approval
20A058 Pulse Pro Extender
North America
cETLus,
FCC, IC
20B058 Pulse Pro Extender
North America
cETLus,
FCC, IC
20A059 Pulse Pro Extender
International CE
20A152 Pulse Pro Extender ANZ RCM
20A151 Pulse Pro Extender UK UKCA
Important Safety Instructions
Read all warnings and instructions in this
manual and in all related Pulse manuals
before using the equipment. Save all
instructions.
Manual in
English Description
3A5414 Pulse® Hub

Component Identification
2 Manual 3A8209B
Component Identification
Key:
A Red LED
B Blue LED
C Button
Extender Status
Flashing: briefly lit every second.
Blinking: lit every other second.
FIG. 1
A
B
C
Blue Light Red Light Status
OFF ON Powering On/Configuring
ON OFF Connected
ON ON Powered On/Not Connected
Flashing ANY Checking connection status
Blinking ANY Attempting to register to the device network

Installation
Manual 3A8209B 3
Installation
The Pulse Pro Extender is installed/plugged directly
into a standard outlet that does not exceed 240 VAC.
Definition of terms used in device registration:
• Flashing: briefly lit every second.
• Blinking: lit every other second.
Registering Pulse Pro Extender
1. Open the Pulse Pro Fluid Management software
and turn on Discovery mode.
2. Connect power to the Extender.
a. The red light turns on.
b. Wait until the red light and blue light turn on,
about 30 seconds.
3. Press and hold the button on the Extender for five
(5) seconds, then release.
4. The blue light begins flashing. When registration of
the Extender starts, the blue light begins blinking.
Once registration is complete, the blue light
remains lit.
5. Review the Pulse software to confirm discovery of
the Extender. If it does not confirm, see
Troubleshooting, page 5.
6. Exit Discovery mode on the Pulse Pro Fluid
Management software.
NOTE: It may take up to three (3) minutes for the Pulse
Pro Extender to receive a message from the HUB that
clears the red light.

Recycling and Disposal
4 Manual 3A8209B
Recycling and Disposal
End of Product Life
At the end of the product’s useful life, dismantle and
recycle it in a responsible manner.
• Do not dispose of batteries or electronic
components with household or commercial waste.
• Deliver remaining product to a recycling facility.

Troubleshooting
Manual 3A8209B 5
Troubleshooting

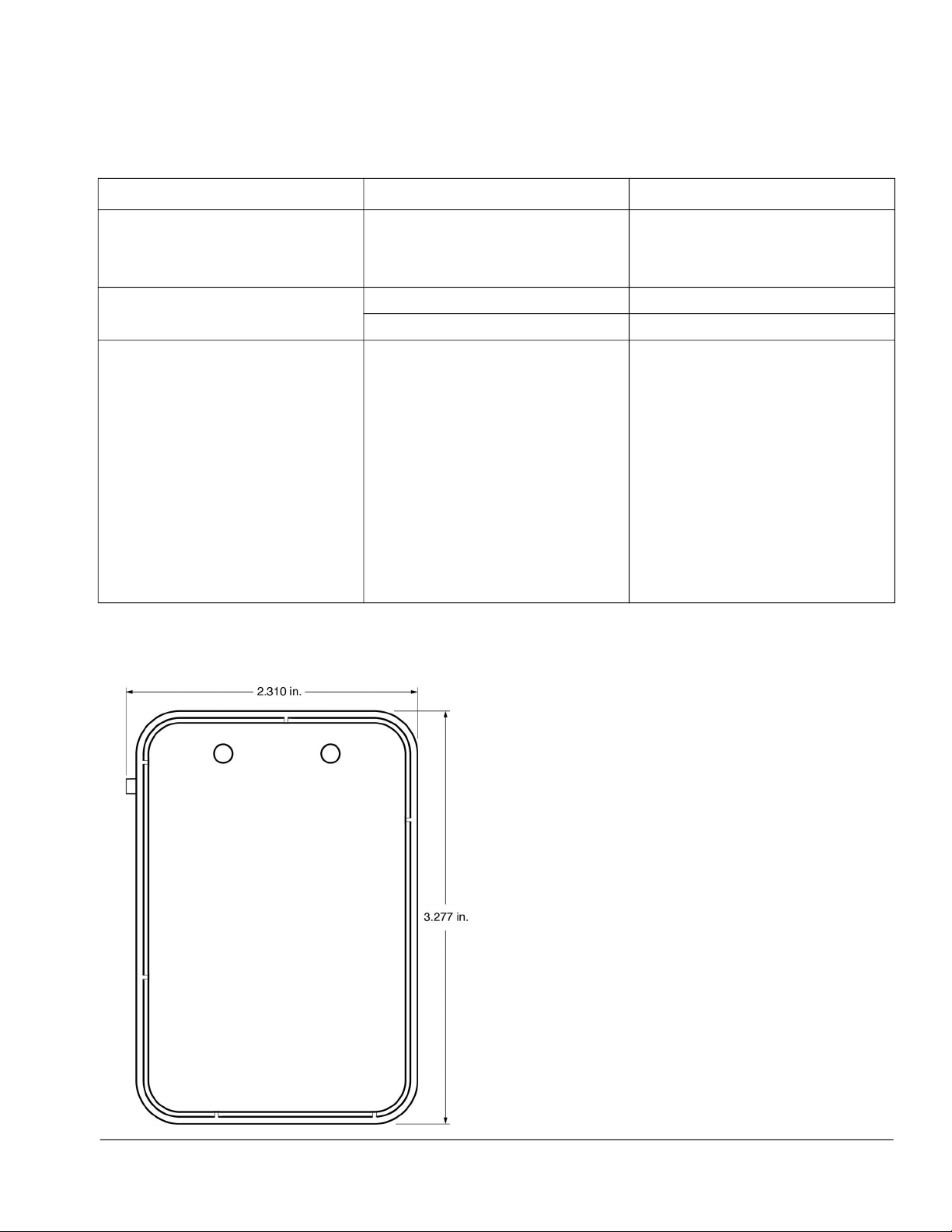

Dimensional Drawing
Problem Cause Solution
Unable to move between Pulse Device
Networks (i.e. HUB to the Remote
Extender), Registration fails (solid blue
light, no red light).
The original connected Device network
is in range.
Press and hold the button for 20
seconds to temporarily disconnect the
Extender from any device networks.
Then retry Discovery process.
No lights Device is not powered. Check the outlet power.
Device is damaged. Replace the Extender.
Device failed to discover Extender (solid
blue light, solid red light).
The device is not connected to a
network.
Move the device closer to connected
HUB or Remote Extender.
Follow the steps in Registering Pulse
Pro Extender, page 3. to discover the
device with a HUB or Remote Extender.
Confirm that the HUB is running and
that the Remote Extender is connected
(if applicable).
Wait for the Extender to reconnect to
the device network (3 to 10 minutes),
because the HUB or Remote Extender
may have recently been rebooted.
Reboot the HUB or Remote Extender.

Technical Specifications
6 Manual 3A8209B
Technical Specifications
Extender
US Metric
Power Supply 100 - 240 VAC
Current 1 A
Operating Temperature Range 32°F to 140°F 0°C to 60°C
Storage Temperature Range -40°F to 176°F -40°C to 80°C
RF Frequency Band 2400 - 2483.5 MHz
Maximum RF Transmit Power
Model 20A058- NA +19.9 dB
Model 20B058, 20A059, 20A152,
20A151- INT
+8.0 dB
Maximum Operating Altitude 6560 ft above sea level 2000 m above sea level
Operating Humidity Range 0 - 80% (non-condensing)
Pollution Degree Intended Environment: Pollution Degree 2
Weight 0.5 lb 0.25 kg
Ingress Protection IPX0

Compliance
Manual 3A8209B 7
Compliance
Contains Model XBEE3 Radio, IC: 1846A-XBEE3
This Extender contains FCC ID MCQ-XBEE3. This
device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
• This device may not case harmful interference.
• This device must accept any interference received,
including interference that may cause undesired
operation.
California Proposition 65
CALIFORNIA RESIDENTS
WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov.
