Graco Series A Operation manual

308–609
Rev. A
INSTRUCTIONS-PARTS LIST
INSTRUCTIONS
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
HEAVY-DUTY STAINLESS STEEL
Drum Agitator
100 psi (7 bar) Maximum Air Input Pressure
Model 238–157, Series A
Back-Geared, Air-Powered Agitator
Model 238–250, Series A
Siphon T ube Kit
Model 231–414, Series A
Siphon Agitator Package
Model 231–413, Series A
Non-Siphon Agitator Package
Table Of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Drawings 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Lists 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensional Drawings 11. . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Phone Number 12. . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1995, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
Model 231–414 shown
05771


Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious injury
or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to or
destruction of equipment if you do not follow the
instructions.
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury .
D
This equipment is for professional use only .
D
Read all instruction manuals, tags, and labels before operating the equipment.
D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor .
D
Do not alter or modify this equipment.
D Check equipment daily . Repair or replace worn or damaged parts immediately .
D Do not exceed the maximum working pressure of the lowest rated component in your system. This
equipment has a
100 psi (7 bar) maximum working pressure.
D Use fluids and solvents that are compatible with the equipment wetted parts. Refer to the
T echnical Data section of all equipment manuals. Read the fluid and solvent manufacturer ’s
warnings.
D
Always wear protective eyewear , gloves, clothing, and respirator as recommended by the fluid and
solvent manufacturer .
D
Comply with all applicable local, state, and national fire, electrical, and safety regulations.


WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames, or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury
.
D
Ground all equipment. Refer to Grounding on page 6.
D If there is any static sparking or you feel an electric shock while using this equipment, shut off the
agitator immediately . Do not use the equipment until you identify and correct the problem.
D Do not use 1,1,1–trichloroethane, methylene chloride, other halogenated hydrocarbon solvents, or
fluids containing such solvents in aluminum pumps. Such use could result in a serious chemical
reaction, with the possibility of explosion.
D Do not use kerosene or other flammable solvents or combustible gases to flush the unit.
D Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being dispensed.
D Keep the dispensing area free of debris, including solvent, rags, and gasoline.
D Do not smoke in the dispensing area.
MOVING P ARTS HAZARD
Moving parts, such as the rotating blades of the agitator , can pinch or amputate your fingers or other
body parts and can cause splashing in the eyes or on the skin.
D Keep clear of all moving parts when starting or operating the agitator .
D
Always shut of f the agitator and disconnect the air line before you remove the agitator from the
drum or check or repair any part of the agitator .
HAZARDOUS V APORS
Hazardous fluids or toxic fumes can cause serious injury or death if splashed in the eyes or on the
skin, swallowed, or inhaled. When flushing the air motor , keep your face away from the exhaust port.

4308-609
Parts Drawings
Â
Â
05735
03432
DETAIL A
23 (See DET AIL A)
REF 23
1
2*
2*
3
4
4
5
7*
8
9*
10
11
19
12*
13
14*
15*
26
18
16
17
18
6
20
21
22
23a
23b
23c
23d
23e
24
28
31
32
Heavy-Duty Stainless Steel Agitator,
Model 238–157
27
53
50
52
51
54
Â
05736
Siphon Kit, Model 238–250

5308-609
Parts Lists
Heavy-Duty Stainless Steel Agitator, Model 238–157
Ref
No. Part No. Description Qty.
1{101–140
AIR MOT OR 1
2* 191–004
BEARING, needle; 3/4” 2
3 190–988
GEAR, pinion #2 1
4 100–069
BALL, thrust 2
5 191–003
PLUG, top 1
6 190–977 SHAFT
, agitator 1
7* 113–363
SEAL, bearing 1
8 190–983
HOUSING, upper 1
9* 190–980
BEARING, needle; 45mm 1
10 190–989
GEAR #2 1
11 113–357 SCREW
, cap, socket head 2
12* 190–978
BEARING, needle; 50mm 1
13 190–984
HOUSING, lower 1
14* 113–359
SEAL, bearing 1
15* 190–979
BEARING, needle, thrust; 50mm 1
16 190–987
GEAR #1 1
17 190–986
GEAR, pinion #1 1
18 108–161
SET SCREW , cup pt; SST 3
19 113–356 SCREW
, cap, socket head 2
20 191–002
PLUG, bottom 1
21 105–489
PIN, dowel 2
22 112–173
MUFFLER 1
Ref
No. Part No. Description Qty.
23 202–233 VAL
VE, needle
Includes items 23a to 23e 1
23a 159–448
.HOUSING, needle valve 1
23b 159–589 .P
ACKING, o-ring 2
23c 159–449 .VAL
VE, needle 1
23d 101–326 .SCREW
, set 1
23e 156–930
.BARREL, needle valve 1
24 169–969
FITTING, air line, male 1
25 113–358 SCREW
, hex head
(not shown) 3
26 190–976 NUT
; 50 mm 1
27 104–029
LUG, grounding 1
28 190–985
BLADE, agitator 4
30Y
290–152 LABEL, warning 1
31 113–413 SCREW
, cap 8
32 113–414 NUT
, lock 8
{
Air Motor Repair Kit, Part No. 207–335, is available.
* Included in Bearing Replacement Kit 238–251
Y Extra warning labels are available for free.
Siphon Kit, Model 238–250
Ref
No. Part No. Description Qty.
50 238–161
TUBE, siphon 1
51 190–998 RET
AINER, siphon tube 1
52 190–999 NUT
, retaining 1
53 191–000
BEARING; plain 1
54 109–176 O-ring; r
1
Drum Cover Assembly, Model 238–283
See manual 308–466.
PTFE


Installation
NOTE: Reference numbers and letters in parentheses
refer to the callouts in the figures and in the Parts
Drawings.
Grounding
Proper grounding is an essential part of maintaining a
safe system.
T o reduce the risk of static sparking, the mounting
cover and all electrically conductive objects or devices
in the dispensing area must be properly grounded.
Check your local electrical code for detailed grounding
instructions for your area and type of equipment.
To ground the agitator, connect one end of the
ground wire (A) to the ground connector (B) on the
agitator . See Fig.1. Connect the other end of the
ground wire to a true earth ground.
For an additional ground wire and clamp, order
Part No. 237–569.
A
Fig. 1
B
Assembling and Positioning the Agitator
With an Elevator
Mount the drum cover as described in manual
306–287. The elevator must be in the down position
when you do any work on the elevator , agitator , or drum
cover assembly . Do not go under the elevator when it
is raised. Proceed to step 1 in W ith or W ithout an
Elevator.
Without an Elevator
If your system does not have an elevator , you should
install the Handles Kit to facilitate handling the drum
cover and agitator . T wo people are needed to safely lift
and move the drum cover and agitator . To order the
Handles Kit, order Part No. 237–524 .
Place two standard 55 U.S. gallon (45 Imperial gallon)
barrels 14 in. (approximately 36 cm) apart, and center
the drum cover on the barrels with the Graco logo
centered and facing you, as shown in Fig. 2. Proceed
to step 1 in
W ith or W ithout an Elevator.

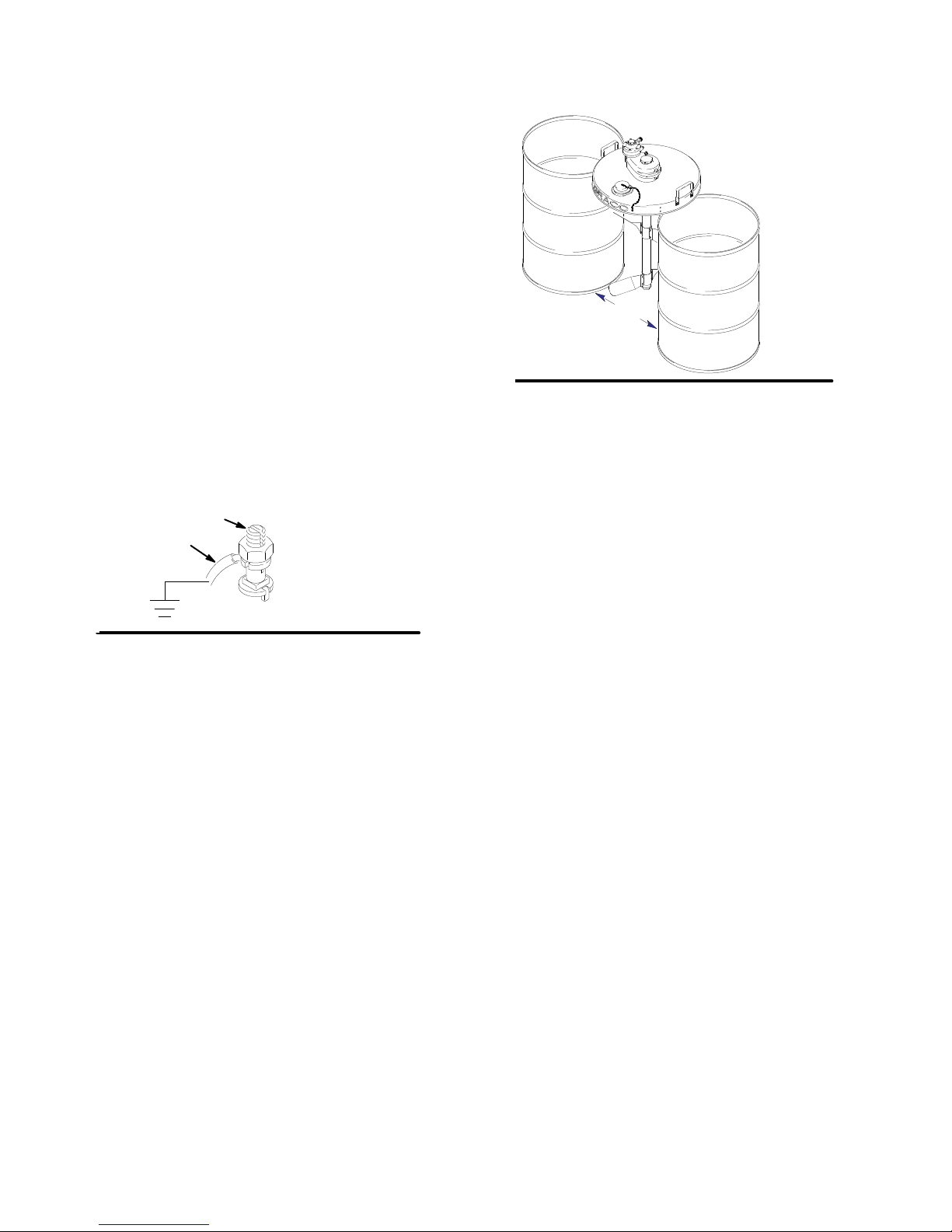

Fig. 2 05734
Assembling and Positioning
Agitator W ithout an Elevator
14 in. (36 cm)
With or W ithout an Elevator
1.
Slide the agitator shaft through the large hole in the
center of the drum cover (29).
2. Rotate the agitator so that the air motor is to the left
of the shaft, as shown in Fig. 2, which will align the
three tapped holes in the bottom of the agitator with
the three through holes in the drum cover .
3.
Thread the three hex head screws (25) up through
the drum cover and into the agitator , and torque
them to 75 in-lb (8.4 N-m).
4. Assemble one pair of agitator blades (28) so that
the four through holes in the blade halves are lined
up (see Parts Drawing for blade orientation).
5. Push four cap screws (31) through the four holes in
the blades, and start the lock nuts (32) onto the cap
screws.
6.
Slide the loose blade assembly up the shaft, and
position it approximately 13 in. (33 cm) from the
bottom of the shaft.
7. T ighten the four lock nuts (32) evenly to draw the
blades together until they are tight on the shaft.
T orque the locknuts to 50 to 55 in-lb (5.6 to 6.2
N-m). A gap will remain between the blade halves.
8. Repeat steps 4 and 5 with the second pair of
agitator blades.
9. Position the second blade assembly near the
bottom end of the shaft, but not on the bottom
plug (20).
10. Rotate the lower blade assembly so that it is
oriented 90 degrees relative to the upper blade
assembly , and torque the lock nuts (32) to 50 to 55
in-lb (5.6 to 6.2 N-m). A gap will remain between
the blade halves.

7308-609
Installation
Installing the Siphon Kit
See the Siphon Kit, Model 238–250, Parts List on
page 5.
1. Remove the top plug (5) and the bottom plug (20).
2. Replace the bottom plug (20) with the plain bearing
(53), and tighten the bearing with a wrench.
3. Work the r o-ring (54) onto the siphon tube
retainer (51), and press it into the o-ring groove.
4. Replace the top plug (5) with the siphon tube
retainer (51). Leave the retaining nut (52) on the
siphon tube retainer , but make sure it is not
tightened. T ighten the siphon tube retainer into the
top of the agitator housing with a wrench.
5. Slide the siphon tube (50) down through the
retaining nut (52), siphon tube retainer (51), and
agitator shaft (6) until the siphon tube touches the
bottom of the drum. Raise the siphon tube
approximately 1/4 in. (approximately 6 mm) so that
it does not touch the bottom of the drum. Hold the
siphon tube at this height with one hand, and
tighten the retaining nut with the other hand
(hand-tight is enough to hold the siphon tube in
place).
Barrel Heights V ary.
Loosen the retaining nut on the siphon tube retainer
before you raise the drum cover . If you do not
loosen the retaining nut, the siphon tube may make
contact with the bottom of the barrel when you
lower the drum cover onto a new barrel, which
could damage the siphon tube or the barrel.
CAUTION
Fig. 3 05736
5
20
53
50
52
51
54
6


Make sure the center tabs on the
retaining nut ferrule point down.
Â
PTFE


Operation
WARNING
MOVING P ARTS HAZARD
T o reduce the risk of serious injury , including cuts, amputation of fingers by the agitator blades, and
splashing in the eyes or on the skin, always shut of f the agitator (disconnect the air line from the
agitator) before you raise, check, or repair the agitator .
Startup
1. Make sure the needle valve (23) is closed.
2. T urn on the air supply , and connect the air line
coupler.
3.
Using the needle valve (23) to adjust the agitator
speed, gradually increase the speed until you can
see through the inspection port movement in the
surface of the liquid, but do not increase the
agitator speed enough to create a vortex in the
surface of the liquid. If the surface begins to
vortex, decrease the agitator speed to prevent air
entrainment.
NOTE:
Always maintain moderate agitator speed,
which is approximately 50 rpm of the agitator blades.
Excessive agitator speed may cause vibration, foaming
of fluid, and increased wear on parts. Always agitate
fluid thoroughly before supplying it to the dispensing
equipment. Continue agitating fluid while the
dispensing equipment is being supplied.
Shutdown
T o stop the agitator , close of f the air supply with the
needle valve (23), or disconnect the air line coupler .
Keep the agitator upright. Do not lay it on its
side or upside down, or liquid may flow down the
shaft and into the gear reducer area.
CAUTION


Service
Flushing the Air Motor
WARNING
FIRE AND EXPLOSION HAZARD
Do not use kerosene or other flammable
solvents to flush the air motor. Flushing
with flammable solvents could cause fire
or explosion and result in serious injury
or property damage.
WARNING
HAZARDOUS V APORS
Hazardous fluids or toxic fumes can
cause serious injury or death if splashed
in the eyes or on the skin, swallowed, or
inhaled. When flushing the air motor , keep your
face away from the exhaust port, and wear the
appropriate protective clothing, gloves, eyewear ,
and respirator .
If the air motor (1) is sluggish or inef ficient, follow this
procedure in a well ventilated area.
1. Disconnect the air line and muf fler (22). See the
Parts Drawing on page 4.
2. Add several teaspoons of non-flammable solvent,
or spray the solvent directly into the male
quick-disconnect coupler (24).
NOTE: The recommended solvent for air motors
and lubricated pumps is Gast r Flushing Solvent
(Part No. AH255 or AH255A) or Penetone
Inhibisolr Safety Solvent.
3. Reconnect the air line, and slowly increase the air
pressure until there is no trace of solvent in the
exhaust air
.
4.
Reconnect the muf fler (22).
5.
Re-lubricate the motor with a squirt of lightweight oil
into the male quick-disconnect coupler (24).
Lubricating the Air Motor
If an air line lubricator is not installed, the agitator air
motor must be manually lubricated after every 8 hours
of use. Lubricate the air motor by placing 2 or 3 drops
of SAE #10 light oil in the motor ’ s air inlet.
Additional Air Motor Service
If the air motor vanes need to be replaced, or if foreign
material is present in the motor chamber
, an
experienced mechanic may remove the end plate
opposite the drive shaft end of the air motor . Do not
pry with a screwdriver ; it will dent the surface of the
plate and body and cause leaks. Use a puller tool,
which will remove the end plate while maintaining the
position of the shaft.
New vanes should have the edges with cut corners
pointing toward the bottom of the vane slot.
T o order an Air Motor Repair Kit, order Part No.
207–335.
Cleaning the Agitator Shaft and Seal
Keep the agitator upright. Do not lay it on its
side or upside down, or liquid may flow down the
shaft and into the gear reducer area.
CAUTION
If any material is on the shaft (6) within 1/2 in. (13 mm)
of the housing (13), it must be removed to prevent
damage to the bearing seal (14*). If the flexible lips on
the bearing seal are torn or worn such that they do not
make contact all the way around the shaft, the seal
must be replaced. A worn seal may allow foreign
material into the bearing and cause premature failure.
See Servicing the Gear Reducer on page 10 for
instructions on getting access to the seal and for the
Bearing Replacement Kit Part No.
Cleaning an Agitator with a Siphon Kit
The procedure for flushing and cleaning the siphon tube
(50) and agitator shaft (6) is as follows:
1. Raise the agitator out of the drum.
2. Remove the plain bearing (53) from the agitator
shaft (6), and clean it.
3. Detach any attachments from the siphon tube, and
flush the siphon tube.
4. Loosen the retaining nut (52), and slowly lift the
siphon tube (50) out of the agitator .
5.
Clean the inside and outside of the siphon tube
(50), flush the inside of the agitator shaft (6), and
clean the agitator blades (28) and the outside of the
shaft.
6.
Reassemble the siphon tube by doing the reverse
of steps 2 through 4.

10 308-609
Service
Servicing the Gear Reducer
You may want to have the Bearing Replacement Kit on
hand before you begin this procedure. To order a
Bearing Replacement Kit, order Part No. 238–251.
Disassembling
The following procedure does not require that you
remove the agitator from the drum of material:
1. If your agitator has a siphon kit, do steps 2 through
4 in Cleaning an Agitator with a Siphon Kit on
page 9. If your agitator does not have a siphon
kit, proceed to step 2 below .
2.
Raise/support the drum cover above the drum high
enough so that you can reach the underside of it.
3. Remove the three hex head screws (25) that hold
the agitator to the drum cover .
4.
Raise the agitator housing 4 to 6 in. (100 to
150 mm) above the drum cover , and support it at
that height with blocks.
5. T ightly grip the agitator shaft with a clamp to
prevent the shaft from falling into the drum.
6. Remove the two short bolts (11) and the two long
bolts (19) that hold the upper housing (8) and the
lower housing (13) together
. Carefully lifting
straight up, lift the upper housing off of the lower
housing.
7. T
urn the large gear (10) counter-clockwise to
remove it from the agitator shaft, and lift the
pinion/gear assembly (3, 16) out of the lower
housing.
NOTE: Before you do step 8, check to be sure the
agitator shaft is well secured. See step 5.
8. T urn the 50 mm nut (26) counter-clockwise to
remove it from the agitator shaft.
9. Carefully lift the lower housing (13) of f of the
agitator shaft.
Cleaning and Servicing
1. Clean any foreign material of f of the outside of the
upper and lower housings (8 and 13).
NOTE: Do not lose the two small thrust balls (4).
One is in the upper housing (8), and one is in the
lower housing (13).
2. Inspect the parts for any wear. If any of the parts
are worn or damaged, replace them. The Bearing
Replacement Kit contains replacement bearings
and seals (items 2, 7, 9, 12, 14, and 15).
Reassembling
NOTE:
See the Parts Drawing on page 4 for proper
bearing and seal placement and orientation.
1. Reposition the lower housing (13) on the agitator
shaft.
T
o prevent damage to the bearings and seals,
avoid scraping them against the threaded agitator
shaft while you are lowering the lower housing in
place.
CAUTION
2. Thread the 50-mm nut (26) onto the agitator shaft
by turning it clockwise, and tighten it hand tight.
3. Reposition the pinion/gear assembly (3, 16) in the
lower housing, thread the large gear (10) onto the
agitator shaft, and tighten the large gear hand tight.
4. Make sure the small thrust balls (4) are in place.
5. Carefully lowering it straight down, reposition the
upper housing (8) on the lower housing (13).
6. Replace the two short bolts (1 1) and the two long
bolts (19) that hold the upper housing (8) and the
lower housing (13) together
, and torque the bolts to
75 in-lb (8.5 N-m).
7. Remove the blocks that you have supporting the
agitator housing, and reposition the agitator on the
drum cover .
8.
Thread the three hex head screws (25) up through
the drum cover and into the agitator , and torque
them to 75 in-lb (8.4 N-m).
9. If your agitator has a siphon kit, re-install it by doing
the reverse of steps 2 through 4 in Cleaning an
Agitator with a Siphon Kit
on page 9.
Additional Agitator Service
If the unit requires more than installation of a bearing
replacement kit or gear replacement, it may be
advisable to send the unit to a Graco distributor for
repair or replacement.

11308-609
Technical Data
Maximum air input pressure 100 psi (7 bar) . . . . . . . . . .
Motor power rating at 1200 rpm (shaft at 50 rpm),
using 12 cfm (0.34 m
3/min)
0.25 hp (186 W) . . . . . . . .
Maximum recommended shaft rpm 100. . . . . . . . . . . . . .
Gear reducer ratio 24:1. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight 33.5 lb (15.2 kg) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Height
From
top of air motor to end of agitator
shaft (no nut) 38 in. (965 mm) . . . . . . . . . . . . . . . . . . .
From top of air motor to end of siphon
tube (no fittings)
43 in. (1092 mm) . . . . . . . . . . . . . . .
Span of agitator blades 20 in. (508 mm) . . . . . . . . . . . . .
Width of agitator blades 3 in. (76 mm). . . . . . . . . . . . . . .
Air inlet Mates with 1/4-in. npt(f) quick-disconnect, . . . .
Part No. 208–536
W etted parts 304 SST , 304/304L SST , . . . . . . . . . . . . . . .
Delrinr A/F , nylon, r
Siphon tube I.D. 3/4 in. (19 mm). . . . . . . . . . . . . . . . . . . .
Maximum flow at 100 cps 12 gpm (45.5 lpm) . . . . . . . . .
Maximum flow at 1000 cps 1.2 gpm (4.5 lpm) . . . . . . . .
Air consumption 3 to 30 scfm (0.08 to 0.85 m
3/min).
. . .
* Sound data
{ Typical operating conditions
Sound power 77.3 dB(A) . . . . . . . . . . . . . . . . . . . .
Sound pressure 63.8 dB(A) . . . . . . . . . . . . . . . . . .
} Maximum noise conditions
Sound power 86.4 dB(A) . . . . . . . . . . . . . . . . . . . .
Sound pressure 72.9 dB(A) . . . . . . . . . . . . . . . . . .
* Sound data was measured per ISO 3744-1981.
{ 50 rpm (shaft) agitating 300 cps water -base material
} 100 rpm (shaft) agitating an empty container
Gast r is a registered trademark of Gast Manufacturing.
Inhibisol r is a registered trademark of Penetone Corp.
Delrin r and

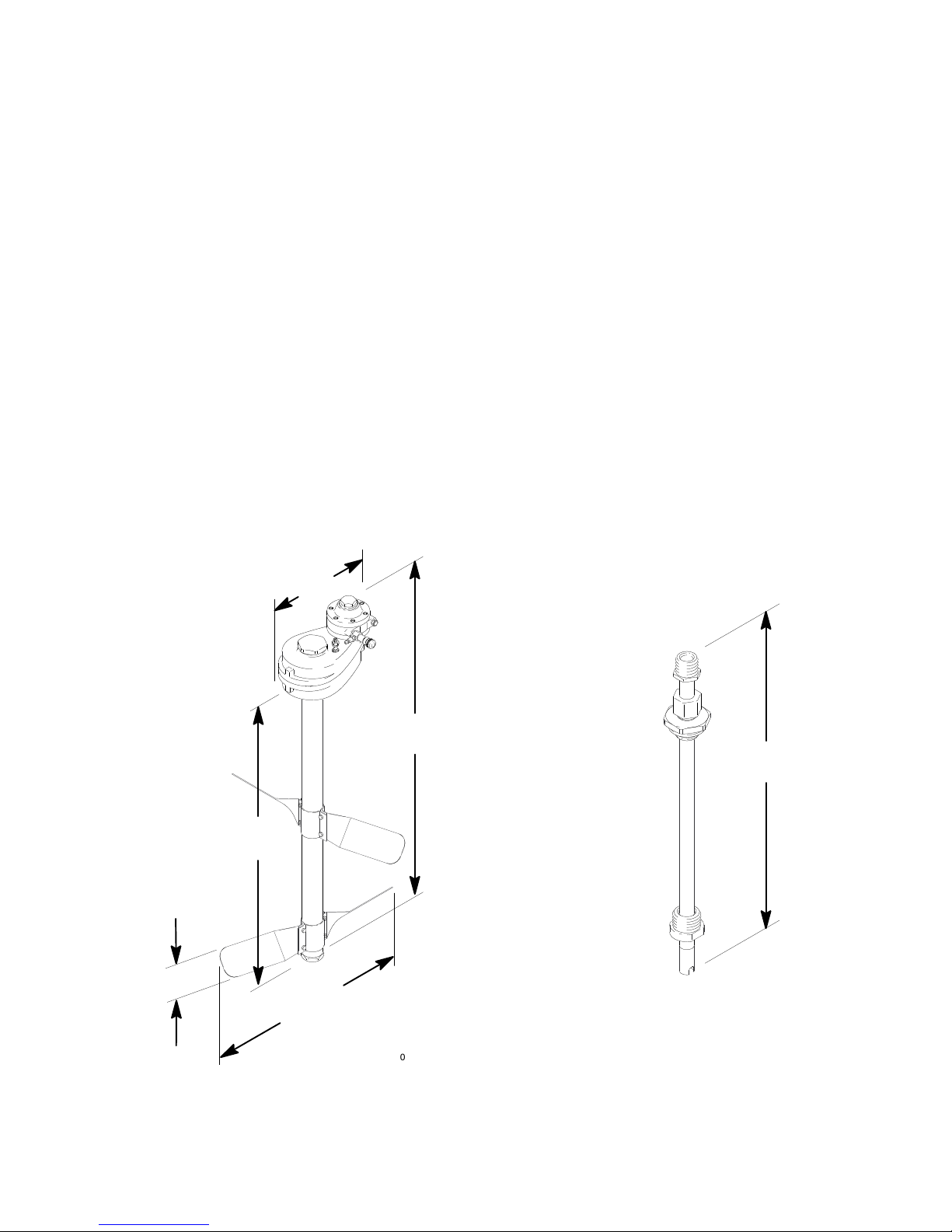

Dimensional Drawings
Heavy-Duty Stainless Steel Agitator,
Model 238–157
Â
05737
38 in.
(965 mm)
10 in. (254 mm)
32 in.
(813 mm)
Siphon Kit, Model 238–250
20 in.
(508 mm)
05773
43 in.
(1092 mm)
3 in.
(76 mm)
PTFE
PTFE

12 308-609
The Graco W arranty and Disclaimers
WARRANTY
Graco warrants all equipment manufactured by it and bearing its name to be free from defects in material and workmanship on
the date of sale by an authorized Graco distributor to the original purchaser for use. As purchaser ’ s sole remedy for breach of
this warranty , Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’ s
written recommendations.
This warranty does not cover , and Graco shall not be liable for , any malfunction, damage or wear caused by faulty installation,
misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility with Graco
equipment of structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor
for verification of the claim. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any
defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts,
labor and transportation.
DISCLAIMERS AND LIMITATIONS
The terms of this warranty constitute purchaser ’ s sole and exclusive remedy and are in lieu of any other warranties (express or
implied), including warranty of merchantability or warranty of fitness for a particular purpose , and of any non-contractual
liabilities, including product liabilities, based on negligence or strict liability . Every form of liability for direct, special or
consequential damages or loss is expressly excluded and denied. In no case shall Graco’ s liability exceed the amount of the
purchase price. Any action for breach of warranty must be brought within two (2) years of the date of sale.
EQUIPMENT NOT COVERED BY GRACO WARRANTY
Graco makes no warranty , and disclaims all implied warranties of merchantability and fitness for a particular purpose , with
respect to accessories, equipment, materials, or components sold but not manufactured by Graco. These items sold, but not
manufactured by Graco (such as electric motor , switches, hose, etc.) are subject to the warranty , if any , of their manufacturer .
Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
Graco Phone Number
TO PLACE AN ORDER , contact your Graco distributor , or call this number to identify the distributor closest to you:
1–800–367–4023 T oll Free
Sales Offices: Atlanta, Chicago, Detroit, Los Angeles
Foreign Offices: Belgium, Canada, England, Korea, Switzerland, France, Germany , Hong Kong, Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
PRINTED IN U.S.A. December 1995
