Graco FLOW METERS S3000 User manual

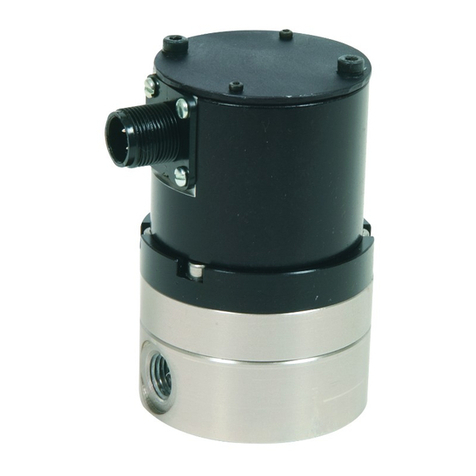

G250/G250 HR, G3000/
G3000 HR and S3000
•Positivedisplacement,spurgear
flowmeter
•Designedfornon-abrasive
andunfilledmaterials
•Highlyaccurate,evenwithlow
flowrates
•Stainlesssteelcompatibletohandle
lowtomediumviscositymaterials
•ETLus,ATEX-andCE-marked
HG6000/HG6000 HR
•Positivedisplacement,helicalgear
flowmeter
•Designedforhigherflowrates
andhigherviscositymaterials
•Highlyaccurate,evenwithlow
flowrates
•Stainlesssteel,water-basecompatible
formediumtohighviscositymaterials
•ATEX-andCE-marked
Coriolis Mass Flow
•Non-intrusivemassflowmeter
•Designedforallabrasive
andfilledmaterials
•Stainlesssteel,waterborneandacid
compatibleforawiderangeofmaterials
•Useslessmaterialtoflush
•Widerangeofflowratesandmaterial
•FM-,CSA-andATEX-marked
•ATEX-andCE-marked
•1/8inand3/8inIDoptions
For Proportioning Equipment
Flow Meters
Coriolis Mass Flow
G3000
G3000 HR
S3000 G250
G250 HR
HG6000

Calltodayforproductinformationortorequestademonstration.
877.84GRACO(1-877-844-7226)orvisitusatwww.graco.com.
Allwrittenandvisualdatacontainedinthisdocumentarebasedonthelatestproductinformationavailableatthetimeofpublication.Gracoreservestherighttomakechangesatanytimewithoutnotice.
G250/G250HR, G3000/G3000HR and S3000 Gear Flow Meters
HG6000/HG6000HR and Coriolis Mass Flow Meters
©2010GracoInc.FormNo.336165Rev.D2/10PrintedintheU.S.A.
Allotherbrandnamesormarksareusedforidentificationpurposesandaretrademarksoftheirrespectiveowners.
* ProMix 2KS Meter Kit Part Number 15V806
** ProMix 2KS Meter Kit Part Number 258151
G250 G250HR G3000 G3000HR S3000
Part number 249426 249427 239716
289813 (90º Sensor)
244292,
289814 (90º Sensor)
258718
Maximum working fluid
pressure
250 psi
(17 bar, 1.7 MPa)
250 psi
(17 bar, 1.7 MPa)
4000 psi
(276 bar, 28 MPa)
4000 psi
(276 bar, 28 MPa)
3000 psi
(207 bar, 20 MPa)
Flow range 75 - 3,800 cc/min 38 - 1,900 cc/min 75 - 3,800 cc/min 38 - 1,900 cc/min 50 - 2,000 cc/min
Viscosity range 20 - 3,000 cps 20 - 3,000 cps 20 - 3,000 cps 20 - 3,000 cps 0.5 - 1,000 cps
Resolution 0.119 cc/pulse 0.061 cc/pulse 0.119 cc/pulse 0.061 cc/pulse 0.021 cc/pulse
Material compatibility Solventborne paints and
resins (low solids), oil and
catalysts
Solventborne paints and
resins (low solids), oil and
catalysts
Solventborne paints and
resins (low solids), oil and
catalysts
Solventborne paints and
resins (low solids), oil and
catalysts
Solvents, solventborne paints
(no filled materials), oil and
catalysts
Wetted parts 303 SST, tungsten carbide
and PTFE
303 SST, tungsten carbide
and PTFE
303 SST, tungsten carbide
and PTFE
303 SST, tungsten carbide
and PTFE
303 SST and PTFE
Recommended uses Most commonly used
flow meter in finishing
applications. Uses include
solventborne polyurethanes
and epoxies
Low flow version of G3000.
Flow rates as low as
50 cc/min
Most commonly used
flow meter in finishing
applications. Uses include
solventborne polyurethanes
and epoxies
Low flow version of G3000.
Flow rates as low as
50 cc/min
Solvent tracking and metering
of low viscosity materials
Instruction manuals 308778 308778 308778 308778 308778
HG6000 HG6000HR Coriolis Mass Flow Coriolis Mass Flow
Part number 280560 246652 15T633* (1/8” ID) 15T634** (3/8” ID)
Maximum working fluid
pressure
6000 psi
(410 bar, 41 MPa)
6000 psi
(410 bar, 41 MPa)
2300 psi
(158 bar, 16 MPa)
2300 psi
(158 bar, 16 MPa)
Flow range 50 - 22,700 cc/min 25 - 7,571cc/min 20 - 4,000 cc/min 20 - 8,000 cc/min
Viscosity range 30 - 1,000,000 cps 30 - 1,000,000 cps 0.1 - 3,000 cps 0.1 - 3,000 cps
Resolution 0.286 cc/pulse 0.143 cc/pulse 0.061 cc/pulse, adjustable 0.061 cc/pulse, adjustable
Material compatibility Solventborne and waterborne paints
and resins, oil and catalysts
Solventborne paints and resins, oil
and catalysts
Solventborne and waterborne
materials, catalyzed varnishes
and oil
Solventborne and waterborne
materials, catalyzed varnishes
and oil
Wetted parts 303 SST, tungsten carbide, and
PTFE
303 SST, tungsten carbide, and
PTFE
303 and 440 SST and PTFE 303 and 440 SST and PTFE
Recommended uses Use with viscosities up to 100,000
cps and when flow rates exceed
4000 cc/min
Low flow version of G3000. Flow
rates as low as 50 cc/min
Use with virtually any material and
flow rate. Non intrusive design.
Common uses include waterborne
and acid-based materials
High flow version of 15D135
Instruction manuals 309834 309834 310696 310696
Technical Specifications and Ordering Information
