Graco 226040 Operation manual

Instructions – Parts List
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
Copyright 1970, Graco Inc. is registered to I.S. EN ISO 9001
2:1 Ratio Standard Pump
360 psi (25 bar) Maximum Fluid Working Pressure
180 psi (12.5 bar) Maximum Air Input Pressure
55 GALLON (200 LITER) DRUM SIZE
Model 226040, Series G
Stainless Steel, PTFE, Packed
Brevet No. 86-07085
5 GALLON (19 LITER) PAIL SIZE
Model 223954, Series B
Stainless Steel, PTFE Packed
Table of Contents
Symbols 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump Service (Model 226040) 10. . . . . . . . . . . . . . . . . .
Pump Service (Model 223954) 11. . . . . . . . . . . . . . . . . .

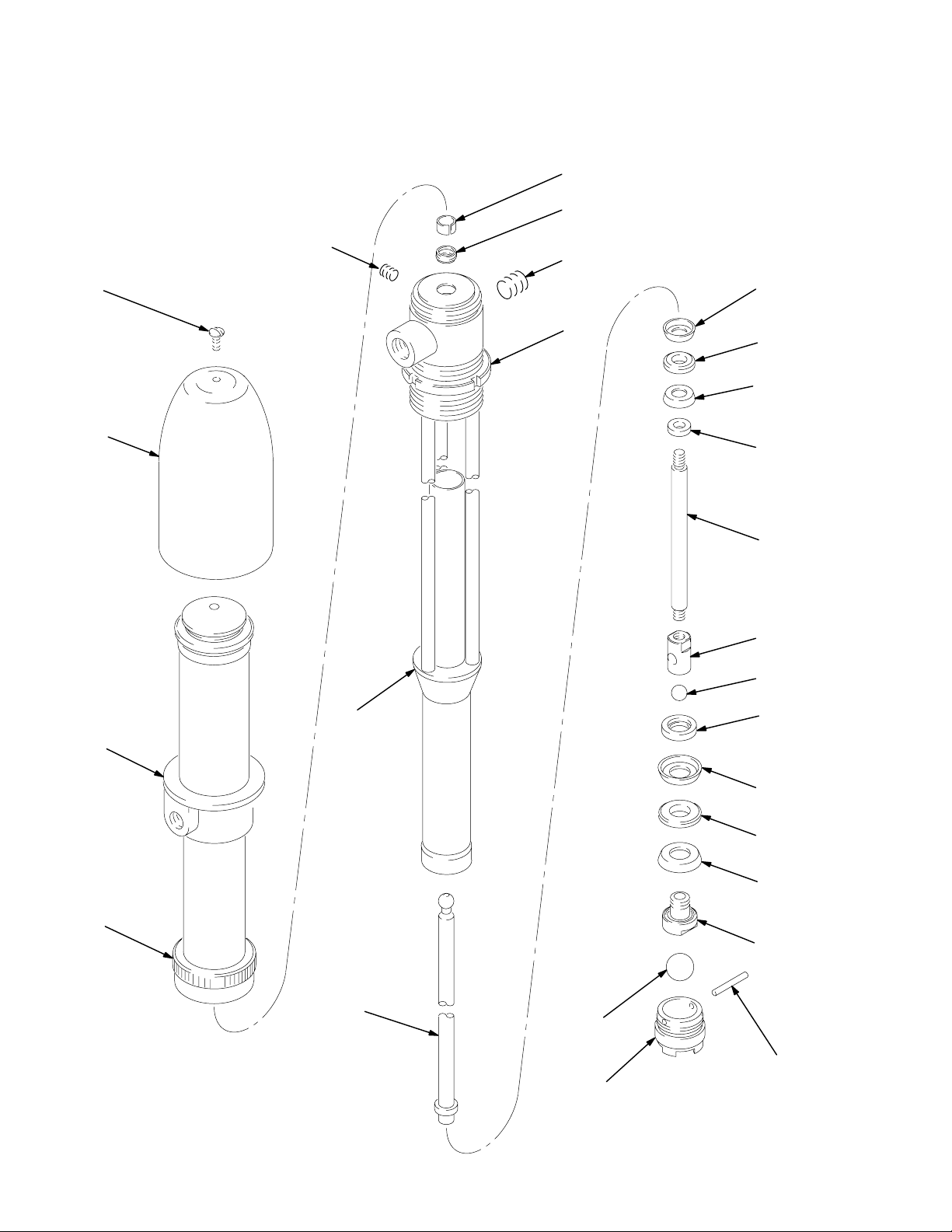

Pump Parts (Model 226040) 12. . . . . . . . . . . . . . . . . . . .
Pump Parts (Model 223954 14. . . . . . . . . . . . . . . . . . . . .

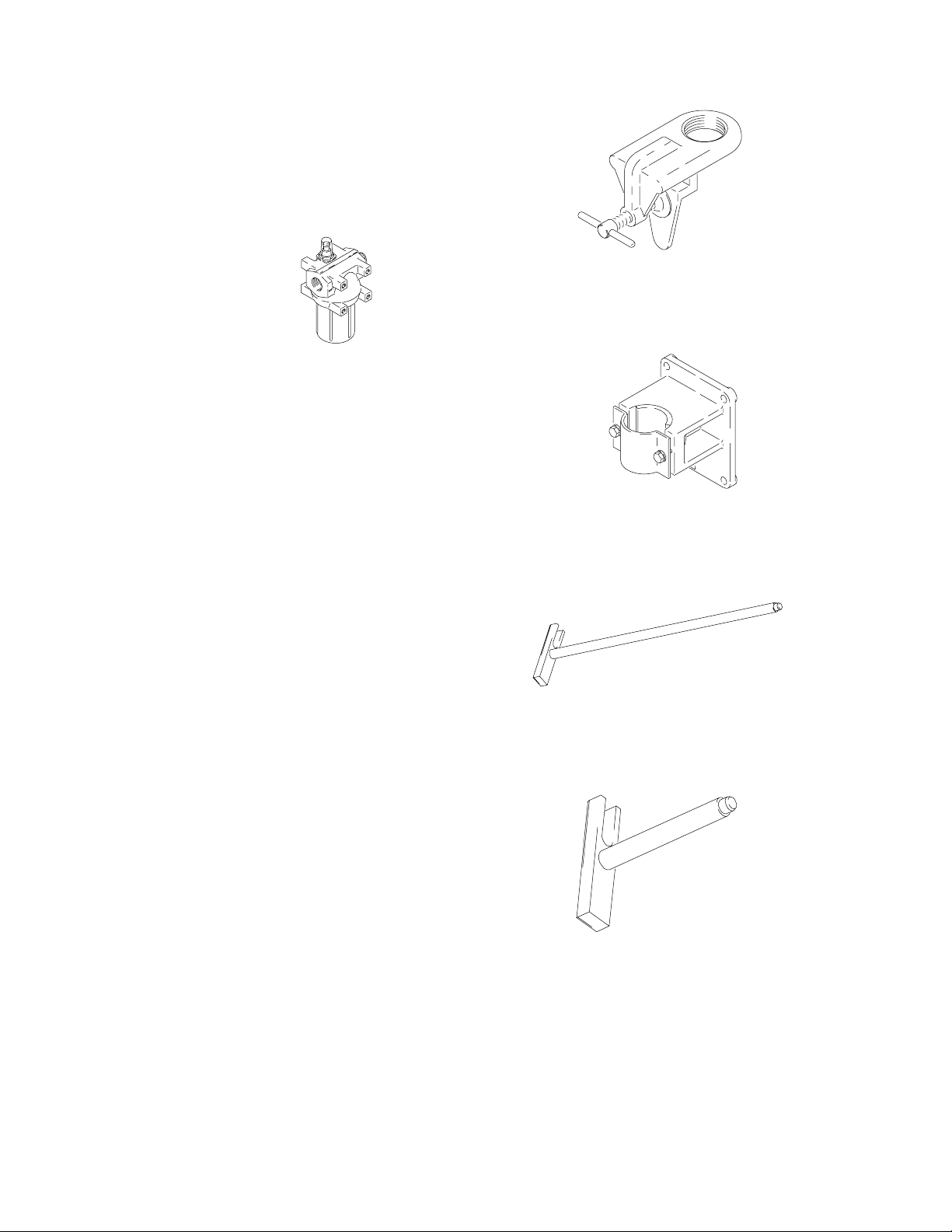

Accessories 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

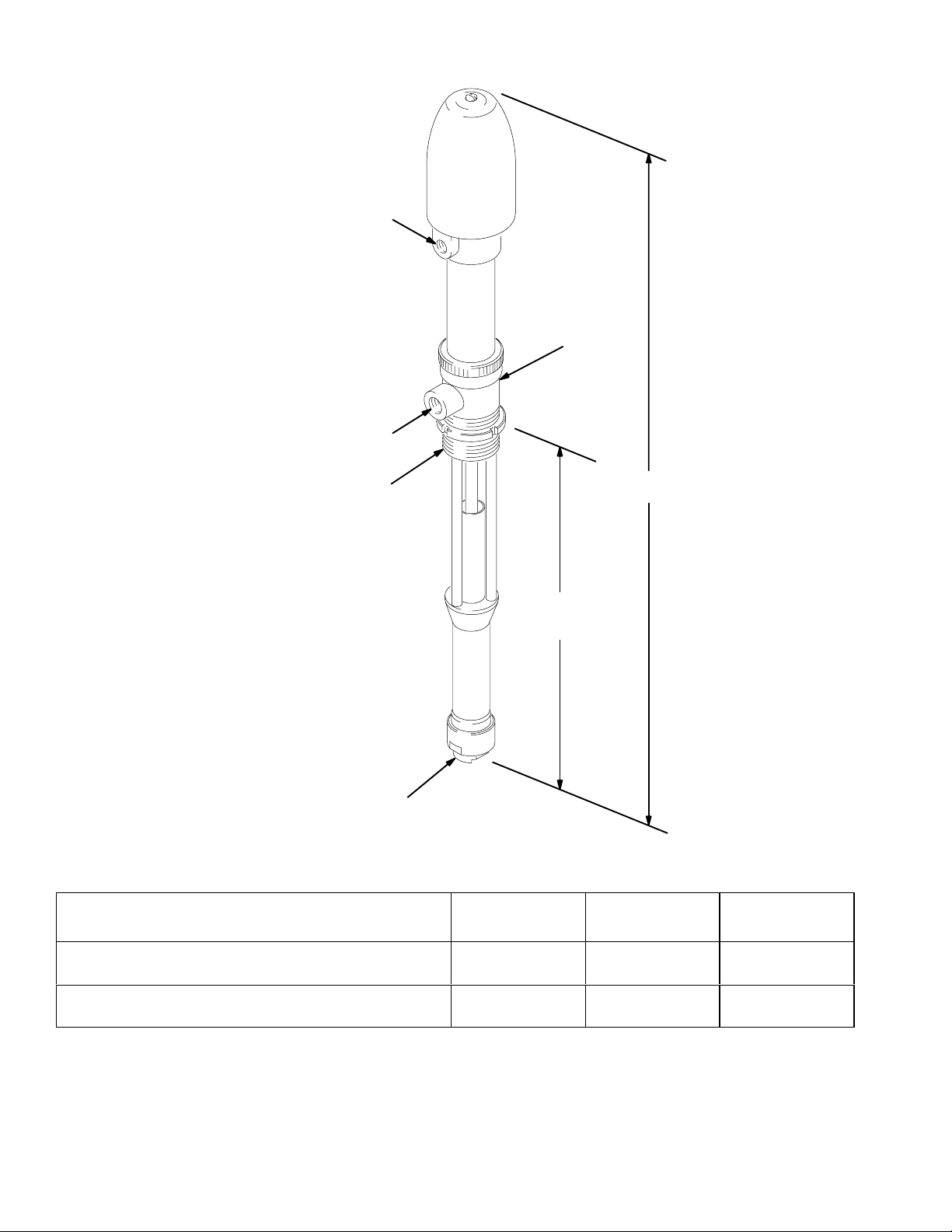

Dimensions 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Information 19. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Standard Warranty 22. . . . . . . . . . . . . . . . . . . . . .
Graco Information 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
307026P
Read warnings and instructions.
Model 223954 Shown
II 1/2 G T6
ITS03ATEX11227
0359
Parts

2 307026
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
DThis equipment is for professional use only.
DRead all instruction manuals, tags, and labels before operating the equipment.
DUse the equipment only for its intended purpose. If you are uncertain about usage, call your Graco
distributor.
DDo not alter or modify this equipment. Use only genuine Graco parts and accessories.
DCheck equipment daily. Repair or replace worn or damaged parts immediately.
DDo not exceed the maximum working pressure stated on the equipment or in the Technical Data
for your equipment. Do not exceed the maximum working pressure of the lowest rated component
in your system.
DUse fluids and solvents which are compatible with the equipment wetted parts. Refer to the Tech-
nical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
DSecurely mount the pump. Do not attempt to operate it while holding it.
DDo not use hoses to pull equipment.
DRoute hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 82_C (180_F) or below –40_C (–40_F).
DWear hearing protection when operating this equipment.
DDo not lift pressurized equipment.
DComply with all applicable local, state, and national fire, electrical, and safety regulations.

307026 3
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and re-
sult in a fire or explosion and serious injury.
DGround the equipment and the object being sprayed. Refer to Grounding the System on page 4.
DIf there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing/dispensing immediately. Do not use the equipment until you identify and correct the problem.
DProvide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid be-
ing sprayed/dispensed.
DKeep the spray/dispense area free of debris, including solvent, rags, and gasoline.
DElectrically disconnect all equipment in the spray/dispense area.
DExtinguish all open flames or pilot lights in the spray/dispense area.
DDo not smoke in the spray/dispense area.
DDo not turn on or off any light switch in the spray/dispense area while operating or if fumes are
present.
DDo not operate a gasoline engine in the spray/dispense area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
DKnow the specific hazards of the fluid you are using.
DStore hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
DAny additives to the air supply, such as oil or anti-freeze will be exhausted into the atmosphere.
DAlways wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and
solvent manufacturer.
MOVING PARTS HAZARD
Moving parts can pinch or amputate your fingers.
DKeep clear of all moving parts when starting or operating the pump.
DBefore servicing the equipment, follow the Pressure Relief Procedure on page 7 to prevent the
equipment from starting unexpectedly.

4 307026
Installation
General Information
1. The Typical Installation shown in Fig. 2 is only a
guide for selecting and installing system compo-
nents. Contact your Graco distributor for assis-
tance in planning a system to suit your needs.
2. Always use Genuine Graco Parts and Accesso-
ries.
3. Reference numbers and letters in parentheses
refer to the callouts in the figures and the parts
lists on pages 12 through 15.
Grounding the System
WARNING
FIRE AND EXPLOSION HAZARD
This pump must be grounded. Before
operating the pump, ground the system
as explained below. Also read the sec-
tion FIRE AND EXPLOSION HAZARD
on page 3.
To reduce the risk of static sparking, ground the pump
and all other equipment used or located in the pumping
area. Check your local electrical code for detailed
grounding instructions for your area and type of equip-
ment. Ground all of this equipment.
1. Pump: connect a ground wire and clamp as shown
in Fig. 1. Loosen the air motor shield retaining
screw (X). Connect one end of a 12 ga (1.5 mm@)
minimum ground wire (Y) to the screw (X) and
tighten the screw securely. See Fig. 1. Connect
the other end of the wire to a true earth ground.
See the ACCESSORIES section to order a ground
wire and clamp.
Fig. 1
Y
X
2. Air compressor: according to manufacturer’s
recommendations.
3. Fluid hoses: use only grounded hoses with a
maximum of 500 ft (150 m) combined hose length
to ensure grounding continuity. Refer to Hose
Grounding Continuity.
4. Dispensing valve: grounding is obtained through
connection to a properly grounded fluid hose and
pump.
5. Object being sprayed: according to local code.
6. Fluid supply container: according to local code.
7. All solvent pails used when flushing, according to
local code. Use only metal pails, which are con-
ductive. Do not place the pail on a non-conductive
surface, such as paper or cardboard, which inter-
rupts the grounding continuity.
8. To maintain grounding continuity when flushing or
relieving pressure, always hold a metal part of the
spray gun/dispensing valve firmly to the side of a
grounded metal pail, then trigger the gun/valve.

307026 5
Installation

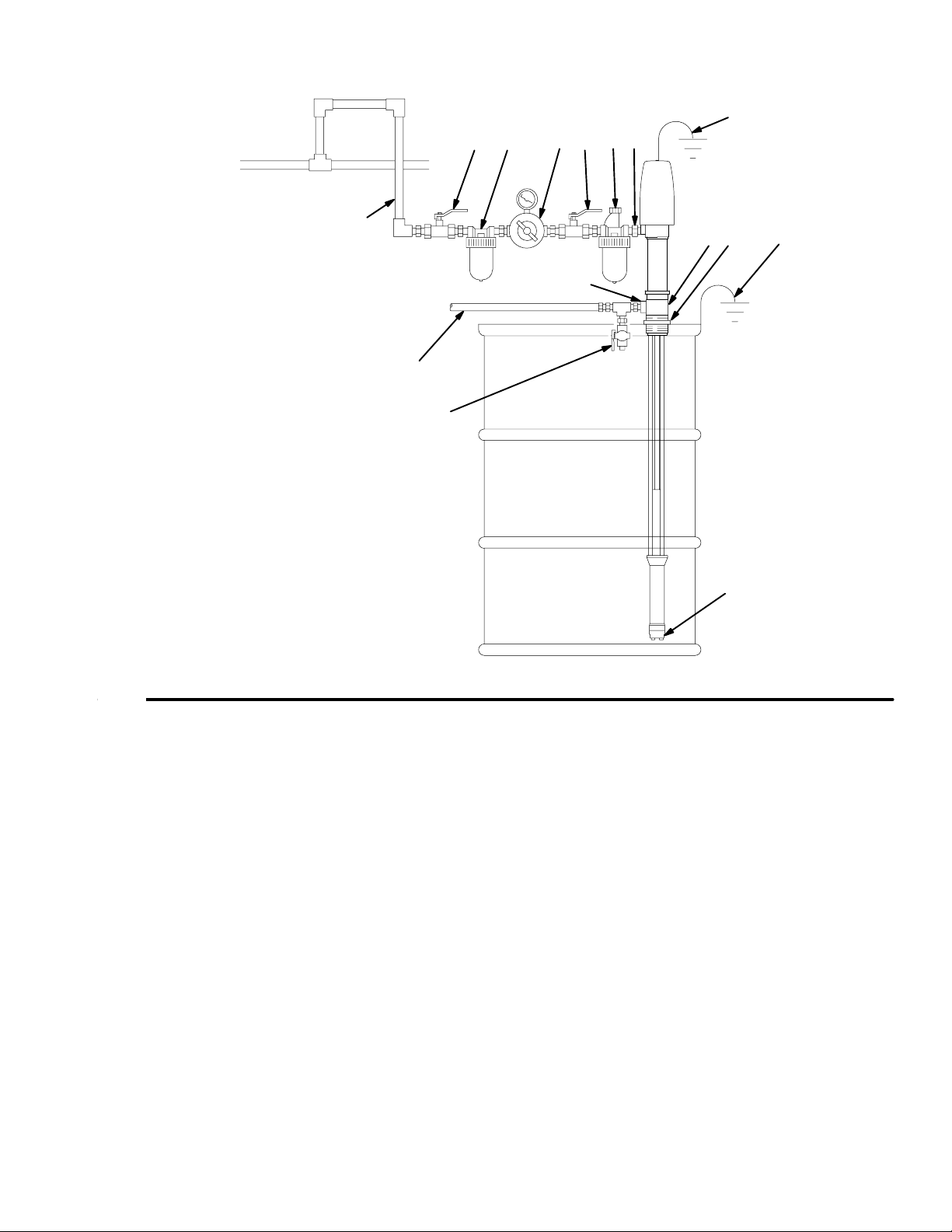

Fig. 2
01349
KEY
A Pump Air Regulator
B Air Line Lubricator
C Air Line Filter
D Bleed-Type Master Air Valve
(required, for pump)
E Fluid Drain Valve (required)
F 3/8 npt(f) Fluid Return Inlet
G Grounded Air Hose
H Grounded Fluid Hose
J Pump Fluid Inlet
K 1/4 npt(f) Pump Air Inlet
L Bung Locknut
M 1/2 npt(f) Pump Fluid Outlet
Y Ground Wire (required; see page 4 for
installation instructions)
J
ABCD
E
F
G
H
K
L
M
Y
Y
D
Mounting the Pump
To mount the pump on a closed-head drum, screw the
threaded pump base into the 2 in. npt bung hole and
adjust to hold the pump 1/2 in. (13 mm) off the bottom
of the drum or pail. The pump dimensions are shown
on page 18. Turn the bung locknut (L) down to secure
the pump in position. Loosen the drum vent plug to
avoid creating a vacuum.
A clamp is available to mount the pump on an open-
head drum. A bracket is available to wall mount Pump
Model 223954. See Accessories on page 16.
Stainless Steel Pail Cover Accessory Kit 224302 is
available for use in general purpose applications, to
mount Pump Model 223954 to a 5 gallon (19 liter) pail.
See page 17.
Pail Cover Accessory Kit 224004 is available for use in
rotary label applications, to mount Pump Model
223954 to a 5 gallon (19 liter) pail. See page 17.

6 307026
Installation
System Accessories
Refer to Fig. 2 and the Accessories section.
NOTE: To ensure maximum pump performance, be
sure that all accessories used are properly sized to
meet your system’s requirements.
WARNING
A bleed-type master air valve (D) and a fluid drain
valve (E) are required in your system, to help re-
duce the risk of serious injury, including splashing
fluid in the eyes or on the skin, and injury from
moving parts if you are adjusting or repairing the
pump.
The bleed-type master air valve (D) relieves air
trapped between this valve and the pump after the
pump is shut off. Trapped air can cause the pump
to cycle unexpectedly and result in serious injury,
including amputation. Locate the valve close to the
pump.
The fluid drain valve (E) helps relieve pressure in
the displacement pump, hose, and dispensing
valve when shutting off the pump. Actuating the
dispensing valve to relieve pressure may not be
sufficient, especially if there is a clog in the hose or
the dispensing valve.
Air Line Accessories
Install the following accessories in the order shown in
the Typical Installation, using adapters as necessary:
DAn air line lubricator (B) provides automatic air
motor lubrication.
DA bleed-type master air valve (D) is required in
your system to relieve air trapped between it and
the air motor when the valve is closed (see the
WARNING above). Be sure the bleed valve is
easily accessible from the pump, and is located
downstream from the air regulator.
DAn air regulator (A) controls pump speed and
outlet pressure by adjusting the air pressure to the
pump. Locate the regulator close to the pump, but
upstream from the bleed-type master air valve.
DAn air line filter (C) removes harmful dirt and
moisture from the compressed air supply.
DA second bleed-type air valve (D) isolates the air
line accessories for servicing. Locate upstream
from all other air line accessories.
Fluid Line Accessories
A fluid drain valve (E) is required in your system to
relieve fluid pressure in the hose and gun (see the
WARNING at left). Install the drain valve pointing
down, but so the handle points up when the valve is
opened.
CONNECT THE HOSES
Connect a grounded air supply hose (G) to supply air
to the pump’s 1/4 npt(f) air inlet (K). Connect a
grounded fluid hose (H) to the 1/2 npt(f) fluid outlet
(M). In a circulating system, remove the pipe plug and
connect a fluid return line to the 3/8 npt(f) return port
(F). See Fig. 3 and the Typical Installation drawing,
Fig. 2.
To use Model 223954 in a fixed mounting, connect a
supply line to the 3/4 npt fluid inlet (J).

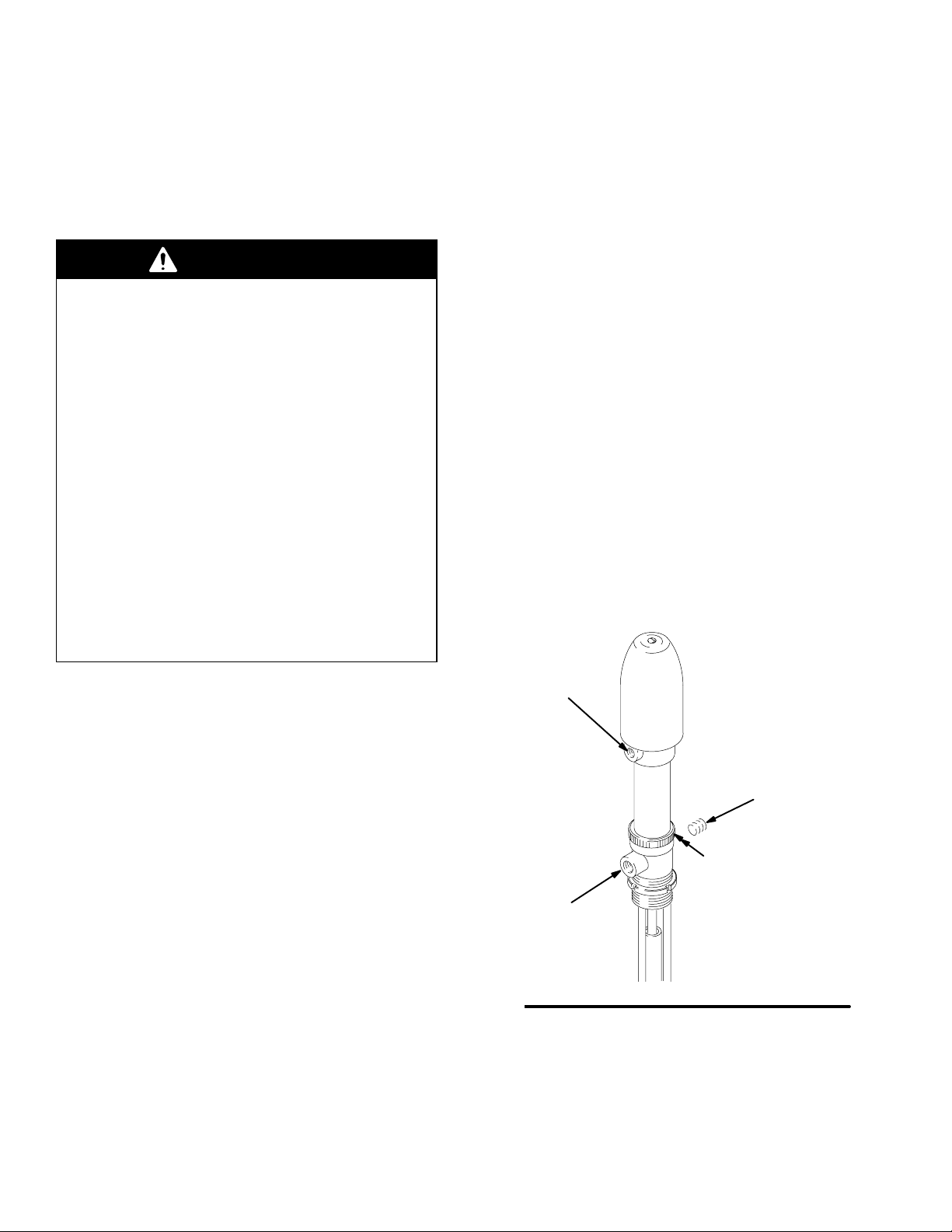

Fig. 3
01351
F
PIPE
PLUG
K
M

307026 7
Operation
Pressure Relief Procedure
WARNING
PRESSURIZED EQUIPMENT HAZARD
The system pressure must be manually relieved to
prevent the system from starting or spraying acci-
dentally. To reduce the risk of an injury from acci-
dental spray from the gun, splashing fluid, or
moving parts, follow the Pressure Relief Proce-
dure whenever you:
Dare instructed to relieve the pressure,
Dstop spraying,
Dcheck or service any of the system equipment,
Dor install or clean the spray nozzle.
1. Shut off the air to the pump.
2. Close the bleed-type master air valve (required in
your system).
3. Hold a metal part of the dispensing valve firmly to
the side of a grounded metal pail, and trigger the
valve to relieve pressure.
4. Open the fluid drain valve (required in your sys-
tem) to relieve all fluid pressure, having a contain-
er ready to catch the drainage.
5. Leave the drain valve open until you are ready to
dispense again.
If you suspect that the nozzle or hose is completely
clogged, or that pressure has not been fully relieved
after following the steps above, very slowly loosen the
hose end coupling and relieve pressure gradually, then
loosen completely. Now clear the nozzle or hose.
Flush the Pump Before Using
The pump was tested in lightweight oil, which was left
in to protect pump parts. To prevent contamination of
the fluid you are pumping, flush the pump with a com-
patible solvent before using it.
To flush the pump, connect a short hose to the pump
outlet, insert the pump intake into a pail of compatible
solvent, direct the hose into a pail, and start the pump
as explained at right.
Cycle the pump slowly for at least 5 minutes, then stop
and disconnect the air hose. Push up on the ball of the
intake valve (J) to drain the lower part of the pump.
See Fig. 4. Turn the pump over to drain the upper part
of the pump.
03765
Fig. 4
J
Starting and Adjusting the Pump
1. Mount the pump and connect to a fluid supply as
explained on page 5.
2. See the INSTALLATION on page 6. Be sure the
air regulator (A) and bleed-type master air valve
(D) are closed.
3. Hold a metal part of the spray gun/dispensing
valve firmly to the side of a grounded metal pail
and hold the trigger open. Then open the pump’s
bleed-type master air valve (D). Now slowly open
the air regulator (A) until the pump starts.
4. Run the pump slowly until all the air is pushed out
of the pump and hose. Always use the lowest
pressure necessary to get the desired results.
Higher pressures waste fluid and cause premature
system wear.
5. After all the air is purged, release the gun/dispens-
ing valve trigger. In a direct supply system, the
pump will start and stop as the gun/valve is
opened and closed. In a circulating system, the
pump will run continuously and will speed up or
slow down as supply demands, until the air supply
is shut off.
Never allow the pump to run dry of the fluid being
pumped. A dry pump will quickly accelerate to a high
speed, possibly damaging itself. If your pump acceler-
ates quickly, or is running too fast, stop it immediately
and check the fluid supply. If the supply container is
empty and air has been pumped into the lines, refill the
container and prime the pump and the lines with fluid,
or flush and leave it filled with a compatible solvent. Be
sure to eliminate all air from the fluid system.
Shutdown and Care of the Pump
For overnight shutdown, follow the Pressure Relief
Procedure Warning at left. Always stop the pump at
the bottom of the stroke to prevent the fluid from drying
on the exposed displacement rod and damaging the
throat packings.

8 307026
Operation
Corrosion Protection for Pump
CAUTION
Water, or even moist air, can cause your pump to
corrode. To help prevent corrosion, NEVER leave the
pump filled with water or air. After normal flushing,
flush the pump again with mineral spirits or oil-based
solvent, relieve pressure, and leave the mineral spir-
its in the pump. Be sure to follow the Pressure Re-
lief Procedure Warning at left.
Lubrication
If you are not using an accessory air line lubricator,
manually lubricate the motor daily. Disconnect the air
regulator, place about 15 drops of light machine oil in
the pump air inlet, reconnect the regulator and turn on
the air supply to blow oil into the motor.
Troubleshooting
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 7.
1. Relieve the pressure.
2. Check all other possible remedies before disas-
sembling the pump.
PROBLEM CAUSE SOLUTION
The pump fails to operate. Dirty or worn air motor. Clean, service; see the separate motor
manual 307851.
Inadequate air supply or restricted
lines.
Clean lines or increase the air supply
(see Technical Data).
Closed or clogged air valves. Open or clear the valves.
Clogged fluid hose or valve. Clear the hose or valves.
Worn or damaged valves or seals. Service the valves or seals.
The pump operates, but the output
is low on both strokes.
Clogged fluid hose or valve. Clear the hose or valves.
Exhausted fluid supply. Refill the fluid supply and reprime the
pump.
Worn or damaged valves or seals. Service the valves or seals.
The pump operates, but the output
is low on the downstroke.
Held open or worn intake valve. Clear or service the valve.
Worn or damaged valves or seals. Service the valves or seals.
The pump operates, but the output
is low on the upstroke.
Held open or worn piston valve. Clear or service the valve.
Worn or damaged valves or seals. Service the valves or seals.
Erratic or accelerated operation. Exhausted fluid supply. Refill the fluid supply and reprime the
pump.
Broken air motor compression spring. Replace the spring.

307026 9
NOTES:

10 307026
Pump Service (Model 226040)
BEFORE YOU START
1. Have all the necessary repair parts on hand.
Recommended spare parts are marked with an
asterisk (for example, 113*). Tool 233582, men-
tioned in this procedure, is located on the accesso-
ries page of this manual.
2. Repair Kit 224005 is available. For the best re-
sults, use all the new parts in the kit. Parts in the
kit are marked with two asterisks (for example,
107**).
3. Use a compatible solvent to clean parts. Inspect
parts for wear or damage and replace as needed.
4. Flush the pump if possible. Stop the pump at the
bottom of its stroke. Follow the Pressure Relief
Procedure Warning on page 7.
5. Disconnect the air and fluid hoses. Remove the
pump from its mounting. Clamp the pump in a
vise.
SERVICING THE DISPLACEMENT PUMP
1. Unscrew the air motor connecting ring (AA). Lay
the pump on its side and rotate the displacement
pump until the ball on the upper connecting rod
(120) comes free of the socket in the motor piston
rod. Separate the motor from the displacement
pump.
NOTE: To service the air motor, refer to separate
manual 307851, supplied.
2. Unscrew the intake valve housing (117) from the
pump frame (119). Disassemble the intake valve.
3. Push down on the upper connecting rod (120) until
the fluid piston assembly is clear of the displace-
ment pump frame (119). Pull the piston assembly
and connecting rod out of the frame. Remove the
bearing (118) and seal (134**) from the frame.
NOTE: Scoring or irregular surfaces on the connecting
rods (120, 115) or polished inner wall of the pump
frame (119) can cause premature packing wear and
leaking. To check these parts, rub a finger over the
surface or hold the part up to the light at an angle.
4. Unscrew the piston valve housing (109) from the
lower connecting rod (115). Unscrew the piston
body (113) from the piston valve housing (109).
5. Unscrew the lower connecting rod (115) from the
upper connecting rod (120). Remove the cup
packings (107), bearing (108) and backup washer
(114).
6. Lubricate the packings (107**) and bearing (108**)
with no. 2 lithium-based grease. Install the backup
washer (114) on the lower connecting rod (115),
making certain that the grooves face up.
7. On the upper connecting rod (120), install one cup
packing (107**) with the lips facing up, the bearing
(108**), and the second packing (107**) with the
lips facing down. Reconnect the upper and lower
connecting rods. Torque to 20-25 ft-lb (27-34 N.m).
8. Lubricate the packings (111**) and bearing (112**)
with no. 2 lithium-based grease. On the piston
(113), install one cup packing (111**) with the lips
facing down, the bearing (112**), and the second
packing (111**) with lips facing up. Install the
backup washer (110), with the grooves facing
down.
9. Place the ball (104**) atop the piston body (113),
then screw the piston body and piston housing
(109) together. Torque to 30-35 ft-lb (41-48 N.m).
Screw the piston valve housing onto the lower
connecting rod (115). Install the seal (134**), with
the lips facing down, in the displacement pump
frame (119), then install the bearing (118**). The
seal (134**) should be installed from the bottom of
the frame using tool 233582. See fig. 5. Use a
turning motion to work the connecting rod and
piston back into the pump frame (119).
Fig. 5
TI0894
10. Reinstall the ball (105**) and ball stop pin (116) in
the intake valve housing (117), and screw the
housing into the displacement pump frame (119).
11. Lay the pump on its side and reconnect the upper
connecting rod (120) with the air motor piston rod.
Tighten the air motor connecting ring (AA).
12. Reinstall the pump on its mounting. If the ground-
ing wire was disconnected during service, recon-
nect it before operating the pump.

307026 11
Pump Service (Model 223954)
BEFORE YOU START
1. Have all the necessary repair parts on hand.
Recommended spare parts are marked with an
asterisk (for example, 313*). Tool 233583, men-
tioned in this procedure, is located on the accesso-
ries page of this manual.
2. Repair Kit 224005 is available. For the best re-
sults, use all the new parts in the kit. Parts in the
kit are marked with two asterisks (for example,
307**).
3. Use a compatible solvent to clean parts. Inspect
parts for wear or damage and replace as needed.
4. Flush the pump if possible. Stop the pump at the
bottom of its stroke. Follow the Pressure Relief
Procedure Warning on page 7.
5. Disconnect the air and fluid hoses. Remove the
pump from its mounting. Clamp the pump in a
vise.
SERVICING THE DISPLACEMENT PUMP
1. Unscrew the air motor connecting ring (AA). Lay
the pump on its side and rotate the displacement
pump until the ball on the upper connecting rod
(320) comes free of the socket in the motor piston
rod. Separate the motor from the displacement
pump.
NOTE: To service the air motor, refer to separate
manual 307851, supplied.
2. Unscrew the intake adapter (321) from the intake
valve housing (317). Remove the o-ring (322).
Unscrew the intake valve housing (317) from the
pump frame (319). Disassemble the intake valve.
3. Push down on the upper connecting rod (320) until
the fluid piston assembly is clear of the displace-
ment pump frame (319). Pull the piston assembly
and connecting rod out of the frame. Remove the
bearing (318) and seal (334**) from the frame.
NOTE: Scoring or irregular surfaces on the connecting
rods (320, 315) or polished inner wall of the pump
frame (319) can cause premature packing wear and
leaking. To check these parts, rub a finger over the
surface or hold the part up to the light at an angle.
4. Unscrew the piston valve housing (309) from the
lower connecting rod (315). Unscrew the piston
body (313) from the piston valve housing (309).
5. Unscrew the lower connecting rod (315) from the
upper connecting rod (320). Remove the cup
packings (307), bearing (308) and backup washer
(314).
6. Lubricate the packings (307**) and bearing (308**)
with no. 2 lithium-based grease. Install the backup
washer (314) on the lower connecting rod (315),
making certain that the grooves face up.
7. On the upper connecting rod (320), install one cup
packing (307**) with the lips facing up, the bearing
(308**), and the second packing (307**) with the
lips facing down. Reconnect the upper and lower
connecting rods. Torque to 20-25 ft-lb (27-34 N.m).
8. Lubricate the packings (311**) and bearing (312**)
with no. 2 lithium-based grease. On the piston
(313), install one cup packing (311**) with the lips
facing down, the bearing (312**), and the second
packing (311**) with the lips facing up. Install the
backup washer (310) with the grooves facing
down.
9. Place the ball (304**) atop the piston body (313),
then screw the piston body and piston housing
(309) together. Torque to 30-35 ft-lb (41-48 N.m).
Screw the piston valve housing onto the lower
connecting rod (315). Install the seal (334**), with
the lips facing down, in the pump frame (319), then
install the bearing (318**). The seal (334**) should
be installed from the bottom of the frame using tool
233583. See fig. 5. Use a turning motion to work
the connecting rod and piston into the frame (319).
10. Reinstall the ball (305**) and stop pin (316) in the
intake valve housing (317). Screw the housing into
the pump frame (319). Place the o-ring (322**) into
the inner groove of the intake adapter (321). Screw
the adapter onto the intake valve housing (317).
11. Lay the pump on its side and reconnect the upper
connecting rod (320) with the air motor piston rod.
Tighten the air motor connecting ring (AA).
12. Reinstall the pump on its mounting. If the ground-
ing wire was disconnected during service, recon-
nect it before operating the pump.

12 307026
Pump Parts
Model 226040, Series G
Stainless Steel, PTFE Packed
01352
106
118**
107**
LIPS FACE UP
103
119
120
115
TORQUE TO
20-25 ft-lb
(27-34 N.m)
107**
LIPS FACE
DOWN
108**
114
GROOVES
FACE UP
109
104**
112**
**105
117
116*
110
GROOVES
FACE DOWN
111**
LIPS FACE UP
111**
LIPS FACE
DOWN
113*
TORQUE TO
30-35 ft-lb
(41-48 N.m)
131
132
101
AA
134**
LIPS FACE DOWN
150

307026 13
Pump Parts
Model 226040, Series G
Stainless Steel, PTFE Packed
Ref.
No. Part No. Description Qty.
101 204722 AIR MOTOR;
See 307851 for parts 1
102 204724 DISPLACEMENT PUMP ASSY
Series F Includes items 103-120, 134 1
103 101748 . PLUG, pipe 1
104 101750** . BALL, piston valve 1
105 101917** . BALL, intake valve 1
106 161784 . NUT, bung lock; 2” npsm 1
107 161788** . PACKING, cup; PTFE 2
108 186647** . BEARING, piston; PEEK 1
109 161791 . HOUSING, piston valve 1
110 161792 . WASHER, back-up;
stainless steel 1
111 161793** . PACKING, cup; PTFE 2
112 186648** . BEARING, piston; PEEK 1
113 161795* . BODY, piston 1
114 162238 . WASHER, back-up;
stainless steel 1
115 162239 . ROD, lower connecting;
6.67” (169.4 mm) long 1
116 164250* . PIN, ball stop 1
117 164251 . HOUSING, intake valve 1
REF PART
NO. NO. DESCRIPTION QTY
118 166564** . BEARING, connecting rod 1
119 204725 . FRAME, displacement pump 1
120 204885 . ROD, upper connecting;
32.84” (854 mm) long 1
131 101870 SCREW, shield retaining 1
132 164796 SHIELD, air motor 1
134 111791** SEAL; glass-reinforced PTFE;
with stainless steel spring 1
150 104071 PLUG, pipe 1
223582‡ TOOL, insert 1. . . . . . . . . . . . . . . . . .
* Recommended “tool box” spare parts. Keep on hand
to reduce downtime.
** Included in Repair Kit 224005.
‡This tool is ordered as a separate part item. It is
located on the accessories page of this manual.
307 number in description refers to separate instruc-
tion manual, supplied.
Conversion Kit 224017 is available to convert the
pump to UHMWPE packings. Refer to the Accessories
section.

14 307026
Pump Parts
Model 223954, Series B
Stainless Steel, PTFE Packed
306
318**
307**
LIPS FACE UP
303
319
320
315
TORQUE TO
20-25 ft-lb
(27-34 N.m)
307**
LIPS FACE
DOWN
308**
314
GROOVES
FACE UP
317
**322
321
316*
313*
TORQUE TO
30-35 ft-lb
(41-48 N.m)
AA
311**
LIPS FACE UP
311**
LIPS FACE
DOWN
304**
309
312**
310
GROOVES
FACE DOWN
331
332
301
01354
**305
334**
LIPS FACE DOWN
350

307026 15
Pump Parts
Model 223954, Series B
Stainless Steel, PTFE Packed
Ref.
No. Part No. Description Qty.
301 223953 AIR MOTOR;
See 307851 for parts 1
302 223955 DISPLACEMENT PUMP ASSY
Series B Includes items 303-322; 334 1
303 101748 . PLUG, pipe 1
304 101750** . BALL, piston valve 1
305 101917** . BALL, intake valve 1
306 161784 . NUT, bung lock; 2” npsm 1
307 161788** . PACKING, cup; PTFE 2
308 186647** . BEARING, piston; PEEK 1
309 161791 . HOUSING, piston valve;
stainless steel 1
310 161792 . WASHER, back-up;
stainless steel 1
311 161793** . PACKING, cup; PTFE 2
312 186648** . BEARING, piston; PEEK 1
313 161795* . BODY, piston; stainless steel 1
314 162238 . WASHER, back-up;
stainless steel 1
315 186569 . ROD, lower connecting;
4.79” (122 mm) long;
stainless steel 1
316 164250* . PIN, ball stop; stainless steel 1
317 166609 . HOUSING, intake valve;
stainless steel 1
Ref.
No. Part No. Description Qty.
318 166564** . BEARING, connecting rod;
filled PTFE 1
319 223956 . FRAME, displacement pump;
stainless steel 1
320 223957 . ROD, upper connecting; 15.36” .
(390 mm) long; stainless steel 1. . . . . . . . . . . . . . . .
321 188037 . ADAPTER, intake; stainless steel 1
322 166612** . O-RING; PTFE 1
331 101870 SCREW, shield retaining 1
332 186564 SHIELD, air motor 1
334 111791** SEAL; glass-reinforced PTFE;
with stainless steel spring 1
350 104071 PLUG, pipe 1
233583‡ TOOL, insert 1. . . . . . . . . . . . . . . . . .
* Recommended “tool box” spare parts. Keep on
hand to reduce downtime.
** Included in Repair Kit 224005.
‡This tool is ordered as a separate part item. It is
located on the accessories page of this manual.
307 number in description refers to separate instruc-
tion manual, supplied.
Conversion Kit 224017 is available to convert the
pump to UHMWPE packings. Refer to the Accessories
section.

16 307026
Accessories
Must be purchased separately.
GROUNDING CLAMP 103538
GROUND WIRE 208950
25 ft (7.6 m) long,
12 gauge (1.5 mm@)
BLEED-TYPE MASTER AIR VALVE
300 psi (21 bar) MAXIMUM WORKING PRESSURE
107142 1/2 npt(m) inlet x 1/2 npt(f) outlet
Relieves air trapped in the
air line between the pump
air inlet and this valve when
closed.
AIR LINE FILTER
250 psi (17.5 bar) MAXIMUM WORKING PRESSURE
106149 1/2 npt(f)
inlet and outlet
AIR LINE LUBRICATOR
250 psi (17.5 bar) MAXIMUM WORKING PRESSURE
214848 8 oz (0.24 liter)
bowl capacity. 1/2
npt(f) inlet and outlet
AIR LINE FILTER AND REGULATOR 202660
180 psi (13 bar) MAXIMUM WORKING PRESSURE
01355
To regulate and filter compressed
air supply to the gun. Includes
gauge and two 1/4 npt(m) outlet
valves, 50 micron filter element
with 100 mesh inlet strainer. 1/2
npt(f) inlet. Flow rate is over 50
scfm (1.4 m#/min).
AIR REGULATOR AND GAUGE
300 psi (21 bar) MAXIMUM WORKING PRESSURE
202156 0-200 psi (0-14 bar)
Regulated Pressure Range;
3/8 npt(f) inlet and outlet.
FLUID DRAIN VALVE
500 psi (35 bar) MAXIMUM WORKING PRESSURE
Relieves fluid pressure in the hose and gun.
208630 1/2 npt(m) x 3/8 npt(f); for
non-corrosive fluids; carbon steel
and PTFE
210071 3/8 npt(m) x 3/8 npt(f); for
corrosive fluids; stainless steel
and PTFE
FLUID PRESSURE REGULATOR
250 psi (17.5 bar) MAXIMUM WORKING PRESSURE
Use on circulating line drops to regulate fluid pressure
to each air spray gun or dispensing valve. 3/8 npsm(f)
inlet; 3/8 npsm(m) and 3/8 npt(f) outlets.
203831 Carbon steel; 0-60 psi (0-4 bar) regulated fluid
pressure range; 2 gpm (7.6 liter/min) maximum flow
rate
209030 Stainless steel; 5-100 psi (0.4-7 bar) regulated
fluid pressure range; 3 gpm (11.3 liter/min) maximum
flow rate
01356
203831 Carbon steel; 0-60 psi
(0-4 bar) regulated fluid pres-
sure range; 2 gpm (7.6 liter/min)
maximum flow rate
209030 Stainless steel; 5-100
psi (0.4-7 bar) regulated fluid
pressure range; 3 gpm (11.3
liter/min) maximum flow rate

307026 17
Accessories
FLUID FILTER
300 psi (21 bar) MAXIMUM WORKING PRESSURE
For filtering paint in a circulating system. 6 gpm (22.7
liter/min) maximum volume. 3/4 npt(f) inlet and outlet.
0779
213057 30 mesh
213058 60 mesh
213059 100 mesh
PTFE FLUID HOSE 204865
1000 psi (70 bar) MAXIMUM WORKING PRESSURE
For connecting pump to fluid line.
6 ft (1.8 m); 1/2 in. (13 mm) ID; coupled 1/2 npt (mbe).
UHMWPE PACKING CONVERSION KIT 224017
Converts Model 226040to use Ultra-High Molecular
Weight Polyethylene cup packings. Includes cup
packings, bearings, and instructions.
STAINLESS STEEL PAIL COVER KIT 224302
For general purpose applications. Allows mounting of
Model 223954 on a 5 gallon (19 liter) pail. Includes pail
cover with agitator and return ports, return tube,
mounting hardware, and assembly instructions.
PAIL MOUNT KIT 224004
For rotary label applications only. Allows mounting of
Model 223954 on a 5 gallon (19 liter) pail. Includes pail
cover, mounting hardware, pump air inlet valve, and
assembly instructions.
PUMP CLAMP 204858
For mounting pump in open head drums or other
containers. Corrosion-resistant.
01358
MOUNTING BRACKET 203987
For mounting Model 223954 to a wall.
01357
Tool 233583 (19” long)
For installation of seals.
Tool 233582 (5–1/2” long)
For installation of seals.

18 307026
Dimensions
A
B
(Adjustable)
1/4 npt(f)
AIR INLET
1/2 npt(f)
FLUID OUTLET
3/8 npt(f)
RE-
TURN
2” npsm
3/4 npt(f)
FLUID INTAKE
(MODEL 223954
ONLY) 01347
Pump No.
A
Overall Length
B
Pump Length Weight
226040 50.25 in
(1276 mm)
32.375-33.875 in.
(822-860 mm)
17 lb (7.7 kg)
223954 30.5 in.
(775 mm)
13.70-14.10 in.
(348-358 mm)
1.5 lb (5.2 kg)

307026 19
Service Information
Listed below by the assembly changed are Old, New,
and Added parts.
Assembly Changed Status Ref. No Part No. Name
204724 Displ. Pump
to Series F
Old 161789 Bearing
to Series F New 108 186647 Bearing
Old 161794 Bearing
New 112 186648 Bearing
Added 134 111791 Seal
223955 Disp. Pump
to Series B
Old 186563 Adapter
to Series B New 321 188037 Adapter
Added 334 111791 Seal
INTERCHANGEABILITY NOTE: New parts replace
the Old parts listed directly above them.
Pump Model 226040 is advanced to Series G. Dis-
placement Pump Model 204724 is advanced to Series
F.
Pump Model 223954 is advanced to Series B. Dis-
placement Pump Model 223955 is advanced to Series
B.
Pump Model 206780 is obsolete and is removed from
the manual.
Repair Kit 214730 is obsolete and is superseded by
Repair Kit 224005.

20 307026
Technical Data
Category Data
Maximum fluid working pressure 360 psi (25 bar)
Air input pressure operating range 30-180 psi (2-12 bar)
Pump cycles per 1 gallon (3.8 liters) 40 (50 for Model 223954)
Maximum recommended pump speed for
continuous operation
100 cycles per min
Air consumption approx. 3 scfm (0.09 m#/min) at 1 gpm (3.8 liters/min) at 100 psi (7
bar) air pressure
Maximum Ambient temperature for T6
hazardous location use
120_F (50_C)
Maximum operating temperature of fluid
pump
480_F (248_C) for non–hazardous location applications only
Maximum operating temperature of air
motor
280_F (138_C) for non–hazardous location applications only
Wetted parts Stainless Steel, PTFE, Polyetheretherketone (PEEK)
