Graco Check-Mate L100CM Parts list manual

With priming piston and Severe Duty®or MaxLife®rod and cylinder.
For professional use only.
Not for use in explosive atmospheres.
See page 3 for model information. See page 42 for maximum working pressure and approvals.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Instructions - Parts
Check-Mate®
Displacement Pumps
ti10720a
L200CS Model
ti10392a ti10396a
L500CM Model
L100CM Model
312375H
EN

Related Manuals
2312375H
Contents
RelatedManuals ...........................2
Models ...................................3
Warnings .................................4
Component Identification ....................6
Repair ....................................7
Troubleshooting .........................7
Disassembly and Reassembly of Throat Packings
andCartridge ........................7
Disassembly ............................8
Reassembly ...........................12
Parts ....................................18
60cc Displacement Pumps ................18
100cc Displacement Pumps ...............19
200cc and 250cc Displacement Pumps ......24
500cc Displacement Pumps ...............34
Dimensions ..............................39
Outlet Housing Mounting Hole Layout ........40
TechnicalData ............................42
Graco Standard Warranty ...................44
GracoInformation ........................44
Related Manuals
Component Manuals in U.S. English:
Manual Description
312376
Check-Mate®Pump Packages
Instruction-Parts
313526 Supply Units Operation
313527 Supply Units Repair-Parts
313528 Tandem Supply Units Operation
313529 Tandem Supply Units Repair-Parts

Models
312375H 3
Models
Check your displacement pump’s identification plate (ID) for the 6-digit part number
of your displacement pump. Use the following matrix to define the construction of
your displacement pump, based on the six digits. For example, displacement pump
Part No. L250CM represents the displacement pump (L), output volume in cc per
cycle (250), carbon steel construction (C), and MaxLife®coatings, packings, and
enclosed wet cup (M).
To order replacement parts, see Parts section starting on page 18. The digits in the
matrix do not correspond to the Ref. Nos. in the Parts drawings and lists.
ID
ti10622a
L 250 C M
First Digit Second, Third, and Fourth
Digits Fifth Digit Sixth Digit
Displacement Pump Volume
per cycle (cc) Material
Coatings, Packings,
Enclosed Wet Cup
L
(displacement
pump)
60 C Carbon Steel S Severe Duty
100 S Stainless Steel M MaxLife
200
250
500

Warnings
4312375H
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back
to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where
applicable.
WARNING
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just
a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Do not spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent
fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes
are present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.

Warnings
312375H 5
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-
facturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power cord before servicing equipment.
• Use only grounded electrical outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on sprayer and extension cords.
• Do not expose to rain. Store indoors.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read MSDS’s to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
• Always wear impervious gloves when spraying or cleaning equipment.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
• Gloves
• Hearing protection
WARNING

Component Identification
6312375H
Component Identification
Key:
A Displacement Rod
B Wet Cup
C Throat Packing Cartridge
D Outlet Housing
E Fluid Outlet
F Pump Bleed Valve
G Pump Cylinder
H Intake Valve Housing
J Intake Cylinder
K Priming Piston Assembly
L Hex Head Bolt (500cc displacement pumps only)
M Wet Cup Sight Glass (MaxLife models only)
N Wet Cup Fill Cap (MaxLife models only)

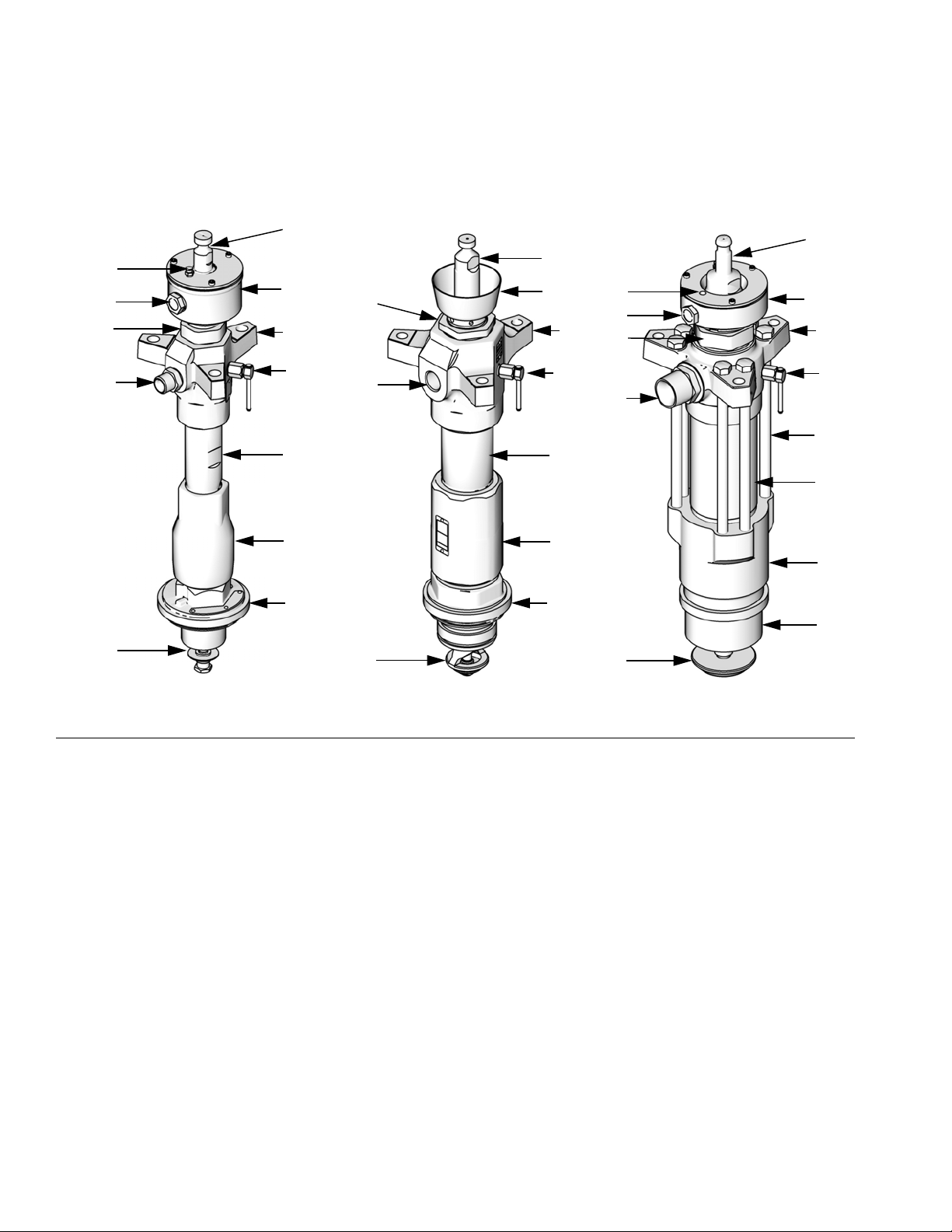

FIG.1
A
B
CD
EF
G
H
J
K
ti10720a
ti10392a ti10396a
L200CS and L250CS Models L500CM Model
L060CM and L100CM Models
M
NA
B
C
D
EF
G
H
J
K
A
B
CD
E
F
G
H
J
K
M
N
L

Repair
312375H 7
Repair
Troubleshooting
See Check-Mate Pump Packages manual 312376.
Required Tools
• Torque wrench
• Bench vise, with soft jaws
• Rubber mallet
• Hammer
• 400 mm (15.8 in.) adjustable wrench
• O-ring pick
• Flat head screwdriver
• 13mm(1/2in.)dia.brassrod
• Set of socket wrenches
• Set of adjustable wrenches
• Packing nut wrench (supplied with
pump package)
• 24 in. (610 mm) adjustable wrench
• M4 hex key wrench
• Thread lubricant
• Thread sealant
• Loctite®2760™or equivalent
Disassembly and Reassembly of
Throat Packings and Cartridge
All new Check-Mate displacement pumps are equipped
with a throat packing cartridge (3) that enables easy
removal and replacement of throat packings without the
complete disassembly of the displacement pump.
1. Run air motor and displacement pump to bottom of
stroke.
2. Relieve pressure. See Check-Mate Pump Packages
manual 312376 for instructions.
3. Remove air motor coupling assembly from displace-
ment rod. See Check-Mate Pump Packages manual
312376 for instructions.
4. Push air motor piston rod up to top of stroke.
5. Remove wet cup cover (present on enclosed wet
cups only).
6. Place an absorbent cloth in wet cup (9) to absorb
Throat Seal Liquid (TSL).
7. Use packing nut wrench (supplied) to loosen and
remove packing nut/enclosed wet cup (9).
8. Use an adjustable wrench to loosen cartridge (3);
slide it and throat packings (P) up and off displace-
ment rod (1).
9. Replace throat packings (P) according to specific
packing kit into cartridge (3). See Packing Kits in
Parts starting on page 18.
10. Remove and replace o-ring (4).
11. Slide cartridge (3) and throat packings (P) back on
to displacement rod (1). Be careful to not damage
packings.

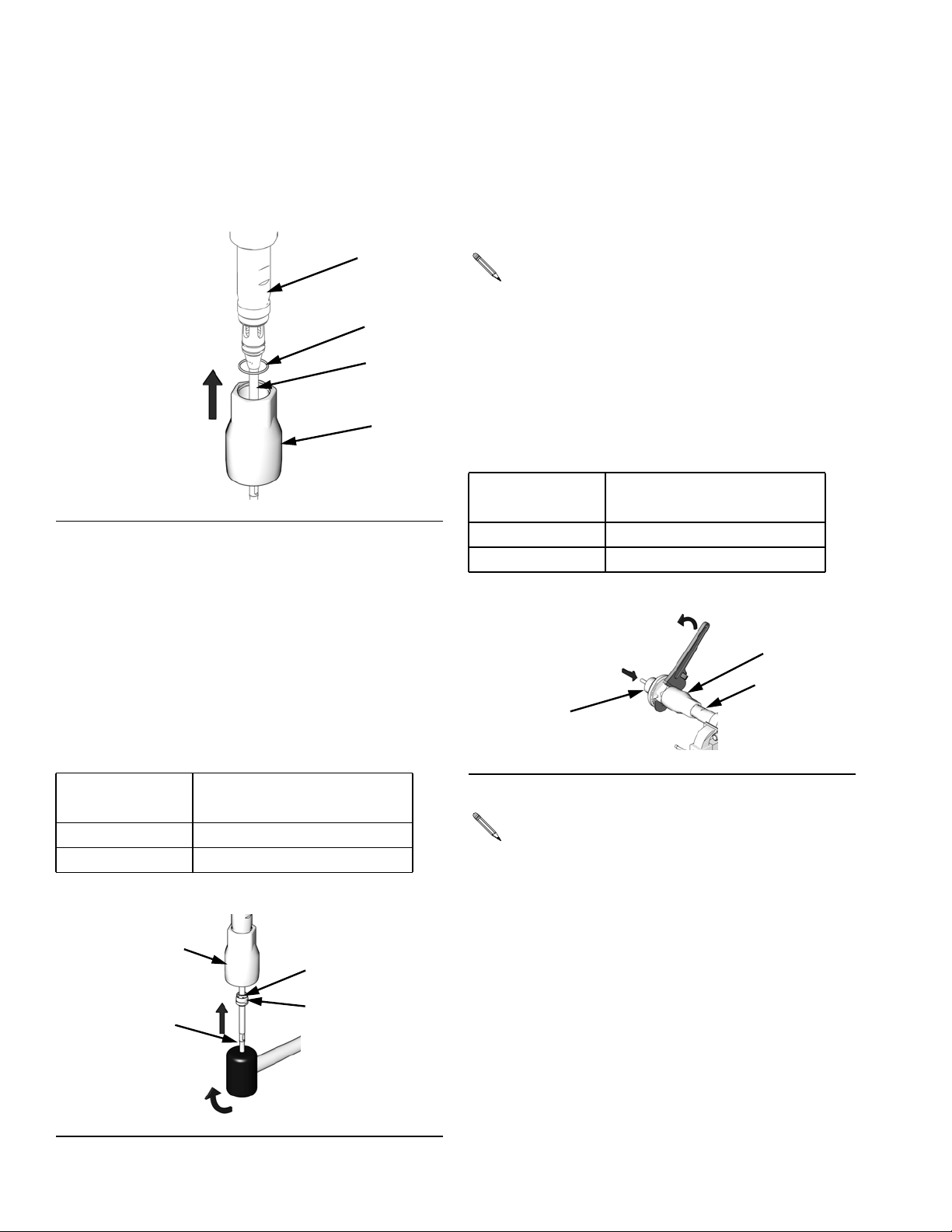

FIG.2
FIG.3
9
ti10623a
P
P
3
4
1
2
ti11118a
(Severe Duty)
(MaxLife)

Repair
8312375H
12. Torque cartridge (3) to specified torque listed in the
following table.
13. Slide packing nut/wet cup (9) over displacement rod
(1) and torque to specified torque listed in the follow-
ing table.
14. Fill wet cup (9) 1/3 full of TSL or compatible solvent.
Disassembly
When disassembling displacement pump, lay out all
removed parts in sequence to ease reassembly. Clean
all parts with a compatible solvent and inspect them for
wear or damage.
1. Relieve pressure. See your Check-Mate Pump
Packages manual 312376 for instructions.
2. Disconnect displacement pump from air motor as
illustrated in your Check-Mate Pump Packages
manual 312376.
3. Place displacement pump in a vise, with jaws on
outlet housing (2).
4. Use packing nut wrench (supplied) to loosen and
remove packing nut/enclosed wet cup (9).

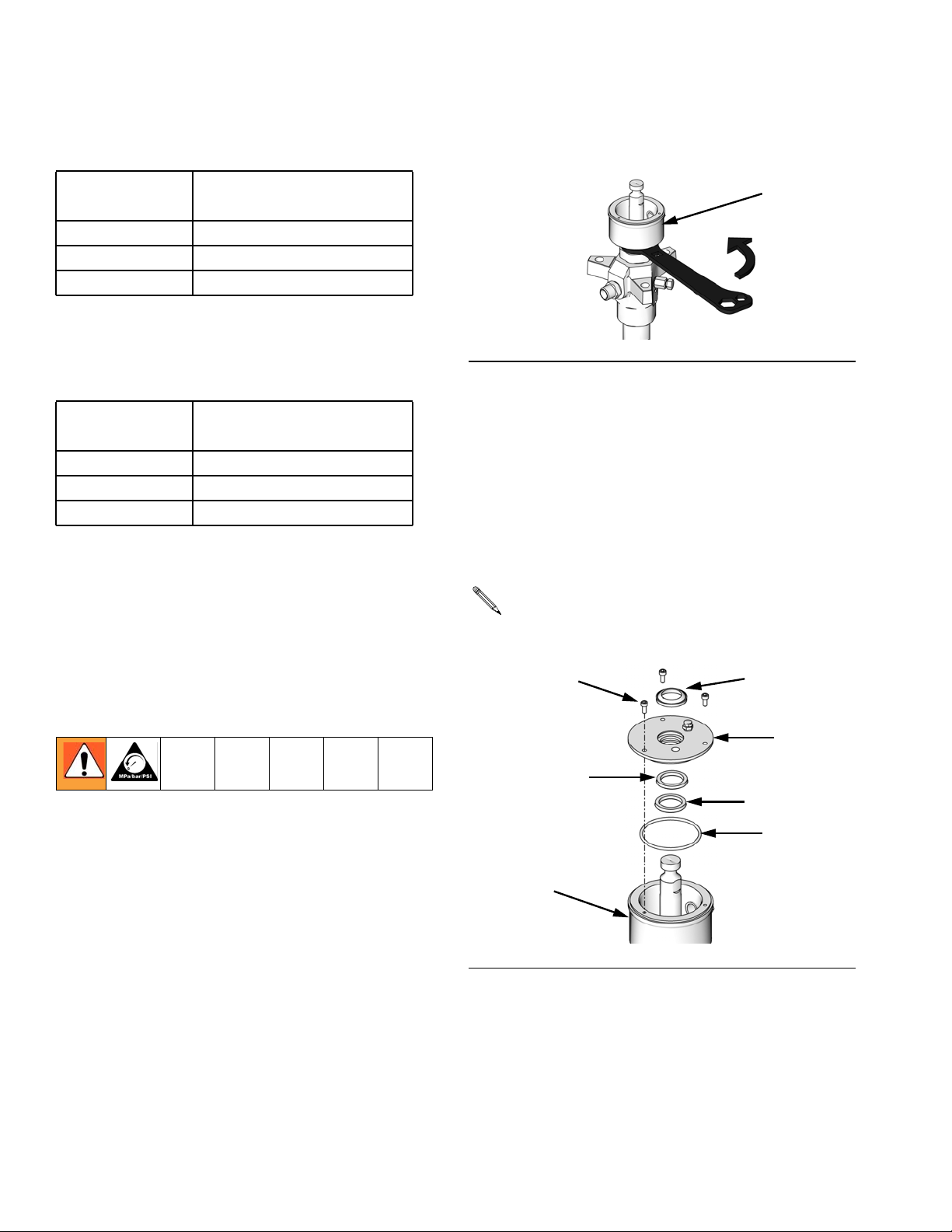

5. On displacement pumps with enclosed wet cups (9),
use an M4 hex wrench to remove the three screws
(14) from wet cup cover (10) and remove cover.
Drain and clean out the wet cup (9). See FIG.5.
6. On displacement pumps with enclosed wet cups (9),
use o-ring pick to remove o-ring (11), and a flat
head screwdriver to remove snap ring (61), wiper
(15), and seal (16).
Displacement
Pump Torque
60cc and 100cc 90-130 ft-lbs (122-173 N•m)
200cc and 250cc 130-190 ft-lbs (176-258 N•m)
500cc 149-261 ft-lbs (203-355 N•m)
Displacement
Pump Torque
60cc and 100cc 28-44 ft-lbs (38-59 N•m)
200cc and 250cc 95-115 ft-lbs (128-155 N•m)
500cc 95-115 ft-lbs (128-155 N•m)
FIG.4
The snap ring (61) is applicable only to 60cc and
100cc displacement pumps.
FIG.5
9
ti10623a
ti10561a
10
61
11
16
14
9
15

Repair
312375H 9
7. Hold flats of the priming piston rod (24) with an
adjustable wrench, and use a second wrench to
unscrew priming piston seat (27) from rod. Slide
priming piston (26) off rod. Inspect surfaces of guide
(25) and piston (26) for scoring, wear, or other dam-
age.
8. Use an adjustable wrench on hex of intake cylinder
(22) to unscrew it from intake valve housing (19).
9. Use an adjustable wrench to unscrew intake valve
housing (19) from cylinder (17) and outlet housing
(2). Pull intake valve housing off cylinder. Intake
check valve assembly (R) should slide down priming
piston rod (24) as you remove housing; if it does not
slide easily, firmly tap on top of housing (19) with a
rubber mallet to loosen.
10. Use a 400 mm adjustable wrench on flats of dis-
placement pump cylinder (17) and unscrew cylinder
from outlet housing (2). Remove o-rings (18).
Inspect inside surface of cylinder for wear, scoring
or other damage by holding it up to light at an angle
or running a finger over the surface.
The guide (25) is applicable only to 100cc and
500cc displacement pumps.
FIG.6
Steps 8-13 apply to 60cc, 100cc, 200cc, and
250cc displacement pumps only.
FIG.7
ti10563a
24
25
26
27
ti10562a
19
22
FIG.8
FIG.9
17
24
19
R
r_000000_312375_1
ti10565a
ti10601a
18
2
17

Repair
10 312375H
11. Use an o-ring pick to remove seal (21) from intake
valve housing (19). Discard seal; use a new one for
reassembly. See FIG.10.
12. Pull intake seat (20) out bottom of intake valve hous-
ing (19). Take care not to drop intake valve assem-
bly (R) as it comes free, and set it aside for later.
13. Use a rubber mallet to drive displacement rod (1)
and priming piston rod (24) out of outlet housing (2).
Inspect outer surfaces of rods for damage by run-
ning a finger over the surface.
14. 500cc Displacement Pumps Only: use a socket
wrench to remove six capscrews (45).
15. Tap underside of outlet housing (2) with a rubber
mallet to loosen housing from cylinder (17). Lift out-
let housing off displacement pump and set it aside.
Be careful not to scratch displacement rod (1) while
removing housing. Remove seal (18) from top of cyl-
inder.
16. Lift cylinder (17) up off intake housing (22). Dis-
placement rod (1), piston assembly, intake valve
assembly, and priming piston rod (24) will come with
cylinder.
17. Place cylinder (17) sideways in a vise with soft jaws.
Using a rubber mallet on end of priming piston rod
(24), drive displacement rod (1) and piston assem-
bly out of the top of the cylinder. Continue to pull rod
out of cylinder until priming piston rod (24) comes
free.
18. Remove seal (18) from bottom of cylinder (17). Hold
cylinder up to light at an angle to examine inside
surface for scoring and damage.
If seat (20) is difficult to remove, insert a hammer
and brass rod through the top of housing (19) and
drive seat out.
FIG.10
FIG.11
r_000000_312375_2
19
20
21
R
ti10568a
1
2
24
Steps 14-19 apply to 500cc displacement
pumps only.
FIG.12
45
ti10584a

Repair
312375H 11
19. Pull seal (18) and seat (20) out the top of the intake
housing (22). If seat is difficult to remove, turn hous-
ing upside down and drive seat out using a hammer
and brass rod.
20. Examine mating surfaces of seat (20) and intake
valve body (32) for damage.
21. To access throat packings and glands, use an
adjustable wrench to remove the throat cartridge
(3).
22. Remove cartridge o-ring (4). Then remove throat
packings (P) from throat cartridge (3). Some models
include a fluid outlet nipple (43) and o-ring (44). Do
not remove these parts from housing unless they
need replacement.
23. Place flats of displacement rod (1) in a vise.
Unscrew piston (23) from displacement rod; priming
piston rod (24) will come with it. Slide piston guide
(28) and seat (30) off piston (23).
24. Inspect outer surfaces of displacement rod (1) and
priming piston rod (24) for wear, scoring or other
damage by holding them up to light at an angle or
running a finger over the surface.
25. It is not necessary to remove priming piston rod (24)
from piston (23) unless your inspection reveals scor-
ing, wear, or other damage to either part. To disas-
semble, place piston flats in a vise and unscrew the
rod.
26. Place piston seat (30) and guide (28) in vise. Slide a
brass rod through openings in piston guide and
unscrew it from seat. Remove piston seal (31) and
guide bearing (29).
FIG.13
FIG.14
ti10566a
18
20
22
ti11118a
P
3
4
2
P
1
(MaxLife)
(Severe Duty)
FIG.15
Guide bearing (29) is press-fit into the piston guide
(28), and may require cutting to ease removal.
FIG.16:
ti10569a
24
23
1
28
30
28
30
ti10570a
29

Repair
12 312375H

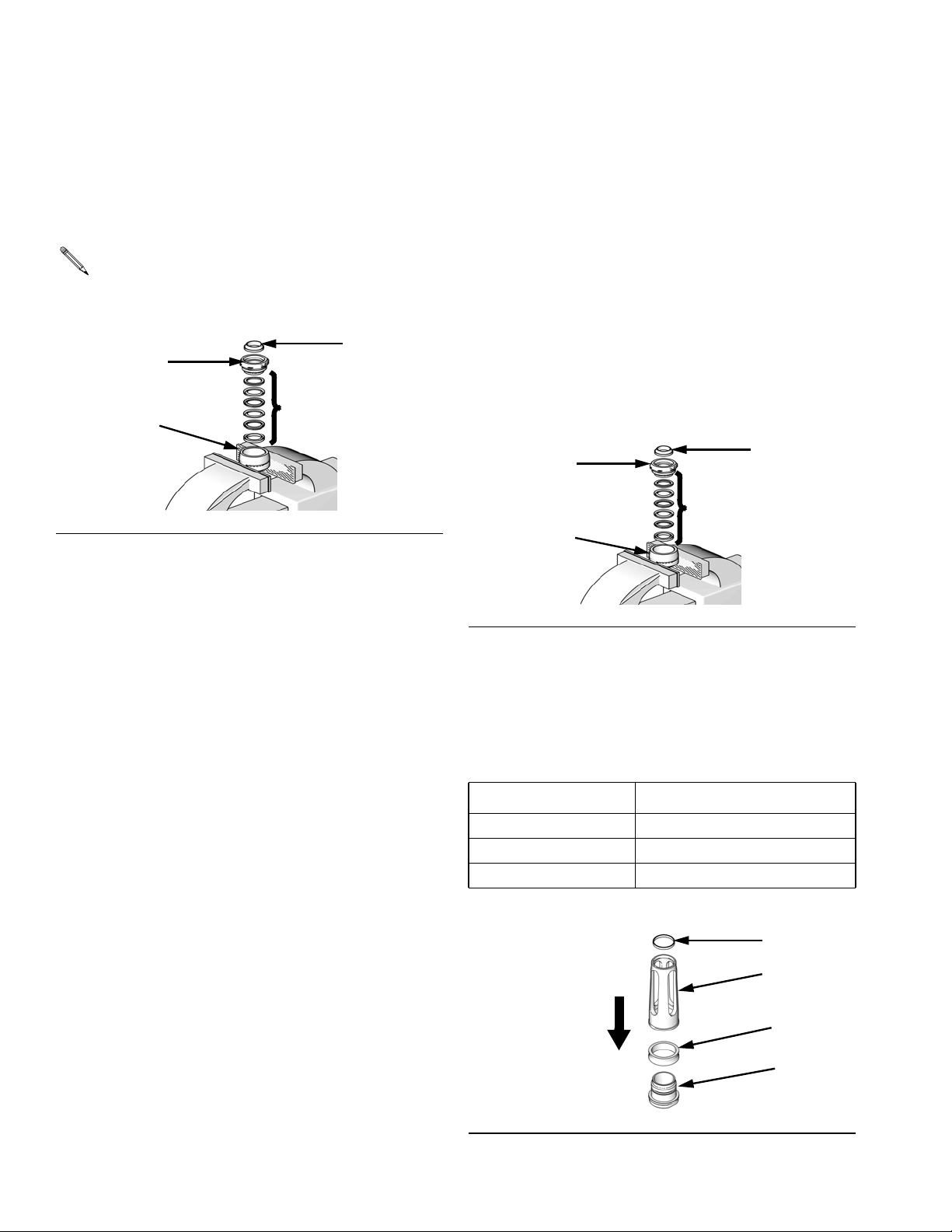

27. To disassemble intake check valve assembly, place
intake valve body (32) in a vise and unscrew pack-
ing nut (33). Remove seal (38) from nut, and intake
valve packings (S) from valve body. Inspect mating
surfaces of intake valve body (32) and seat (20) for
damage or wear.
28. Unscrew bleeder valve plug (40) completely from
valve body (39). Clean valve threads and bleed
hole. It is not necessary to remove valve body from
displacement pump outlet housing (2).
29. Inspect all parts for damage. Clean all parts and
threads with a compatible solvent. Reassemble as
explained in the Reassembly section.
Reassembly
1. Lubricate the intake valve packings (S) and install
them in valve (32). See FIG. 18. See Packing Kits
sections for the correct intake valve packing configu-
ration.
2. With beveled side facing up, press intake valve seal
(38) in to recess of intake valve packing nut (33)
until it snaps into place. The nose of the seal should
be flush with or slightly recessed into the face of the
packing nut. See FIG.18.
3. Place flats of valve body (32) in a vise. Screw pack-
ing nut (33) into valve body handtight. Set intake
housing assembly aside.
4. Lubricate piston seal (31) and install it on piston
seat (30). Screw piston guide (28) onto seat (30).
Place piston seat in a vise and use a brass rod to
torque guide; see the following table for correct
torque. Snap guide bearing (29) into piston guide
(28).
The seal (38) is press-fit in the nut (33) and may
require cutting to ease removal.
FIG.17
ti10572a
38
S
33
32
FIG.18
Displacement Pump Torque
60cc and 100cc 26-30 ft-lbs (35-41 N•m)
200cc and 250cc 57-63 ft-lbs (77-85 N•m)
500cc 90-100 ft-lbs (122-135 N•m)
FIG.19
ti10572a
38
S
32
33
ti10573a
28
31
30
29

Repair
312375H 13
5. If it was necessary to remove the priming piston rod
(24) from the piston (23), apply thread sealant to
threads of the rod. Place flats of piston in a vise.
Hold flats of rod with an adjustable wrench, and
screw rod into piston; see the following table for cor-
rect torque. Be careful not to create burrs on flats of
rod.
6. Place flats of displacement rod (1) in a vise. Install
piston seat/guide assembly onto the piston (23).
Apply thread sealant to threads of rod and screw
piston assembly onto rod; see the following table for
correct torque.
7. Lubricate seal (18) and place it on top of the cylin-
der (17). Screw cylinder handtight into outlet hous-
ing (2). The cylinder is symmetrical so either end
can be the top.
8. Carefully insert displacement rod (1) into bottom of
cylinder (17). Push rod up into cylinder and through
outlet housing (2). Be careful not to damage piston
seal (31) while performing this step.
Displacement
Pump Torque
60cc and 100cc 34-38 ft-lbs (46-51 N•m)
200cc and 250cc 92-102 ft-lbs (124-138 N•m)
500cc 90-100 ft-lbs (122-135 N•m)
Displacement
Pump Torque
60cc and 100cc 85-95 ft-lbs (115-128 N•m)
200cc and 250cc 239-271 ft-lbs (323-366 N•m)
500cc 327-363 ft-lbs (441-490 N•m)
FIG.20
ti10574a
1
piston assembly
Steps 7- 13 apply to 60cc, 100cc, 200cc, and
250cc displacement pumps only.
FIG.21
FIG.22
ti10575a
2
18
17
ti10577a
1
17
2

Repair
14 312375H
9. Lubricate seal (18) and install it on the bottom of cyl-
inder (17). Slide intake valve housing (19) onto prim-
ing piston rod (24). Ensure smooth surface of valve
stop faces displacement pump intake. Screw hous-
ing onto cylinder.
10. Lubricate priming piston rod (24), then slide assem-
bled intake valve onto rod. Ensure packing nut (33)
goes on rod first. Push valve assembly up rod, stop-
ping before it reaches intake valve housing (19).
See FIG.24.
11. Hold valve body (32) steady with a wrench while
using an adjustable wrench to tighten packing nut
(33); see the following table for correct torque. Use a
rubber mallet on priming piston rod (24), to drive
valve assembly up to stop.
12. The intake seat (20) is reversible on the 200cc and
250cc displacement pumps. Inspect both sides of
seat and install it with the best side facing into hous-
ing (19). Push it into housing until it seats securely.
Lubricate seal (21) and install in the bevel around
the bottom of the seat.
13. Lubricate threads of intake cylinder (22). Use an
adjustable wrench to screw intake cylinder into
intake valve housing (19). Torque intake cylinder;
see the following table for correct torque. This will
also torque intake valve housing (19) and displace-
ment pump cylinder (17) into outlet housing (2).
14. Slide rod guide (19) onto priming piston rod (24)
ensuring the end nearest valve stop goes on rod
first.
15. Slide assembled intake valve onto priming piston
rod (24) ensuring packing nut (33) goes on rod first.
Push valve assembly up rod, stopping before it
reaches rod guide (19).
16. Hold valve body (32) steady with a wrench while
using an adjustable wrench to tighten packing nut
(33). Torque to 71-78 ft-lbs (97-106 N•m). Use a
hammer and a brass rod to carefully drive valve
assembly further up rod until it reaches the stop.
FIG.23
Displacement
Pump Torque
60cc and 100cc 43-47 ft-lbs (58-63 N•m)
200cc and 250cc 71-79 ft-lbs (96-107 N•m)
FIG.24
ti10579a
17
18
24
19
ti10580a
33
32
24
19
For 60cc and 100cc displacement pumps, install
intake seat (20) so large beveled side faces down
toward pump intake.
Displacement
Pump Torque
60cc and 100cc 213-287 ft-lbs (288-387 N•m)
200cc and 250cc 345-435 ft-lbs (466-587 N•m)
FIG.25
Steps 14-21 apply to 500cc displacement
pumps only.
ti10581a
19
17
22

Repair
312375H 15
17. Place cylinder (17) sideways in a vise with soft jaws.
18. Lubricate seal (18) and place it on bottom of cylin-
der (17). (Cylinder is symmetrical so either end can
be the bottom.)
19. Slide displacement rod (1), piston assembly (T),
intake valve assembly (R), and priming piston rod
(24) into cylinder (17) from bottom until mating sur-
faces of rod guide (19) and cylinder (17) meet.
20. Put intake housing (22) upright in a vise, making
sure it is off-center so there is a sufficient clearance
for priming piston rod (24) to be lowered through
housing. Insert intake seat (20) into intake housing
(22) so the flat seat is facing up. Lubricate seal (18)
and place it on top of intake seat (20). Lower rod
and cylinder assembly into intake housing until rod
guide (19) bottoms on intake seat (20) and priming
piston rod (24) protrudes from bottom of intake
housing (22).
21. Lubricate seal (18) and place it on top of cylinder
(17). Insert outlet housing (2) on to cylinder. Install
six long capscrews (45) through outlet housing (2)
and into intake housing (22). Using a socket wrench,
torque screws oppositely and evenly to 180-195
ft-lbs (244-264 N•m).
22. Lubricate throat packings (M), and install them in
throat cartridge (3) one at a time with the lips of the
v-packings or u-cup facing down. Refer to Packing
Kit sections for each displacement pump size for the
correct throat packing configuration for your dis-
placement pump.
FIG.26
FIG.27
ti111159a
17
18
1
19
24
T
R
ti10582a
19
20
22
24
18
1
17
L500SS and L500SM models: install washer (46)
between capscrews (45) and outlet housing (2).
FIG.28
ti10584a
2
45
22
18
17
46

Repair
16 312375H
23. Partially thread wet cup (9) into cartridge (3) to hold
packings in place during installation. Install new car-
tridge o-ring (4) on cartridge (3). Apply thread lubri-
cant to cartridge (3) and carefully slide down over
displacement rod and into outlet housing (2). Torque
cartridge to the following torque. Be careful not to
damage throat packings on leading edge of rod.
24. Use packing nut wrench (supplied) to tighten wet
cup (9) to specified torque; refer to the following
table.
25. Lubricate the threads of the bleeder valve plug (40).
The plug has two sets of threads. Be sure to screw
the plug completely into the valve body (39). Torque
the plug to 9-11 ft-lbs (12-15 N•m).
26. Install new o-ring (11), wet cup wiper (15), seal (16),
and snap ring (61) into wet cup cover (10). See FIG.
31.
27. Carefully slide wet cup cover (10) over displacement
rod. Line up holes in cover and wet cup. Insert
screws (14). Use a hex head screwdriver to tighten
screws. See FIG.31.
Displacement
Pump Torque
60cc and 100cc 90-130 ft-lbs (122-176 N•m)
200cc and 250cc 130-190 ft-lbs (176-257 N•m)
500cc 150-261 ft-lbs (203-355 N•m)
FIG.29
Displacement
Pump Torque
60cc and 100cc 28-44 ft-lbs (38-59 N•m)
200cc and 250cc 95-115 ft-lbs (128-155 N•m)
500cc 95-115 ft-lbs (128-155 N•m)
Some models include an outlet nipple (43) and
o-ring (44). It is not ordinarily necessary to remove
these parts. However, if they were replaced
because of damage, lubricate o-ring and place it on
nipple. Screw nipple into outlet housing (2). Torque
to 44-62 ft-lbs (60-84 N•m).
ti10576a
4
3
2
P
P
(Severe Duty)
(MaxLife)
9
FIG.30
Steps 26-27 apply only to displacement pumps
with enclosed wet cups.
The snap ring (61) is applicable only to 60cc and
100cc displacement pumps.
Use caution when sliding wet cup cover (10) over
displacement rod (1) to avoid damaging seals (15,
16).
FIG.31
ti10585a
39 40
44
43
ti10561a
10
61
11
16
14
1, 9
15

Repair
312375H 17

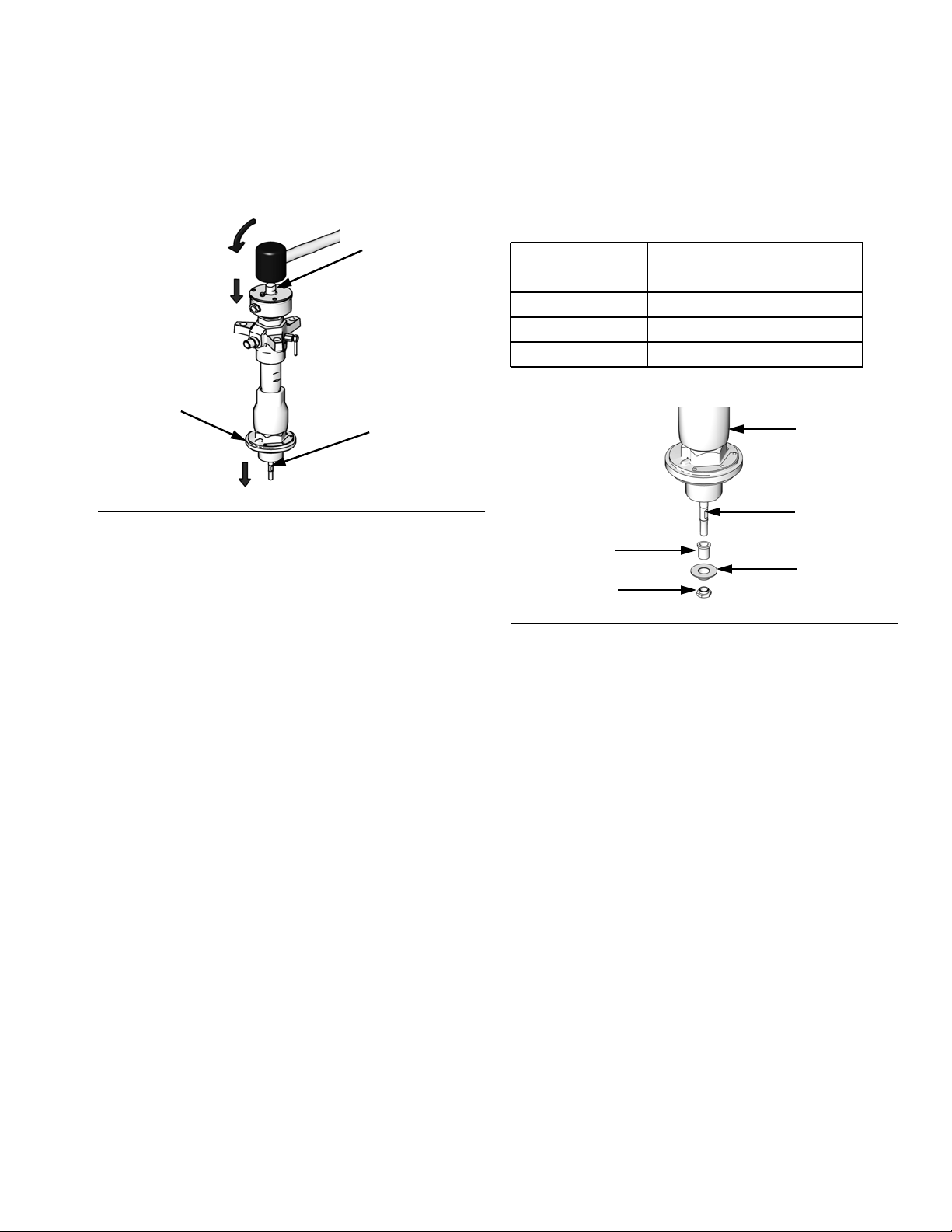

28. Check that flats of priming piston rod (24) are
accessible below intake cylinder (22). If not, tap on
top of displacement rod (1) with a rubber mallet until
flats are exposed.
29. Slide priming piston (26) and priming piston guide
(25) (only on L100 and L500 models) onto rod (24)
until it stops. Hold rod (24) steady with an adjustable
wrench on flats, and screw seat (27) onto rod with
another wrench. Torque to specified torque; refer to
the following table.
30. Reconnect displacement pump to the air motor as
explained in Check-Mate Pump Packages manual
312376.
31. Allow 2 hours for thread sealant to cure before
returning pump to service.
FIG.32
ti10586a
1
24
22
Displacement
Pump Torque
60cc and 100cc 34-38 ft-lbs (46-51 N•m)
200cc and 250cc 57-63 ft-lbs (77-85 N•m)
500cc 71-79 ft-lbs (96-107 N•m)
FIG.33
ti10587a
22
24
25
26
27

Parts
18 312375H
Parts
60cc Displacement Pumps
KEY:
Torque to 85-95 ft-lb (115-128 N•m)
Torque to 28-44 ft-lb (38-59 N•m)
Torque to 213-287 ft-lb (288-387 N•m)
Torque to 43-47 ft-lb (58-63 N•m)
Torque to 34-38 ft-lb (45-51 N•m)
Torque to 26-30 ft-lb (35-41 N•m)
Torque to 90-130 ft-lb (122-173 N•m)
Torque to 44-62 ft-lb (60-84 N•m)
Apply thread sealant
P: Throat Packings
S: Intake Valve Packings
T: Piston Check Valve Assembly (includes 23)
Lubricate all soft seal components before
installation.
1
2
3
4
5
6
7
8
9
21
22
24
23
18
38
33
32
20
4
2
39 40
18
17
29
44
28
31
30
13
14
10
61
16
11
12
9
1
P (5-8)
S (34-37)
42
41
P (5-7)
9
4
5
1
2
3
6
2
8
7
9
9
9
2
9
3
49,
52
43
T
25
26
27
19
15
TI12644B
R (32-37)
48,
49
47, 49
3
3

Parts
312375H 19
100cc Displacement Pumps
KEY:
Torque to 85-95 ft-lb (115-128 N•m)
Torque to 28-44 ft-lb (38-59 N•m)
Torque to 213-287 ft-lb (288-387 N•m)
Torque to 43-47 ft-lb (58-63 N•m)
Torque to 34-38 ft-lb (45-51 N•m)
Torque to 26-30 ft-lb (35-41 N•m)
Torque to 90-130 ft-lb (122-173 N•m)
Torque to 44-62 ft-lb (60-84 N•m)
Apply thread sealant
L: Piston Check Valve Assembly (includes 23)
M: Throat Packings
N: Intake Valve Packings
Lubricate all soft seal components before
installation.
1
2
3
4
5
6
7
8
9
TI10862A
21
22
24
23
18
38
33
32
20
4
2
39 40
18
17
29
44
28
31
30
13
14
10
15
61
11
12
9
1
P (5-8)
42
41
P (5-7)
9
4
5
1
2
3
6
2
8
7
9
9
9
2
9
3
49,
52
43
48,
25
26
27
19
51
L
16
49
47, 49
R (32-37) S (34-37)

Parts
20 312375H
60cc and 100cc Displacement Pumps
★CS Models only.
❄SS Models only.
✠CM Models only.
✖SM Models only.
‡ See 60cc and 100cc Kits table on page 21.
▲Replacement Danger and Warning labels, tags, and
cards are available at no cost.
Ref. Part Description Qty.
1★❄257530 KIT, rod, displacement; chrome
(includes 18, 21); L060 only
1
✠✖257531 KIT, rod, displacement; MaxLife
(includes 18, 21); L060 only
1
★❄255569 KIT, rod, displacement; chrome
(includes 18, 21); L100 only
1
✠✖255570 KIT, rod, displacement; MaxLife
(includes 18, 21); L100 only
1
2★✠255604 KIT, housing, outlet, (150 mm)
(includes 18, 21, 44, 47, 49, 52)
1
❄✖257561 KIT, housing, outlet, (150 mm);
sst (includes 18, 21, 44, 47, 49,
52)
3★✠15K751 CARTRIDGE 1
❄✖15U603 CARTRIDGE; sst 1
4‡ 104361 O-RING, cartridge 1
5‡ ★❄ GLAND, packing female; see
60cc and 100cc Packing Kits
1
✠✖ GLAND, packing, u-cup; see
60cc and 100cc Packing Kits
6‡ ★❄ V-PACKING; UHMWPE; see
60cc and 100cc Packing Kits
3
✠✖ SPACER, u-cup; see
60cc and 100cc Packing Kits
1
7‡ ★❄ V-PACKING; PTFE; see 60cc
and 100cc Packing Kits
2
✠✖ SPACER, u-cup; acetal; see
60cc and 100cc Packing Kits
1
8‡ ★❄ GLAND, packing male; see
60cc and 100cc Packing Kits
1
9‡ ★❄ NUT, packing, open wet cup 1
✠✖ CUP, wet, enclosed 1
10‡ ✠✖ COVER, wet cup 1
11‡ ✠✖161446 O-RING
12‡ ✠✖ SIGHTGLASS 1
13‡ ✠✖ COVER, oil hole 1
14‡ ✠✖ SCREW, socket hd cap; M5 x 12 3
15‡ ✠✖ WIPER, wet cup cover 1
16‡ ✠✖ SEAL, wet cup cover 1
17‡ ★❄ CYLINDER, pump 1
✠✖ CYLINDER, pump, MaxLife
18‡ 109205 O-RING 2
19 ★✠184044 HOUSING, valve 1
❄✖15U586 HOUSING, valve; sst 1
20‡ SEAT, intake 1
21‡ SEAL 1
22 ★✠255610 KIT, intake housing, cylinder
(includes 21, 48, 49)
1
❄✖257560 KIT, intake housing, cylinder; sst
(includes 21, 48, 49)
1
23‡ SEAT, piston 1
24‡ ★❄ ROD, piston 1
✠✖ ROD, piston; MaxLife
25 ★✠184122 GUIDE, piston 1
❄✖15U598 GUIDE, piston; sst 1
26 ★✠184051 PISTON 1
❄✖15U597 PISTON; sst 1
27 ★✠184121 NUT, shovel 1
❄✖15U596 NUT, shovel; sst 1
28 ★✠15M518 GUIDE, piston 1
❄✖257667 GUIDE, piston; sst 1
29‡ BEARING, guide 1
30‡ SEAT, piston 1
31‡ SEAL, piston 1
32‡ VALVE, intake 1
33‡ NUT, packing 1
34‡ GLAND, male, piston; see
60cc and 100cc Packing Kits
1
35‡ PACKING, UHMWPE; see
60cc and 100cc Packing Kits
2
36‡ ✠✖ PACKING; leather; see
60cc and 100cc Packing Kits
2
★❄ PACKING, PTFE; see
60cc and 100cc Packing Kits
2
37‡ GLAND, female, piston; see
60cc and 100cc Packing Kits
1
38‡ SEAL, valve 1
39‡ HOUSING, valve 1
40‡ PLUG, valve 1
41‡ HANDLE, outlet bleed 1
42‡ CLIP, outlet bleed 1
43 ★✠184037 FITTING, outlet 1
❄✖15U592 FITTING, outlet; sst 1
44‡ 110135 O-RING 1
47▲184090 LABEL, warning 1
48▲184151 LABEL, warning 1
49 100508 SCREW, drive 7
50▲172479 TAG, instruction, safety 1
51‡ ✠✖ PLUG, pipe 1
52‡ 197561 PLATE, identification 1
61‡ ✠✖ RING, retaining 1
Ref. Part Description Qty.
