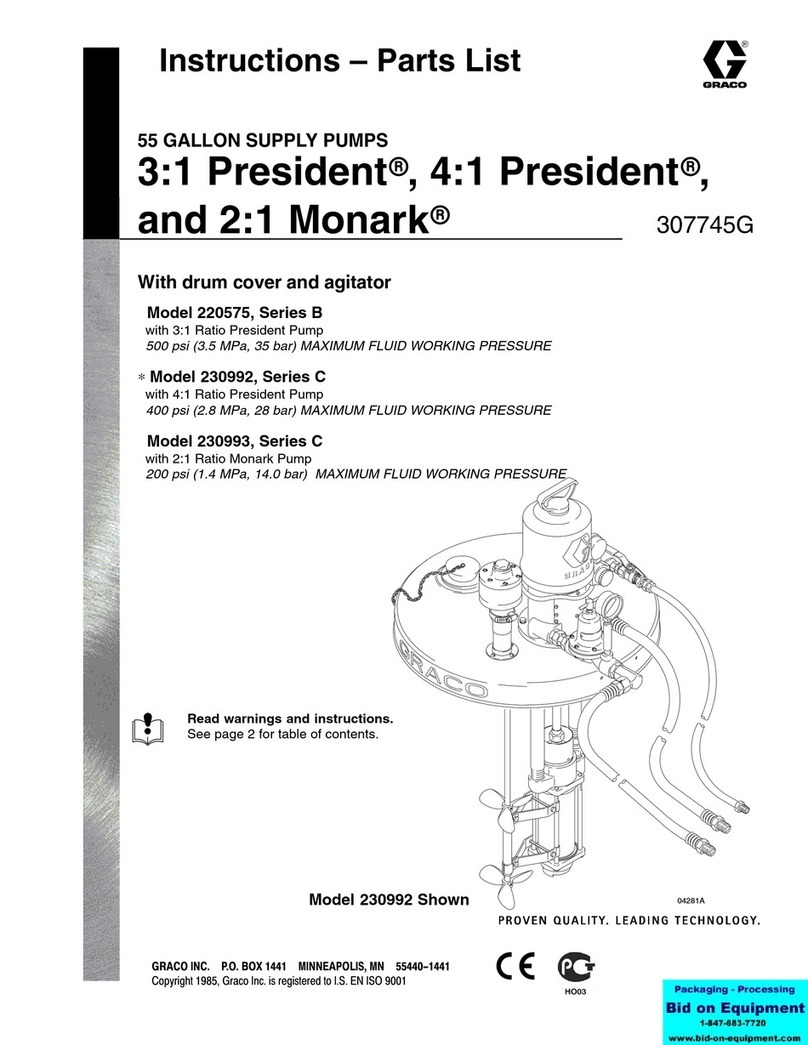

Instructions – Parts List
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
Copyright 1985, Graco Inc. is registered to I.S. EN ISO 9001
55 GALLON SUPPLY PUMPS
3:1 Presidentr, 4:1 Presidentr,
and 2:1 Monarkr
With drum cover and agitator
Model 220575, Series B
with 3:1 Ratio President Pump
500 psi (3.5 MPa, 35 bar) MAXIMUM FLUID WORKING PRESSURE
∗Model 230992, Series C
with 4:1 Ratio President Pump
400 psi (2.8 MPa, 28 bar) MAXIMUM FLUID WORKING PRESSURE
Model 230993, Series C
with 2:1 Ratio Monark Pump
200 psi (1.4 MPa, 14.0 bar) MAXIMUM FLUID WORKING PRESSURE
307745H
Read warnings and instructions.
See page 2 for table of contents.
04281A
Model 230992 Shown
Parts

2 307745
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup
Grounding 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the Unit 5. . . . . . . . . . . . . . . . . . . . . . . . . .
System Accessories 5. . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Unit and Accessories 6. . . . . . . . . . .
Operation
Pressure Relief Procedure 7. . . . . . . . . . . . . . . . . . . .
Flushing 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Unit 8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting and Adjusting the Pump 8. . . . . . . . . . . . . . .
Shutdown and Care of the Pump 9. . . . . . . . . . . . . .
Parts Drawing 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts List 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Information 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious inju-
ry or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.
DThis equipment is for professional use only.
DRead all instruction manuals, tags, and labels before operating the equipment.
DUse the equipment only for its intended purpose. If you are not sure, call your Graco distributor.
DDo not alter or modify this equipment. Use only genuine Graco parts and accessories.
DCheck equipment daily. Repair or replace worn or damaged parts immediately.
DDo not exceed the maximum working pressure of the lowest rated system component. See Tech-
nical Data on page 15 for the maximum working pressure of this equipment.
DUse fluids and solvents that are compatible with the equipment wetted parts. Refer to the Techni-
cal Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.
DDo not use hoses to pull equipment.
DRoute hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose
Graco hoses to temperatures above 180_F (82_C) or below –40_F (–40_C).
DWear hearing protection when operating this equipment.
DDo not lift pressurized equipment.
DComply with all applicable local, state, and national fire, electrical, and safety regulations.

307745 3
WARNING
MOVING PARTS HAZARD
DThe air motor piston can pinch or amputate your fingers.
DThe rotating blades of the agitator can pinch or amputate your fingers or other body parts and can
cause splashing in the eyes or on the skin.
DAlways shut off the agitator and disconnect the air line before adjusting the angle of the agitator,
removing the agitator from the drum, or checking or repairing any part of the agitator.
DKeep clear of all moving parts when starting or operating the equipment.
DBefore servicing the equipment, follow the Pressure Relief Procedure on page 7 to prevent the
equipment from starting unexpectedly.

4 307745
WARNING
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and
result in a fire or explosion and serious injury.
DGround the equipment and the object being sprayed. Refer to Grounding on page 5.
DIf there is any static sparking or you feel an electric shock while using this equipment, stop spray-
ing immediately. Do not use the equipment until you identify and correct the problem.
DProvide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
being sprayed.
DKeep the spray area free of debris, including solvent, rags, and gasoline.
DElectrically disconnect all equipment in the spray area.
DExtinguish all open flames or pilot lights in the spray area.
DDo not smoke in the spray area.
DDo not turn on or off any light switches in the spray area while operating or if fumes are present.
DDo not operate a gasoline engine in the spray area.
TOXIC FLUID HAZARD
Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,
inhaled, or swallowed.
DKnow the specific hazards of the fluid you are using.
DStore hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
DAlways wear protective eyewear, gloves, clothing, and respirator as recommended by the fluid and
solvent manufacturer.

307745 5
Setup
NOTES:
DReference numbers and letters in parentheses in
the text refer to the callouts in the figures and the
parts drawing.
DAccessories are available from your Graco repre-
sentative. If you supply your own accessories, be
sure they are adequately sized and pressure-rated
to meet the system’s requirements.
Grounding
FIRE AND EXPLOSION HAZARD
Before operating the pump, ground the
system as explained below. Also read
the section FIRE AND EXPLOSION
HAZARD on page 4.
WARNING
Proper grounding is an essential part of maintaining a
safe system.
To reduce the risk of static sparking, the mounting
cover and all electrically conductive objects or devices
in the spray area must be properly grounded. Check
your local electrical code for detailed grounding
instructions for your area and type of equipment.
Agitator and drum cover: Connect one end of the
ground wire (Y) to the ground connector (X) on the rim
of the drum cover. See Fig. 1. Connect the other end
of the ground wire to a true earth ground. See the
pump instruction manual (307986 for 230992, 307985
for model 230993, or 308793 for model 220575) for
instructions on grounding the pump.
Y
Fig. 1
X
Air and fluid hoses: Use only electrically conductive
hoses with 500 ft. (150 m) maximum combined hose
length to ensure grounding continuity.
Air compressor: Follow manufacturer’s recommenda-
tions.
Spray gun or dispensing valve: Ground through con-
nection to a properly grounded fluid hose and pump.
Object being sprayed: Follow your local code.
Fluid supply container: Follow your local code.
Solvent pails used when flushing: Follow your local
code. Use only metal pails, which are conductive,
placed on a grounded surface. Do not place the pail
on a nonconductive surface, such as paper or card-
board, which interrupts the grounding continuity.
To maintain proper grounding continuity when flushing
or relieving pressure, always hold the metal part of the
spray gun firmly to the side of a grounded metal pail,
then trigger the gun.
Positioning the Unit
Select a convenient location for the unit. The air
valves for the pump (37) and agitator (5) must be fully
accessible.
System Accessories
A bleed-type master air valve (N) and a fluid drain
valve (K) are required in your system. These
accessories help reduce the risk of serious injury,
including splashing of fluid in the eyes or on the
skin, and injury from moving parts if you are adjust-
ing or repairing the pump or agitator.
The bleed-type master air valve relieves air
trapped between this valve and the pump after the
air is shut off. Trapped air can cause the pump to
cycle unexpectedly. Locate the valve close to the
pump. A red–handled bleed–type ball valve is
supplied to relieve air trapped in the air motor.
The fluid drain valve assists in relieving fluid pres-
sure in the displacement pump, hose, and gun.
Triggering the gun to relieve pressure may not be
sufficient. Order Part No. 210071.
WARNING

6 307745
Setup
The installation shown in Fig. 2 is only a guide for selecting and installing system components and accessories.
Contact your Graco representative for assistance in designing a system to suit your particular needs.
Connecting the Unit and Accessories
DGround the unit as described in Grounding on
page 5.
DThe main air supply must include a bleed-type
master air valve (N) for shutting off air pressure to
the unit (supplied with Model 230992).
DConnect a grounded air supply hose to the bleed
type pump air valve (N).
DThe fluid line must include a fluid drain valve (K),
which helps relieve fluid pressure in the hose and
gun.
DYou should install an air line filter (J) to remove dirt
and moisture from the air supply.
DDownstream from the air filter, you should install an
air line lubricator (H) for automatic air motor lubrica-
tion.
KEY
AAir Filter/Regulator to Gun
BFluid Pressure Regulator
CFluid Shutoff Valve
DFluid Filter
ESurge Tank
FBleed–type Master Air Valve
GPump Ground Wire
HAir Line Lubricator
JAir Filter to Pump
KDrain Valve
LAir Spray Circulating Gun
MBack Pressure Valve
(same as 203 except customer supplied)
NBleed–type Pump Air Valve
YDrum Cover/Agitator Ground Wire
3Agitator
201 Air Supply Hose
203 Back Pressure Valve
204 Air Regulator
206a Return Fluid Hose
206b Supply Fluid Hose
D
Fig. 2 04283A
201
A
E
B
C
FG
HK
LM
J
MAIN AIR SUPPLY LINE
FLUID SUPPLY LINE
SECONDARY FLUID RETURN
MAIN FLUID RETURN
203
204 206a
206b
3
N
Y

307745 7
Operation
Pressure Relief Procedure
WARNING
PRESSURIZED EQUIPMENT HAZARD
The system pressure must be manually relieved to
prevent the system from starting or spraying acci-
dentally. To reduce the risk of an injury from acci-
dental spray from the gun, splashing fluid, or
moving parts, follow the Pressure Relief Proce-
dure whenever you:
Dare instructed to relieve the pressure,
Dstop spraying,
Dcheck or service any of the system equipment,
Dor install or clean the spray nozzle.
1. Lock the gun trigger safety.
2. Shut off the air supply to the pump.
3. Close the bleed-type master air valve (required in
your system). On Model 230992, this is the red–
handled ball valve, assembled next to the air
regulator.
4. Unlock the gun trigger safety.
5. Hold a metal part of the gun firmly to the side of a
grounded metal pail, and trigger the gun to relieve
pressure.
6. Lock the gun trigger safety.
7. Open the drain valve (required in your system),
and have a container ready to catch the drainage.
8. Leave the drain valve open until you are ready to
spray again.
If you suspect that the spray tip or hose is completely
clogged, or that pressure has not been fully relieved
after following the steps above, very slowly loosen the
tip guard retaining nut or hose end coupling and relieve
the pressure gradually. Then loosen it completely.
Then clear the tip or hose.
Flushing
FIRE AND EXPLOSION HAZARD
Before flushing, read the section FIRE
AND EXPLOSION HAZARD on page
4. Be sure the entire system and
flushing pails are properly grounded.
Refer to Grounding on page 5.
WARNING
Flush the pump before first use. The pump is
tested with lightweight oil, which is left in to protect the
pump parts. If the fluid you are using may be contami-
nated by the oil, flush it out with a compatible solvent.
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure at left.
To clean any settled particles out of the system, flush
the entire system at least once each 90 days or less. If
possible, circulate the solvent and leave it in the lines
for two days, such as over the weekend, to help loosen
any dried paint.
1. Relieve the pressure.
2. Shutdown the system as explained in Shutdown
and Care of the Pump on page 9.
3. Start the pump and operate it at about 30 cycles
per minute.
4. Lubricate the agitator, if you haven’t already done
so, and then close its air valve to stop agitation.
WARNING
Failure to shut off the agitator before raising the
pump assembly may result in serious injury from
splashing paint in the eyes or contact with the
blades of the agitator.
5. Raise the pump out of the paint while it is still
running and let it run itself dry to force the paint
back into the drum. Shut off the pump.
CAUTION
Never leave water or water-based fluid in the pump
overnight. Flush with a compatible solvent to protect
the parts from corrosion.
6. Remove the paint drum and place a 55 gallon
drum, containing enough solvent to thoroughly fill
and flush the system, under the pump. Lower the
pump.
7. Start the pump again and allow the solvent to
circulate for at least one hour.

8 307745
Operation
8. Shut off the air to the pump, open the bleed–type
master air valve, and open the drain valve (K).
Leave the solvent in the system overnight or, if
possible, all weekend.
9. Start the pump and circulate it again for 30 min-
utes. Raise the pump out of the solvent and let it
dry to force out the solvent. Drain solvent from all
outlet loops and filters.
10. Place the paint supply drum under the pump,
agitate the paint, install the gun and hoses.
11. Reset the air and fluid pressure regulators to
complete the system flushing.
Adjusting the Unit
Install supply drum under cover/pump. Make sure that
the cover is supported by the drum.
Shortened or recycled drums may cause the pump
or agitator to bottom out in the drum, causing
damage. Contact your fluid supplier to order a
standard size drum.
CAUTION
1. Unscrew the filter bowl and remove the filter
screen. Replace the bowl. Flush the unit until
clear solvent comes from the gun, then reinstall
the filter screen.
2. Before operation, ensure that all fasteners and
tube connections are tightened securely.
Starting and Adjusting the Pump
1. Close the air regulator (204).
2. Start the agitator (3). Agitate the paint just fast
enough to keep all paint particles suspended.
Over–agitating causes air bubbles in the paint
which can cause poor gun performance and poor
surface finish.
3. Open the red–handled ball valve. Open the pump’s
bleed-type master air valve (N).
4. Slowly open the air regulator until the pump starts.
Adjust it until the pump cycles slowly – about 50
cycles per minute.
5. When the paint returns through the return line in a
steady stream, turn on the air to one gun, open
both fluid shutoff valves (C) near the gun, and
adjust the fluid regulator (B). See the manuals
supplied with these components for pressure
range and adjustment . Repeat for all gun stations.
6. Paint line pressure is controlled by the back pres-
sure regulator (203). This regulator restricts flow of
paint in the line so there is sufficient paint pressure
at all gun stations. Turn the regulator handle
clockwise to increase and counter–clockwise
to decrease pressure.
Adjust the regulator so there is about 10 psi
(0.6 bar) more fluid pressure at the regulator
than is required at the last gun in the line.
NOTE: As you increase fluid line pressure, you must
also increase air pressure to the pump, so the pump
can handle the heavier load. However, never increase
the pressure so much that you exceed the maximum
working pressure of any component in the system.
7. As you start to spray, adjust the air and fluid
pressures to the gun to obtain the best results.
CAUTION
Do not allow the pump to run dry. It will quickly
accelerate to a high speed, causing damage. If
your pump is running too fast, stop it immediately
and check the fluid supply. If the container is
empty and air has been pumped into the lines, refill
the container and prime the pump and the lines, or
flush and leave it filled with a compatible solvent.
Eliminate all air from the fluid system.
COMPONENT RUPTURE HAZARD
To reduce the risk of overpressurizing
your system, which could cause compo-
nent rupture and serious injury, never
exceed the specified Maximum Incoming Air Pres-
sure to the pump. (see Technical Data on
page 15.)
WARNING

307745 9
Operation
Shutdown and Care of the Pump
WARNING
To reduce the risk of serious injury whenever you
are instructed to relieve pressure, always follow the
Pressure Relief Procedure on page 7.
Never allow paint to dry in the pump and lines.
To shutdown the system
1. Relieve the pressure. Stop the agitator, and
lubricate it.
2. If using a Graco fluid pressure regulator at the
gun, reverse its regulating key and thread it into
the regulator cap as far as it will go.
3. Loosen the spray gun air cap about three turns,
hold a rag over the front of the air cap and fully
trigger the gun. This forces paint in the gun, hose
and regulator back into the circulating line. Close
the fluid shutoff valves (C) at that gun station,
Repeat for the other gun stations.
4. Open the bleed–type master air valve (N), and the
pump air regulator (204) to restart the pump.
Circulate the paint to remove all trapped air before
shutting down.
5. Disconnect the gun’s fluid hose from the gun and
the fluid regulator. Plug the regulator outlet. Blow
compressed air and compatible solvent through
the hose to clean it. Clean the gun according to the
instructions supplied with it. Each month remove
and clean the fluid regulator.
6. If you are not using an air line lubricator, manually
lubricate the motor at least once a day.
7. Circulate the fluid in the lines often enough during
the shutdown to prevent the paint from drying.
NOTE: To drain the circulating lines and flush the
system, see Flushing on page 7.

10 307745
Parts Drawing
c
Fig. 3
1 or 5
2
3
6
(MONARK PUMP SHOWN)
10
9
8
11
Model 230993, Series B
2:1 Ratio Monark Carbon Steel
55 Gallon Drum System
Includes items 2 to 6, and 11
Model 230992, Series B
4:1 Ratio President Carbon Steel
55 Gallon Drum System
Includes items 1 to 4, and 6 to 12
7
12
