Graco LubePro H1900 User manual

Instructions
H1900 LubePro™
Oil Pump 3A3169E
EN
For pumping non-corrosive and non-abrasive lubricants only. For professional use only.
Not approved for use in explosive atmospheres or hazardous locations.
Model No.
24Y498 - 19:1 Oil pump without Low Level
24Y499 - 19:1 Oil pump with Low Level
25Y498- 19:1 Oil pump without Low Level, includes BSPP adapter
25Y499 - 19:1 Oil pump with Low Level, includes BSPP adapter
80 psi (0.55 MPa, 5.5 bar) Maximum Oil Input Pressure
3500 psi (24 MPa, 241 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.

Warnings
23A3169E
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-
tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When
these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific
hazard symbols and warnings not covered in this section may appear throughout the body of this manual where
applicable.
WARNING
WARNINGWARNING
PRESSURIZED EQUIPMENT HAZARD
Over-pressurization can result in equipment rupture and serious injury.
• Do not exceed the maximum oil inlet pressure.
• Do not exceed the maximum air input pressure.
• Use tubing, hoses and other components with pressure ratings equal to or higher than the pump
rating.
SKIN INJECTION HAZARD
High-pressure fluid from dispensing device, hose leaks or ruptured components will pierce skin. This
may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgi-
cal treatment.
• Do not point dispensing device at anyone or at any part of the body
• Do not put your hand over the fluid outlet.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking,
or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses and couplings daily. Replace worn or damaged parts immediately.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in
all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request Safety Data Sheet (SDS) from distributor or retailer.
• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine man-
ufacturer’s replacement parts only.
• Do not alter or modify equipment. Alterations or modifications may void agency approvals and cre-
ate safety hazards.
• Make sure all equipment is rated and approved for the environment in which you are using it.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.

Warnings
3A3169E 3
MOVING PARTS HAZARD
Moving parts can pinch, cut or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing equip-
ment, follow the Pressure Relief Procedure and disconnect all power sources.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read Safety Data Sheet (SDS) to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
Wear appropriate protective equipment when in the work area to help prevent serious injury, includ-
ing eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment includes but is
not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufac-
turer.
WARNING
WARNINGWARNING

Installation
43A3169E
Installation
Typical Installation
Throughout this manual, reference letters used in the instructions, refer to the reference letters used in the Typical
Installation illustration shown in FIG. 1.
FIG. 1: Typical Installation
J
B2
B1
F
B3
C
DH
KG
L
A
M
E
N
R
P
S
T
W
U
AA
V
Y
CC
EE
DD
UU
UU
UU
BB

Installation
3A3169E 5
Typical Installation Key:
A Main air supply
B Filter/Regulator/Lubricator Assembly
B1 - Air Filter
B2 - Air Regulator
B3 - Air Lubricator
C Air solenoid valve (4-way)
D Pump module
E Pump outlet
F Bleed-type master air valve (required)
G High pressure lubricant supply lines (user supplied)
HInjector
J Lubricator controller
K Pump reservoir
L Pump reservoir cover
M Ground
N Pump outlet check body
P Pump air inlet - forward stroke
R Pump air inlet - return stroke
S Feeder lines
TLowlevel
U Pressure reducing valve (required in systems over 80 psi
(0.55 MPa, 5.5 bar)
V Supply line shut-off valve (required)
WDrum
Y Pressure gauge
AA Bung adapter
BB Cock valve
CC Oil input supply line
DD Oil input supply pump/system
EE Drain hose
UU Air supply lines
Mounting
Install the pump in a location that will adequately sup-
port the weight of pump when filled with lubricant and
also provides easy operator access to the pump air con-
trols. Pump must be mounted in a vertical position with
the reservoir up.
See Technical Data, page 31 for pump weight informa-
tion and the Dimensions and Mounting layout, page 30.

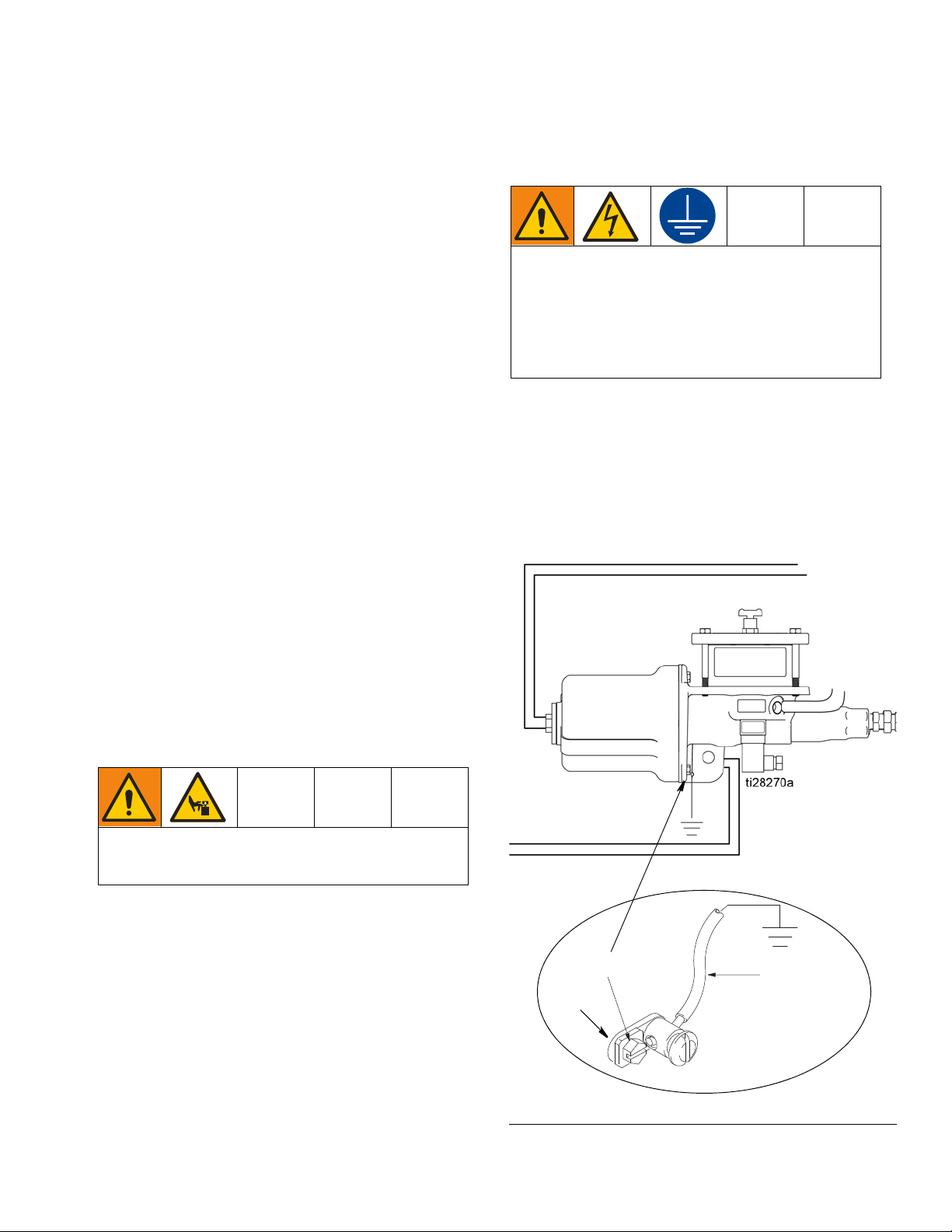

Grounding
To ground the pump: Remove the ground screw (GS)
located on the back of the pump base and insert it
through the eye of the ring terminal (RT) at end of
ground wire (GW). Fasten the ground screw (GS) back
onto the pump and tighten securely. Connect the other
end of the ground wire to a true earth ground. See FIG.
2.
Mount pump securely so it cannot move around
during operation. Failure to do so could result in per-
sonal injury and/or equipment damage.
Grounding is necessary when voltages above 30
VAC or 42 VDC are used for the low level switch or
for an air valve attached to the pump. Improper
grounding can cause electric shock. Grounding
reduces the risk of electric shock by providing an
escape wire for the electric current in the event of
malfunction or breakdown.
FIG. 2
RT
GW
GS

Installation
63A3169E
Low Level Models Only
DIN Connector
Connection is made to PINS 1 and 3 of the DIN Field
Wireable Connector. See FIG. 3. See Technical Data,
page 31 for electrical ratings.
Recommended Protection
DC Voltage - A 1N4004 diode (or equivalent) connected
cathode-to-positive, shown in FIG. 4, is recommended.
AC Voltage - A resistor and capacitor (high impedance
60 hertz) connected in parallel with the switch, as shown
in FIG. 5, is recommended.
Switch Ratings
Air and Fluid Line Accessories
Install the air line accessories in the order shown in FIG.
1, page 4.
Bleed-type master air valve (F): required in your sys-
tem to relieve air trapped between it and the pump.
Air line filter (B1): removes harmful dirt and moisture
from compressed air supply.
Pump air regulator (B2): to control pump speed and
outlet pressure. Locate it close to the pump.
FIG. 3
NOTICE
Connecting the low level switch directly to the load
may weld the contacts or erode the contact surface,
resulting in a shorter switch life.
FIG. 4
FIG. 5
Volts Amps
30 0.3
120 0.13
240 0.06
Trapped air can cause the pump to cycle unexpect-
edly, which could result in serious injury from splash-
ing or moving parts.

Installation
3A3169E 7
1. Install a bleed-type master air valve (F) to relieve
air trapped between it and the pump. Install the
valve in a location that is easily accessible from the
pump and located downstream of the air regulator.
2. Install an air line filter (B1) to remove harmful dirt
and contaminants from the compressed air supply
3. Install the air regulator (B2) to control pressure.
4. Install an air line lubricator (B3) to lubricate the air
cylinder.
5. Install the (4-way) air solenoid valve (C) for control
of the pump forward and return strokes.
To use the air regulator reading to determine the fluid
output pressure, multiply the ratio of the pump (19:1) by
the air pressure shown on the regulator gauge or see
Table 1: Lubricant Output - PSI or Table 2: Lubricant
Output - MPa (bar), provided on page 12.
Limit the air to the pump so that no air line or fluid line
component or accessory is over pressurized.
Air Supply Lines (UU)
1. Install two air supply lines (UU) between the air
solenoid valve outlets (C) and the pump (D) as
shown in the Typical Installation, page 4.
2. Install an air supply line (UU) between the air sole-
noid valve inlet (C) and the Filter/Regulator/Lubrica-
tor Assembly (B) as shown in the Typical
Installation, page 4.
Oil Input Supply System
The oil input supply pump/system (DD) must have a
pressure reducing valve (U).
Oil Input Lines
Shut-off Valve (V): Allows isolation of the LubePro
pump from the incoming oil supply line (CC).
Required on the oil input supply pump/system (DD).
Hoses: Use a minimum 3/8 inch supply line (S).
Pressure Reducing Valve (U): circulates excess oil
pressure back to the tank. Install this valve (U) in the
supply line with a drain hose (EE). Limit supply pres-
sure to a maximum 80 psi (0.55 MPa, 5.5 bar)).
Fluid-filled Pressure Gauge (Y): monitors hydraulic
pressure to the LubePro Single Stroke Pump during
startup.
NOTICE
Do not mount the air accessories directly on the sole-
noid valve air inlet. The air inlet and fittings are not
strong enough to support the accessories and may
break. Provide a bracket on which to mount the
accessories.
The maximum working pressure of each component
in the system may not be the same. To reduce the
risk of over-pressurizing any part of your system,
know the maximum working pressure rating of each
component and its connected components. Never
exceed the maximum working pressure of the lowest
rated components connected to a particular pump.
To reduce the risk of over-pressurizing the LubePro
Single Stroke Pump which could cause a rupture and
serious injury, including fluid injection, an oil input
supply system must have a means to limit the incom-
ing fluid pressure to the LubePro Single Stroke Pump
to a maximum of 80 psi (0.55 MPa, 5.5 bar).

Installation
83A3169E
Starting Pump
1. Make sure the supply line (G) is connected and
there are no open lines for oil to leak out of the
pump outlet (E).
2. Close the oil supply shut-off valve (V).
3. Turn on the oil input supply pump/system (DD).
4. Adjust pressure reducing valve (U) to limit the oil
inlet pressure to 80 psi (0.55 MPa, 5.5 bar).
5. Slowly open the oil supply shut-off valve (V).
6. Remove the trapped air in the pump reservoir (K) by
slowly opening the cock valve (BB) until oil can be
seen coming out after all the air is released as
shown in FIG. 6.
7. Close the cock valve (BB).
Supply Lines
1. If there are multiple pumps on the air line, close the
air regulators (B2) and bleed-type master air
valves (F) to all but one the pumps. If there is only
one pump, open its air regulator and bleed-type
master air valve.
2. Open the master air valve (F).
3. Set the air pressure to each pump at the lowest
pressure needed to get the desired results. See
Recommended Pressure provided in Table 1:
Lubricant Output and Pressure - US or Table 2:
Lubricant Output and Pressure - Metric provided
on page 12.
4. Remove trapped air in the supply line (G) by
removing a plug or opening a fitting on the furthest
end of the supply line. Run the pump until oil comes
out. After oil free of air comes out, close the line.
Feeder Lines (S)
Fill each feeder line (S) with lubricant prior to connect-
ing lines to the injector outlet.
Injectors (H)
For the following instructions, refer to Typical Installa-
tions, FIG. 1, page 4, for the following instructions.
1. Check each injector (H) for proper operation. The
injector stem should move when lubricant is dis-
charged.
2. Adjust the injector output if needed to ensure that
the output volume discharged is sufficient.
FIG. 6
NOTICE
Always use lowest pressure possible to obtain desired
results.
Oil

Installation
3A3169E 9

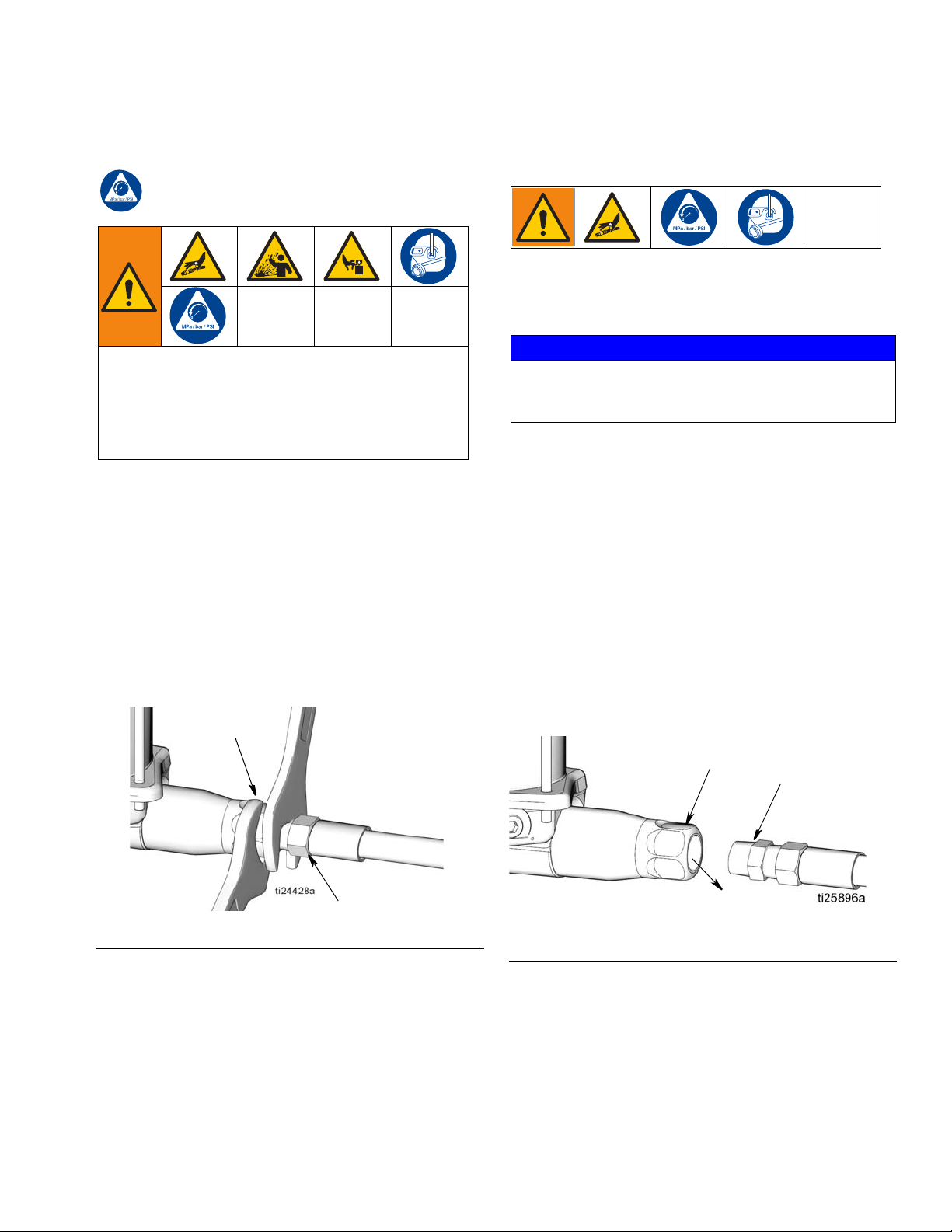

Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
1. Close the bleed-type master air valve (F) (required
in the system).
2. Close the shut-off valve (V) on the oil input sup-
ply pump/system (DD).
3. Relieve pressure in system using two wrenches
working in opposite directions on the pump outlet
(E) and lubrication line fitting (G) to slowly
loosen the fitting until it is loose and no more lubri-
cant or air is leaking out of the fitting (FIG. 7).
Air Lock Procedure
An air lock occurs when a bubble or pocket of air pre-
vents the normal flow of the lubricant.
If there is an air lock, first:
• Check that input supply oil line (CC) is connected
and that the oil flow is continuous to reservoir (K).
• Loosen the cock valve (BB) from the pump reser-
voir cover (L) to bleed out the air.
If the air lock persists:
1. Relieve pressure. See Pressure Relief Procedure,
page 9.
2. Disconnect the lubricant supply line (G) from the
pump outlet (E) (FIG. 8).
3. Open the bleed-type master air valve (F, page 4).
4. Open the shut-off valve (V).
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury from
pressurized fluid, such as skin injection, splashing
fluid and moving parts, follow the Pressure Relief
Procedure when you stop dispensing and before
cleaning, checking, or servicing the equipment.
FIG. 7
E
G
NOTICE
Running the pump dry will cause an air lock. To prevent
an air lock, do not run the pump without lubricant.
Always refill the pump before it is empty.
FIG. 8
E
G
ol

Operation
10 3A3169E
5. Run the pump a few strokes until oil (ol), free of air,
comes out of the pump outlet (E) (FIG. 8).
• It may take up to 20 the pump strokes to expel the
air from the pump and deliver a continuous flow of
oil. This will depend on the viscosity of the lubricant
and temperature.
• Allow a minimum of 5 seconds ON time for the for-
ward stroke and 5 seconds OFF time for the return
stroke.
6. Connect the pump outlet (E) to the lubrication line
(G) (FIG. 9).
Operation
Start Up
1. Verify reservoir is filled with lubricant and system
has been Primed (see Prime System, page 8).
2. Turn on the lubrication controller (J) power switch.
3. Program the lubrication controller to actuate the
solenoid valve (C).
NOTE: See the lubrication controller instruction
manual included with the system for these instruc-
tions.
4. Open air regulators and master air valves.
NOTE: Never allow the pump to run dry of the material
being the pumped.
At the start of a the pump cycle:
a. The air solenoid (C) supplies air to the pump
air inlet (P).
b. On the pump forward stroke, lubricant is dis-
pensed to all the injectors.
c. The pump is supplied with air through the air
inlet (R).
d. The pump makes a return stroke, venting the
system pressure back to the pump and resetting
all of the injector.
FIG. 9
E
G
NOTICE
Running the pump dry will cause an air lock. To prevent
an air lock, do not run the pump without lubricant.
Always refill the pump before it is empty.

Operation
3A3169E 11
Low Level Switch
When the oil reservoir is full, the low level float (llf) sits in
the high, raised position as shown in FIG. 10.
As oil is dispensed, the low level float begins to travel
down. When the oil in the reservoir reaches low level,
the fully traveled down float (shown in FIG. 11) closes
the normally open low level switch and a low level signal
is sent to the lubricator controller (J).
To clear the low level fault/error:
• Check that input supply oil line (CC) is connected
and that the oil flow is continuous to reservoir (K).
• Loosen the cock valve (BB) from the pump reser-
voir cover (L) to bleed out the air.
Shut Down
To shut down the system:
a. Close the bleed-type master air valve (F).
b. Turn off electrical supply to the lubrication con-
troller (J).
c. Close the shut-off valve (V) on the oil input
supply pump/system (DD).
FIG. 10: Low level float in raised position
FIG. 11: Low level float in fully traveled down
position
FIG. 12
llf
llf

Operation
12 3A3169E
Lubrication System Sizing and Calculation Guidelines
Table 1: Lubricant Output and Pressure - US
NOTE: The lubricant output per pump stroke must be less than the amount of lubricant discharged per pump stroke.
Table 2: Lubricant Output and Pressure - Metric
1. Total Injector Volume to Dispense and Charge
a. Add together the total number of injectors in the sys-
tem.
b. From Table 1 or Table 2 above, find your Injector Type
in the first column and the related Injector Volume to
Charge in the third column. Multiply this value by the
total number of injectors determined in Step a
(above).
2. Calculate the volume of lubricant in the Pipeline (G):
a. Use the pipe’s inside diameter (ID) measurement to
calculate the area of the pipe.
b. Measure the length of the pipe (G) only. Do not
include the feeder lines (S) in this calculation.
c. Multiply the area of the pipe (calculated in Step a) by
the length of the pipe (measured in Step b).
3. Calculate line expansion and fluid compression in the pipe
using the 10% Rule.
a. Multiply the volume calculated in Step 2 by 10%.
4. Calculate the Total System Volume required.
a. Add together the total from Step 1 and Step 3 ONLY.
Do NOT include Step 2.
b. The Total System Volume required must be less than
the Pump Lubricant Output / Stroke provided in the
fourth column of Table 1 or Table 2.
c. If the Total System Volume required is greater than
the Pump Lubricant Output / Stroke provided in the
fourth column of Table 1 or Table 2, split the system
into two or more systems.
1 2 3 4 5 6 7
Injector
Type
Max
Injector
Output
cu. in.
Injector
Volume to
Dispense
and Charge
cu. in.
Max Pump
Lubricant
Output /
Stroke
cu. in.
Maximum Pressure Minimum
Pressure Recommended Pressure
Output PSI
Required Air
PSI Output PSI
Required
Air PSI Output PSI
Required Air
PSI
GL-43 0.008 0.016 3.0 1000 53 750 39 850 45
GL42 0.003 0.006
1 2 3 4 5 6 7
Injector
Type
Max
Injector
Output
cc
Injector
Volume to
Dispense
and Charge
cc
Max Pump
Lubricant
Output /
Stroke
cc
Maximum Pressure Minimum
Pressure Recommended Pressure
Output
MPA (bar)
Required Air
MPA (bar)
Output
MPA (bar)
Required Air
MPA (bar)
Output
MPA (bar)
Required Air
MPA (bar)
GL-43 0.131 0.262 49.1 6.9 (68.9) 0.36 (3.6) 5.2 (51.7) 0.26 (2.7) 5.9 (58.6) 0.31 (3.1)
GL42 0.049 0.098

Repair
3A3169E 13
Repair
Seal Replacement
NOTE: For most seal replacement procedures, the
pump should be completely removed from service and
clamped in a vise. If you are only replacing the reservoir
and/or reservoir seals, you do not have to remove the
pump from it’s service location. The following instruc-
tions cover the complete disassembly of the pump. Your
pump repair may not require total pump disassembly.

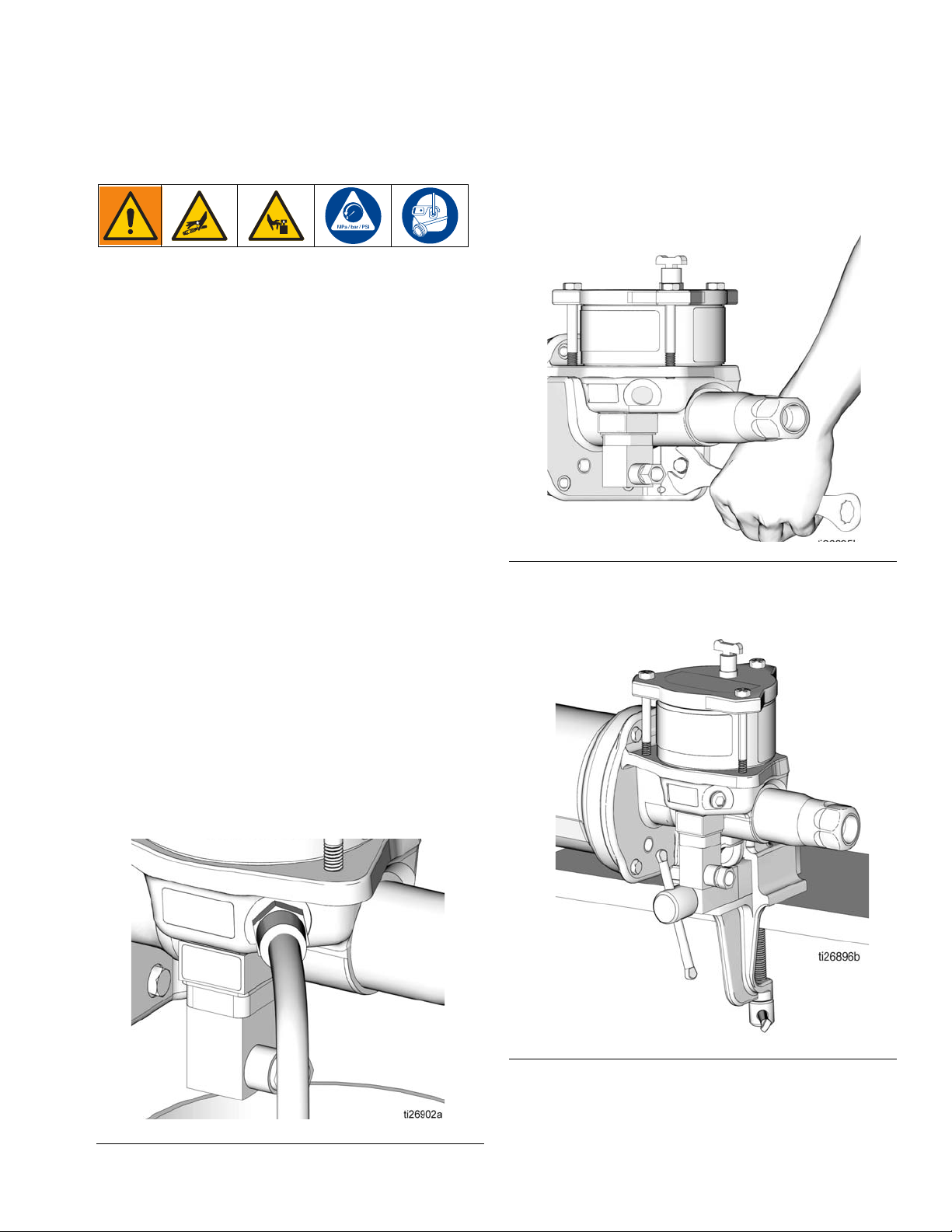

Disassembly
1. Turn off air supply and disconnect air lines to the
pump.
2. Disconnect electrical connections to lubrication con-
troller.
3. Close shut-off valve (V) to turn off oil input supply
pump/system (DD).
4. Relieve pressure (page 9).
5. Disconnect supply line (G) from the pump outlet
(E).
6. Slowly loosen and remove oil input line from the
pump base and drain oil from the pump (FIG. 13).
NOTE: Removing the oil input line slowly will help
prevent splashing while the oil drains from the reser-
voir.
7. Remove mounting bolts (FIG. 14) and remove the
pump from service.
8. Clamp the pump base in a vise as shown in FIG. 15.
Use a soft-jaw vise or place a rag in the vise jaws to
protect the surface of the pump base.
9. Collect drained oil in a pail or waste container. Dis-
pose of oil according to all regulations for proper dis-
posal.
FIG. 13
FIG. 14
FIG. 15

Repair
14 3A3169E

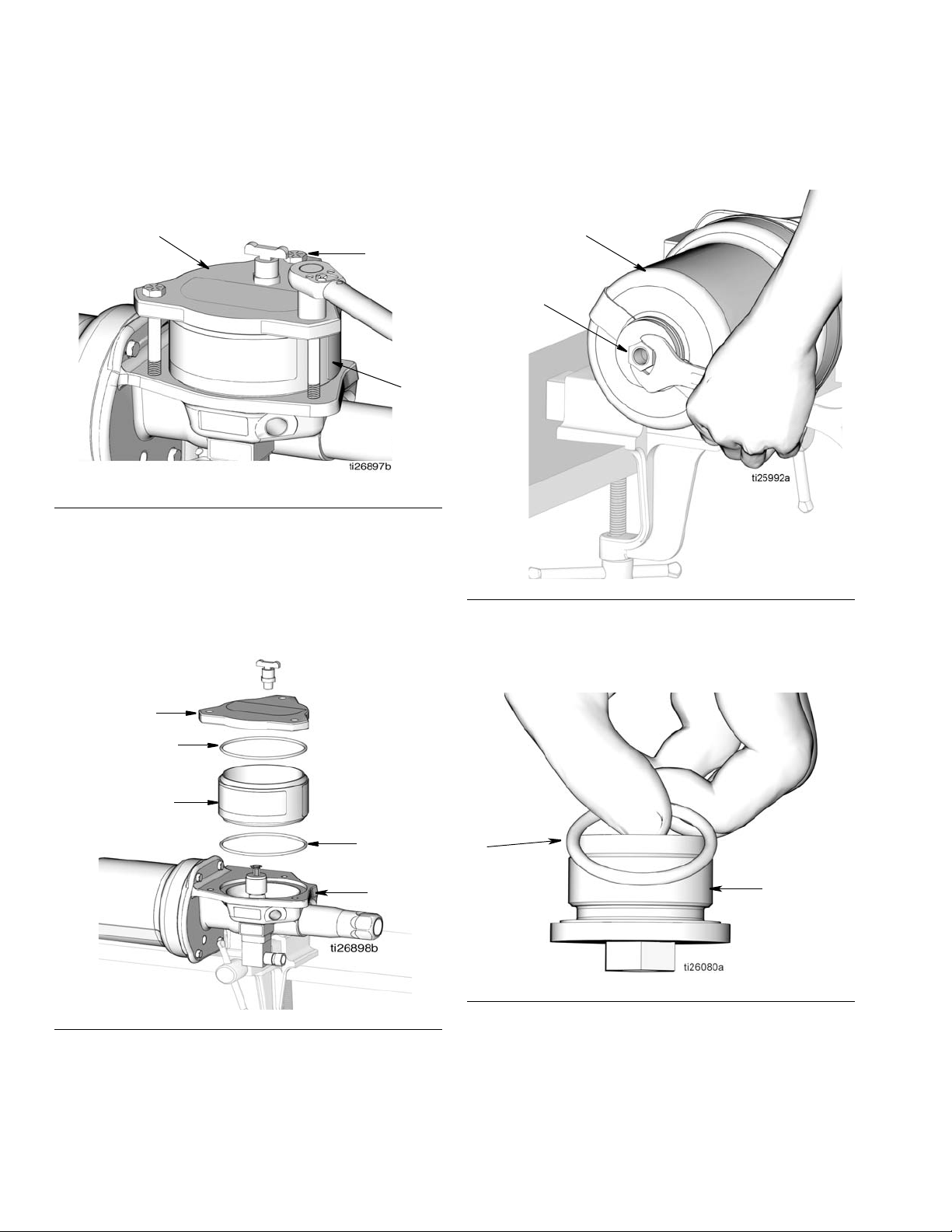

10. Use a wrench to remove tie rods (29). Loosen the
rods in a diagonal pattern, taking care to loosen
each rod gradually until all rods are completely loos-
ened. Remove tie rods (29). See FIG. 16.
11. Remove cover (30) from reservoir (27) (FIG. 16).
12. Remove reservoir (27) from the pump base (1) (FIG.
17). If replacing reservoir o-rings (26), remove
o-rings from reservoir and cover. Dispose of o-rings
according to all regulations for proper disposal.
13. Remove piston stop nut (3) from top of the air cylin-
der (2) (FIG. 18).
14. Remove o-ring (4) from piston stop nut (3). Dispose
of o-ring according to all regulations for proper dis-
posal.
FIG. 16
FIG. 17
29
27
30
27
1
26
26
30
FIG. 18
FIG. 19
2
3
4
3

Repair
3A3169E 15
15. Use a 3/8 inch socket to remove the 4 bolts (33)
holding the air cylinder (2) to the pump base (1)
(FIG. 20). Remove air cylinder from the pump base.
16. Piston Rod (13) and Piston (6)
a. Pull piston rod (13) and piston (6) out of air cyl-
inder (2) (FIG. 22).
b. To separate piston rod (13) and piston (6) use
two wrenches, working in opposite directions.
Secure one open end wrench to flats of piston
rod and the second wrench is used to loosen
the nut (5) as shown in FIG. 22.
NOTE: The open end wrench secured to the
flats of the piston rod is only used to hold the
rod securely, do not rotate this wrench. Moving
this wrench could scratch or damage the sur-
face of the piston and cause fluid leaks during
the pump operation. Only move the wrench
holding the nut (5) to loosen and remove the
nut.
c. Remove o-ring (41) from the piston rod (13)
(FIG. 23).
FIG. 20
FIG. 21
33
2
1
33
13
6
2
FIG. 22
FIG. 23
13
5
6
41
13

Repair
16 3A3169E
d. Remove o-ring (7) from piston (6) (FIG. 24).
e. Discard o-rings (7, 41) and nut (5) according to
all regulations for proper disposal
17. Remove the outlet check valve (15) from the pump
base (1) (FIG. 25). Remove o-ring (4) from outlet
check valve. Dispose of o-ring according to all regu-
lations for proper disposal.
18. Reposition the pump base (1) in the vise as shown
in FIG. 26.
19. Throat Seal Kit
The Throat Seal Kit includes the following parts
(FIG. 27):
• Retaining Ring (9)
• Tapered Spacer (10)
•Seal(11)
• Spacer (12)
• Retaining Ring (51)
• Spacer (12)
•Seal(11)
• Spacer (12)
FIG. 24
FIG. 25
6
7
4
15
1
FIG. 26

Repair
3A3169E 17

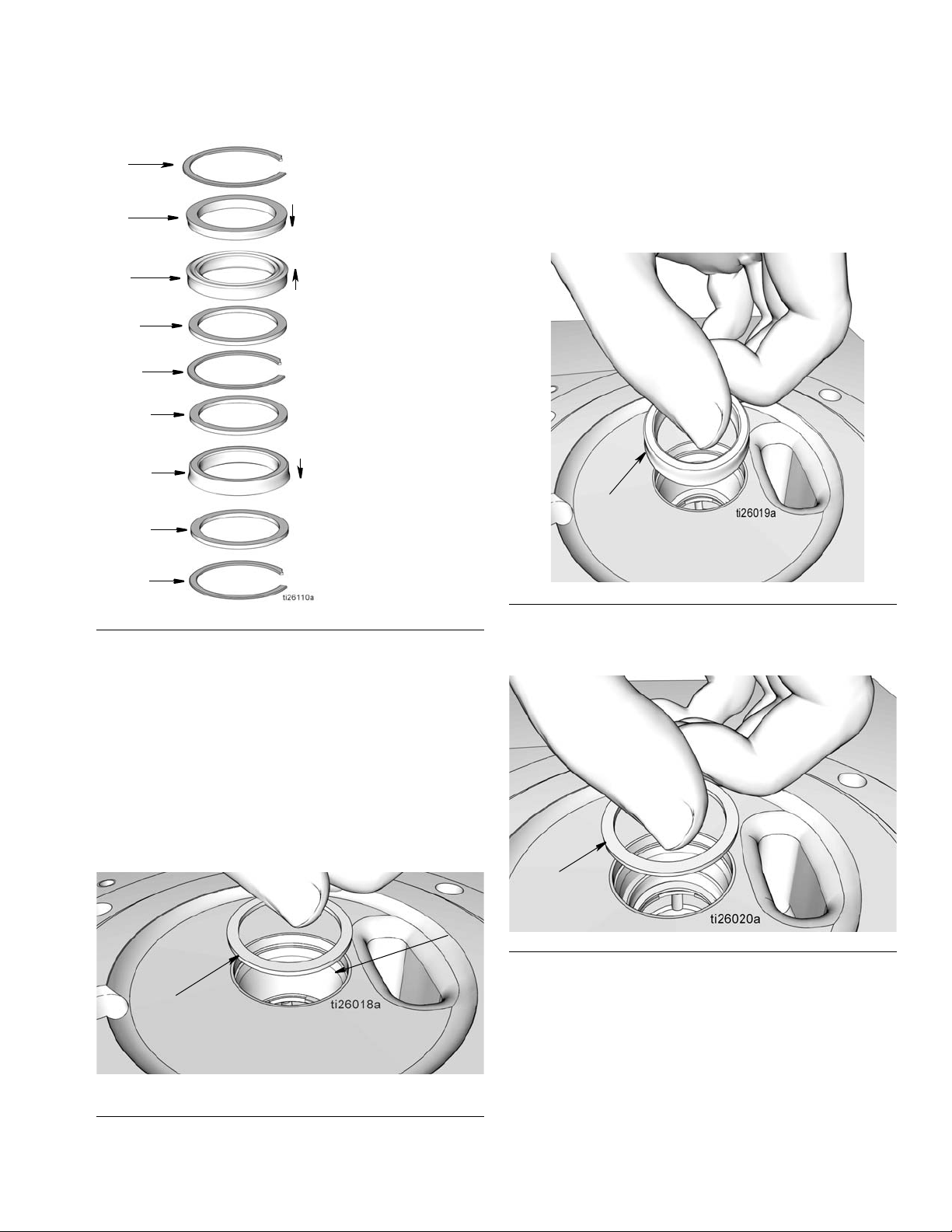

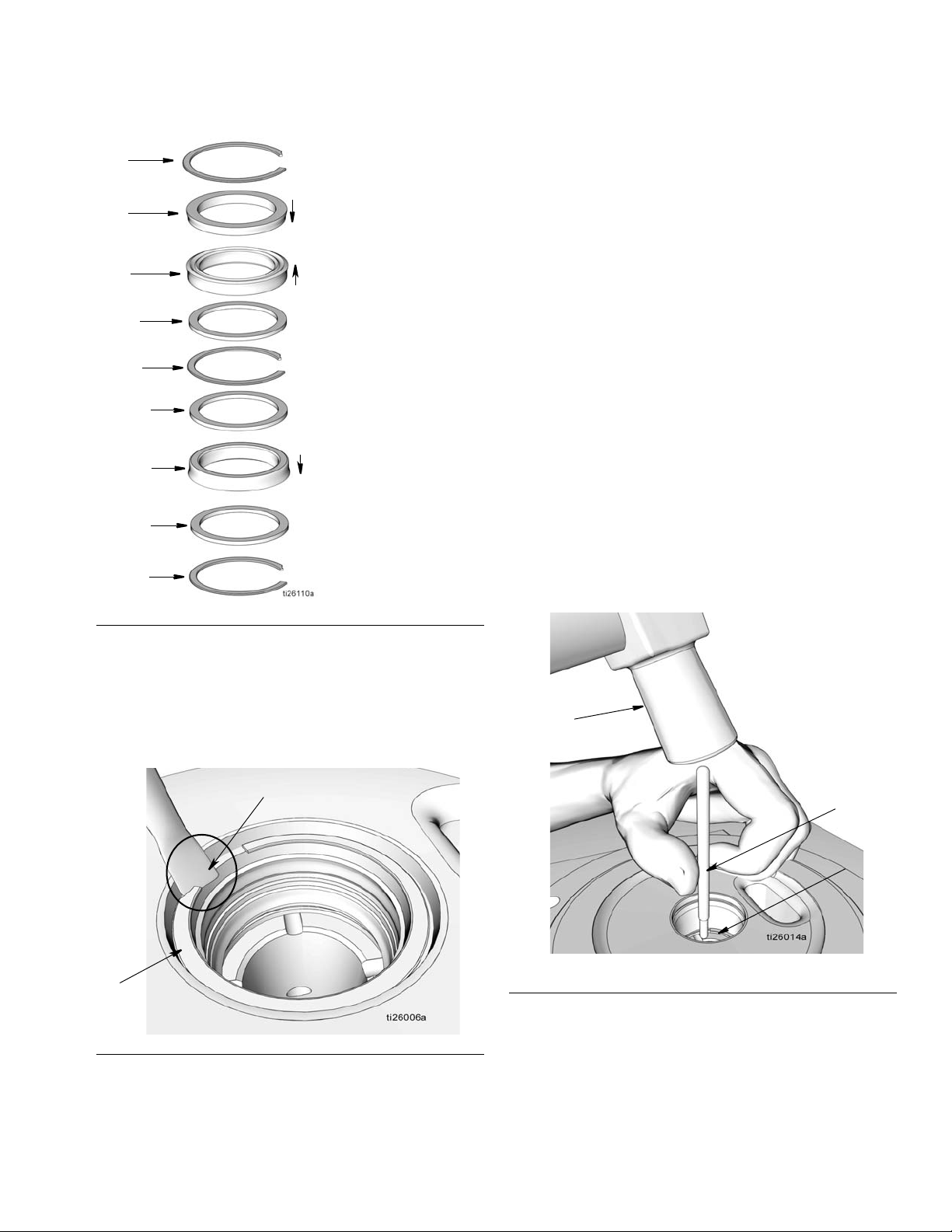

*This part is shown for reference only. It is not included
in the Throat Seal Kit.
a. Slide the blade of a small, flat screw driver
under the tapered edge (te) of retaining ring (9)
and remove the ring as shown in FIG. 28.
b. Remove the tapered spacer (10), seal (11), and
spacer (12).
c. Use the blade of a small, flat screw driver under
the tapered edge (fe) of retaining ring (51) to
remove the ring as shown in FIG. 28 and remove
the retaining ring.
d. Remove spacer (12), seal (11), and spacer (12).
DO NOT REMOVE THE LAST RETAINING
RING (51).
e. Dispose of all parts according to all regulations
for proper disposal.
20. Use a soft brass rod (br) and hammer to gently tap
the pump element sleeve (53) out of the pump base
(1) (FIG. 29).
Use your hand to catch the sleeve while tapping it
out of the pump base to make sure it does not drop
on the ground or table which could damage the
sleeve.
NOTE: Be careful not to scratch or damage the sleeve
and/or the pump base housing (1) when tapping the
sleeve out of the pump base or when removing the
o-ring. A scratched or damaged sleeve and or pump
base housing (1) will result in fluid leaking during the
pump operation and will prevent the pump from operat-
ing correctly.
FIG. 27
FIG. 28
9
10 (install tapered side down)
11 (install lips up)
12
51
12
11
12
51*
(install lips down)
(do not remove from pump)
9
(te)
FIG. 29
(ha)
53
(br)

Repair
18 3A3169E

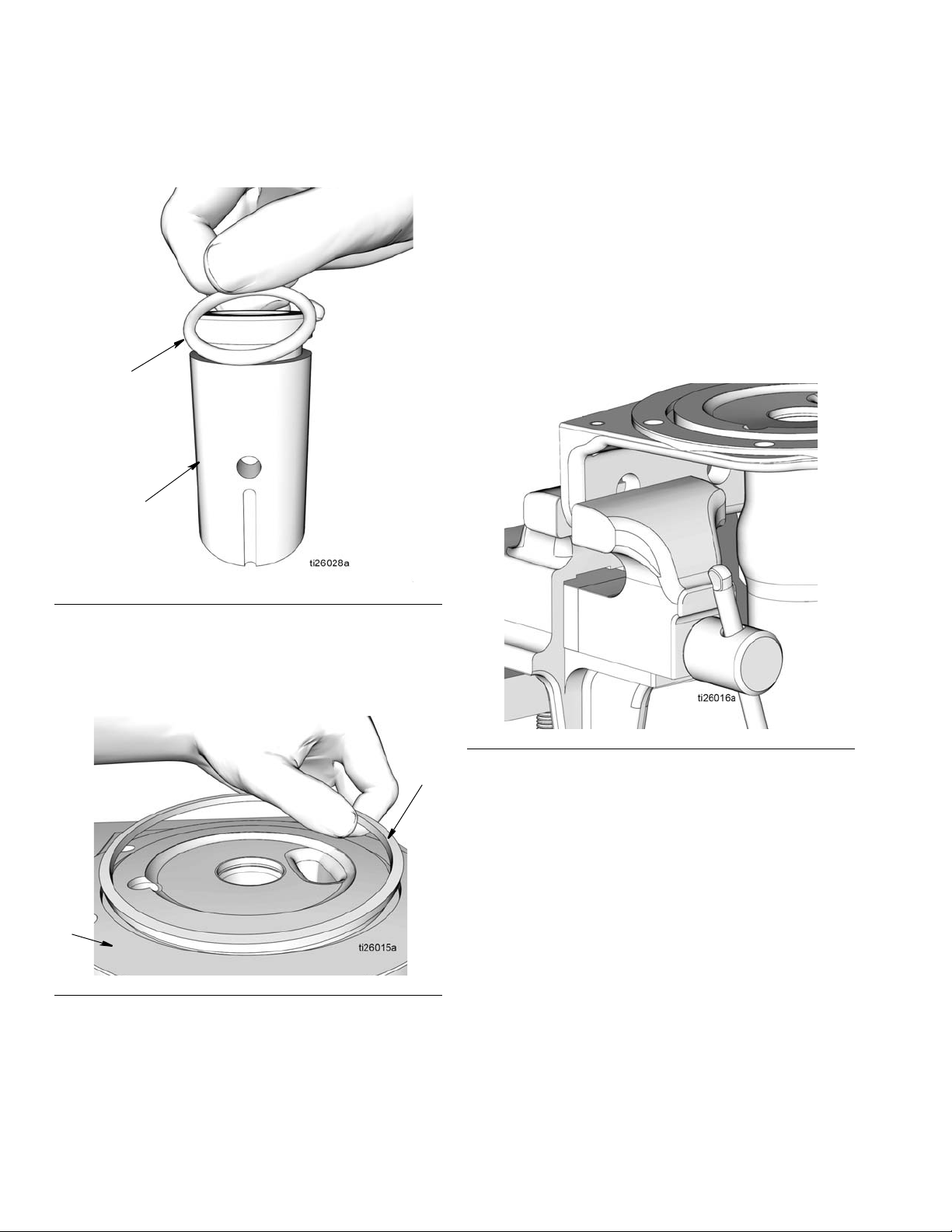

21. Remove o-ring (14). Dispose of o-ring according to
all regulations for proper disposal.
22. Remove square o-ring (8) from the pump base (1)
(FIG. 31). Dispose of o-ring according to all regula-
tions for proper disposal
Reassembly
NOTE: Always use all new parts included in replace-
ment kits. Discard used parts according to all applicable
regulations for proper disposal.
1. Use a clean cloth to wipe down the pump base (1)
and remove any dirt or contaminants. Inspect sur-
face for any scratches or damage. Replace the
pump if the pump base is damaged.
2. If necessary, reposition the pump base (1) in the
vise as shown in FIG. 32.
3. Throat Seal Installation
The Throat Seal Kit includes the following parts
(FIG. 33):
• Retaining Ring (9)
• Tapered Spacer (10)
•Seal(11)
• Spacer (12)
• Retaining Ring (51)
• Spacer (12)
•Seal(11)
• Spacer (12)
FIG. 30
FIG. 31
14
53
8
1
FIG. 32

Repair
3A3169E 19
*This part is shown for reference only. It is not included
in the Throat Seal Kit.
a. Apply a thin layer of grease to all the seals
included in the kit and the pump base bore (bb).
b. Verify retaining ring (51) is in place in side the
pump base (1).
c. Install spacer (12) shown in FIG. 34.
d. Install seal (11). Be sure the lips of the seal are
facing down as shown in FIG. 35.
NOTE: Make sure the seal lip is not damaged
while pressing the seal through the clip grooves.
e. Install spacer (12) (FIG. 36).
FIG. 33
FIG. 34
9
10 (install tapered side down)
11 (install lips up)
12
51
12
11
12
51*
(install lips down)
(do not remove from pump)
12
(bb)
FIG. 35
FIG. 36
11
12

Repair
20 3A3169E

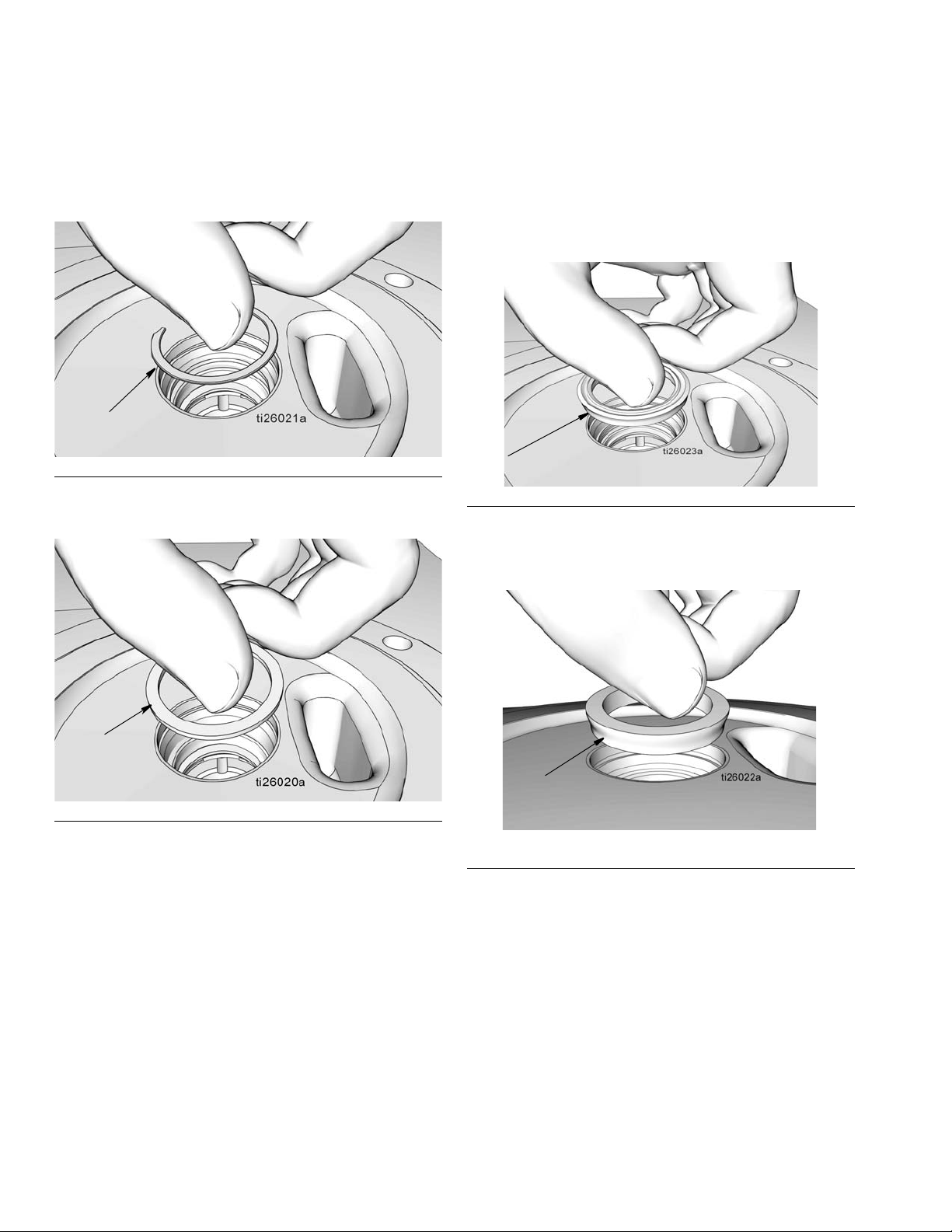

f. Install retaining clip (51) (FIG. 37). You should
hear a “click” when the retaining clip is correctly
seated in the groove.
g. Install spacer (12) (FIG. 38).
h. Install seal (11), with the lips facing up as shown
in FIG. 39.
NOTE: Make sure the seal lip is not damaged
while pressing the seal through the clip grooves.
i. Install the tapered spacer (10), tapered side fac-
ing down as shown in FIG. 40.
FIG. 37
FIG. 38
51
12
FIG. 39
FIG. 40
11
10
