GRAINPRO® SOLAR BUBBLE DRYER™50
INSTRUCTION MANUAL
MA4040RAD0914-9

2/37
GrainPro® Solar Bubble Dryer™50 Instruction Manual
MA4040RAD0914-9
GrainPro®, Inc.
200 Baker Ave., Suite 309 Concord, MA 01742 USA
Phone: [phone] Fax: [phone] Website: www.grainpro.com
Email: [email protected]
GrainPro® Philippines, Inc.
Lot 46 Efficiency Avenue, SubicBay Gateway Park I, SubicBay Freeport Zone 2222 Philippines
Phone: [phone] Fax: [phone] Website: www.grainpro.com
Email: [e-mail]
GrainPro® Kenya
Shop A2, Space Apartments Mai Mahiu Road, Near T Mall Nairobi, KENYA
Phone: [phone] Website: www.grainpro.com
Email: [e-mail]
GrainPro® Mexico
Cto. Garona No. 903, SecciónTres, Col. Amberes, 37237, León, Gto. Mexico
Phone (Mobile): [phone] Website: www.grainpro.com
Email: [e-mail]
GrainPro® Costa Rica
Paseo Colón, Centro Colón, en Bufete Robles Oreamuno District Merced, San José, Costa Rica
Phone: [phone]Website: www.grainpro.com
Email: [email protected]m
GrainPro® India Postharvest Technology Pvt Ltd
B305, Grande View 7 Hsg. Soc. Ltd., Phase - I, Near Ashok Leyland, Ambegaon BK, PUNE,
Pune, Maharashtra, India, 411046
Phone (Mobile): [phone]Website: www.grainpro.com
Email: [email protected]

3/37
GrainPro® Solar Bubble Dryer™50 Instruction Manual
MA4040RAD0914-9
TABLE OF CONTENTS
1. INTRODUCTION ........................................................................................................................................ 4
2. CHECKLIST................................................................................................................................................. 5
3. COMPONENTS .......................................................................................................................................... 8
4. SPECIFICATIONS........................................................................................................................................ 8
5. ASSEMBLY AND OPERATING PROCEDURES.............................................................................................. 9
Site selection....................................................................................................................................... 9
Installation .......................................................................................................................................... 9
Wiring connection and electrical safety for SBD50-Solar................................................................. 13
Wiring connection and electrical safety for SBD50-Electric ............................................................. 18
Loading ............................................................................................................................................. 18
Closing .............................................................................................................................................. 19
Fixing wall with support loops .......................................................................................................... 19
Ventilator management ................................................................................................................... 19
Mixing ............................................................................................................................................... 20
Unloading ......................................................................................................................................... 21
6. MAINTENANCE AND CARE ..................................................................................................................... 21
Repairing punctures and other damages ......................................................................................... 21
Cleaning the top cover and bottom section ..................................................................................... 22
Body folding instruction ................................................................................................................... 22
Battery charging, maintenance and storage .................................................................................... 23
Safekeeping ...................................................................................................................................... 24
Recycling........................................................................................................................................... 24
Platform installation of Rodent Guard ............................................................................................. 24
7. TROUBLE SHOOTING: SBD-SOLAR WIRING HARNESS ............................................................................ 25
Case 1: Battery indicator status is “steady off” ................................................................................ 25
Case 2: Battery indicator status is “slow flashing” ........................................................................... 26
Case 3: Battery indicator status is “quick flashing” .......................................................................... 27
Case 4: Solar Panel/Charge indicator is “steady off”........................................................................ 28
Case 5: Solar Panel/Charge indicator is “quick flashing” (system over voltage) .............................. 29
Case 6: Load indicator is “steady on but there is no output”........................................................... 30
Case 7: Load indicator is “steady off” ............................................................................................... 31
Case 8: Load indicator is “slowly flashing and there is no output” .................................................. 32
Case 9: Load indicator is “quick flashing and there is no output” .................................................... 33
Case 10: Solar charge controller is not working properly ................................................................ 34
8. FREQUENTLY ASKED QUESTIONS AND ANSWERS .................................................................................. 35
9. WARRANTY CLAUSE................................................................................................................................ 37

4/37
GrainPro® Solar Bubble Dryer™50 Instruction Manual
MA4040RAD0914-9
1. INTRODUCTION
The GrainPro® Solar Bubble Dryer™ 50 (SBD50) is a collapsible,tunnel-type dryer with 1.0 metric ton
(1,000kg) drying capacity designed to protect the agricultural commodity from intermittent/sudden rains
during drying, and to prevent spillage and contamination. Drying performance is dependent on the solar
radiation, relative humidity of the ambient air, and moisture content of concerned agricultural
commodity. The SBD50 consist of a transparent cover made of UV-resistant polyethylene film connected
to the black reinforced PVC drying floor by a heavy-duty zipper. Through the transparent top cover, solar
radiation enters the drying chamber and heats up the agricultural commodity being dried. Moisture
content is then vaporized and pushed by the ventilators out from the drying chamber.
The SBD50 technology makes drying possible even during unpredictable weather conditions. It can dry
grains and seeds at an average drying rate of 0.5% per hour based on paddy and corn. However, during
full sunny conditions drying time is about 6 to 8 hours on a moisture content of 22% to 14%. It is a multi-
crop dryer that can be used to dry paddy, corn, coffee, and others.
There are two GrainPro SBD50 commercial models, namely: SBD50-Solar which operates purely on solar
energy to dry the commodity and run the ventilators. While the SBD50-Electric uses electric power from
the grid to run the ventilators and solar energy to dry the commodity. There is a rake mixer that can be
used in all terrain and a tube mixer (optional mixing device) which provides undulating motion during
mixing operation.
1.1. FEATURES:
1.1.1. Collapsible dryer can be installed on any flat surface, a multi-commodity dryer.
1.1.2. Protects the commodity being dried from sudden rains, spillage, and contamination.
1.1.3. Protects the commodity from fowls, birds, and other animals.
1.1.4. Protects the commodity from unhealthy and hazardous contaminants.
1.1.5. Designed to address the effect of climate change.
1.1.6. The SBD50-Solar doesn’t use fossil fuel that contributes to greenhouse gases.
1.2. PRODUCT GUARANTEE:
1.2.1. In accordance with the terms and conditions herewith, GrainPro, Inc. fully guarantees the quality of this
product provided it is used according to the instructions in this manual.
1.2.2. Please read and understand the manual thoroughly before using the Solar Bubble Dryer50.
1.3. COMMENTS, COMPLAINTS, AND/OR CLARIFICATIONS:
1.3.1. Please [e-mail].
1.3.2. We shall be glad to answer any of your questions.

5/37
GrainPro® Solar Bubble Dryer™50 Instruction Manual
MA4040RAD0914-9

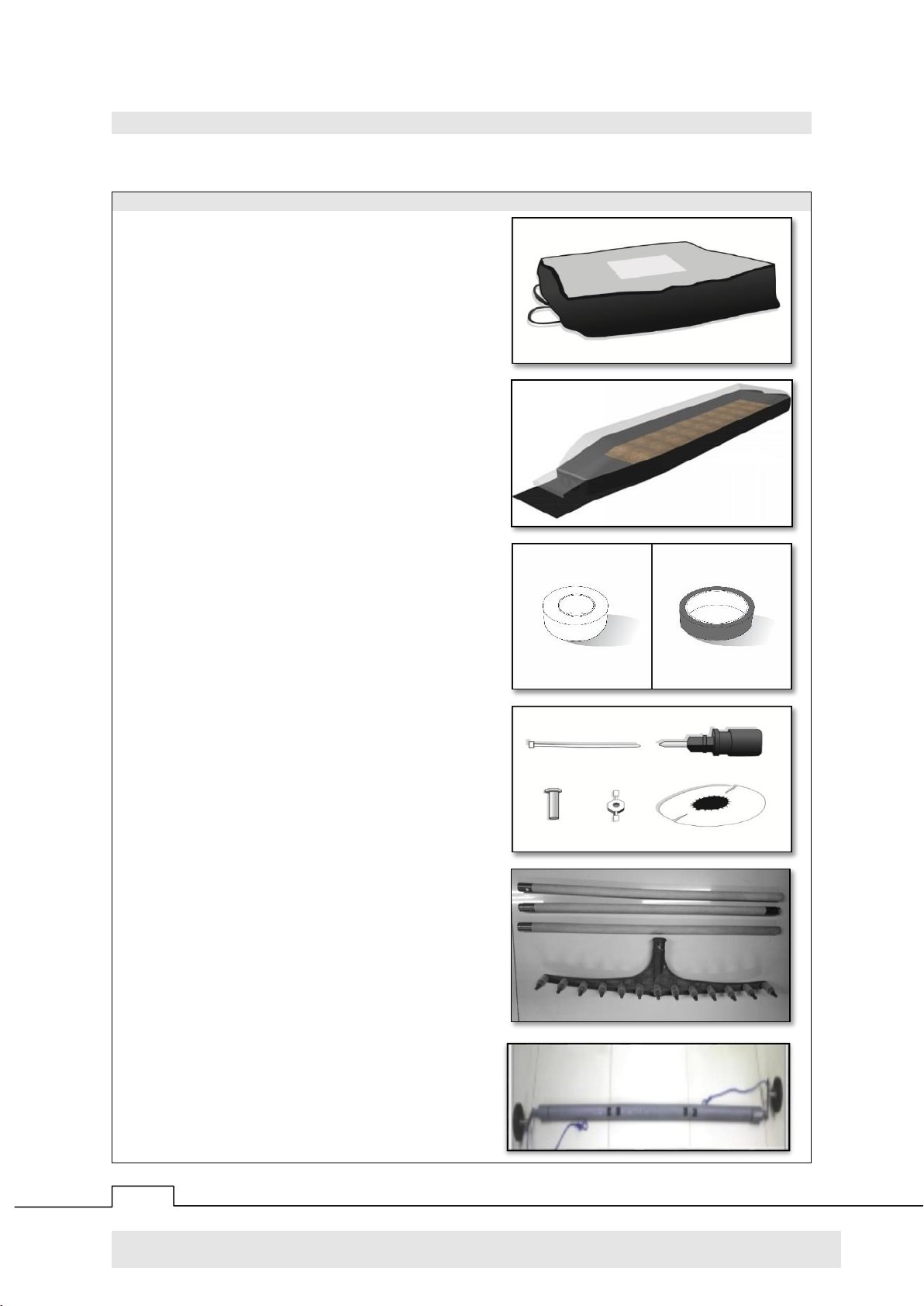

2. CHECKLIST
Please inspect your GrainProSBD50 package to ensure it includes the following items:
PART NAME
DESCRIPTION
2.1. CARRY BAG
2.1.1. Contents:
a. SBD50 (Drying
floor and Top
cover)
b. Ventilator cover
2.2. SBD50-SOLAR OR
SBD50-ELECTRIC
2.2.1. UV-resistant water
proof and transparent
top cover (UV-LDPE).
2.2.2. Drying floor made of
black reinforced PVC
(610gsm).
2.3. REPAIR TAPE
2.3.1. PE repair tape, UV
resistant and
transparent- for
repair/ patching of the
top cover.
2.3.2. PVC duct tape, Grey-
for the drying floor.
2.4. SMALL PARTS
2.4.1. Cable ties.
2.4.2. Screw driver.
2.4.3. Bolts and winged nuts.
2.4.4. LDPE Rodent Guard.

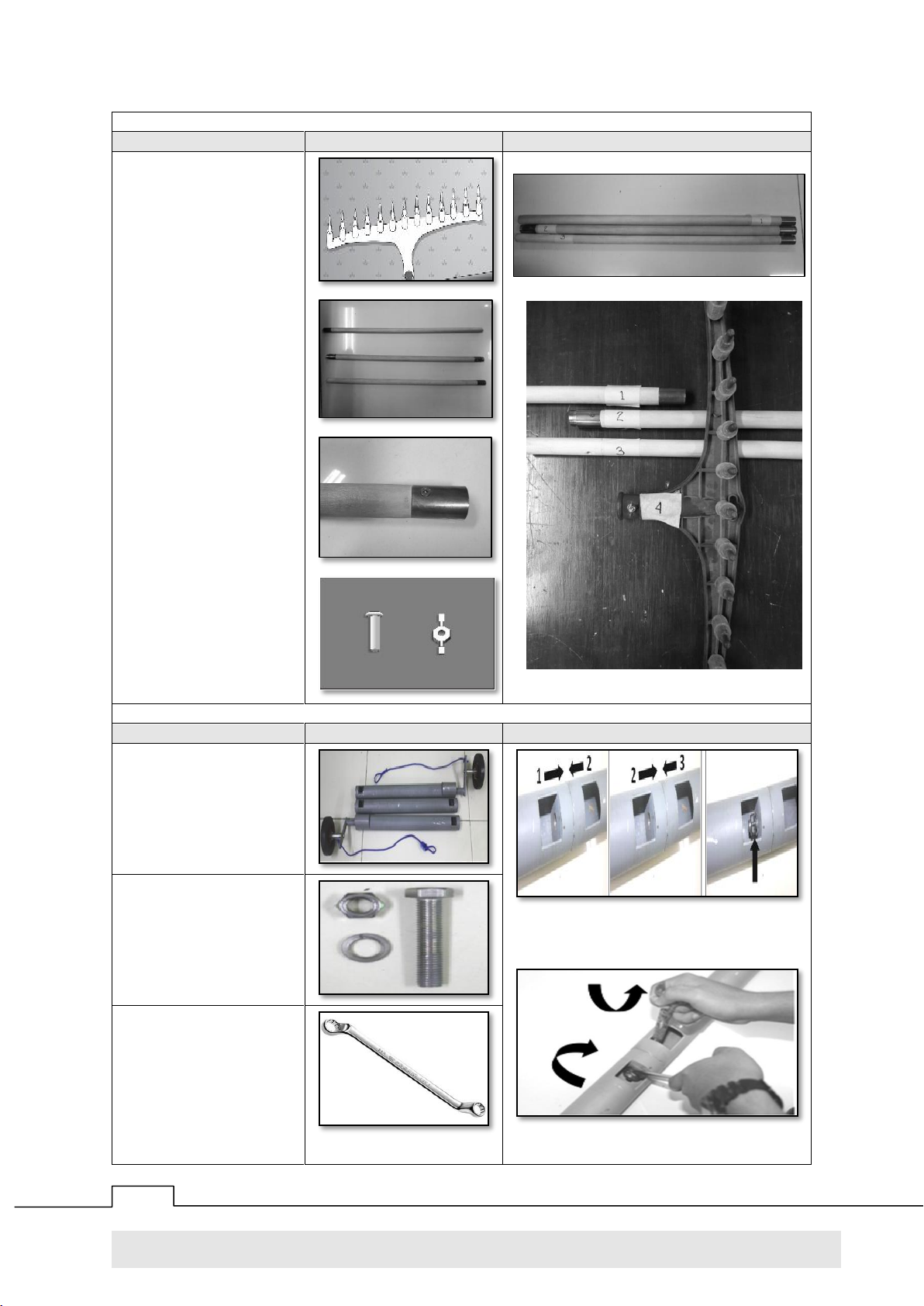

2.5. RAKE MIXER
2.5.1. Consists of the handle
[designed in three (3)
pieces joined by
couplers], and the rake
head with teeth.
One (1) unit
2.6. TUBE MIXER
(OPTIONAL)
2.6.1. Disassembled mixing
device, consists of
three (3) parts,
One (1) unit

6/37
GrainPro® Solar Bubble Dryer™50 Instruction Manual
MA4040RAD0914-9

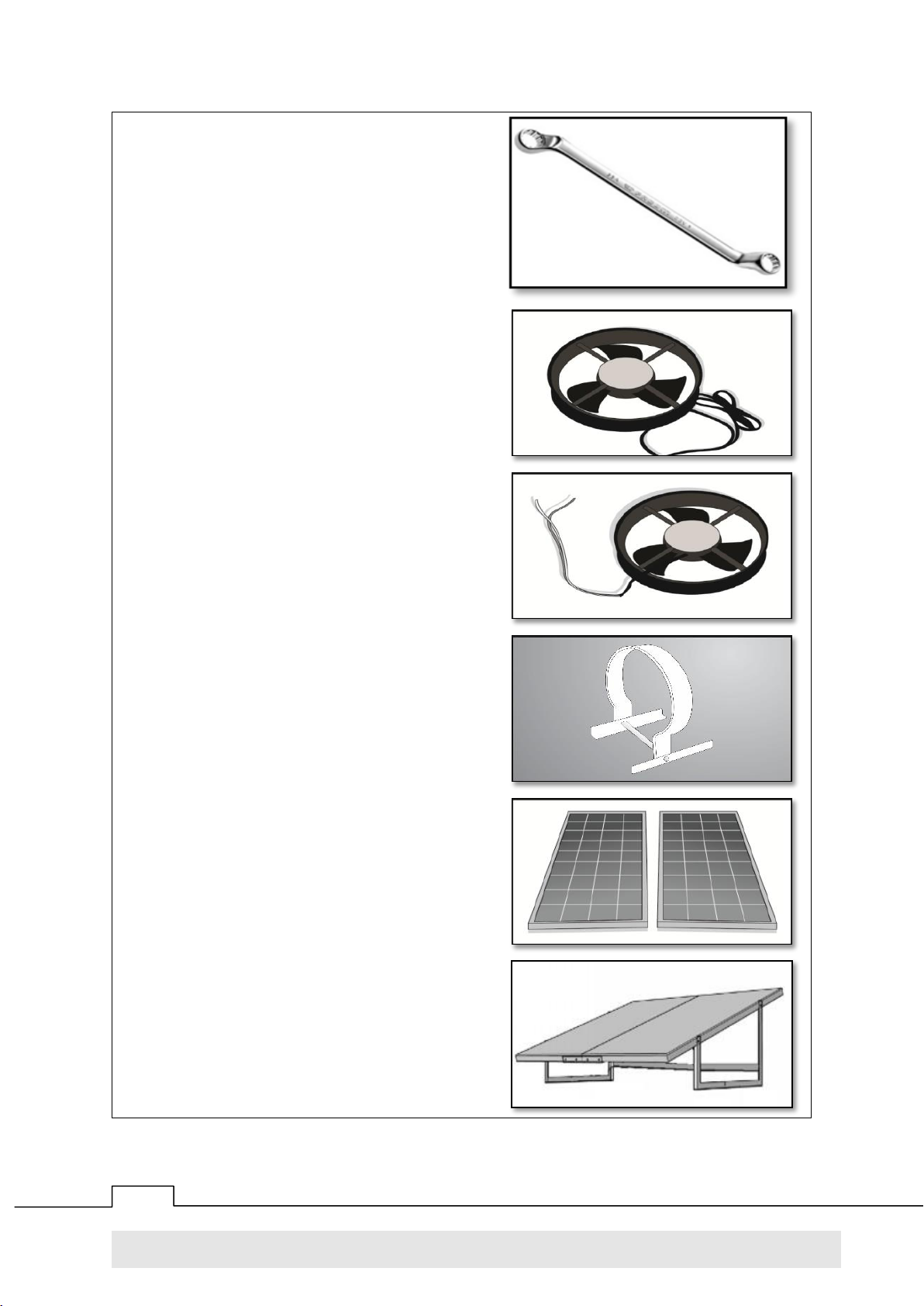

2.6.2. Offset Box Wrench,
Two (2) pieces
2.7. AC VENTILATOR
2.7.1. 220V AC ventilators.
Two (2) units for
SBD50-Electric
2.8. DC VENTILATOR
2.8.1. 12V DC ventilators.
Two (2) units for
SBD50-Solar
2.9. VENTILATOR
FRAME
2.9.1. Supporting aluminum
clamp to hold the
ventilator.
Two (2) sets
2.10. SOLAR PANELS
2.10.1.Used to convert light
into electricity, 12V.
Two (2) units
2.11. SOLAR PANEL
SUPPORT FRAME
2.11.1.Supporting aluminum
structure for the solar
panels.
2.11.2.Two (2) legs
2.11.3.Two (2) brackets
2.11.4.One (1) horizontal
brace

7/37
GrainPro® Solar Bubble Dryer™50 Instruction Manual
MA4040RAD0914-9
2.12. EXHAUST
SUPPORT FRAME
2.12.1.Supporting aluminum
structure for the SBD
exhaust port.
One (1) assembly

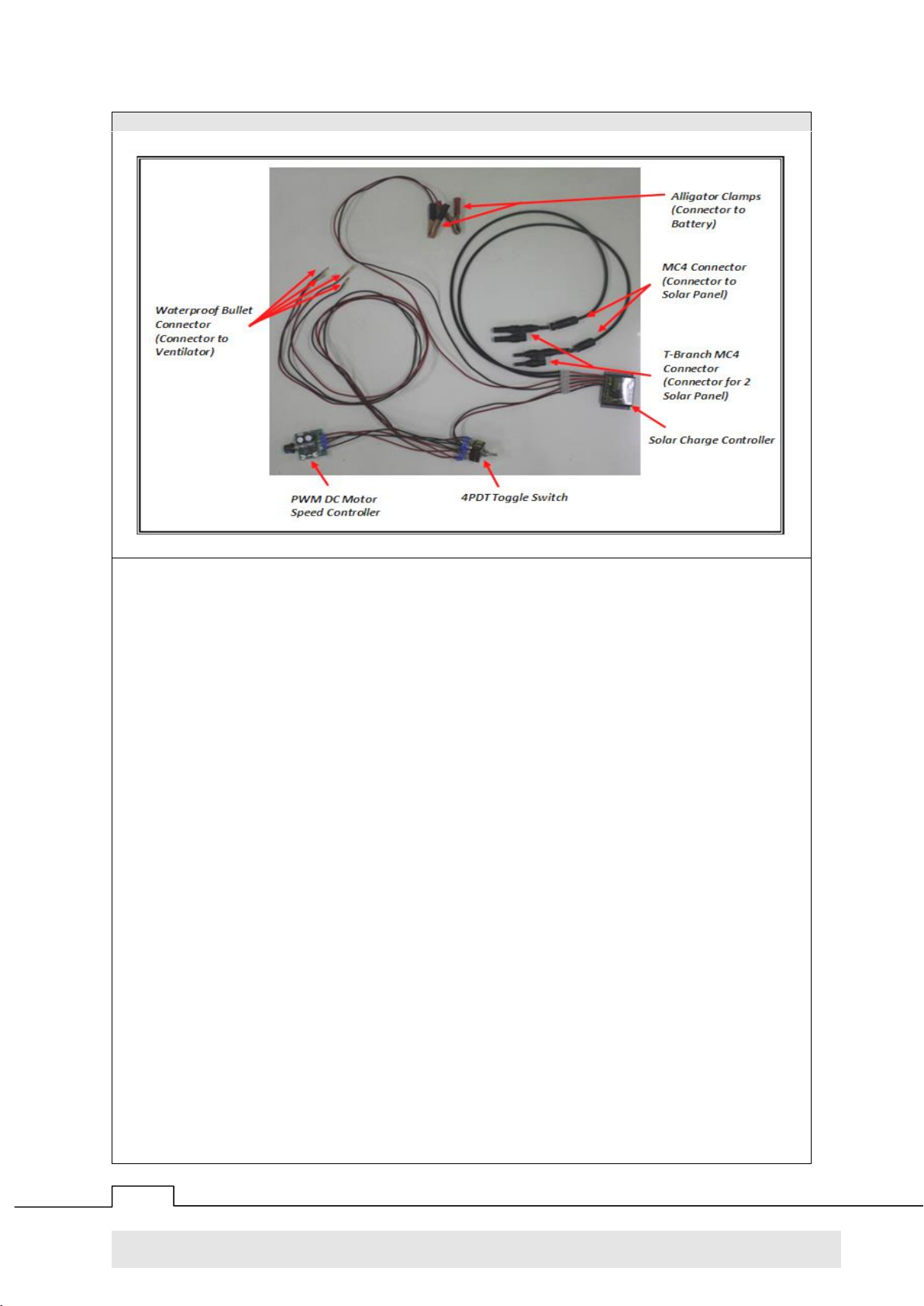

2.13. WIRING HARNESS
2.13.1.Electrical components
of SBD50-Solar with
solar charge
controller, PWM DC
motor speed
controller and toggle
switch.
One (1) assembly
2.14. EXTENSION CORD
2.14.1.Extension wire for
SBD50-Electric.
Ten (10) meter
2.15. AGM BATTERY
(OPTIONAL)
2.15.1.Used to store energy
to run the ventilator of
SBD50-Solar
70 Ampere-hour
One (1) unit
2.16. RODENT GUARD
2.16.1.For platform post to
prevent rodent access
when storing the
empty SBD.
Four (4) pieces per
pack
2.17. INSTRUCTION
MANUAL
2.17.1.Installation
instructions.
2.17.2.Maintenance
instructions.
2.17.3.Frequently asked
questions and
answers.
2.17.4.Warranty clause.

8/37
GrainPro® Solar Bubble Dryer™50 Instruction Manual
MA4040RAD0914-9

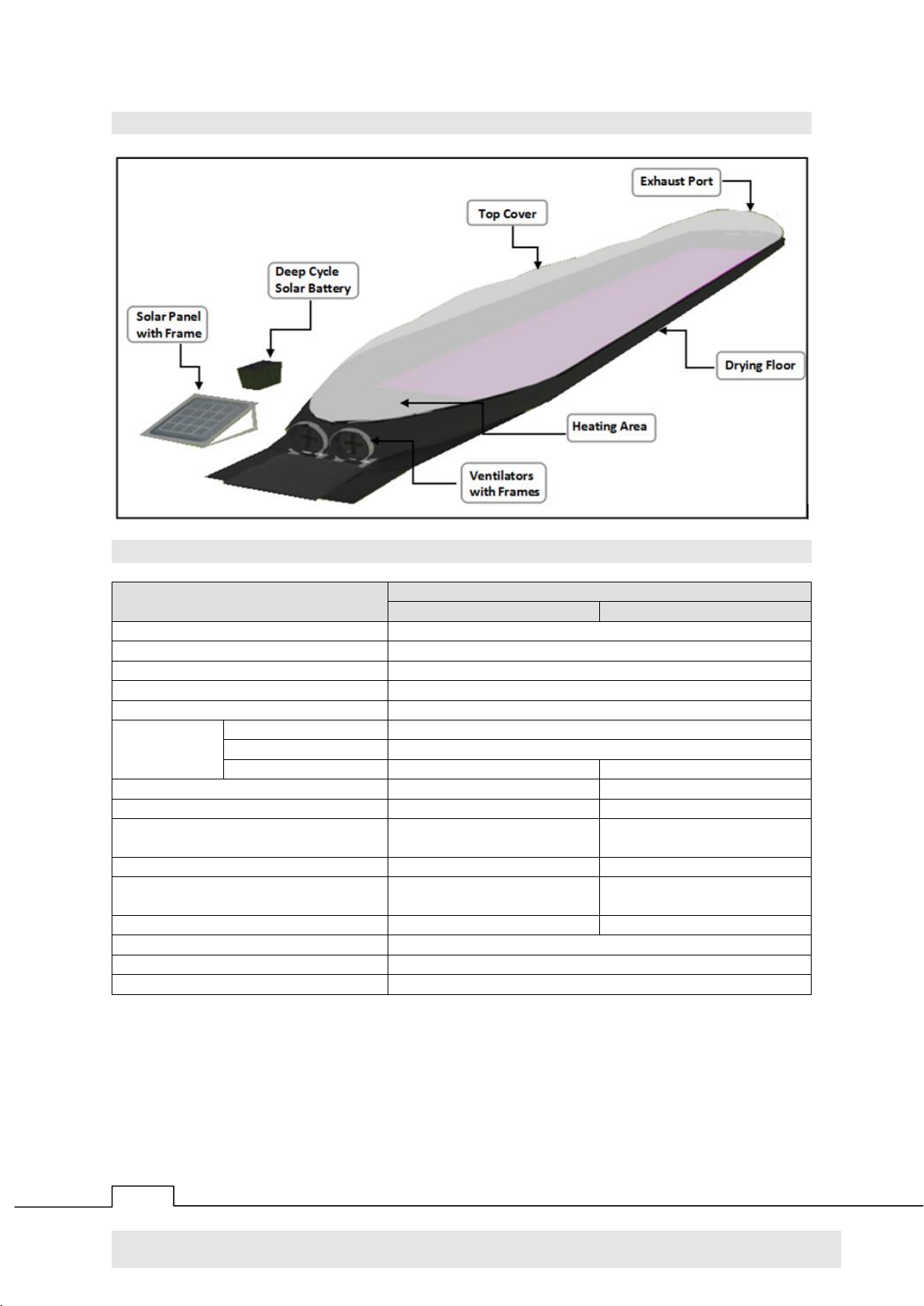

3. COMPONENTS
4. SPECIFICATIONS
PARAMETERS
SBD50
SOLAR
ELECTRIC
Top Cover
UV-LDPE, Transparent
Drying Floor
Reinforced PVC, black
Zipper
Heavy duty zipper
Rake Mixer
Plastic rake with wooden handle, 2.2m length
Tube/Roller Mixer**
G.I. Pipe, 2” Ø w/ 2 pcs. Offset box wrench, 17 x19mm
Frames
Ventilator frame
Aluminum bars
Exhaust Support Frame
Aluminum bars
Solar panel frame
Aluminum profiles
N/A
Ventilator
12V DC Ventilator, 2 units
220V AC Ventilator, 2units
Solar Panel
100W, 2 units
N/A
Wiring Harness
Auto wire, SCC, PWM, Switch,
Extension Wire, 10m
Connectors/ Terminals
Alligator Clip
N/A
Battery**
AGM (Absorbed Glass Mat)
Battery
N/A
Transformer*
N/A
Step up transformer
Dimension, m (ft) (L x W)
26.0x2.0 (85.3x6.56)
Drying Area, m2(ft2)
50.0 (538.2)
Capacity (based on Paddy), kg (lbs)
1,000 (2,204.62)
*
Included for the countries with 110V electric energy supply
**
Optional purchase

9/37
GrainPro® Solar Bubble Dryer™50 Instruction Manual
MA4040RAD0914-9

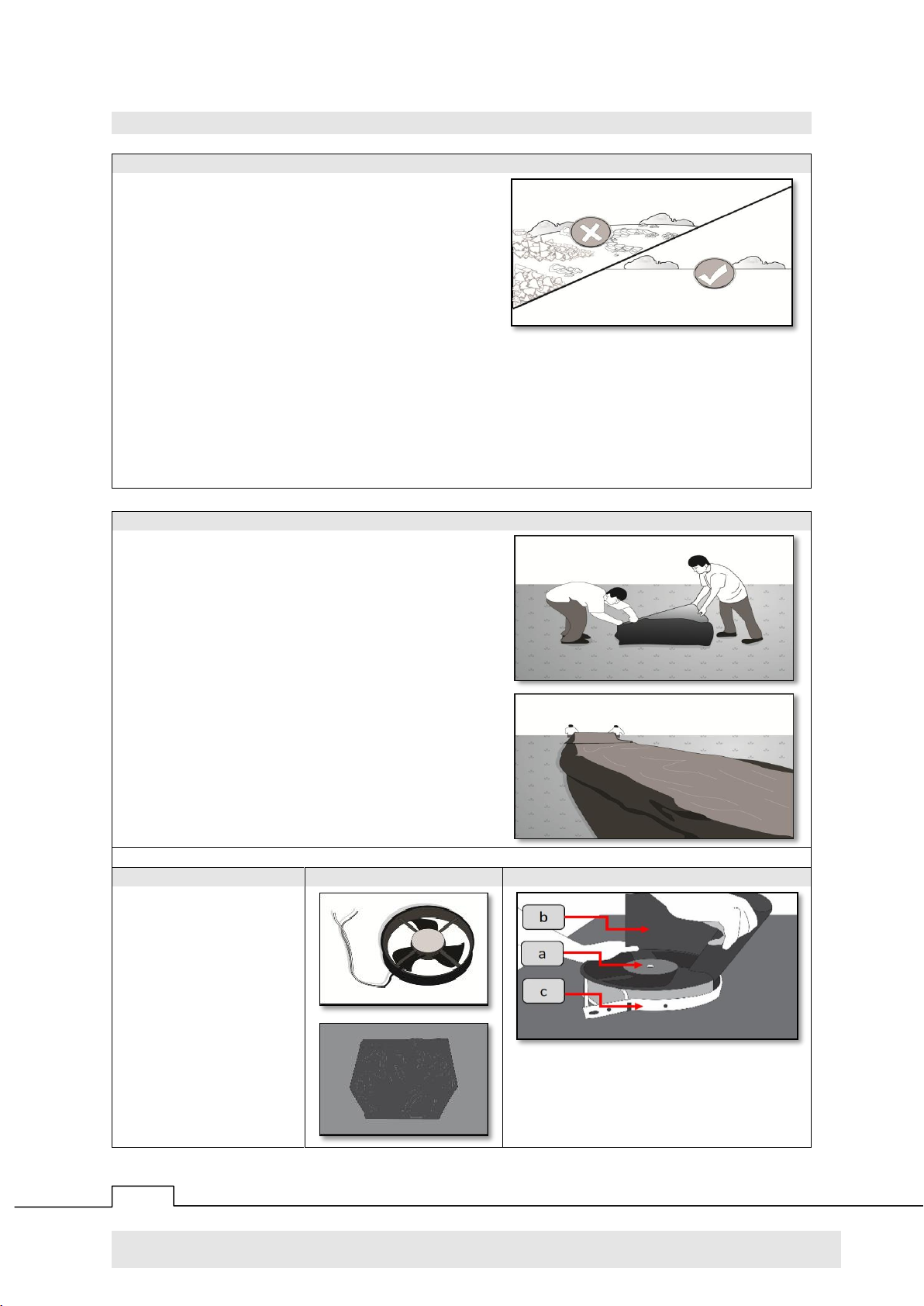

5. ASSEMBLY AND OPERATING PROCEDURES
5.1. SITE SELECTION
5.1.1. In selecting the site, look for:
a. A level ground away from standing or
running water.
b. Open area for maximum absorption of
solar radiation.
5.1.2. Preparing the selected site (about 4m x 30m) by:
a. Clear away all sharp and/or pointed objects (stones, broken glass, nail, etc.) which might puncture
the SBD50 drying floor. In addition, refrain from smoking while working because hot ashes may
damage the SBD50 materials.
b. Make sure there is sufficient space around the SBD50 for pulling the “Tube Mixer”on both sides of
the dryer.
c. The positioning of the SBD50 and solar panel should be on a location where maximum exposure to
solar radiation can be obtained.
5.2. INSTALLATION
5.2.1. Set-up/installation:
a. Unfold the SBD50. Take note of the folding
pattern while it is being unfolded. This
unfolding sequence should be followed in
reverse when preparing for proper
storage.
b. Pull the other end to get rid of the folds
before laying to the ground. Make sure
that the drying floor is properly stretched
at two meters wide (for the drying area)
along the full length of the SBD50. This will
ensure that the drying floor will stay flat
when using the “Tube mixer”.

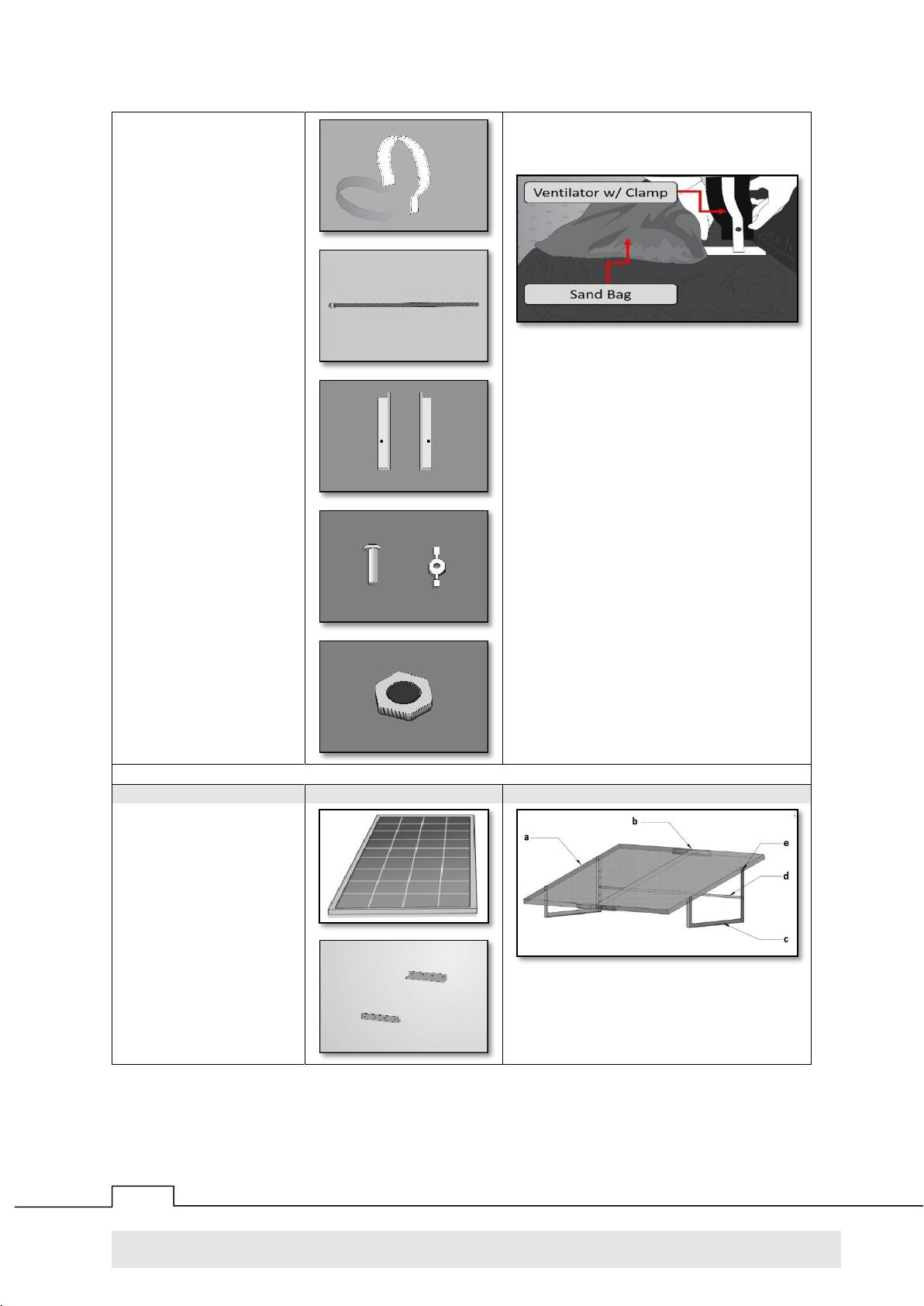

5.2.2. Ventilator and supporting structures:
COMPONENT
SEQUENCE OF ASSEMBLY
a. Ventilator,
Two (2) units
1) Loosen the horizontal brace (d) of the
frame.
2) Insert the ventilator cover (b) at the upper
portion of the ventilator (a).
b. Ventilator cover,
Two (2) pieces

10/37
GrainPro® Solar Bubble Dryer™50 Instruction Manual
MA4040RAD0914-9
c. Ventilator
support clamp,
Two (2) pieces
3) Assemble the ventilator support legs (e)
using bolts and winged nuts (f) using the
screw driver provided.
4) Position the ventilator support legs under
the sand bags (fill in the provided sand bag
first and fold the other part under it). Sand
bag is located along the heating area
extension of the drying floor.
5) Connect the ventilator to the SBD50 body.
Make sure that the direction of airflow is
correct (see the arrow printed on the
ventilator).
d. Horizontal brace,
Two (2) pieces
e. Ventilator
support legs,
Four (4) pieces
f. Bolts and winged
nuts,
Four (4) sets
g. Hex nuts,
Four (4) pieces

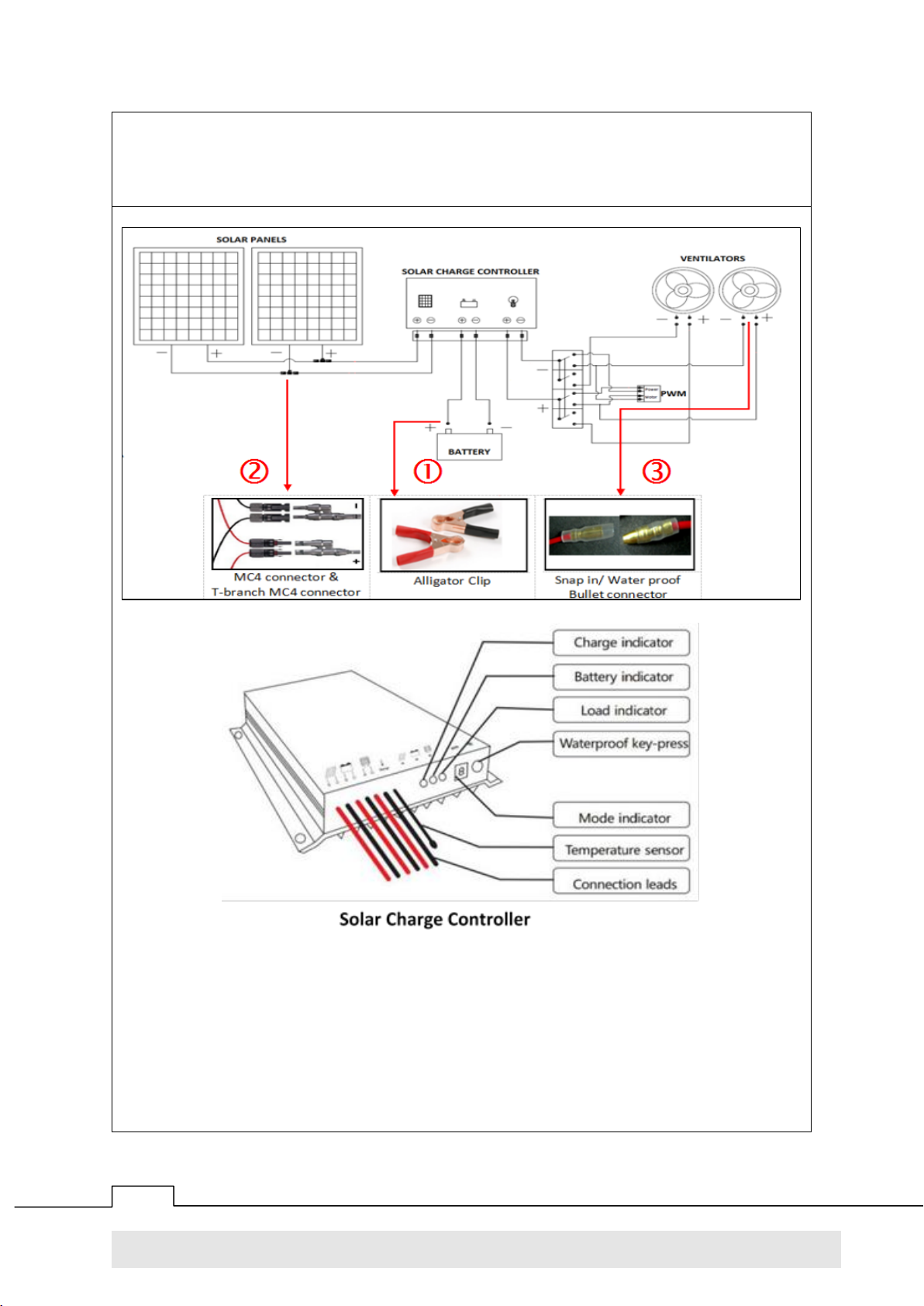

5.2.3. SBD Solar panel and support assembly:
COMPONENT
SEQUENCE OF ASSEMBLY
a. Solar panel,
Two (2) units
1) Assemble the brackets at the top and
bottom side attaching the two (2) solar
panels.
b. Bracket,
Two (2) pieces
