Grandbeing EX0101-N104 User manual

Model No.: EX0101-N104&N114-000
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.

Introduction
EX0101-N104&N114 is a HDMI extender with ARC while using CAT-5E/6 cable
as transmission media.
Benefits from using EX0101-N104&N114:
1) The length of HDMI cable is fixed and unchangeable after it is produced.
Because the HDMI connector can only be soldered or terminated by
professional worker in factory, the users can not reduce or increase by
themselves. However CAT-5E/6E cables are available everywhere and be
processed easily by the user or installer.
2) By using EX0101-N104&N114, the transmission distance for 1080P or
ARC reaches 100 meters (shield cable is suggested, compatible with
CAT-5E/6). For general HDMI cables, cables must be customized when the
length over 10 meters.
3) EX0101-N104&N114 has the ability of buffering and amplifying.
4) The IR system could control the sources from the sinks or control the sinks
from sources.
EX0101-N104&N114 offers solutions for digital entertainment center, HDTV retail
and show site, HDTV, STB, DVD and Projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.

Contents
HDMI Extender ................................................................................................ 1
Product Overview ............................................................................................ 1
Features........................................................................................................... 1
Package Contents............................................................................................ 3
Connections and Operations ...........................................................................3
Specifications................................................................................................... 5
Panel Descriptions........................................................................................... 6
Typical Application ........................................................................................... 8
Maintenance .................................................................................................... 8
Product Service ............................................................................................... 8
Provided Service.............................................................................................. 8
Mail-In Service ................................................................................................. 9
Warranty .......................................................................................................... 9
Warranty Limits And Exclusions..................................................................... 10

Page 1
HDMI Extender (By single CAT-5E/6E cable)
■Product Overview ( Model Number: EX0101-N104/N114-000 )
■Features
zOne pair as a full functional module, no need for setting.
zUse single UTP LAN cable (shield cable are suggest, compatible with
CAT-5E/6) to substitute HDMI cable to achieve long distance transmission.
zUTP cable termination follows the standard of IEEE-568B.
zTransmission distance reaches up to 100 meters under the video format of
1080P.
zAuto-adjustment of feedback, equalization and amplify, the user does not
need to care about the length of the cable.
zHDMI V1.4 supported.
zARC supported.
zHDCP compliant.
zFull HD support: 1080p@60Hz@48 b/pixels, 3D
zWith LED indicators to show the power status.
zWith ESD protection inside.
zMounting ears supplied.
zTransfer 10M/100M Ethernet with the HDMI signal.
zTransfer Bidirectional Infrared control signal together with the HDMI signal
and Bidirectional Infrared control signal together with ARC.
zRS232 Port for firmware update or RS232 control signal transmission.

Page 2
"Notice
Grandbeing Inc. reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
p
lu
g
s.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Page 3
■Package Contents
① Main unit NO.1. P/N_EX0101-N104-000.
② Main unit NO.2. P/N_EX0101-N114-000.
③ Operating instructions. P/N_INSEX0101-N104/N114-000.
④ 2x 5VDC power supply P/N_VDC0502.(One for N104, one for N114)
⑤ 2xIR TX unit. (IR emitter cable, for N104 or for N114)
⑥ 2xIR RX unit. (IR receiver cable, for N104 or for N114)
NOTE: PART NUMBER (Abbreviation as P/N)
■Connections and Operations
1) Connect the HDMI input source ( such as HD-DVD、PS3、STB etc. ) to
EX0101-N104.
2) Connect a CAT-5E/6E cable from UTP output of EX0101-N104 to UTP input
of EX0101-N114.
3) Connect the HDMI sink( such as HD-LCD、HD-DLP）to EX0101-N114.
4) Connect the IR TX UNIT into EX0101-N104 IR TX; Connect the IR RX UNIT
into EX0101-N114 IR RX.
5) Connect the IR RX UNIT into EX0101-N104 IR RX; Connect the IR TX UNIT
into EX0101-N114 IR TX.
6) Connect a CAT-5E/6E cable from Ethernet connecter of EX0101-N104/N114
to Internet; Connect Ethernet connecter of EX0101-N114 to PC etc.
7) RS232 Port can be set for firmware update or RS232 control signal
transmission ( Default set for RS232).
Attention: Please insert and extract cables gently.

Page 4
※Setting instruction:
Setting for EX0101-N114-000:
Status of SET Function
00 RS232(default)
01 ARC connection
10 Upgrade for MCU
11 Upgrade for Valens
Setting for EX0101-N104-000:
Status of EDID Function
XXX0 Normal model
XXX1 Long Cable model
000X Copy from the sink
001X 1080P 3D stereo
010X 1080P stereo
011X 1080i stereo
100X 1080P 5.1
101X 1080P 7.1
110X Upgrade for MCU
111X Upgrade for Valens
Update instruction:※
① The user should receive a Firmware burn package, containing all software
needed for burning and updating the Firmware on the EEPROM.
② Connect an RS232 cable from RS232 port of unit to PC.
③ Power the unit.
④ Extract the zipped file from the burn package to a directory (e.g.
C:\dir_name).
⑤ Browse to the directory (e.g. C:\dir_name\) and double click the batch file
UpdateSource. Bat (for EX0101-N104) or UpdateSink.bat (for
EX0101-N114).
⑥ A short description of the link created between the PC and the board
appears on the screen, followed by the burn progress percentage report.
⑦ A second stage of verifying the content of the EEPROM follows, also with a
progress percentage report.
※For RS232 control signal transmission, just connect two RS232 cables to both RS232
ports of EX0101-N104 and EX0101-N114, they work like an RS232 extension cable.

Page 5
■Specifications
Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format Supported DTV/HDTV;
1080P/1080i/720P/576P/480P/576i/480i
Output Video
HDMI 1.4+HDCP
(Repeat the source to the sink)
Output Audio Support DTS-HD, Dolby-HD (repeat the
source to the sink)
Maximum Transmission Distance 100 meters (shield cable is suggested,
compatible with CAT-5E/6E)
Power Supply 5VDC
Power Consumption
6.3Watts (EX0101-N104)
6.9Watts (EX0101-N114)
Dimensions
118mmH×113mmW×28mmD
/3.54’’H×3.39’’W×0.84’’D
Mass (Main unit) 1Kg / 2.2lb (Pairs)
NOTE1: Specifications are subject to change without notice. Mass and dimensions are
approximate.

Page 6
■Panel Descriptions
1. EX0101-N104
TOP Panel
Front Panel
1、IR RX
2、IR TX
3、RS232 Port
4、HDMI IN
5、HDMI IN Act LED
6、HDMI OUT
7、HDMI OUT Act LED
Back Panel
1、EDID Setting
2、Ethernet Port
3、SPDIF OUT
4、HDBT Link LED
5、HDBT OUT
6、Power LED
7、Power Input

Page 7

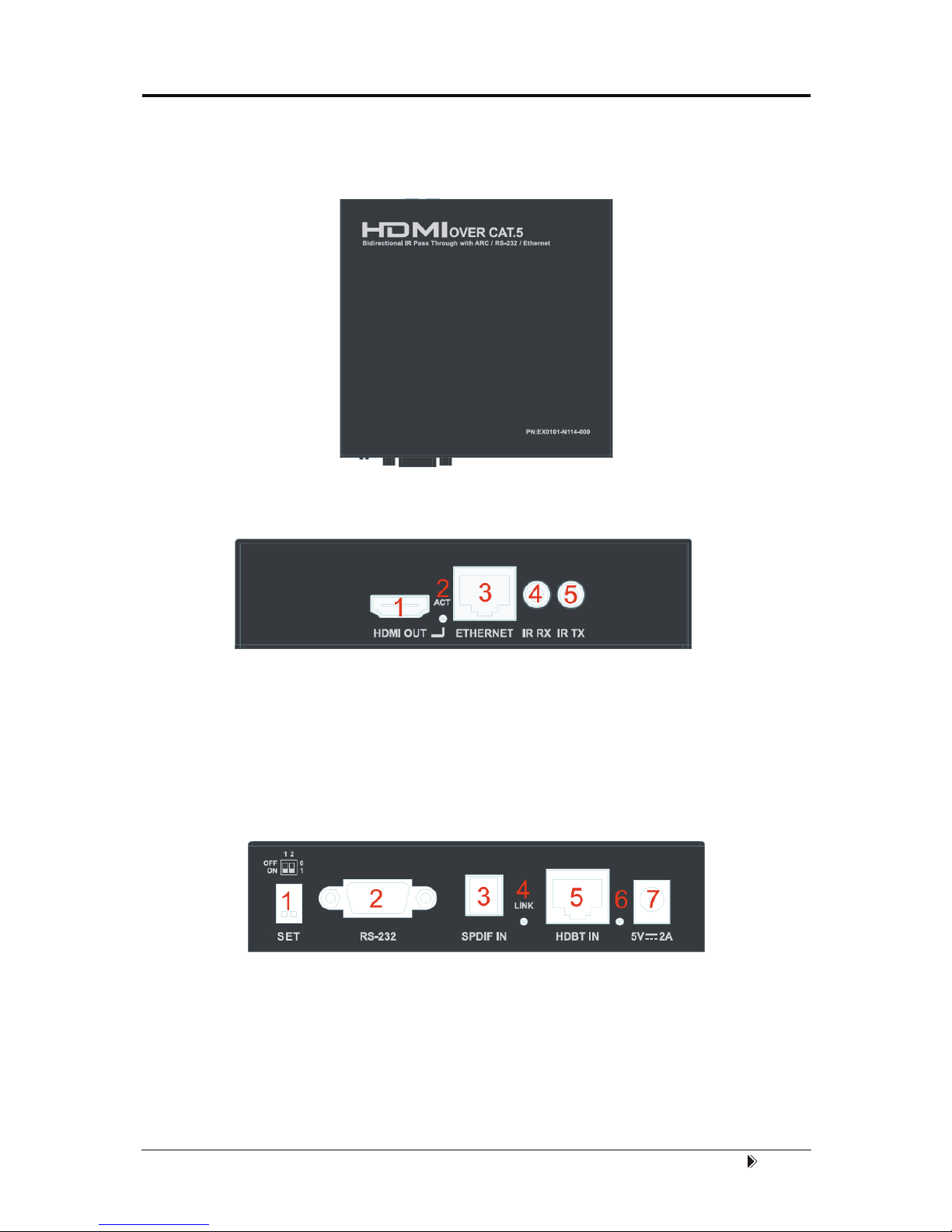

2. EX0101-N114
TOP Panel
Front Panel
1、HDMI OUT
2、HDMI OUT Act LED
3、Ethernet Port
4、IR RX
5、IR TX
Back Panel
1、SET for EX0101-N114
2、RS232 Port
3、SPDIF IN
4、HDBT Link LED
5、HDBT IN
6、Power LED
7、Power Input

Page 8

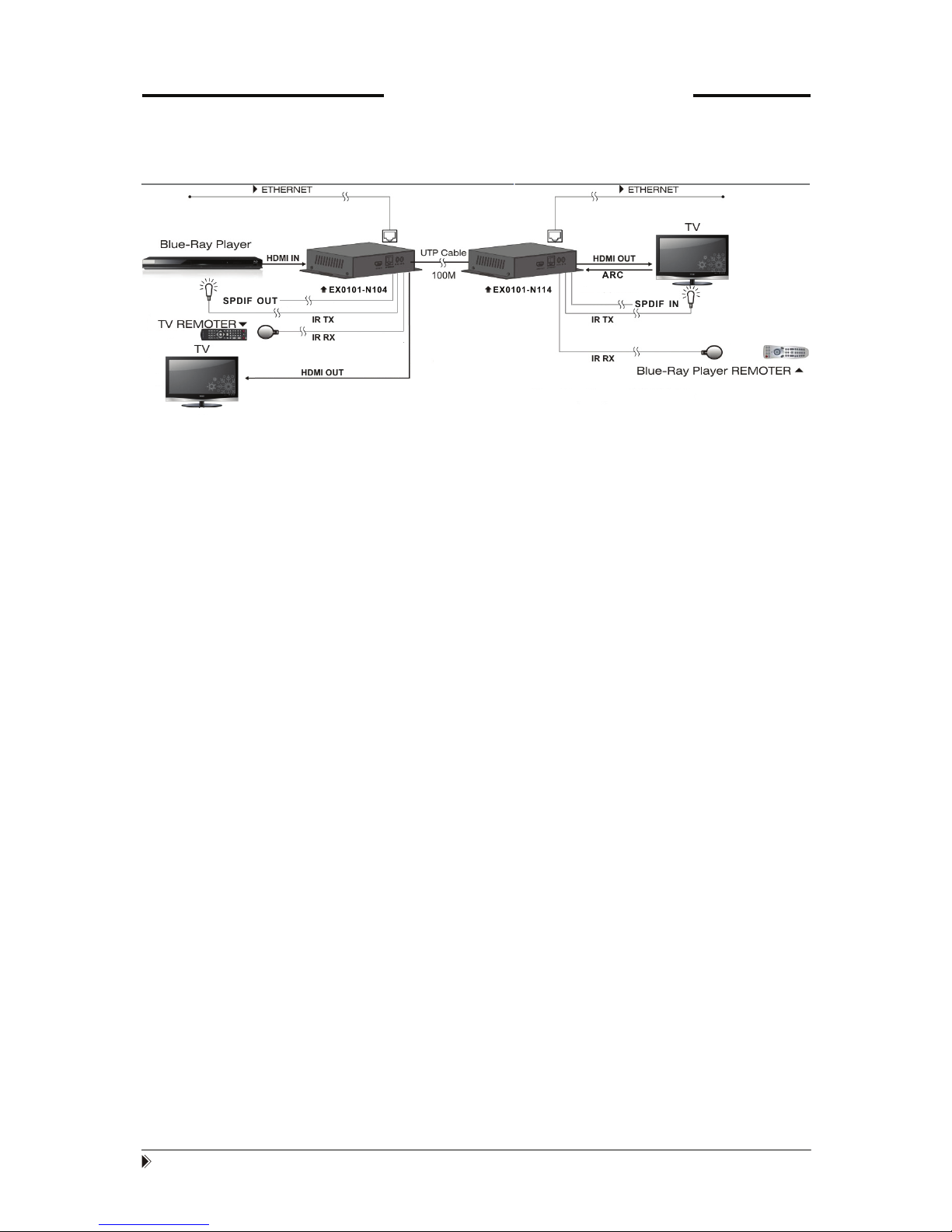

■Typical Application
■Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine
to clean this unit.
■Product Service
●Provided Service
1) Damage Requiring service: The unit should be serviced by qualified
service personnel if:
zThe DC power supply cord or AC adaptor has been damaged;
zObjects or liquids have gotten into the unit;
zThe unit has been exposed to rain;
zThe unit does not operate normally or exhibits a marked change in
performance;
zThe unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.

Page 9
3) Replacement parts: When parts need replacing ensure the service uses
parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result
in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety
checks to confirm that the unit is in proper working condition.
●Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured
and preferably in the original carton. Include a letter detailing the complaint and
provide a daytime phone and/or email address where you can be reached.
If repair is needed during the limited warranty period the purchaser will be
required to furnish a sales receipt/proof of purchase indicating date of
purchase, amount paid and place of purchase. Customer will be charged for
the repair of any unit received without such proof of purchase.
●Warranty
If your product does not work properly because of a defect in materials or
workmanship, Grandbeing Company (referred to as “the warrantor”) will, for
the length of the period indicated as below, （Parts (1) Year，Labor(90)
Days）which starts with the date of original purchase (“Limited Warranty
period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to
repair or replace will be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You must
mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as
new. A purchase receipt or other proof of original purchase date is required for

Page 10
Limited Warranty service.
●Warranty Limits And Exclusions
1) This Limited Warranty ONLY COVERS failures due to defects in
materials or workmanship, and DOES NOT COVER normal wear and
tear or cosmetic damage. The Limited Warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result
from accidents, misuse, abuse, neglect, mishandling, misapplication,
alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning
damage, modification, or service by anyone other than a Factory Service
Center or other Authorized Service, or damage that is attributable to acts
of God.
2) There are no express warranties except as listed under “limited
warranty coverage”. The warrantor is not liable for incidental or
consequential damages resulting from the use of this product, or
arising out of any breach of this warranty. (As examples, this excludes
damages for lost time, cost of having someone remove or re-install an
installed unit if applicable, travel to and from the service location, loss of
or damage to media or images, data or other recorded content. The items
listed are not exclusive, but are for illustration only.)
3) Parts and service, which are not covered by this limited warranty,
are your responsibility.

Grandbeing Technology Co., Ltd.
Address:
B-301, Science and Technology Building Phase11,
1057 Nanhai Rd, Nanshan District, Shenzhen, P.P.China
Tel: [phone] Fax: [phone]
Post Code: 518067
www.grandbeing.biz
