Grandbeing EX0101-U50 User manual

EX0101-U50/U51 Operating Instructions
Grandbeing®

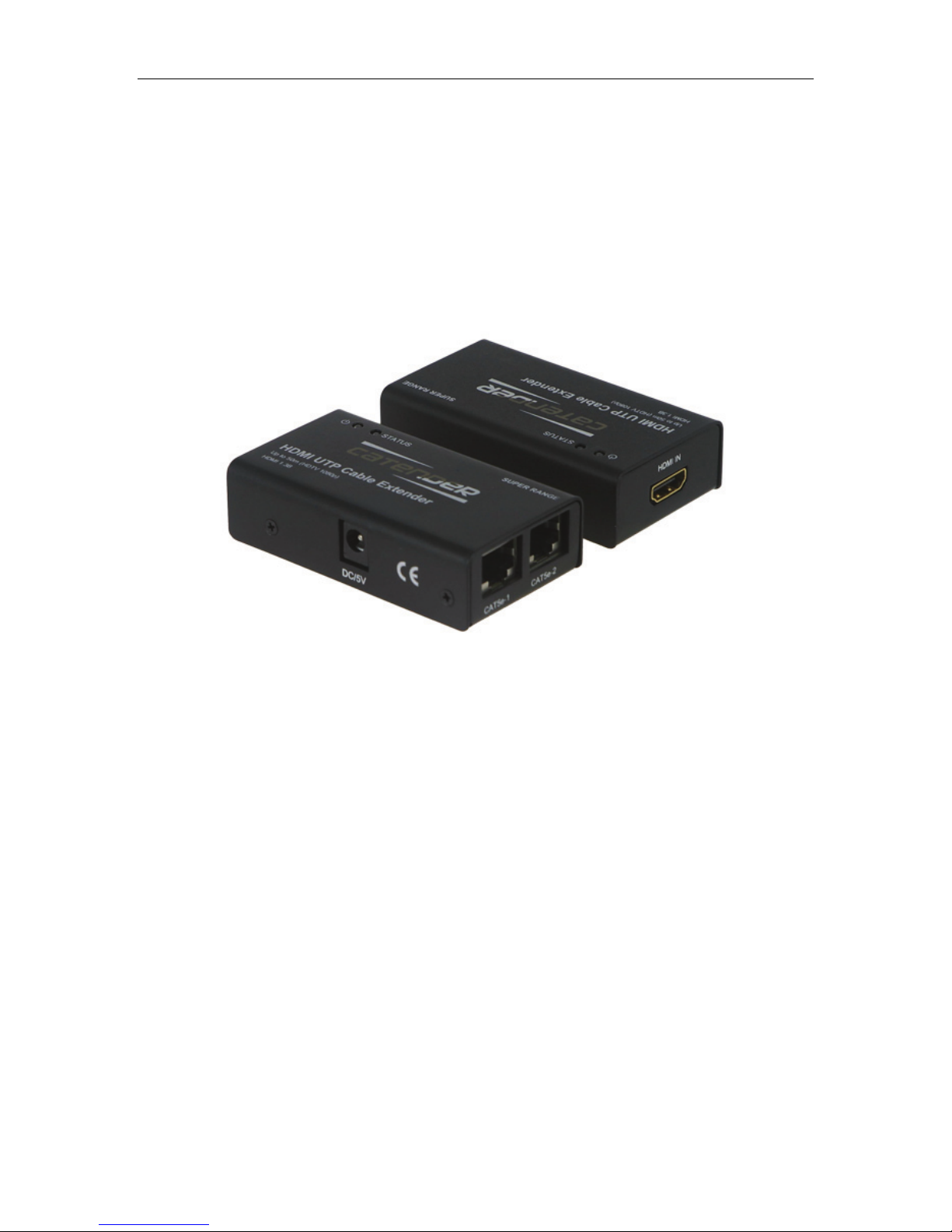

HDMI Extender (By CAT-5E cable)
Model No.EX0101-U50/U51
Operating Instructions（P/N of this Instructions is INSEX0101-U50/U51）
FEATURES
zOne pair as a full functional module, no need for setting.
zUse UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long
distance transmission.
zUTP cable termination follows the standard of IEEE-568B.
zTransmission distance reaches up to 50 meters under the video format
of 1080P.
zAuto-adjustment of feedback, equalization and amplify, the user does
not need to care about the length of the cable.
zHDMI V1.3b supported.
zEach port supports HDMI or DVI inputs.
zHDCP compliant.
zWith LED indicators to show the power and video signal status.
zWith ESD protection inside.
zMounting ears supplied.
zThis model could be cascaded.
GRANDBEING
® １

EX0101-U50/U51 Operating Instructions
Dear customer:
Thank you for purchasing this product. For optimum performance and
safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future
reference.
NOTICE
We reserve the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT
DAMAGE:
1) DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
2) DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS
WELL VENTILATED.
3) TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND
SIMILAR ITEMS.
4) DO NOT INSTALL NEAR ANY HEAT SOURCES SUCH AS RADIATORS,
HEAT REGISTERS, STOVES, OR OTHER APPARATUS (INCLUDING
AMPLIFIERS) THAT PRODUCE HEAT.
5) DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED
CANDLES, ON THE UNIT.
6) CLEAN THIS APPARATUS ONLY WITH DRY CLOTH.
7) UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN
UNUSED FOR LONG PERIODS OF TIME.
8) PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED
PARTICULARLY AT PLUGS.
9) ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE
MANUFACTURER.
10) REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.
GRANDBEING
® ２

EX0101-U50/U51 Operating Instructions
TABLE OF CONTENTS
Introduction···························································································· 3
Package Contents ················································································· 4
Panel Descriptions················································································· 4
Connect and Operation ········································································· 6
Specification ·························································································· 7
Maintenance·························································································· 7
Product Service ····················································································· 7
Warranty ································································································ 8
Contact Information··················································································································· 9
INTRODUCTION
EX0101-U50/U51 is a HDMI extender using CAT-5E/6 cable as transmission
media.
Benefits from using EX0101-U50/U51:
1) The length of HDMI cable is fixed and unchangeable after it is produced.
Because the HDMI connector can only be soldered or terminated by
professional worker in factory, the users can not reduce or increase by
themselves. However CAT-5E/6 cables are available everywhere and be
processed easily by the user or installer.
2) By using EX0101-U50/U51, the transmission distance for 1080P reaches 50
meters, 60 meters for 1080I. For general HDMI cables, cables must be
customized when the length over 10 meters.
3) EX0101-U50/U51 has the ability of buffering and amplifying. Series
connection of EX0101-U50/U51 achieves long distance transmission of HDMI
signal. When two pairs or more EX0101-U50/U51 are sacked together, they
can be used to create a larger distribution(Daisy chained.)
EX0101-U50/U51 offers solutions for digital entertainment center, HDTV retail
and show site, HDTV, STB, DVD and Projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.
GRANDBEING
® ３

EX0101-U50/U51 Operating Instructions
PACKAGE CONTENTS
1. Main unit NO.1. P/N_EX0101-U50.
2. Main unit NO.2. P/N_EX0101- U51.
3. Mounting ears.
4. Operating Instructions. P/N_INSEX0101-U50/U51.
5. 5VDC power supply.
*PART NUMBER (Abbreviation as P/N).
PANEL DESCRIPTIONS

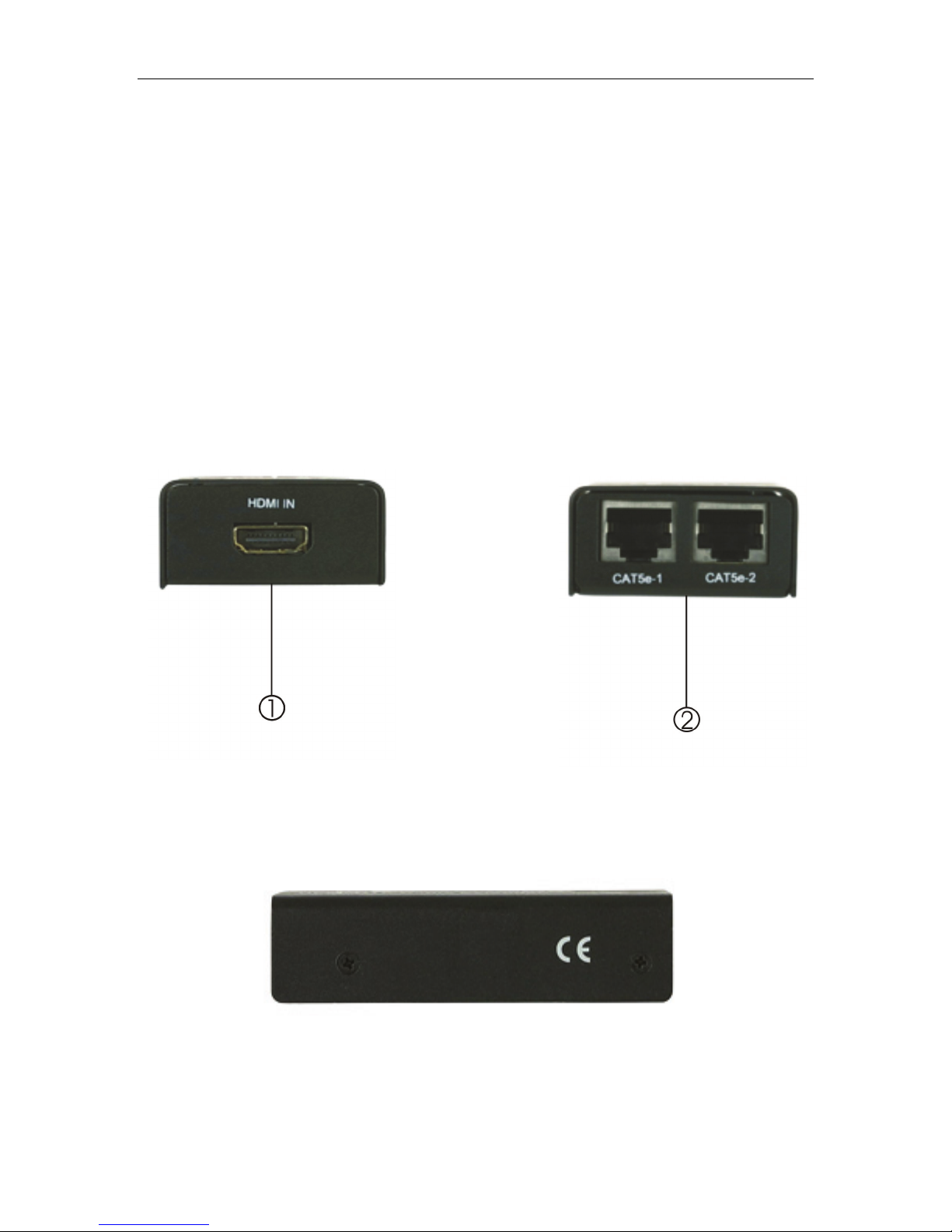

EX0101-U50
Frontpanel Rearpanel
Side
GRANDBEING
® ４

EX0101-U50/U51 Operating Instructions
1. HDMI input.
2. CAT-5E output1 and output2.
EX0101-U51
Frontpanel Rearpanel
Side
GRANDBEING
® ５

EX0101-U50/U51 Operating Instructions

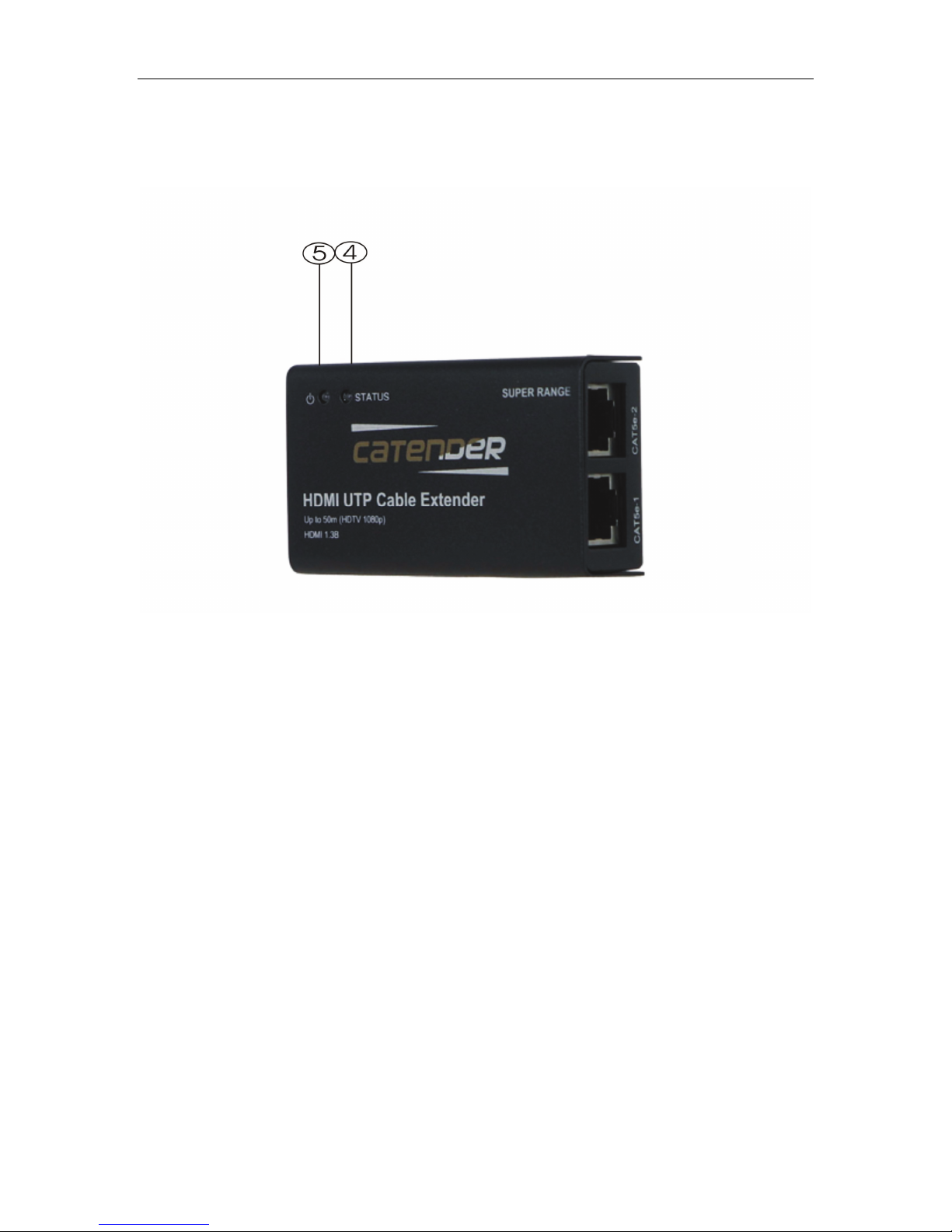

Top
1. HDMI output.
2. CAT-5E input1 and input2.
3. Power input, 5VDC.
4. Status of signal connection. When this works well, the LED inside lights.
5. Status of power input. When power input on, the LED inside lights.
CONNECT AND OPERATION
1) Connect the HDMI input source (such as ：HD-DVD 、PS3 、STB etc. )into
EX0101-U50.
2) Connect two CAT-5E cables to both the outputs of EX0101-U50 and inputs of
EX0101-U51. Please pay attention that the right connection of the two cables,
CAT5e-1->CAT5e1, (The cables must follow the standard of EIA/TIA 568B )
3) Connect the HDMI output(such as : HD-LCD、HD-DLP）into EX0101-U51.
（Remark：In most cases the power adapter could be taken off. The power adapter is only
needed when the signal source has no sufficient power driving ability.）
Attention: Insert/Extract cables gently.
GRANDBEING
® ６

EX0101-U50/U51 Operating Instructions
SPECIFICATIONS
Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format Supported DTV/HDTV;
1080P/1080i/720P/576P/480P/576i/480i
Output Video HDMI+HDCP1.3
Maximum Transmission Distance 〉50m (If needed, HDMI extender is optional)
Power Supply 5VDC
Power Consumption 120mwtts (Max)
Dimensions 46mmW×83mmH×23mmD/1.8''W×3.3''H×0.9''D
Mass (Main unit) 0.26Kgs (Pairs)/0.58lb
*Note: Specifications are subject to change without notice. Mass and dimensions are
approximate.
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to
clean this unit.
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by qualified service
personnel if:
(a) The DC power supply cord or AC adaptor has been damaged;
(b) Objects or liquids have gotten into the unit;
(c) The unit has been exposed to rain;
(d) The unit does not operate normally or exhibits a marked change in
performance;
(e) The unit has been dropped or the cabinet has been damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses
parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result in
fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety
checks to confirm that the unit is in proper working condition.
GRANDBEING
® ７

EX0101-U50/U51 Operating Instructions
WARRANTY
If your product does not work properly because of a defect in materials or
workmanship, We Company (referred to as “the warrantor”) will, for the length of
the period indicated as below, （Parts (1) Year，Labor(90) Days）which starts with
the date of original purchase (“Limited Warranty period”), at its option either (a)
repair your product with new or refurbished parts, or (b) replace it with a new or a
refurbished product. The decision to repair or replace will be made by the
warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You must
mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as
new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured
and preferably in the original carton. Include a letter detailing the complaint and
provide a day time phone and/or email address where you can be reached.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF
OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND
PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR
OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The Limited Warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied
by the warrantor, or failures which result from accidents, misuse, abuse,
neglect, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance,
power line surge, lightning damage, modification, or service by anyone other
than a Factory Service center or other Authorized Servicer, or damage that is
attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY. (As examples, this excludes damages for lost time, cost of
GRANDBEING
® ８

EX0101-U50/U51 Operating Instructions
having someone remove or re-install an installed unit if applicable, travel to
and from the servicer, loss of or damage to media or images, data or other
recorded content. The items listed are not exclusive, but are for illustration
only.)
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
stomer Services Directory
Thank you for your purchase.
We appreciate your business. Please contact us with your question and
comments.
Grandbeing Technology Co., Ltd
6C, Jialitai Building, No. 6 Yanshan Road,
Nanshan District Shenzhen , P.R. China
Post Code:518067
Tel:[phone]
Fax:[phone]
Email:[email protected],
[email protected]
Website:http://www.grandbeing.com
