Grandbeing EX0101-U52R User manual

Model No.: EX0101-U52R/U53R
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
Carefully before using our product.

Introduction
EX0101-U52R/U53R is a HDMI extender with wide range IR while using
CAT-5E/6E cable as transmission media. The carrier wave of the IR signal
can cover from 30KHz to 56KHz.
Benefits from using EX0101-U52R/U53R:
1. The length of HDMI cable is fixed and unchangeable after it is produced.
Because the HDMI connector can only be soldered or terminated by
professional worker in factory, the users can not reduce or increase by
themselves. However CAT-5E/6 cables are available everywhere and be
processed easily by the user or installer.
2. By using EX0101-U52R/U53R, the transmission distance for 1080P
reaches 50 meters, 60 meters for 1080I. For general HDMI cables, cables
must be customized when the length over 10 meters.
3. EX0101-U52R/U53R has the ability of buffering and amplifying. Series
connection of EX0101-U52R/U53R achieves long distance transmission
of HDMI signal. When two pairs or more EX0101-U52R/U53R are sacked
together, they can be used to create a larger distribution (Daisy chained.)
4. The IR system could control the sources from the sinks or control the
sinks from sources.
EX0101-U52R/U53R offers solutions for digital entertainment center, HDTV
retail and show site, HDTV, STB, DVD and Projector factory, noise, space and
security concerns, data center control, information distribution, conference
room presentation, school and corporate training environments.

Contents
HDMI Extender ................................................................................................1
Product Overview ............................................................................................ 1
Features........................................................................................................... 1
Package Contents............................................................................................ 3
Specifications................................................................................................... 3
Panel Descriptions........................................................................................... 4
Connect and Operation.................................................................................... 6
Typical Application ........................................................................................... 6
Maintenance .................................................................................................... 6
Product Service ............................................................................................... 7
Provided Service.............................................................................................. 7
Mail-In Service .................................................................................................7
Warranty .......................................................................................................... 8
Warranty Limits and Exclusions ....................................................................... 8

Quick Start Guide∣1
HDMI Extender

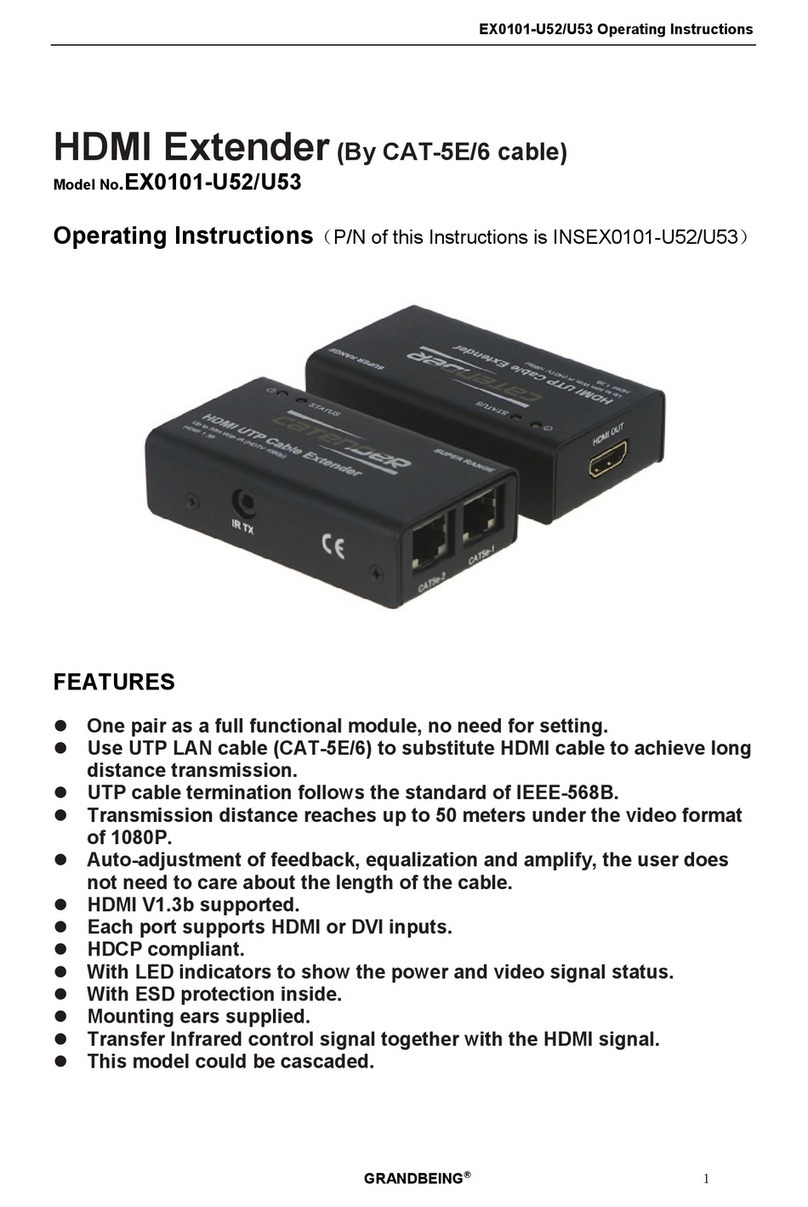

■Product Overview ( Model Number: EX0101-U52R/U53R )
■Features
zOne pair as a full functional module, no need for setting.
zUse UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long
distance transmission.
zUTP cable termination follows the standard of IEEE-568B.
zTransmission distance reaches up to 50 meters under the video format of
1080P.
zAuto-adjustment of feedback, equalization and amplify, the user does not
need to care about the length of the cable.
zHDMI V1.3b supported.
zEach port supports HDMI or DVI inputs.
zHDCP compliant.
zWith LED indicators to show the power and video signal status.
zWith ESD protection inside.
zMounting ears supplied.
zThe IR system could control the sources from the sinks or control the sinks
from sources.
zThis model could be cascaded.

2∣Quick Start Guide
"Notice
Grandbeing Inc. reserves the right to make changes in the hardware,
packaging and any accompanying documentation without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
p
lu
g
s.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Quick Start Guide∣3
■Package Contents
① Main unit NO.1. P/N_EX0101-U52R.
② Main unit NO.2. P/N_EX0101-U53R.
③ Mounting ears.
④ Operating Instructions. P/N_INSEX0101-U52R/U53R.
⑤ 5VDC power supply. P/N_VDC0501. (For U53R).
⑥ IR TX UNIT (IR emitter cable) for U52R.
⑦ IR RX UNIT (from 30KHz to 56KHz IR receiver cable) for U53R.
NOTE: PART NUMBER (Abbreviation as P/N).
■Specifications
Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format Supported
DTV/HDTV; 1080P/1080i/720P/576P/480P/576i/480i,
VESA format Signal 6Bits Deepcolor supported (see
note2.)
Audio Format Supported Dolby-HD,DTS-HD, up to 7.1 channel
Output Video HDMI 1.3 +HDCP
Maximum Transmission Distance 〉50m (If needed, HDMI extender is optional)
Power Supply 5VDC
Power Consumption 120mwtts (Max.)
Dimensions 43mmW×82mmH×23mmD/1.6’’W×3.2’’H×0.9’’D
Mass (Main unit) 0.26Kgs (Pairs)/0.58lb
IR wavelengh & frequency wavelengh : 940nm IR frequency:38KHZ
NOTE: 1.Specifications are subject to change without notice. Mass and dimensions are
approximate.
NOTE: 2.When in 36Bits deep color mode, suggest to set the HDMI source device to
output 1080i or 720P.

4∣Quick Start Guide
■Panel Descriptions
1. EX0101-U52R
Front Panel RearPanel
Side Panel
TOP Pane

Quick Start Guide∣5
2. EX0101-U53R
Front Panel RearPanel
Side Panel
TOP Pane

6∣Quick Start Guide
■Connect and Operation
1) Connect the HDMI input source ( such as：HD-DVD、PS3、STB
etc. )into EX0101-U52R.
2) Connect two CAT-5E cables to both the outputs of EX0101-U52R and
inputs of EX0101-U53R. Please pay attention to that the right connection
of the two cables, CAT5e-1->CAT5e1. ( The cables must follow the
standard of EIA/TIA 568B )
3) Connect the HDMI output ( Such as: HD-LCD/HD-DLP) into
EX0101-U53R.
4) Connect the IR TX UNIT into EX0101-U52R IR TX, Connect the IR RX
UNIT into EX0101-U53R IR RX.
(Remark：In most cases the power adapter could be taken off. The power adapter is only
needed when the signal source has no sufficient power driving ability.)
Attention: Insert / Extract cables gently.
■Typical Application
■Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine
to clean this unit.

Quick Start Guide∣7
■Product Service
●Provided Service
1) Damage Requiring service: The unit should be serviced by qualified
service personnel if:
zThe DC power supply cord or AC adaptor has been damaged;
zObjects or liquids have gotten into the unit;
zThe unit has been exposed to rain;
zThe unit does not operate normally or exhibits a marked change in
performance;
zThe unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service uses
parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result
in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety
checks to confirm that the unit is in proper working condition.
●Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured
and preferably in the original carton. Include a letter detailing the complaint and
provide a daytime phone and/or email address where you can be reached.
If repair is needed during the limited warranty period the purchaser will be
required to furnish a sales receipt/proof of purchase indicating date of
purchase, amount paid and place of purchase. Customer will be charged for
the repair of any unit received without such proof of purchase.

8∣Quick Start Guide
●Warranty
If your product does not work properly because of a defect in materials or
workmanship, Grandbeing Company (referred to as “the warrantor”) will, for
the length of the period indicated as below, (Parts (1) Year，Labor(90)
Days)which starts with the date of original purchase (“Limited Warranty
period”), at its option either (a) repair your product with new or refurbished
parts, or (b) replace it with a new or a refurbished product. The decision to
repair or replace will be made by the warrantor.
During the “Labor” Limited Warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You must
mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as
new. A purchase receipt or other proof of original purchase date is required for
Limited Warranty service.
●Warranty Limits and Exclusions
1) This Limited Warranty ONLY COVERS failures due to defects in
materials or workmanship, and DOES NOT COVER normal wear and
tear or cosmetic damage. The Limited Warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are
caused by products not supplied by the warrantor, or failures which result
from accidents, misuse, abuse, neglect, mishandling, misapplication,
alteration, faulty installation, set-up adjustments, maladjustment of
consumer controls, improper maintenance, power line surge, lightning
damage, modification, or service by anyone other than a Factory Service
Center or other Authorized Service, or damage that is attributable to acts
of God.
2) There are no express warranties except as listed under “limited
warranty coverage”. The warrantor is not liable for incidental or

Quick Start Guide∣9
consequential damages resulting from the use of this product, or
arising out of any breach of this warranty. (As examples, this excludes
damages for lost time, cost of having someone remove or re-install an
installed unit if applicable, travel to and from the service location, loss of or
damage to media or images, data or other recorded content. The items
listed are not exclusive, but are for illustration only.)
3) Parts and service, which are not covered by this limited warranty, are
your responsibility.

Grandbeing Technology Co., Ltd.
Address:
6C, Jialitai Building, No. 6 Yanshan Road,
Nanshan District Shenzhen, P.R. China
Tel: [phone]/Fax: [phone]
Post Code: 518067
www.grandbeing.biz
