Grandstream Networks HandyTone-286 Rev 3.0 User manual

User Manual
HandyTone-286 Rev 3.0
Analog Telephone Adaptor
For Firmware Version 1.0.8.16
Grandstream Networks, Inc.
www.grandstream.com

HandyTone -286 User Manual Grandstream Networks, Inc.
2
Table of Contents
1WELCOME 4
2INSTALLATION 5
3WHAT IS INCLUDED IN THE PACKAGE 6
3.1 SAFETY COMPLIANCES 6
3.2 WARRANTY 6
4PRODUCT OVERVIEW 7
4.1 KEY FEATURES 7
4.2 HARDWARE SPECIFICATION 8
5BASIC OPERATIONS 9
5.1 GET FAMILIAR WITH KEY PAD AND VOICE PROMPT 9
5.2 MAKE PHONE CALLS 10
5.2.1 Calling Phone or Extension Numbers 10
5.2.2 Direct IP Calls 10
5.2.3 Call Hold 11
5.2.4 Call Waiting 11
5.2.5 Call Transfer 11
5.2.6 3-way Conferencing 12
5.3 CALL FEATURES 12
5.4 FAX 13
5.5 LED LIGHT PATTERN INDICATION 14
6CONFIGURATION GUIDE 15
6.1 CONFIGURING HANDYTONE-286 IP THROUGH VOICE PROMPT 15
6.1.1 DHCP Mode 15
6.1.2 STATIC IP Mode 15
6.1.3 TFTP Server Address 15
6.2 CONFIGURING HANDYTONE-286 WITH WEB BROWSER 15
6.2.1 Access the Web Configuration Menu 15
6.2.2 End User Configuration 16
6.2.3 Advanced User Configuration 19
6.2.4 Saving the Configuration Changes 30
6.2.5 Rebooting the HandyTone-286 from Remote 30
6.3 CONFIGURATION THROUGH A CENTRAL SERVER 31
7SOFTWARE UPGRADE WITH TFTP 32
7.1 FIRMWARE UPGRADE THROUGH TFTP/HTTP 32
7.2 CONFIGURATION FILE DOWNLOAD 33
7.3 FIRMWARE AND CONFIGURATION FILE PREFIX AND POSTFIX 33
7.4 MANAGING FIRMWARE AND CONFIGURATION FILE DOWNLOAD 33
8RESTORE FACTORY DEFAULT SETTING 34

HandyTone -286 User Manual Grandstream Networks, Inc.
3
9GLOSSARY OF TERMS 35

HandyTone -286 User Manual Grandstream Networks, Inc.
4
1Welcome
Congratulations on becoming an owner of HandyTone-286. You made an excellent choice and we
hope you will enjoy all its capabilities.
Grandstream's award-wining HandyTone-286 is innovative Analog Telephone Adaptor that offers a
rich set of functionality and superb sound quality at ultra-affordable price. They are fully compatible
with SIP industry standard and can interoperate with many other SIP compliant devices and software
on the market.
This document is subject to changes without notice. The latest electronic version of this user manual
can be downloaded from the following location:
http://www.grandstream.com/user_manuals/HandyTone.pdf

HandyTone -286 User Manual Grandstream Networks, Inc.
5
2Installation

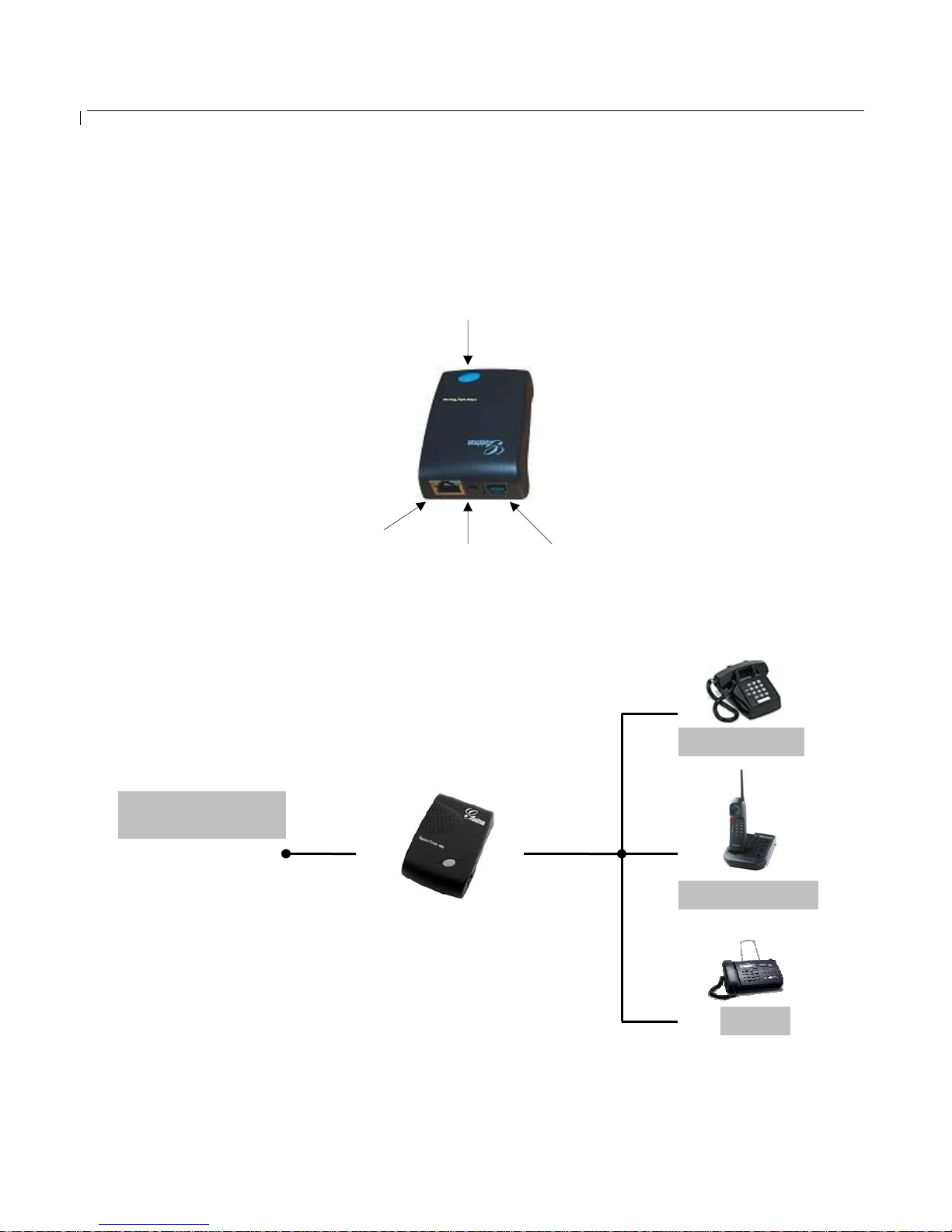

HandyTone-286 is a VoIP Analog Telephone Adaptor designed to work with an ordinary analog
telephone. The following photo illustrates the appearance of a HandyTone-286.
Interconnection Diagram of the HandyTone-286:
BUTTON/
RED LED/
GREEN LED
RJ45
10M Ethernet
RJ11
Telephone
+5V/1200mA
Fax
Cordless Phone
Analog Phone
Internet ADSL/Cable
Modem Ethernet
LAN
PHONE

HandyTone -286 User Manual Grandstream Networks, Inc.
6
3What is Included in the Package
The HandyTone-286 package contains:
1) One HandyTone-286
2) One universal power adaptor
3) One Ethernet cable
3.1 Safety Compliances
The HandyTone-286 is compliant with various safety standards including FCC/CE and C-Tick. Its
power adaptor is compliant with UL standard. The HandyTone ATA should only operate with the
universal power adaptor provided in the package.
3.2 Warranty
Grandstream has a reseller agreement with our reseller customer. End users should contact the
company from whom you purchased the product for replacement, repair or refund.
If you purchased the product directly from Grandstream, contact your Grandstream Sales and Service
Representative for a RMA (Return Materials Authorization) number.
Grandstream reserves the right to remedy warranty policy without prior notification.
Warning: Please do not attempt to use a different power adaptor. Using other power adaptor may
damage the HandyTone-286.
Caution: Changes or modifications to this product not expressly approved by Grandstream, or
operation of this product in any way other than as detailed by this User Manual, could void your
manufacturer warranty.
Information in this document is subject to change without notice. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose without
the express written permission of Grandstream Networks, Inc..

HandyTone -286 User Manual Grandstream Networks, Inc.
7
4Product Overview
4.1 Key Features
•Supports SIP 2.0(RFC 3261), TCP/UDP/IP, RTP/RTCP, HTTP, ICMP, ARP/RARP, DNS,
DHCP (both client and server), NTP, PPPoE, STUN, TFTP, etc.
•Built-in router, NAT, Gateway and DMZ port forwarding. Can also be configured to function
as a two Ethernet ports bridge (NAT function is disabled)
•Powerful digital signal processing (DSP) to ensure superb audio quality; advanced adaptive
jitter control and packet loss concealment technology
•Support various codecs including G.711 (PCM a-law and u-law), G.723.1 (5.3K/6.3K), G.726
(32K), as well as G.729A and iLBC
•Support Caller ID/name display or block, Call waiting caller ID, Hold, Call Waiting/Flash, Call
Transfer, 3-way conference (on Rev. 2.0), Call Forward, in-band and out-of-band DTMF, etc.
•Support fax pass through (for PCMU and PCMA) and T.38 FoIP (Fax over IP)
•Support Silence Suppression, VAD (Voice Activity Detection), CNG (Comfort Noise
Generation), Line Echo Cancellation (G.168), and AGC (Automatic Gain Control)
•Support standard encryption and authentication (DIGEST using MD5 and MD5-sess)
•Support for Layer 2 (802.1Q VLAN, 802.1p) and Layer 3 QoS (ToS, DiffServ, MPLS)
•Support automated NAT traversal without manual manipulation of firewall/NAT
•Support device configuration via built-in IVR, Web browser or encrypted configuration files
through TFTP or HTTP server
•Support firmware upgrade via TFTP or HTTP
•Support SIP Session Timer
•Support Syslog (on Rev.2.0)
•Ultra compact (wallet size) and lightweight design, great companion for travelers
•Compact, lightweight Universal Power adaptor

HandyTone -286 User Manual Grandstream Networks, Inc.
8
4.2 Hardware Specification
The table below lists the hardware specification of HandyTone-286.
Model HandyTone-286
LAN interface 1xRJ45 10Base-T
Button 1
LED GREEN & RED color
Universal
Power Adaptor Input: 100-240VAC Output: +5VDC, 1200mA
UL certified
Dimension 65mm (W)
93mm (D)
27mm (H)
Weight 0.57 lbs (0.26kg)
Operating
Temperature 32 - 104oF 0 - 40oC
Humidity 10% - 95%
(non-condensing)
Compliance FCC/CE/C-Tick

HandyTone -286 User Manual Grandstream Networks, Inc.
9
5Basic Operations
5.1 Get Familiar with Key Pad and Voice Prompt
HandyTone-286 stores a voice prompt menu for quick browsing and simple configuration. To enter
this voice prompt menu, simply press the button on the HandyTone-286 or pick up the phone and dial
“***”. The following table shows how to use the voice prompt menu to configure the device.
Menu Voice Prompt User’s Options
Main Menu “Enter a Menu Option” Enter “*” for the next menu option
Enter “#” to return to the main menu
Enter 01 – 06, 47, 86 or 99 Menu option
01 “Static IP Mode”, or
“Dynamic IP Mode” Enter “9” to toggle the selection.
If user selects “Static IP Mode”, user need
configure the all IP address information
through menu 02 to 05. If user selects
“Dynamic IP Mode”, the device will retrieve
all IP address information from DHCP server
automatically when user reboots the device.
02 “IP Address” + IP address The current WAN IP address is announced
Enter 12-digit new IP address if in Static IP
Mode.
03 “Subnet” + IP address Same as Menu option 02
04 “Gateway “ + IP address Same as Menu option 02
05 “DNS Server” + IP address Same as Menu option 02
06 “TFTP Server “ + IP address Same as Menu option 02
47 “Direct IP Calling” When entered, user will be prompted a dial
tone, dial a 12-digit IP address to make a direct
IP call.
(For details, see “4.2.2 Make a Direct IP
Call”.)
86 “No Voice Messages”; or
“Voice Messages Pending”
If there are voice messages, user can dial “9”
and dial pre-configured phone number to
retrieve voice message.
99 “RESET” Enter “9” to reboot the device; or
Enter MAC address to restore factory default
setting (For details, see section 8.)
“Invalid Entry” Automatically return to Main Menu
NOTES:

HandyTone -286 User Manual Grandstream Networks, Inc.
10
•Once the LED button is pressed, it enters voice prompt main menu. If the button is pressed
again while it is already in the voice prompt menu state, it jumps to “Direct IP Calling” option
and dial tone plays in this state.
•“*” shifts down to the next menu option
•“#” returns to the main menu
•“9” functions as the ENTER key in many cases to confirm an option
•All entered digit sequences have known lengths - 2 digits for menu option and 12 digits for IP
address. Once all digits are accumulated, it automatically processes them.
•Key entry cannot be deleted but the phone may prompt error once it is detected
5.2 Make Phone Calls
5.2.1 Calling Phone or Extension Numbers
To make a phone or extension number call:
a) Dial the number directly and wait for 4 seconds (Default “No Key Entry Timeout”). Or
b) Dial the number directly, and press # (assuming that “Use # as dial key” is selected in web
configuration).
Examples:
To dial another extension on the same proxy, such as 1008, simply pick up the attached phone,
dial 1008 and then press the # or wait for 4 seconds.
To dial a PSTN number such as 6266667890, you might need to enter in some prefix number
followed by the phone number. Please check with your VoIP service provider to get the information. If
you phone is assigned with a PSTN-like number such as 6265556789, most likely you just follow the
rule to dial 16266667890 as if you were calling from a regular analog phone, followed by pressing #
or wait for 4 seconds.
5.2.2 Direct IP Calls
Direct IP calling allows two parties, that is, a HandyTone with an analog phone and another VoIP
Device, to talk to each other in an ad hoc fashion without a SIP proxy. This kind of VoIP calls can be
made between two parties if:
•Both HandyTone ATA and other VoIP Device(i.e., another HandyTone ATA or Budgetone SIP
phone or other VoIP unit) have public IP addresses, or
•Both HandyTone ATA and other VoIP Device are on the same LAN using private IP addresses,
or
•Both HandyTone ATA and other VoIP Device can be connected through a router using public
or private IP addresses (with necessary port forwarding or DMZ).
To make a direct IP call, first pick up the analog phone or turn on the speakerphone on the analog
phone, then access the voice menu prompt by dial “***” or press the button on the HandyTone-286,
