Grandview GRPL 1000 User manual

GRANDVIEW REPRODUCING GENUINE COLORS
INSTRUCTION MANUAL
Caution
Recessed-Ceiling
Motorised Projector Lift
Applicable Model
GRPL 1000
GRPL 1600
GRPL 1600L
GRPL 2700
GRPL 2700L
GRPL 4600L
Please read BEFORE installation:
Thank you for purchasing this product.
Please read this instruction manual carefully
to ensure this projector lift is suitable for
your installation environment.
WARNING: This product should only be
installed by a qualified technician.
Please review the manual carefully to ensure
proper installation and to avoid injury.
The ceiling must have a minimum load
bearing to suit the Projector Lift.
CAUTION
For Projector
Lift assembly
only.
NO DISMANTLING
Please do not
dismantle the
mounting bracket
accessories.

1
WARNING:To avoid electric shock or fire do not install the projector lift in
wet places.
1. Please read these instructions carefully before installation to avoid damage to the
product caused by inappropriate installation or operation.
2. Please keep the projector lift away from hot sources, such as radiators and heaters,
fireplaces, loudspeakers or similar devices.
3. Plugging in only with ground wire is acceptable.
4. Only accessories from authorised suppliers are acceptable.
5. Please unplug the power during lightning and rain or when the product is not in use
for long periods of time.
6. Please do not attempt repairs yourself – repair work should only be done by a
professional agent.
7. Please use the approved power lead (three-core power lead) provided.
8. Please use the rating (voltage, amps) power lead (three-core power lead).
9. Electrical socket should be installed in a convenient position. If an accident occurs
during operation, please disconnect power by removing the power plug.
10. The ceiling or wall used for installation must be secure – the load-bearing
requirement must be 4 times that of the Projector Lift to prevent it from falling.
CAUTION
Caution
WARNING
To prevent injuries caused by electric shock,
do not remove the cover or any parts.
Users should not check any internal parts.
Please contact an authorized professional
repairman to address any problems.
CAUTION
Be aware of non-
insulated voltage
of spare parts to
prevent danger
from electric shock.
NOTE
Please operate
only according
to this instruction
manual.

2
nM4 Hexagonal Adjuster (1pc) nM5, M4, M3 × 20mm Screws (each 4 pcs )
nRubber Washer 5 x 10mm (4pcs) nController (1pc)
nBattery (1 set)
nPower Socket
nInstruction Manual
OPTIONAL ACCESSORIES
nWall-Switch (1pc)
nMulti-Media Box (1pc)
ACCESSORIES

3
CONSTRUCTION OF PROJECTOR LIFT
Front View
Top View
Side View

4
MODEL
SIZE (mm)
A B C D E F G
GRPL 1000 600 550 345 0~930 483 483 200
GRPL 1600 704 670 600 0~1600 586 586 250
GRPL 1600L 704 770 600 0~1600 686 586 270
GRPL 2700 704 670 685 0~2700 586 586 250
GRPL 2700L 704 770 685 0~2700 686 586 270
GRPL 4600L 800 765 800 0~4600 686 686 270
SPECIFICATIONS

5
nThis projector lift needs to be recessed into the ceiling, and this instruction
shows the grille-ceiling as an example.
nFor convenience and safety, please install the projector lift according to your
individual requirements.
nThe projector lift needs to be recessed at the best viewing angle in order to
improve the image. Take out all the parts from the packaging and refer to the
accessories guideline to ensure you have all parts.
GRILLE-CEILING MOUNT
1. Choose a position according to the required space, then remove the required section
of ceiling (figure 1). Please measure the distance H between roof and ceiling surface
correctly (figure 2)
INSTALL ATION
remove
ceiling
section

6

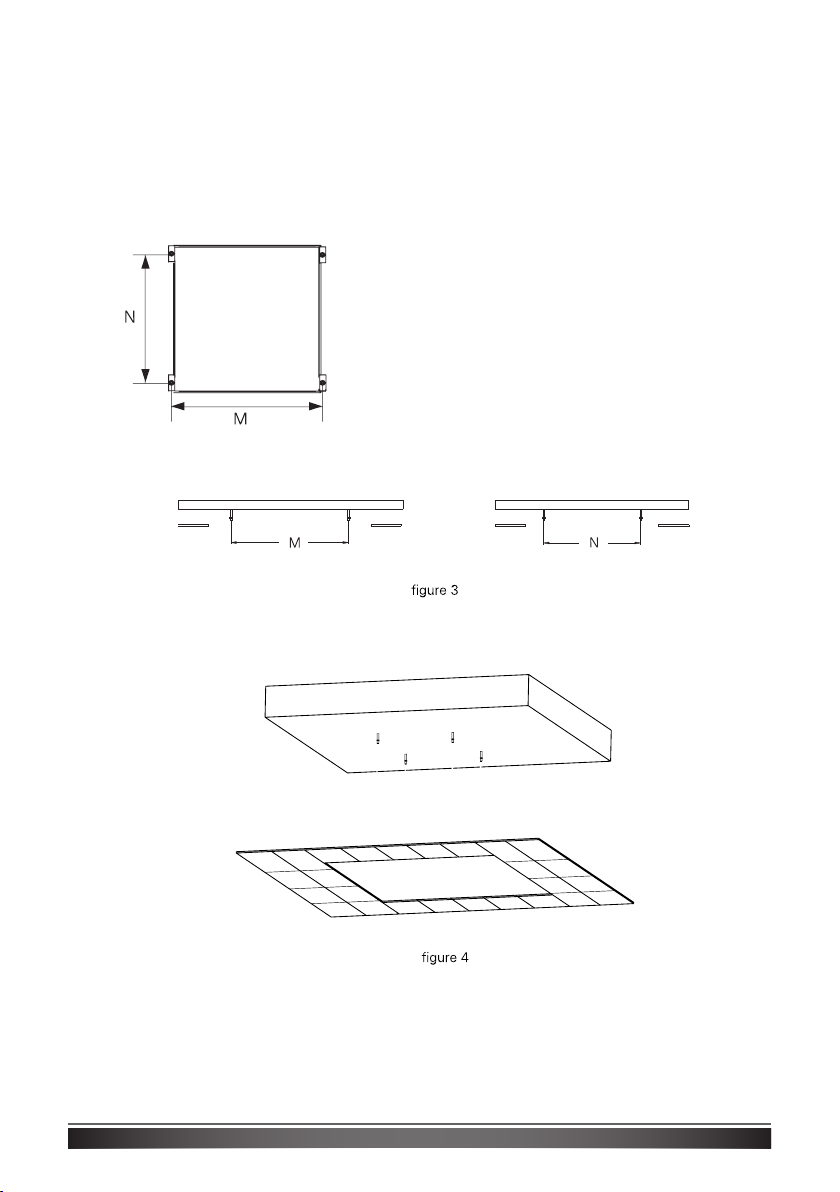

2. Ensure the mounting distances M and N are measured (refer to figure 3).
Install the brackets to the roof via the screws (figure 4).
NOTE: Due to product updates, sizes and specifications are subject to
change at any time.

7
3. Figure 5 – install the projector lift and fasten. The projector’s low frame must align with
the ceiling:
4. Figure 6 – check the alignment of the projector lift:

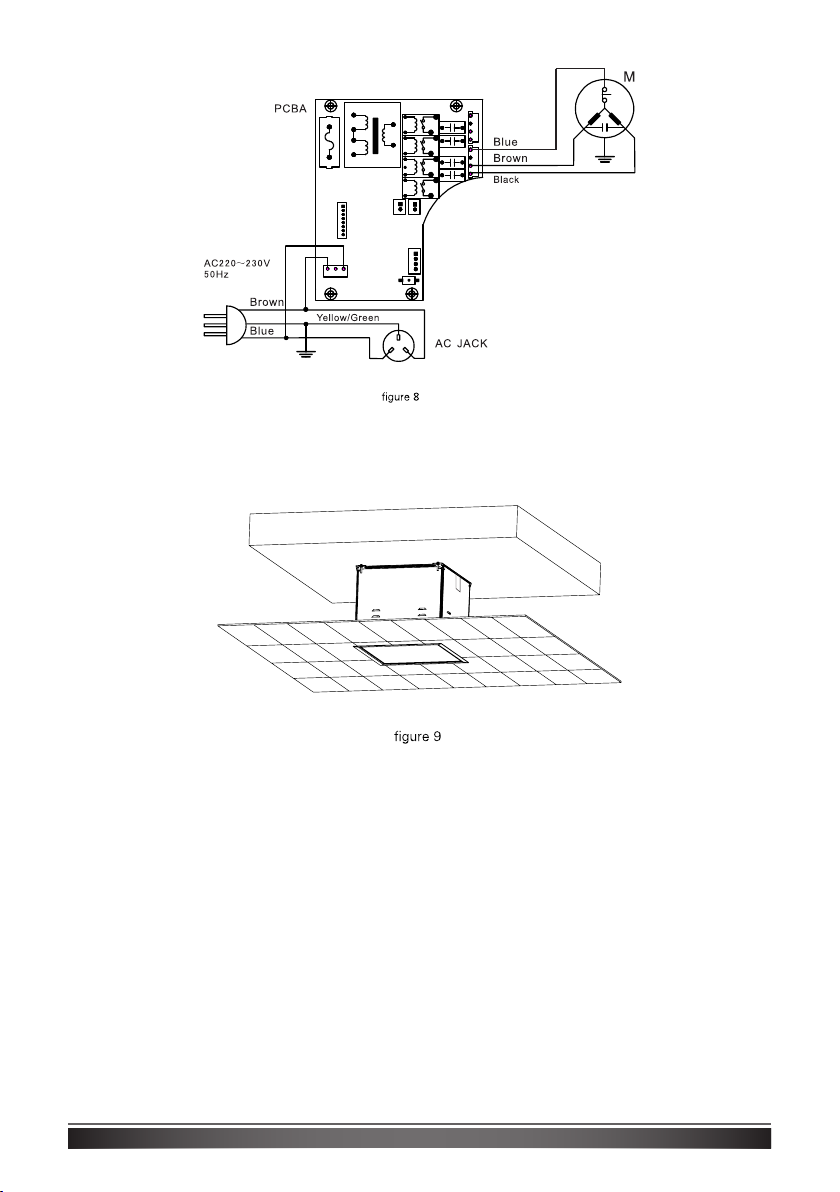

5. Figure 7 – connect the power cord and signal cord (see Circuit wiring diagram Figure
8 over the page)

8
6. Figure 9 – cut the ceiling board (Step 1) to a suitable size which will maintain the gap
after retraction of the projector lift
7. Please read the “Remote Electric Positioning” for controlling the projector lift. After the
adjustment, ensure the height of the projector lift can satisfy your requirement after
extending. Then, ensure the bottom of projector lift aligns
with the ceiling after retracting.
NOTE: the projector lift should only be controlled by people fully conversant
with the lift’s operation.

9
1. Remote controller instruction
Button instruction for controller
nPress “UP”, projector goes up
nPress “STOP”, projector stops
nPress “DOWN”, projector goes down
Front View
Remote controller guideline:
nWork temperature: -20°to 70°
nBatteries: 1.5V x 2pcs, model: AAA.
nTake out batteries if the controller
will not be used for a long time.
nPlease change the batteries when
signal is weak.
Back View
Installation for controller batteries:
nPlease replace the batteries when the
signal of controller is weak
nPush out the battery cover on the back
of controller
nInstall the batteries as guide arrow
nReinstall the battery cover
CAUTION: Install the batteries
correctly
Wall-Switch Function:
Please follow the signs
and symbols on the
wall-switch.
*Optional extra.
INSTRUCTIONS
n
RS232/485, Contract Closer

10
Central Control Instruction
Emitter Function
1Common Brown
2N/A White/Brown
3N/A Orange
4Extend White/Blue
5Retract Blue
6Stop White/Orange
7RS232 Input B Green
8RS232 Input A White/Green
Central Control Format Agreement
1. Communications Agreement Setting:
data bits: 8 bits / start bits: 1 bit / stop bit: 1bit / baud ratio: 2400
2. Directive for retracting: 0xFF 0xEE 0xEE 0xEE 0xC9
3. Directive for stopping: 0xFF 0xEE 0xEE 0xEE 0xCC
4. Directive for extending: 0xFF 0xEE 0xEE 0xEE 0xE9
232 setting: 2400, n, 8, 1 a continuous data sends two times,
each time interval of 200ms.

11
GRANDVIEW PROJECTOR LIFT RS485 SETTING ADDRESS
1. RS-485, RS-232 input
Continuous data send twice, each time with an interval of 200ms
3 bytes of studying address directive are custom setting address directive
Central Control Format Agreement
1. Communication Agreement Setting
Data Bits: 8 bits
Start Bits: 1 bit
Stop Bits: 1 bit
Baud Ratio: 2400
Common directives are in chip of projector lift and can not be changed
2. Directive for retracting: 0xFF 0xEE 0xEE 0xEE 0xC9
3. Directive for stopping: 0xFF 0xEE 0xEE 0xEE 0xCC
4. Directive for extending: 0xFF 0xEE 0xEE 0xEE 0xE9
5. Studying address directive: 0xFF 0xXX 0xXX 0xXX 0xAA
2. Directive Composing Instruction:
oxFF is only bit; ox stands for hexadecimal system; FF is eective bit; a directive is
composed by 5 bits.
Studying directive oxFF oxXX oxXX oxXX oxAA
oxFF and oxAA can not be changed, but oxXX oxXX oxXX can be changed to any 16 hex
data, which stand for address bit
The changed working directive
1. Directive for retracting: 0xFF 0xEE 0xEE 0xEE 0xC9
2. Directive for stopping: 0xFF 0xEE 0xEE 0xEE 0xCC
3. Directive for extending: 0xFF 0xEE 0xEE 0xEE 0xE9
4. Studying address directive: 0xFF 0xXX 0xXX 0xXX 0xAA
Example: The studying directive is oxFF ox10 ox11 ox12 oxAA which can be changed to:
5. Directive for retracting: 0xFF 0xEE 0xEE 0xEE 0xC9
6. Directive for stopping: 0xFF 0xEE 0xEE 0xEE 0xCC
7. Directive for extending: 0xFF 0xEE 0xEE 0xEE 0xE9
8. Studying address directive: 0xFF 0xXX 0xXX 0xXX 0xAA
3. Studying Directive and Operation
After connecting power, studying status will operate within the first 10 seconds. The
studying directive is oxFF oxXX oxXX oxXX oxAA. The screen can be used normally
after study is completed, but the projector lift cannot be used normally after
the address
bit has changed, so that one port can be used to control many projector lifts.
Example: There are projector lift A and B with RS-485 port – if need to control these two
projector lifts synchronously that the directive oxFF oxEE oxEE oxEE oxDD will be sent
out from the port. If need to control these two projector lifts in dierent movement, such
as projector lift A goes down and projector lift B goes up, common directive cannot be
used and separated by address bit at this time.

12
Connect the power for projector lift A, and send out directive oxFF ox10 ox11 ox12 oxAA.
At the same time, the address of projector lift A is ox10 ox11 ox12. Entering the operating
address of projector lift A can control this projector lift.
Directive for retracting: 0xFF 0x10 0x11 0x12 0xC9
Directive for stopping: 0xFF 0x10 0x11 0x12 0xCC
Directive for extending: 0xFF 0x10 0x11 0x12 0xE9
Complete the studying in projector lift A, and then disconnect the power for projector
lift A. Please operate the projector lift B in the same way and change the address to
oxAA oxAA oxAA. Entering the operating address of projector B can control this
projector lift.
Directive for retracting: 0xFF 0xAO 0xAA 0xAA 0xC9
Directive for stopping: 0xFF 0xAO 0xAA 0xAA 0xCC
Directive for extending: 0xFF 0xAO 0xAA 0xAA 0xE9
This studying is one address bit for a long time until next address bit change to update.
After studying address bit, the common directive is still eective, so the address bit
cannot be oxEE oxEE oxEE.
Attachment 1
Compare 16 hexadecimal system and 10 hexadecimal system.
16 hexadecimal system 1 2 3 4 5 6 7 8 9 A B C D E F
10 hexadecimal system 1 2 3 4 5 6 7 8 9 10 12 13 14 15 16
4. Remote Controller Instruction
There is a matching function between the controller and projector lift, then the controller
needs to be programmed – follow these steps:
1. The projector lift is at load position. After connecting the power,
within 5 seconds please press the UP button and STOP button simultaneously
for 5 seconds, then release.
2. Press the DOWN button to check whether the programming works.
3. If the programming fails, please repeat steps 1 and 2.

13
PROJECTOR LIFT POSITIONING FUNCTION
There are 2 solutions to position the projector lift: upper/lower limitation and
remote localizer. NOTE: Changing these limits will void warranty.
NOTE: Do not change the factory pre-settings for any emergency, please operate
according to the following instructions if necessary.
1. Remote limit setting adjustment (Soft Limits)
a. When the projector lift installation has been completed, turn on the power to the lifter.
Confirm the lifter is operational.

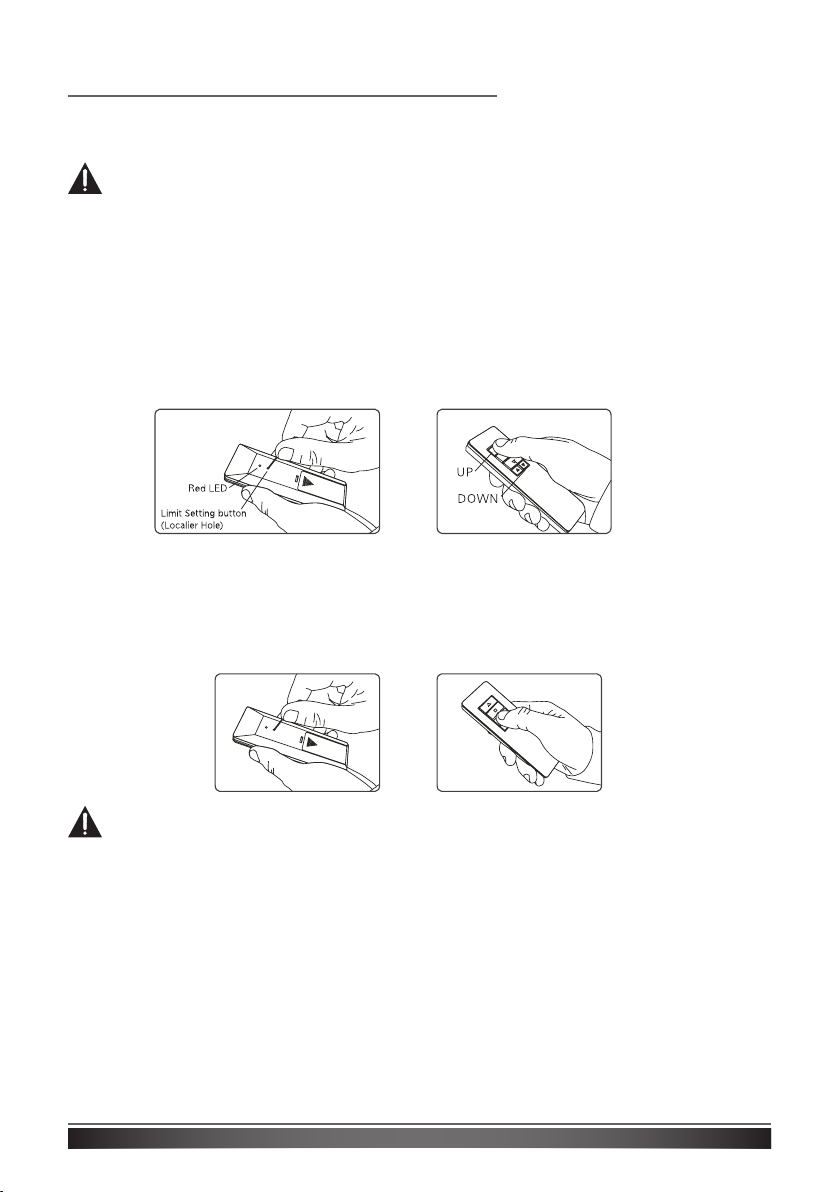

b. To set the lower limit (show position), turn over the remote control and locate the limit
setting button. Press this button using a small pin or paperclip for 3 seconds and
release (red LED will light up). Then press the down button on the front of the remote.
Then the lifter is at the correct show position press stop. Turn over the remote again
and press the limit setting button, the red LED will go out and the new limit is set.
figure 16 figure 17
c. To set the upper limit (closed position), turn over the remote control and locate the
limit setting button. Press this button using a small pin or paperclip for 3 seconds and
release (red LED will light up). Then press the up button on the front of the remote.
Then the lifter is at the correct closed position press stop. Turn over the remote again
and press the limit setting button, the red LED will go out and the new limit is set.
figure 18 figure 18
NOTE: For ensuring the security of positioning function, the eective setting period
of electric positioning should be 60 seconds, after which it will return to the normal
situation. If the setting fails within 60 seconds, please repeat the following steps:
to press the setting button – LED light will turn o; press the setting button again
– LED light will turn on. With this process the resetting function will begin.
2. Upper/Lower Limitation Adjustment (Hard Limits)
Upper limitation and lower limitation are preset in the factory. The upper limitation
should be a little higher than ceiling height. Lower limitation is showed as numerical value
D in the specification table (the upper/lower limitation for sling wire should be regulated
by professional people or dealers. Improper regulation carries safety risks).
(See figures 12 & 13 on page 14)

14
figure 12 figure 13
NOTE: the following operation should only be undertaken by people fully
conversant with the lift’s operation:
a. For upper limitation adjustment, pull out the knob and adjust using the allen key
provided. A clockwise adjustment will retract the projector lift (decreasing distance
between casing and installation point) and a counter-clockwise adjustment will extend
the projector lift (increasing distance between casing and installation point).
b. For lower limitation adjustment, pull out the knob and adjust using the allen key
provided . A clockwise adjustment will extend the projector lift ( increasing distance
between casing and installation point ) and a counter-clockwise adjustment will retract
the projector lift (decreasing distance between casing and installation point).
figure 14 figure 15
MOTOR POSITIONING
Do not roll and retract the projector lift continuously
over 4 minutes at a time to avoid overheating. If the motor
overheats, wait 30 minutes for cooling. No lubrication is
needed for the motor, the drop and retract limit of the
projector lift has been prepositioned to an optimal
configuration before delivery. In order to avoid motor
damage, please consult your local dealer or a professional
technician when a new position setting is needed.
Use the M4 allen-key for adjusting the upper and lower
limitations of the projector lift, but the distance cannot be
more than value D in the specification table.

15
Please take note of the following important information for installation and use.
SAFETY HANDLING

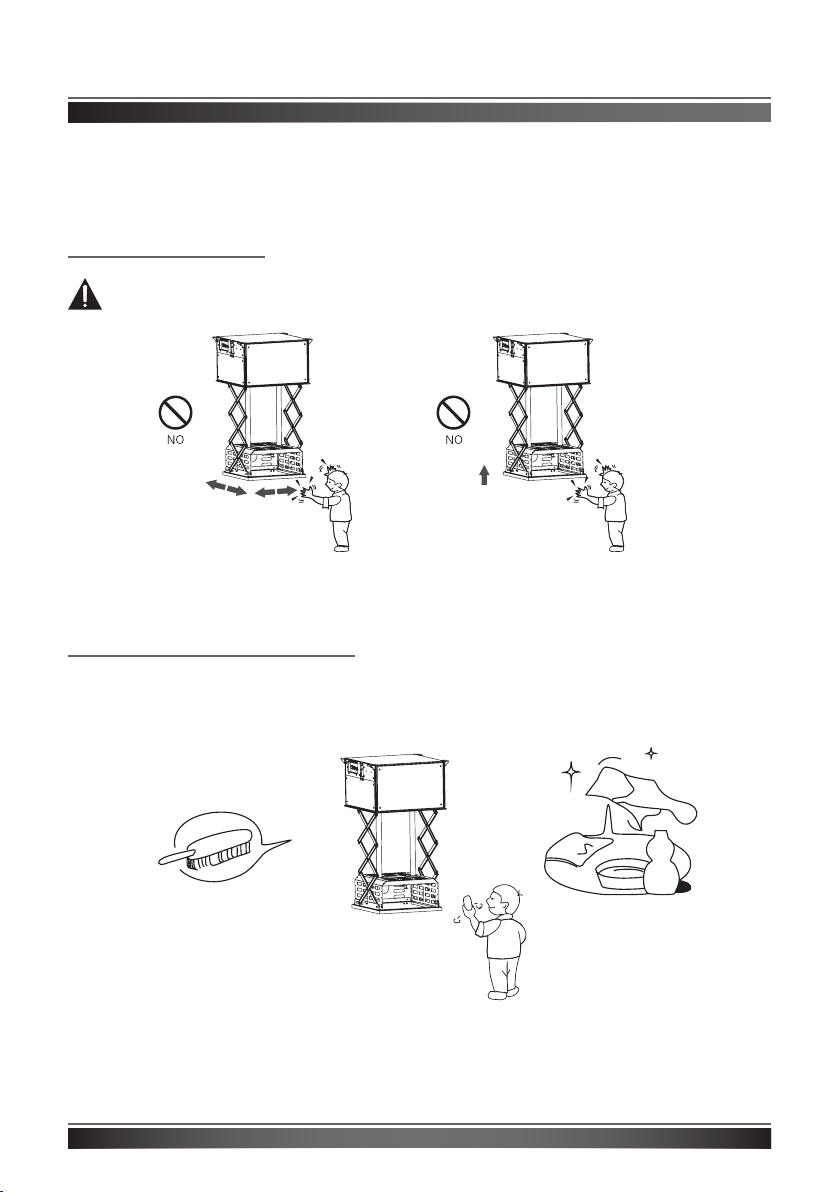

CAUTION: Please do not shake OR manually lift the projector lift
MAINTENANCE & CLEANING
Please clean the projector lift with diluted mild detergent, then dry using a soft cloth.
Use a soft brush to clean gaps.
IMPORTANT SAFETY INFORMATION

16
LOCATION
CAUTIONS:
n Please keep away from hot surfaces, dusty and dirty areas,
high temperature and high humidity.
n Do not expose the projector to high wind or high-powered
indoor fans.
n Do not dismantle
REPAIRS
Please do not dismantle the screws of the projector lift.
Should this product require repaired, please contact our
company or dealers.
TROUBLESHOOTING
The Grandview Projector Lift can be used for years, with most problems being resolved
inexpensively. If problems occur, please refer to list below for some common solutions.
If problems continue, contact an authorized agent of Grandview or call the following
service number: 1800 685 487
Reason Solution
Projector Lift
does not respond
to any operation
Battery has not been installed
correctly or is flat
Check that the batteries are
installed correctly – refer to the
manual. If flat, replace batteries.
Power disconnection Check that the power is
connected – refer to the manual.
THREE-YEAR WARRANTY
Grandview provides a three-year warranty for projector lifts. The warranty includes
replacement of spare parts where problems occur during correct operation.
Not included in the warranty are operating the projector lift incorrectly or uninstalling
of the projector lift by a non-qualified person.
NOTE: You should contact Grandview or an appointed service centre for repairs.

Website: www.avaustralia.com.au
Enquiries email: [e-mail]
