GRASS VALLEY KAMELEON Series User manual

KAM-SD-2AES-DMX
KAMELEON SERIES MODULES
Instruction Manual
SOFTWARE VERSION 4.0.1
071835000
DECEMBER 2004

2KAM-SD-2AES-DMX Instruction Manual
Contacting Grass Valley
Copyright © Thomson Broadcast and Media Solutions All rights reserved.
Grass Valley Web Site
The www.thomsongrassvalley.com web site offers the following:
Online User Documentation — Current versions of product catalogs, brochures,
data sheets, ordering guides, planning guides, manuals, and release notes
in .pdf format can be downloaded.
FAQ Database
— Solutions to problems and troubleshooting efforts can be
found by searching our Frequently Asked Questions (FAQ) database.
Software Downloads
— Software updates, drivers, and patches can be down-
loaded.
Region Voice Fax Address Web Site
North America [phone]
Support: 530-478-4148 Sales: [phone] Support: [phone] Grass Valley P.O. Box 599000
Nevada City, CA 95959-
7900 USA
www.thomsongrassvalley.com
Pacific Operations [phone]
Support: 852-2585-6579 [phone]
U.K., Asia, Middle East [phone] [phone]
France [phone]
Germany, Europe [phone] [phone]

KAM-SD-2AES-DMX Instruction Manual 3
Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
KAM-SD-2AES-DMX Kameleon Series Module
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Frame Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Module Placement in the 2000T3NG Kameleon Frame. . . . . . . . . . . . . . . . . . . . . 9
Installing the Front and Rear Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SDI Video In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
AES Audio Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SDI Video Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operation Indicator LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Configuration and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Configuration Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Newton Control Panel Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Web Browser Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Web Page Operations and Functional Elements. . . . . . . . . . . . . . . . . . . . . . . . . . 20
Status and Identification Header. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Initial Configuration Process Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
KAM-SD-2AES-DMX Links and Web Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Status Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Color-coded Status Indicators and Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Status/Front Module Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Warning/Fault Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Input/Output Configuration Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Functional View Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SDI In Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
DEMUX Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Audio Demultiplexing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Video Input Select Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
View Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Video Selection Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Output Timing Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Advanced VBI Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Frame Sync Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Timing Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Freeze Mode Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Video Processing Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Video Processing Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4KAM-SD-2AES-DMX Instruction Manual
Contents
Clipping Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Reset To Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
VBI SDI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Audio Channel Pairing Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Audio Sync Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Enable Auto Track. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Delay Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Audio Processing Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Audio Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Output Processing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Selecting Output Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
AES Outputs Web Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
E-MEM Configuration Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
File Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Slot Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Slot Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Locate Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Slot Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Frame Heath Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Hardware Switch Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Slot SNMP Trap Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Software Update Web Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

KAM-SD-2AES-DMX Instruction Manual 5
Preface
About This Manual
This manual describes the features of the Kameleon multi-function
modules that are part of the Kameleon Media Processing System. As part
of this module family, it is subject to Safety and Regulatory Compliance
described in the Kameleon/2000 Series frame and power supply documen-
tation (see the Kameleon 2000 Series Frames Instruction Manual ).

6KAM-SD-2AES-DMX Instruction Manual
Preface

KAM-SD-2AES-DMX Instruction Manual 7
KAM-SD-2AES-DMX
Kameleon Series Module
Introduction
This manual provides installation, operation and configuration informa-
tion for the KAM-SD-2AES-DMX Kameleon Series module.
The Kameleon KAM-SD-2AES-DMX multi-function module accepts a
serial digital video input with embedded audio and a serial digital video
output. AES audio can be demultiplexed from the incoming SDI video and
sent to two AES audio output channels (balanced or unbalanced).
This module features:
•Broadcast quality serial digital input and output video,
•Embedded 48 kHz AES digital audio streams are demultiplexed from
the SDI video providing two balanced or unbalanced AES outputs,
•Audio and video delay, synchronization and processing amplifier,
• Powerful line-by-line VBI processing including user-configuration of
active video lines for carrying data,
• 4x4 audio router for mapping audio channels to specific AES streams,
•Audio and video test generators,
•Hot swappable,
•5user-programmable E-MEM registers,
• Save/load module configuration files to a networked PC,
•SNMP monitoring capability,
•Web browser GUI (graphical user interface), and
•Support for Newton Control System and NetConfig Network Configu-
ration application.
Note KAM-SD-2AES-DMX operation requires 2000NET Network Interface Module
hardware revision 01A1 or greater with software version 3.2.2 or greater.
Systems installed in the 2000T3N frame require the 2000FAN fan sled (refer
to Figure 3 on page 11).

8KAM-SD-2AES-DMX Instruction Manual
Installation
Installation
To install the Kameleon modules, perform the following steps:
1.
Place the KAM-AES-R passive rear module in a rear frame slot and
tighten the screws on each side of the rear module.
2.
Cable the signal ports.
All Kameleon modules can be inserted and removed from a 2000 Series
Kameleon Frame with power on.
Note Remove the front processing module before removing the rear I/O module.
System Requirements
For proper operation of the KAM-SD-2AES-DMX modules, the frame must
be a 2000T1DNG or 2000T3NG which include the following components:
•2000NET module (software version 3.2.2 or later recommended for full
functionality)
• 2000GEN module
•Dual 130W power supplies in the 2000T1DNG frame
• Single 240W power supply and 2000FAN in the 2000T3NG frame
Frame Capacity
The 1 RU 2000T1DNG (with dual 130W power supplies, 2000NET and
2000GEN modules) frames have no Kameleon module capacity limitations.
The 3 RU 2000T3NG (single 240W p/s, 2000FAN, 2000NET and 2000GEN
modules) frame can be fully populated with Kameleon modules when the
2000FAN fan sled and two power sleds are installed.
Table 1 provides the maximum Kameleon module count for frame types.
Table 1. Power, Cooling, and Module Capacity of 2000 Series Kameleon Frames
Item 2000T3NG Kameleon Frame
Capacity
2000T1DNG
KameleonFrame
Capacity
KAM-SD-2AES-DMX Module set 12 4

KAM-SD-2AES-DMX Instruction Manual 9
Installation
Module Placement in the 2000T3NG Kameleon Frame
There are twelve slot locations in both the front and rear of a 3 RU frame to
accommodate 2000 and Kameleon Series media modules (audio/video
signal handling modules). The Kameleon media modules consist of a
two-module set with a front processing media module and a passive rear
module that can be plugged into any of the 12 frame slot pairs. The rear
modules provide the input and output interface connectors.
Installing the Front and Rear Modules
To install a KAM-SD-2AES-DMX module set in the 2000 Series frame:
1.
Locate a vacant slot in the rear of the 3 RU frame (Figure 1).
Figure 1. 2000T3NG Kameleon Frame, Rear View
Mid-frame
motherboard
with power and
communication buses
Front-rear module
direct connection
cutout
Open frame area
for front-rear module
direct connection
Six rear
module slots
Network
and reference
input connections
Six rear
module slots
8039-03

10 KAM-SD-2AES-DMX Instruction Manual
Installation
2.
Insert the KAM-AES-R passive rear module into the vacant rear slot of
the frame as illustrated in Figure 2.
Figure 2. Installing Passive Rear Module
3.
Verify that the module connector seats properly against the midplane.
4.
Using a crossblade screwdriver, tighten the two screw locks to secure
the module in the frame.
CVO SD0
AES
1
SIG J10 J9 J6 J5 J4 J3 J1
V1
J2
2900
PRM-7
J11
AES
2AES 1AES 2
J8 J7
AES
3AES
4 AES 3AES 4
Rear alignment
post and receptacle
Screw lock
(both sides)
8345_01
2000 frame (rear view)
KAM-AES-R module
Board edge guides
(both sides)

KAM-SD-2AES-DMX Instruction Manual 11
Installation
5.
Locate the corresponding front media slot (1 -12) in the frame. The 3 RU
frame front view is illustrated in Figure 3.
Figure 3. 2000T3NG Kameleon Frame, Front Slots
6.
With the component side up, insert the processing module in the
corresponding front slot (see Figure 4).
7.
Verify that the module connector seats properly against the midplane
and rear module connector.
8.
Press firmly on both ejector tabs to seat the module.
Figure 4. Installing Front Media Module
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(15)
(13)
(1)
8173-04
Network Slot (13)
Reference Distribution Slot (15)
Main Power Supply Slot (19)
Secondary Power
Supply Slot (21)
Front Media Slots (1-12)
Fan Sled
Slot (20)
Alignment post and receptacle
8348_04
2000 Frame (front view)
Board edge
guides
Board edge
guides

12 KAM-SD-2AES-DMX Instruction Manual
Installation
Cabling
All cabling to the module is done on the KAM-AES-R passive rear module
shown in Figure 5.
SDI Video In
Connect SDI video with embedded audio to connector J11, labeled
V1
.
AES Audio Outputs
Two demultiplexed AES audio outputs are available at unbalanced BNC
connectors J4 and J5 or balanced 3-pin connectors J2 and J3. The choice
between balanced or unbalanced outputs must be made on the
Input/Output Configuration Web Page on page 27.
Connect balanced audio to the 3-pin connector as shown in the connector
pinout at left of Figure 5.
SDI Video Out
The SDI video is output at BNC connector J6, labeled
CVO
.
Figure 5. KAM-AES-R Input/Output Connectors
8350_01
CVO SD0
AES
1
SIG J10 J9 J6 J5 J4 J3 J1
SIG
J2
2900
PRM-7
J11
AES
2AES 1AES 2
J8 J7
AES
3AES
4 AES 3AES 4
J11 VI, SDI Video In
J10 AES 1 J9 AES 2 J8 AES 1J7 AES 2
Connector
pinout
+ – G J6 CVO (not used)
(not used in this application) J1 SDO, SDI Video Out
J2 AES2, Balanced Audio Output
J3 AES1, Balanced Audio Output
J4 AES2, Unbalanced Audio Output
J5 AES1, Unbalanced Audio Output

KAM-SD-2AES-DMX Instruction Manual 13
Power Up
Power Up
The front LED indicators are illustrated in Figure 6.

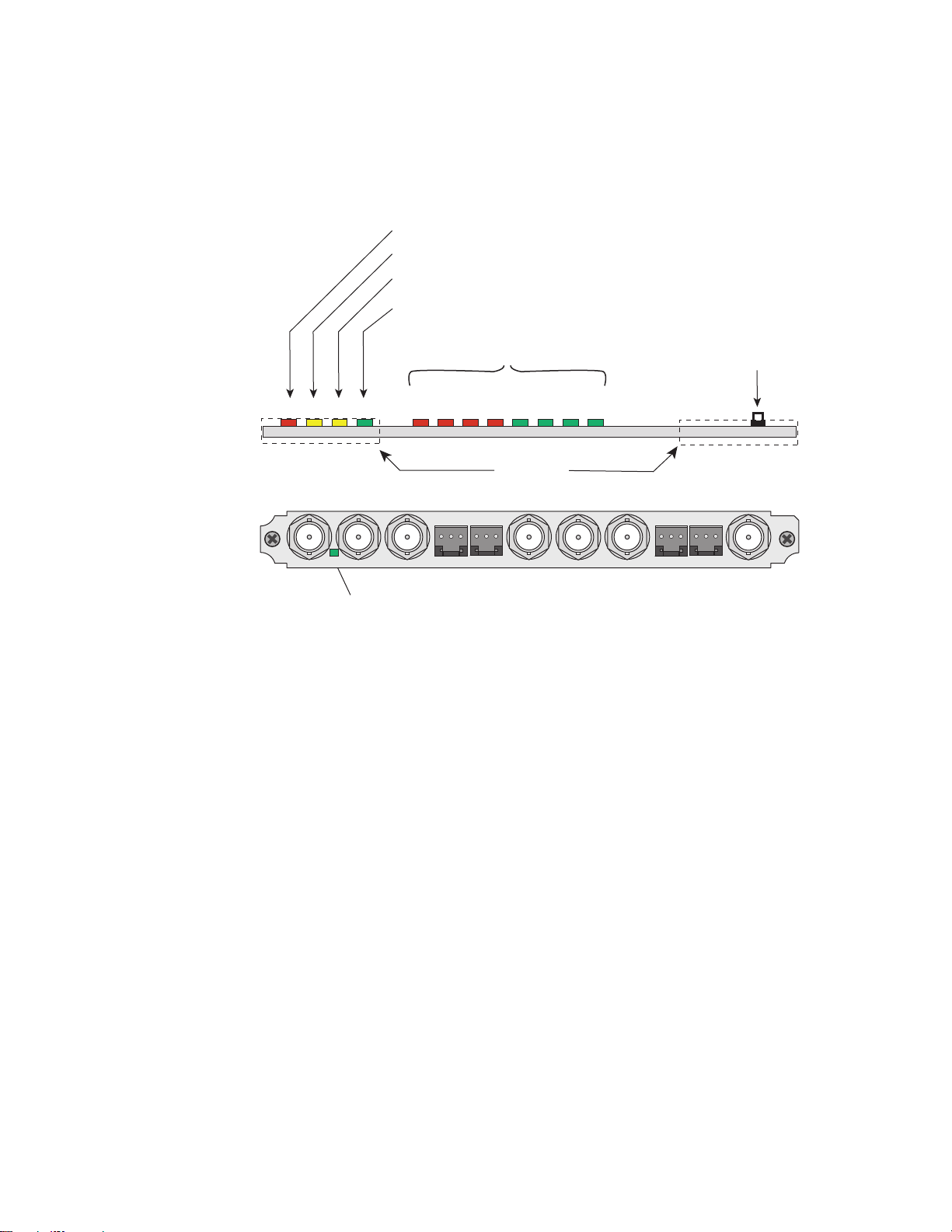

Figure 6. Front and Rear Module Indicator LEDs
A green Signal Present LED can be seen on the Passive Rear Module (PRM)
when a valid input signal is present.
D1 D2 D3 D4 D5 D6 D7 D8
PWR – Green diagnostic LED on indicates power OK
For factory use.
FAULT – Red diagnostic LED is off during normal operation
Ejector Tabs
Processor Module
Front Edge
COMM – Yellow LED on during remote control communication
CONF – Yellow LED on when module is initializing or processing control data
GND – Digital ground
8345_03
Signal Present green LED
CVO SD0
AES
1
SIG J10 J9 J6 J5 J4 J3 J1
SIG
J2
2900
PRM-7
J11
AES
2AES 1AES 2
J8 J7
AES
3AES
4 AES 3AES 4

14 KAM-SD-2AES-DMX Instruction Manual
Power Up
Operation Indicator LEDs
Table 2 provides a complete list of possible operating conditions and the
resulting indicator status.
A red FAULT LED indicates an error situation. Table 2 describes signal
output and LED indications for the various input/reference combinations
and user settings.
Note The yellow COMM and CONF LEDs are used for the module location function
that is enabled using the 2000NET GUI. The module location function causes
these LEDs to repeatedly flash concurrently three times followed by an off
state of 900 ms duration (see Slot Configuration on page 58).
Table 2. Indicator LEDs and Conditions Indicated
LED Indication Condition
Fault
(red)
Off Normal operation
On continuously Module has detected internal fault
Long flash One of the inputs is missing or is wrong standard
Short flash Errors present in SDI and/or AES/EBU input
COMM
(yellow)
Off No activity on frame communication bus
Three flash/off pattern Module Location command received from a remote control system
Short flash Activity present on the frame communication bus
CONF
(yellow)
Off Module is in normal operating mode
Three flash/off pattern Module Location command received from a remote control system
On continuously Module is initializing, changing operating modes or updating firmware. (When solid on along
with Fault LED on, board has failed to load data.)
PWR
(green)
Off No power to module or module’s DC/DC converter failed
On continuously Normal operation, module is powered

KAM-SD-2AES-DMX Instruction Manual 15
Configuration and Adjustments
Configuration and Adjustments
KAM-SD-2AES-DMX configuration and monitoring can be performed
using a web browser GUI interface or a networked Newton Control Panel.
This section provides an overview of each of these controls along with the
configuration parameters available with each type of control device.
Configuration Summary
The configuration parameters and monitoring functions available with the
web browser interface and the Newton Control Panel are summarized in
Table 3. The parameter defaults, choices, ranges, and resolution are pro-
vided for each function
Table 3. Summary of KAM-SD-2AES-DMX Configuration Controls
Function Default Range/Choices
Resolution Web Page/ Function Name Newton Panel
Set KAM-AES-R rear module audio output Unbalanced Unbalanced or Balanced I/O Config/
Unbalanced or Balanced radio button N/A
SDi In web page view selection Summary Summary or Detail SDI In/
Summary or Detail radio button N/A
Set error reporting for SDI input video Enabled Enabled or Disabled SDI In/Detail View/
Check or uncheck error checkboxes N/A
Demultiplex embedded audio from SDI in No Extraction No Extraction,
Video In.G1 to G4 DEMUX/ Str1 & Str2 column radio button N/A
Sample rate convert demultiplexed group Enable Enable or Disable DEMUX/
Disable checkbox N/A
Report loss of audio stream Report Report or No Report DEMUX/
Reporting checkbox N/A
Select video line rate Auto 525, 625, or Auto Video Input Select/
Video Line Rate radio button N/A
Frame Reference status Report Report or No Report Video Input Select/ Frame Reference Report Loss of Signal
checkbox N/A
SDI Input Error status Warn SDI
Errors Warn SDI Errors or No Warning
Video Input Select/
SDI Input Errors Warn SDI Errors
Warn SDI Errors checkbox N/A
Select output timing source Video In Video In or
Internal Frame Reference Video Input Select/ Output Timing Selection radio buttons N/A
Define VBI data lines None
525: None, 21/284,
22/285, 23/286 or 24/287
625: None, 24/337,
25/338, 26/339 or 27/340
or 28/341
Video Input Select/
Advanced (VBI Config) radio button
VBI/Data Lines Last Data Line radio button N/A
Main video horizontal timing adjustment 0 525: 0 to 857.5 pixels 625: 0 to 863.5
(0.5 pixel steps)
Frame Sync/
HTiming control (pixels) HTiming
Main video vertical timing adjustment 0 525: 0 to 524 lines 625: 0 to 624 lines
(1 line steps)
Frame Sync/
VTiming control (Lines) VTiming

16 KAM-SD-2AES-DMX Instruction Manual
Configuration and Adjustments
Freeze mode selection (Video In timing
source) None None, Field 1, Field 2, or Frame Frame Sync/ Freeze Mode Selection radio buttons N/A
Freeze mode selection (Internal timing
source) None None, AutoBlack,
AutoFreeze, Field 1,
Field 2, or Frame
Frame Sync/
Freeze Mode Selection radio buttons N/A
Enable video processing Enable Disable, Enable,
or Color Bars Video Proc/ Video Processing radio buttons N/A
Video gain lock Off On or Off Video Proc/
Video Gain Lock radio buttons N/A
Main video contrast/Y gain 100% 50 to 149.6%
(0.4% steps) Video Proc/Standard View Y Gain control (%) YGain
Main video chroma gain 100% 50 to 149.6%
(0.4% steps) Video Proc/Standard View Chroma Gain control (%) ChroGain
Enable Clip controls Disable Enable or Disable Video Proc/Standard View
Clip Settings radio buttons N/A
Apply clips to VBI Off On or Off Video Proc/Standard View
Apply Clips to VBI checkbox N/A
Main video soft/Y black clip -6.8% -6.8 to 109%
(0.1% steps) Video Proc/Standard View Soft/Y Black Clip control (%) YBClip
Main video hard/video black clip -37.3% (525)
-30.0% (625)
-37.3 to -7.3% (525)
-30.0 to 0% (625)
(0.1% steps)
Video Proc/Standard View
Hard/Video Black Clip control (%) VBClip
Main video soft/Y white clip 109% -6.8 to 109%
(0.1% steps) Video Proc/Standard View Soft/Y Clip control (%) YWClip
Main video hard/video white clip 138.7% -6.8 to 138.7%
(0.1% steps) Video Proc/Standard View Hard/Video Clip control (%) VidWClip
Main video brightness/Y offset 0% -3.55 to 3.44%
(0.11% steps) Video Proc/Advanced View Brightness/Y Offset control (%) YOffset
Main video hue/chroma phase 0.0 ± 89.8 degrees
(0.1 degree steps) Video Proc/Advanced View Hue/Phase control (degrees) ChroPhs
Main video B-Y gain 100% 50 to 149.6%
(0.4% steps) Video Proc/Advanced View B-Y Gain control (%) BYGain
Main video B-Y balance/offset 0.0 -3.55 to 3.44%
(0.11% steps) Video Proc/Advanced View B-Y Balance/Offset control (%) N/A
Main video R-Y gain 100% 50 to 149.6%
(0.4% steps) Video Proc/Advanced View R-Y Gain control (%) RYGain
Main video R-Y balance/offset 0.0 -3.55 to 3.44%
(0.11% steps) Video Proc/Advanced View R-Y Balance/Offset control (%) N/A
VBI SDI line blanking configuration
(line-by-line) Pass Blank or Pass VBI SDI/
Field 1/Field 2 Line Blanking
VBI Lines checkboxes N/A
Apply clipping to VBI lines (all lines) Not Apply Apply or Not Apply VBI SDI/
Apply Clips to VBI checkbox N/A
Audio Pair 1 and Pair 2 channel swap – – Audio Channel Pairing/
Pair 1 and 2 Ch A and Ch B radio buttons Pair1Swp Pair2Swp
Table 3. Summary of KAM-SD-2AES-DMX Configuration Controls
Function Default Range/Choices
Resolution Web Page/ Function Name Newton Panel

KAM-SD-2AES-DMX Instruction Manual 17
Configuration and Adjustments
Define audio Pair 1 and Pair 2 Ch A and Ch
B audio streams
Pair1ChA=
Str1.Ch1
Pair1ChB=
Str1.Ch2
Pair2ChA=
Str2.Ch1
Pair2ChB=
Str2.Ch2
Str1.Ch1
Str1.Ch2
Str2.Ch1
Str2.Ch2
Silence
Audio Channel Pairing/
Pair 1 and 2 Ch A and Ch B radio buttons
Str1.Ch1
Str1.Ch2
Str2.Ch1
Str2.Ch2
Silence
Enable auto tracking for Pair 1 and 2 Ch A
and Ch B On On or Off Audio Sync/
Pair 1 and Pair 2 Ch A and Ch B
Enable Auto Track On checkbox N/A
Lock Pair 1 Ch A and Ch B delay adjust-
ments and Pair 2 Ch A and Ch B delay
adjustments Locked Locked or Unlocked Audio Sync/
Pair 1 and Pair 2 Ch A and Ch B
Channel Lock Locked checkbox N/A
Audio Pair 1 Ch A delay adjust
Audio Pair 1 Ch B delay adjust
Audio Pair 2 Ch A delay adjust
Audio Pair 2 Ch B delay adjust
0 ms 0 to 5180 ms
(20 ms steps)
Audio Sync/
Pair 1 and Pair 2 Ch A and Ch B
Delay controls (ms)
Ch1ADly
Ch1BDly
Ch2ADly
Ch2BDly
Select audio processing option for Pair 1
Ch A’ and Ch B’ and Pair 2 Ch A’ and Ch B’ Pass
Pass
Invert,
A+B
A – B,
-(A+B)
1 kHz
400 Hz
Silence
Audio Proc/
Pair 1 and Pair 2 Ch A’ and Ch B’
Processing pulldowns
Ch1AProc
Ch1BProc
Ch2AProc
Ch2BProc
Lock Pair 1 Ch A and Ch B gain adjustments
and Pair 2 Ch A and Ch B gain adjustments Unlocked Lock or Unlocked Audio Proc/
Pair 1 and Pair 2 Ch A and Ch B
Gain Settings Locked checkbox N/A
Audio Pair 1 Ch A gain adjust
Audio Pair 1 Ch B gain adjust
Audio Pair 2 Ch A gain adjust
Audio Pair 2 Ch B gain adjust
0 dB -40 to + 6 dB Audio Proc/ Pair 1 and Pair 2 Ch A and Ch B
Gain controls (dB)
Ch1AGain
Ch1BGAin
Ch2AGain
Ch2BGain
Set output resolution for Pair channels 20 bit 20 bit or 24 bit Audio Proc/ Pair 1 and Pair 2
20 bit or 24 bit radio button N/A
Assign AES pairs to output connectors – Audio Pairs
AES Outputs/
J4 & J5 (Unbalanced) and
J2 & J3 (Balanced)
radio buttons
N/A
Table 3. Summary of KAM-SD-2AES-DMX Configuration Controls
Function Default Range/Choices
Resolution Web Page/ Function Name Newton Panel

18 KAM-SD-2AES-DMX Instruction Manual
Configuration and Adjustments
Newton Control Panel Configuration
A Newton Control Panel (hard or soft version) can be interfaced to the
Kameleon 2000 Series frame over the local network. Control panel access
offers the following considerations for module configuration and moni-
toring:
•Ability to separate system level tasks from operation ones, minimizing
the potential for on-air mistakes.
•Ability to group modular products—regardless of their physical loca-
tions—into logical groups (channels) that you can easily manipulate
with user-configured knobs.
•Update software for applicable modules and assign frame and panel IP
addresses with the NetConfig Networking application.
•Recommended for real-time control of module configuration parame-
ters, providing the fastest response time.
Note Not all module functions are available with the control panel, such as E-MEM
and factory default recalls. The available control panel controls for the
module are listed in Table 3 on page 15.
An example of the Newton Configurator is shown in Figure 7.
Figure 7. Newton Configurator Example
Refer to the documentation that accompanies the Newton Modular Control
System for installation, configuration, and operation information.

KAM-SD-2AES-DMX Instruction Manual 19
Configuration and Adjustments
Web Browser Interface
The web browser interface provides a graphical representation of module
configuration and monitoring (Figure 8).
Figure 8. 2000NET GUI
Use of the web interface offers the following considerations:
•Provides complete access to all module status and configuration func-
tions, including naming of inputs and outputs, factory parameter and
name default recalls, E-MEM functions, slot configuration, and SNMP
monitoring controls.
•Web access will require some normal network time delays for pro-
cessing of information.
•Configuration parameter changes may require pressing the
Apply
button or
Enter
, upload processing time, and a manual screen refresh to
become effective.
8350_03
The Links section lists the frame and its current modules. The selected link's Status
page is first displayed and the sub-list of links for the selection is opened. The sub-list
allows you to select a particular information page for the selected device.
Content display section displays the information page
for the selected frame or module (frame slot icons are also
active links).
Refresh button for manual
update of page

20 KAM-SD-2AES-DMX Instruction Manual
Configuration and Adjustments
•Web interface recommended for setting up module signal and slot
names, E-MEMS, and reporting status for SNMP and monitoring.
Refer to the Frame Status page shown in Figure 8 on page 19. The Kame-
leon and 2000 modules can be addressed by clicking either on a specific
module icon in the frame status display or on a module name or slot
number in the link list on the left.
Note The physical appearance of the menu displays on the web pages shown in
this manual represent the use of a particular platform, browser and version
of 2000NET module software. They are provided for reference only. Displays
will differ depending on the type of platform and browser you are using and
the version of the 2000NET software installed in your system. This manual
reflects 2000NET software version 3.2.2.
Web Page Operations and Functional Elements
The following conventions and functional elements (shown at left) are used
in Kameleon web page operations. (The examples shown throughout this
manual represent 2000NET software version 3.2.2 or later):
• Pulldown menus allow you to choose selections from a list.
•Check boxes are used when a selection can be enabled or included in a
group. Multiple check box selections or enables can be made for some
parameters.
•Radio buttons are used to make a choice of one parameter in a group.
•Each numerical adjustment control has a
Coarse
adjust button (left and
right top double arrows) and a
Fine adjust button (left and right bottom
single arrows).
•To change a value, use the arrow button controls or enter a value into
the number field and select the Apply button. You may also enter a
number into the number field from a keyboard and hit the Enter key to
apply the value.
•A
Refresh button (circular arrow) is provided for manual refresh of the
web page to view recently changed parameters.
• The Status LED is explained below.
Pulldown Menus
Check box
Refresh button
Apply button
Coarse adjust
Status LED
Fine adjust
Radio button
8343_06
