GRAUPNER S8351 User manual

S8351 External Bluetooth module
for mz series transmitter
No. S8351
OPERATING INSTRUCTION
Prior to use, please read this manual thoroughly.
Keep this manual in a convenient place for quick and easy reference.

Contents
2
• BEFORE USE
• SUPPORT AND SERVICE
- Customer support
- Online Support
- A/S Support
- Warranty information
• OPENHOBBY A/S CENTER
1. Product Description
2. External Bluetooth module Installation
3. Android Application
4. Graupner HoTT Meter Viewer
5. Voice Setup
5-1. Warning

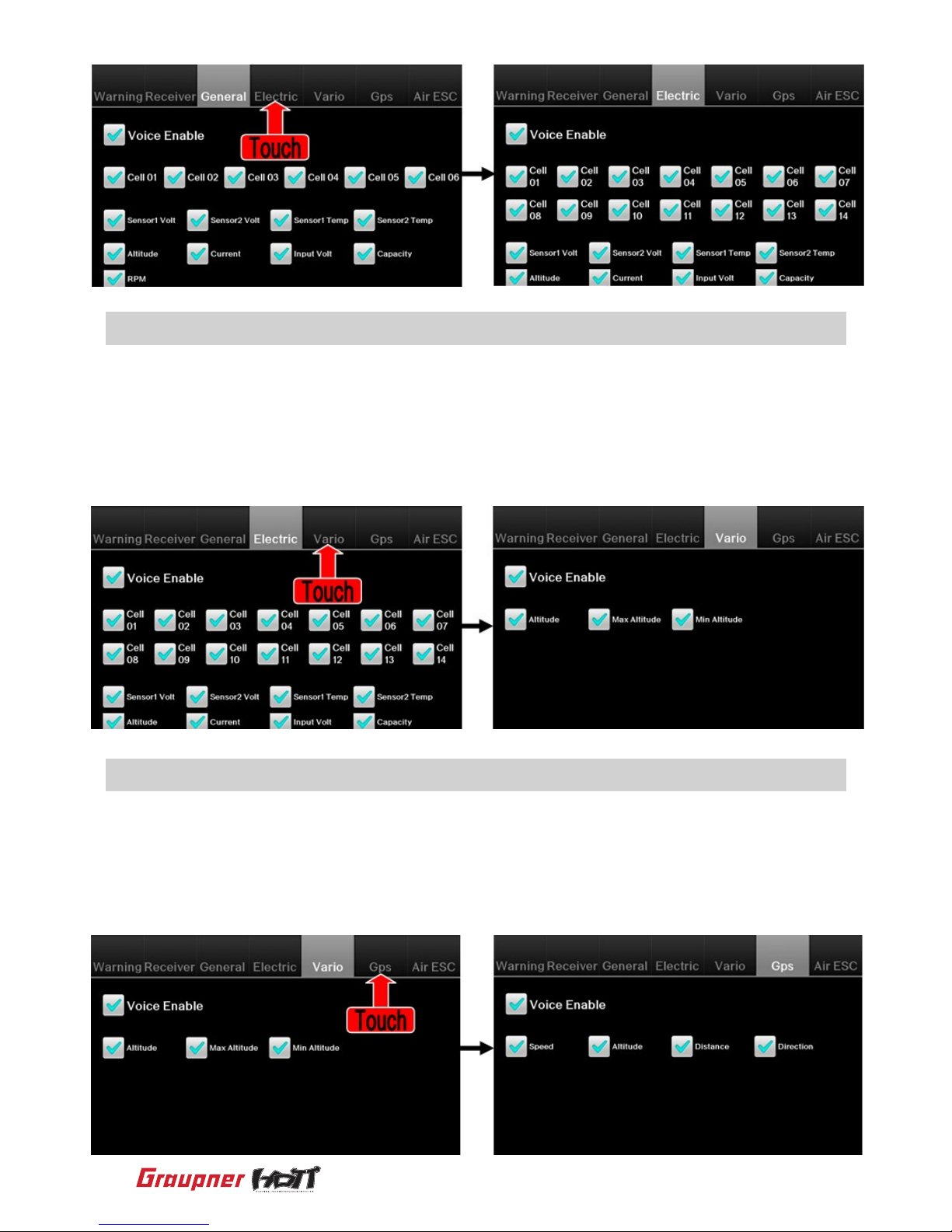

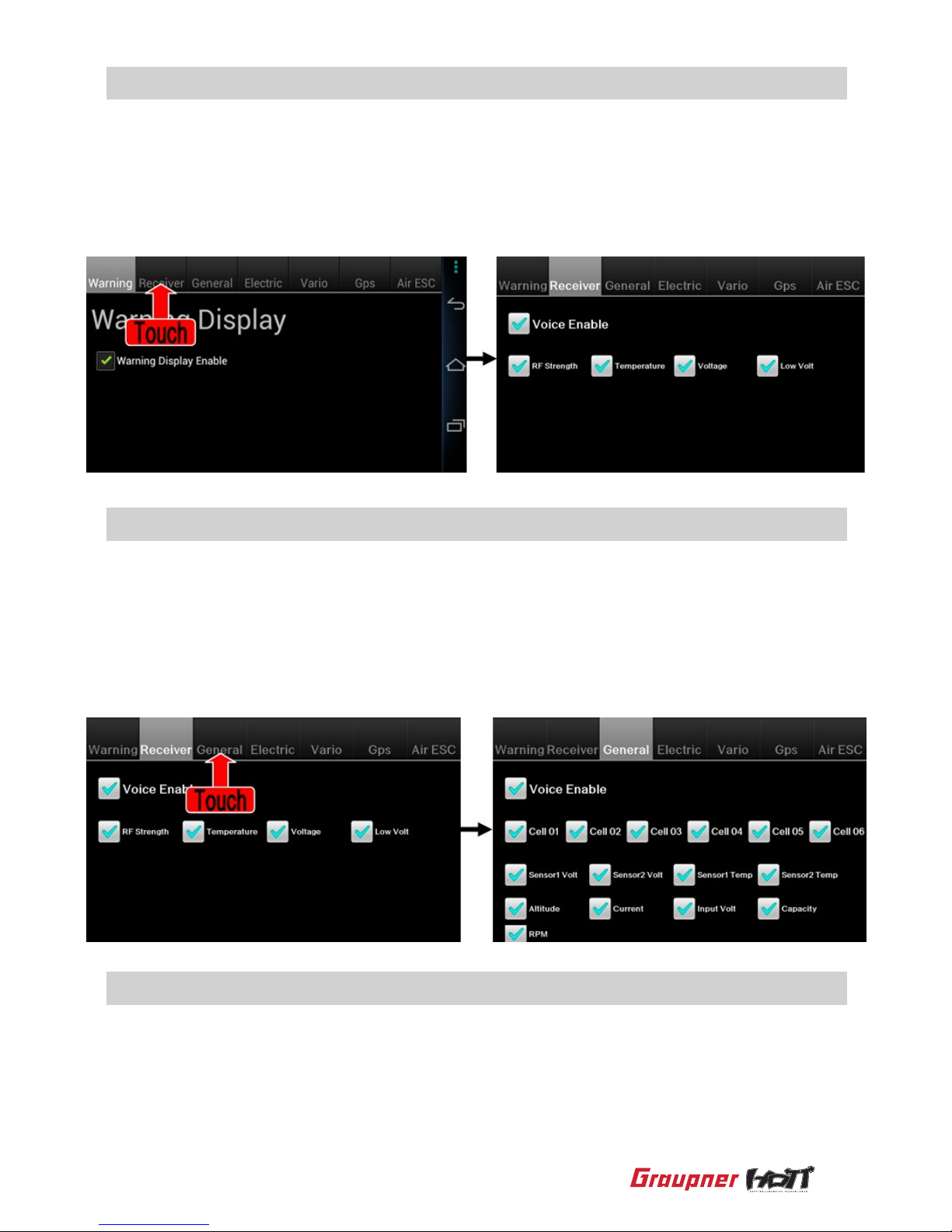

5-2. Receiver
5-3. General
5-4. Electric
5-5. Vario
5-6. GPS
5-7. Air ESC
6. Display Setup
6-1. Data unit
6-2. RPM
6-3. Voltage
6-4. Current
6-5. Capacity
7. Monitoring
- Receiver
- General Air Module
- Electric Air Module
- Vario Sensor Module
- GPS Sensor Module
- ESC
- Warning Popup
- Warning List
8. Safety Approval
9. Environmental protection notesa
3P
3P
3P
3P
3P
3P
3P
4P
4P
5P
5~6P
6P
6P
7P
7P
7~8P
8P
8P
9P
9P
9P
9~10P
10P
10P
11P
11P
11P
12P
12P
13P
13~14P
14P
15P
15P
16~17P
17P

3
Thank you for your purchasing Graupner S8351 External Bluetooth module. This
product could be used for Graupner HoTT 2.4GHz mz series Transmitter. And it is
NOT compatible with the other branded 2.4GHz Transmitter. Prior to use this product,
please read this manual for correct use and operation. Otherwise, this product would
be damaged and inuenced in lifespan. Thank you customers, we will do our best for
RC products quality and R&D.
3245 University Ave, Suite 1520, San Diego, CA 92104, United States of America
Phone: +1 855-5-RCisHoTT ( [phone]) Fax: [phone]
E-mail: [e-mail]
©2014 Graupner USA – OPENHOBBY LLC. The HoTT trademark is used with
permission of SJ Inc. 4386066
• BEFORE USE
• SUPPORT AND SERVICE
• OPENHOBBY A/S CENTER
• Customer support
We are happy to assist you with any question by e-mail or phone. Customer service
hours are from 9 am to 5 pm PST (Pacic Standard Time) during the workweek, Mon-
day through Friday. E-mailed questions will be answered as soon as possible
• Online Support
Please visit us at www.openhobbby.com, to stay up to date with the latest software,
rmware and product information.
• A/S Support
During the warranty period, we can repair this product at no cost in the event that it
has become faulty under normal operating conditions.
For non-functional products that are past the expiration date of the warranty or have
been improperly used, we would be happy to repair this product for an appropriate
amount of cost to the consumer.
• Warranty information
Refer to the WARRANTY CARD in the Package

▲ mz-18, mz-24▲ mz-10, mz-12
4
basic
sett.
fail
safe
train
er
info.
disp.
BLUETOOTH
▲
▲
▲
Voice volume 3
Beep volume 5
Jack select EAR
DATA sele.
Sensor Units Metric
1. Product Description
2. External Bluetooth module Installation

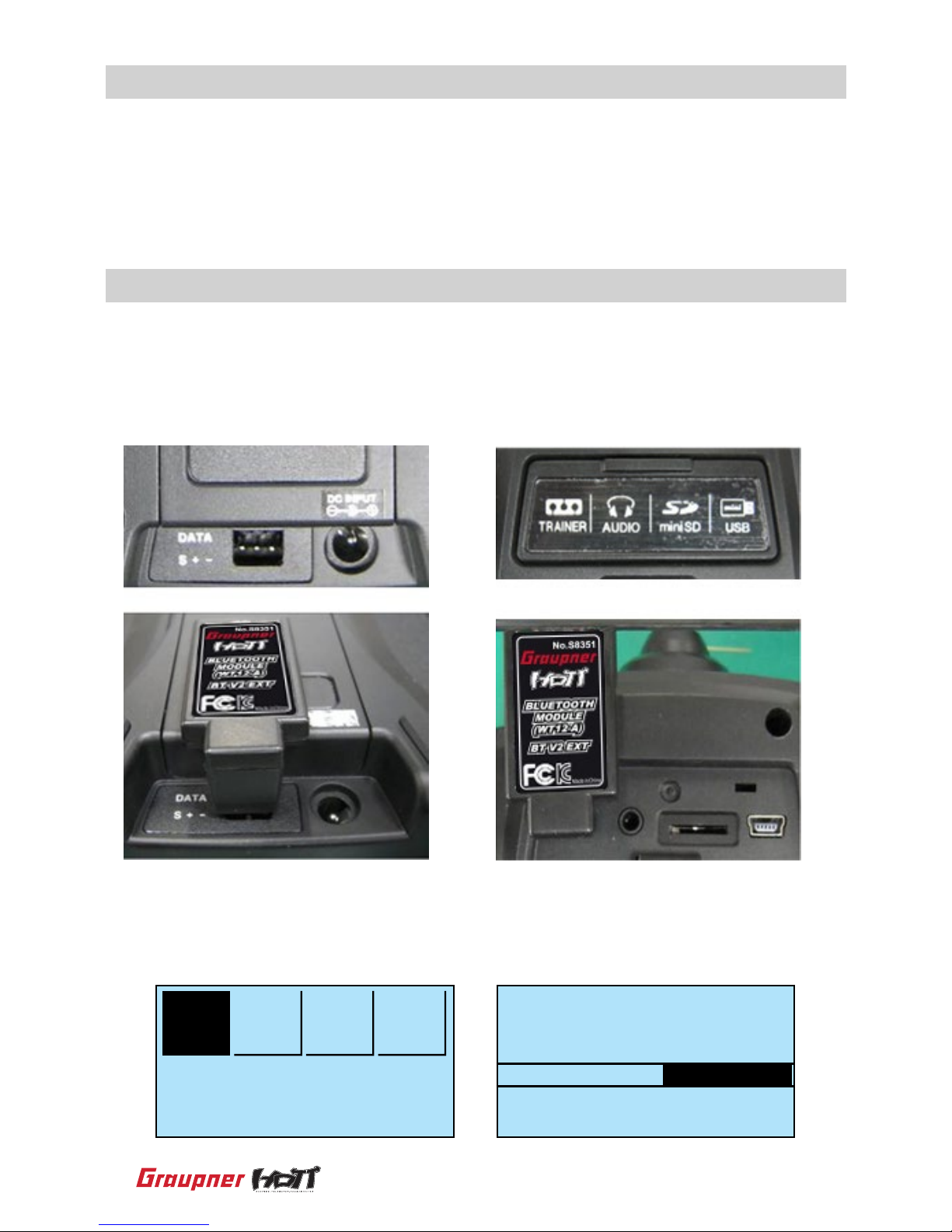

This Graupner S8351 External Bluetooth module is used in connecting with Graupner
HoTT mz series Transmitter. And the communication could be with Android smart
phone by Bluetooth. Therefore, various telemetry data could be transferred to the
smart phone from the TX in real-time. These real-time telemetry data could be supplied
in voice and graphic and also could be edited by the user for the required data.
Regarding the Graupner HoTT mz-10, mz-12, mz-18 and mz-24 Transmitters, the
S8351 External Bluetooth module could be connected at the data input as the below
photo. Regarding the Graupner HoTT mz-10, mz-18 and mz-24 could be used without
any additional conguration.
As for the mz-12, you could congure the related function on the TX program. At the
DATA sele item of Basic sett function, please change Telemetry to BLUETOOTH.

5
▲
3. Android Application
4. Graupner HoTT Meter Viewer
The formal name of Graupner Android Application is “Graupner HoTT Meter Viewer”.
At the play store of smart phone, please search Graupner and download the Graupner
HoTT Meter Viewer.
https://play.google.com/store/apps/details?id=com.sj.GraupnerSJ_HoTT_Viewer

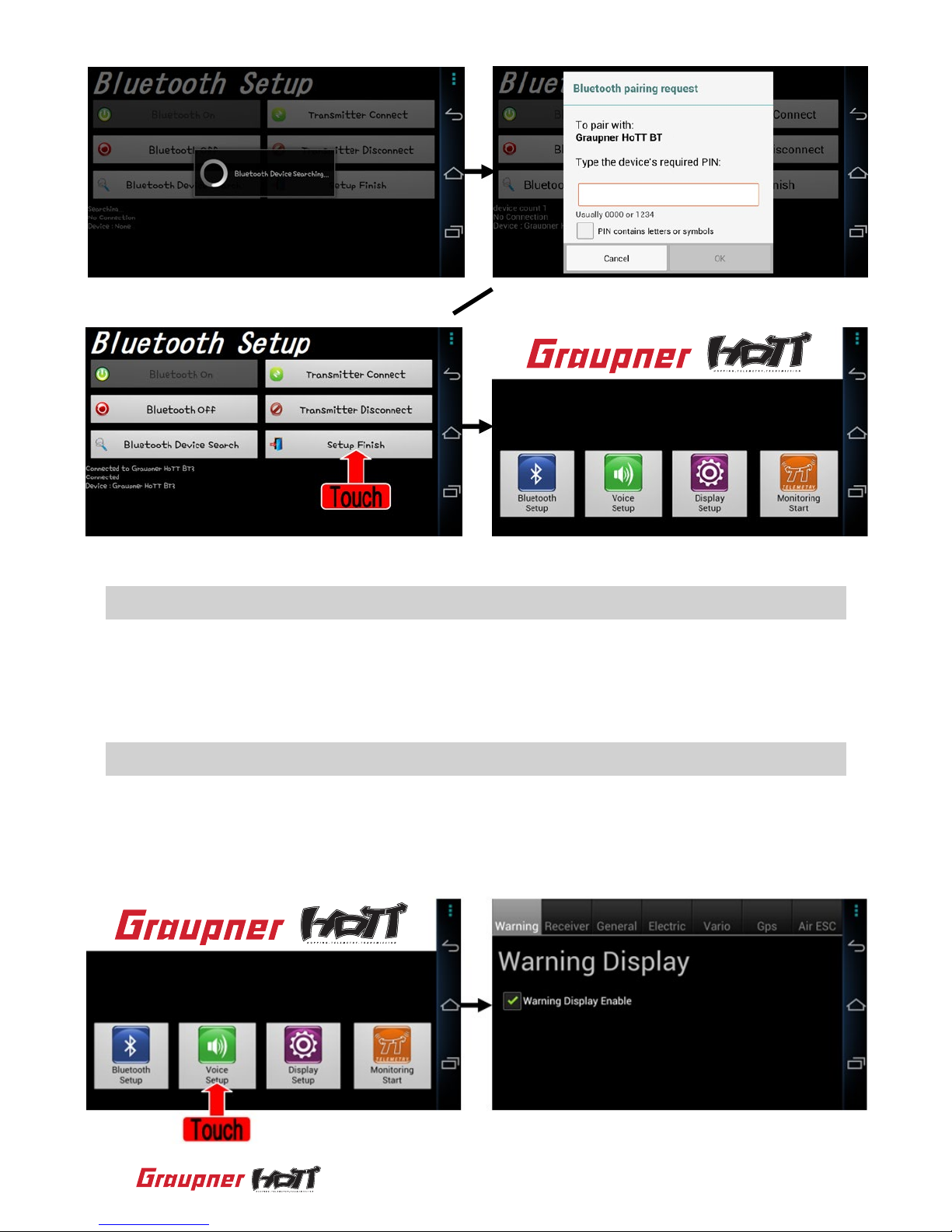

To make the Bluetooth module activated, please tap the Bluetooth on and there will be
Bluetooth connecting message. Please tap “connect” and it will be activated. Please
tap “Bluetooth Device Search” and there will be Bluetooth device list after 10 – 15
seconds. And please designate “Graupner HoTT BT2” and tap “Connect”. For the
initial connection, there will be required for the PIN number. Then, press “0000” or
“1234”. After conguration, tap “Setup Finish” and the screen will be move to the main
Manu page.
When you download the application, the initial screen will be presented. Please tap the
Bluetooth Setup button and the screen will be moved to the setting mode.

6
▲
5. Voice Setup
5-1. Warning
Voice Setup is for the editing of voice guide function. At the main page, please tap
“Voice Setup” for the conguration.
The rst conguration is for Warning Display Enable. Please check this item for
activation.
2

7
5-2. Receiver
5-3. General
5-4. Electric
This is for editing function of Receiver Telemetry Voice guide. There is an entire clear
function and each item could be picked - the each RF Strength, Temperature, Voltage,
Low Volte, etc. Please tap “Receiver” from the top side and it could be moved to the
conguration page. Please check the items for the activation.
This is for editing function of General Air module Voice guide. There is an entire clear
function and each item could be picked - Cell 01~Cell 06, Sensor1 Volt, Sensor2
Volt, Sensor1 Temp, Sensor2 Temp, Altitude, Current, Input Volt, Capacity, RPM, etc.
Please tap “General” from the top side and it could be moved to the conguration
page. Please check the items for the activation.
This is for editing function of Electric Air module Voice guide. There is an entire clear
function and each item could be picked - Cell 01~Cell 14, Sensor1 Volt, Sensor2 Volt,
Sensor1 Temp, Sensor2 Temp, Altitude, Current, Input Volt, Capacity, etc. Please tap
“Electric” from the top side and it could be moved to the conguration page. Please
check the items for the activation.

8
5-5. Vario
5-6. GPS
This is for editing function of Vario module Voice guide. There is an entire clear func-
tion and each item could be picked - Altitude, Max Altitude, Min Altitude, etc.
Please tap “Vario” from the top side and it could be moved to the conguration page.
Please check the items for the activation.
This is for editing function of GPS module Voice guide. There is an entire clear function
and each item could be picked - Speed, Altitude, Distance, Direction, etc.
Please tap “GPS” from the top side and it could be moved to the conguration page.
Please check the items for the activation.

9
5-7. Air ESC
6. Display Setup
6-1. Data unit
6-2. RPM
This is for editing function of “Brushless Control +T” ESC Voice guide. There is an
entire clear function and each item could be picked - RPM, Current, Voltage, Capacity,
etc. Please tap “Air ESC” from the top side and it could be moved to the conguration
page. Please check the items for the activation.
This is for editing function of standard units of Graupner HoTT Meter Viewer Data.
At the main page, tap “Display Setup” and the screen will be moved to the congura-
tion page for the rst function of Data unit. This is for unit conguration of Graupner
HoTT Meter Viewer - Metric
(℃ , m, km) or English( ℉ , ft, mile).
This is for RPM unit conguration for the related module - 0~10,000, 0~20,000,
0~50,000 and 0~100,000. Please tap “RPM” from the top side and it could be moved
to the conguration page.

10
6-3. Voltage
6-4. Current
This is for Voltage unit conguration for the related module - 0~20V, 0~40V and
0~80V. Please tap “Voltage” from the top side and it could be moved to the congura-
tion page.

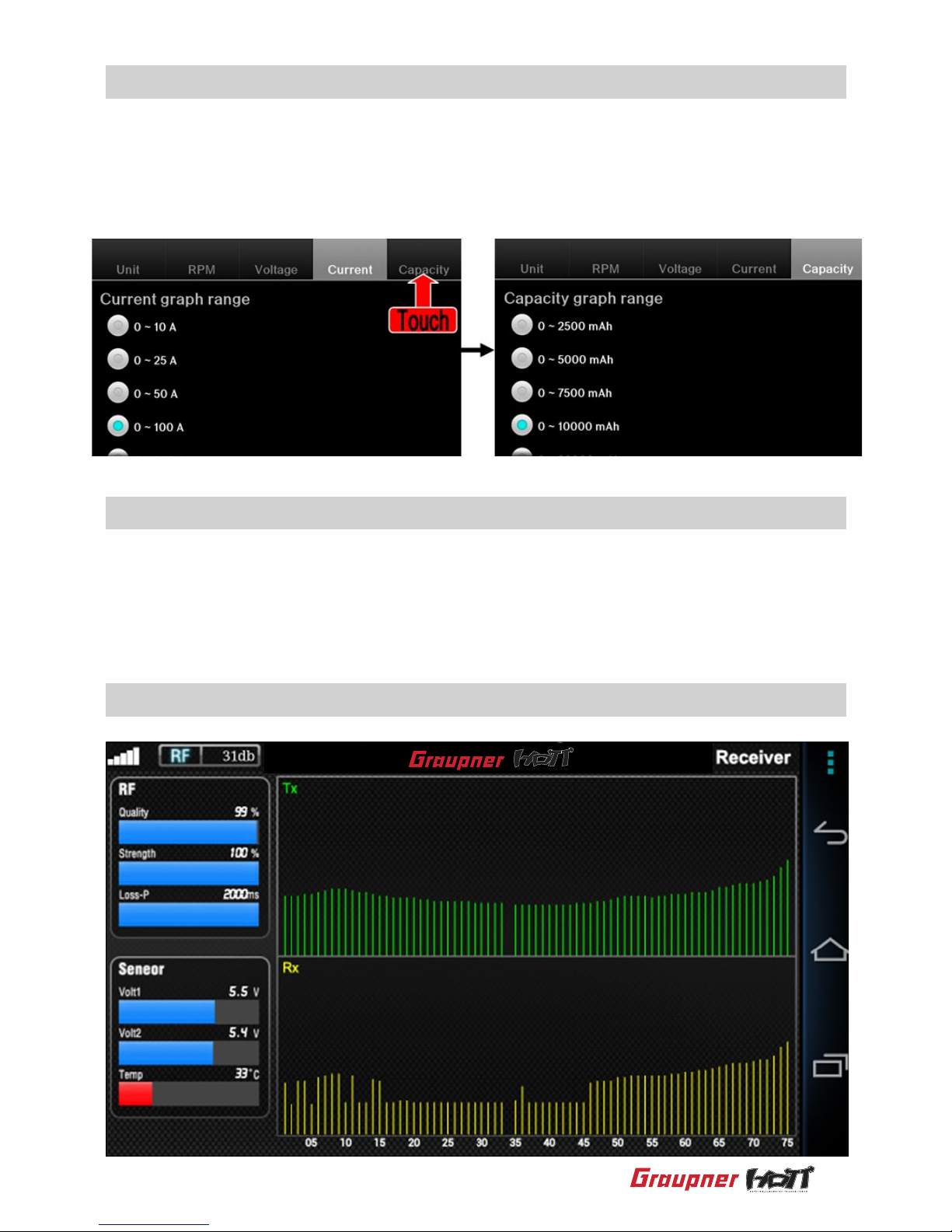

This is for Current unit conguration for the related module - 0~10A, 0~25A, 0~50A,
0~100A, 0~200A and 0~300A. Please tap “Current” from the top side and it could be
moved to the conguration page.

11

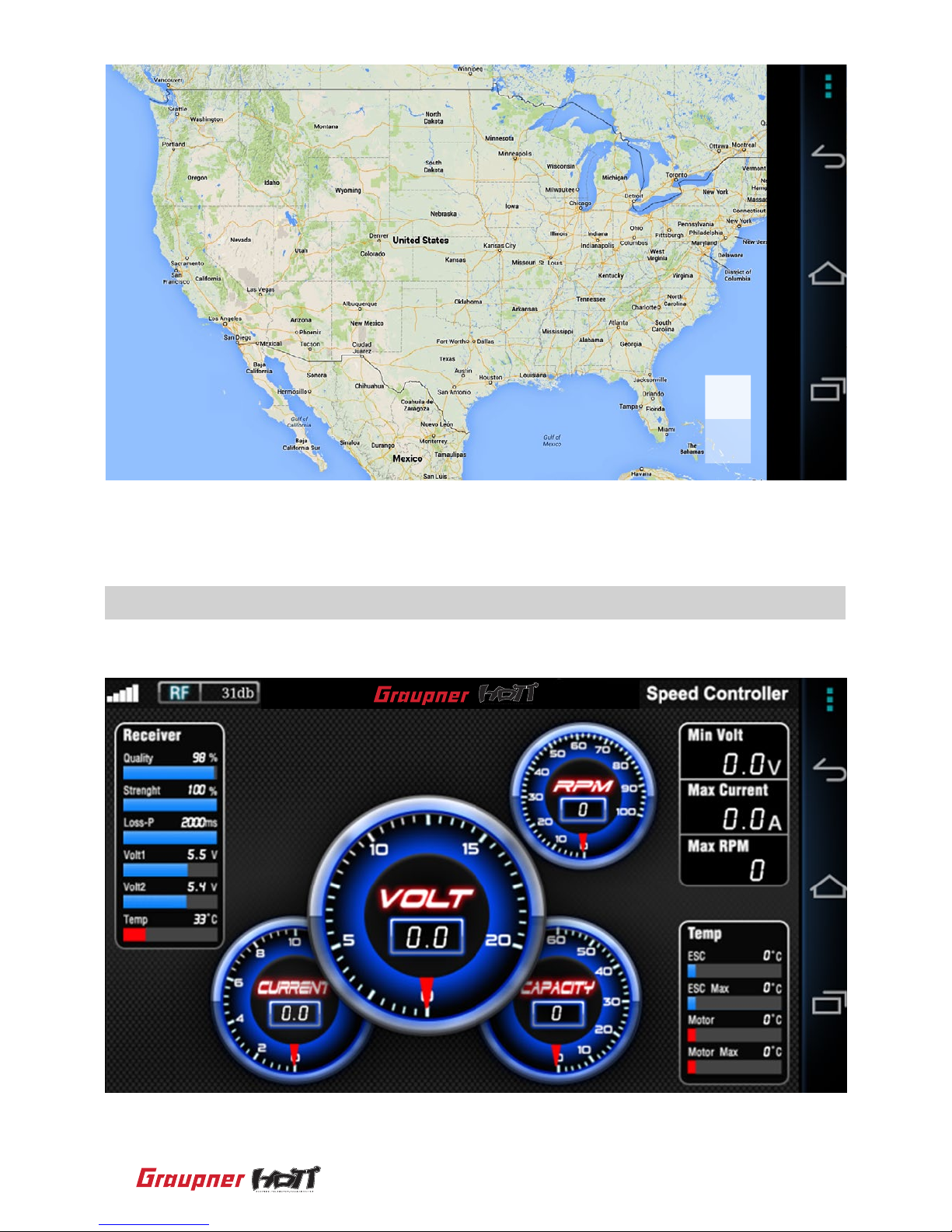

• Receiver
6-5. Capacity
7. Monitoring
This is for Current unit conguration for the related module - 0~2500mAh, 0~5000mAh,
0~7500mAh, 0~10000mAh, 0~20000mAh and 0~30000mAh. Please tap “Capacity”
from the top side and it could be moved to the conguration page.
This is for review the data of Graupner HoTT Meter Viewer by graph, gauge and map.
At the related screen, the voice guide function shall be activated. Moving the smart
phone screen, all data of sensors and modules could be monitored. The screens for
each device are following.

12

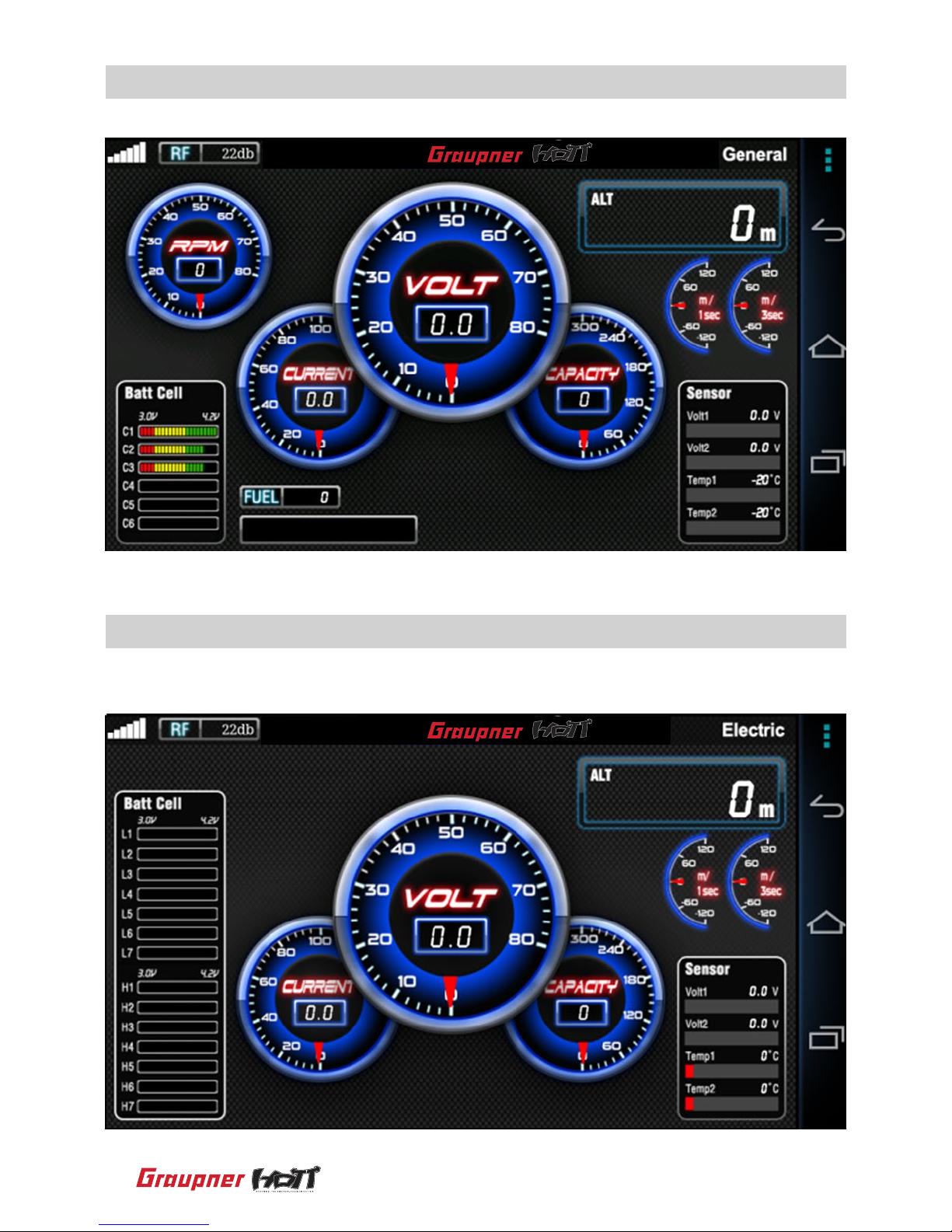

• General Air Module
• Electric Air Module

13

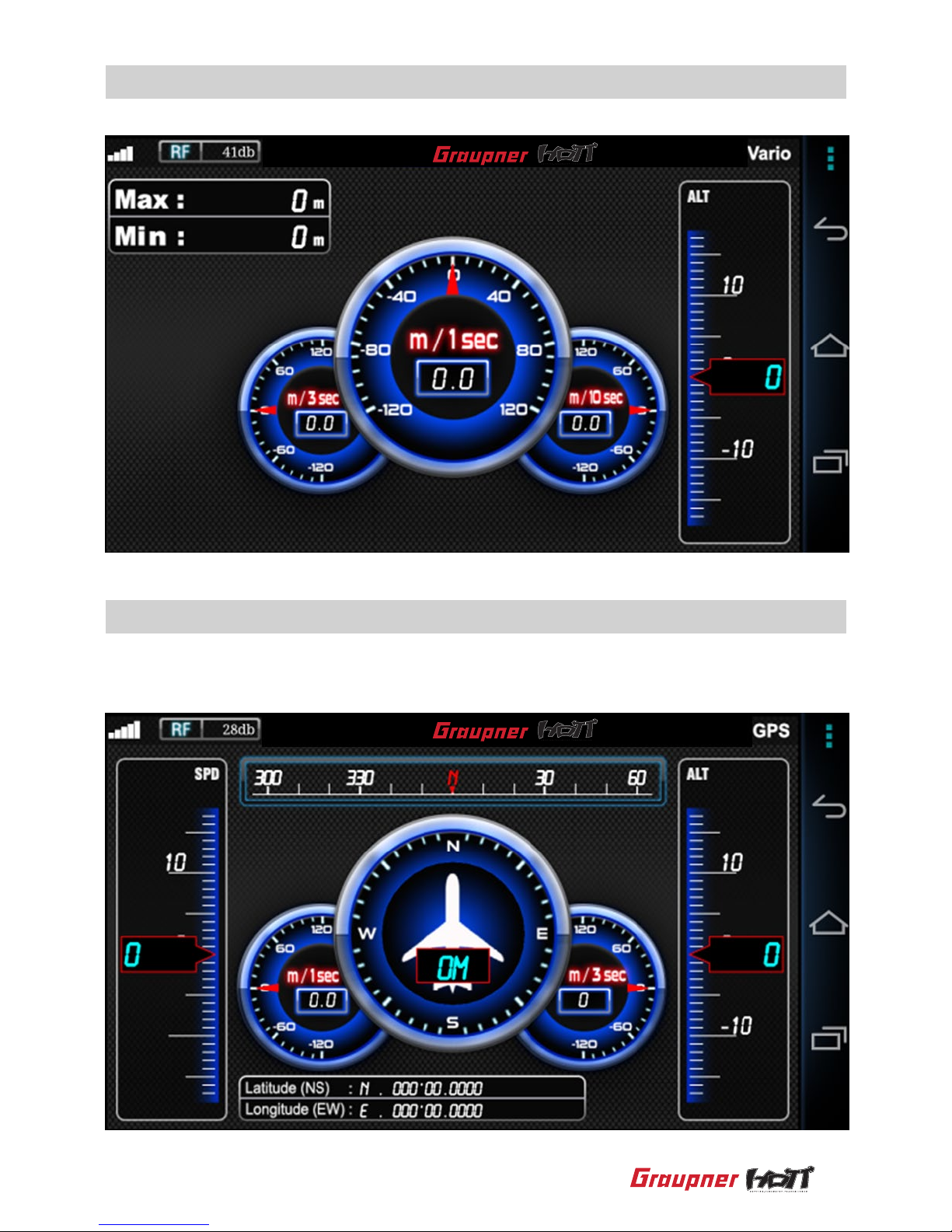

• Vario Sensor Module
• GPS Sensor Module
If you move this screen up and down, it will be moved to the screen of Google Map.

14
• ESC
+
--

15
• Warning Popup
• Warning List
When you double click the Warning Popup screen, there will be warning list during
ying on the screen as below.

• DECLARATION OF CONFORMITY
We hereby declare that the owing product
Product: External Bluetooth module
Conrms with the essential protective requirements as laid down in the directive for
harmonizing the statutory directives of the member states concerning electro-magnetic
interference
The applicant may issue a DECLARATION of CONFIRMITY and apply the CE marking in
accordance with European Union Rules
- EN300328 V1.7.1:2006
- EN301489-17 V.1.2.1: 2002
• FCC Information
Product: External Bluetooth module
- FCC ID : QOQWT12
• FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modications not expressly approved by the party responsible for compli-
ance could void the user‘s authority to operate the equipment.
• NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular instal-
lation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
16
8. Safety Approval

• FCC radiation exposure statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of
20 cm between the radiator and your body.
• KC Information
Product: External Bluetooth module
(This product is certied and registered from Korean National Radio Research Agency.)
- KCC-CRM-BGT-WT12-A
• Caution
- This equipment’s aerial must be at least 20 cm from any person when the system is in
use. We therefore do not recommend using the equipment at a closer range than 20cm.
- Ensure that no other transmitter is closer than 20cm from your equipment, in order to
avoid adverse effects on the system’s electrical characteristics and radiation pattern.
- The radio control system should not be operated until the Country setting has been set
correctly at the transmitter. This is essential in order to fulll the requirements of various
directives - FCC, ETSI, CE, KC and etc. Please refer to the instructions for your particu-
lar transmitter and receiver for details of this procedure.
- Check all working systems and carry out at least one full range check on the ground
before every ight, in order to show up any errors in the system and the models program-
ming.
- Never make any changes to the programming of the transmitter or receiver whilst
operating a model.
9. Environmental protection notesa
17
This product must not be disposed of with other waste. Instead, it is
the user’s responsibility to their waste equipment by handing it over to
a designated collection point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling of your
waste equipment at the time of disposal will help to conserve natural
resources and ensure that it is recycled in a manner that protects hu-
man health and the environment. For more information about where
you can drop off your waste equipment for recycling, please contact your local city ofce,
your household waste disposal service or where you purchased the produce
