RoboReel®

Water Hose Reel

Great Stuff™, Inc.

_________________

User Guide and Warranty

_________________

WWW.ROBOREEL.COM

Customer Service: 888-GR8-STUFF (888-478-7883)

[email protected]

Table&of&Contents&

1."Important"Safety"Information"............................................................................................................................................................................................................................"1"

2."Parts".............................................................................................................................................................................................................................................................................."2"

2.1"Overview"........................................................................................................................................................................................................................................................"2"

2.2"Accessories"..................................................................................................................................................................................................................................................."2"

2.3"Hoses"..............................................................................................................................................................................................................................................................."3"

2.4"Remote"Control"..........................................................................................................................................................................................................................................."3"

2.5"Batteries"........................................................................................................................................................................................................................................................."3"

3."Before"First"Using"the"Hose"Reel"......................................................................................................................................................................................................................"4"

3.1"Charge"and"Install"Main"Battery".........................................................................................................................................................................................................."4"

3.2"Install"Water"Valve"Battery"Pack"........................................................................................................................................................................................................"5"

3.3"How"to"Attach"Tow"Rope"and"Engage"Brakes"..............................................................................................................................................................................."6"

3.4"Connecting"the"Hoses"and"Components"..........................................................................................................................................................................................."6"

4."Program"Watering"Schedule"..............................................................................................................................................................................................................................."8"

4.1"Remote"Control"Functions"....................................................................................................................................................................................................................."8"

4.2"Programming"..............................................................................................................................................................................................................................................."9"

4.3"Possible"Programming"Scenarios"...................................................................................................................................................................................................."10"

5."Cleaning"and"Storage".........................................................................................................................................................................................................................................."10"

5.1"Cleaning"the"Hose"Reel"........................................................................................................................................................................................................................."10"

5.2"Storing/Winterizing"the"Hose"Reel"................................................................................................................................................................................................."11"

6."Replace"Retract"Button"Battery"......................................................................................................................................................................................................................"11"

7."Synchronize"Hose"Reel"Accessories"............................................................................................................................................................................................................."12"

7.1"Synchronizing"Remote"Control"........................................................................................................................................................................................................."12"

7.2"Synchronizing"Water"Valve"................................................................................................................................................................................................................"12"

7.3"Synchronizing"Retract"Button"..........................................................................................................................................................................................................."12"

8."Accessories"and"Replacement"Parts"............................................................................................................................................................................................................."12"

9."Troubleshooting"...................................................................................................................................................................................................................................................."13"

10."Specifications"........................................................................................................................................................................................................................................................."15"

11."Limited"Warranty"and"Limitation"of"Liability".........................................................................................................................................................................................."15"

12."FCC"Regulations"...................................................................................................................................................................................................................................................."16"

12.1"Federal"Communications"Commission"Notice"(US)"................................................................................................................................................................."16"

12.2"Declaration"of"Conformity".................................................................................................................................................................................................................."17"

13."Patents"and"Patents"Pending"..........................................................................................................................................................................................................................."17"

Great Stuff, Inc. (“GSI”) has made every effort to identify trademarked properties and owners on this page. All brands and product names used in this document are

for identification purposes only and may be trademarks or registered trademarks of their respective companies.

NOTICE: The information in this publication is subject to change without notice. GREAT STUFF, INC SHALL NOT BE

HELD LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN NOR FOR

ACCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE

OF THIS MATERIAL. The information contained in this document is provided “as is” without warranty of any kind and is

subject to change without notice. The warranties for Great Stuff™, Inc. products are set forth in the express limited

warranty statements accompanying such products. Nothing herein should be construed as constituting an additional

warranty. This publication contains information protected by copyright. No part of this publication may be photocopied or

reproduced in any form without prior written consent from Great Stuff™, Inc.

ROBOREEL®, GREAT STUFF®, MAKING LIFE A LITTLE EASIER, and the GS Logo are trademarks of Great Stuff, Inc."

WARNING:(This(product(is(fabricated(from(materials(that(may(contain(chemicals(known(to(the(state(of(California(to(

cause(cancer,(birth(defects(or(other(reproductive(harm.(

(

Important&Notices:!

The proper care and maintenance of your RoboReel Water Hose Reel

requires that you do the following:

Release Water Pressure Before Winding:

•Please remove any non-RoboReel nozzles (if you are using your own) from the end of the hose before

retracting the hose, and make sure that the unit does not wind in while water is still flowing. Doing so

will ensure that no pressure builds up in the hose during retraction, which will increase the longevity of

your reel.

Replace Water Valve Batteries:

•The water valve is powered by four AA batteries that need to be replaced periodically. If the water does

not turn on after multiple button presses, the batteries are likely due for replacement.

Clean the Unit Periodically:

•After continued use, mud and other materials may accumulate inside your Water Hose Reel. To keep

your reel running smoothly, the inside of the unit should be rinsed periodically to remove these

materials.

Ensure Top Hemisphere is Secured:

•For safety purposes, your Water Hose Reel will not retract if the top hemisphere lid is not secured on

the unit. If the unit does not retract after a button press, please check to make sure that the hemisphere

lid is properly engaged and the hemisphere release button is flush with the top hemisphere.

Water Safety Conservation Feature:

•As a safety and conservation feature if only the Water Button is pressed, the water will remain on for

one (1) hour. After one (1) hour, the water will automatically turn off. To resume the flow of water

simply push the Water Button again. This insures that if a hose if left on and unattended it will not

waste water.

Read all instructions and Warning and Cautionary markings before first using the RoboReel® Hose Reel

What is included with your RoboReel Hose Reel?

NeverKink®hose, Tow Rope, Remote Control, 5 Nozzles, Main Battery, Main Battery Charger, Faucet Adaptor, Strain

Relief Hose, Water Valve with Battery Compartment (inside valve), 4 AA batteries for Water Valve, Connection Hose and

custom sprinkler.

Please keep your hose reel box. If you need to return the hose reel for any reason, you will need the box and

internal packing pieces for shipping.

1. Important&Safety&Information&

DANGER:"Do not attempt to connect the positive (+) and negative (-) terminals of the main battery with a metal object such as a

wire. Short-circuiting may occur and doing so will void the warranty.

DANGER: Do not override any safety mechanism with the top cover removed. Doing so voids the warranty and could cause

personal injury or damage to the hose reel.

CAUTION: Do not attempt to modify or service the hose reel or any of its components for which Great Stuff™, Inc (GSI) has not

provided servicing instructions. Doing so voids the warranty.

WARNING: If you use the Hose Reel without the Water Valve installed, do not retract the watering hose

without first turning off the water and relieving the water pressure.Retracting the hose under pressure could

damage the hose reel and reduce the life of the product.

WARNING: Do not operate, charge, or leave a battery near a heat source or fire. Heat can melt the enclosure and damage other

safety features, possibly causing the battery to leak, overheat, emit smoke, burst, and/or ignite.

WARNING: Do not submerse the Main Battery or Main Battery Charger in water. This may cause damage to the protective

features or charge them with extremely high current and voltage. Abnormal chemical reactions may occur, possibly causing the battery

to leak, overheat, emit smoke, burst, and/or ignite.

WARNING: The Main Battery Charger was designed only to charge the Hose Reel Main Battery. Do not attempt to use it to

charge other electronic devices."

CAUTION: When necessary, or during extended storage, charge the Main Battery using only the GSI-supplied Main

Battery Charger. Charge it only in a well-ventilated area. Never modify the Main Battery, battery enclosure, or Main Battery Charger to

allow the battery to charge while it is in the hose reel.

CAUTION: Avoid storing batteries in areas exposed to freezing temperatures or heat sources.

CAUTION: Do not dispose of batteries in a fire, throw them in a trash receptacle, place them in a recycling bin not intended for

their disposal, or otherwise discard them in a manner which may result in their being hazardous to the environment. Dispose of

batteries only at approved disposal sites.

2. Parts&

2.1 Overview

Figure 1"

2.2 Accessories

Figure 2

Figure 3"

Faucet Adapter

Strain Relief Hose

Water Valve

Water Valve Battery Pack

Connection Hose

NeverKink®Watering Hose

Retract Button

Tow Rope

Hose End Connector

Remote Control

Fireman’s Nozzle

Main Battery

Main Battery Charger

Multi-spray

High Pressure Sweeper

Fan

Adjustable

Fireman’s

Sprinkler

The"inside"cover"of"the"RoboReel"

provides"storage"for"the"Remote"

Control"and"Nozzles"in"separately"

marked"compartments""

(See"Figure"3)."

2.3 Hoses

RoboReel®includes three proprietary hoses:

•Commercial quality NeverKink®hose – Watering hose housed inside the unit and does not need to be removed.

•Connection Hose - Connects the Water Valve to the Hose Reel.

•Strain Relief Hose - Connects the Water Valve to the Faucet Adapter, designed to handle pressure for long periods of time.

CAUTION: If the hose is cut or damaged use only a GSI-supplied replacement hose. Do not splice the hose because it may

prevent the Hose Reel from retracting properly. Splicing the hose voids the Hose Reel warranty.

2.4 Remote Control

RoboReel includes one Remote Control. See Section 4 for instructions.

2.5 Batteries

The following batteries are included with the Hose Reel:

•Main Battery (12-volt).

•Retract Button Battery (replaceable with non-proprietary CR2032).

•Remote Control Battery (not replaceable).

•Water Valve Battery Pack (replaceable with non-proprietary 4 AA).

DANGER:"Do not attempt to connect the positive (+) and negative (-) terminals of the Main Battery with a metal object such as

a wire. Short-circuiting may occur. Connecting the positive and negative terminals of the Main Battery with a metal object voids the

warranty.

WARNING: Do not operate, charge, or leave a battery near a heat source or fire. Heat can melt the enclosure and damage other

safety features, possibly causing the battery to leak, overheat, emit smoke, burst, and/or ignite.

WARNING: Do not submerge the Main Battery or Main Battery Charger in water. This may cause damage to the protective

features or charge them with extremely high current and voltage. Abnormal chemical reactions may occur, possibly leading the battery

to leak, overheat, emit smoke, explode, and/or ignite.

WARNING: The battery charger was designed only to charge the Hose Reel Main Battery. Do not attempt to use it to charge other

electronic devices."

CAUTION: When necessary, or during extended storage, charge the Main Battery using only the GSI-supplied Main Battery

Charger. Charge it only in a well-ventilated area. Never modify the Main Battery, battery compartment, or Main Battery Charger, or

allow the battery to charge while it is in the Hose Reel.

CAUTION: Avoid storing batteries in areas exposed to freezing temperatures or heat sources.

CAUTION: Do not dispose of batteries in a fire, in a trash receptacle, by placing them in a non-hazardous recycling bin, or

otherwise discard them in a manner which may result in their being hazardous to the environment. Dispose of batteries only at

approved disposal sites.

3. Before&First&Using&the&Hose&Reel&

3.1 Charge and Install Main Battery

1. The Main Battery should arrive with the RoboReel fully charged. However, it is recommended that you charge the Battery

for a minimum of 6 hours prior to first using the Hose Reel.

CAUTION: Charge the Main Battery indoors only. The Battery is UL rated for Indoor Use Only.

2. Use only the provided Main Battery Charger. Connect the charger to the Battery.

3. The charger’s LED indicator turns red when the charger is charging. The LED will show a flashing green when the Battery is

charged and when the charger is disconnected from the Battery.

4. The Battery requires charging every approximately 60-90 days or after every 80-100 retractions. For optimal battery life, it is

recommended that the battery be charged every 30 days.

DANGER: Do not override any safety mechanisms with the top cover removed. Doing so voids the warranty and could cause

personal injury or damage to the Hose Reel.

The following signs may indicate that the Main Battery needs to be charged:

•2 faint musical tones play at the beginning of hose extraction.

•The hose is difficult to extract.

•The hose is slow retracting or stops retracting.

5. Press the Top Cover Release button to unlock the Top Cover before removing it (See 1in Figure 4a below).

Figure 4a

6. Lift Top Cover to remove (See 2in Figure 4a).

7. Slide the Main Battery into the battery compartment with the Great Stuff™, Inc. logo facing outward. The Battery Release

Latch (See 1in Figure 4a) will engage, locking the battery in place. A faint “ready-to-go” tune will play when inserting the fully

charged battery into the Hose Reel. An additional “dit-dit” tone will follow the “ready-to-go” tune when the battery is low.

8. To remove the Main Battery for future charging, push the Battery Release Latch and pull up on the Battery to remove it (See

Figure 4b).

CAUTION: Use care when removing the Battery Release Latch because it can be a pinching hazard.

Figure 4b

3.2 Install Water Valve Battery Pack

1. Unscrew the Battery Pack cap to remove the Battery Pack (Figure 5).

2. Insert the 4 AA batteries into Battery Pack.

3. Align the Battery Pack so that the 2 interior contacts are closest (up) to the hose connector. (See Figure 5)

4. Using care, insert the Battery Pack into the Water Valve. If inserting the Pack into the compartment requires extra force,

remove it, and change orientation before inserting.

5. If the batteries are inserted correctly the motor will turn on and off multiple times. This is normal.

6. Replace the battery cap before connecting the Water Valve to the faucet Connection Hose (See Figure 5).

NOTE: Replace batteries with only alkaline or lithium non-rechargeable batteries every three (3) months.

Figure 5

Battery Pack

Cap

Interior

Contacts

3.3 How to Attach Tow Rope and Engage Brakes

CAUTION: Do not move the Hose Reel by pulling the hose itself or by pulling the Hose Cone (1 in Figure 6) on the unit.

1. Before moving the unit, attach the Tow Rope to the notches located on the inside of either the front or rear set of legs

(See Figure 6). The length of the rope may be shortened by tying one or more knots in the rope.

Figure 6

2. To prevent the Hose Reel from rolling, tap your foot against the green button on each wheel to engage brakes. If the brakes do

not engage when tapped, slightly roll the unit in either direction, then tap the button again. To disengage brakes tap foot

against green button on each wheel in opposite direction. (See Figure 7).

Figure 7

3.4 Connecting the Hoses and Components

All attachments connecting to a hose or to each other use our water-tight Quick Connect system, eliminating the need to screw

components together.

To connect attachments shown in Figure 8 below:

1. Pull back the collar on the component.

2. Firmly insert the connecting piece into the component.

3. Release the collar which will snap back into place, locking the component to the connecting piece. If the collar does not snap

into place easily, gently push the connecting piece until the collar fits correctly or gently push the collar into place.

NOTE: To remove a connecting piece, pull back the collar to release the connecting piece.

Figure 8

Then connect the following components shown in Figure 9 below:

4. Install Faucet Adaptor

5. Connect Strain Relief Hose

6. Connect Water Valve

7. Connect Connection Hose to the Water Valve and to the bottom of the RoboReel®

Figure 9

CAUTION: Before extracting or retracting the hose, place the Hose Reel on a level surface and lock the wheels

(Section 3.3 Brakes).

8. Turn on the water at the faucet.

NOTE: Water may be left turned on at the faucet during retraction. The Hose Reel Water Valve will turn off the flow of water

when the hose begins to retract.

9. Extract the hose by pulling it toward the area needing water. As the hose begins to be extracted, it becomes easier to pull.

This is the forward assist feature. The RoboReel® will also rotate 360º allowing you to water large areas without having to

move the unit.

10. Press the Water button on the Remote Control. Water will begin flowing in 10-15 seconds.

Figure 10

11. Press the Water button again to stop water flow. Water will drain from the hose for approximately 4 seconds.

12. Press the Home button on the Remote Control or the Retract Button on the unit to retract the hose completely. If water is still

flowing, pressing either button will turn off water flow before the hose retracts.

NOTE:The Remote Control may be stored inside the RoboReel when not in use.

4. Program&Watering&Schedule&

4.1 Remote Control Functions

The Remote Control allows you to control the hose from a distance up to 150 feet, as well as allows you to program and perform

functions only possible with the Remote Control. For best results when programming the Remote Control, point it toward the Hose Reel

and have the Hose Reel in your line of sight.

NOTE: The Remote Control is sealed to protect it from water, and the battery is not replaceable. Please contact us at 888-GR8-STUFF

(888-478-7883) to purchase a replacement Remote Control or email us at [email protected].

NOTE: The Hose Reel may not function properly in areas that have water pressure greater than 80 PSI. If the water pressure in your

area exceeds 80 PSI, a water regulator may be required for the Hose Reel to function correctly.

Water Button

•The Water button is a toggle button that turns the water on and off.

•If the hose is retracting, pressing the Water button stops the wind and turns on the water.

•As a safety and conservation feature if only the Water Button is pressed, the water will remain on for one (1) hour. After one

(1) hour, the water will automatically turn off. To resume the flow of water simply push the Water Button again. This insures

that if a hose if left on and unattended it will not waste water. To program water to run unattended for more than one hour see

section 4.2.

•The Water button also sets a watering program. (see section 4.2)

•Pressing the Water button while a watering program is active cancels the program.

EXAMPLE: If water is running as a result of a Timer setting, pressing the Water button turns it off and cancels the program. If, however,

water is off because a daily watering schedule has not yet started, pressing the Water button cancels the program and turns on the

water.

Button

Description

1 – Water

Turns on or off the water

and sets watering schedule

2 – Days

Sets number of days for

watering schedule to

repeat

3 – Home

Turns off the water (if on)

and retracts the hose

4 – Timer

Programs watering time

Home Button

•Pressing the Home button turns off the water and retracts the hose.

•If the hose is already retracting, pressing the Home button will stop retraction.

•Pressing the Home button also cancels an active watering program and retracts the hose.

EXAMPLE: If you press the Water button to turn on the water and then leave it on for forty (40) minutes, pressing the Home button will

turn off the water and retract the hose.

NOTE: Water may be left turned on at the faucet during retraction. The Hose Reel Water Valve will turn off the flow of water when the

hose begins to retract.

4.2 Programming

The Remote Control is used to program a timed watering schedule of up to six (6) hours each day for up to thirty-one (31) days. The

Timer button starts the watering program and sets the length of watering time. The Days button programs the number of consecutive

days that the watering program is implemented. The Home button automatically retracts the hose at the end of the watering schedule.

The Water button sets the watering program.

•The Water button must be pressed last, in order to initiate the water programming sequence.

•While programming, if more than five (5) seconds passes between button presses, the program sequence is cancelled.

•You must complete a multi-day watering program at the exact time of day that you want the program to repeat itself because

the watering schedule will occur at the SAME TIME twenty-four (24) hours later.

EXAMPLE: If you want to repeat the watering schedule every morning at 7 AM, you will need to program the watering schedule at 7 AM.

Timer Button

1. Press the Timer button to start programming a watering schedule. Each Timer button press adds twenty (20) minutes to the

watering program. If you want the water to turn on automatically again tomorrow, proceed to “Days Button” below. If not

continue to #2.

2. Press the Water button after the Timer button to turn on the water immediately for the length of time entered, and then shut off

without repeating the watering program and without the hose retracting. If you want the hose to retract proceed to

(Home Button) below.

NOTE: The water is programmed to turn on for a maximum of 6 hours, equivalent to up to eighteen (18) button presses. Pressing the

Timer button more than eighteen (18) times will keep the watering time set at six (6) hours.

NOTE: If the water is already on when the watering program has been set, the water will remain on for the time that is programmed.

NOTE: If you lose track of the number of presses on the Timer button, press the Home button to cancel the programming. To start over

with programming, press the Timer button to set the watering time.

Days Button

1. After the Timer setting is complete, press the Days button (within 5 seconds) once for each consecutive day that should be

added to the program (up to 30 additional days).

NOTE: The maximum number of additional days that can be programmed is thirty (30) days. Pressing the Days button more than thirty

(30) times will maintain the watering program for the maximum thirty (30) days.

2. Press the Water button (within 5 seconds) after the Timer and Days buttons to set the program, and the water will

immediately turn on for the length of time entered, and then turn off. The same watering program will then repeat at the same

time of day for the number of days that were entered (without retracting after the program is over).

Home Button

1. If you want the hose to retract after the entire watering scheduled has finished (after the total number of days has passed that

you have programmed for watering), press the Home button (within 5 seconds) after pressing the Timer and/or Days button.

NOTE: If the Home button is pressed more than once, the watering program is cleared and the Hose Reel will retract the hose.

2. If the Water button is pressed (within 5 seconds) after the Timer and/or Days and the Home buttons have been pressed, the

water will immediately turn on for the length of time entered, and then shut off. The watering program will then repeat at the

same time of day for the number of Days (button presses) that were entered. Then the hose will automatically retract at the

end of the water schedule.

10"

4.3 Possible Programming Scenarios

Scenario

Button

Sequence

Number of Button

Presses

Result

You need to fill the pool for 2 hours.

(= 6 x 20 minutes)

Timer

2 hours of immediate

watering, followed by hose

retraction.

Home

Water

You will be away for the weekend

and have a new tree or shrub that

needs watering.

Timer

40 minutes of immediate

watering, then again for the

next 2 consecutive days at

the same time of day and

for same length of time,

followed by hose retraction.

Days

Home

Water

You have a dry patch of grass

requiring extra water for a few days

but you do not want the hose

retracted after programming is

completed.

Timer

20 minutes of watering

immediately, then again for

the next 3 consecutive days

at the same time and for

same length of time. Hose

DOES NOT retract.

Days

Water

I have watered for 1 day and I want

to cancel the remaining days

Water or

Home

Programming cancelled

5. Cleaning&and&Storage&

5.1 Cleaning the Hose Reel

Clean the exterior and interior of the Hose Reel by hosing it off with water. Use a mild cleaning agent as needed.

WARNING: Do not override any safety mechanisms with the top cover removed. Doing so voids the warranty and could cause

personal injury or damage to the Hose Reel.

CAUTION: Do not apply benzene, paint thinner, or other chemical products to the Hose Reel or any other components. This may

cause deformation and discoloration. Before using a commercial chemical cloth, read all accompanying instructions.

CAUTION: Do not allow foreign objects to fall into the Hose Reel while the top cover is off. If any objects do fall into the Hose Reel,

remove them before continuing. Do not insert your hand or any tool into the Hose Reel to remove a foreign object without first opening

the top cover.

11"

5.2 Storing/Winterizing the Hose Reel

Store the Hose Reel during the winter months or during periods when it will not be used.

1. Turn off the water at the faucet.

2. Release water in the hose by pressing the Water button on the Remote Control.

3. Remove the Connection Hose from the bottom of the Hose Reel.

4. Disconnect the Faucet Adapter, nozzles, Remote Control, and the Water Valve (if attached).

5. Completely extract the Watering Hose from the Hose Reel.

6. Completely retract the Watering Hose into the Hose Reel by pressing the Retract Button on the Hose Reel Top Cover.

7. Repeat steps 5 and 6 until no water drains from the bottom of the Hose Reel.

8. Remove the Main Battery and plug it into the Battery Charger. Keep it plugged in to the charger until you are ready to use the

RoboReel again.

9. Store the Hose Reel and accessories.

NOTE: After winter storage, it is recommended that silicone lubricant be applied to the O-rings (identified in Figure 8) on the

nozzles before using.

6. Replace&Retract&Button&Battery&

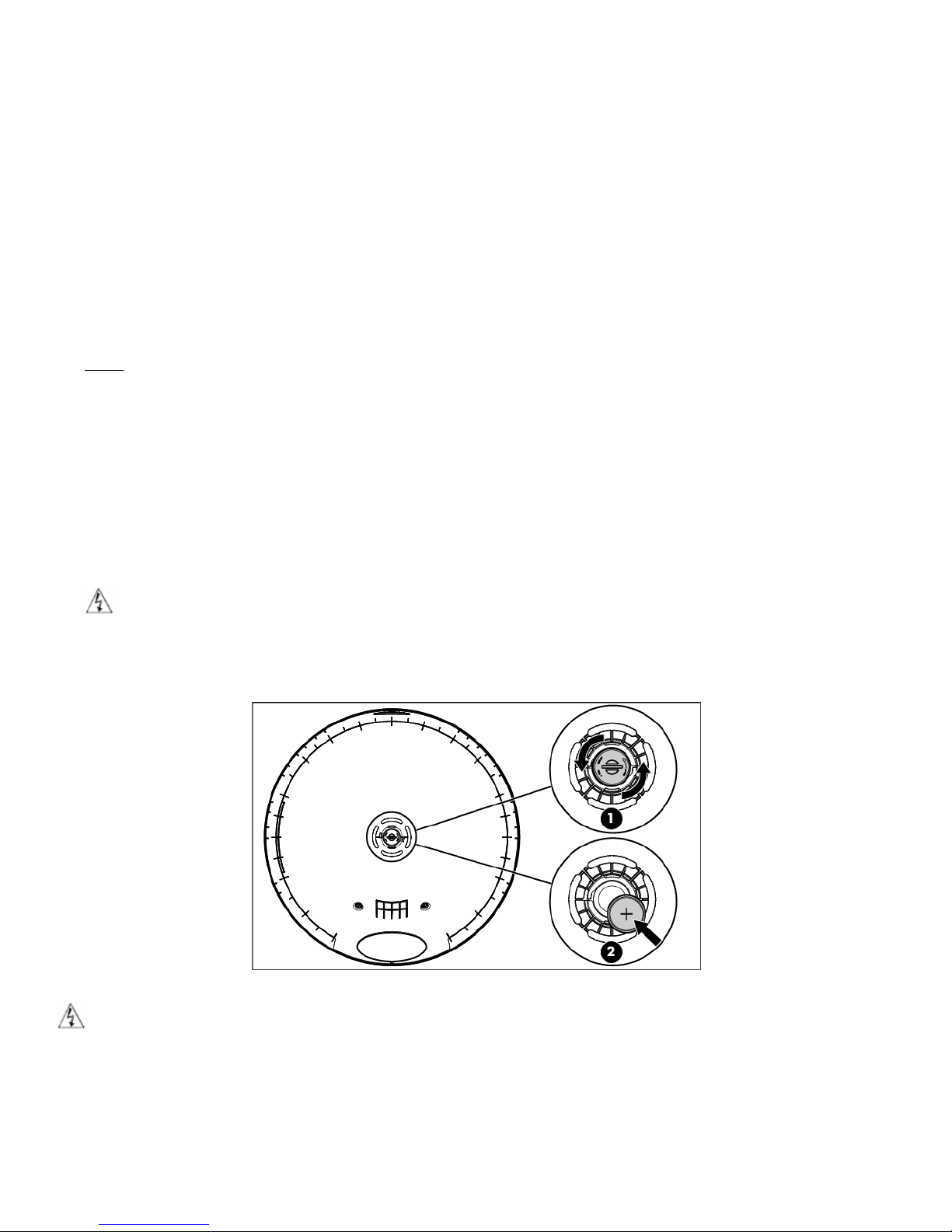

1. Remove top cover and place upside down. (See Figure 11)

2. Use a coin to help remove the battery compartment cover (located on the inside of the top cover of the Hose Reel

(See Figure 11).

Turn counter clockwise until cap is removed.

3. Turn top cover over and battery should fall out.

CAUTION: Do not pry the metal tab to release the battery because it will damage the battery compartment.

4. Remove the old battery and replace it with a new battery, positive side facing up.

5. Replace the battery compartment cover tightly to protect the battery from moisture and dirt.

Figure 11

WARNING: If a coin cell battery leaks, remove it and dispose of it according to the manufacturer’s instructions. Before replacing

the battery, clean and dry the battery compartment in accordance with the battery manufacturer’s recommendations. If battery fluid

contacts your skin or clothing, immediately flush with water.

12"

7. Synchronize&Hose&Reel&Accessories&

(Required when replacing RoboReel Top Cover, Remote Control, or Water Valve)

Instructions for synchronizing each accessory are detailed below. These accessories will arrive already synched with your RoboReel. It

should only be necessary to re-synchronize an accessory if it is replaced. If the Remote Control or the Water Valve needs to be

replaced, only that new device must be re-synchronized with the unit in order for the RoboReel to function correctly.

If you receive a new Top Cover, all of the other radio devices (listed below) will need to be re-synched, as described below.

7.1 Synchronizing Remote Control

1. On the Remote Control, press the Home and Water buttons at the same time. The LED on the Remote Control will flash three

(3) times.

2. Press the Retract Button on the Top Cover of the unit. The LED on the Remote Control will flash three (3) times again

confirming it has been synchronized with the unit.

NOTE: The above steps in 7.1 must be completed within 15 seconds in order to complete synchronizing. These steps may be repeated

if necessary to complete synchronizing.

7.2 Synchronizing Water Valve

1. Remove the Water Valve Battery Pack from the Water Valve, and then re-insert the Battery Pack. The Valve will open and

close momentarily.

2. Press either the Retract Button or the Home button on the Remote Control. The Valve will open and close momentarily,

indicating the Valve is synchronized with the unit.

NOTE:The above steps in 7.2 must be completed within 15 seconds in order to complete synchronizing. These steps may be repeated

if necessary to complete synchronizing.

7.3 Synchronizing Retract Button

1. Remove the Top Cover and insert the Main Battery. You will hear a “ready-to-go” tone.

2. Leave the Top Cover OFF.

3. Press the Retract Button. Three (3) beeps from the unit indicate that the Retract Button is synchronized with the Hose Reel.

NOTE: The above steps in 7.3 must be completed within 15 seconds in order to complete synchronizing. These steps may be repeated

if necessary to complete synchronizing.

4. Replace the Top Cover.

5. Complete all steps in Sections 7.1 and 7.2. The accessories can be synchronized in any order. But the synchronization

process must be completed for the Retract Button, the Water Valve, and the Remote Control if the Retract Button is replaced.

6. Replace the Top Cover and begin using the Hose Reel.

8. Accessories&and&Replacement&Parts&

The following accessories and parts are available for replacement from www.roboreel.com or 888-GR8-STUFF (888-478-7883).

Nozzles

•Sweeper Tip Nozzle

•Fireman Nozzle

•Adjustable Nozzle

•Multi-functional Spray Nozzle

•Fan Nozzle

Batteries and Other Accessories

•Sprinkler

•Main Battery

•Main Battery Charger

•Water Valve Battery Pack

13"

•Faucet Adapter

•Water Valve

•Remote Control

•NeverKink® Hose

•Strain Relief Hose

•Hose Brush

•Brush Retainer

•Battery Release Latch

•Coin Cell Batteries

Parts

•Top Cover

•Main System Board

•O-Rings

•Tow Rope

•Brake Assembly

•Leg Cover

•Retract Button

•Hose Clip Retainer

•Eye Caps

•Accessory Storage Post

•Top Cover Latch

•80° Connector

•Skid Plate

9. &Troubleshooting&

Issues

Possible Solutions

Hose Reel is not functioning properly

•Water pressure may be 80 psi or greater. If so, a water

regulator may be required.

Hose does not retract completely

•Charge the Main Battery

•Ensure the hose is not obstructed (stepped on, caught

on an object, etc.) AND

•Ensure there are no foreign objects lodged inside the

Hose Reel AND

•Completely extract the hose and attempt to retract

again OR

•Charge the Main Battery

Hose does not extract or is difficult to extract

•Charge the Main Battery

Hose does not retract when I press the Home button on

the Remote Control

•Charge the Main Battery

•Ensure the hose is not obstructed (stepped on, caught

on an object, etc.) AND

•Ensure there are no foreign objects lodged inside the

Hose Reel OR

•Replace the Remote Control

Hose does not retract when I press the Retract Button on

the Hose Reel

•Charge the Main Battery

•Ensure no one is stepping on the hose AND

•Ensure the hose is not obstructed (stepped on, caught

on objects, etc.) AND

•Ensure there are no foreign objects lodged inside the

14"

Issues

Possible Solutions

Hose Reel OR

•Replace the Retract Button battery

Water dribbling from nozzle

•This is normal to ensure the hose is not retracted with

full water pressure.

Water does not turn on when I press the Water button on

the remote control

•Ensure water is turned on at the faucet OR

•Point the Remote toward the Hose Reel and have line

of sight to the Hose Reel OR

•Replace the Water Valve batteries OR

•Replace the Water Valve OR

•Replace the Remote Control

Water does not turn off when I press the Water button on

the Remote Control

•Point the Remote toward the Hose Reel with line of

sight to the Hose Reel and press Water again OR

•Replace the Water Valve batteries OR

•Replace the Water Valve OR

•Replace the Remote Control

Water does not turn on when I press the Timer button on

the Remote Control

•Point the Remote toward the Hose Reel with line of

sight to the Hose Reel OR

•Replace the Water Valve batteries OR

•Replace the Water Valve OR

•Replace the Remote Control

Water does not turn on even though I pressed the Days

button during a timer the previous day

•Point the Remote toward the Hose Reel and have line

of sight to the Hose Reel OR

•Replace the Water Valve batteries OR

•Replace the Water Valve OR

•Replace the Remote Control

Nozzle or other hose attachment does not stay

connected to the hose

•Ensure you are using a GSI-supplied attachment AND

•Ensure the “quick-connect” collar snaps into place

Remote Control buttons do not work

•Point the Remote toward the Hose Reel with line of

sight to the Hose Reel OR

•Sync the Remote Control (See. Section 7) OR

•Replace the Remote Control.

Accessories or nozzles are difficult to attach or remove

•Ensure joints are clean AND

•Apply silicone lubricant.

If the above recommended solutions do not solve the problem, contact Customer Service at [email protected] or 888-GR8-STUFF

(888-478-7883).

15"

10. &Specifications&

11. &Limited&Warranty&and&Limitation&of&Liability&

FOR CONSUMERS WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR

REGULATIONS IN THEIR JURISDICTION OF PURCHASE OR, IF DIFFERENT, THEIR

JURISDICTION OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN

ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION

LAWS AND REGULATIONS. SOME COUNTRIES, STATES AND PROVINCES DO NOT ALLOW

THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR

ALLOW LIMITATIONS ON THE DURATION IN WHICH AN IMPLIED WARRANTY OR CONDITION

MAY LAST, SO THE LIMITATIONS OR EXCLUSIONS DESCRIBED BELOW MAY NOT APPLY TO

YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE

OTHER RIGHTS THAT VARY BY COUNTRY, STATE OR PROVINCE. THIS LIMITED

WARRANTY IS GOVERNED BY AND CONSTRUED UNDER THE LAWS OF THE JURISDICTION

IN WHICH THE PRODUCT PURCHASE TOOK PLACE.

Great Stuff, Inc. (“Great Stuff”) warrants that your RoboReel®Hose Reel will be free of defects in material and workmanship under

normal use for a period of time described in the following sentence. If your RoboReel®Hose Reel fails to operate properly at any point

before the earlier of (a) 48 months from your date of purchase of the product, or (b) 4000 “winds” of the product (a “wind” being defined

as each time that a “retract” button on the unit or on the Remote Control is engaged), once the defective product is returned to Great

Stuff, Great Stuff will (at Great Stuff’s sole discretion) (1) repair the product at no charge, using new parts or parts equivalent to new in

performance and reliability, (2) exchange the product with a product that is new or equivalent to new in performance and reliability and

is at least functionally equivalent to the original product, or (3) refund the purchase price of the product.

EXCLUSIONS AND LIMITATIONS

This Limited Warranty applies only to the RoboReel®Hose Reel. This Limited Warranty does not apply to any other product, even if

packaged or sold with the RoboReel®Hose Reel. Manufacturers or suppliers, other than Great Stuff, may provide their own warranties

to the consumer purchaser, but Great Stuff, insofar as permitted by law, provides the RoboReel®Hose Reel “as is.” This Limited

Warranty may be void if any of the following occur:

•RoboReel®Hose Reel is no longer owned by the original purchaser;

•RoboReel®Hose Reel has been tampered with beyond the requirements of regular maintenance;

•Parts other than those sold through Great Stuff have been integrated into the RoboReel®Hose Reel; or

•RoboReel®Hose Reel has been modified in any way.

Water Hose Reel Weight

Without hose

40 lbs

With hose

65 lbs

With hose full of water

75 lbs

Width

30.9”

Depth

34.3”

Height

24.8”

NeverKink®Hose

Length

100 feet or 150 feet

Diameter

5/8 inch or 1/2 inch hose

16"

Furthermore, this Limited Warranty shall not apply to (a) consumable parts, such as batteries, unless damage has occurred due to a

defect in materials and workmanship; (b) cosmetic damage, including but not limited to scratches, dents, and broken plastic; (c)

damage caused by use of the RoboReel® Hose Reel with any other product; (d) damage caused by accident, abuse, misuse, liquid,

flood, fire, earthquake or other external causes; (e) damage caused by operating the product outside the permitted or intended uses

described by Great Stuff; or (f) damage caused by service performed by anyone who is not an authorized representative of Great Stuff.

Warranty also does not cover leaking due to damage caused by the use of acid, harsh chemicals or mineral deposits. The effects of

corrosion and normal wear and tear are specifically excluded from this warranty as is damage which occurs in shipment or results from

mishandling or freezing.

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN

LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, STATUTORY, EXPRESS

OR IMPLIED. AS PERMITTED BY APPLICABLE LAW, GREAT STUFF SPECIFICALLY DISCLAIMS ANY AND ALL STATUTORY OR

IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IF GREAT STUFF CANNOT LAWFULLY

DISCLAIM STATUTORY OR IMPLIED WARRANTIES THEN TO THE EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES

SHALL BE LIMITED IN DURATION TO THE DURATION OF THE EXPRESS WARRANTY AND TO THE REPAIR OR

REPLACEMENT SERVICE AS DETERMINED BY GREAT STUFF IN ITS SOLE DISCRETION. No Great Stuff reseller, agent, or

employee is authorized to make any modification, extension, or addition to this warranty. If any term of this limited warranty is held to be

illegal or unenforceable, the legality or enforceability of the remaining terms shall not be affected or impaired.

EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, GREAT STUFF IS NOT

RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF

WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE;

LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS

OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOOD

WILL; LOSS OF REPUTATION; LOSS OF, DAMAGE TO OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL

LOSS OR DAMAGE HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF EQUIPMENT AND PROPERTY. THE

FOREGOING LIMITATION SHALL NOT APPLY TO DEATH OR PERSONAL INJURY CLAIMS, OR ANY STATUTORY LIABILITY

FOR INTENTIONAL AND GROSS NEGLIGENT ACTS AND/OR OMISSIONS. GREAT STUFF DISCLAIMS ANY REPRESENTATION

THAT IT WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY.

OBTAINING WARRANTY SERVICE

Call 888-GR8-STUFF (888-478-7883) or visit www.roboreel.com for return terms and instructions.

The RoboReel Hose Reel comes with a 4-year or 4,000-wind warranty

Great Stuff, Inc.

15504 Storm Drive

Austin, TX 78734

Assembled in USA.

12. &FCC&Regulations&&

12.1Federal Communications Commission Notice (US)

The Great Stuff™, Inc. RoboReel® Hose Reel consists of three units containing radio-frequency (RF) transceivers for communication.

They are listed below with their FCC identification numbers:

Device: RoboReel Top Cover Button

Model: 671-0018

FCC ID: XZ8008302R3

Device: RoboReel Remote Control Rev 4

Model: 671-0007

FCC ID XZ8004604

Device: RoboReel Lower Hemisphere Controller (module)

Model: 150-300201-06

FCC ID: XZ8020106

Device: RoboReel Water Valve (module)

Model: 150-300045-03

FCC ID: XZ8004503

17"

Operation of these wireless communication devices is subject to the following two conditions:

•These devices may not cause harmful interference.

•These devices must accept any interference received, including interference that may cause undesired operation.

These devices must not be co-located or operating in conjunction with any other antenna or radio transmitter. Any changes or

modifications made to these devices that are not expressly approved by Great Stuff™, Inc. may void your authority to operate the

equipment.

The three units listed above have been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in

a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the manufacturer’s instruction manual, may cause interference with radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference

by one or more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and the receiver

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

•Consult the dealer or an experienced radio/television technician for help

"CAUTION: Do not attempt to service the wireless communication device built into the RoboReel™products. Such action may void the warranty. Contact

Customer Service for information about your wireless communication device or visit our website at www.roboreel.com.

12.2Declaration of Conformity

The following information is provided on the device or devices covered in this document in compliance with FCC regulations:

•Model numbers: WR10058G (SKU/Item 721-0001), WR15012G (SKU/Item 721-1501)

•Company name:

Great Stuff, Inc.

15504 Storm Drive

Austin, Texas 78734

512-637-0950

13. &Patents&and&Patents&Pending&&

U.S. Patent Nos.: D419961, 6279848, 6422500, 7320843, 7503338, 7350736, 7688010, 7533843, 7810751, 8006928, 8141807, and

8132582. Other US and foreign patents pending.
