CASSETTE TYP FAN COIL UNIT SERVICE MANUAL
(GC201409-I)

CONTENTS
PRODUCT.....................................................................................................2
1. MODELS LIST ........................................................................................................2
2. NOMENCLATURE OF THE UNIT ...........................................................................4
3. FUNCTION ..............................................................................................................4
4. PRODUCT DATA.....................................................................................................5
CONTROL...................................................................................................17

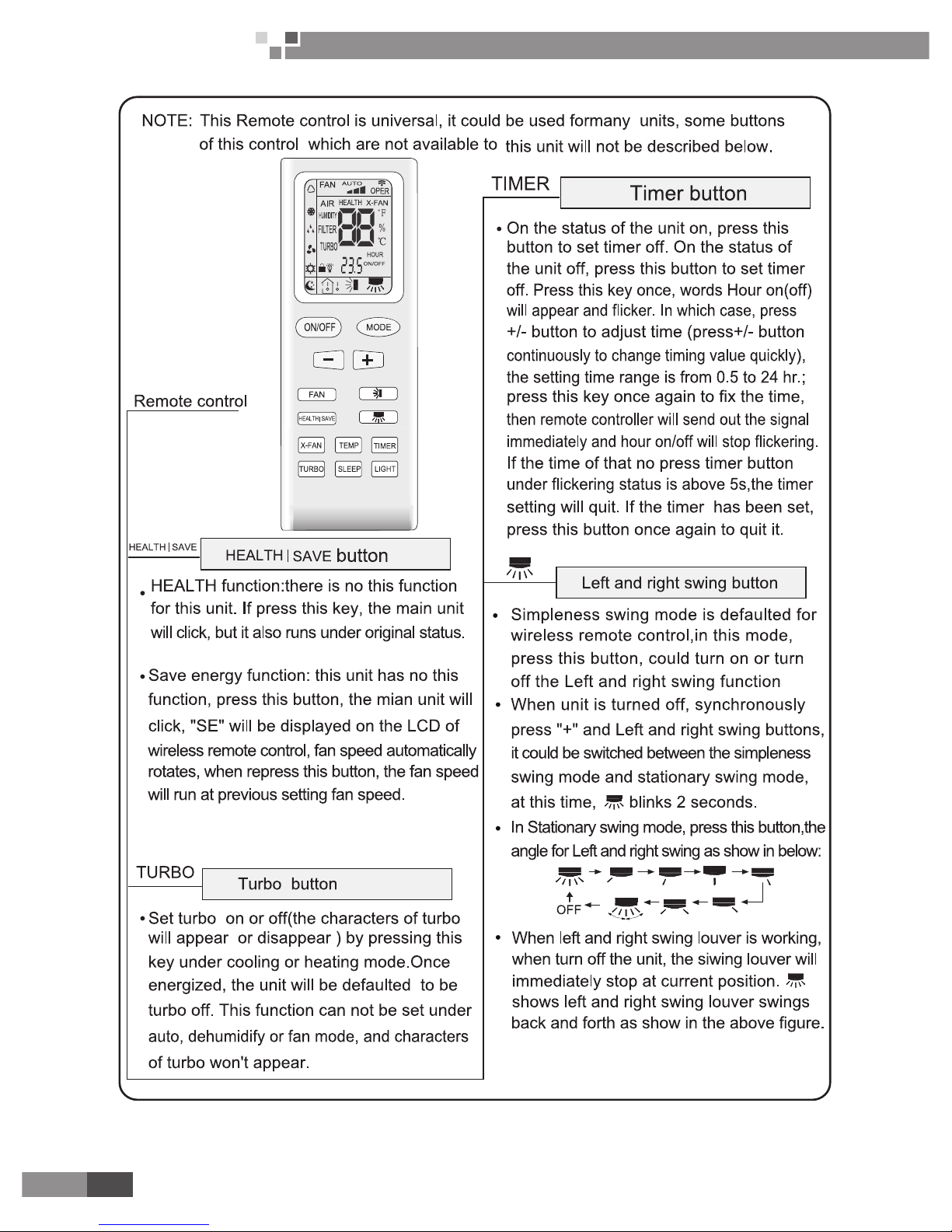

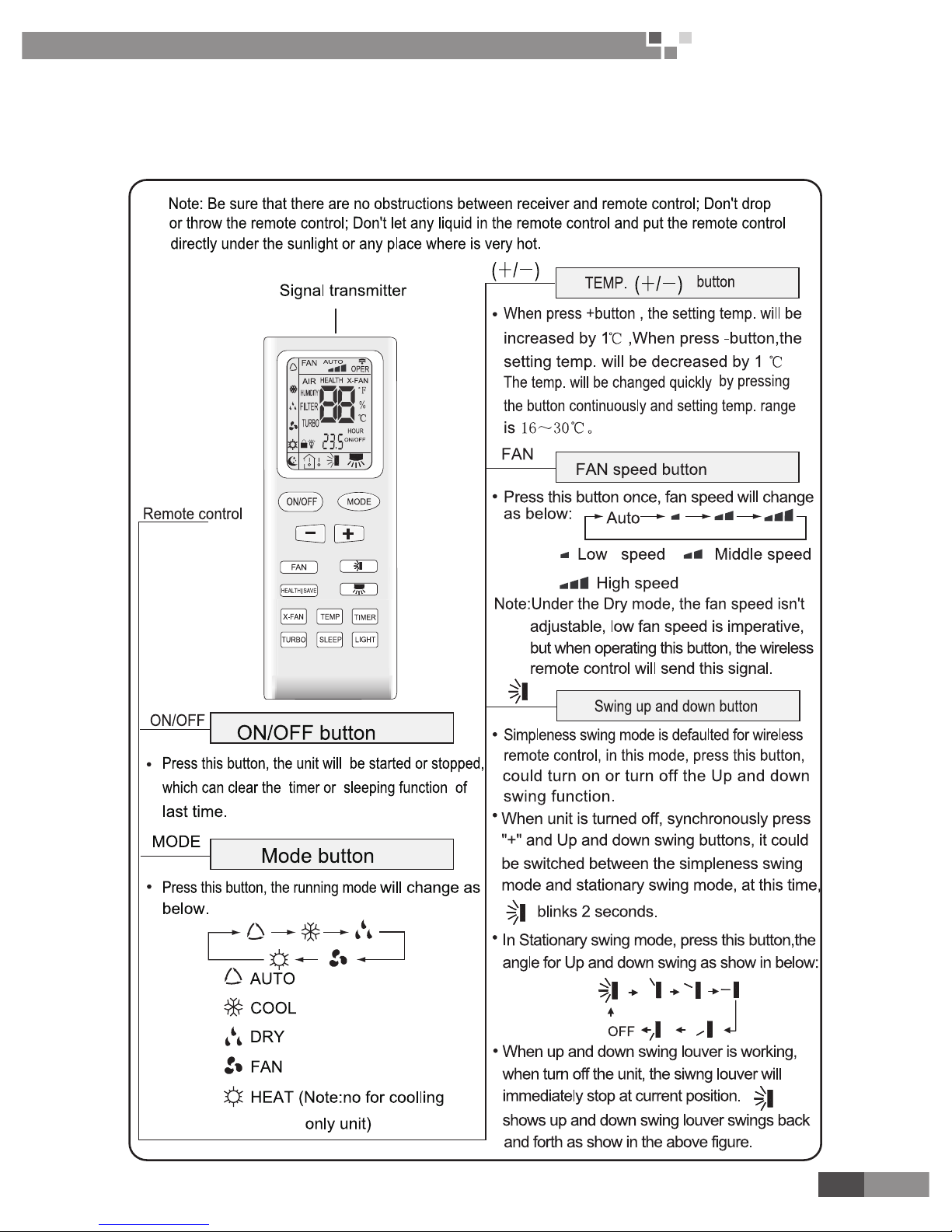

1. WIRELESS REMOTE CONTROLLER .................................................................17
2. WIRED REMOTE CONTROLLER.........................................................................24
INSTALLTION .............................................................................................28
1. SELECTION THE MOUNTING POSITION ...........................................................28
2. DRAINAGE PIPE...................................................................................................29
3. PRECAUTIONS FOR DRAINAGE RAISING PIPE...............................................30
4. ELECTRIC WIRING...............................................................................................32
5. INSTALLATION OF PANEL ..................................................................................34
MAINTENANCE..........................................................................................37
1.TROUBLESHOOTING ...........................................................................................37
2.CARE AND MAINTENANCE..................................................................................37
3. WIRING DIAGRAM ...............................................................................................40
4. DISASSEMBLY AND ASSEMBLY PROCEDURE OF MAIN PARTS ...................42
5. EXPLODED VIEWS AND SPARE PART LISTS ...................................................48

1
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
PRODUCT

2
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
PRODUCT
1. MODELS LIST
Model Name Product Code
Cooling
Capacity
(W)
Air ow
Volume
(m3/h)
Power Supply
(V, Ph, Hz) Remarks
FP-8XD-E EM52000051 4600/7500 850 220-240V~ 50Hz
FP-8XD/A-E EM5200045010 4640/7500 850 220-240V~ 50Hz
FP-10XD-E EM52000061 5400/9100 1020 220-240V~ 50Hz
FP-10XD/A-E EM5200046010 5400/9100 1020 220-240V~ 50Hz
FP-12.5XD-E EM52000031 6700/10500 1270 220-240V~ 50Hz
FP-12.5XD/A-E EM5200047010 6700/10500 1250 220-240V~ 50Hz
FP-14XD-E EM52000071 7700/11200 1560 220-240V~ 50Hz
FP-14XD/A-E EM5200048010 7740/11200 1430 220-240V~ 50Hz
FP-16XD-E EM52000081 8700/12900 1640 220-240V~ 50Hz
FP-16XD/A-E EM5200049010 8700/12900 1640 220-240V~ 50Hz
FP-18XD-E EM52000041 9600/14600 1850 220-240V~ 50Hz
FP-18XD/A-E EM5200050010 9600/14600 1800 220-240V~ 50Hz
FP-51XD-E EM52000011 3000/4000 510
220-240V~ 50Hz
FP-68XD-E EM52000021 3500/5000 680

3
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
Model Name Product Code
Cooling/Heating
Capacity
(W)
Air ow
Volume
(m3/h)
Power Supply
(V, Ph, Hz) Remarks
FP-85XD/B-T
EM520N0930 4150/5600 800 220-240V~ 50Hz
EM520N0940 4160/7800 780 208-230V~ 60Hz
FP-102XD/B-T
EM520N0910 500/6500 1020 220-240V~ 50Hz
EM520N0920 540/9000 1020 208-230V~ 60Hz
FP-125XD/B-T
EM520N0890 6000/7800 1180 220-240V~ 50Hz
EM520N0900 6300/10000 1130 208-230V~ 60Hz
FP-140XD/B-T
EM520N0870 8000/9000 1400 220-240V~ 50Hz
EM520N0880 8000/12000 1350 208-230V~ 60Hz
FP-160XD/B-T
EM520N0850 8700/10000 1550 220-240V~ 50Hz
EM520N0860 9000/14000 1550 208-230V~ 60Hz
FP-180XD/B-T
EM520N0830 9500/11000 1800 220-240V~ 50Hz
EM520N0840 10000/16000 1800 208-230V~ 60Hz
FP-200XD/B-T
EM520N0810 1300/14600 2000 220-240V~ 50Hz
EM520N0820 1300/19000 2000 208-230V~ 60Hz
FP-68XDT/B-K EM520N0990 3500/6000 680 220-240V~ 50Hz
FP-85XDT/B-K EM520N0960 4100/6800 850 220-240V~ 50Hz
FP-125XDT/B-K EM520N0970 6000/9500 1250 220-240V~ 50Hz
FP-180XDT/B-K EM520N0980 8000/13000 1800 220-240V~ 50Hz

4
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
2. NOMENCLATURE OF THE UNIT
FP - □□□ /□-□
1 2 3 4 5 6
NO. Description Options
1 Fan coil Fan coil unit
2Air ow volume Number×10 m3/h(FP-51XD-E;FP-68XD-E);Number×100 m3/h(8,10,12.5,14,16,18)
3Structure type XD-Cassette Type
4 Pipes type Default- 2 pipes; T-4 pipes
5Design Sequence Arranged by A, B,C…
6Power code E-220-240V~ 50Hz;T-220-240V~ 50Hz, 208-230V~ 60Hz; K-220-240V~ 50Hz
3. FUNCTION
1. Novel pattern: the exposed skin plates of unit looks so elegant and luxurious that they can be taken as
the indoor decorations.
2. Compact design: A large number of non-metallic materials have been used, so that the body of the unit
is quite light-weight and thin, which makes the unit looks sensuous.
3. Low noise: Dynamic principles have been adopted for the design of the fan blades so as to make sure
the air volume is enough and running noise is considerably low.
4. Durable lter screen: The durable lter screen shares a cleaning cycle 20 times longer than that of the
conventional lter screen, needless to clean it frequently.
5. Microcomputer control: The unit is able to automatically adjust the fan speed in accordance with the
indoor ambient temperature to meet a wide range of users’ requirements.
6. Small height of the unit, saving much installation space
7. Large cooling (heating) capacity, low noise, three-speed motor which can adjust the air volume and
meet a wide range of users’ requirements.
8. Excellent material, stringent process control, which guarantee the hi-quality and long life of the unit.
9. Die-formed drain pan, entirely bonded insulating material, carefree about the condensate water.

5
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
4. PRODUCT DATA
Model FP-8XD/A-E FP-10XD/A-E FP-12.5XD/A-E FP-14XD/A-E
Code EM5200045010 EM5200046010 EM5200047010 EM5200048010
Air ow volume
High
CFM 500 600 735 841
m3/h 850 1020 1250 1430
Medium
CFM 375 464 606 802
m3/h 637 789 1030 1363
Low
CFM 303 362 538 705
m3/h 515 615 915 1200
Capacity
Cooling W 4640 5400 6700 7740
Heating W 7500 9100 10500 11200
Power system
Type V-Ph-Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz
Input W 100 100 150 140
Exterior static pressure Pa 0 0 0 0
Water system
Water ow volume m3/h 0.829 0.964 1.196 1.382
Pressure drop kPa 15 25 25 30
Coil
Type - Aluminum n-
copper tube
Aluminum n-
copper tube
Aluminum n-
copper tube
Aluminum n-
copper tube
Operating pressure MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa
Motor
Type - FN35B FN35B FN35B FN50T
Capacitor µF 2.5 3.5 3.5 2.5
Power output W 35 35 35 50
Sound pressure level dB(A) 46 46 47 52
Connection
pipe size
Water inlet &outlet inch G3/4" G3/4" G3/4" G3/4"
Condensing water drain mm 32 32 32 32
Outline dimension
(W×D×H)
Body mm 840×840×240 840×840×240 840×840×240 840×840×320
Panel mm 960×960×60 960×960×60 960×960×60 960×960×60
Package dimension
(W×D×H)
Body mm 960×960×310 960×960×310 960×960×310 960×960×394
Panel mm 1040×1025×115 1040×1025×115 1040×1025×115 1040×1025×115
Net weight
Body kg 27 27 27 33
Panel kg 6.5 6.5 6.5 6.5
Gross weight
Body kg 35 35 35 42
Panel kg 10 10 10 10
Loading quantity
20'GP 84 84 84 72
40'GP 168 168 168 120
40'HQ 192 192 192 144
Wired remote controller Z5K351/Z4E351B Z5K351/Z4E351B Z5K351/Z4E351B Z5K351/Z4E351B
Wireless remote controller YB1F2(X-FAN) YB1F2(X-FAN) YB1F2(X-FAN) YB1F2(X-FAN)

6
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
Model FP-16XD/A-E FP-18XD/A-E
Code EM5200049010 EM5200050010
Air ow volume
High
CFM 965 1060
m3/h 1640 1800
Medium
CFM 853 1035
m3/h 1460 1760
Low
CFM 781 932
m3/h 1327 1584
Capacity
Cooling W 8700 9600
Heating W 12900 14600
Power system
Type V-Ph-Hz 220-240V~ 50Hz 220-240V~ 50Hz
Input W 150 155
Exterior static pressure Pa 0 0
Water system
Water ow volume m3/h 1.554 1.714
Pressure drop kPa 30 30
Coil
Type - Aluminum n-copper tube Aluminum n-copper tube
Operating pressure MPa ≤1.6MPa ≤1.6MPa
Motor
Type - FN50T FN50T
Capacitor µF 4.5 4.5
Power output W 50 50
Sound pressure level dB(A) 53 54
Connection pipe size
Water inlet &outlet inch G3/4" G3/4"
Condensing water drain mm 32 32
Outline dimension
(W×D×H)
Body mm 840×840×320 840×840×320
Panel mm 960×960×60 960×960×60
Package dimension
(W×D×H)
Body mm 960×960×394 960×960×394
Panel mm 1040×1025×115 1040×1025×115
Net weight
Body kg 33 33
Panel kg 6.5 6.5
Gross weight
Body kg 42 42
Panel kg 10 10
Loading quantity
20'GP 72 72
40'GP 120 120
40'HQ 144 144
Wired remote controller Z5K351/Z4E351B Z5K351/Z4E351B
Wireless remote controller YB1F2(X-FAN) YB1F2(X-FAN)

7
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
Model FP-8XD-E FP-10XD-E FP-12.5XD-E FP-14XD-E
Code EM52000051 EM52000061 EM52000031 EM52000071
Power system
Type V-Ph-Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz
Input W 100 100 150 140
Air ow volume
High
CFM 500 600 735 840
m3/h 850 1020 1250 1430
Medium
CFM 375 464 606 802
m3/h 638 789 1030 1363
Low
CFM 303 363 538 705
m3/h 515 617 914 1198
Capacity
Cooling W 4640 5400 6700 7740
Heating W 7500 9100 10500 11200
Electric heater rated power W 1400 1400 1400 1400
Water system
Water ow
volume m3/h 0.81 0.95 1.18 1.36
Pressure
drop kPa 15 25 25 25
Sound pressure level dB(A) 46 46 47 52
Coil
Type - Aluminum n-
copper tube
Aluminum n-
copper tube
Aluminum n-
copper tube
Aluminum n-
copper tube
Operating
pressure MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa
Motor
Type - FN35B FN35B FN35B FN50T
Capacitor µF 2.5 3.5 3.5 2.5
Connection pipe size
Water inlet
&outlet inch G3/4" G3/4" G3/4" G3/4"
Condensing
water drain mm 32 32 32 32
Outline dimension
(W×D×H)
Body mm 840×840×240 840×840×240 840×840×240 840×840×320
Panel mm 960×960×60 960×960×60 960×960×60 960×960×60
Package dimension
(W×D×H)
Body mm 960×960×310 960×960×310 960×960×310 960×960×394
Panel mm 1040×1025×115 1040×1025×115 1040×1025×115 1040×1025×115
Net weight
Body kg 30 30 30 38
Panel kg 6.5 6.5 6.5 6.5
Gross weight
Body kg 38 38 38 46
Panel kg 10 10 10 10
Loading quantity
20'GP 61 61 51 51
40'GP 116 116 116 93
40'HQ 133 133 133 112
Wired remote controller Z5K351/Z4E351B Z5K351/Z4E351B Z5K351/Z4E351B Z5K351/Z4E351B
Wireless remote controller YB1F2(X-FAN) YB1F2(X-FAN) YB1F2(X-FAN) YB1F2(X-FAN)

8
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
Model FP-16XD-E FP-18XD-E
Code EM52000081 EM52000041
Power system
Type V-Ph-Hz 220-240V~ 50Hz 220-240V~ 50Hz
Input W 160 155
Air ow volume
High
CFM 965 1059
m3/h 1640 1800
Medium
CFM 853 1035
m3/h 1450 1760
Low
CFM 781 932
m3/h 1328 1584
Capacity
Cooling W 8700 9600
Heating W 12900 14600
Electric heater rated power W 1400 1400
Water system
Water ow volume m3/h 1.53 1.68
Pressure drop kPa 27 29
Sound pressure level dB(A) 53 54
Coil
Type - Aluminum n-copper tube Aluminum n-copper tube
Operating pressure MPa ≤1.6MPa ≤1.6MPa
Motor
Type - FN50T FN50T
Capacitor µF 4.5 4.5
Connection pipe size
Water inlet &outlet inch G3/4" G3/4"
Condensing water drain mm 32 32
Outline dimension
(W×D×H)
Body mm 840×840×320 840×840×320
Panel mm 960×960×60 960×960×60
Package dimension
(W×D×H)
Body mm 960×960×394 960×960×394
Panel mm 1040×1025×115 1040×1025×115
Net weight
Body kg 38 38
Panel kg 6.5 6.5
Gross weight
Body kg 46 46
Panel kg 10 10
Loading quantity
20'GP 51 51
40'GP 93 93
40'HQ 112 112
Wired remote controller Z5K351/Z4E351B Z5K351/Z4E351B
Wireless remote controller YB1F2(X-FAN) YB1F2(X-FAN)

9
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
Model FP-51XD-E FP-68XD-E
Code EM52000011 EM52000021
Power system
Type V-Ph-Hz 220-240V~ 50Hz 220-240V~ 50Hz
Input W 49 56
Air ow volume
High
CFM 300 371
m3/h 510 680
Medium
CFM 247 318
m3/h 420 540
Low
CFM 206 265
m3/h 350 450
Capacity
Cooling W 3000 3500
Heating W 4000 5000
Electric heater rated power W - -
Water system
Water ow volume m3/h 0.49 0.616
Pressure drop kPa 5 9
Sound pressure level dB(A) 43 48
Coil
Type - Aluminum n-copper tube Aluminum n-copper tube
Operating pressure MPa ≤1.6MPa ≤1.6MPa
Motor
Type - FN11T FN11T
Capacitor µF 1 2.5
Connection pipe size
Water inlet &outlet inch G3/4" G3/4"
Condensing
water drain mm 25 25
Outline dimension (W×D×H)
Body mm 600×600×230 600×600×230
Panel mm 650×650×50 650×650×50
Package dimension (W×D×H)
Body mm 848×678×310 848×678×310
Panel mm 730×670×102 730×670×102
Net weight
Body kg 19.3 19.3
Panel kg 5 5
Gross weight
Body kg 27 27
Panel kg 6 6
Loading quantity
20'GP 114 114
40'GP 216 216
40'HQ 256 256
Wired remote controller Z5K351 Z5K351
Wireless remote controller YB1F2(X-FAN) YB1F2(X-FAN)
Notes:
1. The water working temperature is from 7°C(44.6°F) to 60°C(140°F).
2. The temperature exchange efficiency and enthalpy exchange efficiency are tested under these
testing conditions as below:
(1) Cooling efciency: air 27°C(80.6°F) DB, 19.5°C(67.1°F) WB, water temperature in 7°C(44.6°F),water out 12°C(53.6°F).
(2) Heating capacity: air 21°C(69.8°F) DB, Water temperature intake 60°C(140°F), the water-ow volume is same as
Cooling capacity.

10
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
Model FP-85XD/B-T FP-85XD/B-T FP-102XD/B-T FP-102XD/B-T
Code EM520N0940 EM520N0930 EM520N0920 EM520N0910
Power
system
Type V-Ph-Hz 208-230V~ 60Hz 220-240V~ 50Hz 208-230V~ 60Hz 220-240V~ 50Hz
Input W 70 75 130 110
Air ow
volume
High CFM 459 471 600 600
m3/h 780 800 1020 1020
Medium CFM 371 382 599 599
m3/h 630 650 950 950
Low CFM 324 324 529 529
m3/h 550 550 900 900
Capacity Cooling W 4600 4500 5400 5000
Heating W 7800 5600 9000 6500
Electric heater rated power W - - - -
Water
system
Cooling water ow
volume l/s 0.22 0.21 0.26 0.24
Heating water ow
volume l/s 0.22 0.13 0.26 0.17
Cooling pressure drop kPa 27 24 48 36
Heating pressure drop kPa 24 8 47 13
Sound pressure level dB(A) 39 39 49 49
Coil Type - Aluminum n-
copper tube
Aluminum n-
copper tube
Aluminum n-
copper tube
Aluminum n-
copper tube
Operating pressure MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa
Motor Type - FN35D-1 FN35D-1 FN35D-1 FN35D-1
Capacitor µF 2.00 2.00 5.00 5.00
Connection
pipe size
Water inlet &outlet inch G3/4" G3/4" G3/4" G3/4"
Condensing water drain mm 25 25 25 25
Outline
dimension
(W×D×H)
Body mm 840×840×190 840×840×190 840×840×190 840×840×190
Panel T01 mm 950×950×60 950×950×60 950×950×60 950×950×60
Panel TB03 mm 950×950×85 950×950×85 950×950×85 950×950×85
Package
dimension
(W×D×H)
Body mm 963×963×272 963×963×272 963×963×272 963×963×272
Panel T01 mm 1028×1043×130 1028×1043×130 1028×1043×130 1028×1043×130
Panel TB03 mm 1033×1038×133 1033×1038×133 1033×1038×133 1033×1038×133
Net weight
Body kg 25.0 25.0 25.0 25.0
Panel T01 kg 3.0 3.0 3.0 3.0
Panel TB03 kg 7 7 7 7
Gross
weight
Body kg 33.0 33.0 33.0 33.0
Panel T01 kg 5.0 5.0 5.0 5.0
Panel TB03 kg 11 11 11 11
Loading
quantity
20'GP(with panel T01) 57 57 57 57
40'GP (with panel T01) 133 133 133 133
40'HQ (with panel T01) 149 149 149 149
20'GP (with panel TB03) 56 56 56 56
40'GP (with panel TB03) 131 131 131 131
40'HQ (with panel TB03) 147 147 147 147
Wired remote controller Z4E351B Z4E351B Z4E351B Z4E351B
Wireless remote controller YB1FA(X-FAN) YB1FA(X-FAN) YB1FA(X-FAN) YB1FA(X-FAN)

11
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
Model FP-125XD/B-T FP-125XD/B-T FP-140XD/B-T FP-140XD/B-T
Code EM520N0900 EM520N0890 EM520N0880 EM520N0870
Power
system
Type V-Ph-Hz 208-230V~ 60Hz 220-240V~ 50Hz 208-230V~ 60Hz 220-240V~ 50Hz
Input W 130 82 140 120
Air ow
volume
High CFM 665 694 794 824
m3/h 1130 1180 1350 1400
Medium CFM 529 588 647 735
m3/h 900 1000 1100 1250
Low CFM 441 529 588 676
m3/h 750 900 1000 1150
Capacity Cooling W 6300 6000 8000 8000
Heating W 10000 7800 12000 9000
Electric heater rated power W - - - -
Water
system
Cooling water ow volume l/s 0.3 0.29 0.38 0.38
Heating water ow volume l/s 0.3 0.18 0.38 0.21
Cooling pressure drop kPa 27 24 33 30
Heating pressure drop kPa 28 9 29 10
Sound pressure level dB(A) 43 43 48 50
Coil Type - Aluminum n-
copper tube
Aluminum n-
copper tube
Aluminum n-
copper tube
Aluminum n-
copper tube
Operating pressure MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa
Motor Type - FN35B-1 FN35B-1 FN35C FN35C
Capacitor µF 2.00 2.00 4.00 4.00
Connection
pipe size
Water inlet &outlet inch G3/4" G3/4" G3/4" G3/4"
Condensing water drain mm 25 25 25 25
Outline
dimension
(W×D×H)
Body mm 840×840×240 840×840×240 840×840×240 840×840×240
Panel T01 mm 950×950×60 950×950×60 950×950×60 950×950×60
Panel TB03 mm 950×950×85 950×950×85 950×950×85 950×950×85
Package
dimension
(W×D×H)
Body mm 963×963×325 963×963×325 963×963×325 963×963×325
Panel T01 mm 1028×1043×130 1028×1043×130 1028×1043×130 1028×1043×130
Panel TB03 mm 1033×1038×133 1033×1038×133 1033×1038×133 1033×1038×133
Net weight
Body kg 27.0 27.0 27.0 27.0
Panel T01 kg 3.0 3.0 3.0 3.0
Panel TB03 kg 7 7 7 7
Gross
weight
Body kg 34.0 34.0 35.0 35.0
Panel T01 kg 5.0 5.0 5.0 5.0
Panel TB03 kg 11 11 11 11
Loading
quantity
20'GP(with panel T01) 50 50 50 50
40'GP (with panel T01) 121 121 121 121
40'HQ (with panel T01) 134 134 134 134
20'GP (with panel TB03) 50 50 50 50
40'GP (with panel TB03) 117 117 117 117
40'HQ (with panel TB03) 133 133 133 133
Wired remote controller Z4E351B Z4E351B Z4E351B Z4E351B
Wireless remote controller YB1FA(X-FAN) YB1FA(X-FAN) YB1FA(X-FAN) YB1FA(X-FAN)

12
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
Model FP-160XD/B-T FP-160XD/B-T FP-180XD/B-T FP-180XD/B-T
Code EM520N0860 EM520N0850 EM520N0840 EM520N0830
Power system Type V-Ph-
Hz 208-230V~ 60Hz 220-240V~ 50Hz 208-230V~ 60Hz 220-240V~ 50Hz
Input W 140 125 160 160
Air ow volume
High CFM 912 912 1059 1059
m3/h 1550 1550 1800 1800
Medium CFM 765 824 824 853
m3/h 1300 1400 1400 1450
Low CFM 676 765 765 794
m3/h 1150 1300 1300 1350
Capacity Cooling W 9000 8700 10000 9500
Heating W 14000 10000 16000 11000
Electric heater rated power W - - - -
Water system
Cooling water ow
volume l/s 0.43 0.42 0.48 0.45
Heating water ow
volume l/s 0.43 0.23 0.48 0.27
Cooling pressure
drop kPa 34 30 42 34
Heating pressure
drop kPa 34 11 43 12
Sound pressure level dB(A) 51 51 50 50
Coil Type - Aluminum n-copper
tube
Aluminum n-copper
tube
Aluminum n-copper
tube
Aluminum n-copper
tube
Operating pressure MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa
Motor Type - FN35C FN35C FN50K-1 FN50K-1
Capacitor µF 5.00 5.00 3.50 3.50
Connection
pipe size
Water inlet &outlet inch G3/4" G3/4" G3/4" G3/4"
Condensing water
drain mm 25 25 25 25
Outline
dimension
(W×D×H)
Body mm 840×840×240 840×840×240 840×840×320 840×840×320
Panel T01 mm 950×950×60 950×950×60 950×950×60 950×950×60
Panel TB03 mm 950×950×85 950×950×85 950×950×85 950×950×85
Package
dimension
(W×D×H)
Body mm 963×963×325 963×963×325 963×963×409 963×963×409
Panel T01 mm 1028×1043×130 1028×1043×130 1028×1043×130 1028×1043×130
Panel TB03 mm 1033×1038×133 1033×1038×133 1033×1038×133 1033×1038×133
Net weight
Body kg 27.0 27.0 32.0 32.0
Panel T01 kg 3.0 3.0 3.0 3.0
Panel TB03 kg 7 7 7 7
Gross weight
Body kg 35.0 35.0 41.0 41.0
Panel T01 kg 5.0 5.0 5.0 5.0
Panel TB03 kg 11 11 11 11
Loading
quantity
20'GP(with panel T01) 50 50 42 42
40'GP (with panel T01) 121 121 98 98
40'HQ (with panel T01) 134 134 112 112
20'GP (with panel TB03) 50 50 42 42
40'GP (with panel TB03) 117 117 98 98
40'HQ (with panel TB03) 133 133 112 112
Wired remote controller Z4E351B Z4E351B Z4E351B Z4E351B
Wireless remote controller YB1FA(X-FAN) YB1FA(X-FAN) YB1FA(X-FAN) YB1FA(X-FAN)

13
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
Model FP-200XD/B-T FP-200XD/B-T
Code EM520N0820 EM520N0810
Power system Type V-Ph-Hz 208-230V~ 60Hz 220-240V~ 50Hz
Input W 230 210
Air ow volume
High CFM 1176 1176
m3/h 2000 2000
Medium CFM 912 1000
m3/h 1550 1700
Low CFM 735 853
m3/h 1250 1450
Capacity Cooling W 13000 13000
Heating W 19000 14600
Electric heater rated power W - -
Water system
Cooling water ow volume l/s 0.62 0.62
Heating water ow volume l/s 0.62 0.25
Cooling pressure drop kPa 35 34
Heating pressure drop kPa 35 30
Sound pressure level dB(A) 55 55
Coil Type - Aluminum n-copper tube Aluminum n-copper tube
Operating pressure MPa ≤1.6MPa ≤1.6MPa
Motor Type - FN50K-2 FN50K-2
Capacitor µF 5.00 5.00
Connection
pipe size
Water inlet &outlet inch G3/4" G3/4"
Condensing water drain mm 25 25
Outline
dimension
(W×D×H)
Body mm 840×840×320 840×840×320
Panel T01 mm 950×950×60 950×950×60
Panel TB03 mm 950×950×85 950×950×85
Package
dimension
(W×D×H)
Body mm 963×963×409 963×963×409
Panel T01 mm 1028×1043×130 1028×1043×130
Panel TB03 mm 1033×1038×133 1033×1038×133
Net weight
Body kg 33.0 33.0
Panel T01 kg 3.0 3.0
Panel TB03 kg 7 7
Gross weight
Body kg 42.0 42.0
Panel T01 kg 5.0 5.0
Panel TB03 kg 11 11
Loading
quantity
20'GP(with panel T01) 42 42
40'GP (with panel T01) 98 98
40'HQ (with panel T01) 112 112
20'GP (with panel TB03) 42 42
40'GP (with panel TB03) 98 98
40'HQ (with panel TB03) 112 112
Wired remote controller Z4E351B Z4E351B
Wireless remote controller YB1FA(X-FAN) YB1FA(X-FAN)

14
Cassette Type Fan Coil
Unit Service Manual
PRODUCT
Model FP-68XDT/B-K FP-85XDT/B-K FP-125XDT/B-K FP-180XDT/B-K
Code EM520N0990 EM520N0960 EM520N0970 EM520N0980
Power
system
Type V-Ph-Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz 220-240V~ 50Hz
Input W 82 82 135 191
Air ow
volume
High CFM 400 500 736 1059
m3/h 680 850 1250 1800
Medium CFM 364 450 652 897
m3/h 618 764 1108 1525
Low CFM 336 410 597 836
m3/h 571 697 1014 1421
Capacity Cooling W 3500 4100 6000 8000
Heating W 6000 6800 9500 13000
Electric heater rated power W - - - -
Water
system
Cooling water
ow volume l/s 0.21 0.24 0.29 0.44
Heating water
ow volume l/s 0.17 0.19 0.27 0.36
Cooling
pressure drop kPa 34.14 56.71 43.07 39.65
Heating
pressure drop kPa 76.44 86.08 91.94 102.21
Sound pressure level dB(A) 39 40 43 50
Coil
Type - Aluminum n-
copper tube
Aluminum n-
copper tube
Aluminum n-
copper tube
Aluminum n-
copper tube
Operating
pressure MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa ≤1.6MPa
Motor Type - FN35D-1 FN35D-1 FN35B-1 FN50K-1
Capacitor µF 2.0 3.0 4.0 4.5
Connection
pipe size
Water inlet
&outlet inch G3/4" G3/4" G3/4" G3/4"
Condensing
water drain mm 25 25 25 25
Outline
dimension
(W×D×H)
Body mm 840×840×190 840×840×190 840×840×240 840×840×320
Panel TB03 mm 950×950×85 950×950×85 950×950×85 950×950×85
Package
dimension
(W×D×H)
Body mm 960×960×257 960×960×257 960×960×310 960×960×394
Panel TB03 mm 1033×1038×133 1033×1038×133 1033×1038×133 1033×1038×133
Net weight Body kg 25.0 25.0 27.0 32.0
Panel TB03 kg 7 7 7 7
Gross weight Body kg 33.0 33.0 34.0 41.0
Panel TB03 kg 11 11 11 11
Loading
quantity
20'GP (with panel TB03) 56 56 50 42
40'GP (with panel TB03) 131 131 121 98
40'HQ (with panel TB03) 147 147 134 112

15
Cassette Type Fan Coil
Unit Service Manual
CONTROL
Testing condition:
For 60Hz :
The FCU designed for installation indoor. The environmental temperature is from 5°C to 43°C, water
working temperature is from 7°C to 60°C.
The temperature exchange efficiency and enthalpy exchange efficiency are tested under these testing
conditions as below:
1). Cooling capacity: air 27°C DB, 19.5°C WB, water temperature: intake 7°C, outlet12°C.
2).Heating capacity: air 21°C DB, Water temperature intake 60°C, the water-flow volume is same as
Cooling capacity .
3).Freeze-up : air 27°C DB, 24°C WB, water temperature intake 6°C, outlet 9°C.
4).Sound power level according to ISO 5151. Sound pressure level are calculated at the below of air-outlet
1m and 1m distance. The noise are tested before leaving factory.
For 50 Hz :
The FCU designed for installation indoor. The environmental temperature is from 5°C to 43°C, water
working temperature is from 7°C to 60°C.
The temperature exchange efficiency and enthalpy exchange efficiency are tested under these testing
conditions as below:
1).Cooling capacity: air 27°C DB , 19°C WB, water temperature intake 7°C, outlet 12°C.
2).Heating capacity: air 20°C DB , Water temperature intake 50°C, outlet 40°C.
3).Freeze-up : air 27°C DB, 24°C WB , water temperature 6°C intake , 10°C outlet .
4).Sound power level according to ISO 5151. Sound pressure level are calculated at the below of air-outlet
1m and 1m distance. The noise are tested before leaving factory.
For 4 pipes:
The FCU designed for installation indoor. The environmental temperature is from 5°C to 43°C, water
working temperature is from 7°C to 70°C.
The temperature exchange efciency and enthalpy exchange efciency are tested under these testing
conditions as below:
1).Cooling capacity: air 27°C DB , 19°C WB, water temperature intake 7°C, outlet 12°C.
2).Heating capacity: air 20°C DB , Water temperature intake 70°C, outlet 60°C.
3).Freeze-up : air 27°C DB, 24°C WB , water temperature 6°C intake , 10°C outlet .
4).Sound power level according to ISO 5151. Sound pressure level are calculated at the below of air-outlet
1m and 1m distance. The noise are tested before leaving factory.

16
Cassette Type Fan Coil
Unit Service Manual
CONTROL
CONTROL

17
Cassette Type Fan Coil
Unit Service Manual
CONTROL
CONTROL
1. WIRELESS REMOTE CONTROLLER
1.1 YB1F2(X-FAN)

18
Cassette Type Fan Coil
Unit Service Manual
CONTROL
