Gree Gpc05ak-a3nna2b User manual

042021 © Copyright, GREE Canada, 2021

www.gree.ca

Saint-Mathieu-de-Beloeil (Quebec) Canada Made in China

OWNER’S MANUAL

PORTABLE AIR CONDITIONER

Thank you for choosing our product. Please read this owner’s manual

carefully before operation and retain it for future reference.

TOLL-FREE : 1 866 680-4733

MODELS : GPC05AK-A3NNA2B

GPC06AK-A3NNA2B

OPERATION ENVIRONMENT................................................................................. 3

SAFETY WARNING................................................................................................ 4

PART’S NAME....................................................................................................... 5

OPERATION INTRODUCTION FOR CONTROL PANEL ........................................... 6

BUTTONS ON REMOTE CONTROLLER ................................................................. 8

INTRODUCTION FOR ICONS ON DISPLAY SCREEN ............................................. 8

INTRODUCTION FOR BUTTONS ON REMOTE CONTROLLER ............................... 9

FUNCTION INTRODUCTION FOR COMBINATION BUTTONS ............................... 11

REPLACEMENT OF BATTERIES IN REMOTE CONTROLLER................................ 11

CLEAN AND MAINTENANCE ............................................................................... 12

MALFUNCTION ANALYSIS.................................................................................. 14

INSTALLATION PRECAUTION ............................................................................. 17

PREPARATION BEFORE INSTALLATION ............................................................. 18

INSTALLING WIRE HOOK ................................................................................... 19

REMOVING COLLECTED WATER ........................................................................ 20

INSTALLATION IN A DOUBLE-HUNG SASH WINDOW ........................................ 23

INSTALLATION IN A SLIDING SASH WINDOW ................................................... 26

INSTALLATION OF HEAT DISCHARGE PIPE........................................................ 31

OPERATION TEST ............................................................................................... 34

ELECTRIC SCHEMATIC DIAGRAM ...................................................................... 35

WARRANTY ........................................................................................................ 36

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety. Children should be

supervised to ensure that they do not play with the appliance.

• The air conditioner must be operated within the temperature range:

61°F-95°F(16°C- 35°C).

•

The appliance is for indoor use only.

•

The appliance must be positioned so that the plug is accessible.

•

This air conditioner can only be used for residential use, not for

commercial industry.

•

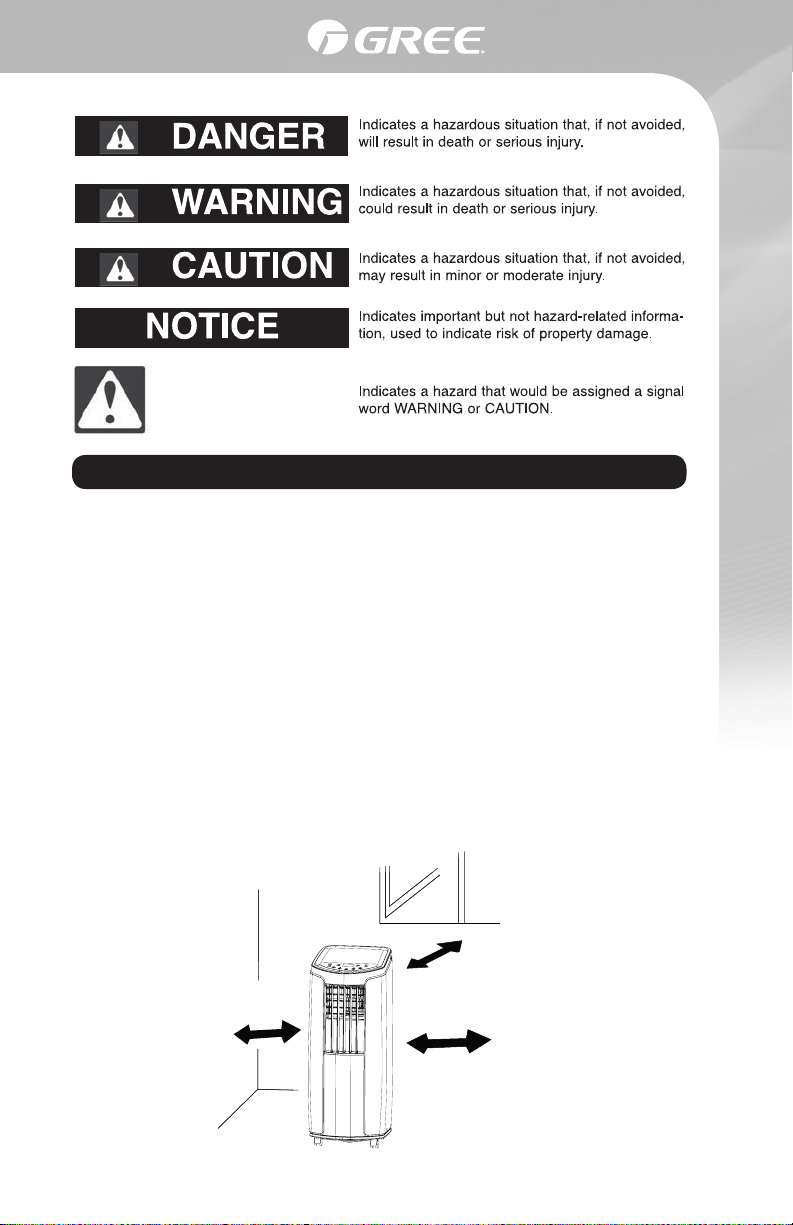

Reserved space around the air conditioner should be 12"(30cm)

at least.

•

Do not operate the air conditioner at humid environment.

•

Please keep air inlet and air outlet clean, no obstacles.

•

During operation, close doors and windows to improve cooling effect.

•

Please put the air conditioner at smooth and flat ground for operation

to avoid noise and vibration.

•

This air conditioner is equipped with castors. Castors should slide

at smooth and flat ground.

•

Prohibit inclining or turning over the air conditioner. If there's abnormity,

please disconnect power immediately and contact dealer.

•

Avoid direct sunshine.

12 INCHES

OPERATION ENVIRONMENT

SAFETY WARNING

• This appliance can be used by children aged from 8 years and

above and people with reduced physical ,sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

• Before operation, please confirm whether power specification

complies with that on nameplate.

• Before cleaning or maintaining the air conditioner, please turn off

air conditioner and pull out the power plug.

• Make sure the power cord hasn't been pressed by hard objects.

• Do not pull or drag the power cord to pull out the power plug or

move the air conditioner.

• Do not insert or pull out the power plug with wet hands.

• Please use the grounded power. Make sure the gounding is reliable.

• If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person

in order to avoid a hazard.

• If the power cord is damaged, it must be replaced by

manufacturer or professional person.

• If abnormal condition occurs (e.g. burned smell), please

disconnect power at once and then contact local dealer.

• When nobody is taking care of the unit, please turn it off and

remove the power plug or disconnect power.

• Do not splash or pour water on air conditioner. Otherwise, it may

cause short circuit or damage to air conditioner.

• If drainage hose is used, ambient temperature can't be lower than

0°C .Otherwise, it will cause water leakage to air conditioner.

• Prohibit operating heating equipment around the air conditioner.

• Keep far away from fire source, inflammable and explosive objects.

• Children and disabled people are not allowed to use the

portable room air conditioner without supervision.

• Keep children from playing or climbing on the air conditioner.

• Do not put or hang dripping objects above the air conditioner.

• Do not repair or disassemble the air conditioner by yourself.

• Prohibit inserting any objects into the air conditioner.

• Do not use an extension cord

PART’S NAME

This picture is only for reference. Please refer to the actual product

for the appearance.

Remote controller

1Controller panel

Swing louver

Guide louver

4Castor

Plug of power cord

7Gastor

8Air inlet

9Joint A

10 Heat discharge pip

11 Joint B+C

11 10 9

Heat discharge pipe and other installation accessories can't be discarded.

NOTICE:

OPERATION INTRODUCTION FOR CONTROL PANEL

NAME OF CONTROL PANEL

OPERATION OF CONTROL PANEL

MODE button3

FAN button4

TIMER5

SLEEP6

Press this button and the mode will circulate according to below sequence:

COOL DRY FAN

COOL: Under this mode, the cooling mode indicator lights up. The screen dis-

plays set temperature. Temperature setting range is 61°F (16°C) - 86°F (30°C).

DRY: Under this mode, drying mode indicator lights up; the screen does not

display.

FAN: Under this mode, the air conditioner fan is activated, only blowing air. The

fan indicator lights up. The screen does not display.

Press this button and the fan speed will circulate as "low speed medium speed

high speed auto fan low speed".

Press timer button to enter into timer setting mode. Under this mode, press "+" or "-"

button to adjust the timer setting. Timer setting will increase or decrease 0.5 hour up

to a maximum of 10 hours.

After timer setting is finished, the unit will automatically display set temperature if the

unit is not operating for 5 seconds. If timer function has been properly set, the upper

indicator will display. Under timer mode, press timer button again to cancel timer

mode.

Press sleep button to enter into sleep mode. If the controller operates in cooling

mode, after sleep mode is activated, preset temperature will increase by 1 degree

within 1 hour, and by 2 degrees within 2 hours; the unit will maintain this

temperature. The Sleep function is not available

under fan, drying or auto mode. If the sleep function is activated, the upper indicator

will display.

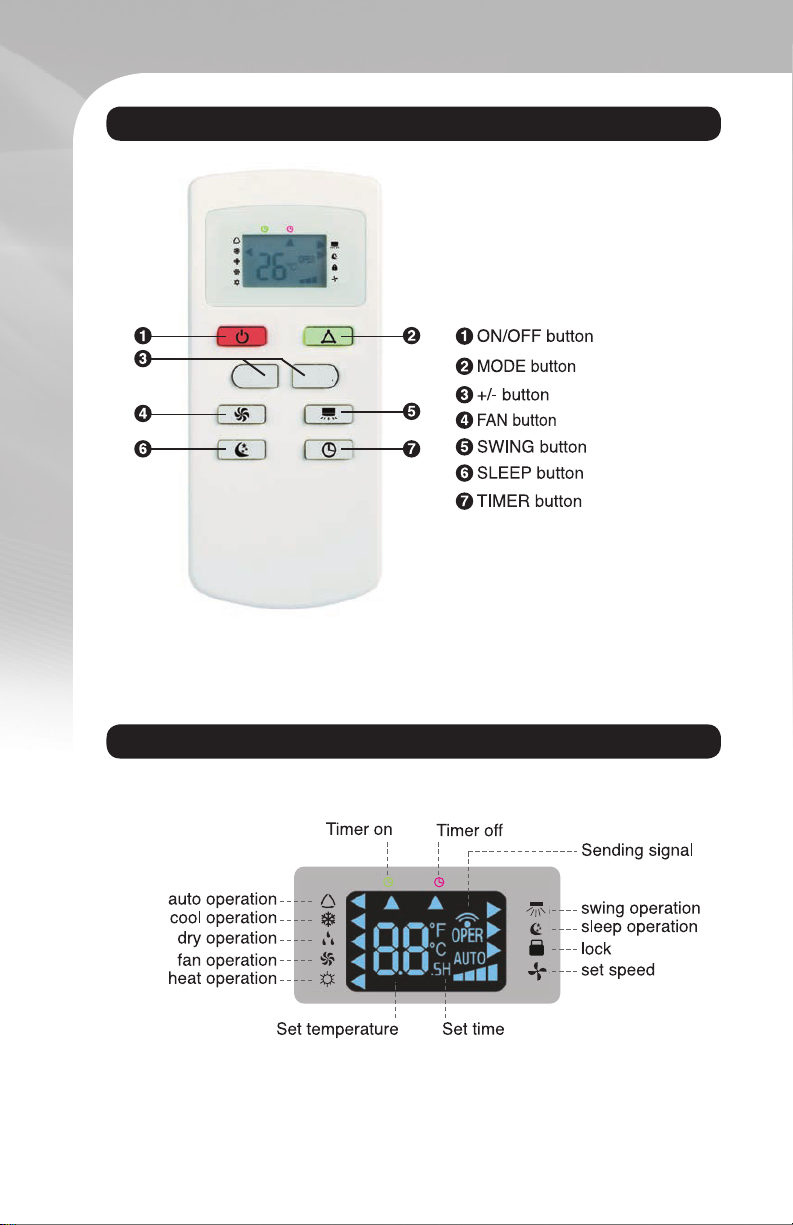

BUTTONS ON REMOTE CONTROLLER

INTRODUCTION FOR ICONS ON DISPLAY SCREEN

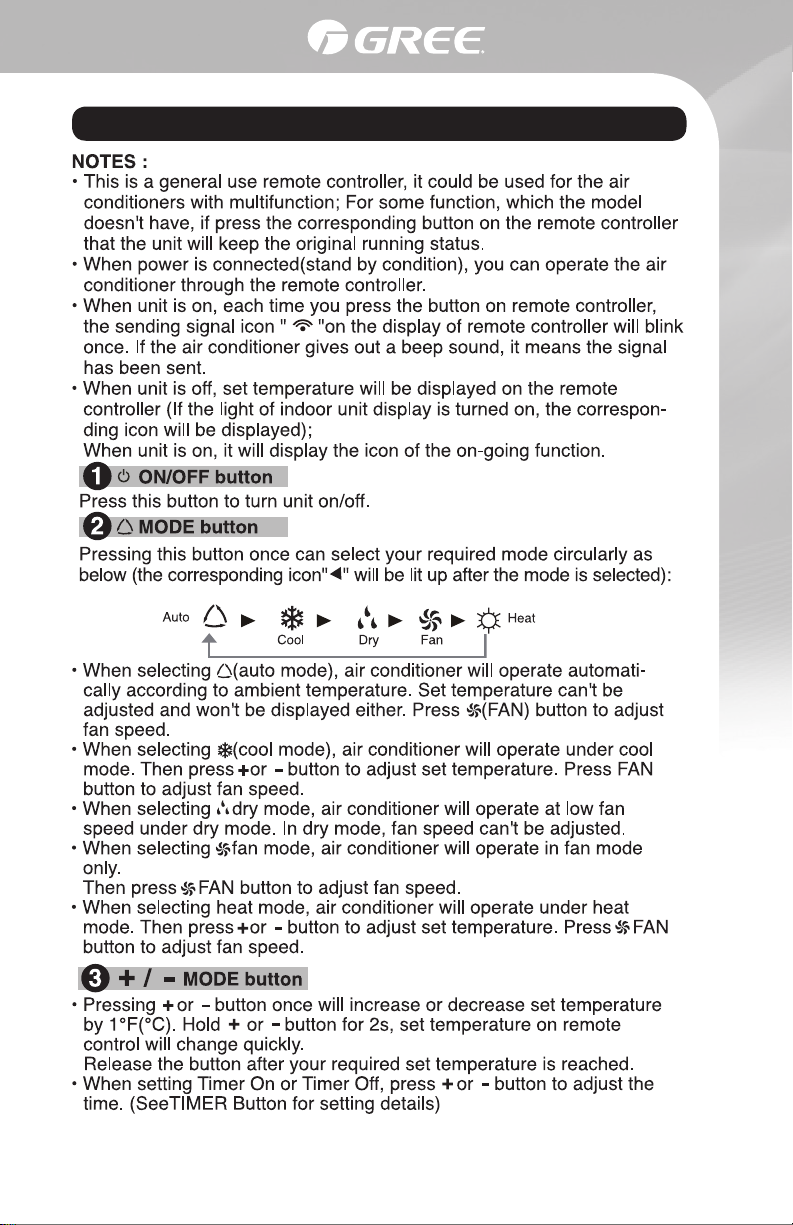

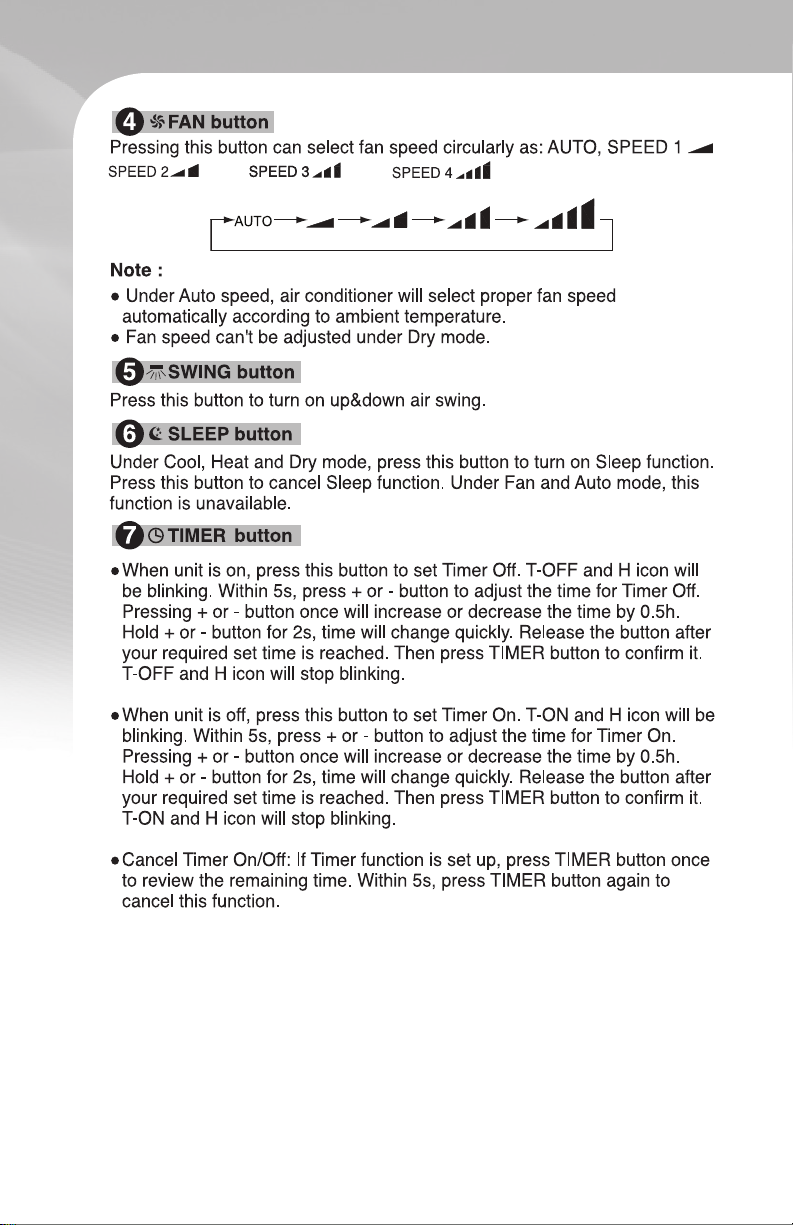

INTRODUCTION FOR BUTTONS ON REMOTE CONTROLLER

Under switch-on or switch-off state, you may hold "+"and " " buttons

simultaneously for 3 seconds to set the lamp on or off and send the code. After

being energized the lamp is defaulted on.

About Light function

REPLACEMENT OF BATTERIES IN REMOTE CONTROLLER

FUNCTION INTRODUCTION FOR COMBINATION BUTTONS

WARNING

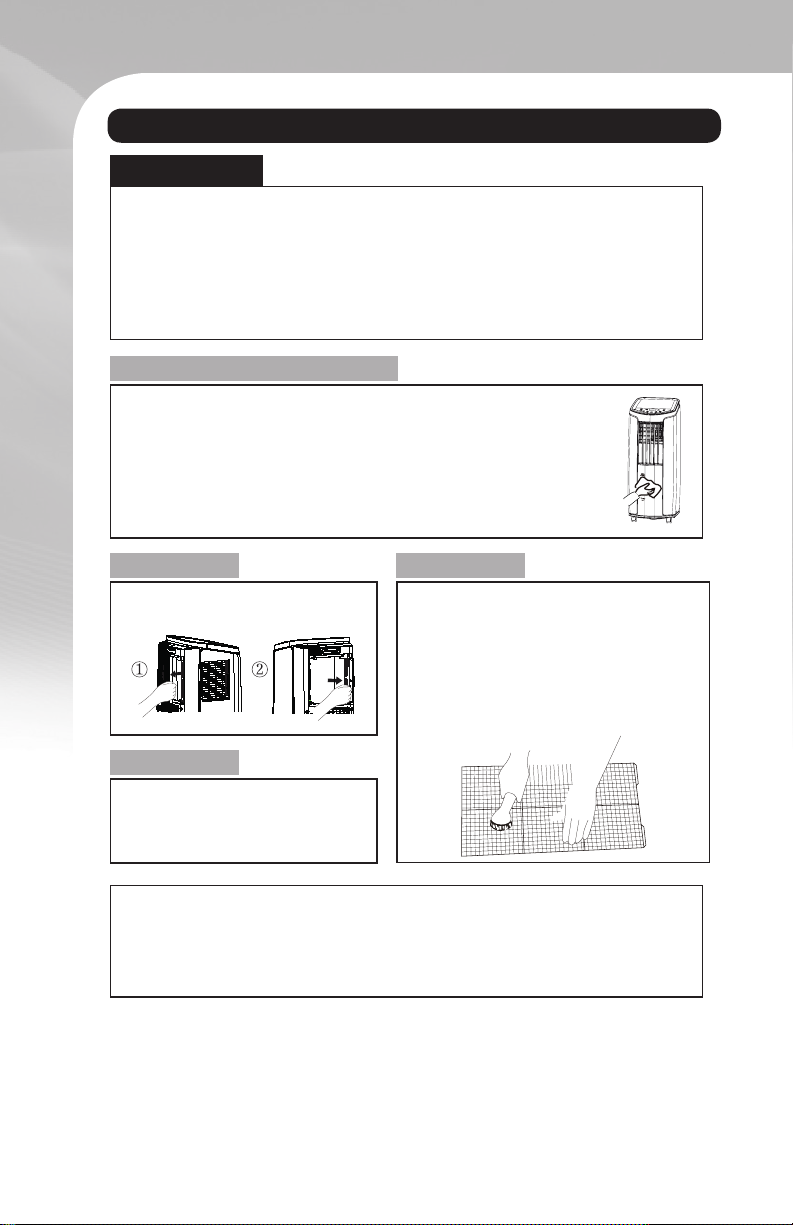

Clean outer case and grille

Clean filter

Clean filterClean filter

• Before cleaning the air conditioner, please turn off the unit and disconnect

power. Otherwise, it may cause electric shock.

• Do not wash air conditioner with water. Otherwise, it may cause electric

shock.

• Do not use volatile liquid (such as thinner or gas) to clean the air conditioner.

Otherwise, it may damage the appearance of air conditioner.

• The filter should be cleaned about once every three months. If there's much

dust in the operation environment, you can increase clean frequency.

• Do not dry the filter with fire or hair drier. Otherwise, it may be deformed or

catch fire.

Clean outer case:

If there's dust on the surface of outer case, please use soft towel

to wipe it. If the outer case is very dirty (such as grease), please

use neutral abluent to wipe it.

Clean grille: Use cleaner or soft brush to clean it.

3. Install filter

After the filter is cleaned and

dried, reinstall it well.

Use cleaner or water to clean the

filter. If the filter is very dirty (such

as grease), use warm water 104°F

(40°C) melted with neutral

abluent to clean it and then put at

shady place to dry it.

1. Remove the filter 2. Clean filter

CLEAN AND MAINTENANCE

Clean heat discharge pipe

Remove the heat discharge pipe from air conditioner, clean and dry it , and then

reinstall it. (For the method of installation and removal , please refer to the

instruction for "Installation and disassembly of heat discharge pipe").

Checking before use-season

1. Check whether air inlets and air outlets are blocked.

2. Check whether plug and socket are in good condition.

3. Check whether filter is clean.

4. Check whether batteries are installed in remote controller.

5. Check whether joint, window bracket and heat discharge pipe are installed

tightly.

6. Check whether heat discharge pipe is damaged.

Checking after use-season

1. Disconnect power supply.

2. Clean filter and outer case.

3. Remove dust and sundries on the air conditioner.

4. Eliminate accumulated water in chassis (refer to the section of "Drainage

wayn for details).

5. Check whether window bracket is damaged or not. If yes, please contact

dealer.

Long-time storage

If you don't use the air conditioner for a long time, please maintain it by follo-

wingsteps for good performance:

• Make sure there's no accumulated water in chassis and the heat discharge

pipe is disassembled.

• Pull out the plug and wrap the power cord.

• Clean the air conditioner and pack it well to prevent dust.

Notice for recovery

• Many packing materials are recyclable materials. Please deal with them

through local recycle bin.

• If you want to throw away the air conditioner, please contact local division or

consultant service center for the correct disposal method.

MALFUNCTION ANALYSIS

Please check below items before asking for maintenance. If the problem still can’t be

solved, please contact dealer or professional person.

GENERAL PHENOMENON ANALYSIS

Phenomenon Troubleshooting Solution

Air conditioner

can’t operate

Power failure? Wait after power recovery.

Is plug loose? Reinsert the plug.

Whether the air switch is

tripped off or fuse is burnt?

Ask professional person to

replace air switch or fuse.

Is there’s malfunction for the

circuit?

Ask professional person to

replace circuit.

Whether the unit is restarted up

after stopping immediately? Wait after voltage is resumed.

The protection device for the

plug of power cord trips off?

Please press reset button on

plug again. If the power trips

off again and heard a sound,

there’s malfunction for the plug

or the unit. Please contact

after-sales maintenance

person.

Poor cooling

(heating)

Is the power too low? Wait after voltage is resumed.

Whether the air filter is too

dirty? Clean the air filter.

Whether the set temperature is

proper? Adjust the temperature.

Whether door and window are

closed? Close door and window.

Air conditioner

can’t receive

signal from

remote

controller

or remote

controller is not

sensible.

Whether the unit is interfered

seriously (such as static

pressure, unstable voltage)?

Please pull out the plug. Insert

the plug after about 3min, and

then turn on the unit.

Whether remote controller is

within the receiving range?

The receiving range of remote

controller is 8m. Do not exceed

this range.

Whether it’s blocked by

obstacles? Remove the obstacles.

Is sensitivity of remote

controller low?

Check the batteries of remote

controller. If the power is low,

please replace the batteries.

Whether there’s fluorescence

lamp in the room?

Move the remote controller

close to air conditioner.

Turn off the fluorescence lamp

and try it again.

Phenomenon Troubleshooting Solution

No fan blowed

out from air

conditioner

Whether air outlet or air inlet is

blocked? Eliminate the obstacles.

Under heating mode, whether

indoor temperature is reached

to set temperature?

The unit will stop blowing fan

after reaching to set

temperature.

Whether heating mode is

started up just now?

In order to prevent cold air, air

conditioner will delay for a while

to be started up, which is the

normal phenomenon.

Set temperature

can’t be

adjusted

Whether the unit operates

under auto mode?

Temperature can’t be adjusted

under auto mode.

Whether the required

temperature exceeds the

temperature setting range?

Temperature setting range:

61°F (17°C) ~86°F (30°C).

The device

gives off an

odor

There’s off-flavor source in

the room, such as furniture,

cigarette, etc.

Remove the source of the smell

Clean the filter

There’s

abnormal

sound during

operation

Whether the unit is interfered

by thunder, radio, etc?

Disconnect power, put through

the power again, and then turn

on the unit again.

You can heard

water-flowing

sound

Whether the unit is turned on

or turned off just now?

There’s flowing sound of

refrigerant inside the air

conditioner, which is the normal

phenomenon.

The device

makes a knock

sound

Whether the unit is turned on

or turned off just now?

Heat expansion or shrinkage

for the panel due to change

of temperature, which cause

friction sound.

Malfunction code

Chassis is full of water.

Malfunction of ambient

temperature sensor.

Malfunction of evaporator

temperature sensor.

1.Refrigerant is leaking

2.System is blocked

Overload protection for

compressor

Overload malfunction

Outdoor tube temperature

sensor is open/short-

circuited.

Please contact after-sale

service person

to deal with it.

1.Check if the unit is under high-

temperature and high-humidity

environment; if ambient tempera-

ture is too high, power off the unit

and then energize it for operation

after the ambient temperature

drops below 35°C.

2.Check If the evaporator and

condenser are blocked by some

objects; if yes, take away the

objects, power off the unit and

then energize it for operation.

3.If the malfunction still occur,

please contact our after-sales

service center.

1.Re-energize the unit after

turning off and pulling out the

plug for 30min;

2.If there's still malfunction,

please contact after-sales

service.

Please contact professional

person to deal with it.

Please contact professional

person to deal with it.

1. Pour out the water inside chassis.

2. If "H8" still exits, please contact

professional person to maintain the

unit.

E 8

WARNING

• If there're following phenomenon, please turn off the air conditioner and

disconnect the power immediately, and then contact dealer immediately.

Power cord is overheating or damaged.

Abnormal sound during operation.

Off-flavor.

Water leakage

• Do not repair or refit the air conditioner by yourself.

• If operate the air conditioner under abnormal condition, it may cause

malfunction, electric shock or fire hazard.

WARNING

• Observe all governing codes and ordinances.

• Do not use damaged or non-standard power cord.

• Be caution during installation and maintenance. Prohibit incorrect operation

to prevent electric shock, casualty and other accidents.

Basic requirement

Installing the unit in the following places may cause malfunction. If it is unavoi-

dable, please consult the local dealer:

1. The place with strong heat sources, vapors, flammable or explosive gas, or

volatile objects spread in the air.

2. The place with high-frequency devices (such as welding machine, medical

equipment).

3. The place near coast area.

4. The place with oil or fumes in the air.

5. The place with sulfureted gas.

6. Other places with special circumstances.

Requirement of air conditioner

1. Air inlet should be far away from obstacles and do not put any objects near air

outlet. Otherwise, it will affect the radiation of heat discharge pipe.

2. Select a location where the noise and outflow air emitted by the outdoor unit will

not affect neighborhood.

3. Please try your best to keep far away from fluorescent lamp.

4. The appliance shall not be installed in the laundry.

Safety precaution

1. Must follow the electric safety regulations when installing the unit.

2. According to the local safety regulations, use qualified power supply circuit.

3. For appliances with type Y attachment, the instructions shall contain the

substance of the following.lf the supply cord is damaged,it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to

avoid a hazard.

4. Properly connect the live wire, neutral wire and grounding wire of power socket.

5. Be sure to cut off the power supply before proceeding any work related to

electricity and safety.

6. Do not put through the power before finishing installation.

7. The air conditioner is first class electric appliance. It must be properly grounding

with specialized grounding device by a professional. Please make sure it is

always grounded effectively, otherwise it may cause electric shock.

8. The yellow-green wire or green wire in air conditioner is grounding wire, which

can't be used for other purposes.

9. The grounding resistance should comply with national electric safety

regulations.

10. The appliance shall be installed in accordance with national wiring regulations.

Selection of installation location

Requirements for electric connection

INSTALLATION PRECAUTION

PREPARATION BEFORE INSTALLATION

INSTALLING WIRE HOOK

• Assemble the wire hook at the back of the unit with screws (the direction of wire

hook is as shown in following fig).

Direction of wire hook is upward

Direction of wire hook is downward

Wire hook

Screw

• Wind the power cord around the wire hook.

There

are 2 ways to remove collected water:

Remove the rubber plug at drainage port.

Fix the drainage pipe clip on the right of rear side plate near drainage port with

a screw.

Put the drainage pipe into drainage port and screw it up, and then bind it with

pipe hoop.

Put the rubber plug into the other side of drainage pipe, fix it with pipe hoop and

then fix it in the drainage pipe clip.

Drainage port

Drainage pipe clip

Drainage pipe

Pipe hoop

Drainage port Screw

Rubber plug

Pipe hoop

Drainage

pipe clip

Use the continuous drainage option from the bottom hole.

Instructions for drainage pipe installation as follows.

Note:

When using the continuous drainage option from the bottom hole, install

drainage pipe before using, otherwise poor drainage will affect normal

operation of the unit.

REMOVING COLLECTED WATER

This manual suits for next models

Table of contents

Other Gree Air Conditioner manuals

Gree

Gree GTH(09)CA-K6DNA1A/I User manual

Gree

Gree FGR20Pd/DNa-X User manual

Gree

Gree GPC07AK-K5NNA1A User manual

Gree

Gree GMV-ND36T/A-T User manual

Gree

Gree U-Crown GWH09UB-K6DNA4A User manual

Gree

Gree KFR-25x2GW/NaJ31F-K User manual

Gree

Gree GWH18MC-K3DNA2G User manual

Gree

Gree GWH07AGA-K6DNA1A/I User manual

Gree

Gree GWH18QD-K6DNA1C Series User manual

Gree

Gree 13-04582 User manual

Gree

Gree GMV-ND Series User manual

Gree

Gree GWH09QD-S6DBC2A/I User manual

Gree

Gree KF-20GW/A20 User manual

Gree

Gree GWH18YE-D3DNA1A User manual

Gree

Gree CONS09HP230V1AF Operating instructions

Gree

Gree GMV-36WL/B-T(U) User manual

Gree

Gree FP-34WA/G-K User manual

Gree

Gree Ultra Heat GMV-VQ72W/A-F User manual

Gree

Gree GWC09KF-K3DNA5A User manual

Gree

Gree JKFD5QSR/Na-E User manual

Gree

Gree GWH09AAB-K3DNA1A User manual

Gree

Gree Multi+ Ultra MULTIU18HP230V1DO Operating instructions

Gree

Gree Bright Series User manual

Gree

Gree GWH12ACC-K6DNA1D User manual

Popular Air Conditioner manuals by other brands

Fujitsu

Fujitsu ASYG 09 LLCA installation manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

LG LS-J0761CL Service manual

Dometic

Dometic MCS T6 operating manual

Carrier

Carrier ASBFE600BA owner's manual

Tecumseh

Tecumseh TC300 SERIES Operator's manual

Technibel

Technibel KPAFP125R5IA Series instruction manual

nedis

nedis ACMB1WT9 quick start guide

Dimplex

Dimplex DCEVP5WG instruction manual

Fuji Electric

Fuji Electric RD-60FA Service manual

Hitachi

Hitachi RAD-25NH4 Service manual

INVT

INVT VCS Series user manual

Haier

Haier HBU-18CA03T3 Operation & installation manual

Whynter

Whynter MSFS-024H23016-01NE instruction manual

Friedrich

Friedrich 0 Installation and operation manual

Mitsubishi Electric

Mitsubishi Electric MSZ-GS25VFD installation manual

ElectrIQ

ElectrIQ SF12000 user manual

Convair

Convair EA70 owner's manual

Gree GPC05AK-A3NNA2B User manual

Popular Air Conditioner manuals by other brands
