Greenhouse O Series User manual

O series greenhouse
Assembly instructions

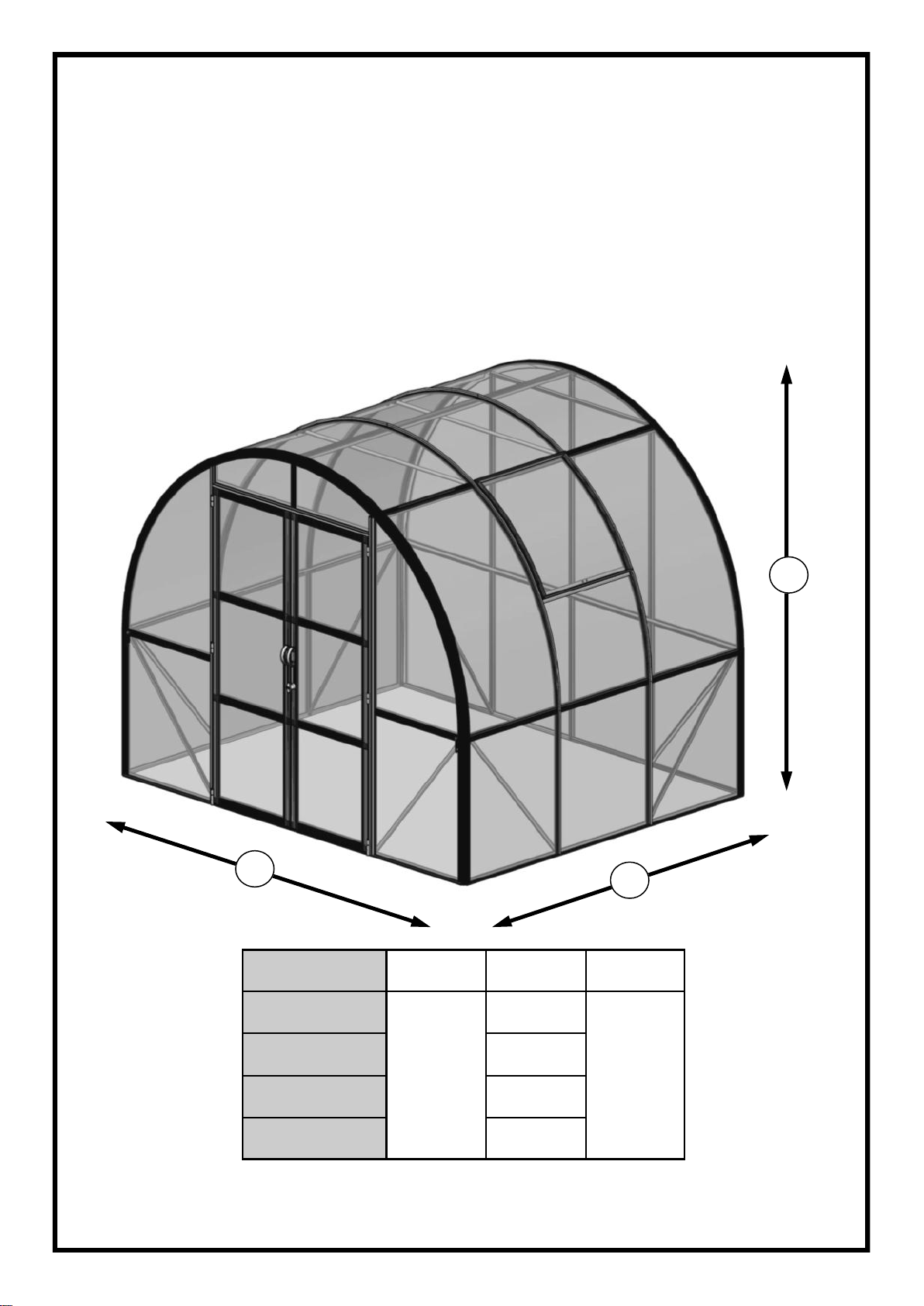

Walk-in Greenhouse
MODEL A (mm) B (mm) C (mm)
2693 2210
O907 2238
O910 2954
O912 3670
O914 4386
C
B
A

2
Statement
Dear Customer!
May we congratulate you on your new Greenhouse.
We feel sure that by following the detailed assembly instructions you will find as much pleasure in actually
building the greenhouse as the time you will spend in your greenhouse in the future.
The assembly instructions mainly consist of detailed illustrations and no specific technical knowledge is
required for the assembly of the greenhouse.
There are four packages for one set of Arched greenhouse totally.
The base is packed in one carton, no matter aluminum base or steel base.
The house frames are packed in two cartons, one for straight profiles and all of fittings, one for curved
frames.
All the polycarbonate panels are packed in one carton.
All of the aluminum profiles are marked with a part number corresponding to the numbers given on the
drawings and in the parts list. Nuts, bolts and fittings will be found in the relevant package.
All of the rear gable section straight frames are in package No.1
All of the front gable section straight frames are in package No.2
All of the roof/side wall section straight frames are in package No.3
All of the frames and components for the window are in package No.4
All of the frames and components for the door are in package No.5
The panels of Polycarbonate are not marked with a part number, but the sizes appear in the overview.
When fitting the Polycarbonate, the side with the opal film/text must turn outward.
Accessories
We offer a wide range of accessories which contribute to a better yield and make life easier for the gar-
dener. A selection of the range is shown in the supplements to these instructions. Your dealer will be
pleased to assist you with further information and a special brochure.
Winter Protection
In areas where snow might be expected we recommend the following in order to protect your green-
house:
1. Support the ridge at the center of the greenhouse.
2. Removed larger snow loads.
3. Take precautions against snow falling down, for instance from a roof.
Complaints
We put severe demands on quality to secure that you get a faultless product. However, should a problem
occur, we kindly ask you to contact the dealer from whom you have bought the greenhouse. For a quick
service, you should specify the extent of the defect by means of the parts list in the assembly
instructions. Please also note the model number which is marked on the front page of these instructions.
Guarantee
We grant a 10 year comprehensive guarantee which covers replacement or repairs of defective parts due
to material or manufacturing defect. The guarantee does not cover polycarbonate, transport, erection.
The guarantee is invalid if the greenhouse is not assembled according to these instructions.
Insurance
Not all insurance companies automatically cover greenhouses. We recommend you contact your insur-
ance company to ensure that you are covered.

3
Statement

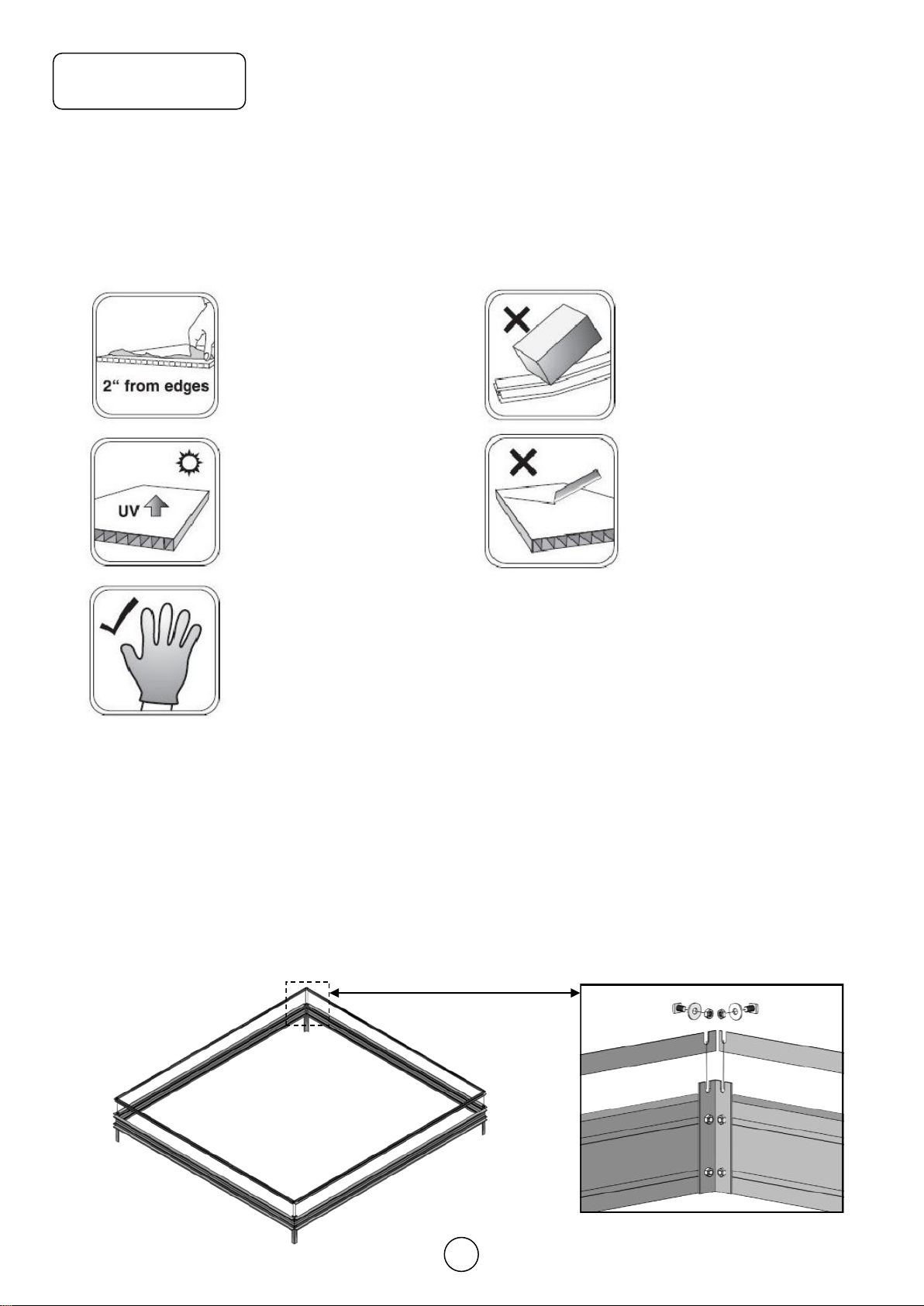

Tips
1. The base has to be fastened in a non-freezing depth(80cm).
2. The greenhouse is to be fastened to the base.
3. The base has to be 100% level and square. The easiest way to ensure this is to make sure that the
two diagonal measurements are identical.
4. We recommend that you grease screws for doors and windows for easier assembly.
5. Erection of the greenhouse should only take place in calm and dry weather.
6. All frames are to be assembled around the polycarbonate as shown on the drawings. We recom-
mend that you start with the back gable.
7. IMPORTANT Before assembling aluminum base, the end trough centers of four legs should match
both end trough centers of side sills and front & rear sills at the same time.
Remove approximately 2
inches of film from all
sheet edges before in-
stalling. Remove all film
immediately after the con-
structions is completed.
The UV-protected side of
the sheet is covered with
opal white film/text and
must face towards the
sun.
Please put on gloves
avoid slitting your hands.
Handle with care! Drop-
ping can bend the frame,
and it won’t fit properly.
Keep sharp instruments
away from the polycar-
bonate sheets.
Cautions
Foundation
The base is not included in this delivery. However, we do recommend you buy our origin base easy to
build.
The base is maintenance free and, of course all fittings are included. Remember to order concrete pipes
and concrete at your local dealer as these are not included in the delivery.
Please match four corner
troughs together at the
same time
side sills
front & rear sills

4
Polycarbonate sheet
A2
A2
A2A2
B
B
BB
BBBFF
p8
p8
p7 p7 p7
C2C2
D2D2
D2D2
D2D2
I2
I2I2I2
I2
H2
G2
E2E2
p6p8 p6 p8
# Size O907 O910 O912 O914
A2 700x1167 4444
B700x842 10 12 14 16
C2 610x295 2222
D2 540x577 6666
E2 610x1327 2222
F610x842 2222
G2 700x610 2244
H2 652x750 2244
I2 700x1382 710 11 14
p6 592 2222
p7 682 6810 12
p8 660 4444
p6/p7/p8
p6/p7/p8
This page shows the positioning of the polycarbonate panels for the front and rear gable as
well as the roof and the sides. It also indicates where the parts #P6, #P7 and #P8 are used.
When fitting parts #P6/P7/P8 on the ends of the panels, try using a narrow piece of bar soap
through the part first. It will allow it to slide on much easier. #P6/P7/P8 must be fitted on one
end of polycarbonate in advance before polycarbonate be inserted into aluminum frame.
The square illustration on the page shows the placement of the gray plastic U shape strips. To
transfer the size of the panels from mm to inches, divide by 25.4.

5
Rear Gable Package No.1
#V201 V202 V207 V208 V209 908 V009 V010 911 012 V913 m30 a1 a2 a8 a9
Size 2940 2940 2024 2024 2173 1268 682 594 2662 1100 2662 -M6x10 M6 M6x15 M6x15
Qty 11111122121122 26 22
1
V201 V202V207 V209 V208
908
V009 V009V010 V010
911
012 012
V913
A2A2
E2E2
FF
BB
1
2
45
67
3
V201 V202
V209
a8 m30

6

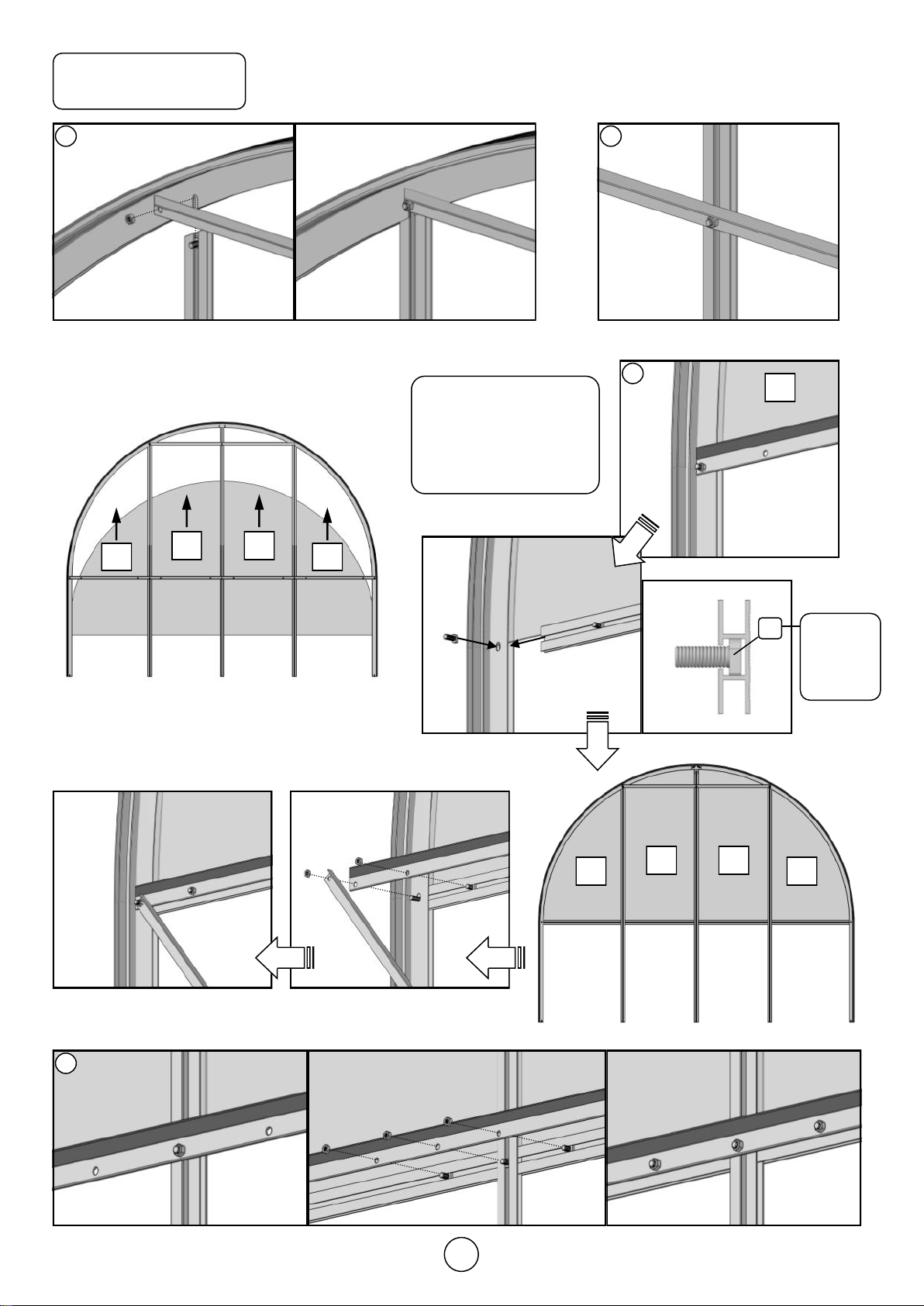

Rear Gable
2V201
V207
908
3
908
V209
V201 V202
V207 V209 V208
908
911
A2E2E2A2
4A2
911
V201
a9
V201
V009
A2E2E2A2
V009 V009V010 V010
Section View
a9 a9 is a
cropped
head
bolt
V009
V009
012
911
012
V201
V009
911
5
911
911
V010
V207
V009
Square No.4 After PC
panels in position, then
dismantle part #911 and
adjust the distance same
between PC panel and
keyway edge.

7
Rear Gable
V201 V202
BFFB
p8
V913
p8p6 p6
Please Note: Don’t let this bolt block polycarbonate panel to
insert into part #V201&V202 alu. frame channel. Insert PC panel
first, then slide this bolt in part #V201&V202 profile’s trough.
6
V201
V913
p8
B
7
V913
p8
p6
BF
V913
012
Please note: 3 Bolts will need to be slid into each Part #V201 and #V202 for hanging basket bar or horizontal rail and side
sill beam in advance, Finger tightens the nuts for later use.(Bolts and nuts in Package No.3 of Roof/Side wall)
When finished with the back gable, stand it up out of the wind so it will not blow over.

8
Front Gable Package No.2
#V201 V202 V203 V204 V205 V206 V009 V916 V226 012
Size 2940 2940 2027 2027 1268 280 682 2662 707 1100
Qty 1111112122
#m30 a1 a2 a8 a9h4 h5 a19 Rubber
Size -M6x10 M6 M6x15 M6x1530 60 M6x8 4M
Qty 118 34 224212 1
V201 V202
A2A2
BB
C2C2
V203 V204
V205
V206
V009 V009
V916
V226 V226
012 012
10
1
5
7
6
89
11
1
V201 V202
V206
a8 m30

9

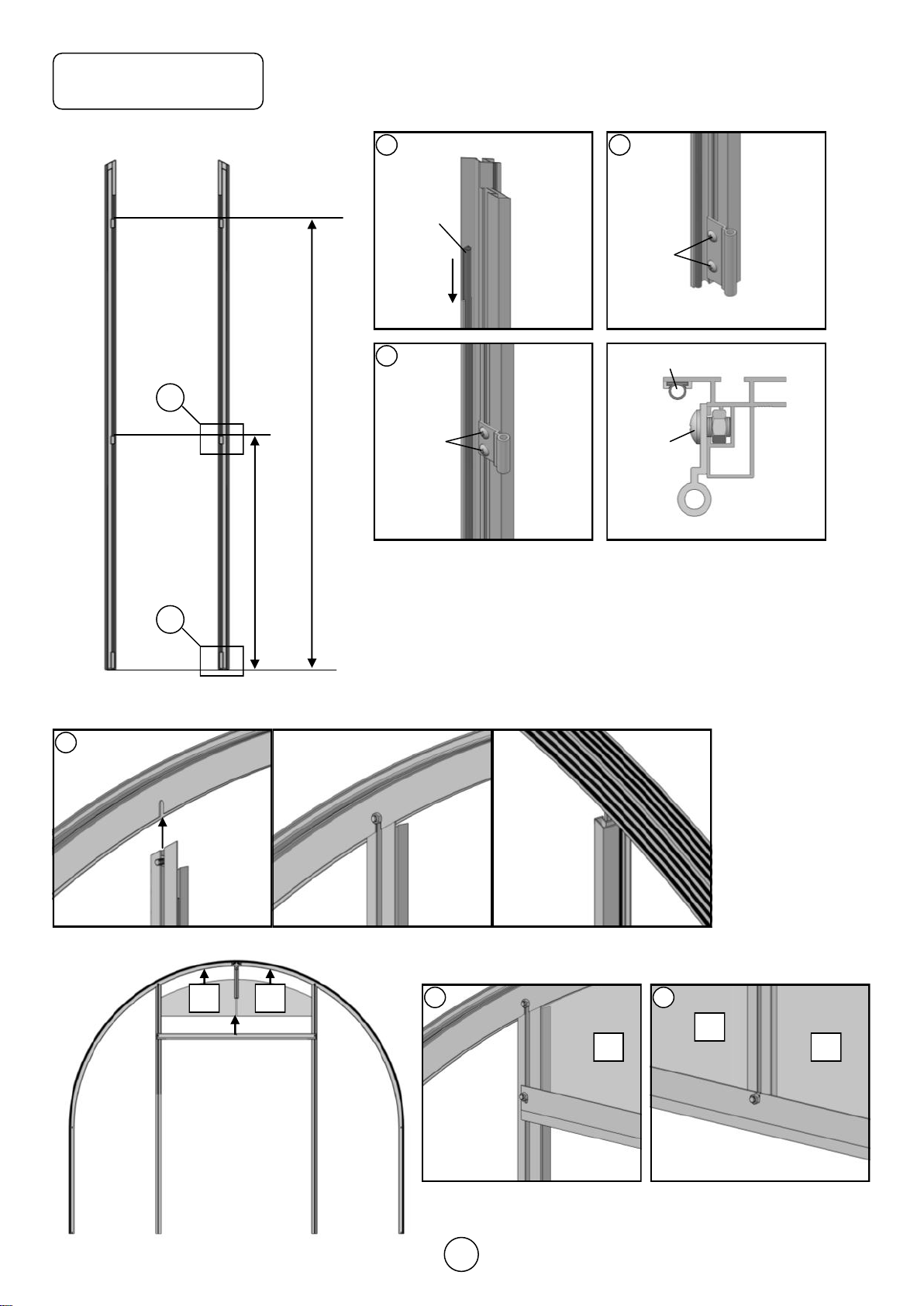

Front Gable
929.5 mm
1792 mm
V203V204
3
4
23
4
Section View
V203
Rubber
V203
h5
a19/a2
V203
h4
a19/a2
Rubber
a19/a2
5
V201
V203
V201
V203
67
V201 V202
V203 V204
V205
C2C2
C2C2C2
V205 V205
V206
V203

10
Front Gable
A2A2
8Section View
a9 a9 is a
cropped
head
bolt
V009
V009 V009
V201 V202
V203 V204
V201
V009
a9
V226
012
V009
9
V009
V226
V203
Please Note: Don’t let this bolt block polycarbonate panel to insert
into part #V201&V202 alu. frame channel. Insert PC panel first, then
slide this bolt in part #V201&V202 profile’s trough.
10
11
BB
p8 p8
V916
V201 V202
V203 V204
V916
p8
B
V916 V916
p8
BB
012
Square No.8 After PC panels in position, then adjust the distance
same between PC panel and keyway edge.
Square No.9 Use
the part #V226 to
connect the part
#V009 & #V203.
Square No. 10
Inserting PC panel
#B in profiles’
channel. With PVC
anti-dust strip #p8
on bottom.
Square No.11
Connect Part
#V916.
Please note: 3 Bolts will need to be slid into each Part #V201 and #V202 for hanging basket bar or horizontal rail and
Side sill beam in advance, Finger tightens the nuts for later use.(Bolts and nuts in Package No.3 of Roof/Side wall)

11
Roof / Side wall Package No.3
#V026 V027 V028 V029 036 037 038 039 V210 V211 V212 V213
Size 2176 2892 3608 4324 2163 2879 3595 4311 2163 2879 3595 4311
O907 241
O910 241
O912 241
O914 241
#V215 012 V042 V222 V227 a1 a2 a8
Size 2934 1100 683 710 1346 M6x10 M6 M6x15
O907 4410 2240 52 12
O910 6414 2350 68 18
O912 8416 4460 84 24
O914 10 420 4570 100 30
12
V210
V026
V026
a1/a2
1
2
Square No.2 Connect side sill beam with
curved corner bar, this can be one of the easi-
est. This is where you will use an open-end
10mm wrench. Because of the tight corner, it is
difficult to work with the nut driver. Once you
have attached side sill to curved corner bar,
bring the corner together and slide the bolt down
into the slot. Tighten with the open-end wrench.

12
Roof / Side wall
m7
Square No.1 You may
loosen the bolts in cor-
ners and re-tighten it at
the trough of base legs.
Square No.2 Assemble
greenhouse frame on
base by connector m7 in
the middle of bottom.
a8-M6x15
Center
Corner
a1-M6x10 a1-M6x10
Corner
Center
a8-M6x15
Assemble greenhouse frame on Alu. base.
1
2
1
2

13
Roof / Side wall
m7
m7
Square No.1 You may
loosen the bolts in cor-
ners and re-tighten it to-
gether with base connect
m7.
Square No.2 Assemble
greenhouse frame on
base by connector m7 in
the middle of bottom.
Corner
a1-M6x10
a8-M6x15
Center Center
a1-M6x10
a8-M6x15
Corner
Assemble greenhouse frame on Steel base.
1
2
1
2

14
Roof / Side wall
3
45
678
036
036
V215
V215
012
012
3
4
5
6
7
8
012
V215 V215
V215 V215 V215
012
a8/a2 a8/a2
a8/a2
Before assembling polycar-
bonate panel and glazing
bar. Please connect hang-
ing basket bar and horizontal
rail on front and rear corner
bars. also connect sidewall
bracing bars (#012). Then
the greenhouse will be in
straight shape structure.
Then we can start to assem-
ble PC panels and glazing
bars smoothly.
breach If you forgot sliding extra
bolts into glazing bar or
corner bar channels in
advance, please add it
through this breach.

15
Roof / Side wall
671 mm 671 mm
40 mm
I2
Loosen the bolt
I2
①
②
I2
Assembling roof
panel from top po-
sition.
Before assembling,
please draw two
lines in the center
of top roof panel.
The distance be-
tween two lines is
40mm.
Now we are starting to assemble Polycarbonate panels.
1. Loose the bolts tighten glazing bar #V215 and horizontal rail.
2. Insert roof panel #I2 in alu. Frame channel on bottom, and curve it along the curved channel.
3. Move roof panel #I2 to top position.
4. Assemble second roof panel next to top roof panel in same way.
5. Sliding side panel #B between cross bar part #V042 and side sill bar with PVC anti-dust strip p7 on bottom.
6. Retighten the bolt to fixing glazing bar #V215 and bottom sill bar and base.
7. Do the same on opposite side.
Very Important: At this stage, if you already decide where your roof vent are positioned, please insert an extra bolt #a1 into each
glazing bar either side of a vent opening.
1382 mm
Top roof panel
700 mm

16
Roof / Side wall
I2
V042
I2
I2
①
②
I2
I2
9

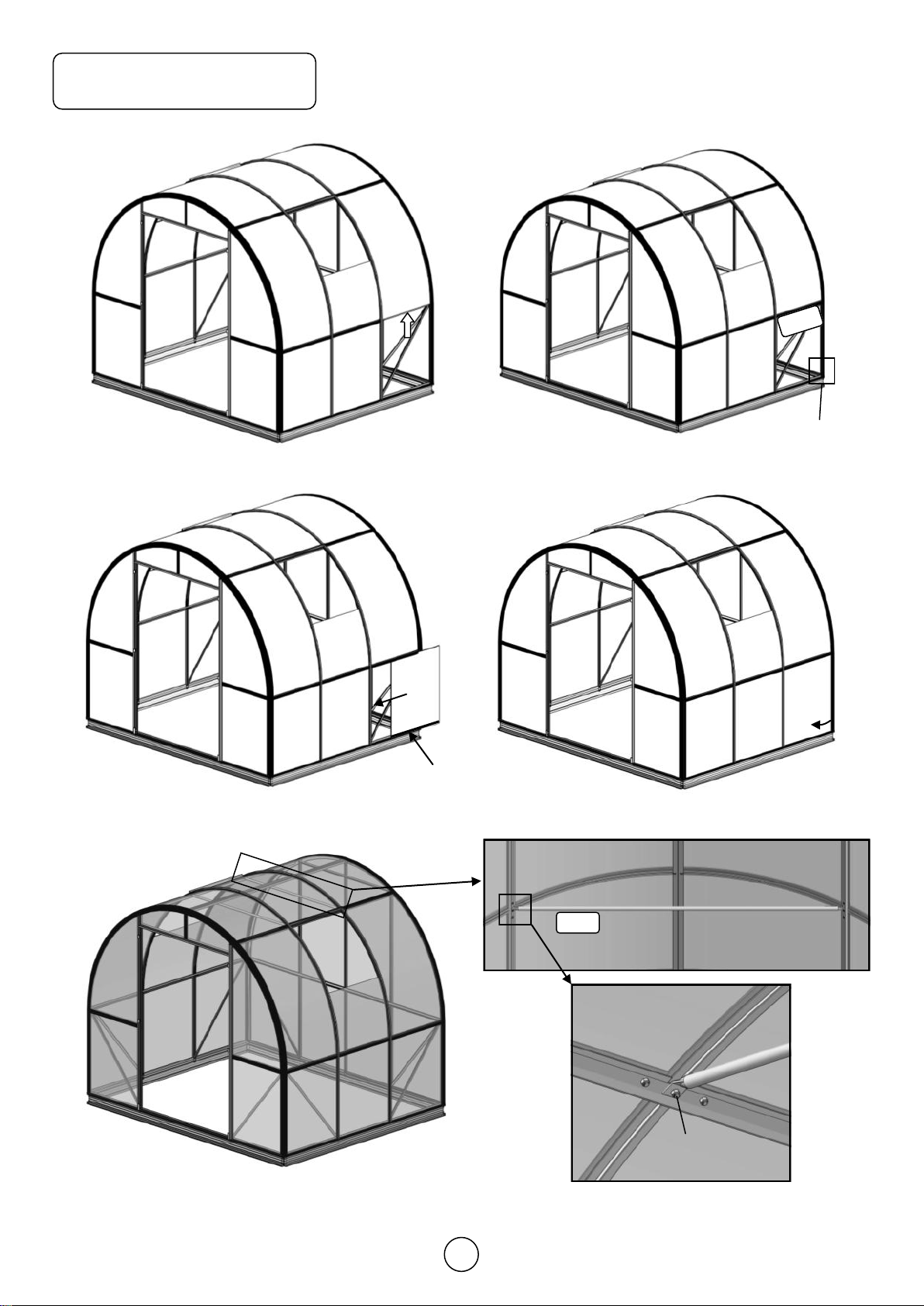

After assembling, If you see two drawn lines
evenly located on both sides of the ridge bar (part
#V210 - #V213). It means the top roof panel is in
the position right in the middle of roof
40 mm
I2
Line Line

17
Roof / Side wall
I2
I2
10
10
V042
012
Loosen the bolt and
separate from bottom
at an angle
V215
B
PC panel bottom with PVC
anti-dust strip P7
B
V215 012
a8/a2

18
Roof / Side wall
Loosen the bolt
I2
①
②
I2
I2
I2
①
②
I2
I2
V042

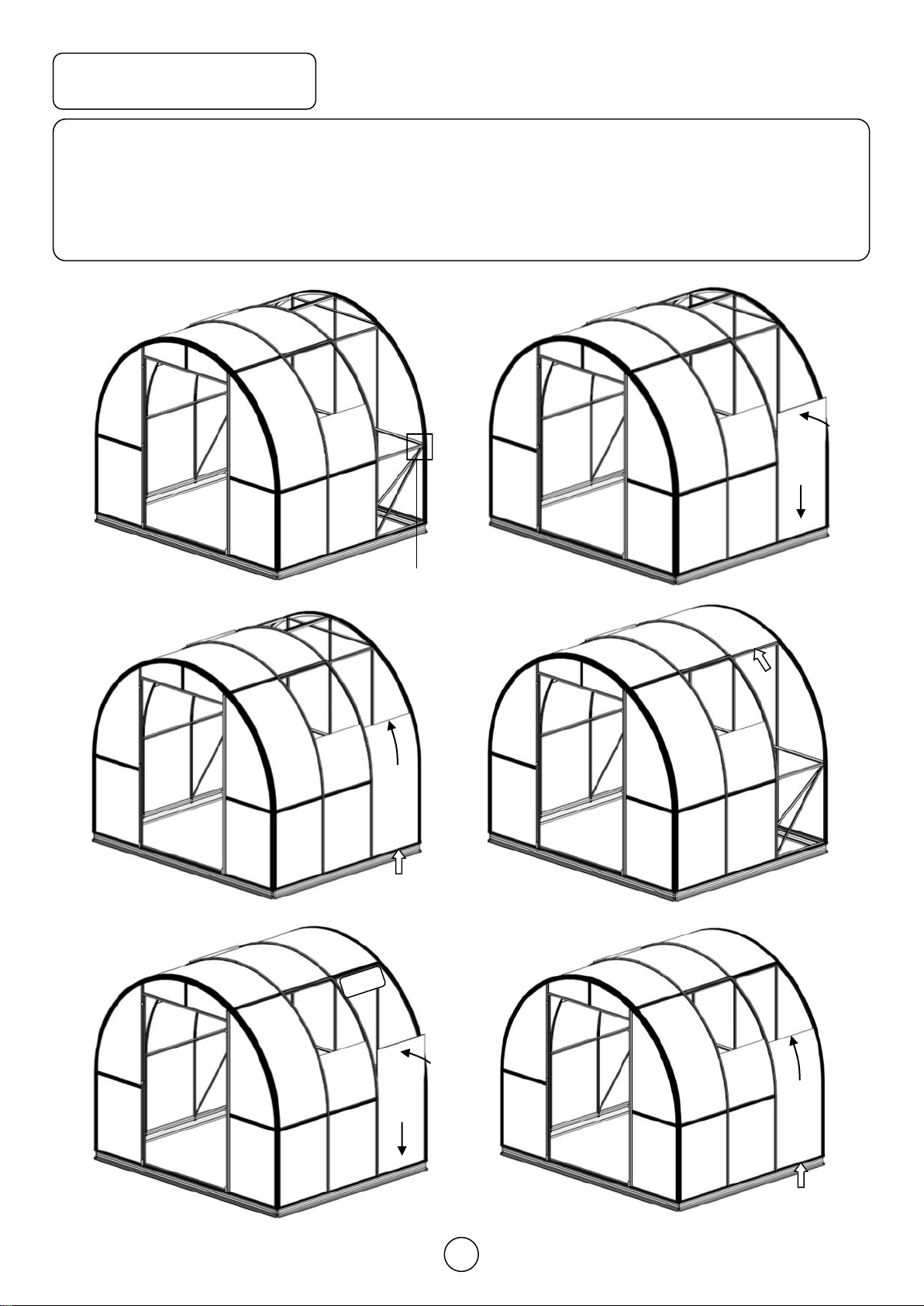

For the last polycarbonate panel assembly
1. At first, You should dismantle the curved corner bar, by loosening the bolts attaching base, sill beam and horizontal rail bar
(Don’t loosen ridge top and hanging basket bar bolts and nuts). And separate curved corner bar a little from bottom, and
make an angle with glazing bar (Like a trapezoid with right angle).
2. Insert polycarbonate panel #I2 between curved corner bar and curved glazing bar first, and move to position.
3. Sliding side panel #B between cross bar part #V042 and side sill bar with PVC anti-dust strip p7 on bottom.
4. Finally, push them together, and tighten all the bolts and nuts which loosened before.
5. Repeat this on the opposite side.

19
Roof / Side wall
V042
Loosen the bolt
and separate
from bottom at
an angle
B
PC panel bottom with PVC
anti-dust strip P7
V227
V227
a8/a2
I2
I2
I2
I2
I2
I2
I2
I2
B
G2
I2
I2I2
B
B

20

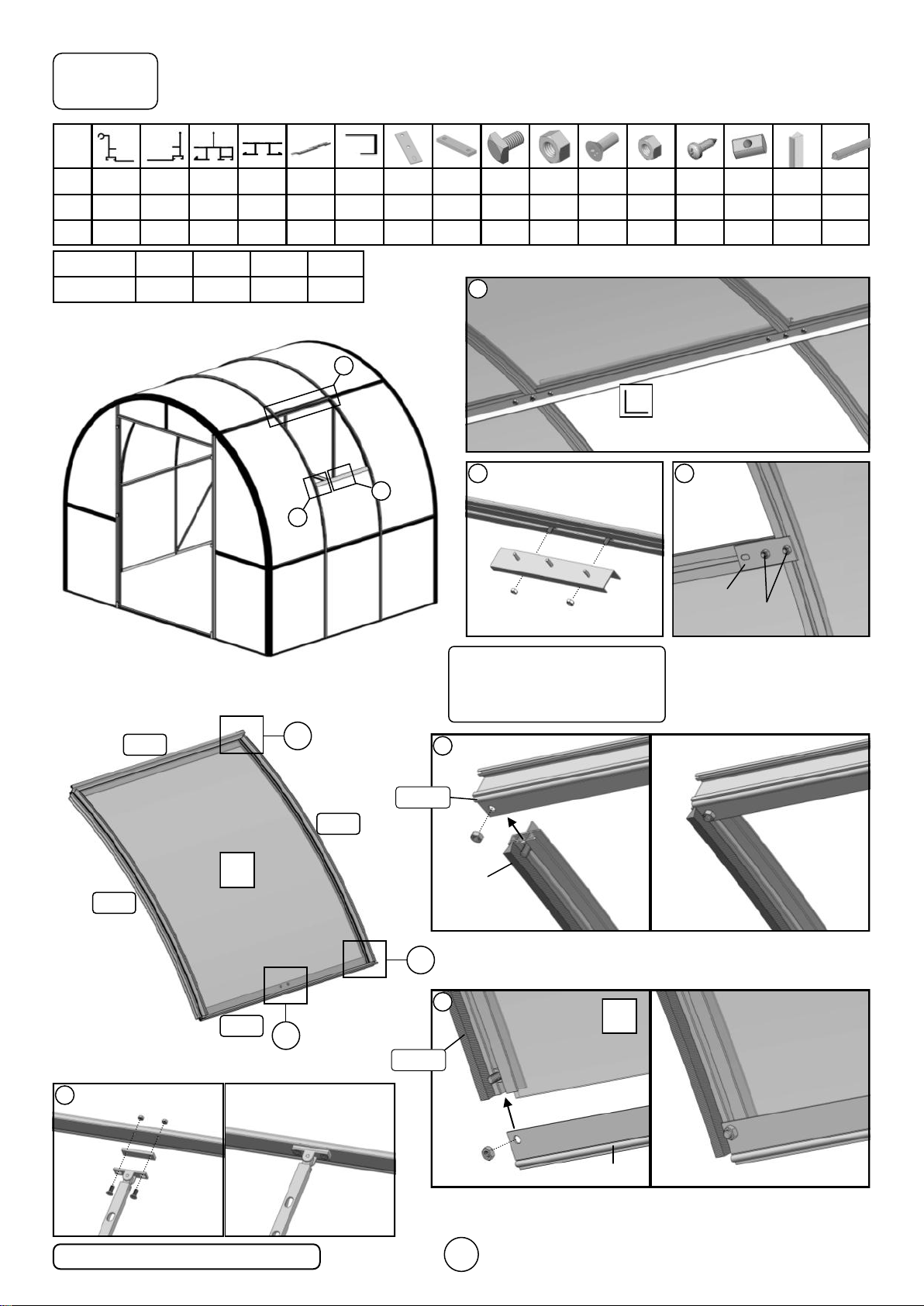

#V223 V224 V225 V042 047 048 m3 m31 a1 a2 a30 a31 FLUFF Rubbera4 p3
Size 685 685 750 683 300 200 --M6x10 M6 M4x10 M4 -- Φ4.2x9.5 -
Qty 1121112110 10 221.6M 1.4M22
Vent Package No.4
O907 O910 O912 O914
Vent No. 2244
V042
048
a1/a2
1
23
1
2
3
V222
V042 V215
m3 a1/a2
H2
V223
V224
V225
V225
5
4
6
5
6
4
V223
V225
Rubber
FLUFF
FLUFF
V225
V224
H2
Rubber
V225
047
m31
a31
a30
m31 gasket can help vent lock well.
Square No.2 When mounting
part #048 onto part #V042, the
left post should be directly in line
with the center of the vent.
