Description
The Greenlee TM-400 Temperature Meter with Printer is a hand-held testing device intended to
measure temperature in Celsius or Fahrenheit using thermocouple types K, J, E, and T. The
meter features a built-in 16 character-per-line thermal printer that can automatically print
temperature readings at any interval from 3 seconds to 24 hours.
Specialized functions and features include:
•Accommodates one or two thermocouples, purchased separately
•Reads temperatures at T1, T2, the difference between the two, or automatic cycles between
the three modes
•Prints readings on demand or automatically
Safety
Safety is essential in the use and maintenance of Greenlee tools and equipment. This
instruction manual and any markings on the tool provide information for avoiding hazards and
unsafe practices related to the use of this tool. Observe all of the safety information provided.
Purpose
This instruction manual is intended to familiarize all personnel with the safe operation and
maintenance procedures for the Greenlee TM-400 Temperature Meter with Printer.
Keep this manual available to all personnel.
Replacement manuals are available upon request at no charge.
Greenlee and are registered trademarks of Greenlee Textron.
KEEP THIS MANUAL

TM-400
3
Important Safety Information
Read and understand this material before operating or servicing
this equipment. Failure to understand how to safely operate this
tool can result in an accident causing serious injury or death.
This symbol is used to call your attention to hazards or unsafe practices which could
result in an injury or property damage. The signal word, defined below, indicates the
severity of the hazard. The message after the signal word provides information for
preventing or avoiding the hazard.
SAFETY ALERT SYMBOL
Immediate hazards which, if not avoided, WILL result in severe injury or death.
Hazards which, if not avoided, COULD result in severe injury or death.
Hazards or unsafe practices which, if not avoided, MAY result in injury or property
damage.

4
Important Safety Information
Electric shock and fire hazard:
•Do not expose this unit to rain or moisture.
•Do not use the unit if it is wet or damaged.
•Use accessories that are appropriate for the application. See the category and
voltage rating of the test lead or accessory.
•Inspect the accessory before use. It must be clean and dry, and the insulation must
be in good condition.
•Use this unit for the manufacturer’s intended purpose only, as described in this
manual. Any other use can impair the protection provided by the unit.
Failure to observe these warnings can result in severe injury or death.
Electric shock hazard:
Contact with live circuits can result in severe injury or death.
Electric shock hazard:
•Do not apply more than the rated voltage between any two input terminals, or
between any input terminal and earth ground.
•Do not contact any uninsulated portion of the accessory.
Failure to observe these warnings can result in severe injury or death.

TM-400
5
Important Safety Information
•Do not operate with the case open.
•Before opening the case, remove the accessories or thermocouples from the circuit
and shut off the unit.
Failure to observe these warnings can result in severe injury or death.
•Do not attempt to repair this unit. It contains no user-serviceable parts.
•Do not expose the unit to extremes in temperature or high humidity.
See Specifications.
Failure to observe these precautions can result in injury and can damage the unit.
Using this unit near equipment that generates electromagnetic interference can result
in unstable or inaccurate readings.

6
Identification

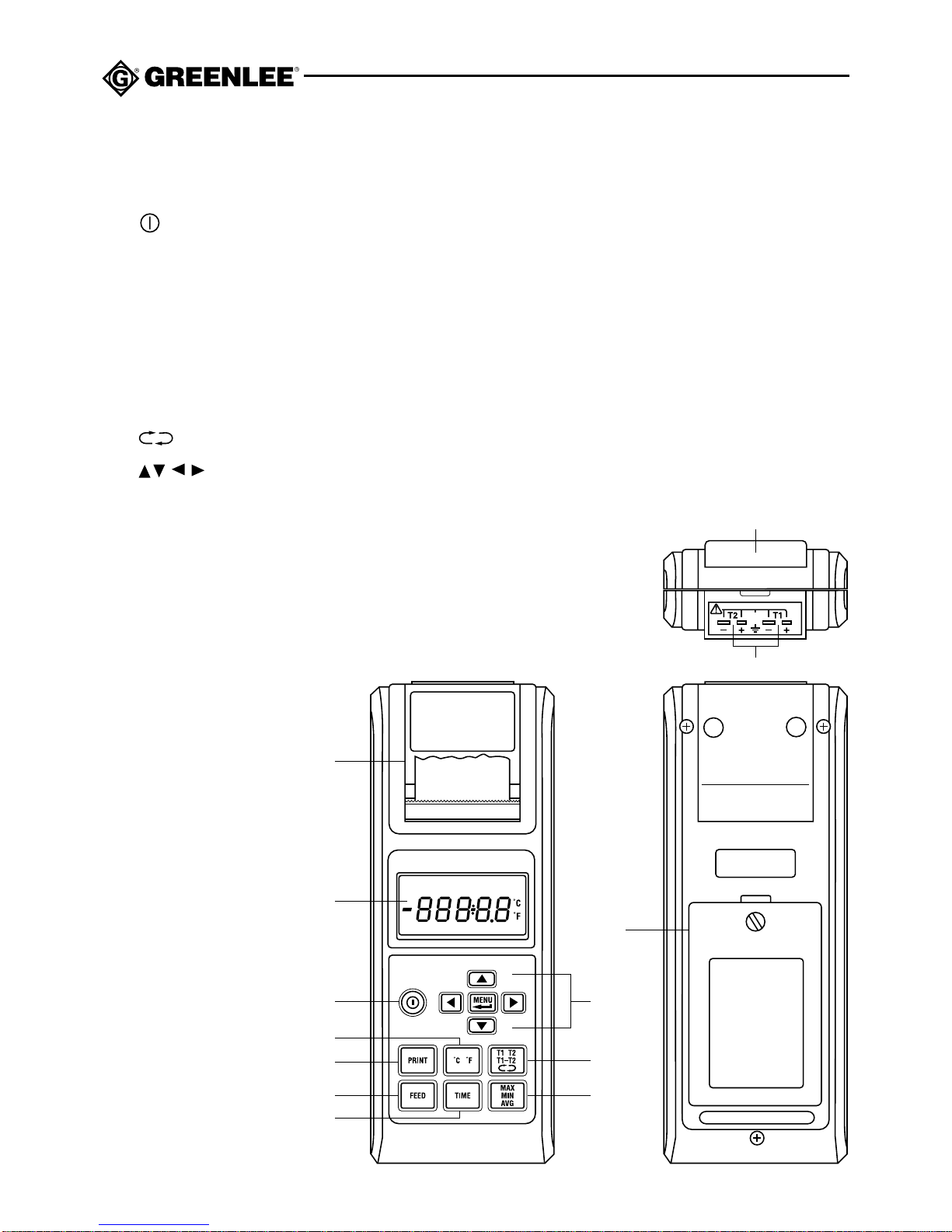

1. Printer See Using the Printer
2. Display LCD
3. button Press to turn on or off
4. °C °F button Press to toggle between the two units
5. PRINT button Press to print current reading
6. FEED button Press to advance paper one line
7. TIME button Press to display the date and time
8. MAX MIN AVG Press to display maximum, minimum, or average values
9. T1 T2, T1-T2 Press to select sensing function
10. Use in the Menu mode (see Setting Up Interval Printing)
11. MENU button Press to enter the Set Up mode
(see Setting Up Interval Printing)
12. Battery cover Remove screw to open
13. T1, T2 2-pin connectors for temperature probes
14. Paper spool See Installing the Paper
door
1
2
3
5
4
7
6 8
9
10, 11
13
14
12

TM-400
7

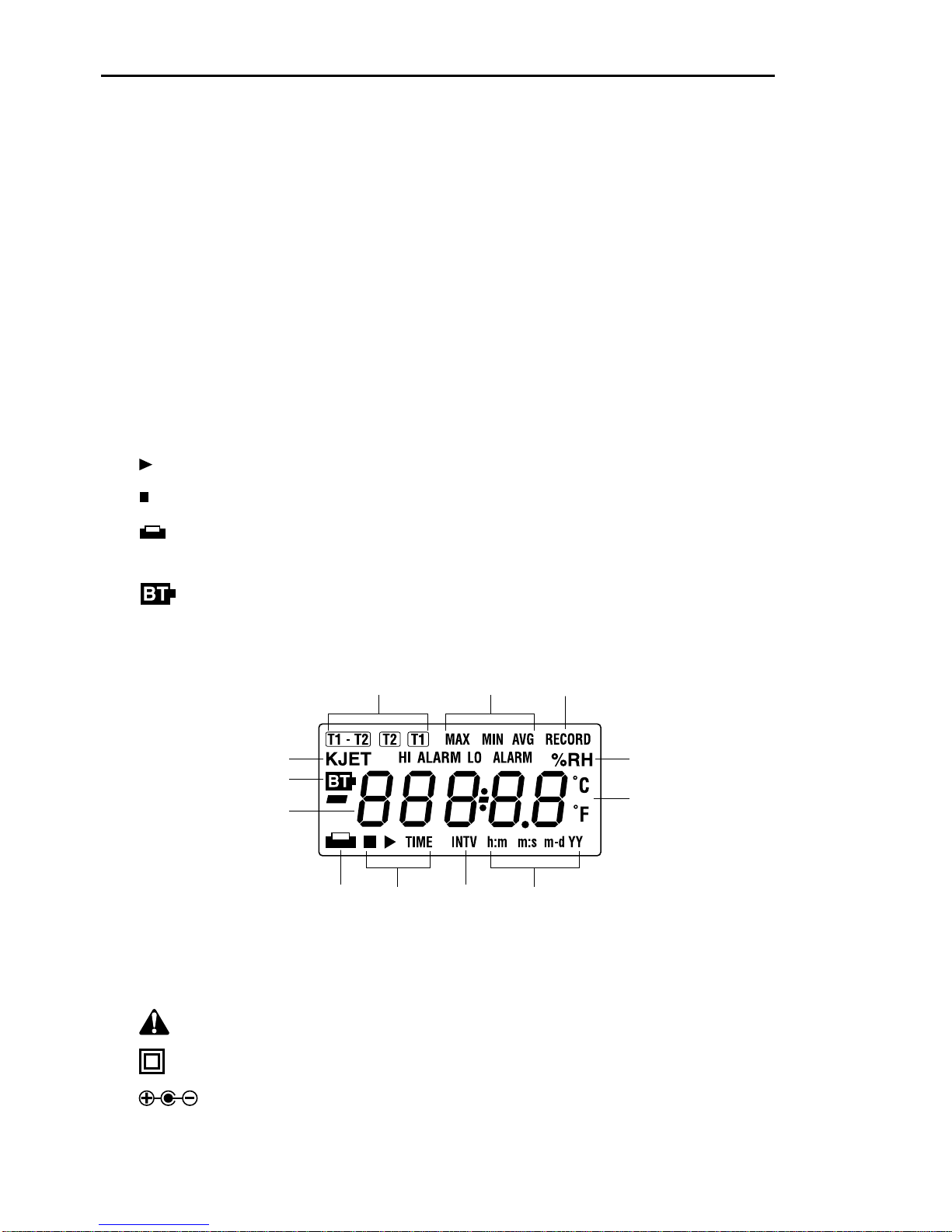

Display Icons
15. T1-T2 T2 T1 Indicates the thermocouple mode selected
16. MAX MIN AVG Indicates the minimum, maximum, or average temperature in memory
17. RECORD Not used
18. HI ALARM Indicates high or low alarm values are displayed
LO ALARM
19. %RH Not used
20. °C °F Indicates the temperature unit selected
21. h:m m:s Time or date function is selected
m-d YY
22. INTV Interval printing is enabled
23. TIME Start time indicator for interval printing setup
24. TIME Stop time indicator for interval printing setup
25. Printing in progress or printing Programming mode selected
26. –8888.8 Display
27. Low battery
28. KJET Indicates the thermocouple type selected
28
25
1715
22 21
27
26
18, 19
20
16
23, 24
Symbols on the Unit
Warning—Read the instruction manual
Double insulation
External 9 V dc connector, center negative

8
Operation
When the meter is turned on, it performs a self test and all the elements of the LCD appear.
Then the temperature of T1 displays. The meter returns to the temperature scale and
thermocouple type that was selected the last time the meter was used.
Note: If “OL”appears on the display, the thermocouple is not plugged in or working properly.
1. Connect the thermocouple(s) to the meter.
2. Press the button to turn the meter on.
•If the unit does not function as expected, replace the batteries.
•If the unit still does not function as expected, send the unit to Greenlee for repair.
See the address shown under Warranty.
3. To turn the meter off, press the button.
Selecting the Thermocouple Input
The meter defaults to T1 when it is turned on.
1. To view the T2 thermocouple reading, press the T1 T2 T1-T2 button.
“T2”is displayed and its value appears.
2. Press T1 T2 T1-T2 again to see the difference between the two thermocouple
readings. The T1-T2 mode calculates the difference between T1 and T2.
3. To automatically cycle through the three modes, press the button again. The LCD shows
the mode that is being displayed.
4. To print all three values, press the PRINT button.
5. Press T1 T2 T1-T2 again to return to the T1 reading.
Viewing Maximum and Minimum Temperatures
The TM-400 temporarily stores the maximum and minimum temperature readings of the
selected thermocouple. The meter also calculates the average between the last two recorded
readings. These are updated as the values change.
1. Press the T1 T2 T1-T2 button to select the desired thermocouple input.
2. Press the MAX MIN AVG button to record the maximum temperature.
“MAX”and the value appear on the display.
3. Press the MAX MIN AVG button to record the minimum temperature.
“MIN”and the value appear on the display.
4. Press the MAX MIN AVG button again to view the average temperature.
“AVG”and the value appear on the display.
5. Press the MAX MIN AVG button to return to normal operation.

TM-400
9
Operation (cont’d)
Using the Printer
Temperature readings can be printed on demand or at regular intervals automatically. The
interval range is from once every 3 seconds to once every 24 hours. Interval printing is
configured through the MENU button.
Installing the Paper
•Do not operate the printer without paper.
•Do not pull paper—use the FEED button.
•Do not pull paper backward through the printer.
•Do not run paper to the end of the roll if it has a core.
1. Gently pry open the paper spool door.
2. Evenly trim the end of the paper.
3. Insert the trimmed end of the paper so
that it feeds from the bottom of the
spool. Refer to the illustration.
4. While inserting the paper, press and
hold the FEED button until the paper
emerges.
If the paper jams, release the FEED
button and pull the paper carefully and
slowly backwards.
5. Place the paper roll in the cartridge.
6. Close the paper spool door.

10
Operation (cont’d)
Printing the Current Temperature
Press the PRINT button to print at anytime. The icon appears briefly. Time is in the 24-
hour format. The print format is as follows:
Line 1: hour:minute:second month–day
Line 2: thermocouple mode thermocoupletype value temperature units
Setting Up Interval Printing
Interval printing, date, and time are configured through the MENU button. The configuration
remains in memory and can be changed as needed. However, if you enable interval printing
through the MENU button (which limits the function to 24 hours), you will need to enter start
and stop times if they are different than the stored times.
Notes:
Use the or buttons to increase or decrease the flashing digit or to scroll through choices.
Pressing and releasing the buttons increases or decreases the value slowly. Pressing and
holding the buttons increases or decreases the value quickly.
After completing a step, use the button to advance to the next configuration or the button
to return to a previous configuration. The next parameter will flash on the display.
1. Turn the meter on.
2. Press the MENU button. The icon appears and “00”flashes.
3. To enable interval printing, press the button until “01”appears (“01”enables interval
printing; “00”disables interval printing).
4. When the thermocouple type flashes, press the or button to scroll through the
choices.
5. When the temperature unit (°C or °F) flashes, scroll through the choices.
6. When “HI ALARM”and the first digit(s) of the value flash, set the value at which the meter
will generate an alarm. Also set the last digits.
7. When “LO ALARM”and the first digit(s) of the value flash, repeat the previous step to set
the low alarm value.
8. When “TIME INTV”appears, set the frequency that you want to print the reading, in
hours, minutes, and seconds.
9. When “TIME”appears, set the time when interval printing is to start, in hours and
minutes. Time is entered in the 24-hour mode.

TM-400
11
Operation (cont’d)
Setting Up Interval Printing (cont’d)
10. When “TIME”appears, enter the time when interval printing is to stop, in hours and
minutes.
11. When “TIME YY”appears, enter the current year.
12. When “TIME m-d”appears, enter the current month and date.
13. When “TIME h:m”appears, enter the current time, in the 24-hour mode.
14. Pressing the button again returns to the first parameter, to enable or disable the interval
printer.
15. Press the MENU button to save your setup.
If you selected “01”in the first or last step to enable the printer, the icon appears briefly
while the printer prints out the start time, date, and the interval frequency. “INTV”remains on
the display until the function is disabled. Subsequent reports show the following format:
Line 1: hour:minute:second month–day
Line 2: thermocouple mode thermocouple type value temperature units
Using Interval Printing
Interval printing can be enabled in two ways. Once enabled, the printer will print a report based
on the frequency that was programmed in the setup. It will continue to print reports for up to
24 hours or until you stop it manually. You can bypass the 24-hour limitation. “INTV”appears
on the display when it is enabled.
Note: While interval printing is enabled, no other buttons, except PRINT and FEED, function.
To enable interval printing, do one of the following:
•Press and hold the PRINT button for 2 seconds. This method overrides the 24-hour
limitation, and the interval will be that which was programmed through the MENU button.
•Press the MENU button and then press the or button until “01”appears on the display
(“00”disables interval printing). Follow the steps under Setting Up Interval Printing to set
the start and stop times and other parameters if they are different than the stored
configuration. This method limits interval printing to 24 hours or less, depending on the
configured start and stop times.

12
Operation (cont’d)
Using Interval Printing (cont’d)
To disable interval printing, do one of the following:
•Turn the meter off.
•Press the PRINT or FEED button. The printer will print a last report that shows the start
time, date, and the interval frequency.
•Press the MENU button, press the or button until “00”appears on the display, and then
press the MENU button again to exit the function.
Changing the Thermocouple Type
1. Follow the steps under Setting Up Interval Printing until the thermocouple type flashes.
2. Use the or button to select the thermocouple type.
3. Press the MENU button to save the configuration.
Setting the Date and Time
1. Follow the steps under Setting Up Interval Printing until “TIME YY”appears.
2. Use the or button to set the date and time.
Use the button to advance to the next digit in the date or time.
3. Press the MENU button to save the configuration.
Viewing the Date and Time
1. Press the TIME button. The display momentarily shows month and day and then shows
hours and minutes in 24-hour mode.
2. Press to return to normal display.

TM-400
13
Accuracy
•See the Specifications section for operating conditions.
•Accuracy is specified as follows: ±(a percentage of the reading + a fixed amount) at 23 °C
±5 °C (73.4 °F ±9 °F), 0% to 80% relative humidity.
•The accuracy information is for the meter only; see the information sheet provided with
your temperature probe (purchased separately) for its accuracy.
Meter Accuracy Table
Measurement Range
Type K: –200 °C to 1333 °C (–328 °F to 2431 °F)
Type J: –200 °C to 760 °C (–328 °F to 1400 °F)
Type E: –200 °C to 703 °C (–328 °F to 1297 °F)
Type T: –200 °C to 400 °C (–328 °F to 752 °F)
Thermocouple °C Range Accuracy °F Range Accuracy
Type
K0 to 982 ±(0.01% + 0.5 °C) 32 to 1800 ±(0.01% + 0.9 °F)
982 to 1333 ±(0.05% + 0.5 °C) 1800 to 2431 ±(0.05% + 0.9 °F)
J 0 to 760 ±(0.01% + 0.5 °C) 32 to 1400 ±(0.01% + 0.9 °F)
E 0 to 703 ±(0.01% + 0.5 °C) 32 to 1297 ±(0.01% + 0.9 °F)
T 0 to 400 ±(0.01% + 0.5 °C) 32 to 752 ±(0.01% + 0.9 °F)
K, J, E, T –200 to 0 ±(0.01% + 0.7 °C) –328 to 32 ±(0.01% + 1.4 °F)

14
Specifications
Display: 4-1/2–digit LCD
Printer: Thermal printing, 16 characters per line, 38 mm x 9 m (1.5" x 29.5') thermal paper
(about 650 data printings per roll for print-on-demand, 1350 points for programmed
interval printing)
Sampling Rate: Approximately 1 per second
Temperature Coefficient:
0.1 x (Accuracy) per °C from 0 °C to 18 °C and 28 °C to 50 °C
0.055 x (Accuracy) per °F from 32 °F to 64 °F and 82 °F to 122 °F)
Resolution: 0.1 °C (0.1 °F)
Power Source: 6 AAA 1.5 V batteries (NEDA 24A or IEC LR03); or 9 V, 250 mA (min.)
external adapter, 3.5 mm O.D. (not included)
Power Source Battery Life:
Approximately 70 hours without printing or alarm beeper
Approximately 30 hours when printing at 60 minute interval, no beeper
Clock/Calendar Battery: 3 V lithium battery (NEDA 5004LC or IEC CR2032)
Overload Protection: 60 VDC, 24 V RMS
Operating Conditions: 0 °C to 50 °C (32 °F to 122 °F), 0% to 90% relative humidity
Elevation: 2000 m (6500') maximum
Indoor use only
Storage Conditions: –10 °C to 60 °C (14 °F to 140 °F), 0% to 70% relative humidity
Remove batteries

TM-400
15
Maintenance
Power Source Batteries
1. Turn the unit off.
2. Remove the screw from the battery cover.
3. Remove the battery cover.
4. Replace the batteries (observe polarity).
5. Replace the cover and the screw.
Clock/Calendar Battery
1. Remove the power source batteries.
2. Remove the four screws from the back of the unit.
3. Remove the back cover.
4. Replace the battery (observe polarity).
5. Replace the back cover and screws.
Note: The short screw is used inside the battery compartment.
6. Replace the power source batteries and cover.
Cleaning
Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or
solvents.
•Do not attempt to repair this unit. It contains no user-serviceable parts.
•Do not expose the unit to extremes in temperature or high humidity.
See Specifications.
Failure to observe these precautions can result in injury and can damage the unit.
Battery Replacement
Before opening the case, remove the accessories or thermocouples from the circuit
and shut off the unit.
Failure to observe this warning can result in severe injury or death.

16
Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070

TM-400
17
Descripción
El Medidor de temperatura con impresora modelo TM-400 de Greenlee es un instrumento de
verificación diseñado para medir temperatura en Celsio o Fahrenheit con el uso de
termocuplas tipos K, J, E y T. El medidor cuenta con una impresora térmica de 16 caracteres
por línea que puede imprimir automáticamente lecturas de temperaturas a cualquier intervalo
de 3 segundos a 24 horas. Esta unidad es de bolsillo y cabe perfectamente en la palma de la
mano.
Funciones y características especiales:
•Se adapta a una o dos termocuplas, vendidas por separado
•Lee temperaturas a T1, T2, la diferencia entre ambas, o recorre los tres modos de manera
automática
•Imprime lecturas a solicitud o automáticamente
Acerca de la seguridad
Es fundamental observar métodos seguros al utilizar y dar mantenimiento a las herramientas y
equipo Greenlee. Este manual de instrucciones y todas las marcas que ostenta la herramienta
le ofrecen la información necesaria para evitar riesgos y hábitos poco seguros relacionados
con su uso. Siga toda la información sobre seguridad que se proporciona.
Propósito de este manual
Este manual de instrucciones tiene como propósito familiarizar a todo el personal con los
procedimientos de operación y mantenimiento seguros para el Medidor de temperatura con
impresora modelo TM-400 de Greenlee.
Mantenga siempre este manual al alcance de todo el personal.
Puede obtener copias adicionales de manera gratuita, previa solicitud.
Greenlee y son marcas registradas de Greenlee Textron.
CONSERVE ESTE MANUAL

18
Importante Información sobre Seguridad
Lea y entienda este documento antes de manejar esta
herramienta o darle mantenimiento. Utilizarla sin comprender
cómo manejarla de manera segura podría ocasionar un accidente
y, como resultado de éste, graves lesiones o incluso la muerte.
Este símbolo se utiliza para indicar un riesgo o práctica poco segura que podría
ocasionar lesiones o daños materiales. Cada uno de los siguientes términos denota la
gravedad del riesgo. El mensaje que sigue a dichos términos le indica cómo puede
evitar o prevenir ese riesgo.
SÍMBOLO DE ALERTA
SOBRE SEGURIDAD
Peligros inmediatos que, de no evitarse, OCASIONARÁN graves lesiones o incluso la
muerte.
Peligros que, de no evitarse, PODRÍAN OCASIONAR graves lesiones o incluso la
muerte.
Peligro o prácticas peligrosas que, de no evitarse, PUEDEN OCASIONAR lesiones o
daños materiales.

TM-400
19
Importante Información sobre Seguridad
Peligro de electrocución e incendio:
•No exponga esta unidad ni a la lluvia ni a la humedad.
•No utilice esta unidad si se encuentra mojada o dañada.
•Utilice accesorios que sean apropiados para la aplicación que se va a realizar.
Consulte la información sobre categoría y voltaje nominal del cable de prueba o el
accesorio.
•Revise minuciosamente el accesorio antes de utilizarlo. Deberáestar limpio y seco,
y su forro aislante deberáhallarse en buenas condiciones.
•Utilícela únicamente para el propósito para el que ha sido diseñada por el fabricante,
tal como se describe en este manual. Cualquier otro uso puede menoscabar la
protección proporcionada por la unidad.
De no observarse estas advertencias pueden sufrirse graves lesiones o incluso la
muerte.
Peligro de electrocución:
•No aplique más del voltaje nominal entre dos terminales de entrada cualesquiera, o
entre una terminal de entrada cualquiera y una conexión a tierra.
•No toque ninguna parte del accesorio que carezca de forro aislante.
De no observarse estas advertencias pueden sufrirse graves lesiones o incluso la
muerte.
Peligro de electrocución:
El contacto con circuitos activados puede ocasionar graves lesiones
o incluso la muerte.

20
Importante Información sobre Seguridad
•No haga funcionar esta unidad con la caja abierta.
•Antes de abrir la caja, retire del circuito los accesorios o las termocuplas, y apague
la unidad.
De no observarse estas advertencias pueden sufrirse graves lesiones o incluso la
muerte.
•No intente reparar esta unidad, ya que contiene partes que deben recibir
mantenimiento por parte de un profesional.
•No exponga la unidad a ambientes de temperatura extrema o altos niveles de
humedad. Consulte las Especificaciones.
De no observarse estas precauciones podrían sufrirse lesiones o daños a la unidad.
Al utilizar esta unidad cerca de equipo que genere interferencia electromagnética
quizáse obtenga una lectura inexacta e inestable.
