Greenlee TG-100 User manual

999 3292.0 © 1999 Greenlee Textron IM 1430 8/99
TG-100 • TG-200
• TG-300
TEMPERATURE GUNS
PISTOLAS DE
TEMPERATURA
PISTOLETS À
TEMPÉRATURE
INSTRUCTION MANUAL
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTIONS
Read and understand all of the instructions and safety
information in this manual before operating or servicing this tool.
Lea y entienda todas las instrucciones y la información sobre
seguridad que aparecen en este manual, antes de manejar estas
herramientas o darles mantenimiento.
Lire attentivement et bien comprendre toutes les instructions et
les informations sur la sécurité de ce manuel avant d‘utiliser ou de
procéder à l‘entretien de cet outil.

2
Description
The Greenlee TG-100, TG-200 and TG-300 temperature guns are hand-held temperature
sensing devices. The non-intrusive measuring capability of these units is safer and quicker
than other methods, and is well suited to checking circuit breakers, motors, HVAC equipment,
engines, etc.
TG-100, TG-200 and TG-300 temperature guns measure temperature by gathering three forms
of energy —emitted, transmitted and reflected —from an object and translating that energy
into a temperature.
Each of these units has a laser feature to assist in aiming.
Safety
Safety is essential in the use and maintenance of Greenlee tools and equipment. This
instruction manual and any markings on the tool provide information for avoiding hazards and
unsafe practices related to the use of this tool. Observe all of the safety information provided.
Purpose
This instruction manual is intended to familiarize all personnel with the safe operation and
maintenance procedures for the Greenlee TG-100, TG-200 and TG-300 temperature guns.
Keep this manual available to all personnel.
Replacement manuals are available upon request at no charge.
and are registered trademarks of Greenlee Textron.
KEEP THIS MANUAL

TG-100 • TG-200 • TG-300
3
Important Safety Information
This symbol is used to call your attention to hazards or unsafe practices which could
result in an injury or property damage. The signal word, defined below, indicates the
severity of the hazard. The message after the signal word provides information for
preventing or avoiding the hazard.
SAFETY ALERT SYMBOL
Immediate hazards which, if not avoided, WILL result in severe injury or death.
Hazards which, if not avoided, COULD result in severe injury or death.
Hazards or unsafe practices which, if not avoided, MAY result in injury or property
damage.
Read and understand this material before operating or servicing
this equipment. Failure to understand how to safely operate this
tool can result in an accident causing serious injury or death.

4

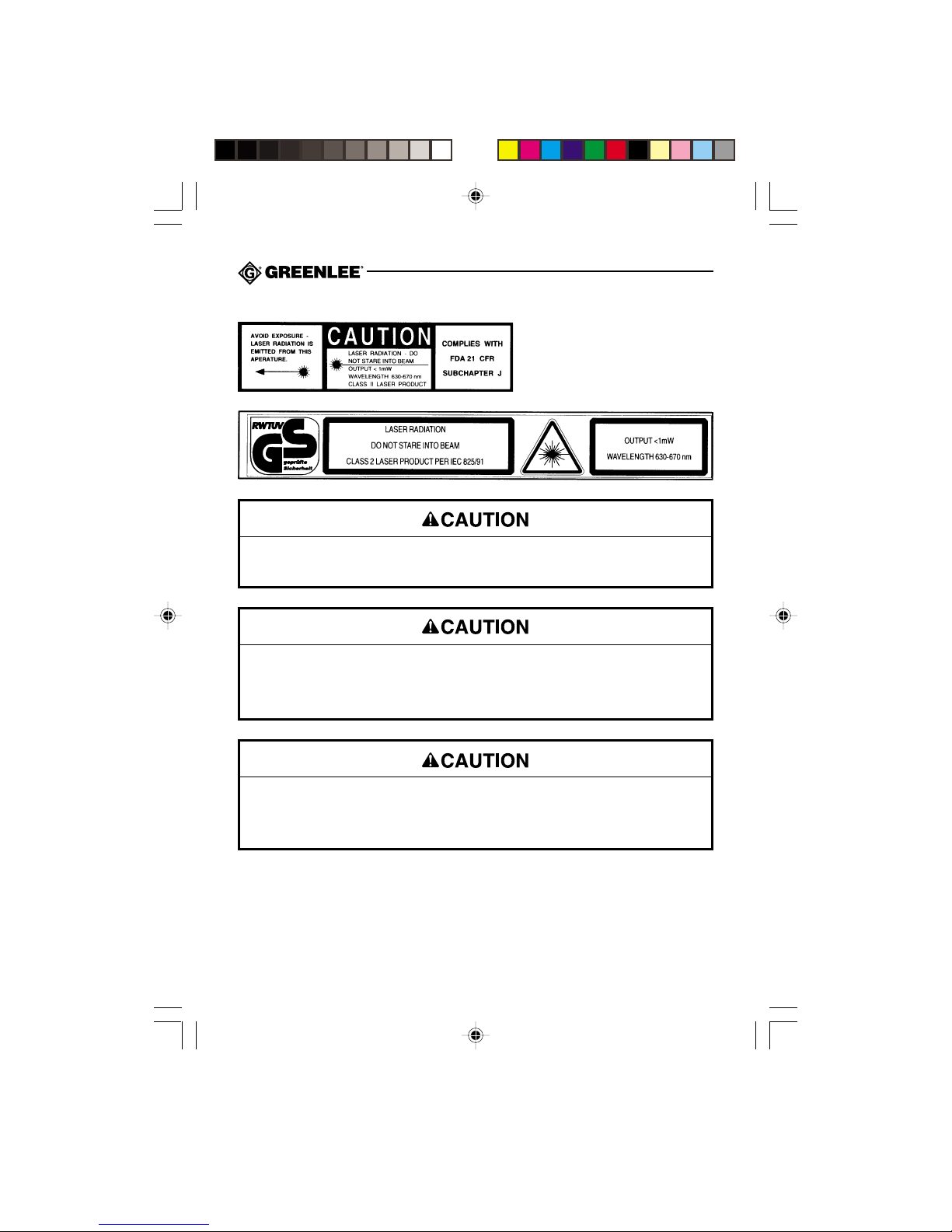

Important Safety Information
•Do not operate with the case open.
•Before opening the case, release the trigger.
Failure to observe these precautions can result in injury and can damage the unit.
•Do not attempt to repair this unit. It contains no user-serviceable parts.
•Do not expose the unit to extremes in temperature or high humidity.See Specifications.
Failure to observe these precautions can result in injury and can damage the unit.
Do not use the unit if it is wet or damaged.
Failure to observe this warning can result in severe injury or death.

TG-100 • TG-200 • TG-300
5
Important Safety Information
•Temperature readings will be inaccurate on highly reflective objects.
•Temperature readings will be inaccurate on objects if emissivity is not adjusted
properly. Follow masking and emissivity adjustment procedures.
Failure to observe these precautions can result in injury or property damage.
Using this unit near equipment that generates electromagnetic interference can result
in unstable or inaccurate readings.

6

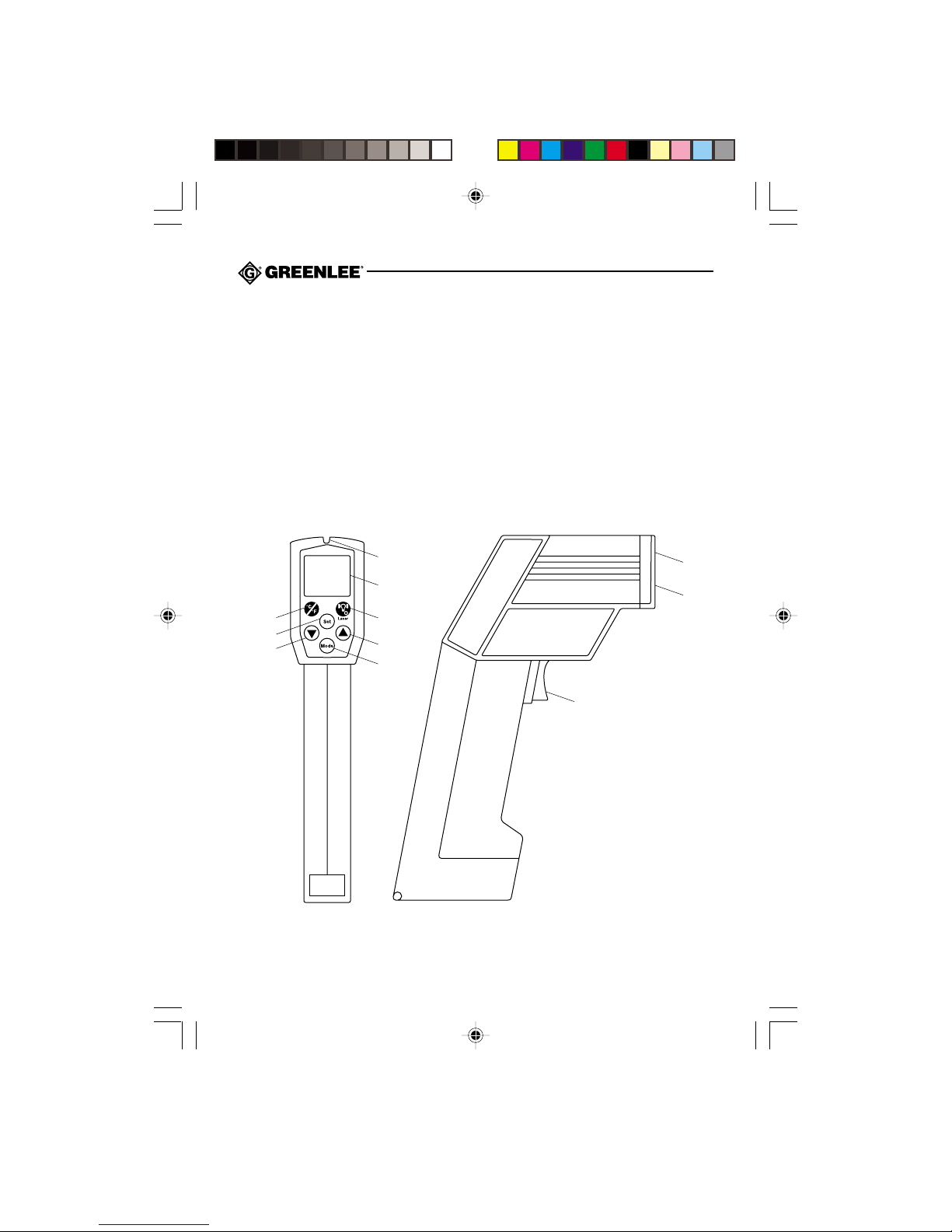

Identification
All Models
1. Laser and Backlight (ON) Button
2. Display
3. Sighting Groove
4. Celsius/Fahrenheit Selector
5. Temperature Sensor
6. Laser
7. Trigger
TG-200 and TG-300 Models
8. Set Button
9. Set Point Increase Button
10. Mode Selector
11. Set Point Decrease Button
4
8
11
1
2
3
9
10
5
6
7

TG-100 • TG-200 • TG-300
7
Display Icons
12. Temperature Indicator
13. Laser ON Indicator
14. Scan or Hold Indicator
15. Emissivity Value
16. Backlight ON Indicator
17. Celsius or Fahrenheit Indicator
18. Low Battery Indicator
19. High/Low Alarm ON Indicator
20. Mode Temperature Indicator and Alarm Set Points
21. Mode Indicator

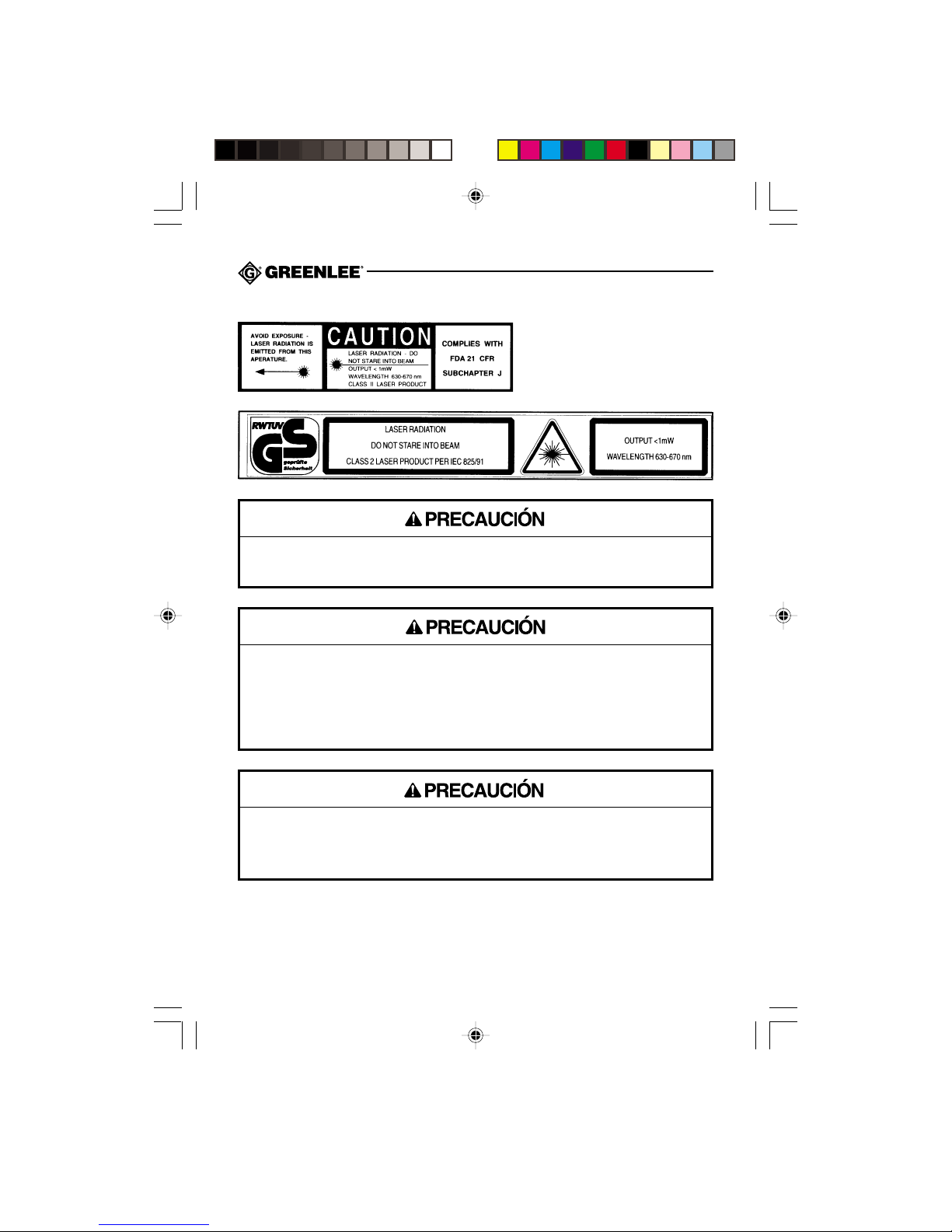

Symbols on Unit
Laser radiation is emitted from this unit.
13
12
17
18
19
2021
14 15 16

8
Using the Features
Using Basic Features (all models)
•To use the Laser and Backlight button: Press the trigger, then press the Laser or Backlight
ON/OFF button.
Note: The sequence is —Backlight ON, Backlight and Laser ON, Backlight and Laser OFF.
•To change between Celsius and Fahrenheit: Press the trigger, then press the C/F selector.
Measure only surface temperatures. To measure internal temperatures of liquids or food, stir
contents before measuring.
Using Advanced Features (TG-200 and TG-300 only)
Press the trigger, then press the Mode button to access the advanced features. They appear in
this order: Maximum (MAX), Minimum (MIN), Difference (DIF), Average (AVG), High Alarm
Point (HAL), Low Alarm Point (LAL) and Emissivity (EMS).
After selecting an operating mode, proceed to take readings as instructed under the Operation
section.
Note: When using the MAX, MIN, DIF or AVG modes, press and hold (DO NOT RELEASE)
the trigger, and scan the objects to be measured.
The AVG Feature acts as a filter to eliminate noise fluctuations from the temperature readings.
It is not an arithmetic mean, but rather a rolling weighted average of the readings that smooths
the data and avoids sudden spikes.
After selecting the HAL or LAL mode, use the ▼or ▲button to set the alarm point. To enable
or disable the alarm, press the Set button while pressing the trigger. When enabled, HI or
LO will appear on the display. A tone will sound and temperature indicator flashes if the
temperature is over (HAL —HI flashes) or under (LAL —LO flashes) the set
temperature.
After the unit shuts off, press Mode to review stored data.
•MAX stores the highest temperature among several readings.
•MIN stores the lowest temperature among several readings.
•DIF stores the difference between two readings.
•HAL and LAL detect a temperature that is above or below a particular level.
Note: Values for MAX, MIN, DIF and AVG are reset each time the trigger is released and then
pressed and held again. AVG is a running average of all temperature values from the time the
trigger is pressed until the trigger is released.

TG-100 • TG-200 • TG-300
9

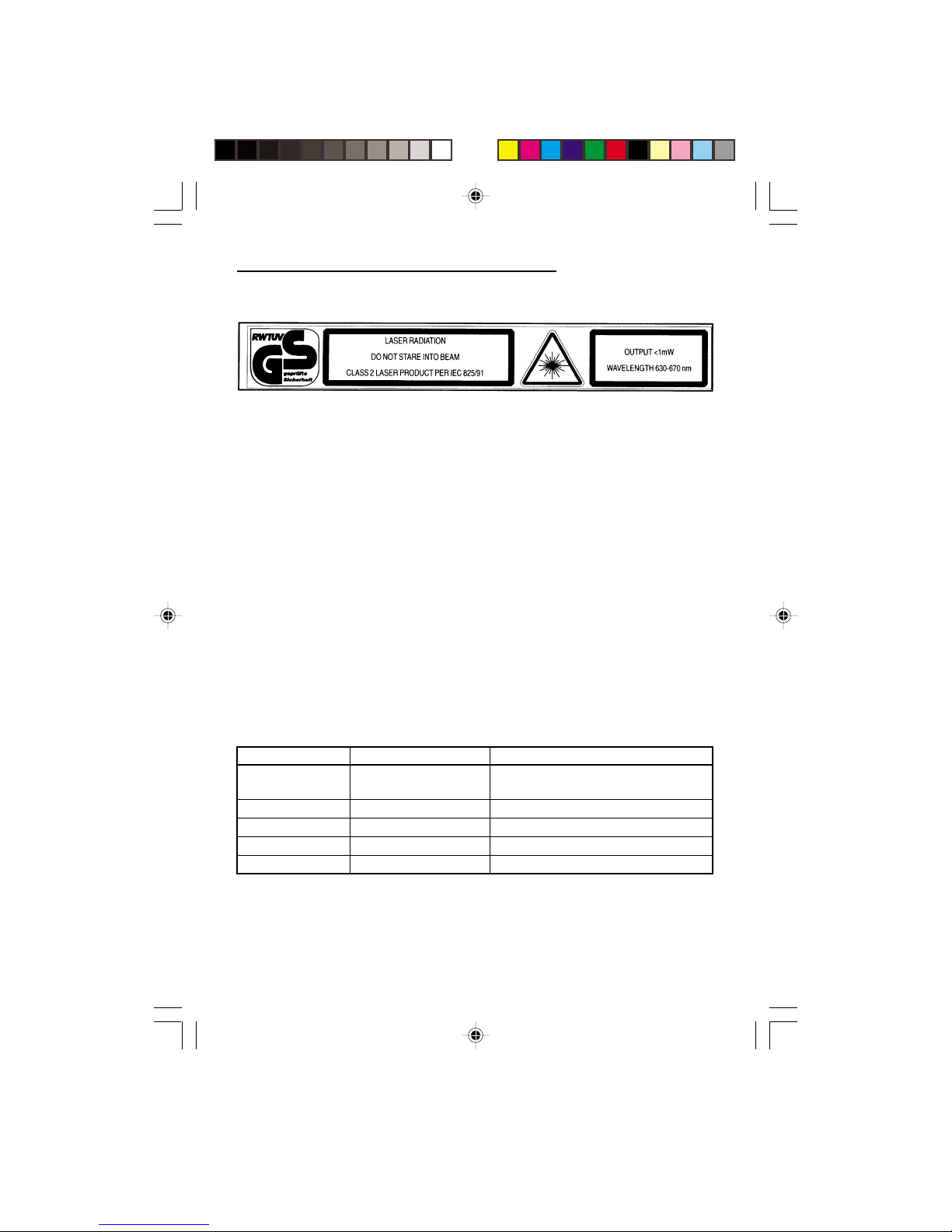

Operation
1. See Typical Measurements for specific measuring instructions.
2. Test the unit on an object with a known temperature.
•If the unit does not function as expected on an object of known temperature, replace
the battery.
•If the unit still does not function as expected, send the unit to Greenlee for repair.
3. Point the temperature sensor at the object to be measured. Press the trigger. “SCAN”and
the temperature scale indicator will appear on the display.
4. Release the trigger. “SCAN”will disappear and “HOLD”will appear to indicate that the unit
is holding the last recorded temperature on the display.
To change between Celsius and Fahrenheit: Press the trigger, then press the C/F selector.
To perform other functions, see the Using Advanced Features section.
Locating a Hot Spot
To find a hot spot, aim the gun outside the area of interest, then scan across with an up and
down motion.
Troubleshooting
Code Problem Action
888 Target temperature is Select target within unit’s specifications
over or under range
ERR Processor/EEprom failure Send unit to Greenlee for repair
Battery icon Battery is low Replace battery
Blank display Battery is dead Replace battery
Laser won’t work Low or dead battery Replace battery

10
Typical Measurements
Electronics
HVAC
Power Distribution

TG-100 • TG-200 • TG-300
11
Distance from Target
Temperature guns measure the surface temperature of an object by sensing its emitted,
reflected and transmitted energy. The sensor collects this energy from the area being
measured (spot size). The spot size varies as the distance to the target changes. The farther
the distance from the area being targeted, the larger the spot size.
When determining the appropriate distance from the object, the spot size must be somewhat
smaller than the target area. When accuracy is critical, the spot size should be half as large as
the target. If the spot size is larger than the target size, the thermometer will pick up the
temperature of the background, resulting in inaccurate readings.
25 mm @
150 mm
125 mm @
1 m
200 mm @
1.5 m
8" @ 5'
4.5" @ 3'
1" @ 6"
D:S = 8:1 at Focus Point
Nominal Spot Diameter at 90% Energy
18 mm @
30 cm
33 mm @
1 m
67 mm @
2 m
2.4" @ 6'
1.2" @ 3'
0.7" @ 1'
D:S = 30:1 at Focus Point
Nominal Spot Diameter at 90% Energy
Note: The distance-to-spot size ratio (D:S) is outlined in the diagram on the side of the unit.
TG-100 and TG-200 TG-300
1 2
Object 1 is the correct distance
from the unit. Note the target is
slightly larger than the spot size
being measured.
Object 2 is too far away. The
thermometer also measures the
background because the target is
smaller than the instrument’s
spot size. This can result in an
inaccurate reading.

12
Emissivity
Emissivity is the ability of an object to emit heat. Most objects or surfaces have an emissivity
value of about 0.95. This is the pre-set emissivity value of the TG-100.
Some objects, such as polished or shiny metallic surfaces, may have much lower emissivity.
Using a temperature gun to measure the temperature of such objects will produce inaccurate
results.
TG-100
To determine the effect of emissivity on the measurement, cover the surface with masking
tape or flat black paint. (Be sure to use tape or paint that can withstand the anticipated
temperature.) The emissivity of both these materials is about 0.95. Allow time for the tape or
paint to reach the temperature of the material underneath. Measure the covered area and a
nearby area. The readings should be about the same. If they are not, the emissivity may affect
your measurements.
TG-200 and TG-300
•If the temperature of the surface is known, adjust the emissivity until the unit agrees with
the known temperature.
•If the material of the surface is known, adjust the emissivity according to the Common
Emissivities table on the following page.
•Otherwise, mask the surface as described above. Measure temperature of the masked area
with emissivity set at 0.95. Measure temperature of unmasked surface and adjust emissivity
until temperatures agree. Write down emissivity value for future readings on this surface.
•Temperature readings will be inaccurate on highly reflective objects.
•Temperature readings will be inaccurate on objects if emissivity is not adjusted
properly. Follow masking and emissivity adjustment procedures.
Failure to observe these precautions can result in injury or property damage.

TG-100 • TG-200 • TG-300
13
* oxidized
** opaque, over 0.51 mm (0.0020") thick
*** natural
Material Emissivity
Aluminum 0.30
Asbestos 0.95
Asphalt 0.95
Basalt 0.70
Brass* 0.50
Brick 0.90
Carbon 0.85
Ceramic 0.95
Concrete 0.95
Copper* 0.95
Dirt 0.94
Food (frozen) 0.90
Food (hot) 0.93
Glass (plate) 0.85
Ice 0.98
Common Emissivities
Material Emissivity
Iron* 0.70
Lead* 0.50
Limestone 0.98
Oil 0.94
Paint 0.93
Paper 0.95
Plastic** 0.95
Rubber 0.95
Sand 0.90
Snow 0.90
Steel* 0.80
Textiles 0.94
Water 0.93
Wood*** 0.94
Accuracy
Accuracy Table
Degrees Celsius Degrees Fahrenheit Accuracy
100 and above 212 and above ±1%
25 to 100 77 to 212 ±1 °C (±2 °F)
–18 to 25 0 to 77 ±2 °C (±3 °F)
–26 to -18 –15 to 0 ±2.5 °C (±4 °F)
–32 to –26 –25 to –15 ±3 °C (±5 °F)

14
Specifications
Display: 3-1/2–digit LCD (199.9 or 1999 maximum display)
Response Time: 500 milliseconds., 95% response
Target Temperature Range:
TG-100: –32 °C to 400 °C (–25 °F to 750 °F)
TG-200: –32 °C to 500 °C (–25 °F to 932 °F)
TG-300: –32 °C to 540 °C (–25 °F to 1000 °F)
Spectral Response:
TG-100 and TG-200: 7 to 18 µm
TG-300: 8 to 14 µm
Emissivity:
TG-100: Preset at 0.95
TG-200 and TG-300: 0.3 to 1.0 digitally adjustable
Ambient/Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)*
Relative Humidity: 10% to 95% (noncondensing)
Storage Conditions: –25 °C to 70 °C (–13 °F to 158 °F)*. Remove battery.
Battery: 9-Volt (NEDA 1604, JIS 006P or IEC 6F22)
*For improved accuracy, allow unit 30 minutes to adjust to large change in temperature.

TG-100 • TG-200 • TG-300
15
1. Slide up the battery case cover, located in the lower inside portion of the handle.
2. Remove the case cover and shake out the battery.
3. Replace the battery (observe polarity) and return it to the battery case.
4. Replace the battery case cover.
Before opening the case, release the trigger.
Failure to observe this warning can result in severe injury or death.
Battery Replacement

16
Descripción
Las Pistolas de temperatura modelos TG-100, TG-200 y TG-300 son dispositivos termosensibles
de bolsillo y caben perfectamente en la palma de la mano. La capacidad de medición no intrusiva
de estas unidades representa un método más seguro y rápido que otros, y es adecuada para
verificar interruptores automáticos, motores, equipo de calefacción y aire acondicionado (HVAC,
por sus siglas en inglés), máquinas, etc.
Las Pistolas de temperatura modelos TG-100, TG-200 y TG-300 miden la temperatura captando
tres formas de energía (emitida, transmitida y reflejada) en un objeto determinado, y convirtién-
dolas a temperatura.
Cada una de estas unidades cuenta con un haz láser para facilitar la medición.
Acerca de la seguridad
Es fundamental observar métodos seguros al utilizar y dar mantenimiento a las herramientas y
equipo Greenlee. Este manual de instrucciones y todas las marcas que ostenta la herramienta le
ofrecen la información necesaria para evitar riesgos y hábitos poco seguros relacionados con su
uso. Siga toda la información sobre seguridad que se proporciona.
Propósito de este manual
Este manual de instrucciones tiene como propósito familiarizar a todo el personal con los pro-
cedimientos de operación y mantenimiento seguros para las Pistolas de temperatura modelos
TG-100, TG-200 y TG-200 de Greenlee.
Mantenga siempre este manual al alcance de todo el personal.
Puede obtener copias adicionales de este manual de manera gratuita, previa solicitud.
y son marcas registradas de Greenlee Textron.
CONSERVE ESTE MANUAL

TG-100 • TG-200 • TG-300
17
Importante Información sobre Seguridad
Este símbolo se utiliza para indicar un riesgo o práctica poco segura que podría
ocasionar lesiones o daños materiales. Cada uno de los siguientes términos denota la
gravedad del riesgo. El mensaje que sigue a dichos términos le indica cómo puede evitar
o prevenir ese riesgo.
SÍMBOLO DE ALERTA
SOBRE SEGURIDAD
Peligros inmediatos que, de no evitarse, OCASIONARÁN graves lesiones o incluso la
muerte.
Peligros que, de no evitarse, PODRÍAN OCASIONAR graves lesiones o incluso la muerte.
Peligro o prácticas peligrosas que, de no evitarse, PUEDEN OCASIONAR lesiones o
daños materiales.
Lea y entienda este documento antes de manejar estas
herramientas o darles mantenimiento. Utilizarlas sin comprender
cómo manejarlas de manera segura podría ocasionar un accidente
y, como resultado de éste, graves lesiones o incluso la muerte.

18
Importante Información sobre Seguridad
No utilice estas unidades si se encuentran mojadas o dañadas.
De no observarse esta advertencia pueden sufrirse graves lesiones o incluso la muerte.
• No intente reparar estas unidades, ya que contienen piezas que deben recibir
mantenimiento por parte de un profesional.
• No exponga estas unidades a ambientes de temperatura extrema o altos niveles de
humedad; consulte las “Especificaciones”.
De no observarse estas precauciones podrían sufrirse lesiones o daños a las unidades.
• No haga funcionar estas unidades con la caja abierta.
• Antes de abrir la caja, suelte el gatillo.
De no observarse estas precauciones podrían sufrirse lesiones o daños a las unidades.

TG-100 • TG-200 • TG-300
19
Importante Información sobre Seguridad
• Las lecturas de temperatura serán inexactas cuando se midan objetos de alta reflexión.
• Las lecturas de temperatura serán inexactas cuando se midan objetos en que no se
haya ajustado correctamente la emisividad. Siga los procedimientos de ajuste de
emisividad y protección con cinta adhesiva.
De no observarse estas precauciones pueden sufrirse graves lesiones o daños materiales.
Al utilizar estas unidades cerca de equipo que genere interferencia electromagnética quizá
se obtenga una lectura inexacta e inestable.

20
Identificación
Todos los modelos
1. Botón de encendido (ON) para haz de
láser y luz de fondo
2. Pantalla
3. Mirilla
4. Selector de grados Celsio/Fahrenheit
5. Sensor de temperatura
6. Láser
7. Gatillo
Modelos TG-200 y TG-300
8. Botón “Establecer”
9. Botón “Aumentar punto de
concentración”
10. Selector de modo
11. Botón “Disminuir punto de
concentración”
4
8
11
1
2
3
9
10
5
6
7
